Message ID: 301     Entry time: Sat May 8 09:05:04 2021
Author: TD
Subject: Saturday 8 May

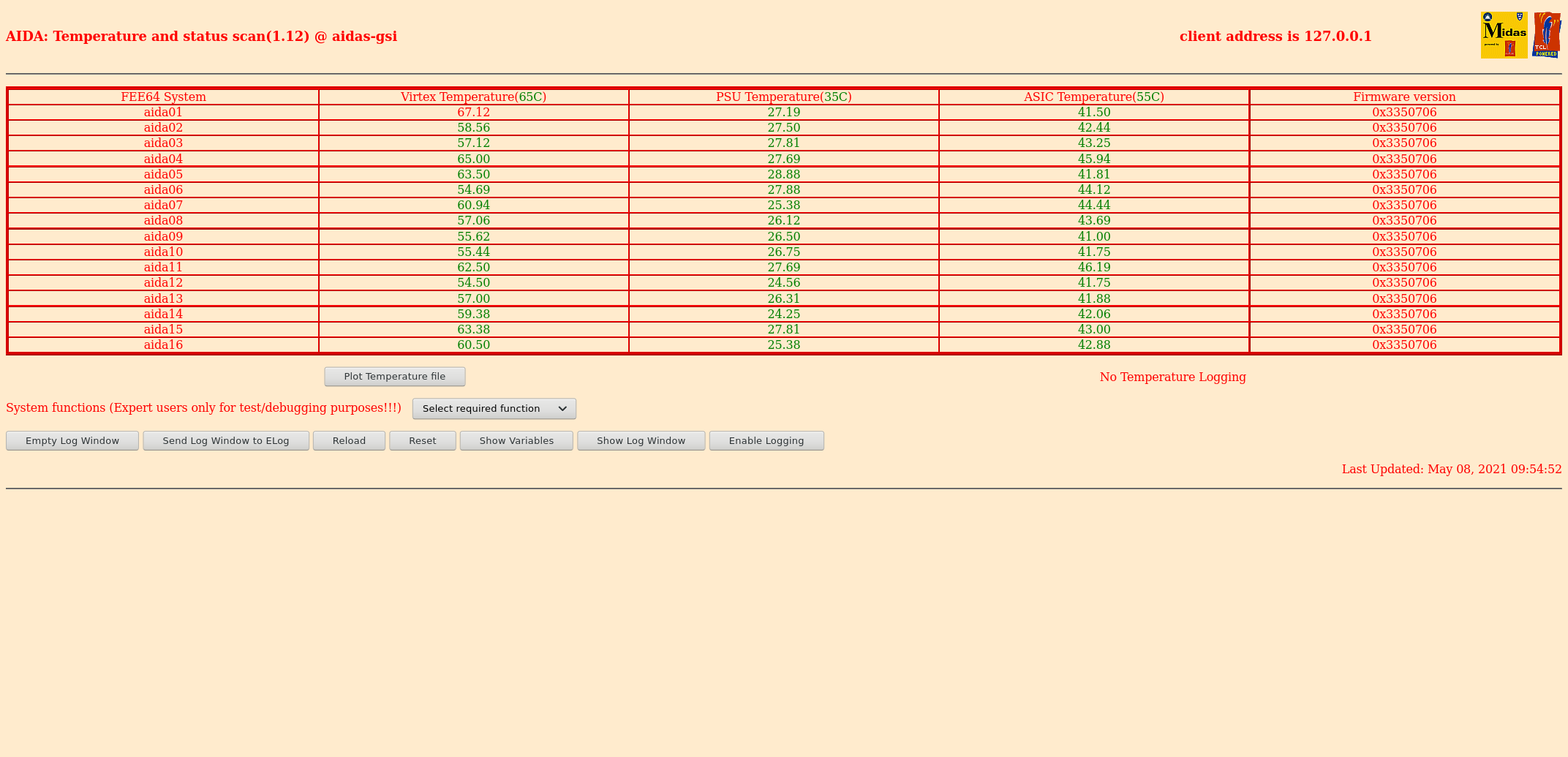

09.54 FEE64 temperatures OK - attachment 1
      ADC data item stats OK - attachment 2
       p+n FEE64s 11x <100k, 1x <200k

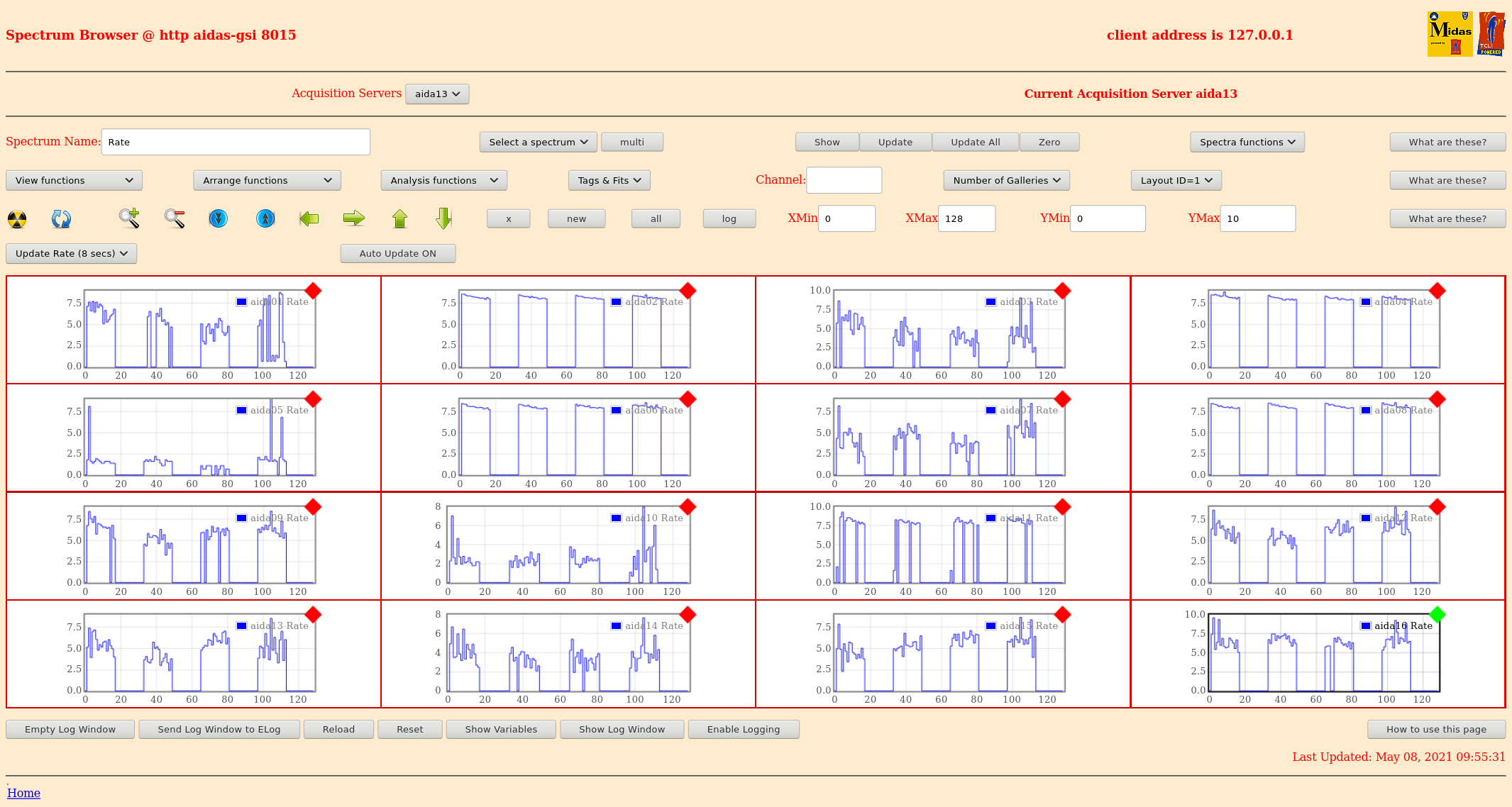

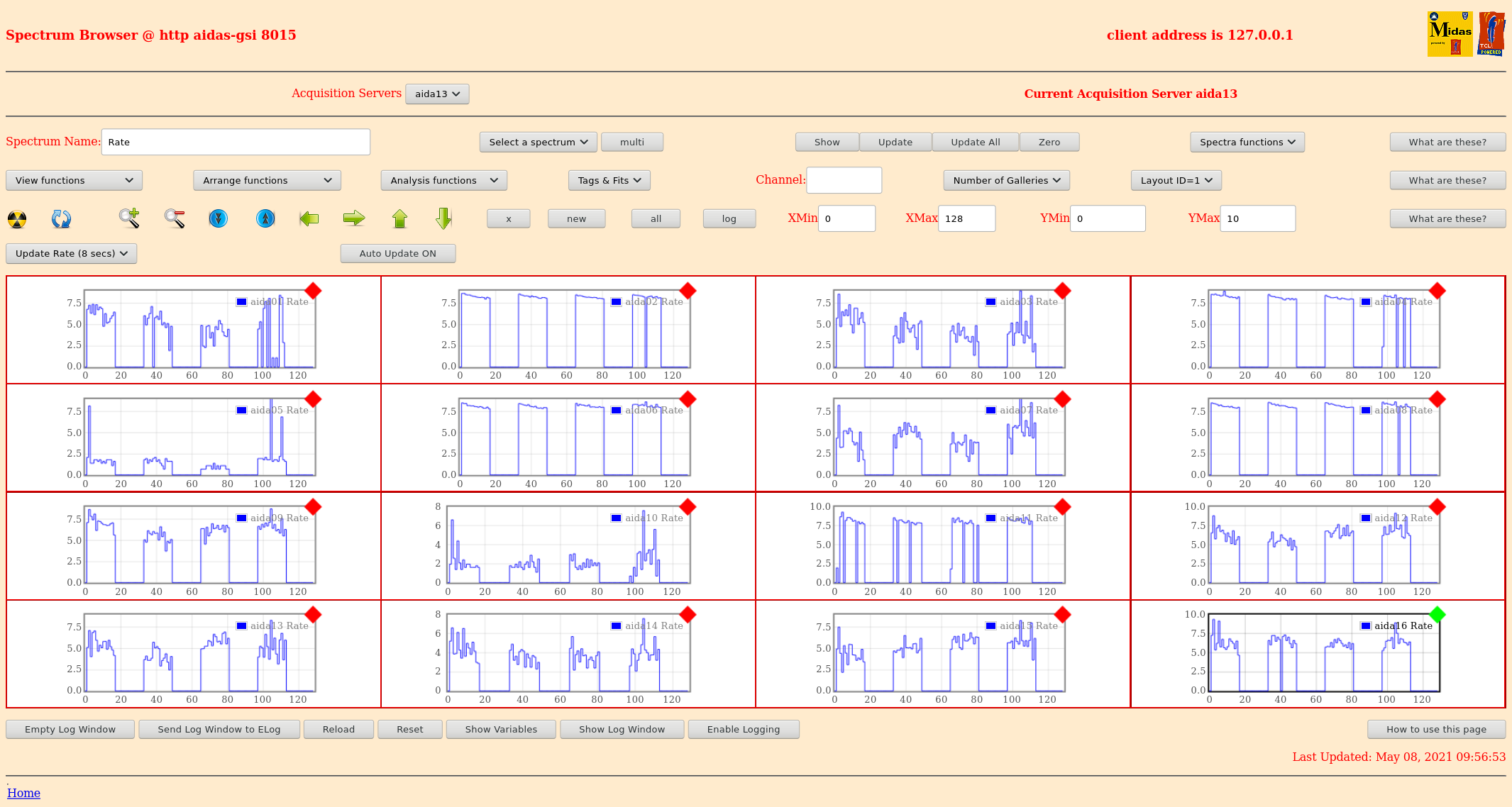

      Rate spectra - attachments 3 & 4
       before and after ASIC check load

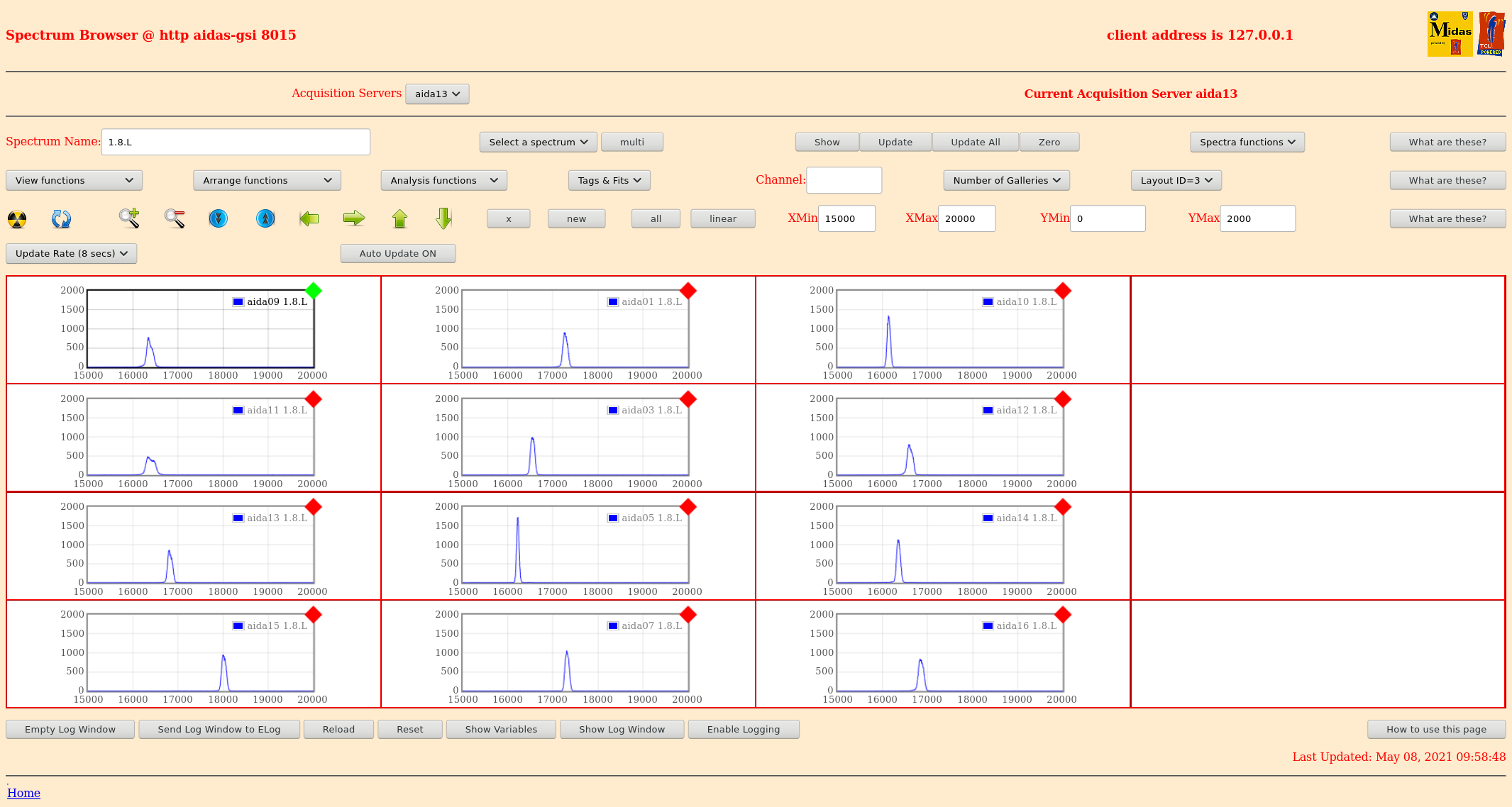

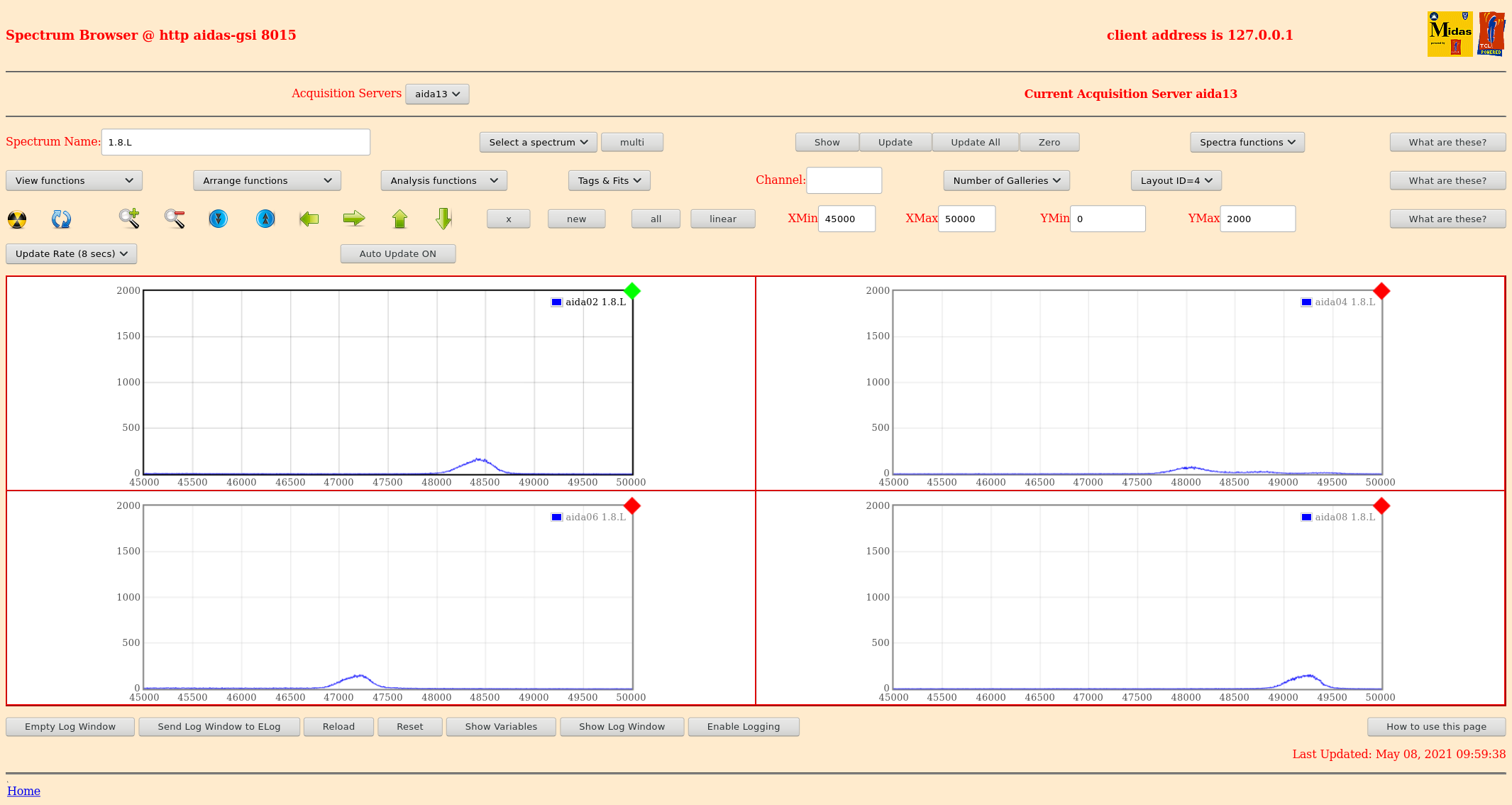

      1.8.L spectra - attachments 5 & 6

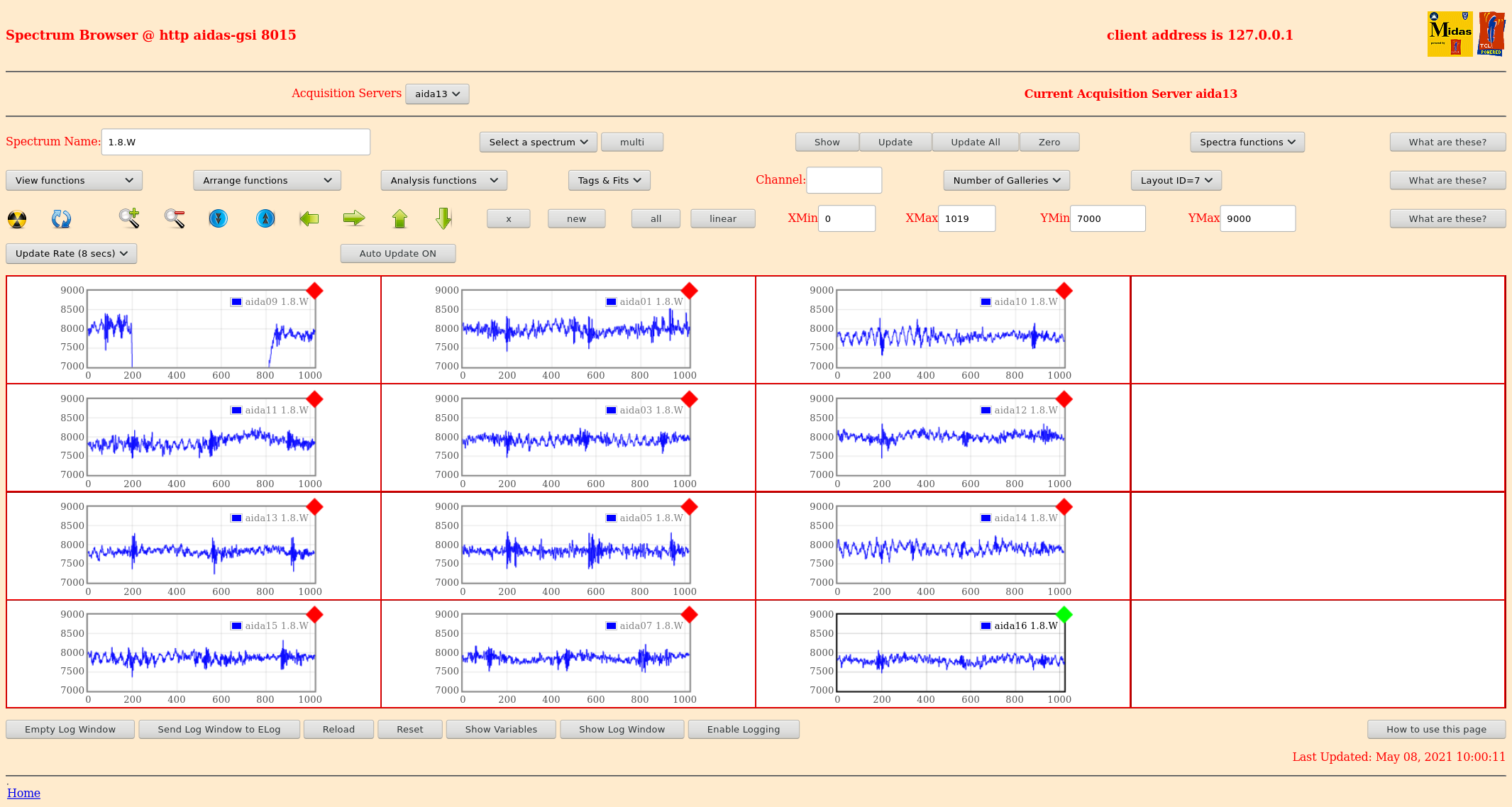

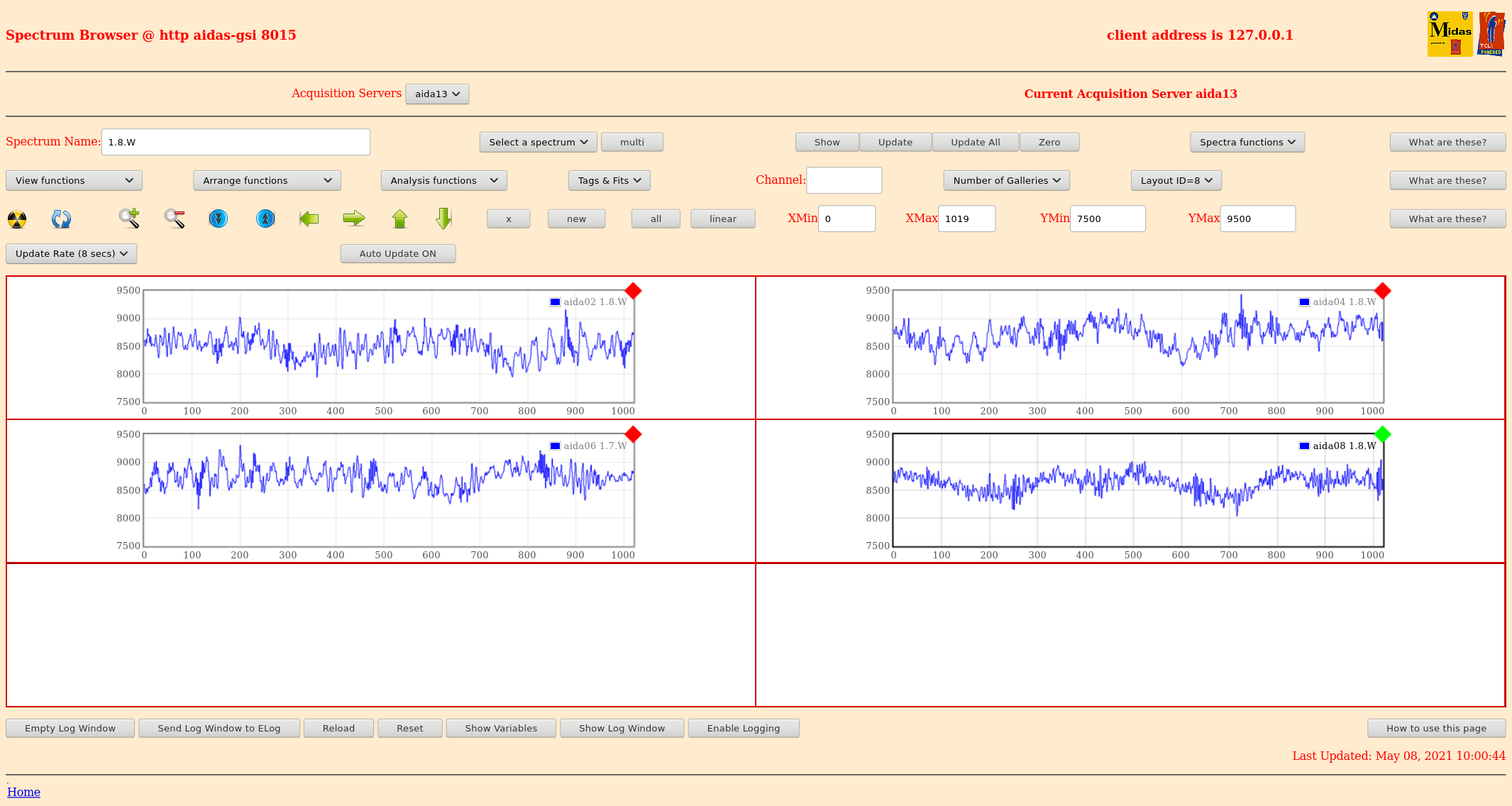

      1.8.W spectra 20us FSR - attachments 7 & 8

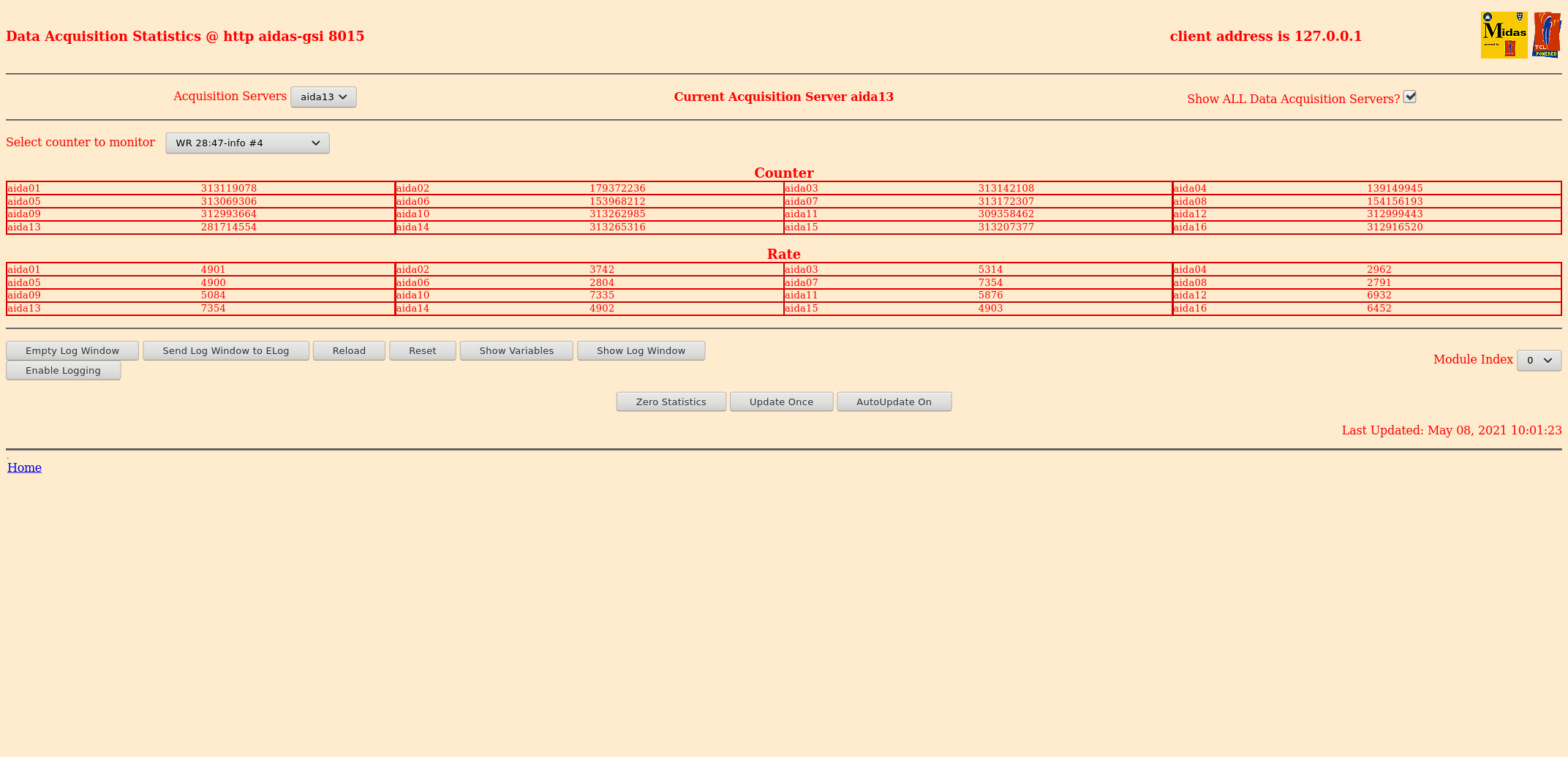

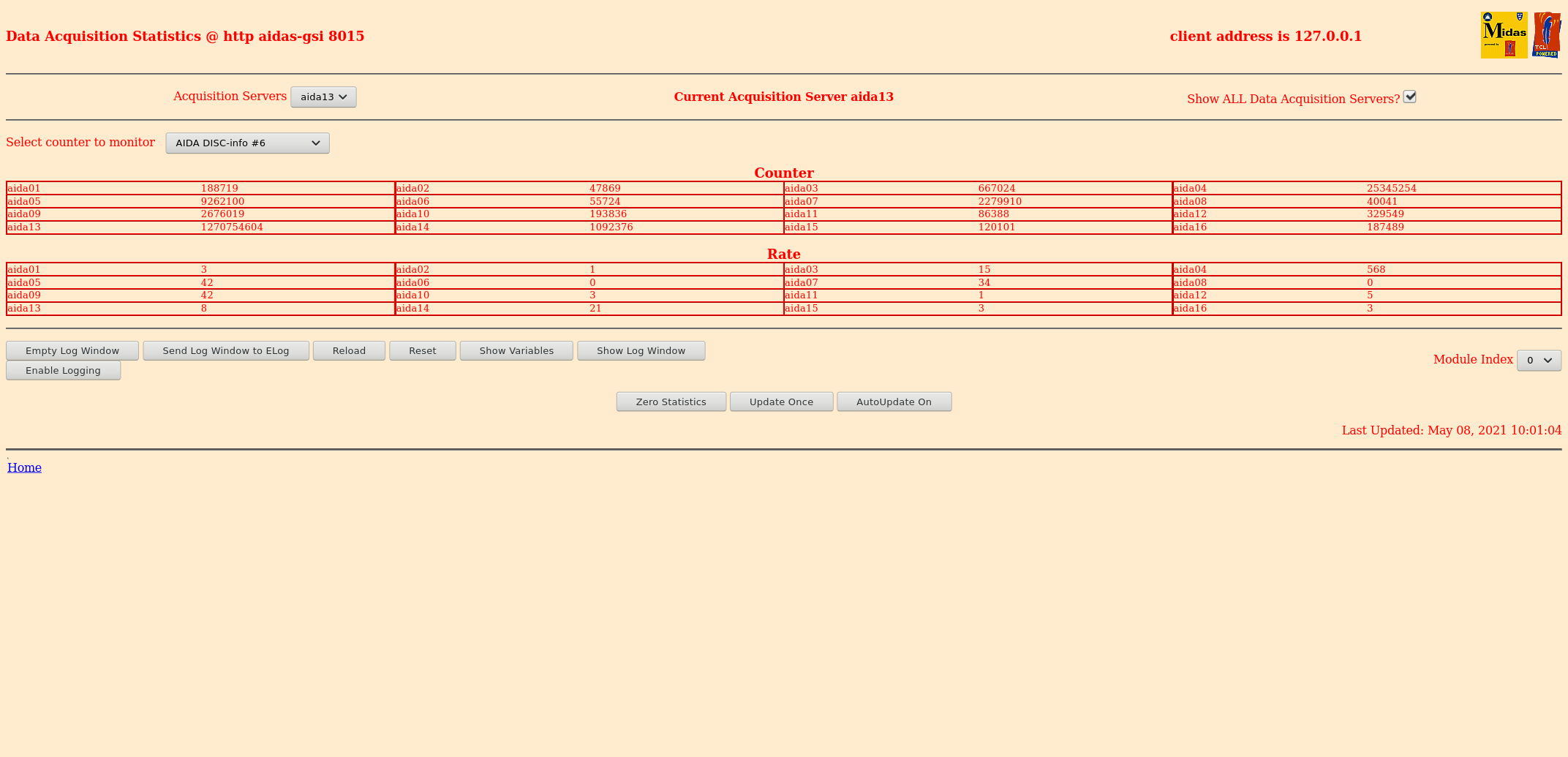

      Disc, WR-28-47, pause, resume info data items - attachments 9-12
       note large number pause/resume for aida13 - legacy numbers since last restart/zero?
       attachment 16 for pause stats since stats zero at 10.02 - looks OK
      Grafana DSSSD bias & leakage currents for most recent 48h OK - atatchment 13
      DSSSD bias & leakage currents - attachment 14
      Merger stats/merger/tape server messages - attachment 15

10.02 All histograms and stats zero'd

10.06 All system wide checks OK *except*

 Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

 FEE : aida01 =>   Options file size is 1026 	 Last changed Thu May 06 15:29:51 CEST 2021
 FEE : aida02 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:46 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:53 CEST 2021
 FEE : aida05 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:55 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Wed May 05 12:15:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

10.25 Pulser peak width aida01 97 ch FWHM, aida02 350 ch FWHM
       peak widths are increasing cf. earlier this week - see https://elog.ph.ed.ac.uk/DESPEC/291 , https://elog.ph.ed.ac.uk/DESPEC/298
