Message ID: 365
Entry time: Sat Jun 12 13:56:00 2021
|
| Author: |
TD |
| Subject: |
Saturday 12 June |
|
|
14.11 DAQ continues file S496/R32_697
High data rate from c. 06.00 this morning
ASIC check
System wide checks OK *except*
Base Current Difference
aida01 fault 0x8944 : 0x8948 : 4
aida02 fault 0x9b36 : 0x9b3a : 4
aida03 fault 0xf26b : 0xf26f : 4
aida04 fault 0x57a0 : 0x57a4 : 4
aida05 fault 0x4d3c : 0x4d3e : 2
aida05 : WR status 0x10
aida06 fault 0x640c : 0x640e : 2
aida07 fault 0x255e : 0x2560 : 2
aida08 fault 0xffbd : 0xffbf : 2
White Rabbit error counter test result: Passed 8, Failed 8
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Base Current Difference
aida12 fault 0x0 : 0x21be : 8638
aida13 fault 0x0 : 0x2294 : 8852
FPGA Timestamp error counter test result: Passed 14, Failed 2
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 33 10 9 2 5 4 2 2 2 4 6 : 37604
aida02 : 46 12 7 2 4 4 3 2 2 4 6 : 37832
aida03 : 34 10 9 5 4 3 1 3 3 3 6 : 36744
aida04 : 35 12 10 1 3 4 2 3 3 3 6 : 36972
aida05 : 37 9 8 3 4 4 2 2 2 4 6 : 37564
aida06 : 34 10 5 5 4 2 2 3 2 4 6 : 37832
aida07 : 31 11 1 7 4 2 3 2 2 4 6 : 37572
aida08 : 40 7 4 5 3 4 3 2 2 4 6 : 37752
aida09 : 39 9 8 4 1 3 3 2 2 4 6 : 37540
aida10 : 43 12 8 4 4 3 3 3 1 4 6 : 37260
aida11 : 34 14 10 5 3 4 3 3 1 4 6 : 37368
aida12 : 46 12 3 4 4 4 3 3 1 4 6 : 37320
aida13 : 41 11 5 4 5 3 3 3 1 4 6 : 37260
aida14 : 39 10 2 6 4 4 3 3 1 4 6 : 37324
aida15 : 19 12 4 3 2 2 3 2 2 4 6 : 37324
aida16 : 45 10 6 4 5 3 3 3 1 4 6 : 37284
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1026 Last changed Fri Jun 04 09:30:42 CEST 2021
FEE : aida02 => Options file size is 1025 Last changed Sun May 23 00:19:21 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1025 Last changed Fri May 14 16:54:56 CEST 2021
FEE : aida05 => Options file size is 1025 Last changed Mon May 17 06:25:41 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1025 Last changed Sun May 23 00:16:54 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021

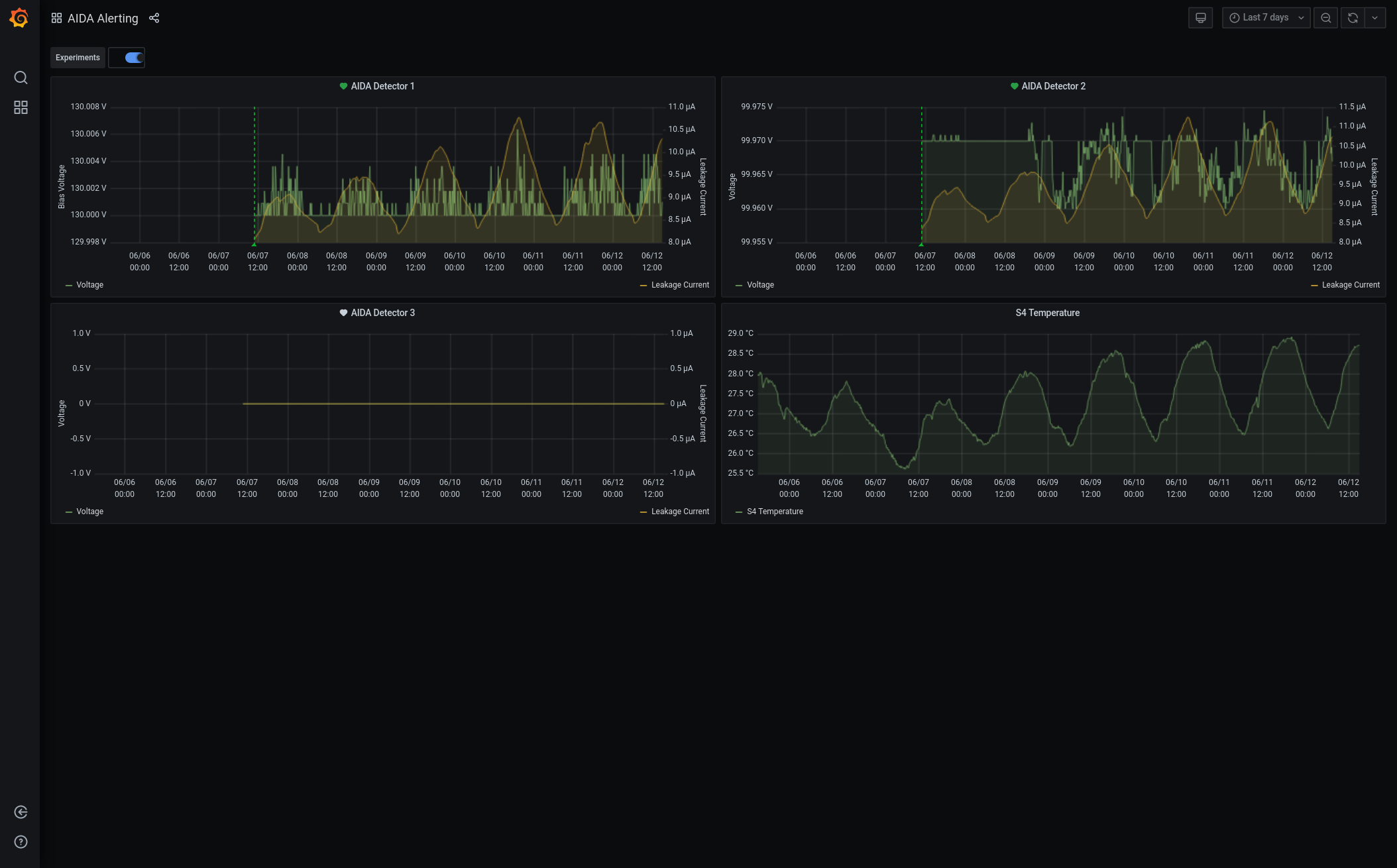

Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1

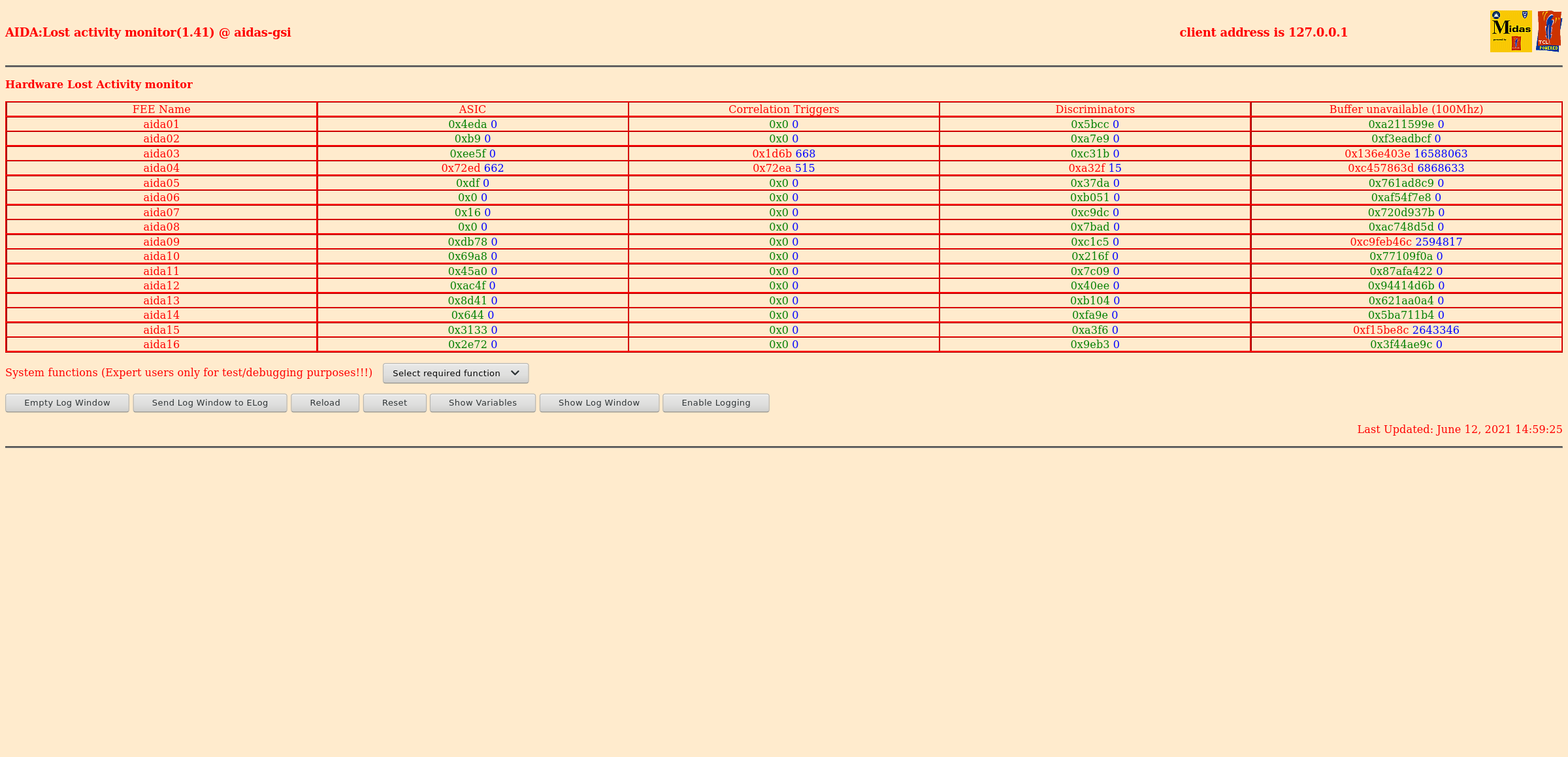

Lost activity monitor - attachment 2

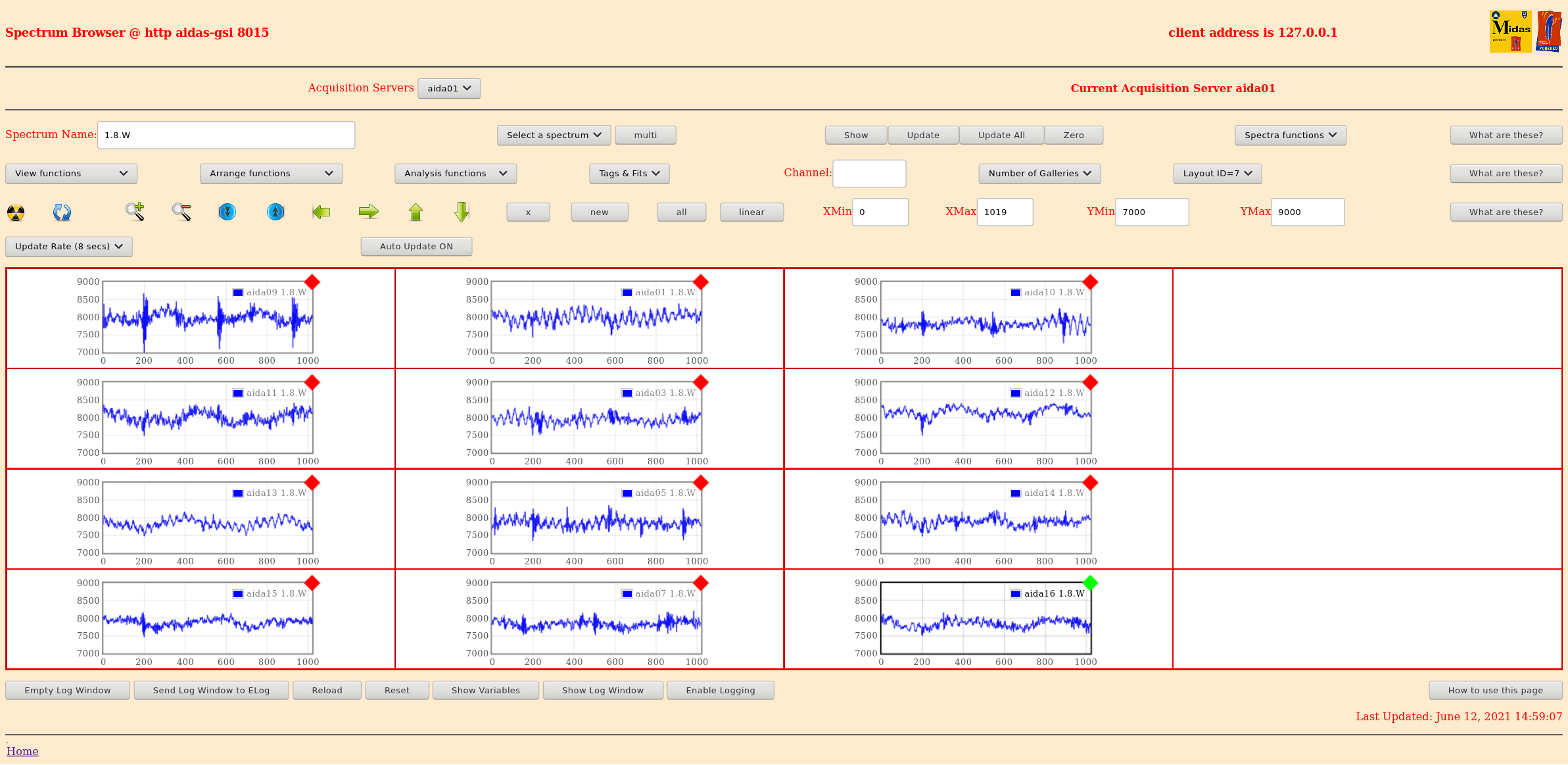

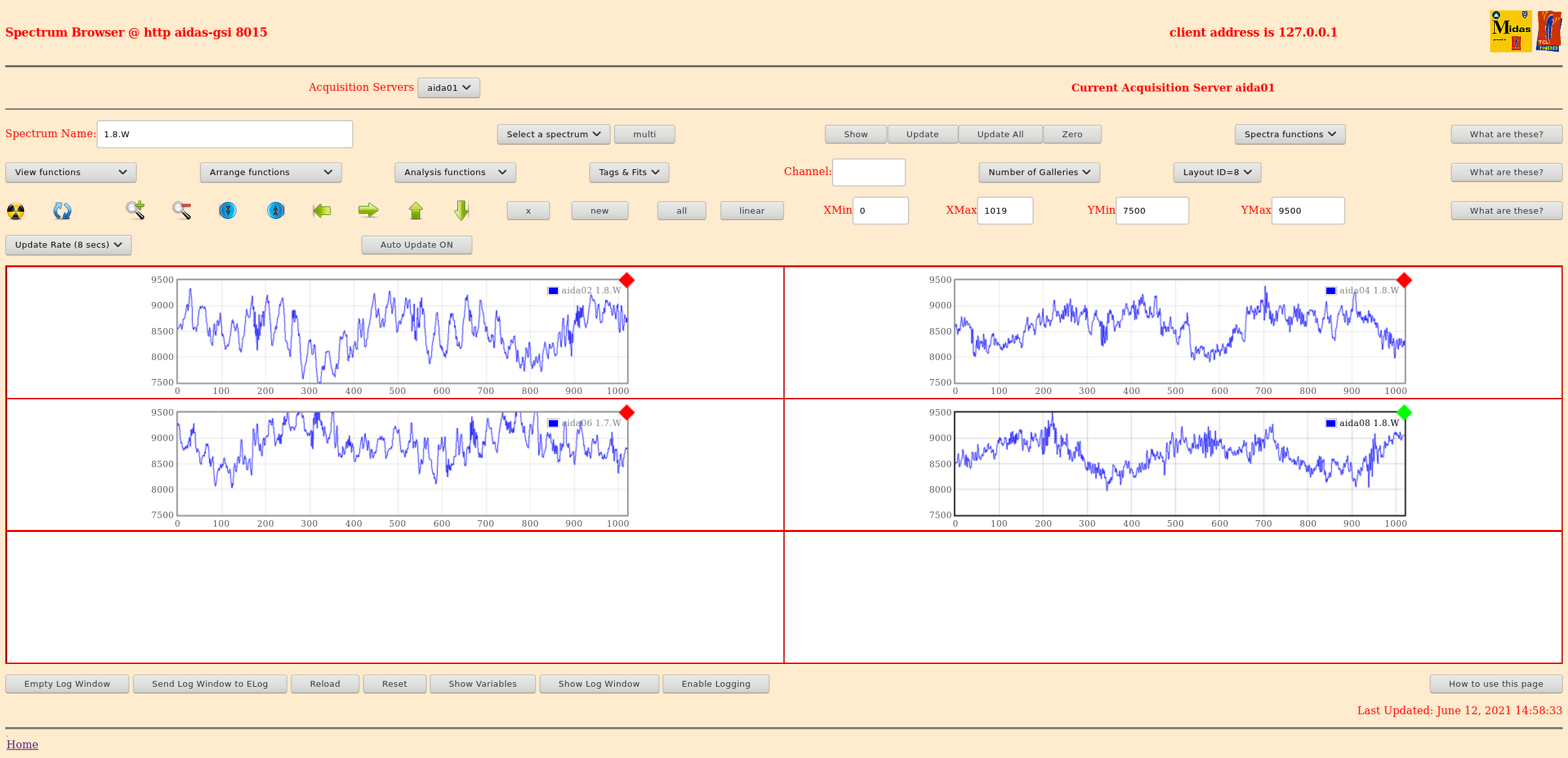

1.8.W spectra - 20us FSR - attachments 3 & 4
ADC data items - attachment 5
FEE64 temperatures OK - attachment 6
DSSSD bias & leakage currents OK - attachment 7

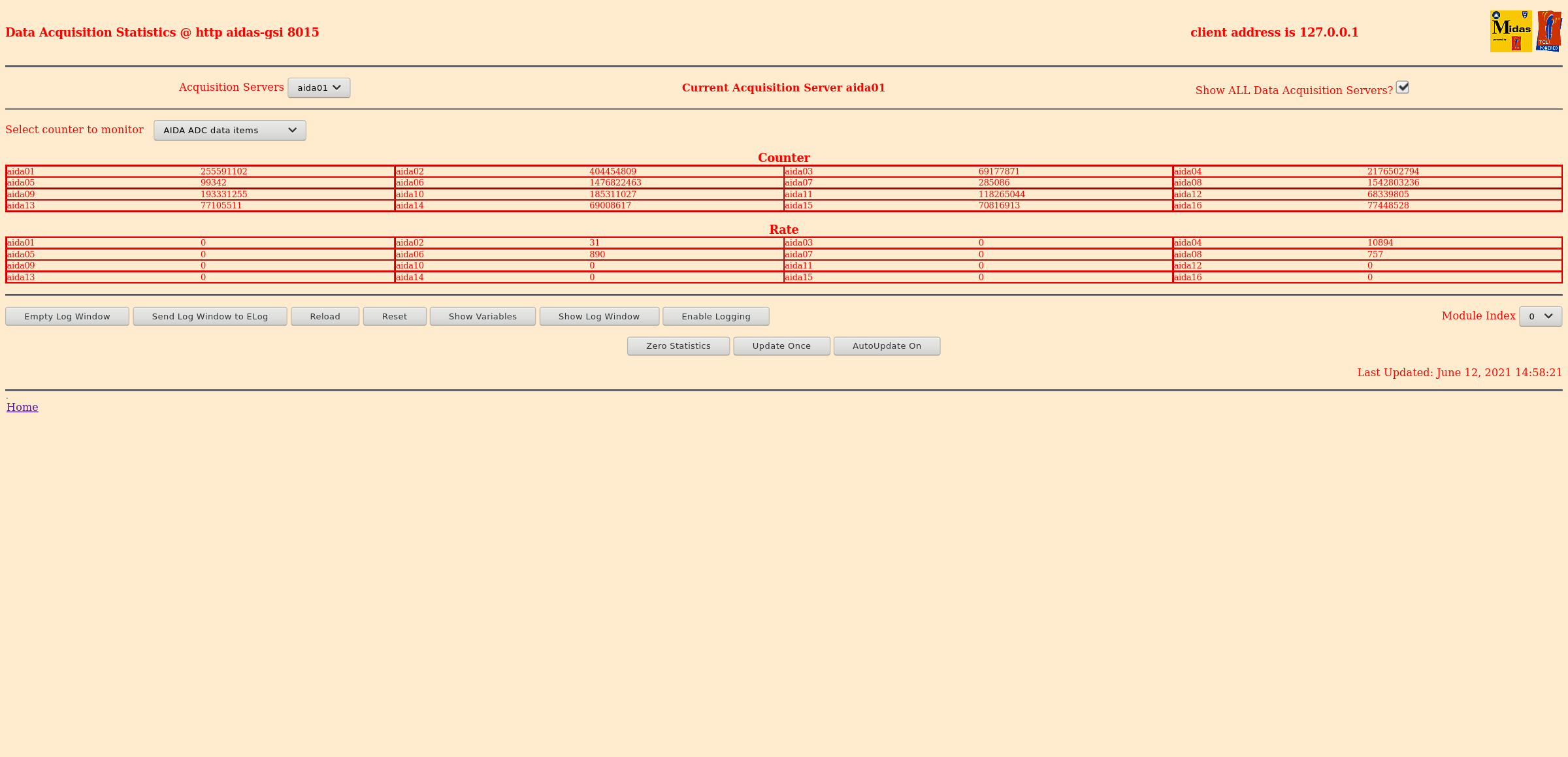

Merger/Tape Server/Merger statistics - attachment 8
no merger errors reported since previous restart
15.05 analysis of file S496/R32_698 - attachment 9
max dead time 0.05% aida04
15.33 aida15 rebooted - see https://elog.ph.ed.ac.uk/DESPEC/365
successful DAQ stop
aida15 DAQ reset, setup, go
successful DAQ go |
|
|
|
|
|
.png.png "Screenshot_2021-06-12_Spectrum_Browser_aidas-gsi(1).png")
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 44970784 ( 15685.0 Hz)
Other data format: 216949222 ( 75668.1 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 62 ( 0.0 Hz)
RESUME: 62 ( 0.0 Hz)
SYNC100: 42680 ( 14.9 Hz)
WR48-63: 42680 ( 14.9 Hz)
FEE64 disc: 985985 ( 343.9 Hz)
MBS info: 215877753 ( 75294.4 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 0 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 2867.115 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.000 2299.418
2 0.673 0.000
3 1.368 0.000
4 0.000 0.000
5 0.000 2495.101
6 0.000 0.000
7 0.000 2566.695
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 467 2 0 0 0 0 1 1 0 0 0 0
1 72420 30 0 0 0 0 15 15 0 0 0 0
2 935 107990737 0 0 33 33 19385 19385 0 107951901 0 0
3 38882631 108955999 0 0 29 29 22052 22052 985985 107925852 0 0
4 496 0 0 0 0 0 0 0 0 0 0 0
5 3224207 1336 0 0 0 0 668 668 0 0 0 0
6 1520 0 0 0 0 0 0 0 0 0 0 0
7 2784837 1118 0 0 0 0 559 559 0 0 0 0
8 473 0 0 0 0 0 0 0 0 0 0 0
9 173 0 0 0 0 0 0 0 0 0 0 0
10 554 0 0 0 0 0 0 0 0 0 0 0
11 317 0 0 0 0 0 0 0 0 0 0 0
12 752 0 0 0 0 0 0 0 0 0 0 0
13 204 0 0 0 0 0 0 0 0 0 0 0
14 302 0 0 0 0 0 0 0 0 0 0 0
15 496 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 29.945s ( 1068.615 blocks/s, 66.788 Mb/s)
|
