Message ID: 413 Entry time: Thu Apr 7 12:42:14 2022

Author:	OH, NH, TD
Subject:	Thursday 7 April

Re-assembled triple snout re-installed on the AIDA stand - DSSSD ribbon cables and grounds re-connected.
FEE64 adaptor PCB LKs per https://elog.ph.ed.ac.uk/DESPEC/409

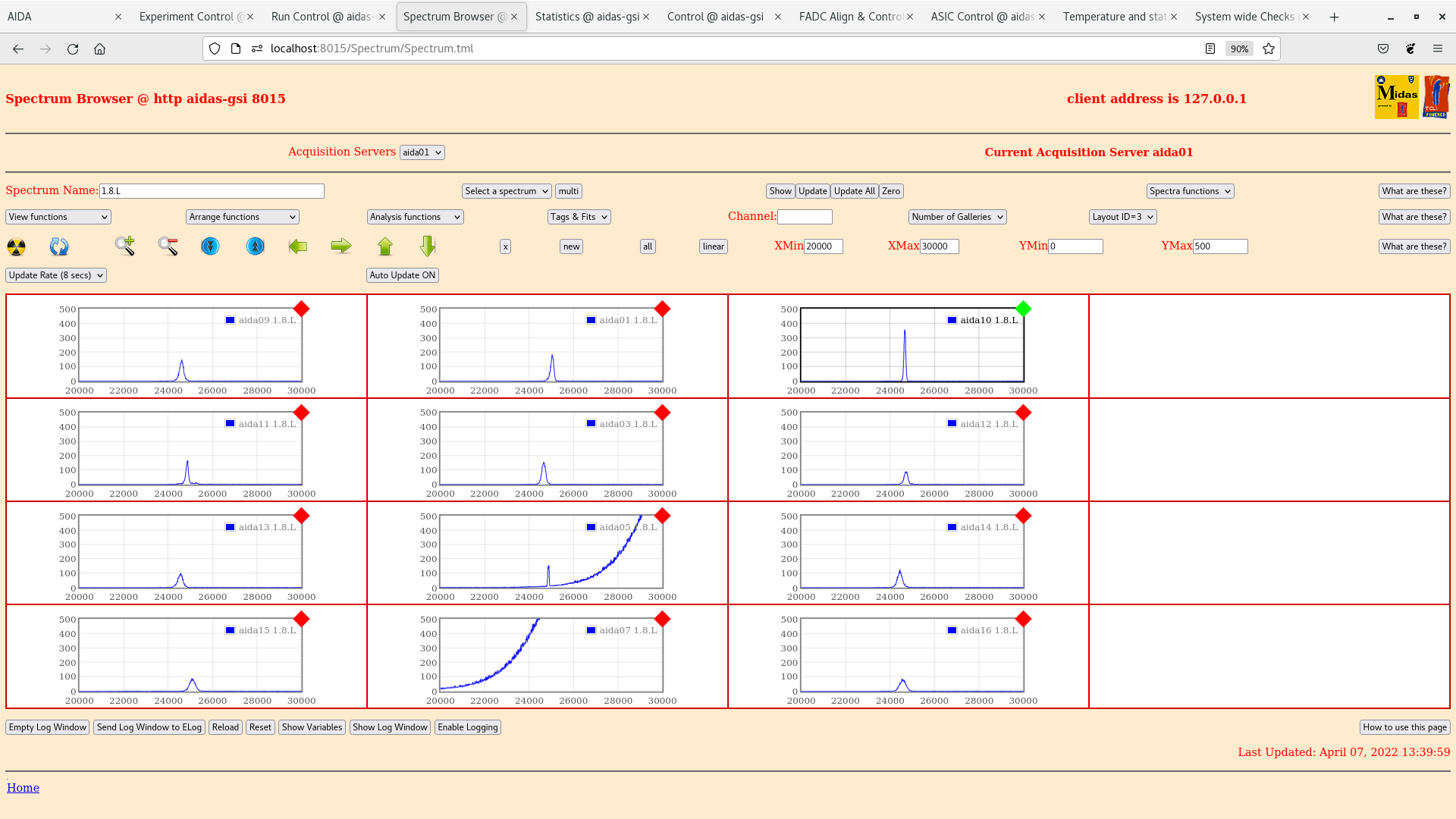

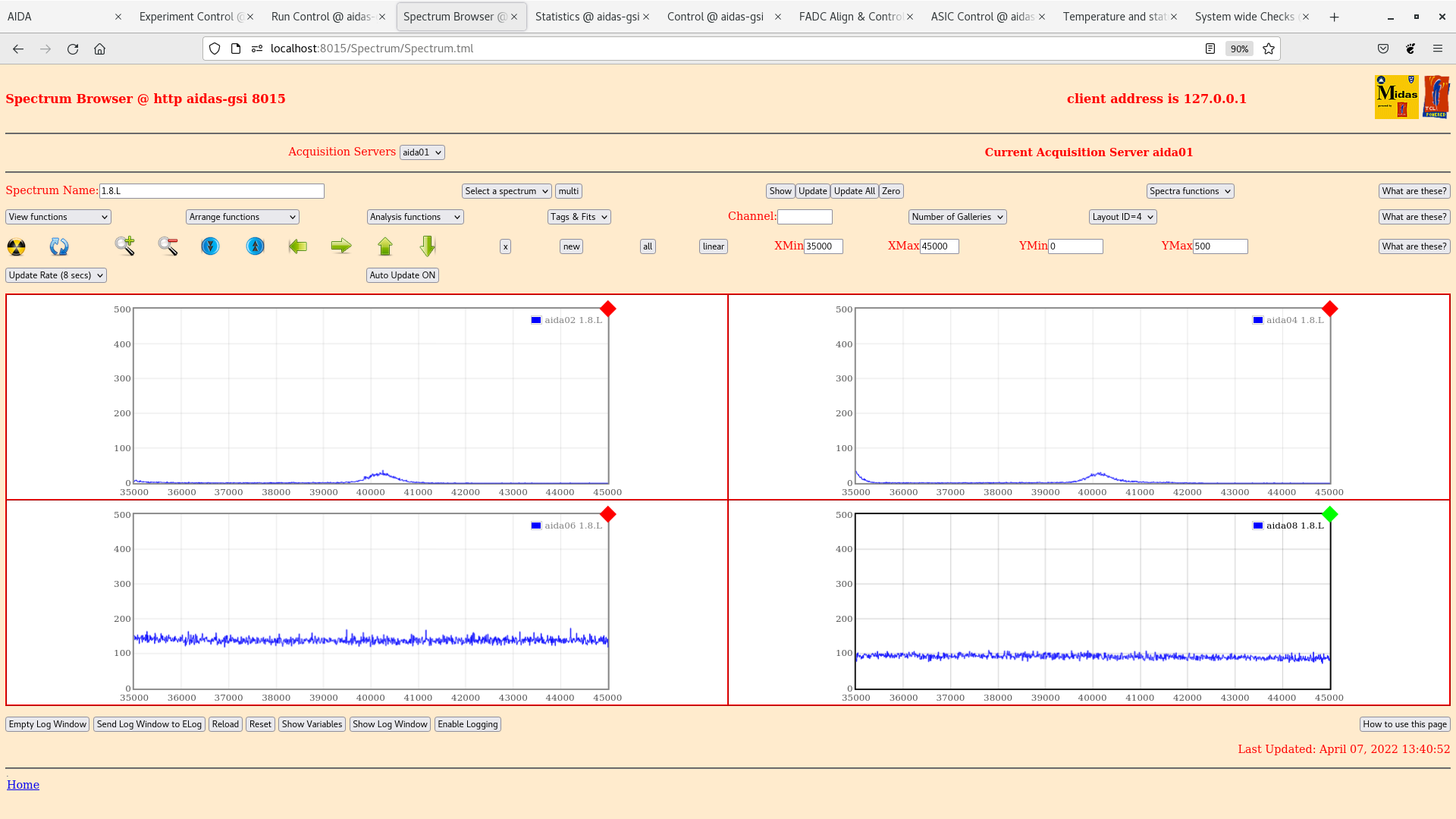

Attachments 1 & 2 1.8.L spectra
  p+n FEE64 aida10 pulser peak width 97 ch FWHM
  n+n FEE64 aida04 pulser peak width 550 ch FWHM

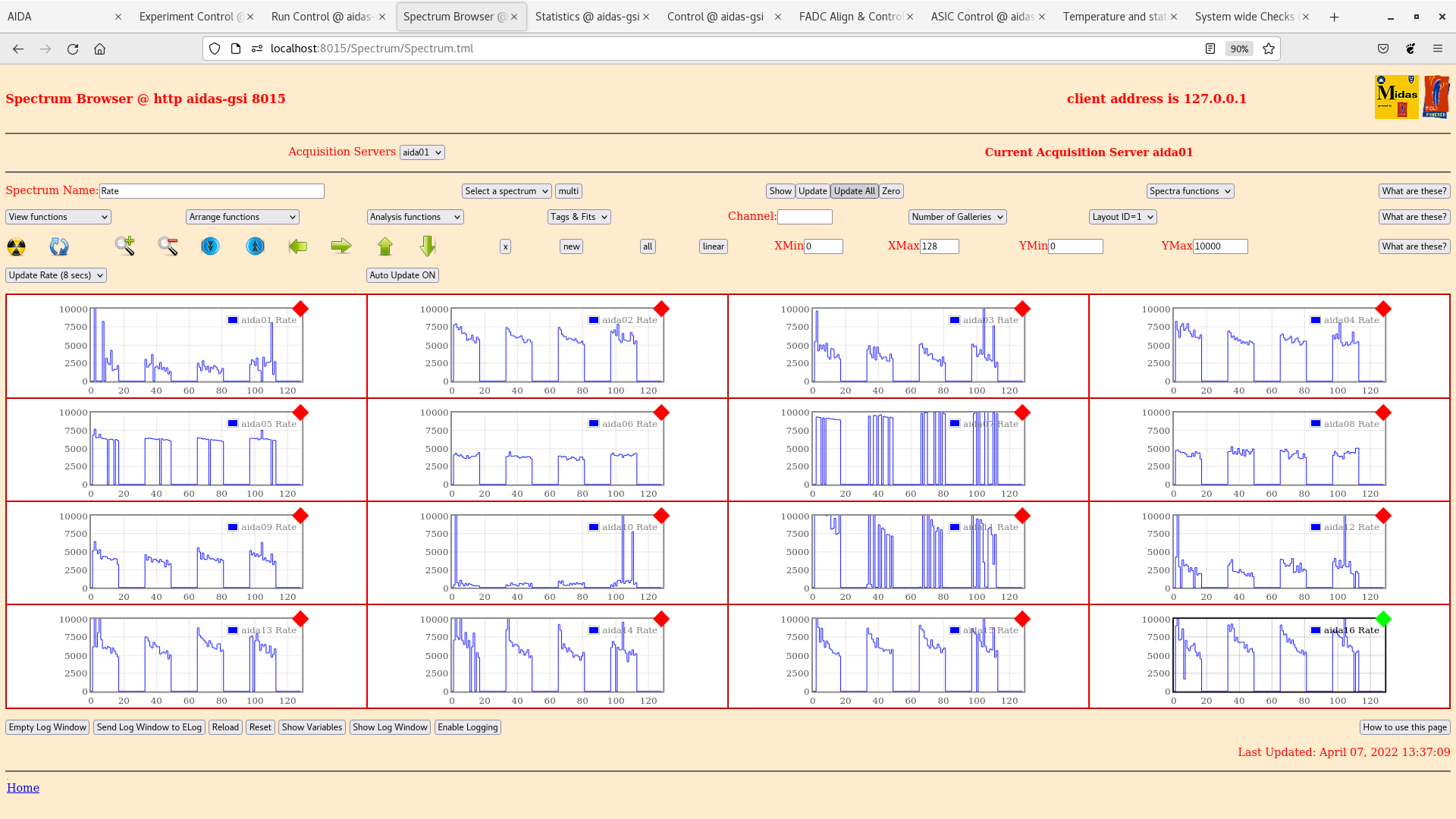

Attachment 3 rate spectra
  missing channels aida01, aida07 & aida11 - misaligned ERNI and/or Samtec connectors?

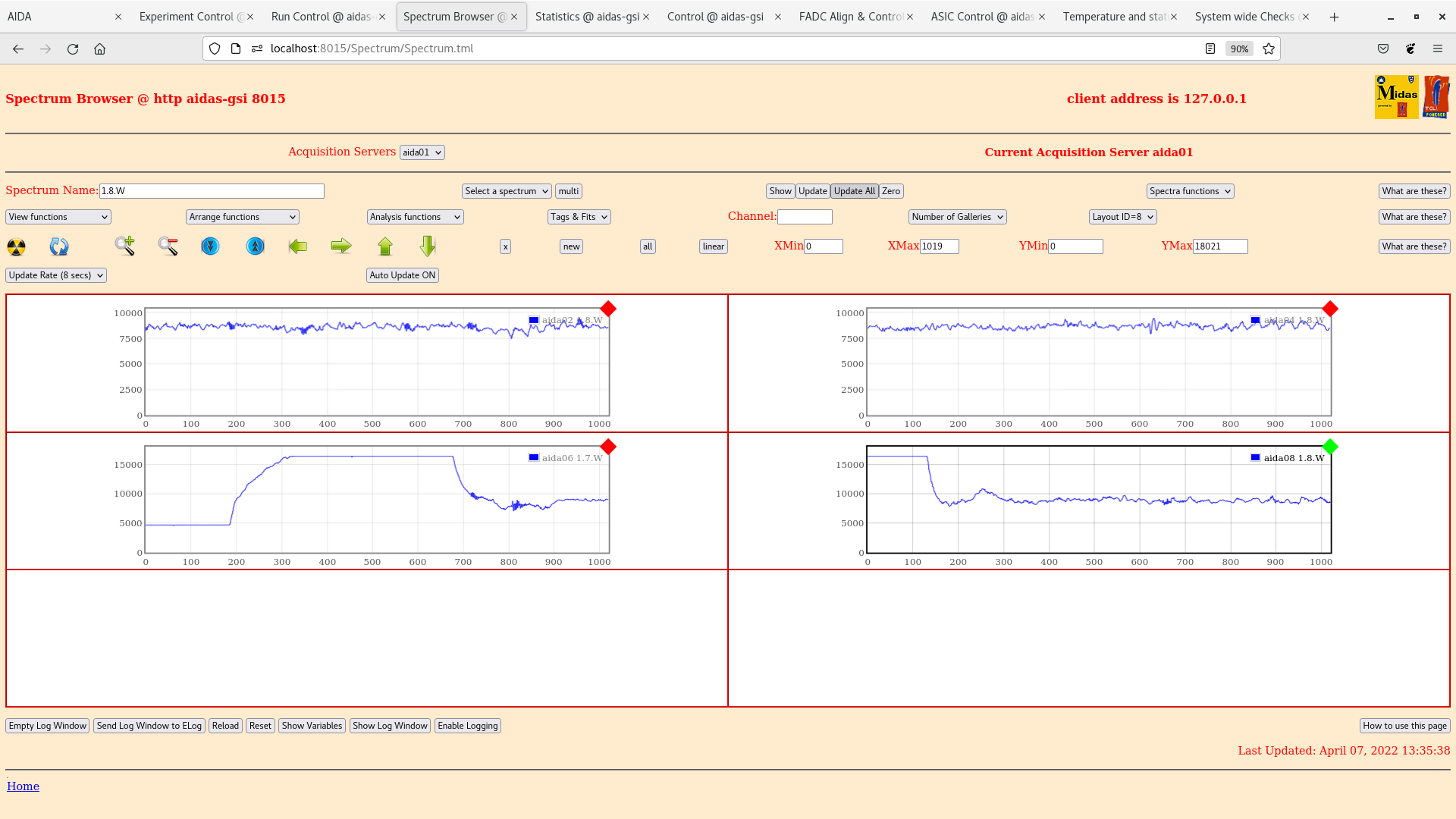

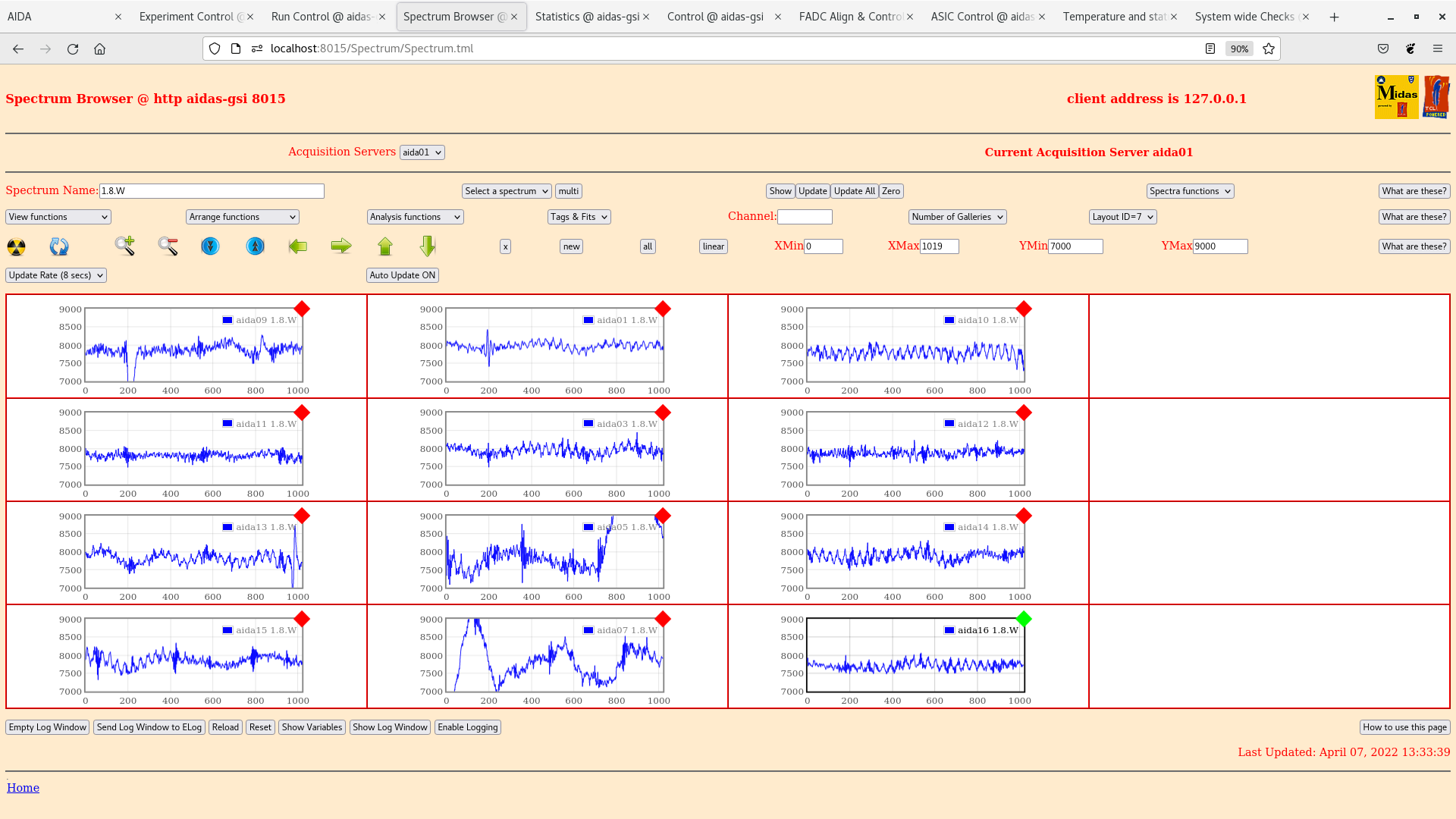

Attachments 4 & 5 1.8.W spectra

Attachment 6 ADC data item rates
 aida10 OK, all others c. 300-400k

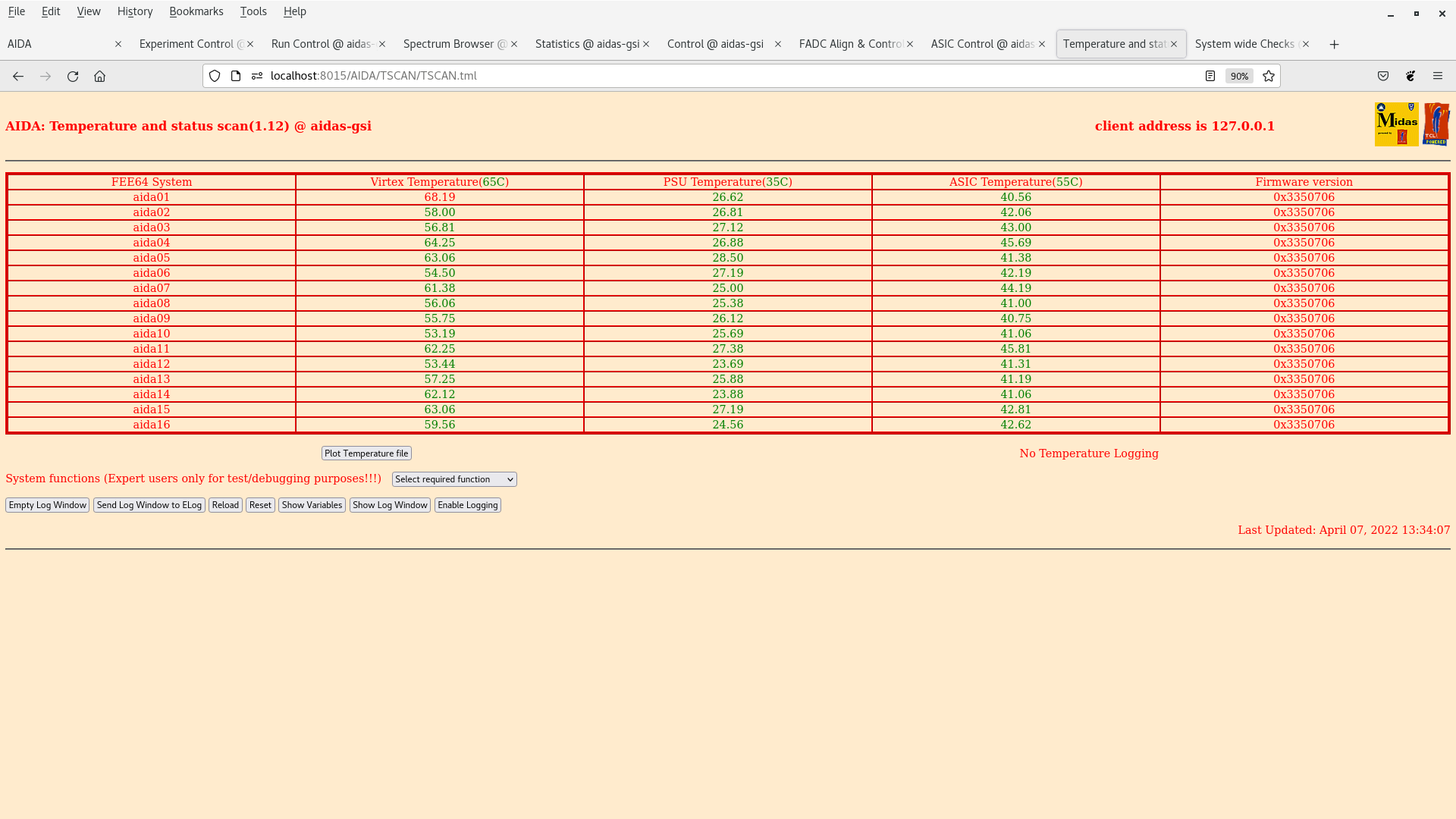

Attachment 7 FEE64 temperatures OK

Attachment 8 DSSSD bias & leakage currents OK

Attachment 1:

Screenshot_from_2022-04-07_13-40-55.png 189 kB Uploaded Thu Apr 7 13:42:29 2022 | Hide | Hide all

Attachment 2:

Screenshot_from_2022-04-07_13-40-02.png 195 kB Uploaded Thu Apr 7 13:42:29 2022 | Hide | Hide all

Attachment 3:

Screenshot_from_2022-04-07_13-37-17.png 222 kB Uploaded Thu Apr 7 13:42:29 2022 | Hide | Hide all

Attachment 4:

Screenshot_from_2022-04-07_13-35-43.png 179 kB Uploaded Thu Apr 7 13:42:29 2022 | Hide | Hide all

Attachment 5:

Screenshot_from_2022-04-07_13-35-23.png 269 kB Uploaded Thu Apr 7 13:42:29 2022 | Hide | Hide all

Attachment 6:

Screenshot_from_2022-04-07_13-34-34.png 122 kB Uploaded Thu Apr 7 13:42:29 2022 | Hide | Hide all

Attachment 7:

Screenshot_from_2022-04-07_13-34-12.png 167 kB Uploaded Thu Apr 7 13:42:29 2022 | Hide | Hide all

Attachment 8:

Screenshot_from_2022-04-07_13-33-53.png 41 kB Uploaded Thu Apr 7 13:42:29 2022 | Hide | Hide all
