08:36 DAQ Still running smoothly
Currently on run R1_328
At current data rates we have just over 4 days of space left on the current disk
Analysis of R1_327 - attachment 1
14.15 all histograms zero'd
baseline system wide checks counters
DAQ continues file S450/R4_33
netint pushenable 6 - was 60 - to investigate FEE64 throughput issues
netint flushenable 60 - not changed
ASIC settings
slow comparator aida02 aida04 0x16, aida06 aida08 0x23, aida12 0xd, all others 0xc
BNC PB-5 settings
amplitude 1.000V
attenuation x1
frequency 2Hz
tau_d 1ms (tail pulse)
+ polarity

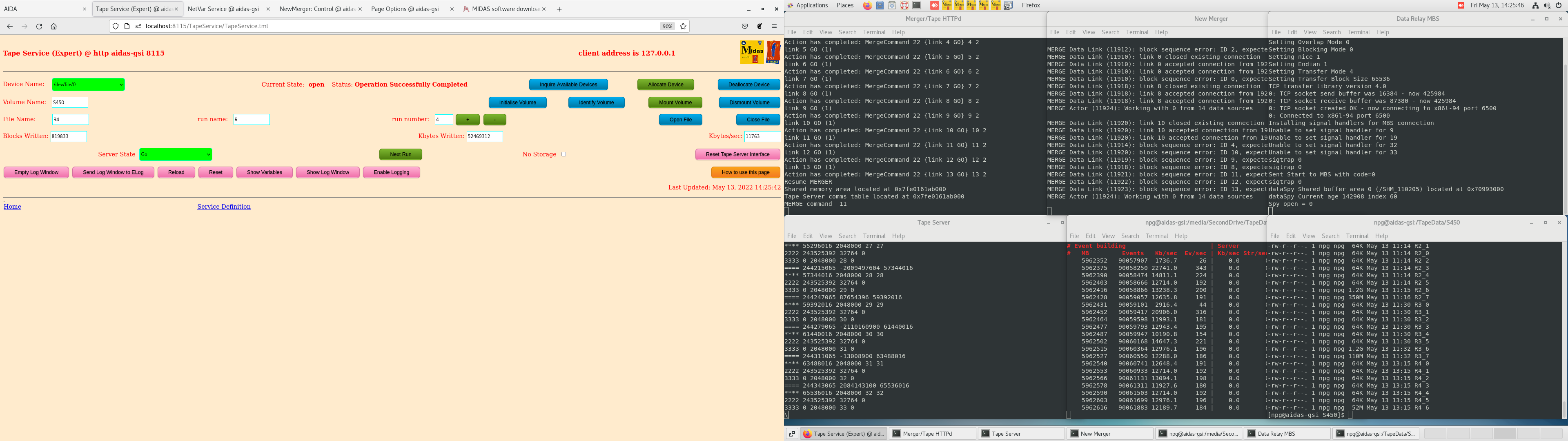

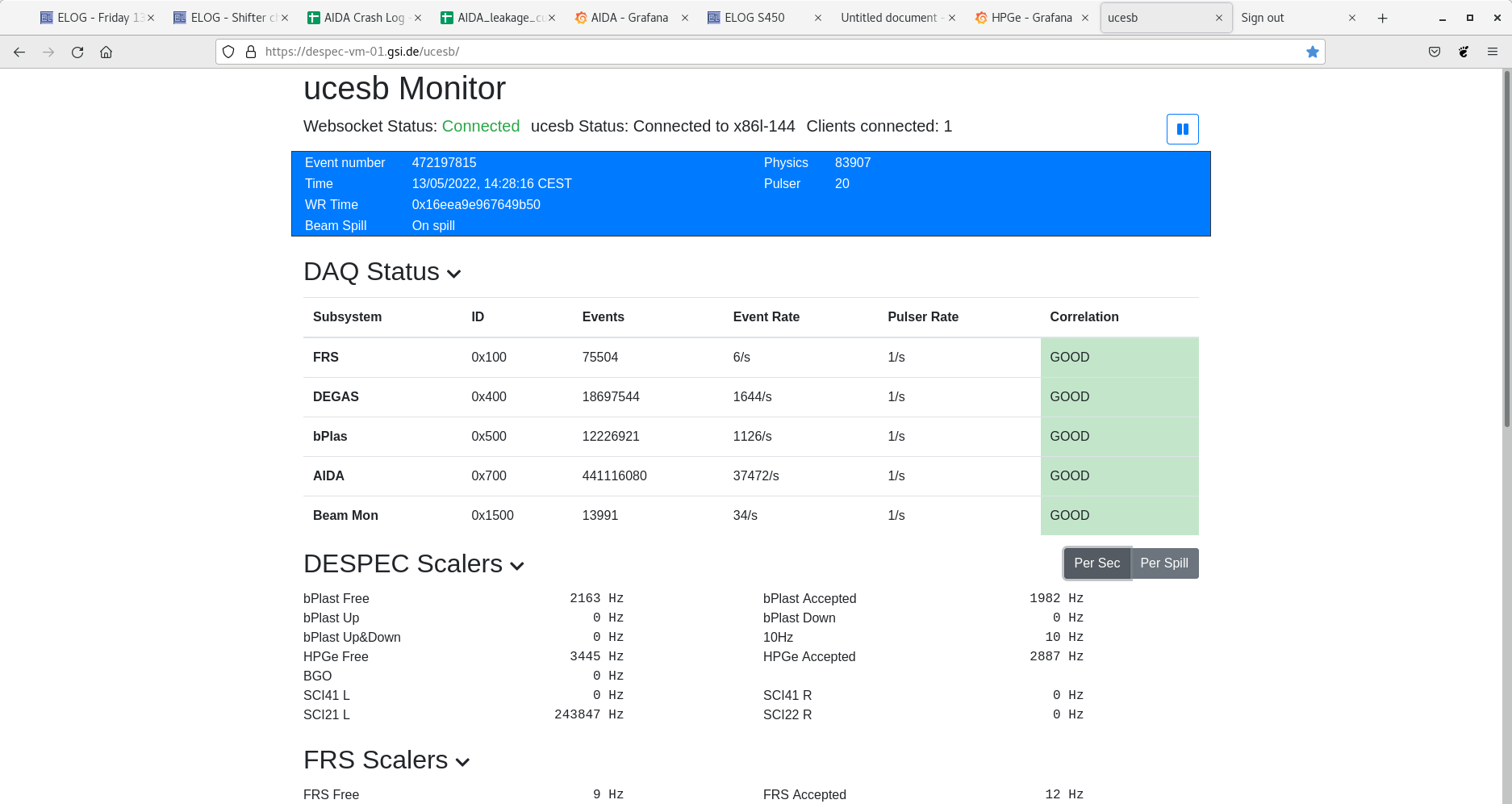

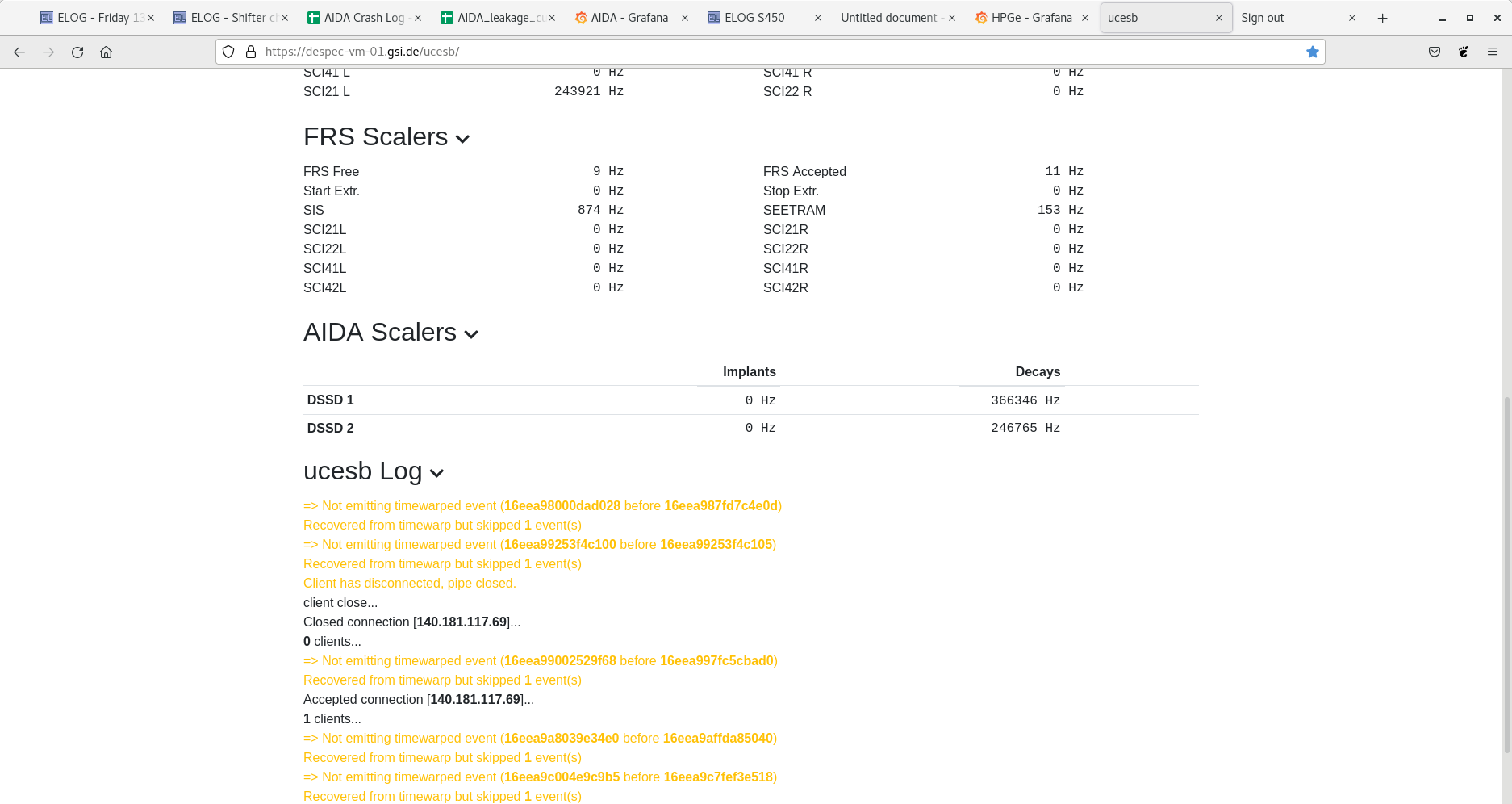

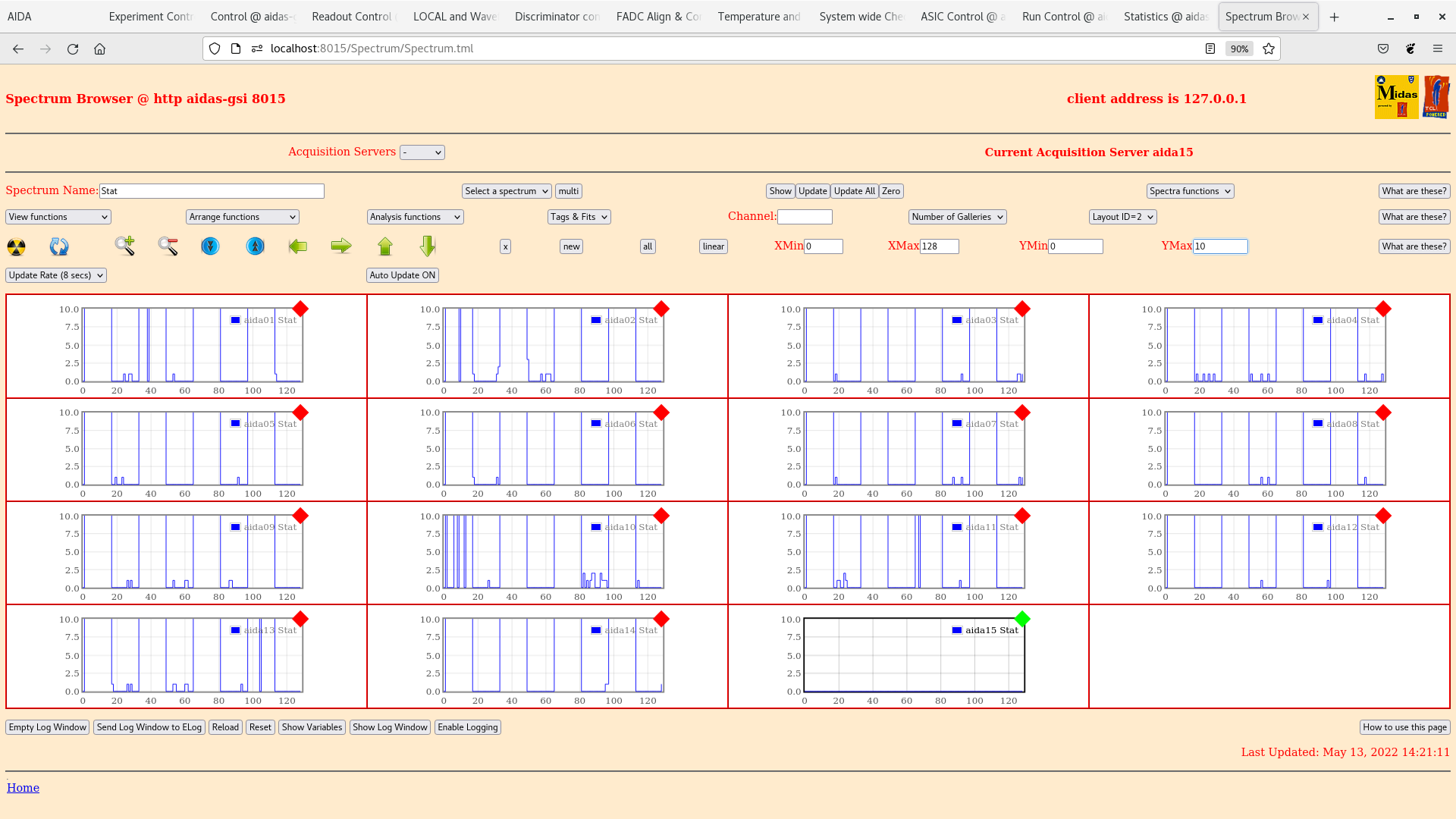

Attachments 2 & 3 - ucesb
Pb beam intensity c. 4e+8/spill - lower than expected 1e+9/spill . Low implant rates (~Hz/spill) are expected for setting.

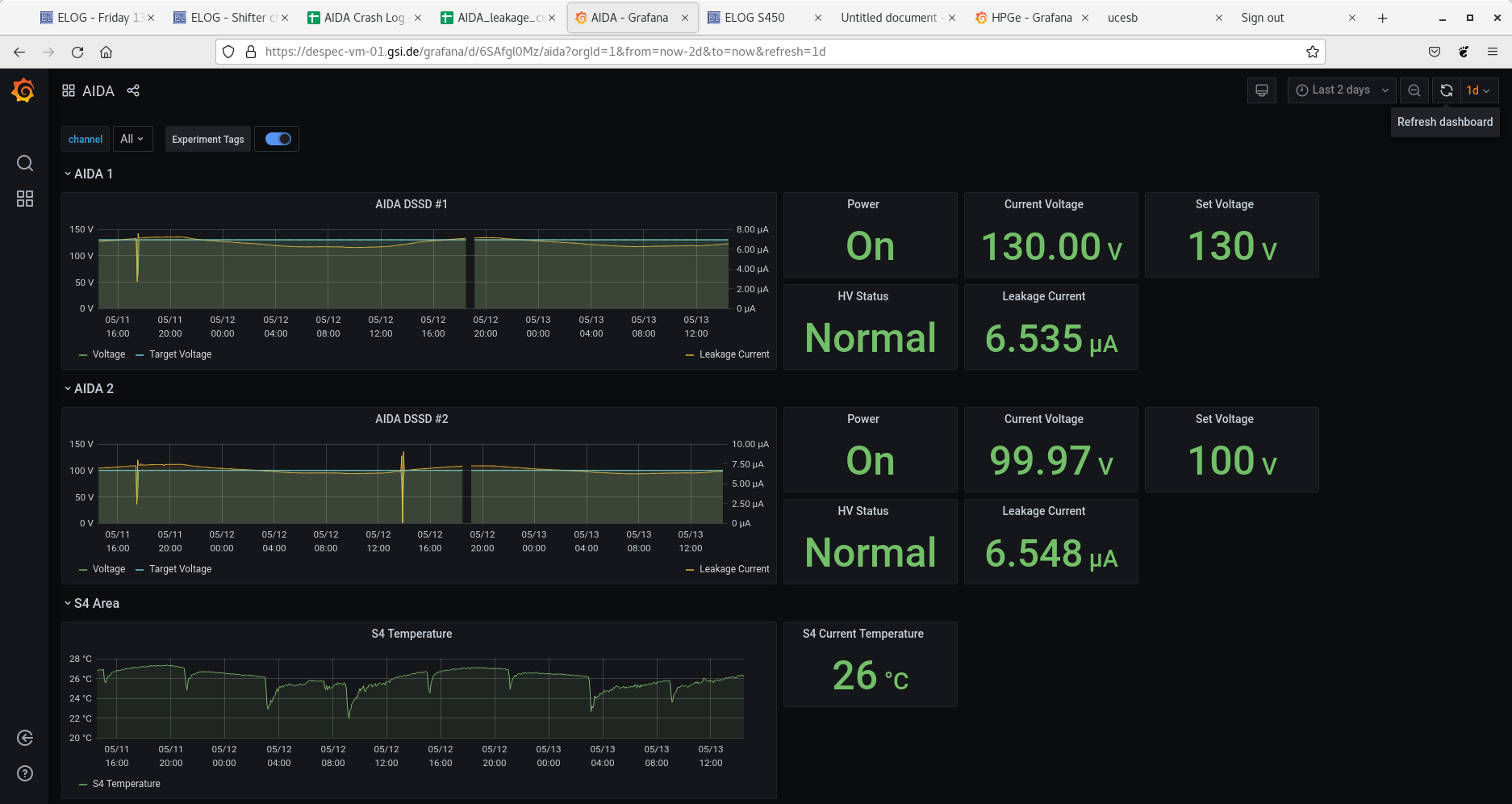

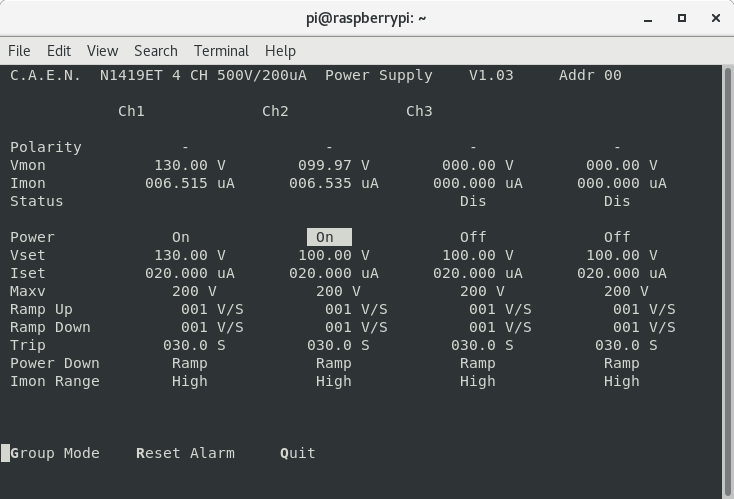

Attachment 4 & 5 - grafana DSSSD bias, leakage current & temp - OK

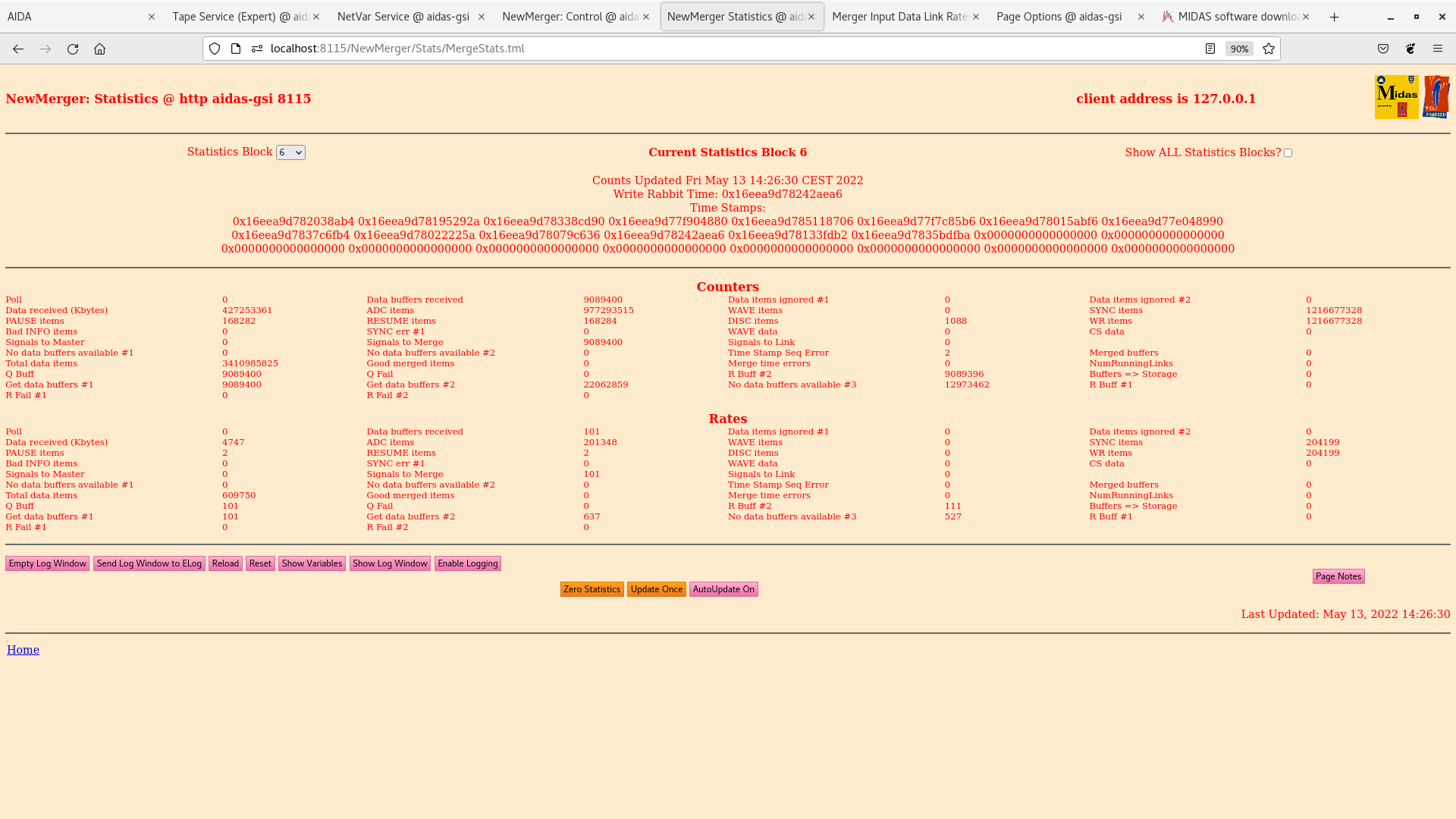

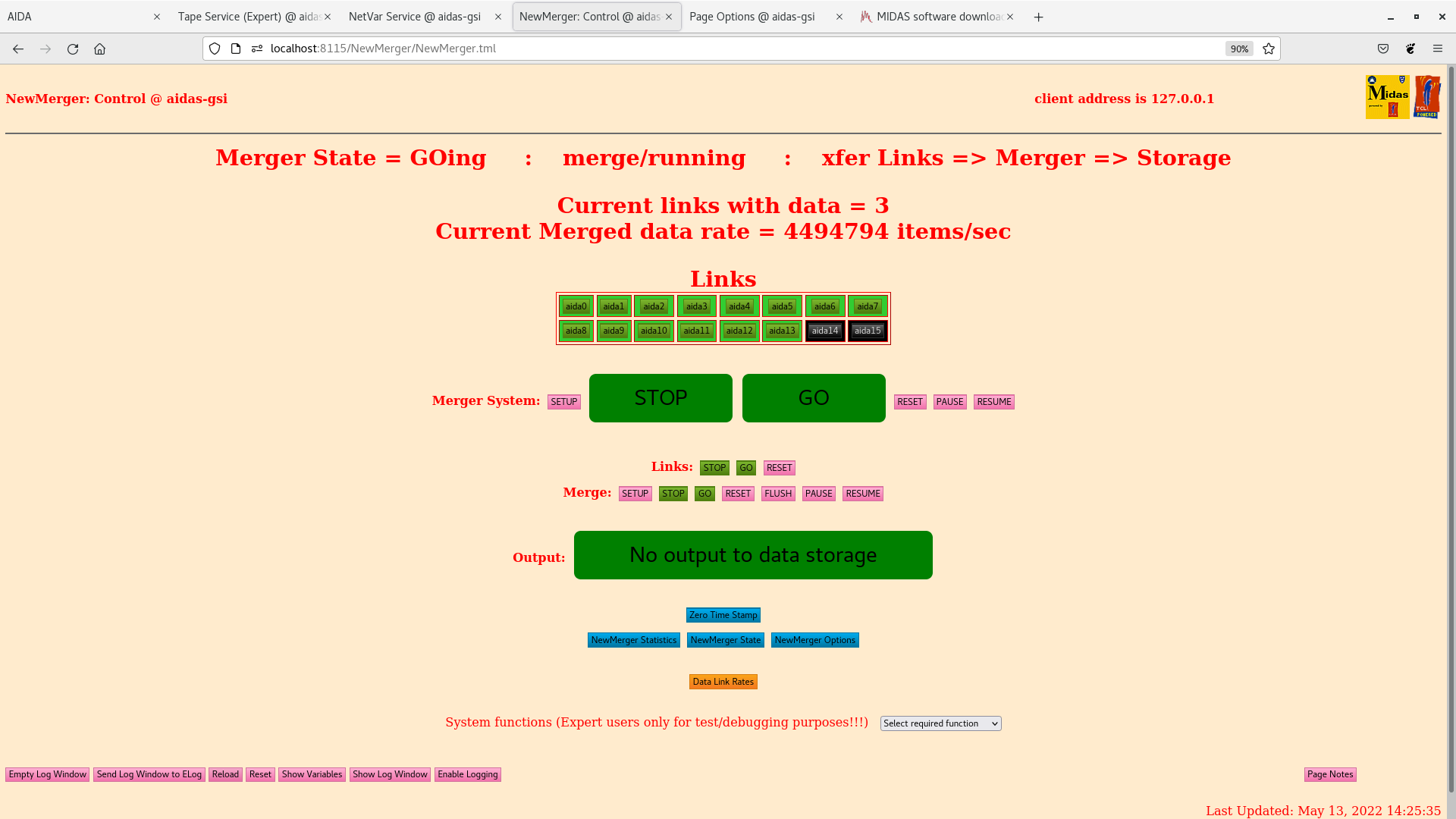

Attachments 6-8 - NewMerger stats blocks 0, 1, & 6

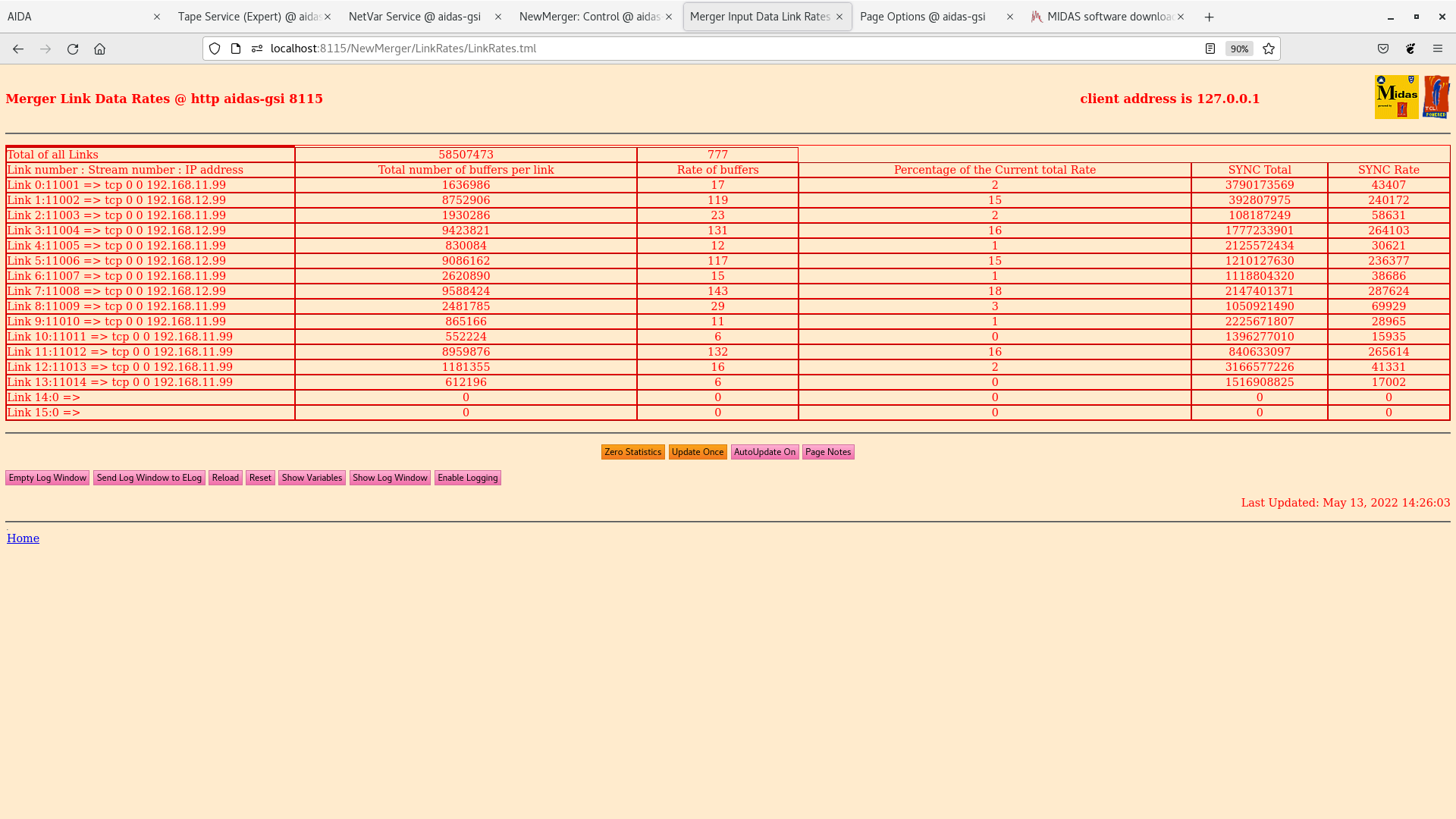

Attachment 9 - NewMerger link stats
Attachments 10-11 - TapeServer/NewMerger
Attachment 12 - iptraf aida-gsi network interfaces

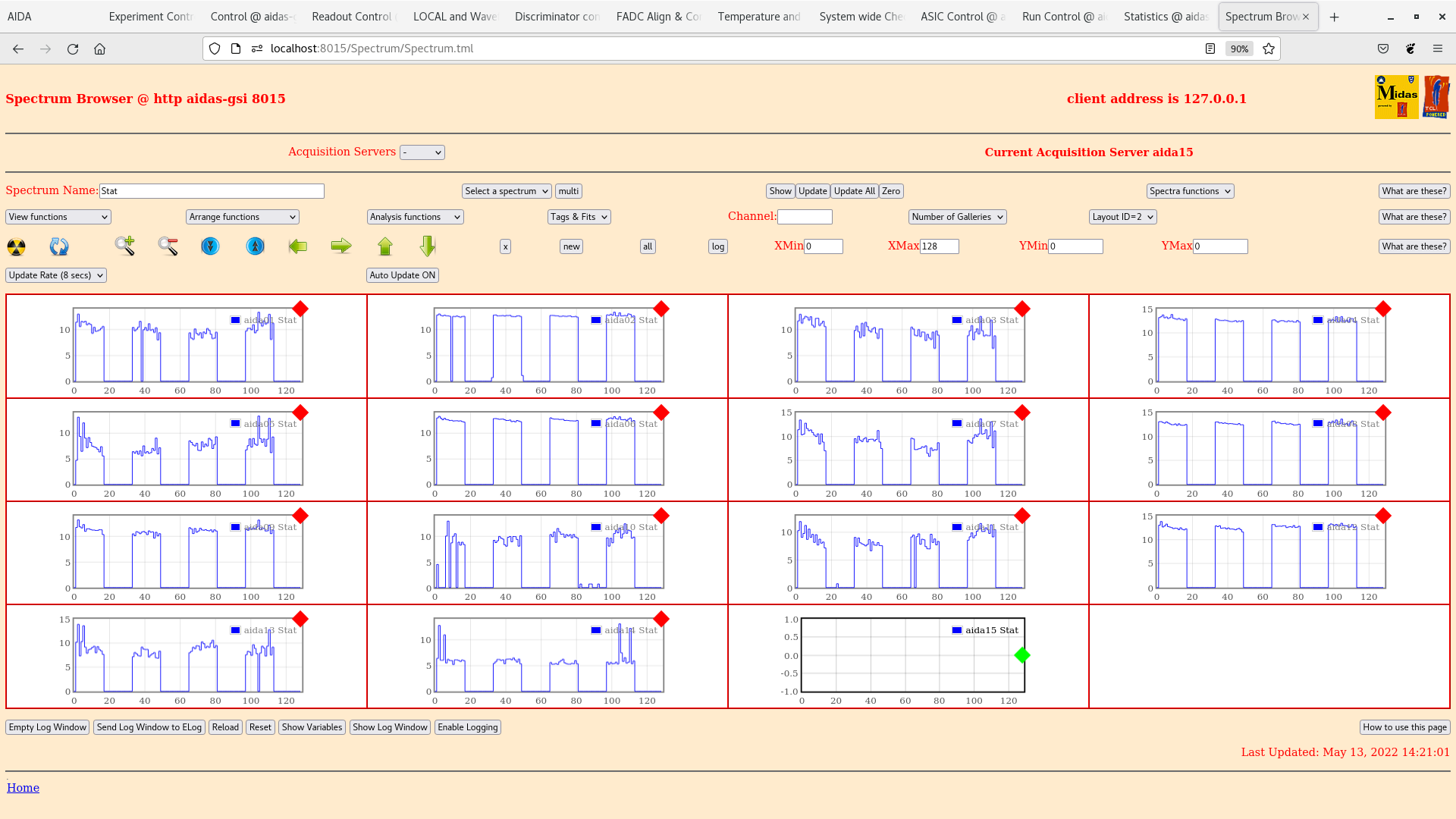

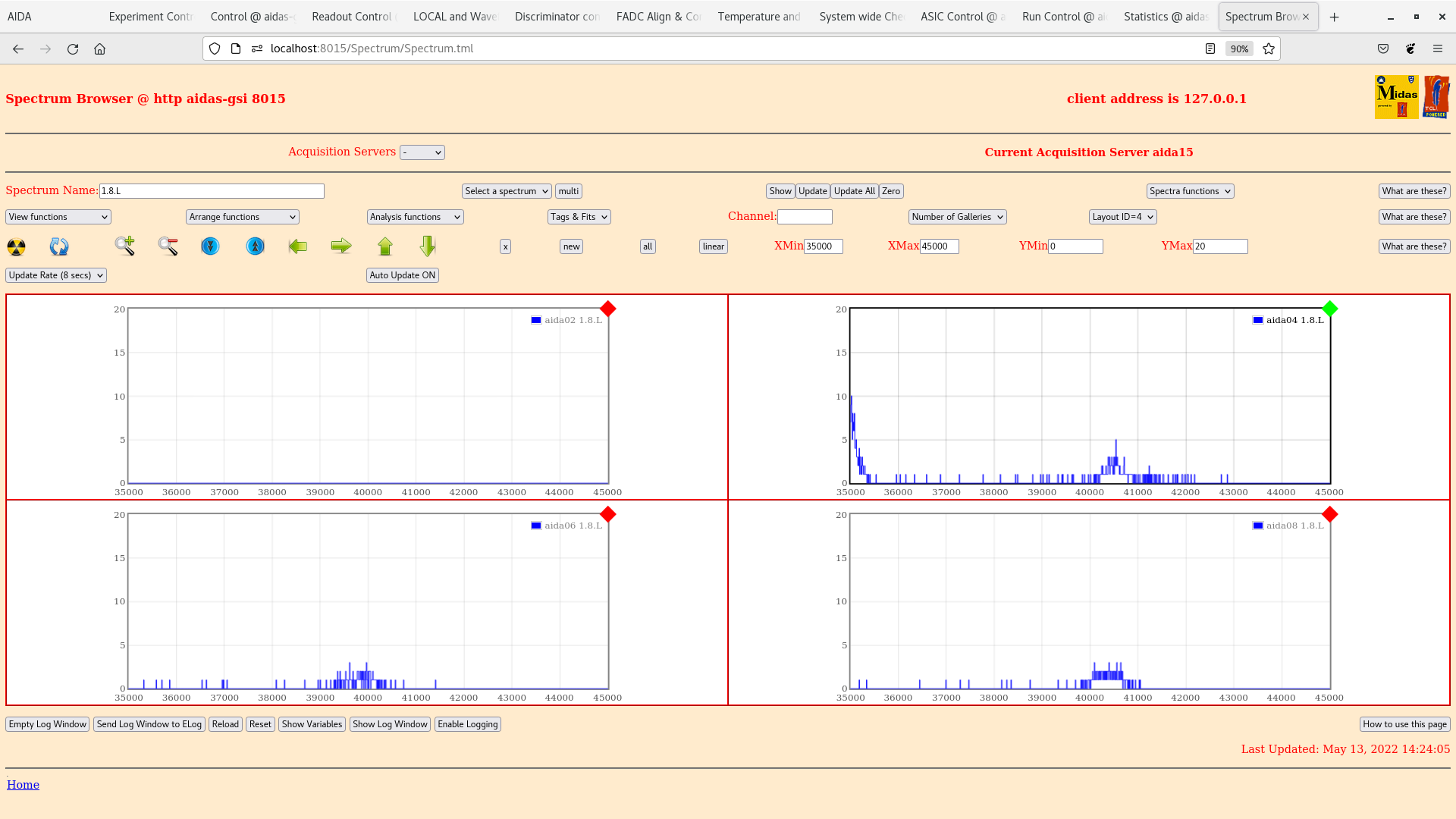

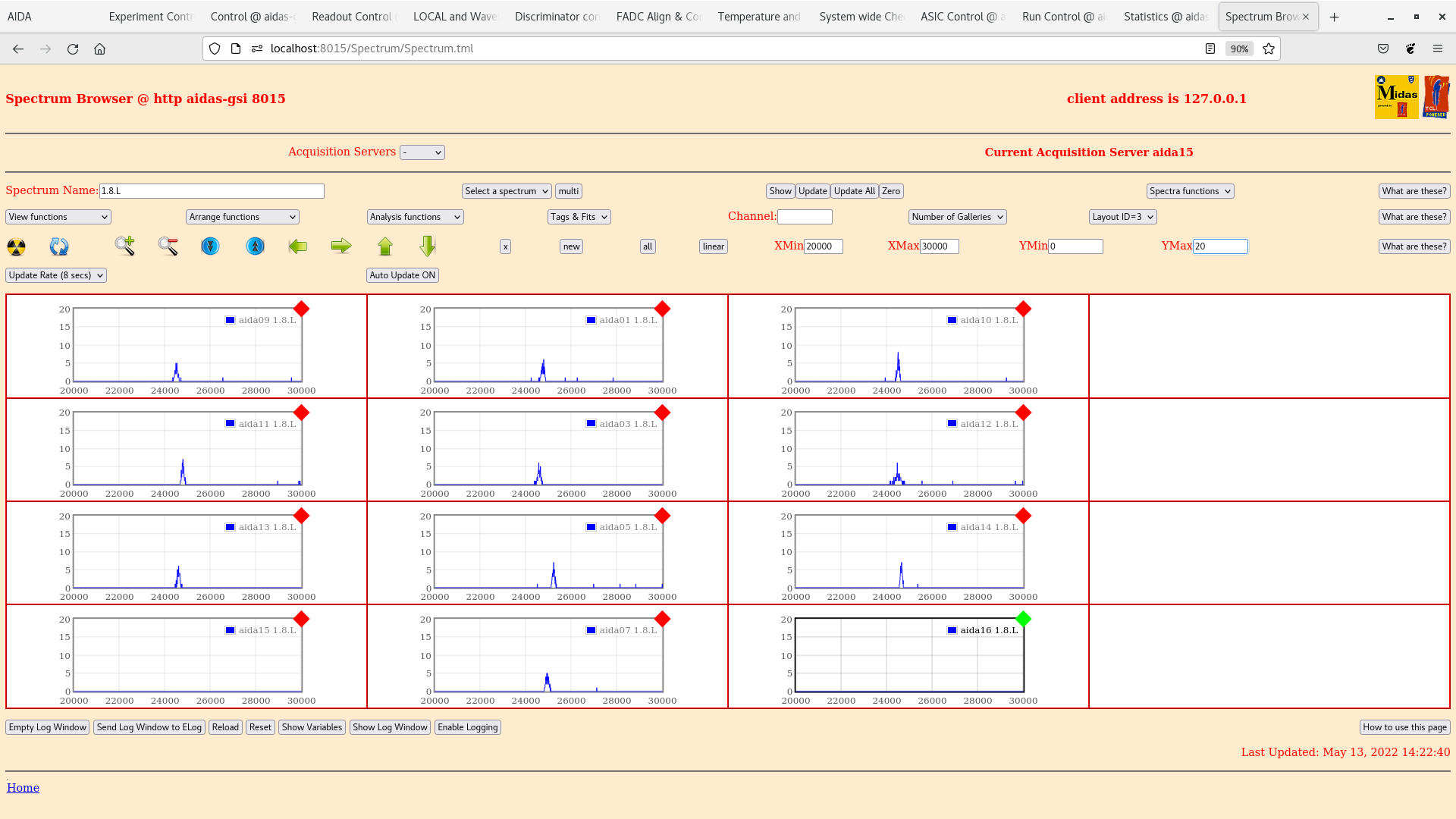

Attachments 13-14 - per FEE64 1.8.L spectra
pulser peak width aida01 123 ch FWHM, aida04 430 ch FWHM

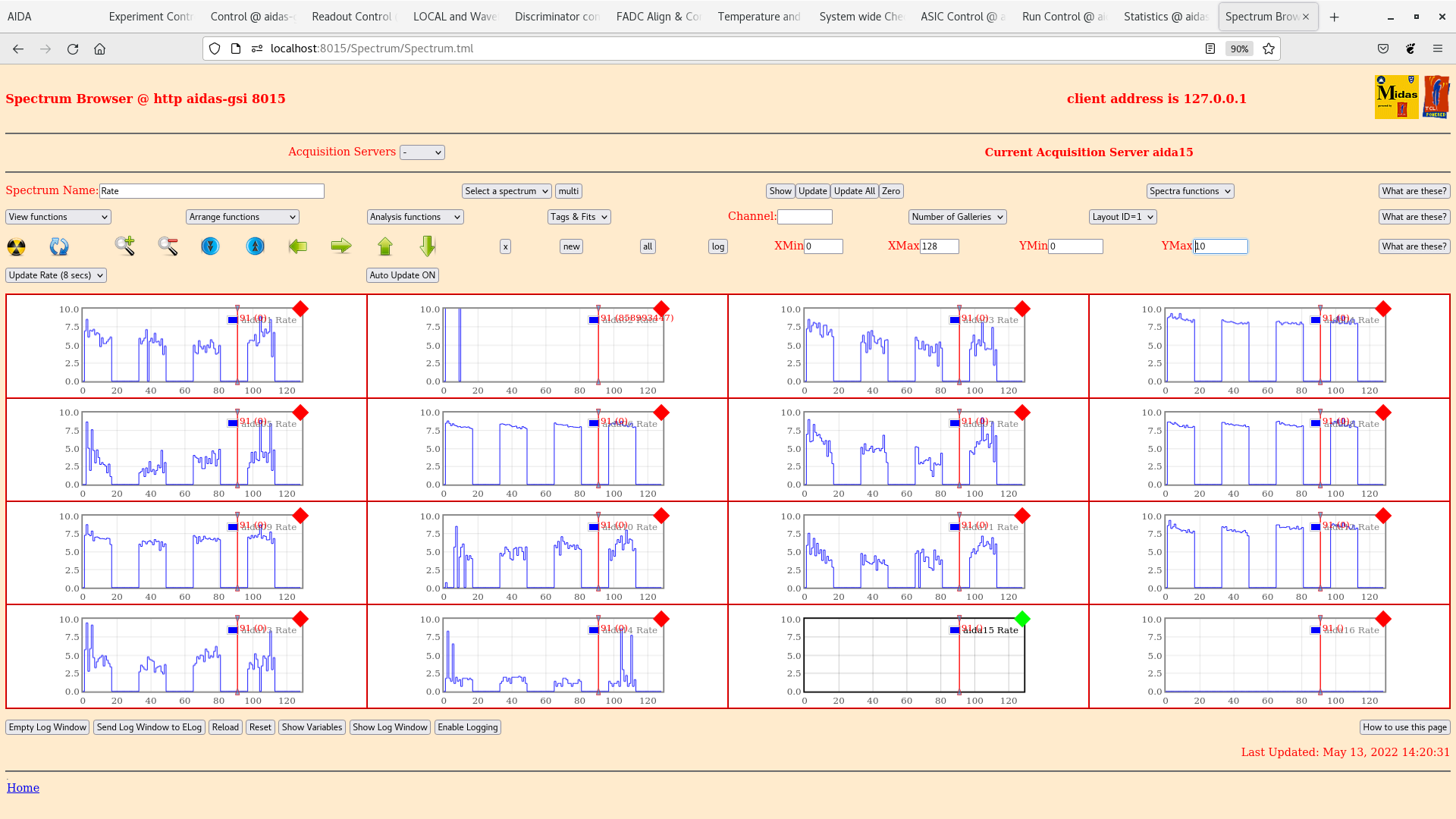

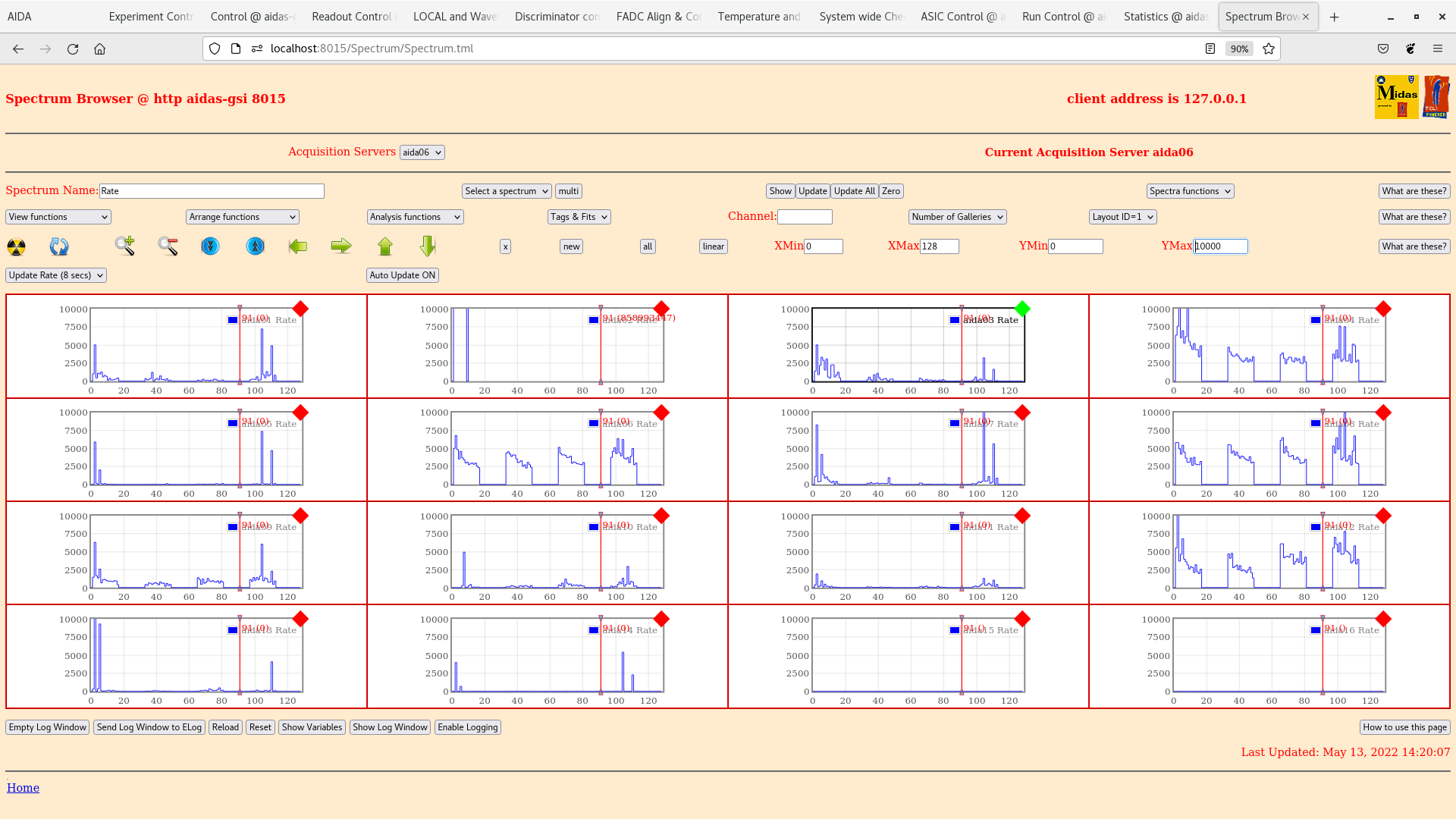

Attachments 15-18 - per FEE64 rates and stat spectra

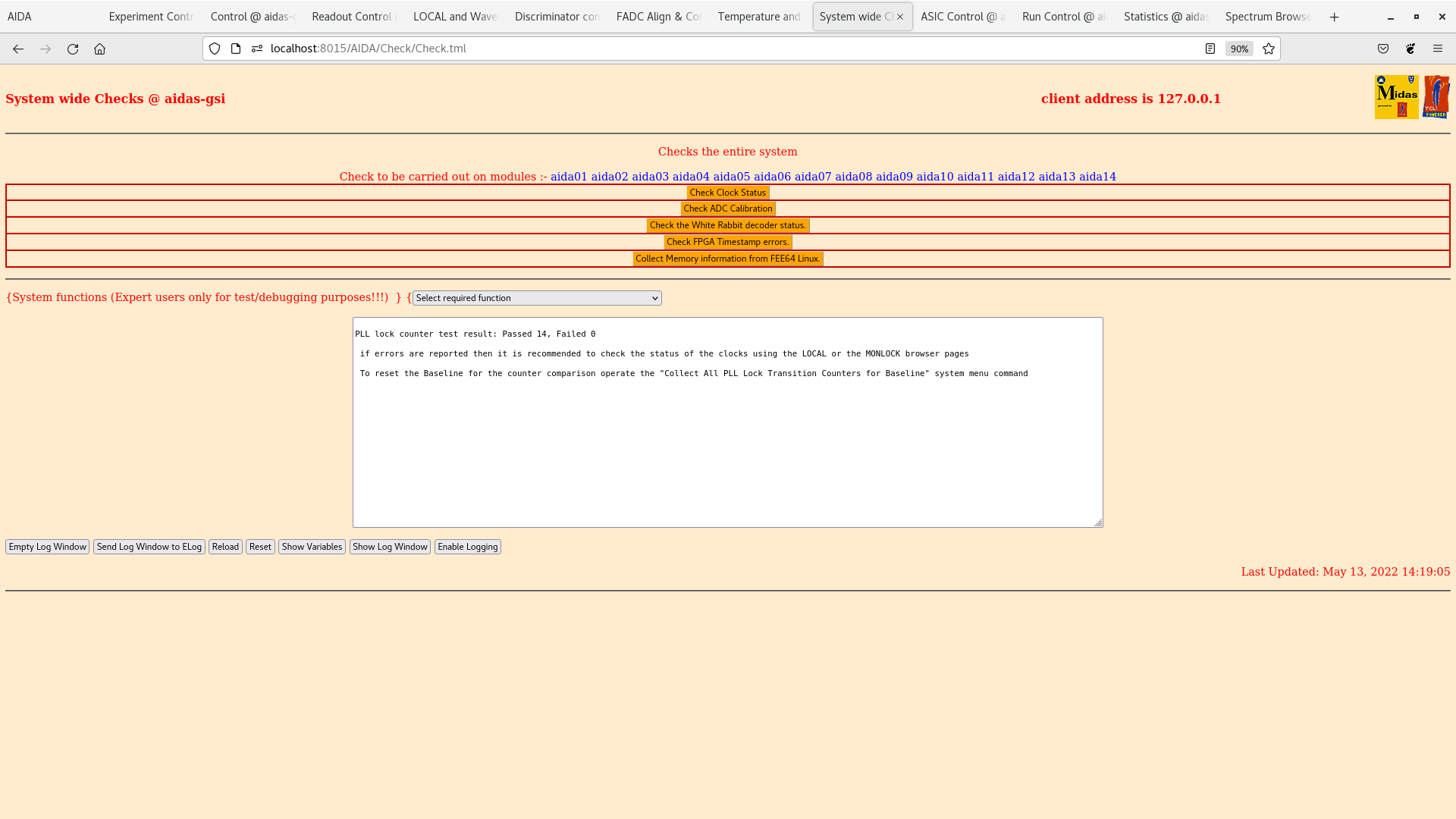

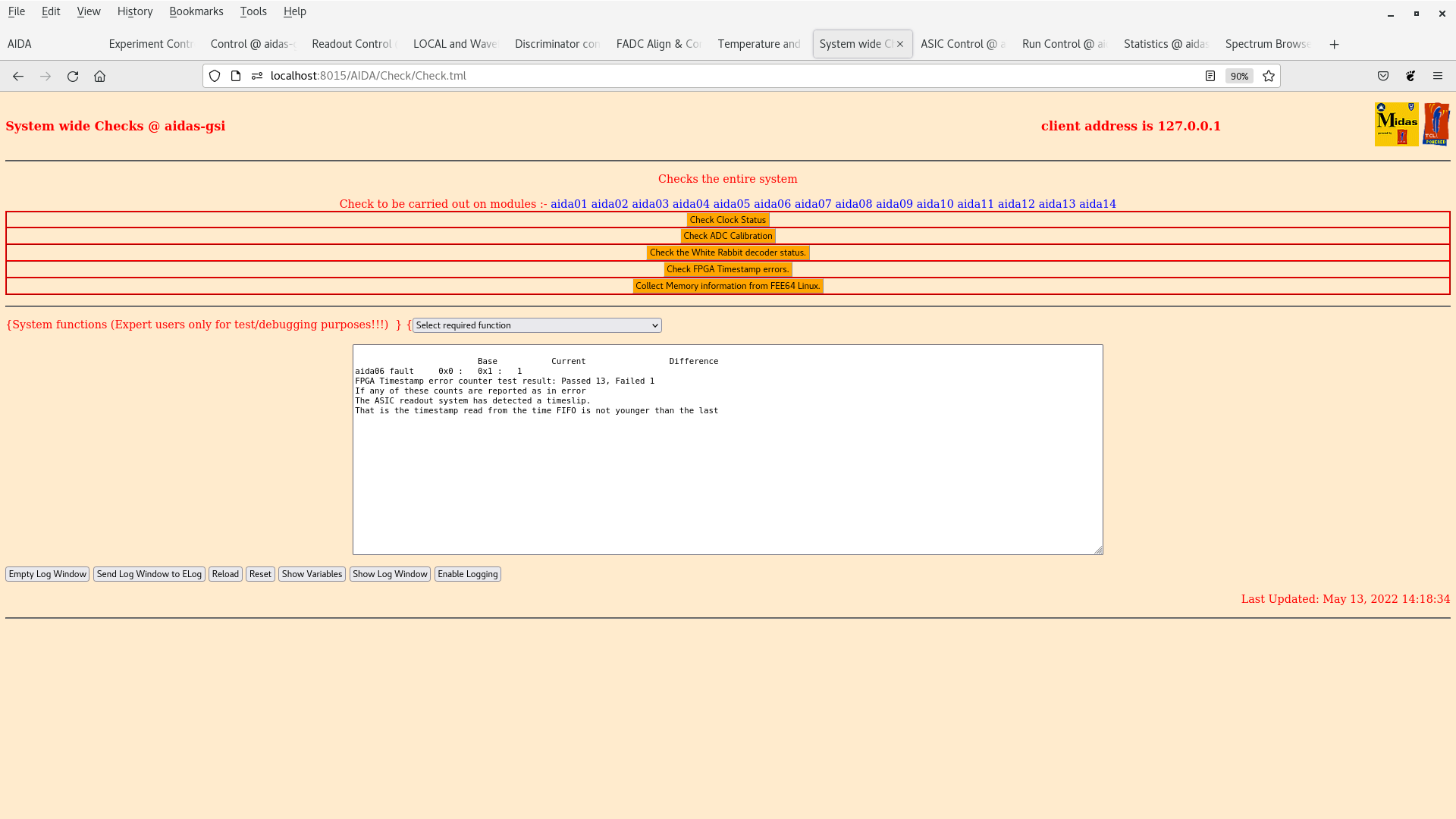

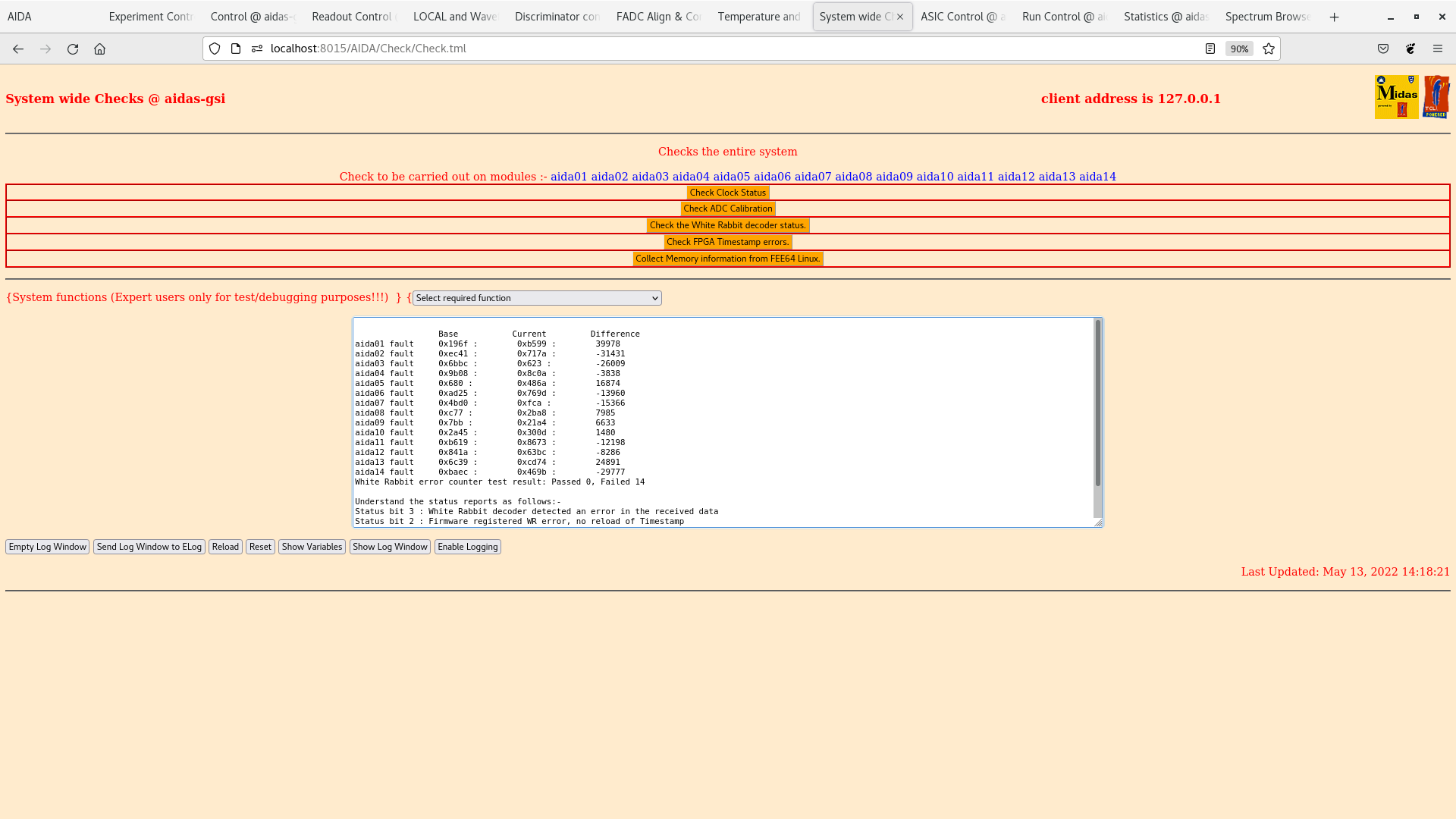

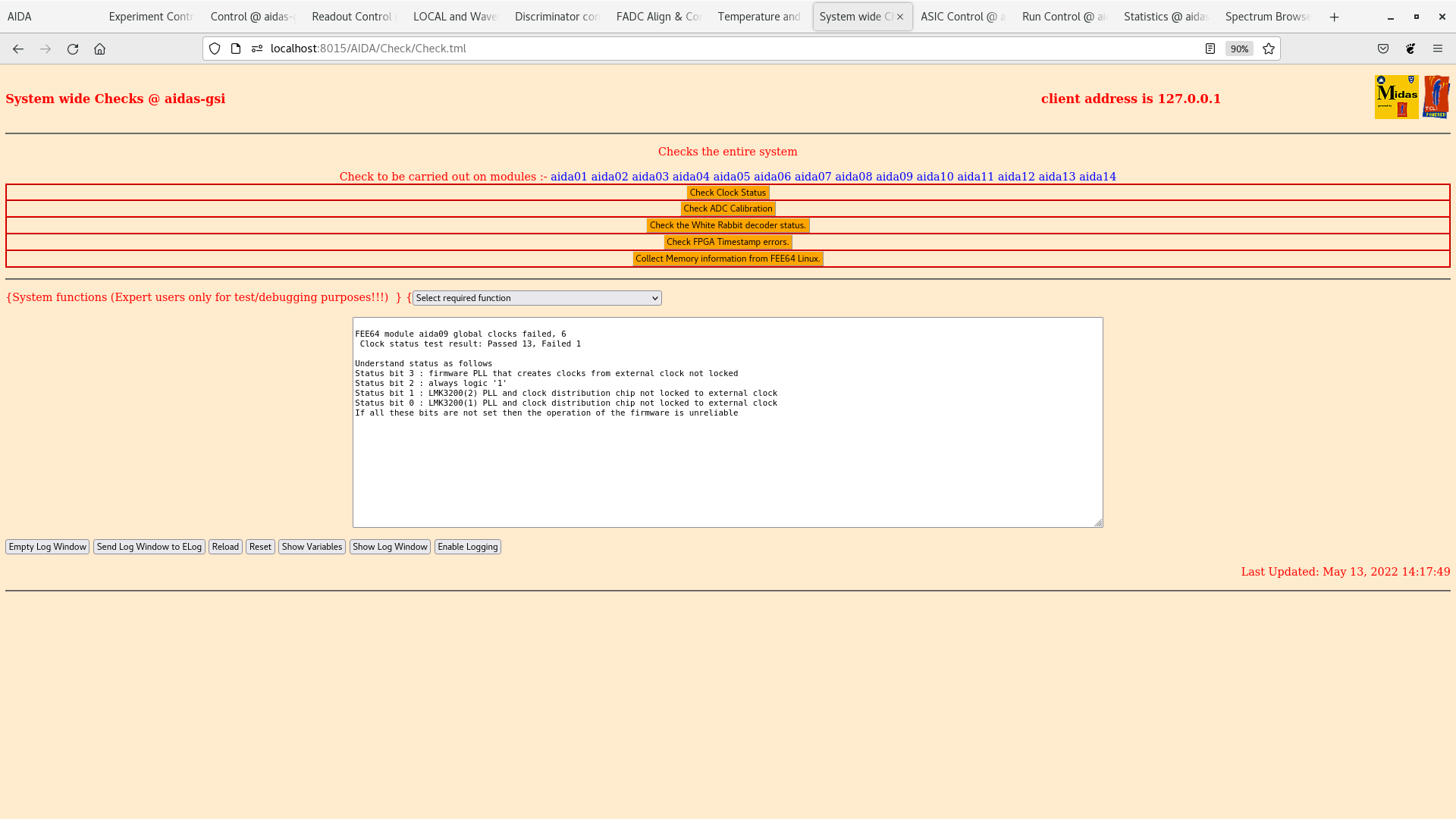

Attachments 19-22 - system wide checks
aida09 clock status 6, WR decoder status errors

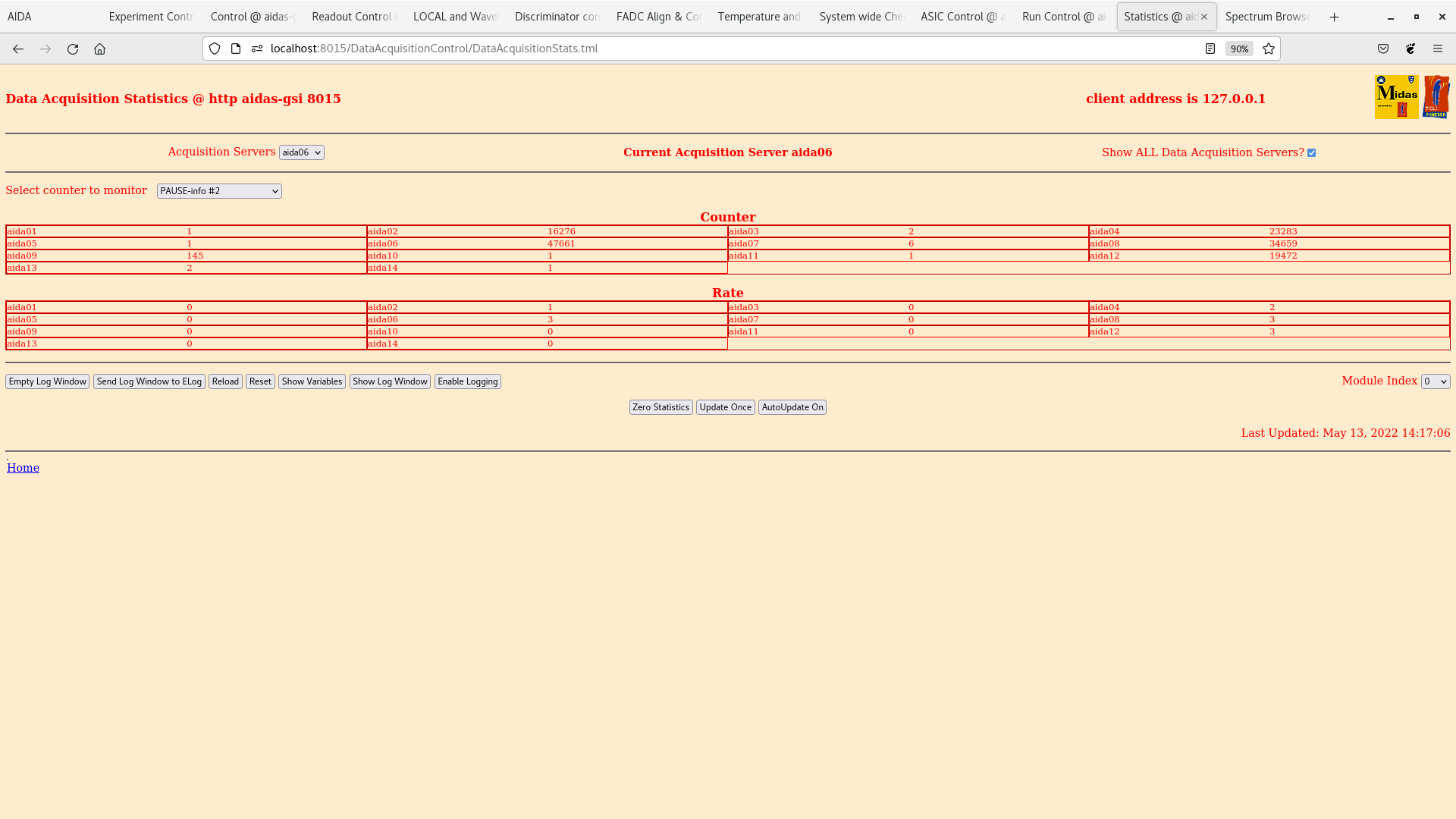

Attachments 23-26 - adc, pause, resume correlation sclaer data item stats

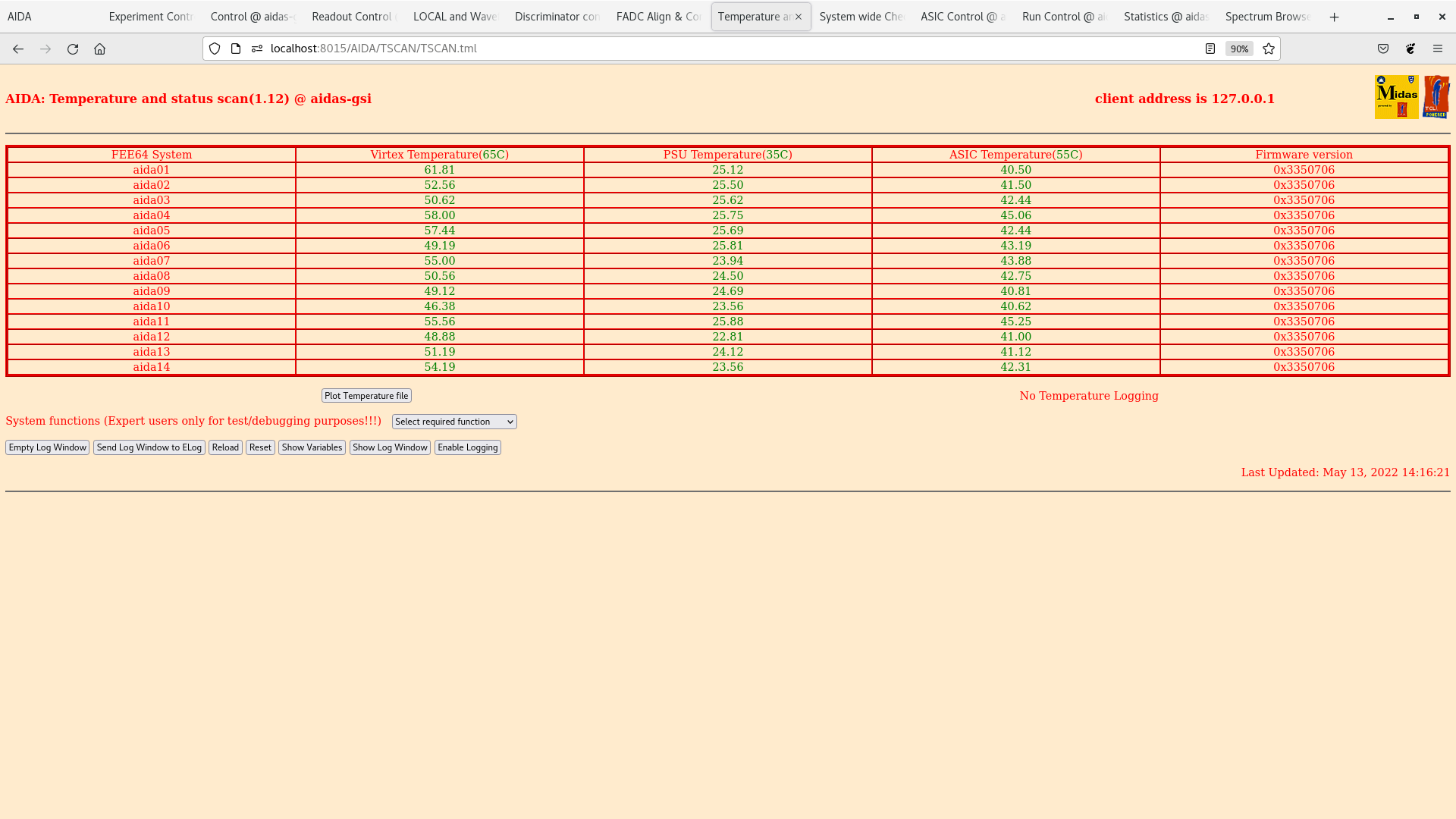

Attachment 27 - FEE64 temps OK

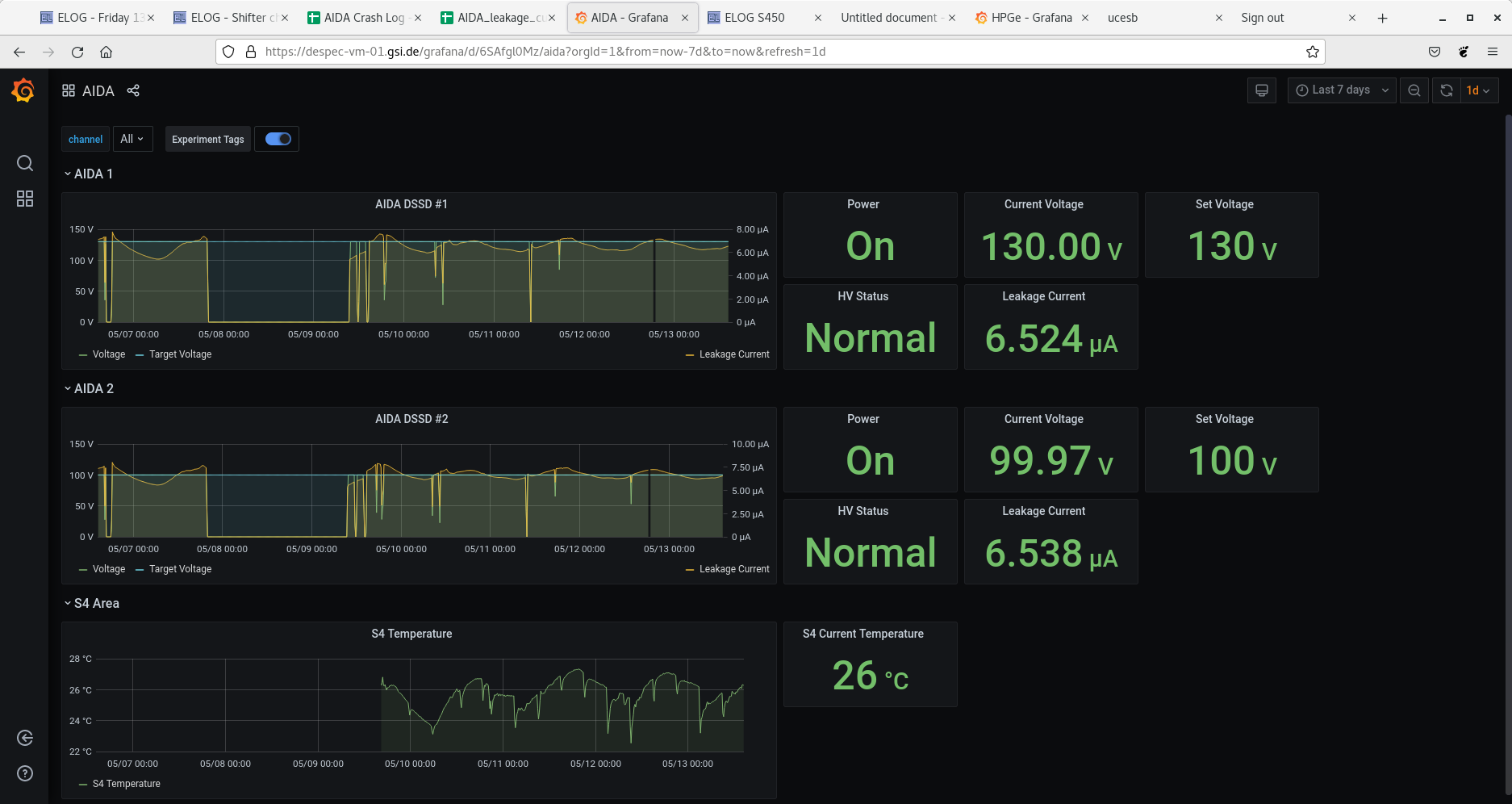

Attachment 28 - DSSSSD bias and leakage currents OK
14.30 check ASIC load
14.47 attachment 29 - analysis S450/R4_38

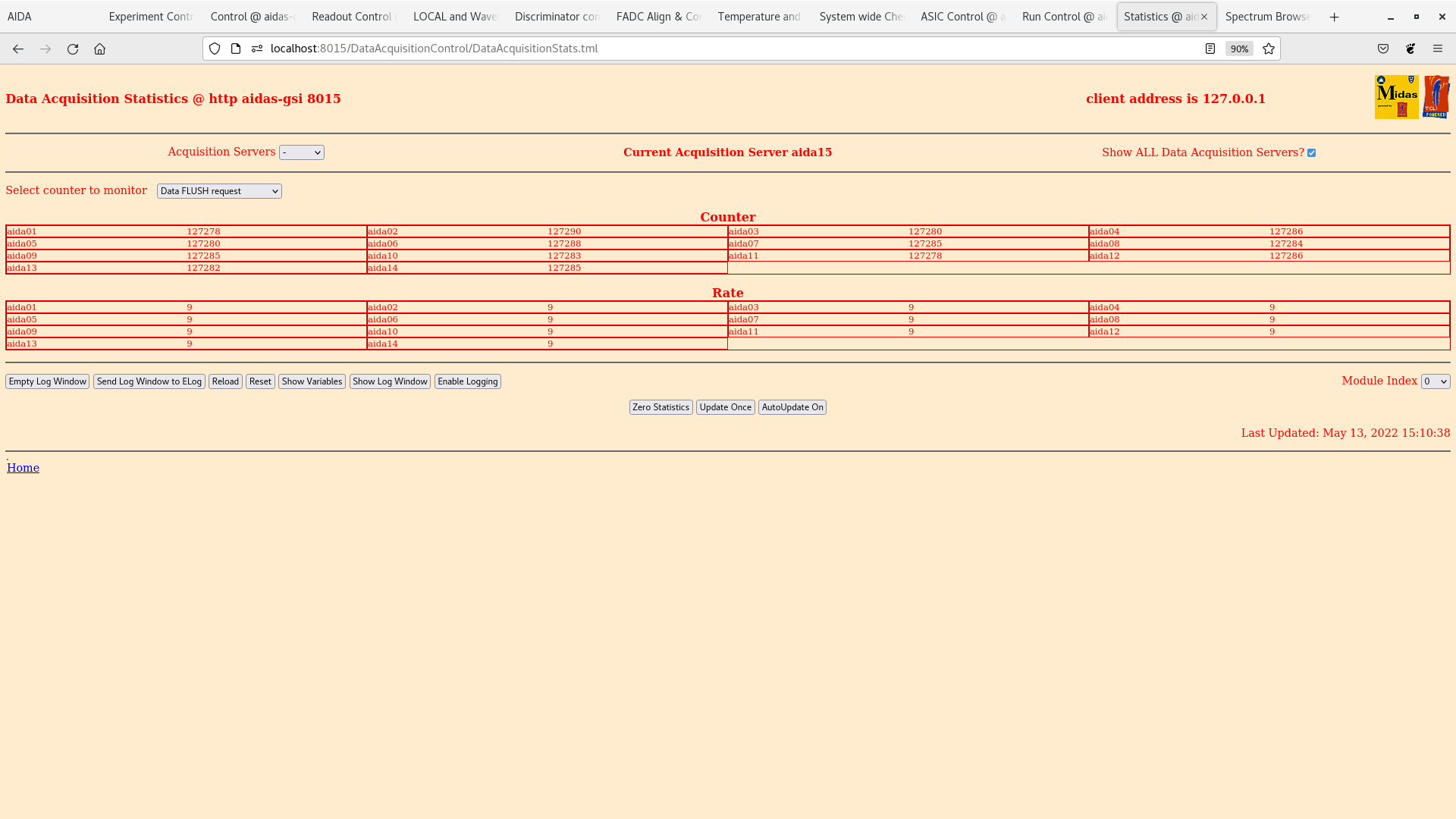

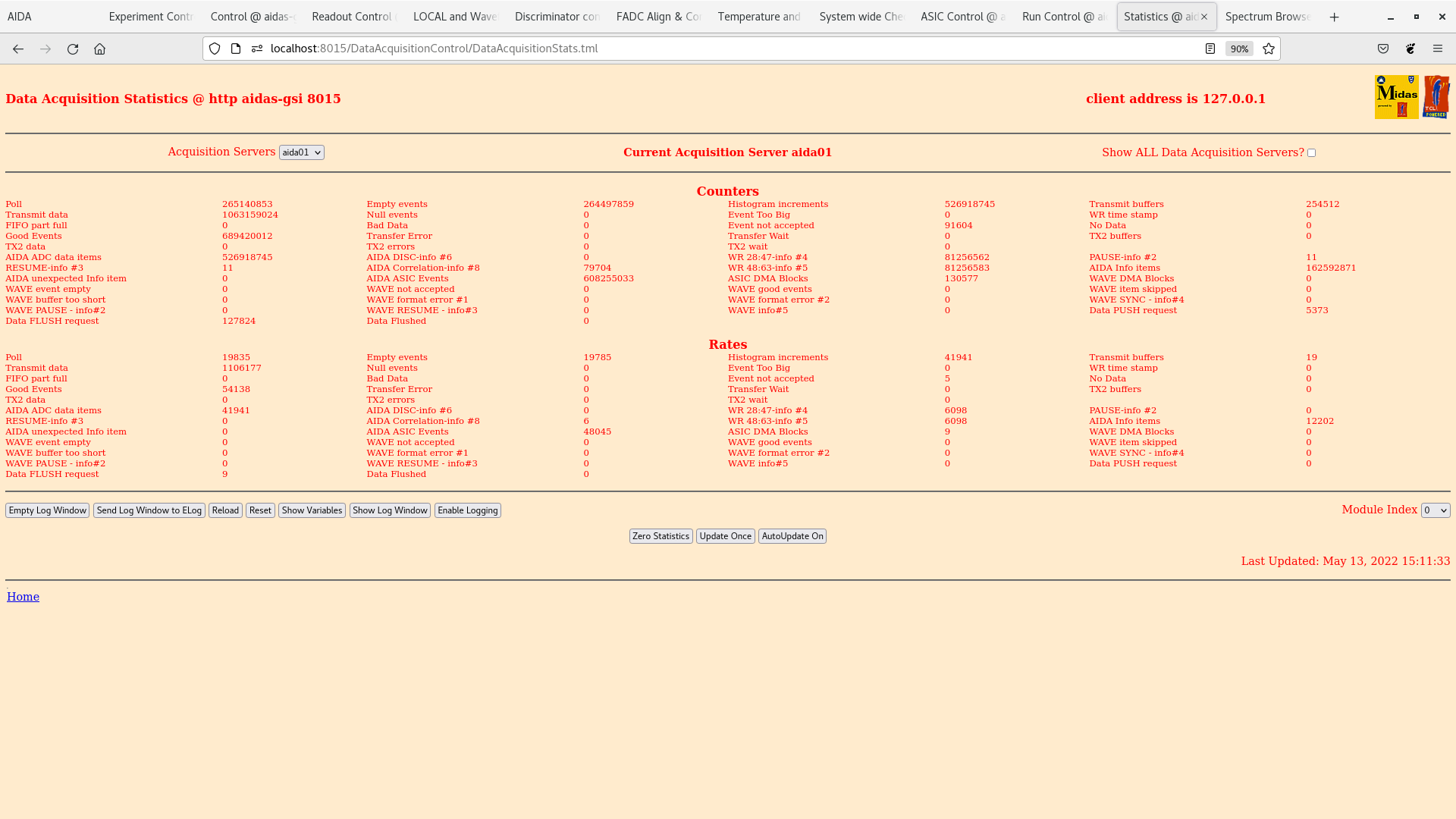

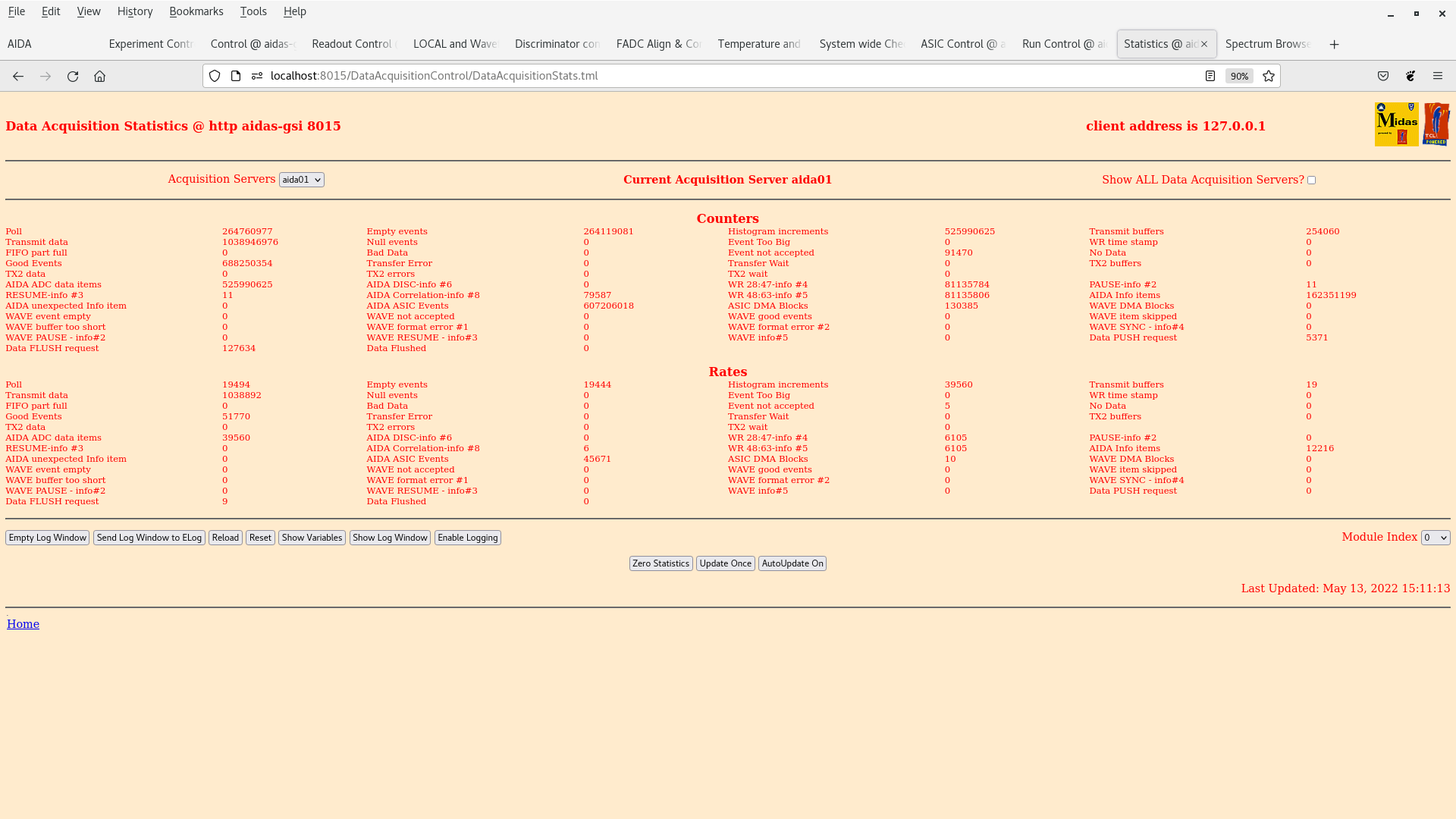

15.11 Attachments 30-35 - data push, flush stats for all FEE64s and aida01 (low ADC data item rate) and aida06 (high ADC data item rate) |
|
