Message ID: 486     Entry time: Mon Jun 20 09:26:23 2022
Author: OH, TD
Subject: Monday 20 June
10:26 MACB HDMI for AIDA03 and AIDA04 reseated.
      Merger and DAQ restarted - All happily sending data
      Has been running for 10 minutes with no WR errors.
      Rates from yesterday achieved again.

      DTAS will move back into position at some point.
      Once this is done, will perform pulser walkthrough.


11:14 DTAS now back in position for experiment
      Slight increase in noise noticed across a few FEEs

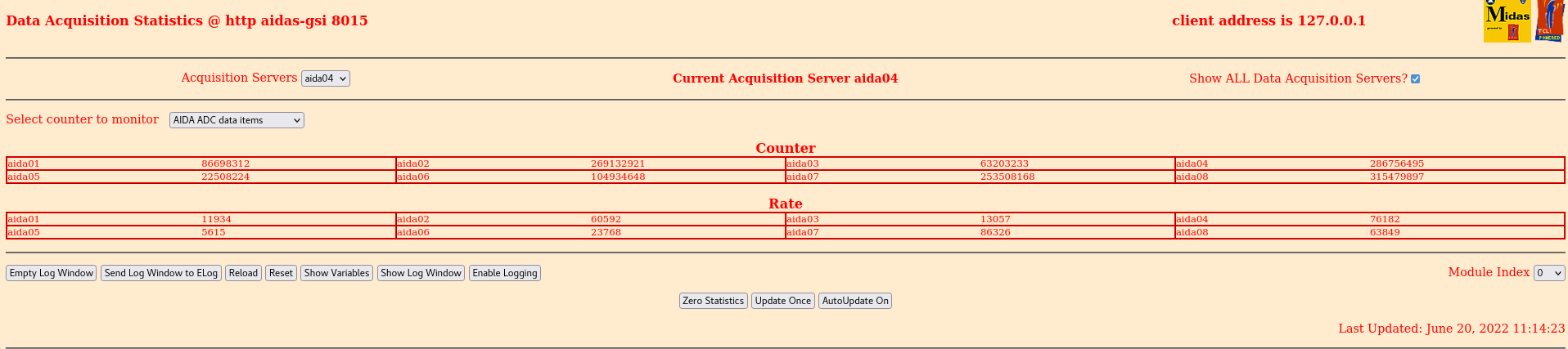

      Over time this has decreased on all but AIDA07 which is now running at ~80k - attachment 1
      AIDA03 is now however gaining white rabbit errors at a rate of 1 every few minutes.
      Less frequently gaining FPGA errors

12:20 AIDA power cycle to reseat the HDMI for AIDA03 - It would eventually crash if not done

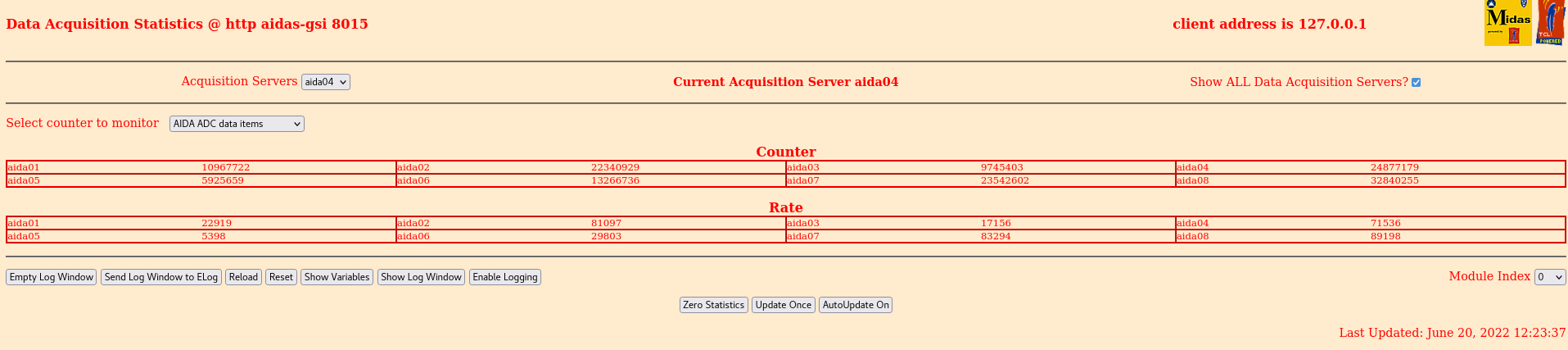

      Upon powering up again rates in AIDA08 slightly worse - attachment 2

13:26 No WR errors since the last power cycle.

21:16 Baseline system wide checks, zero histograms & stats

All system wide checks OK

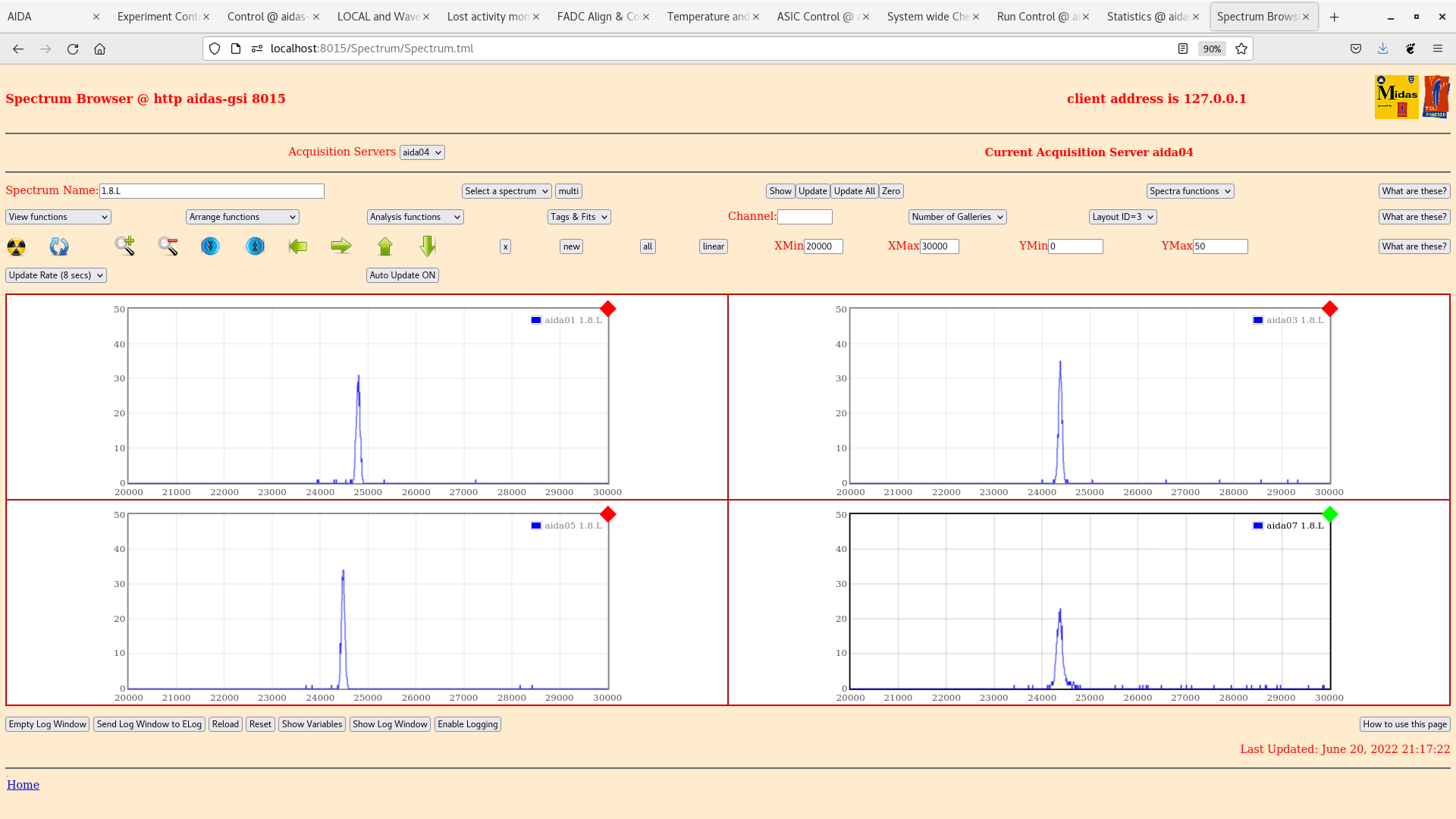

per p+n FEE64 1.8.L spectra - attachment 3
 aida01 pulser peak width 82 channels FWHM

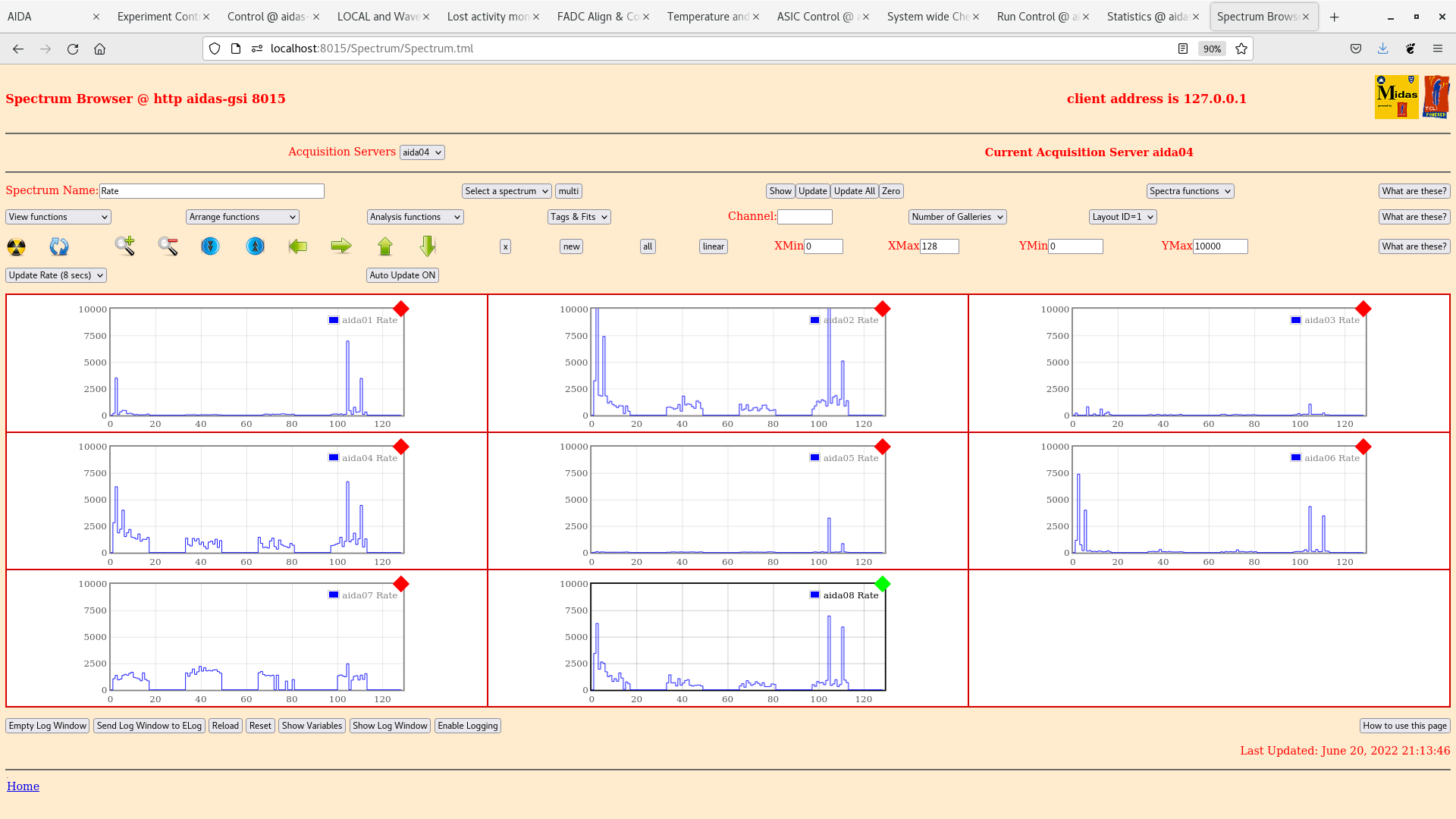

per FEE64 rate spectra - attachment 4

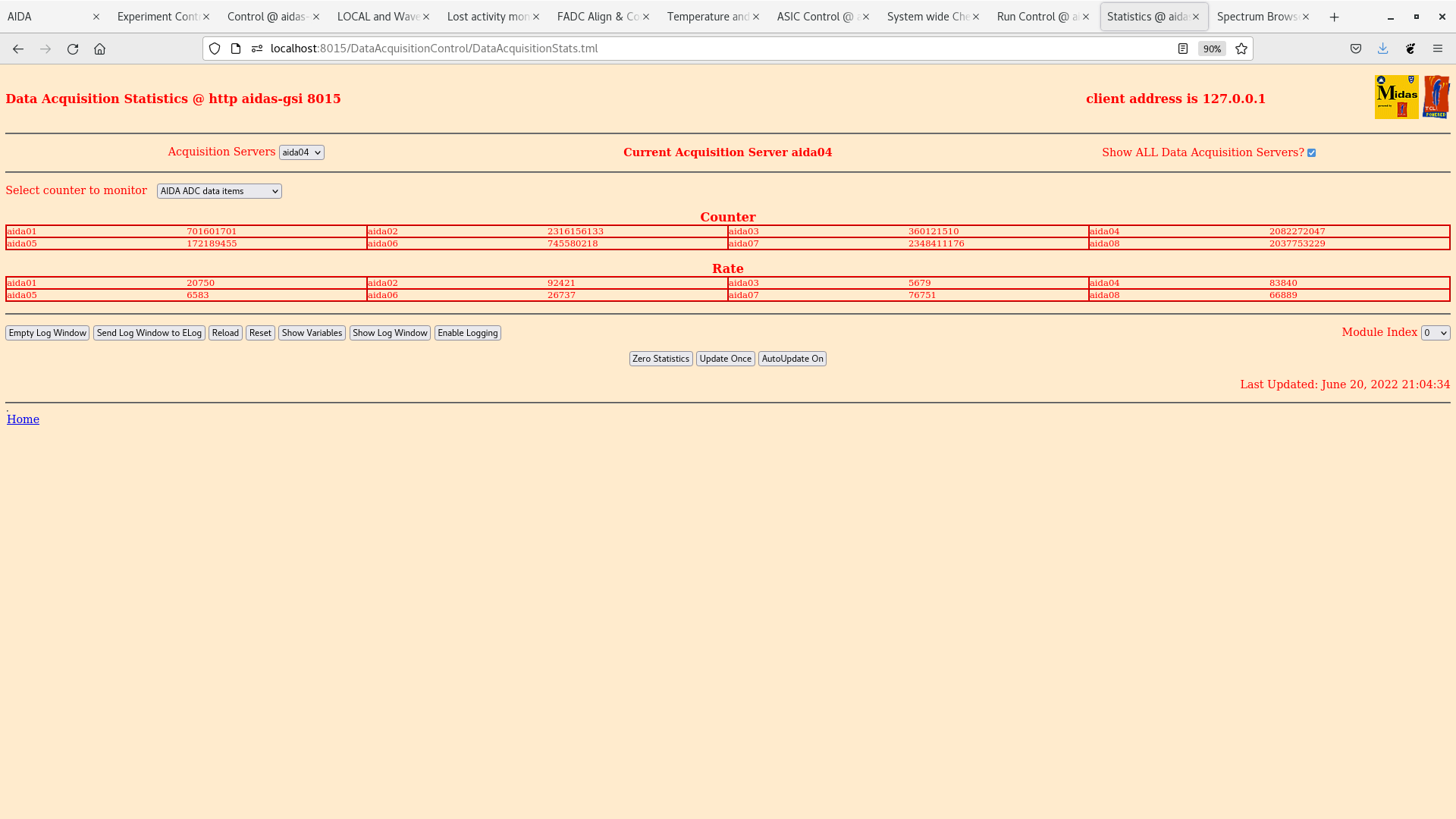

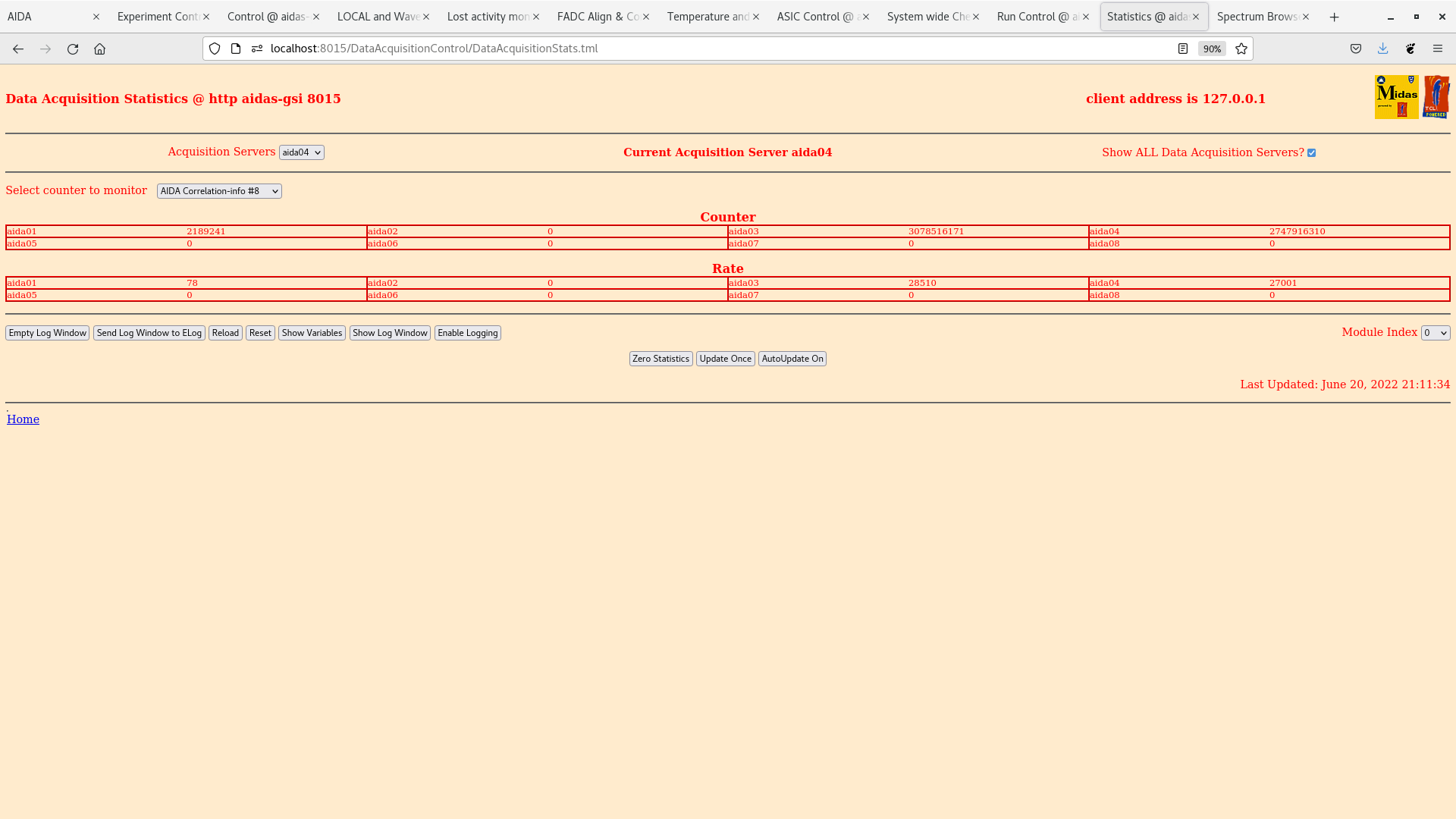

adc, pause, resume and correlation scaler data item stats - attachments 5-8

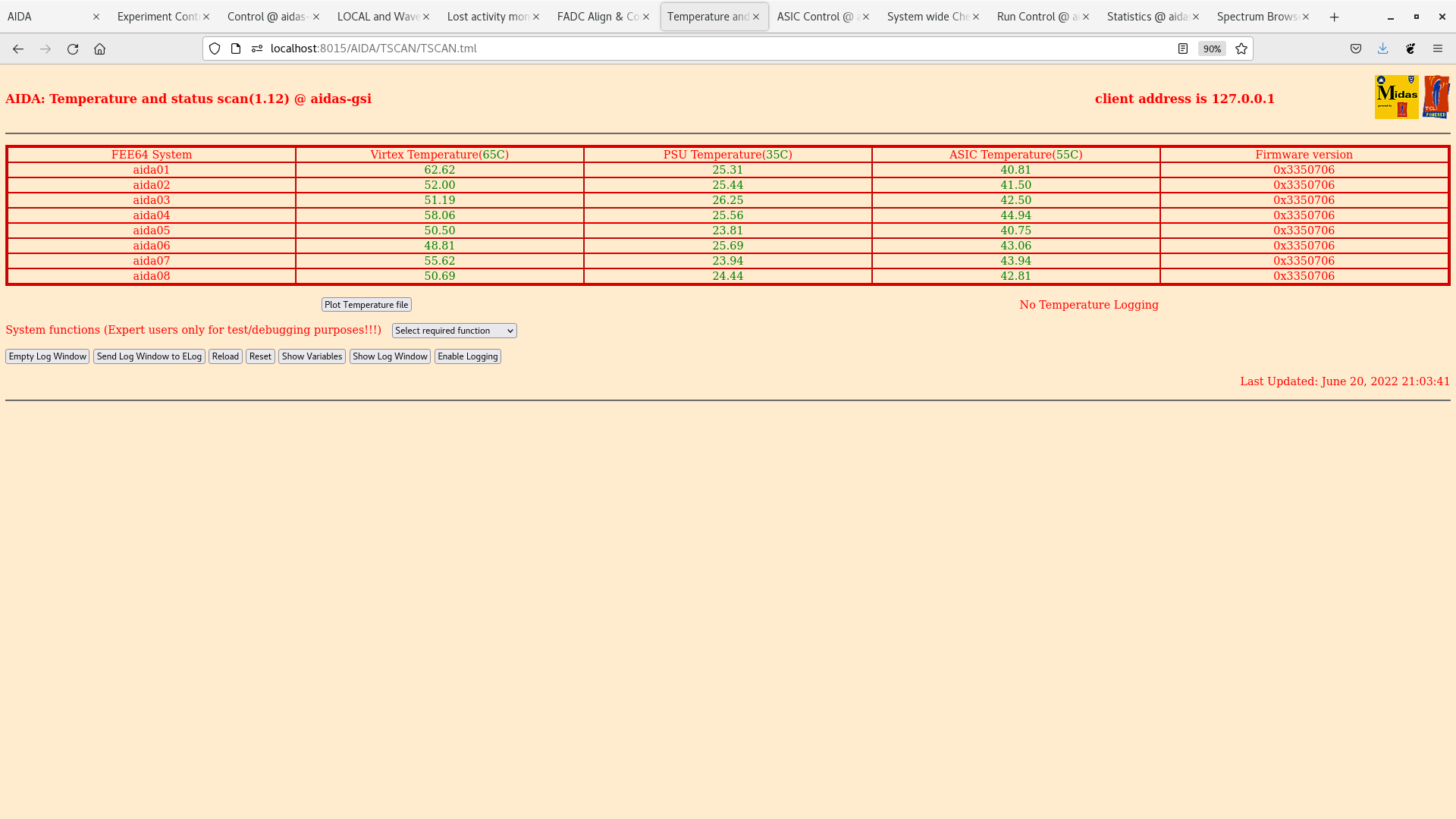

FEE64 temps OK - attachment 9

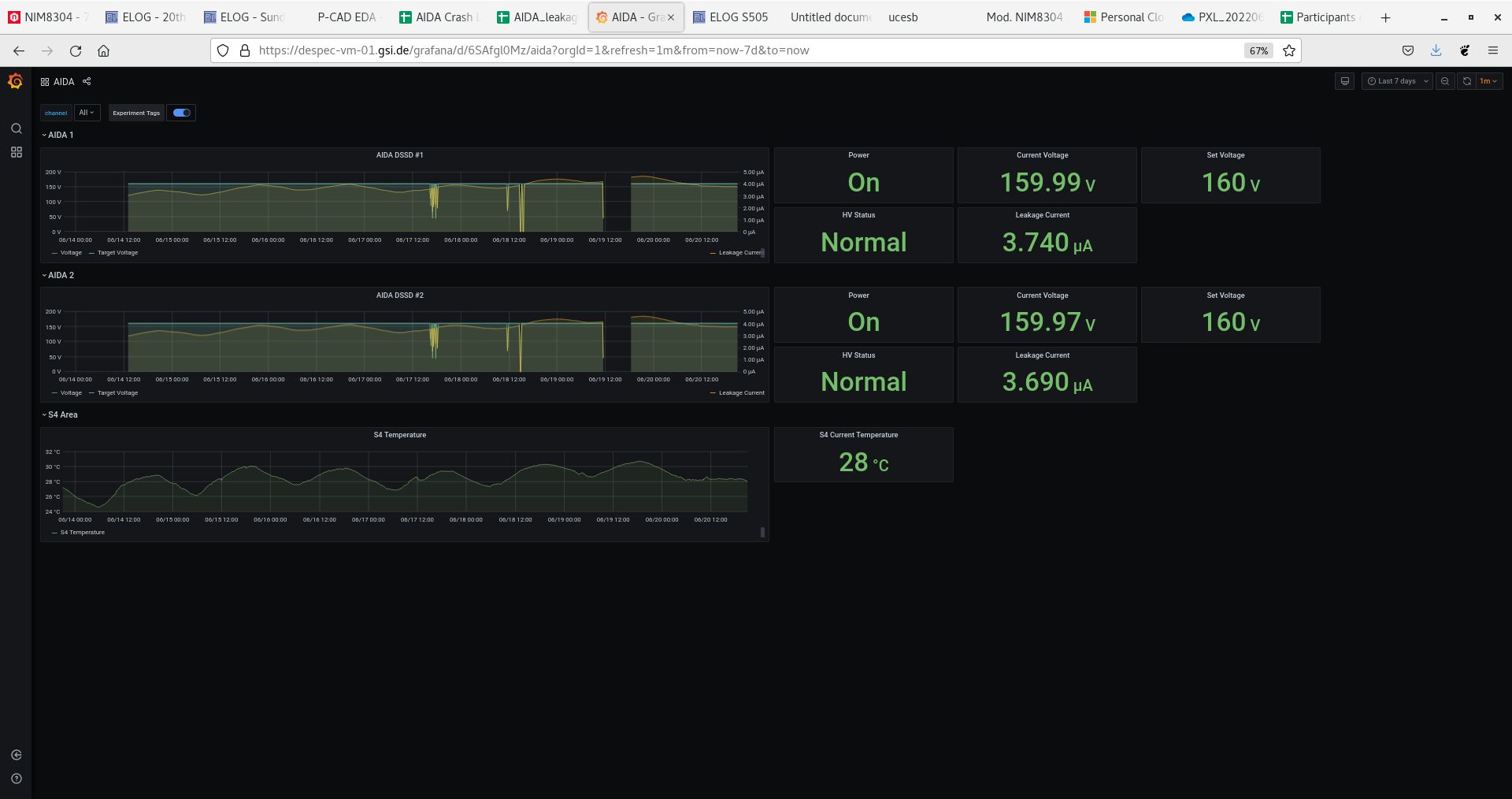

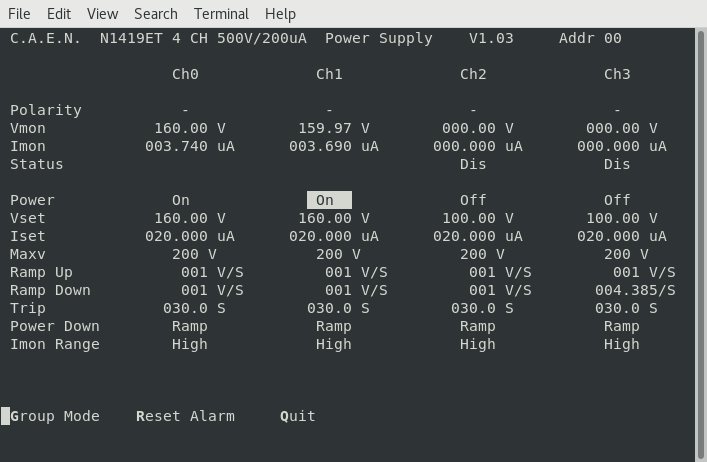

DSSSD bias & leakage currents OK - attachments 10 & 11
Attachment 1: 220620_1116_stats_no_waveform.png  68 kB  Uploaded Mon Jun 20 11:17:34 2022  | Hide | Hide all
Attachment 2: 220620_1223_stats_no_waveform.png  68 kB  Uploaded Mon Jun 20 12:24:11 2022  | Hide | Hide all
Attachment 3: Screenshot_from_2022-06-20_21-17-41.png  159 kB  Uploaded Mon Jun 20 21:21:34 2022  | Hide | Hide all
Attachment 4: Screenshot_from_2022-06-20_21-14-12.png  184 kB  Uploaded Mon Jun 20 21:21:34 2022  | Hide | Hide all
Attachment 5: Screenshot_from_2022-06-20_21-12-06.png  104 kB  Uploaded Mon Jun 20 21:21:34 2022  | Hide | Hide all
Attachment 6: Screenshot_from_2022-06-20_21-10-55.png  103 kB  Uploaded Mon Jun 20 21:21:34 2022  | Hide | Hide all
Attachment 7: Screenshot_from_2022-06-20_21-08-58.png  103 kB  Uploaded Mon Jun 20 21:21:34 2022  | Hide | Hide all
Attachment 8: Screenshot_from_2022-06-20_21-04-58.png  108 kB  Uploaded Mon Jun 20 21:21:34 2022  | Hide | Hide all
Attachment 9: Screenshot_from_2022-06-20_21-04-00.png  126 kB  Uploaded Mon Jun 20 21:21:34 2022  | Hide | Hide all
Attachment 10: Screenshot_from_2022-06-20_21-02-07.png  148 kB  Uploaded Mon Jun 20 21:21:34 2022  | Hide | Hide all
Attachment 11: Screenshot_from_2022-06-20_21-01-07.png  39 kB  Uploaded Mon Jun 20 21:21:34 2022  | Hide | Hide all
