New merger has been worked on by VP which fixes the timewarp issues and MBS integration.

Currently no WAVE capture is supported, VP will re-add WAVE histogramming for startup testing.

10.05.2019 - Pulser walkthrough
-> Pulser rate 50 Hz
-> 1 minute per 0.1 V (0.1 to 1 V)
-> extra time on 1 V

With this 95% of channels calibrate easily (good statistics)
Issue: ~16 channels (most of ASIC3) in FEE10 are horrificly noisy. Not calibrated

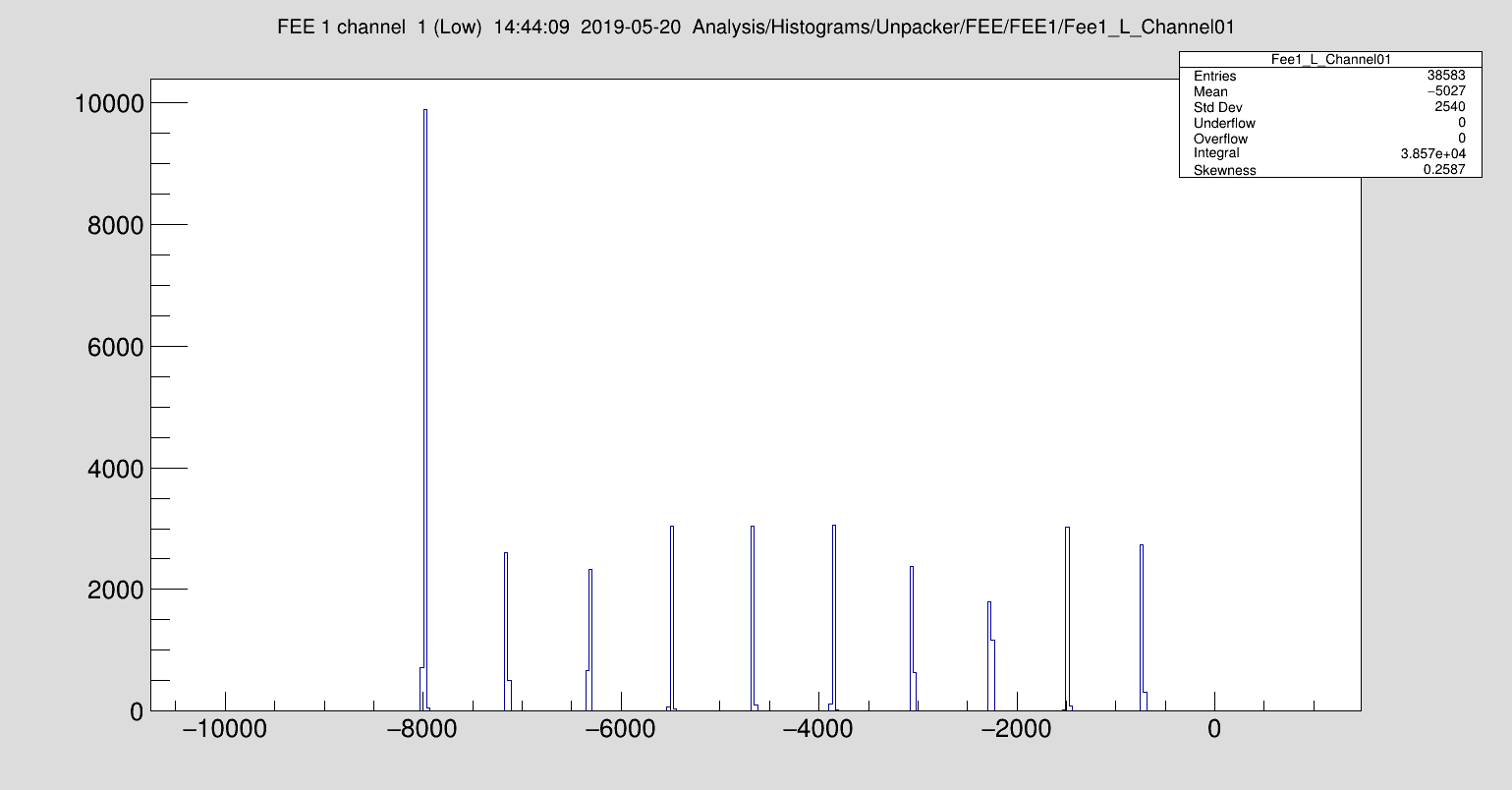

Fig 1. Pulser of FEE1 (no DSSD)

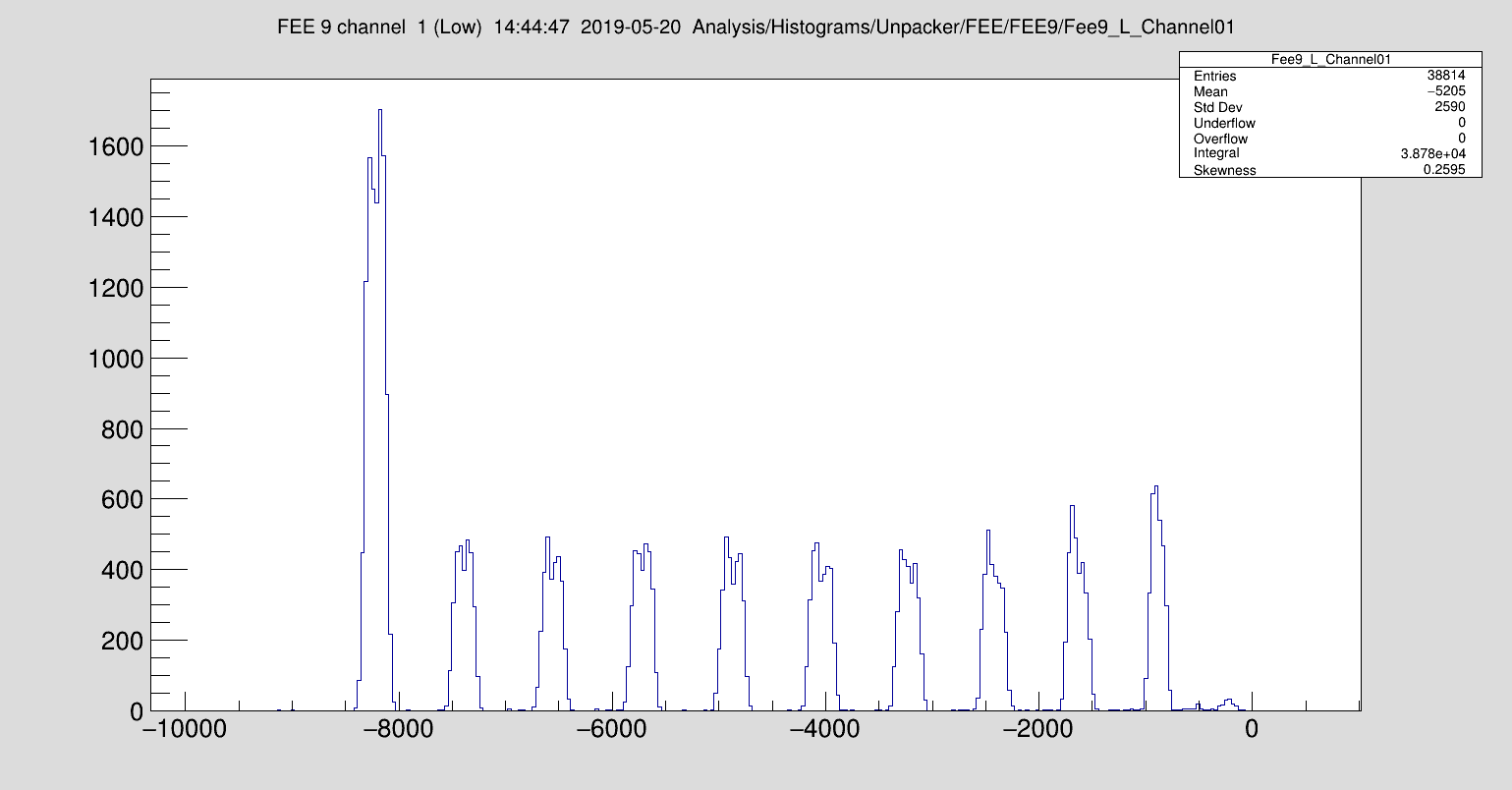

Fig 2. Pulser of FEE9 (DSSD)

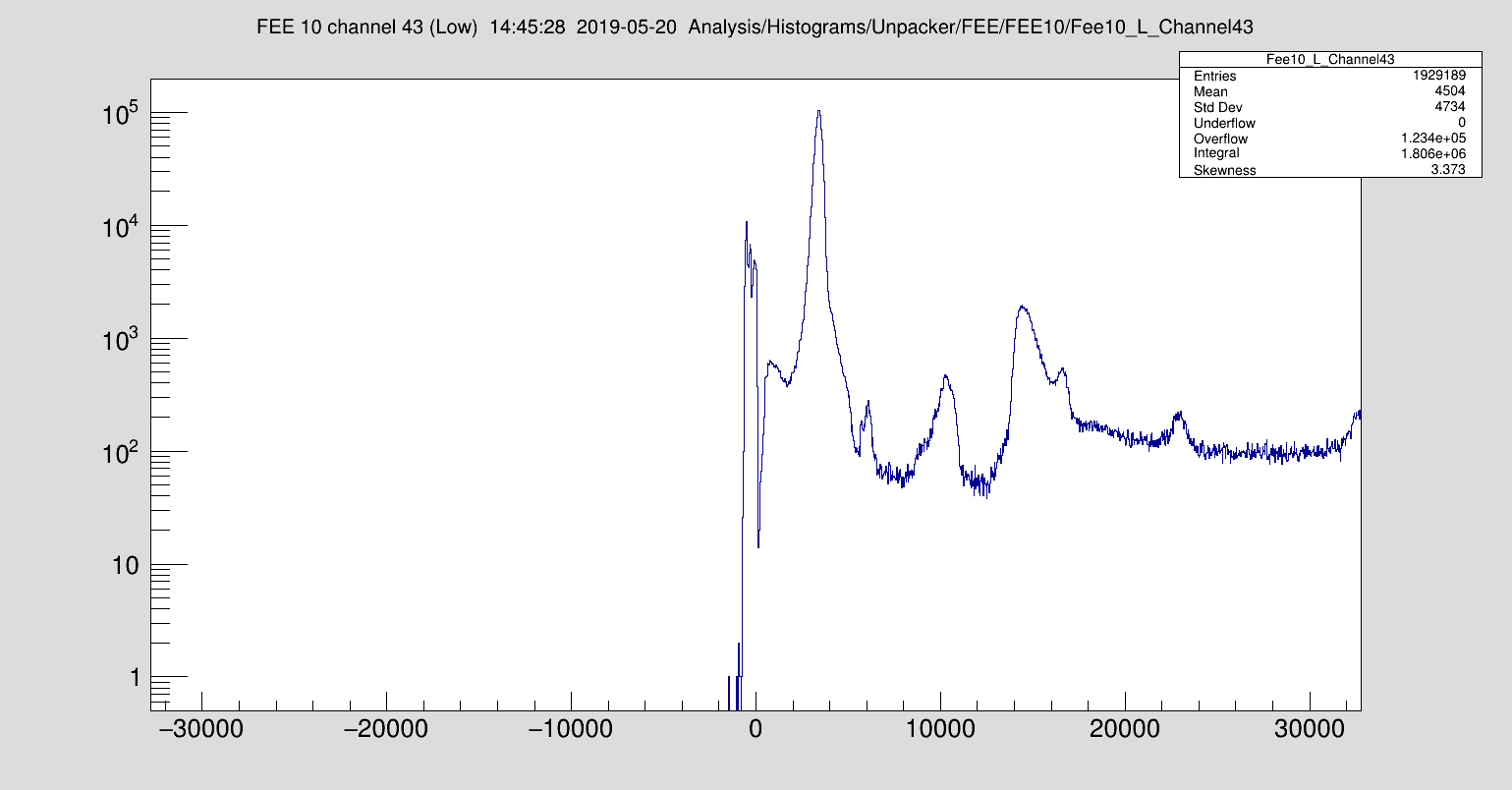

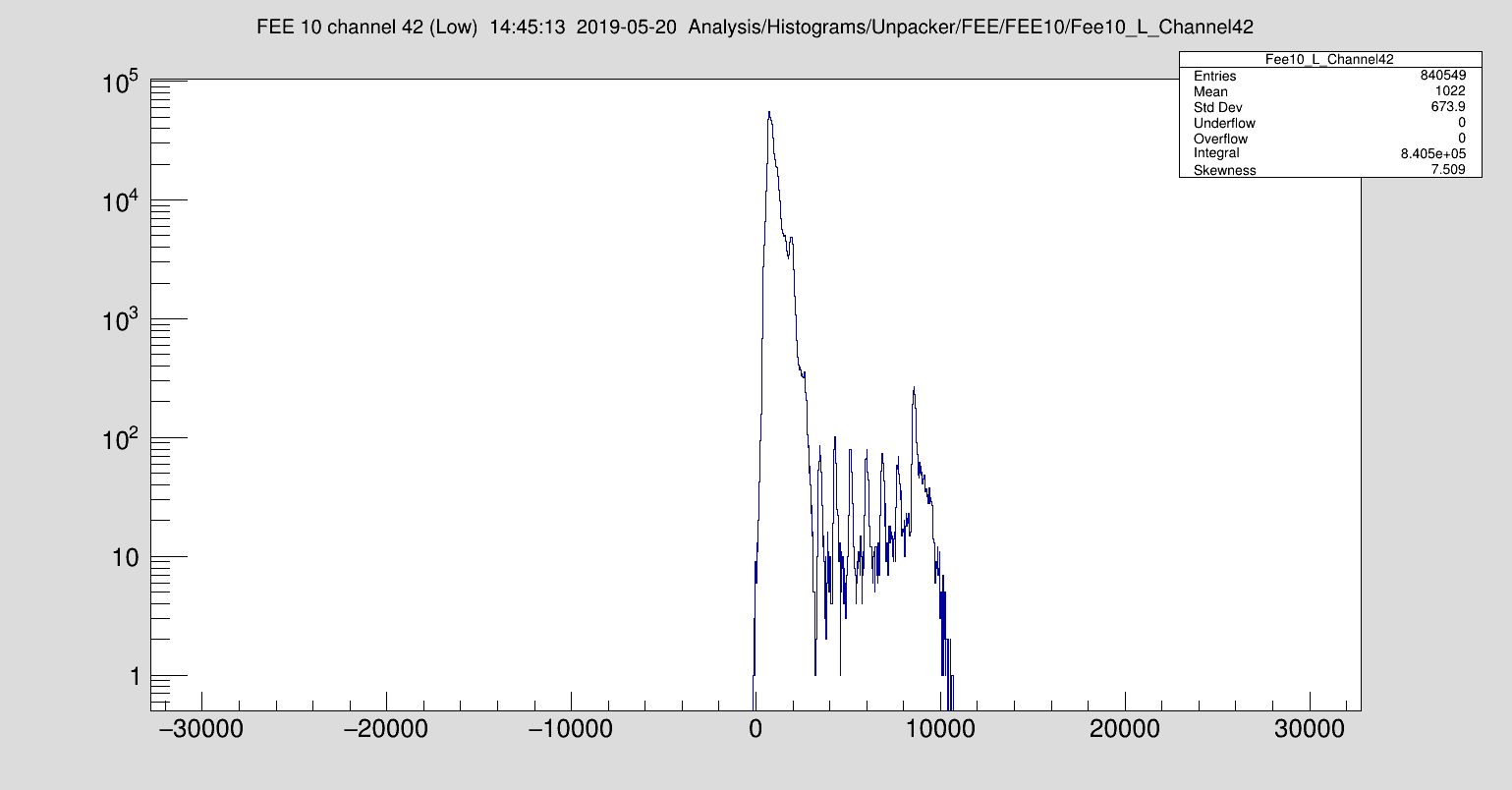

Fig 3&4. Pulser of FEE10 noisy channels

Future TODO: Will investigate WAVE data and look if issue can be found.

20.05.2019 - Alpha walkthrough
-> Pulser off
-> FEE10ASIC3 has readout off & discriminator masked
-> Slow threshold 0x64
-> Fast threshold 0xff
-> HEC threshold 0x2

File is nyx/gamma/nhubbard/AIDA/alpha_bg_200519_

Rate is approx. 1MB/s still of WR timestamp data.

(NB, MIDAS Alpha walkthrough before beamtime I see no alpha events in!)

Fig 5: Temps
Fig 6: Stats
Fig 7: Merger Stats
Fig 8: MBS Stats
