17.00 FEE64 41:a0:71 ASIC #2 u/s
      Replaced ASIC mezzanine with new ASIC mezzanine
      Installed as aida04

      Unable to boot nnrpi2 - manual/local control of BNC PB-5 and FEE64 PSU - no interlock

      Water temperature & pressure as measured outside S4 area - OK

      Manually power FEE64s

      BNC PB-5 local control/ON
      Amplitude 1.0V
      Attenuation x10
      Polarity -
      tau_d 1ms
      Frequency 22Hz

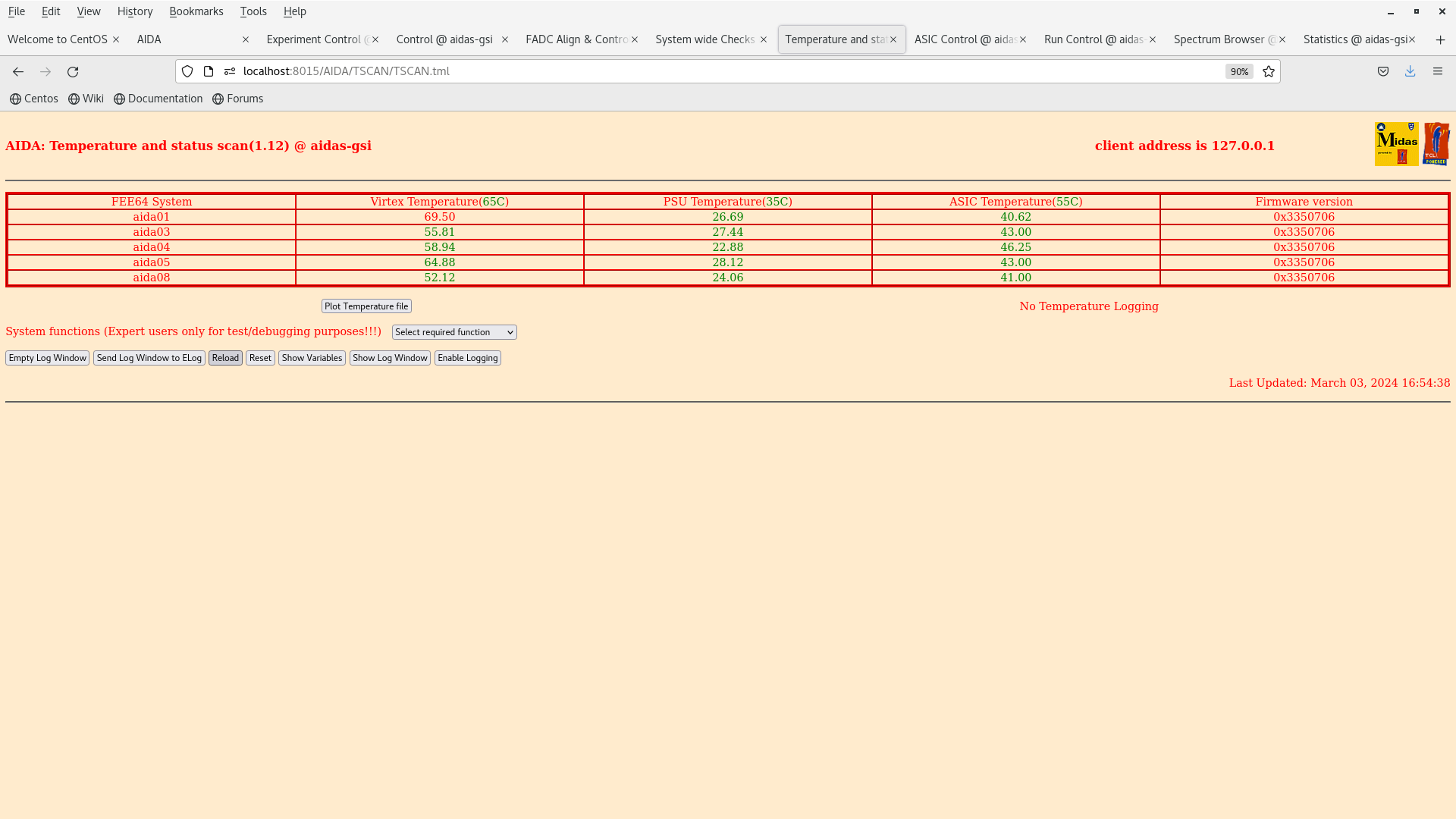

      FEE64 temps OK - attachment 1

      All system wide checks OK

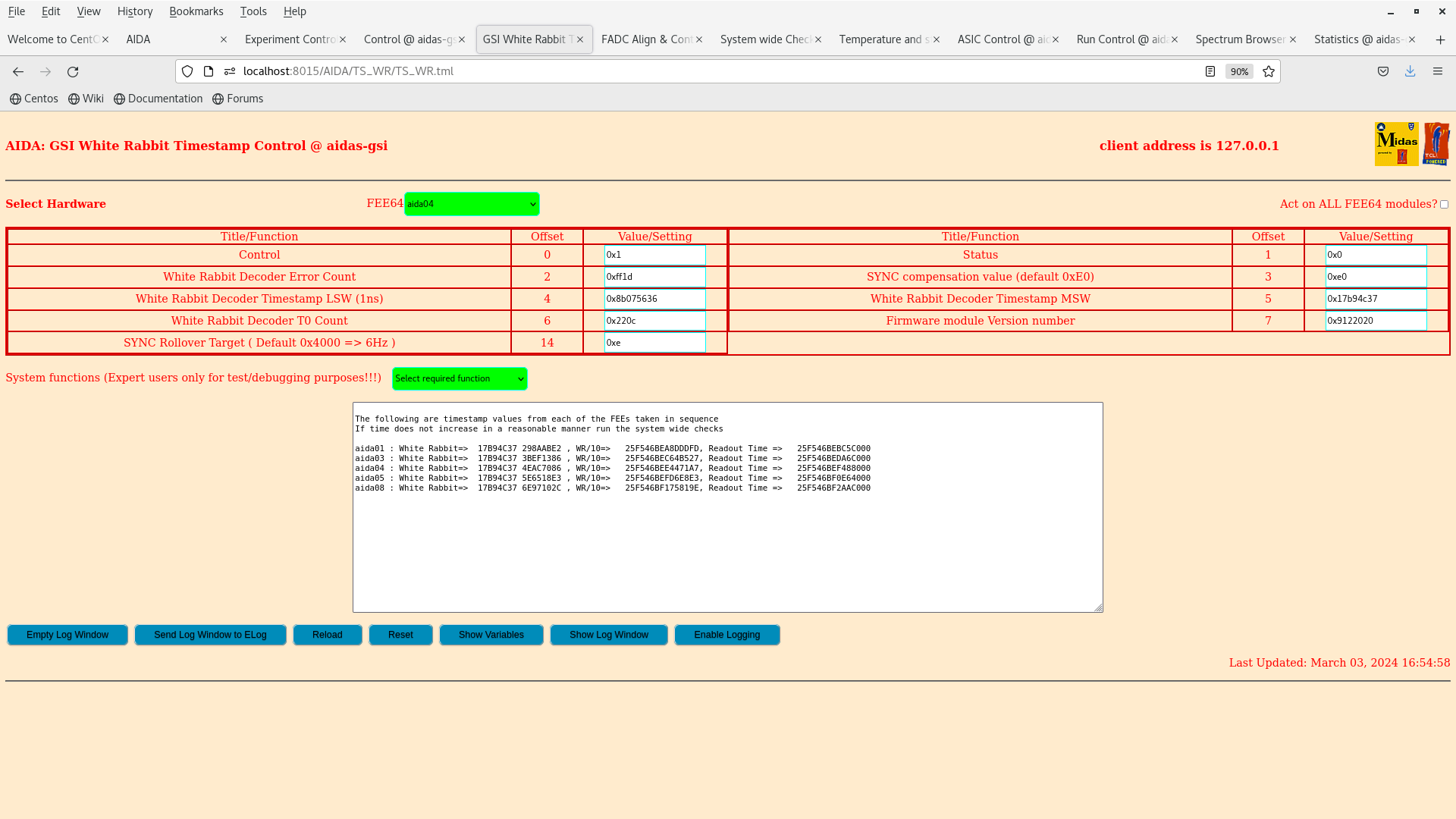

      WR timestamp OK - attachment 2

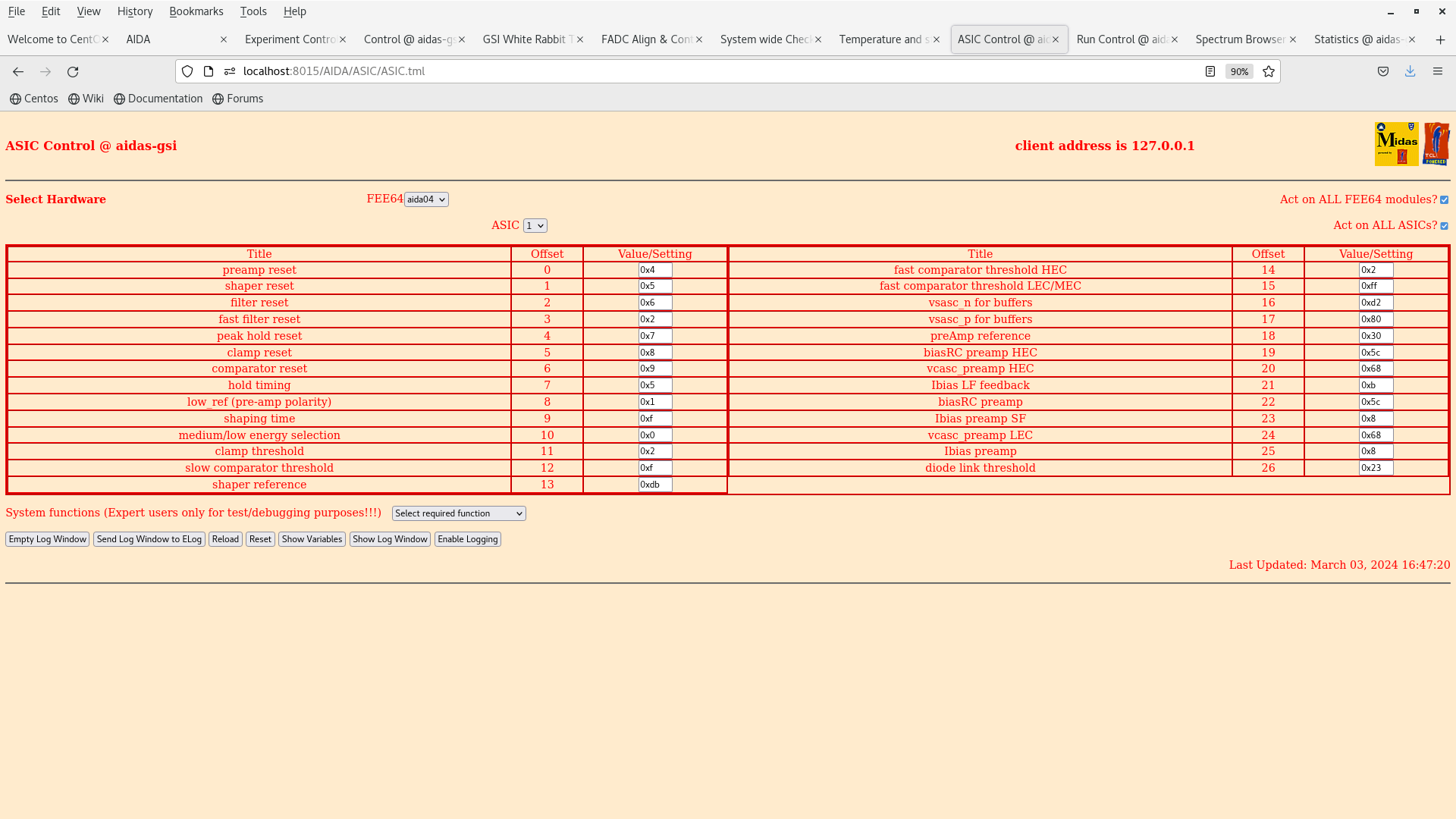

      aida04 ASIC settings - attachment 3

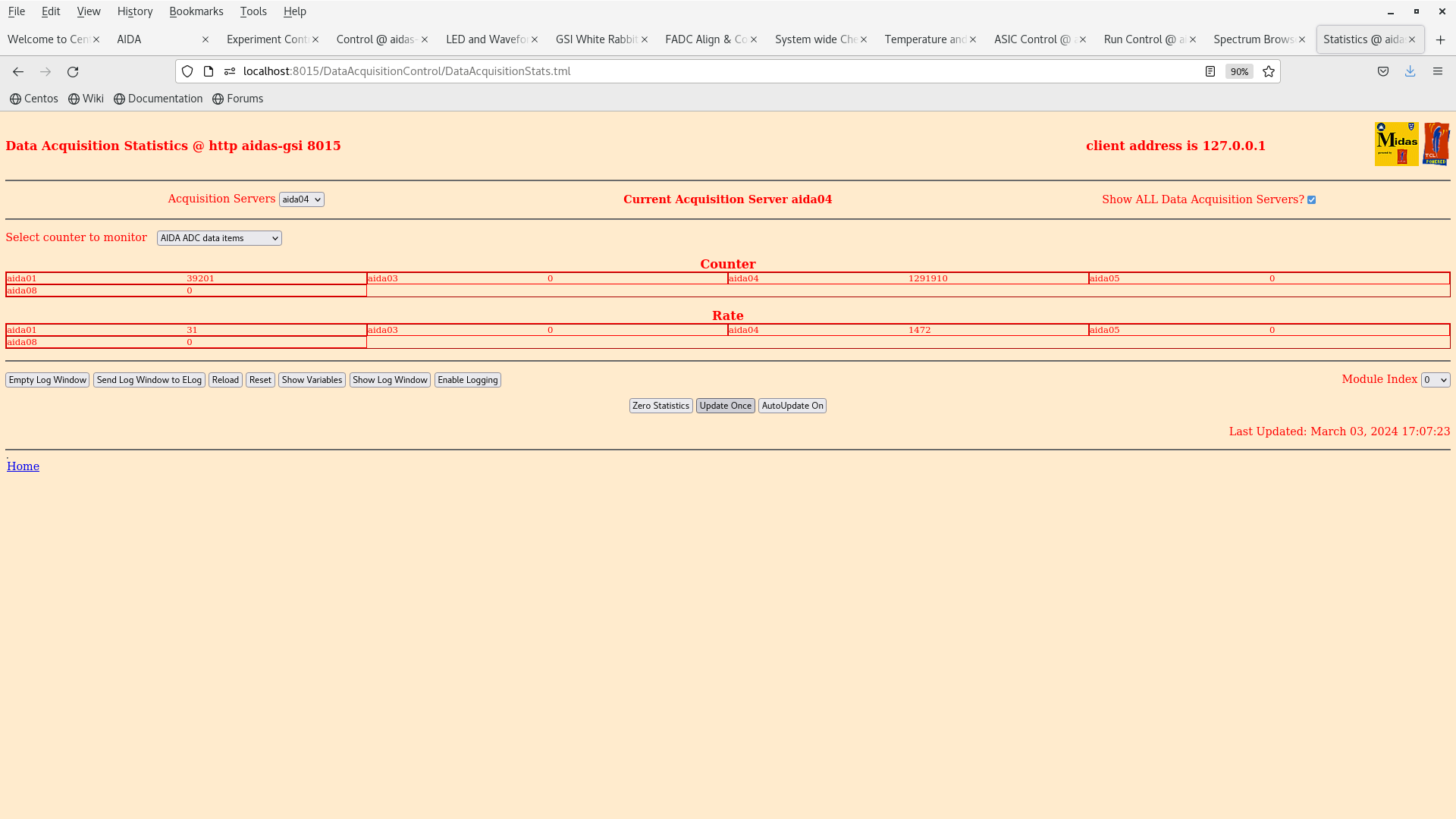

      ADC data item stats OK - attachment 4

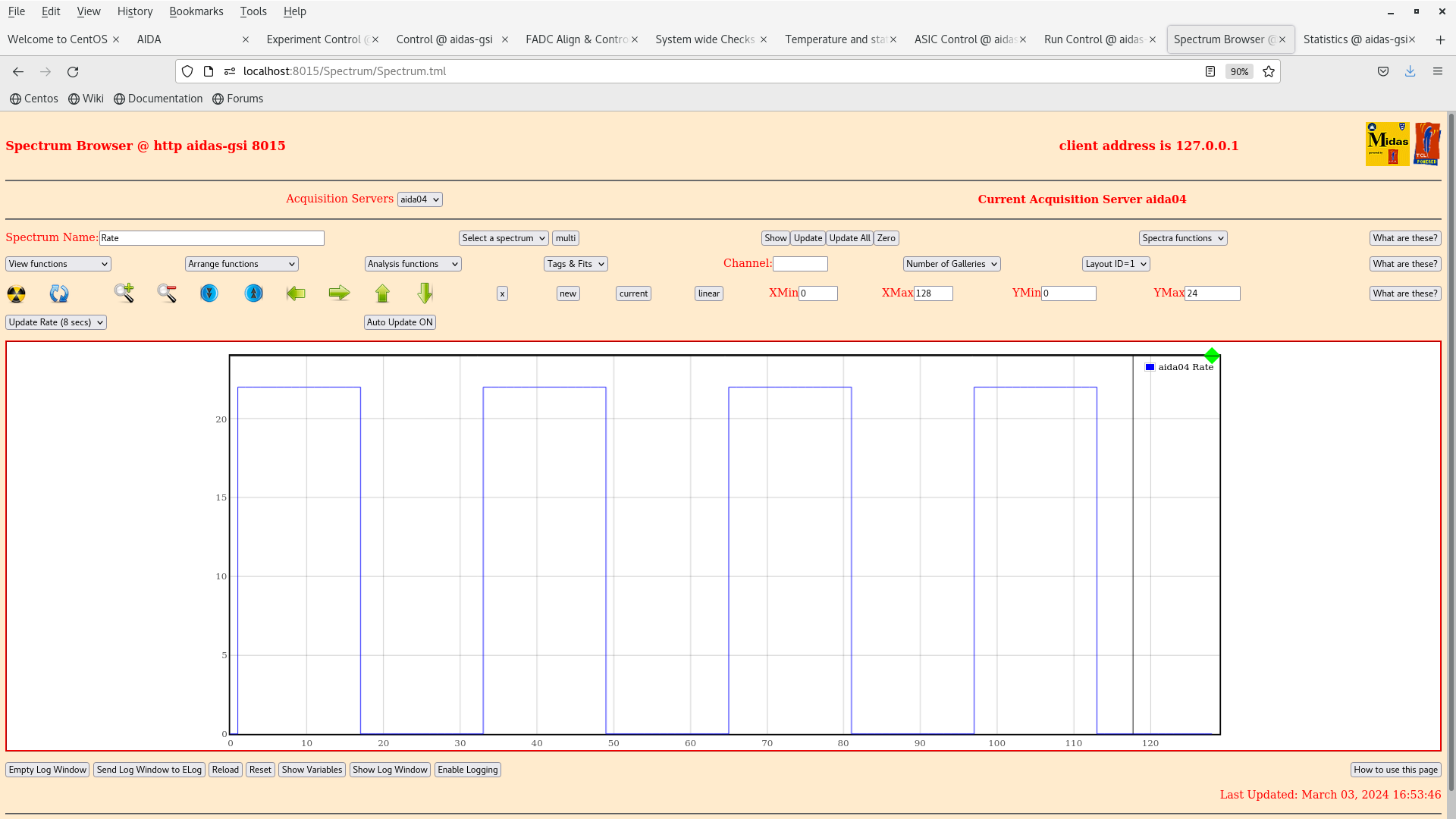

      aida04 Rate spectrum - attachment 5

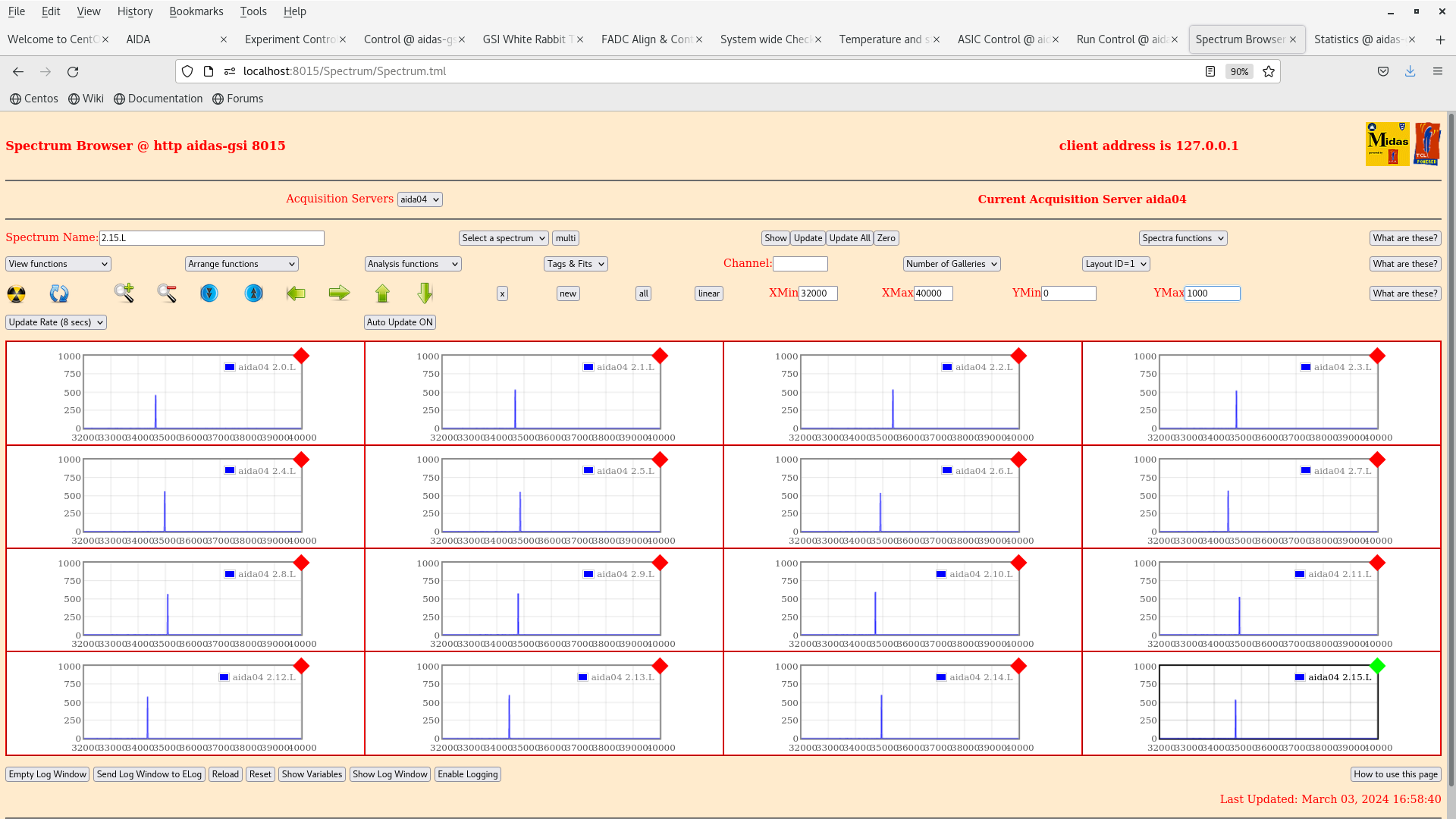

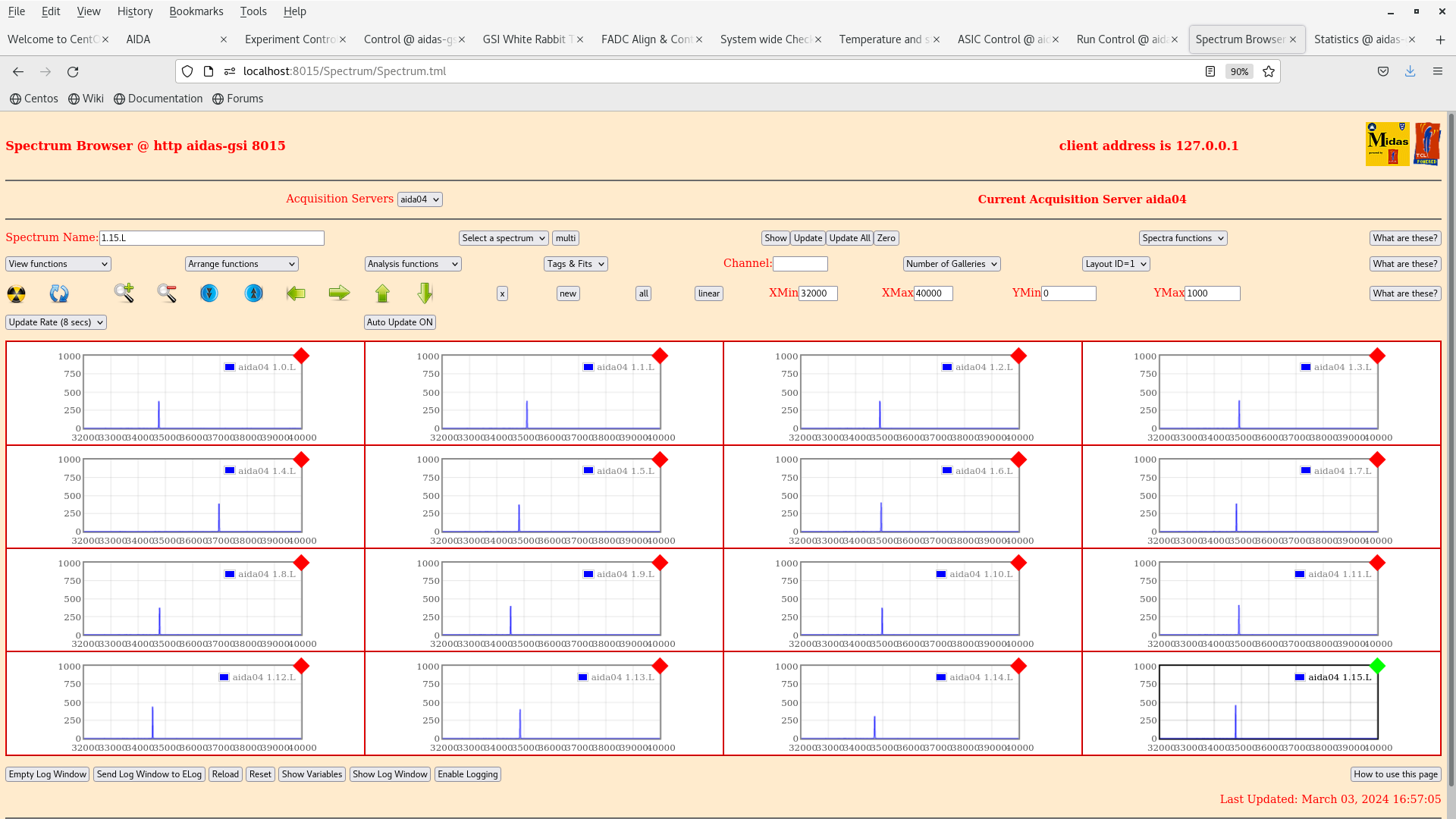

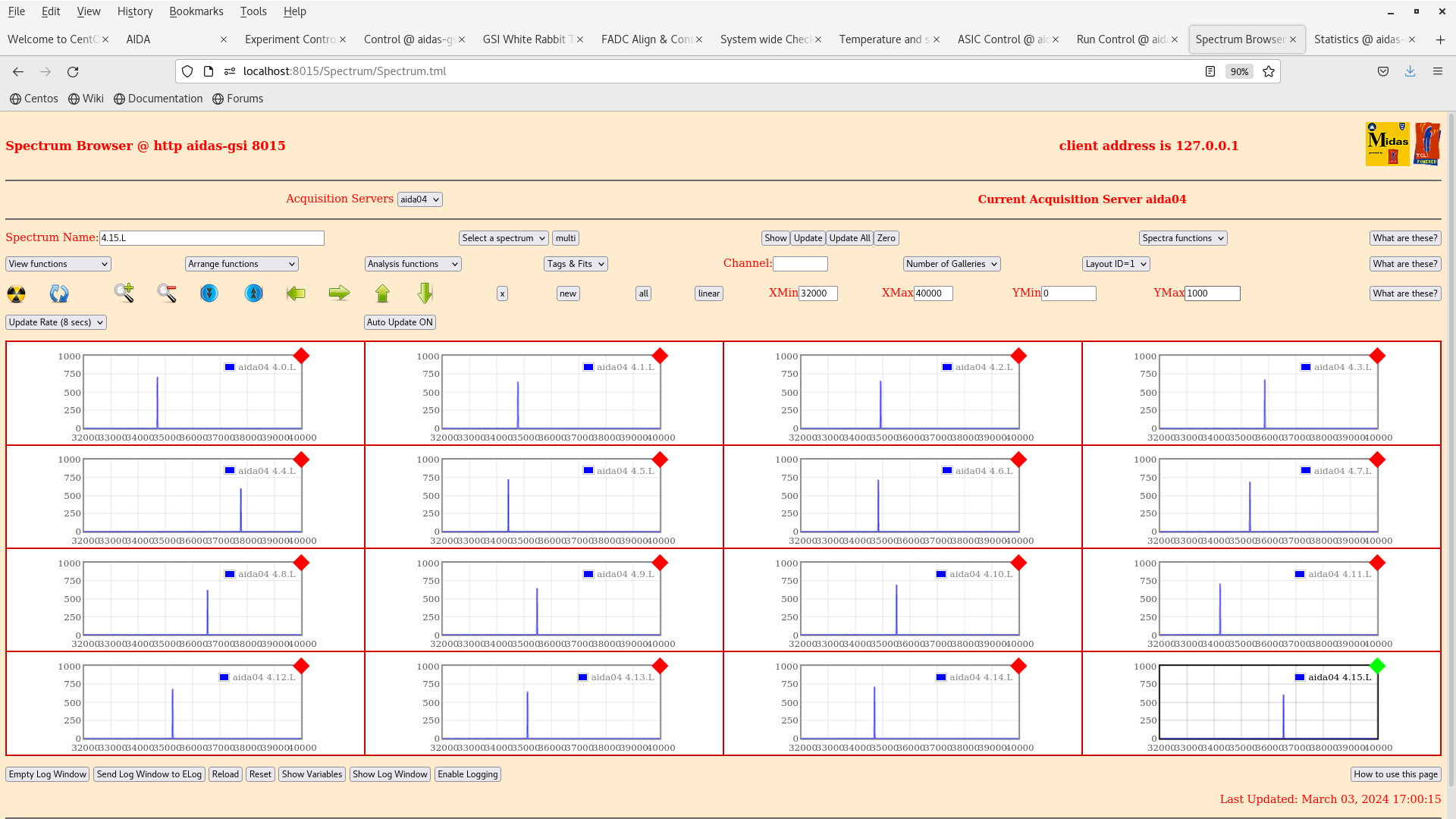

      aida04 *.*.L spectra - attachments 6-9
       1.8.L pulser peak width 15 ch FWHM

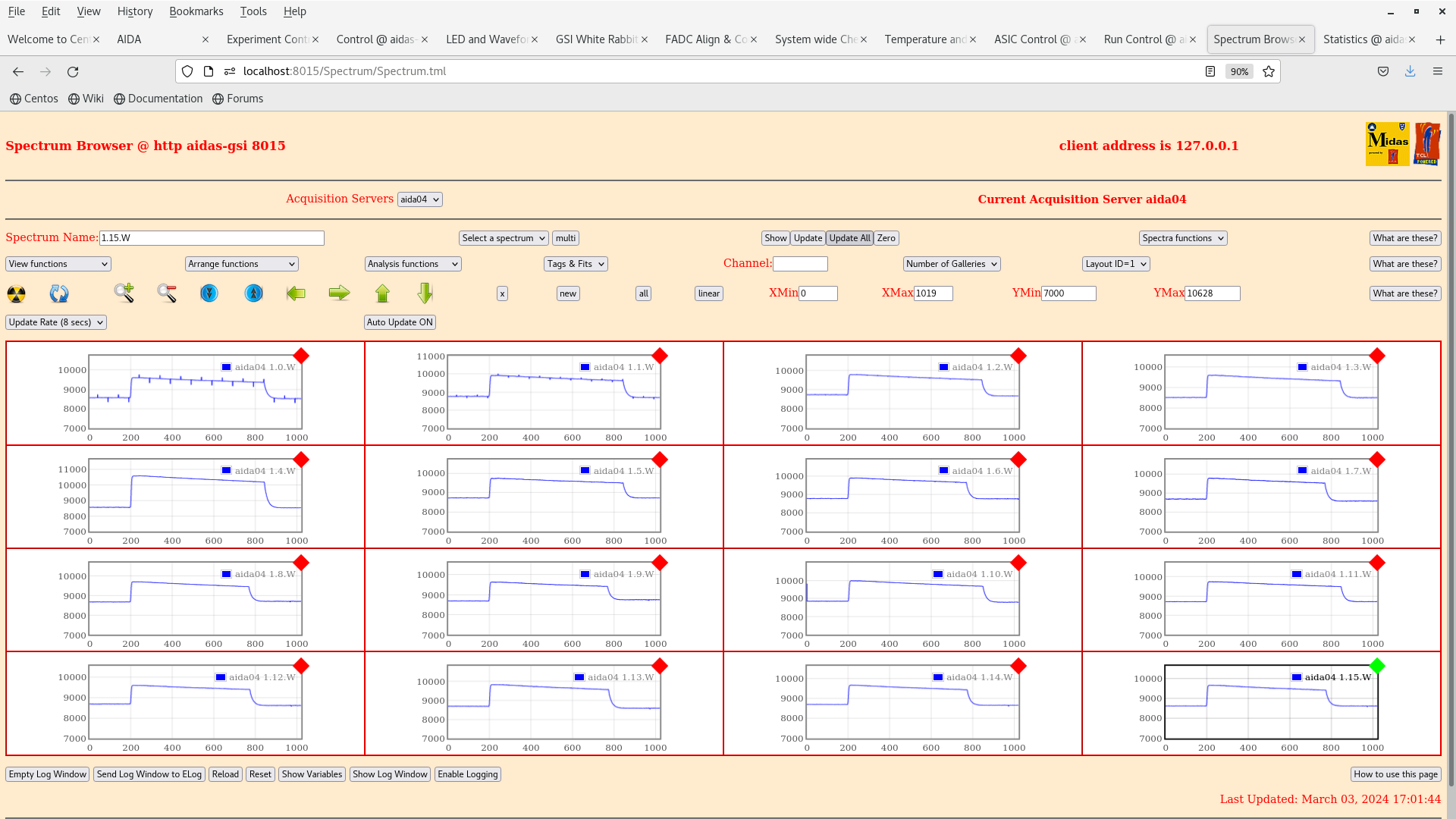

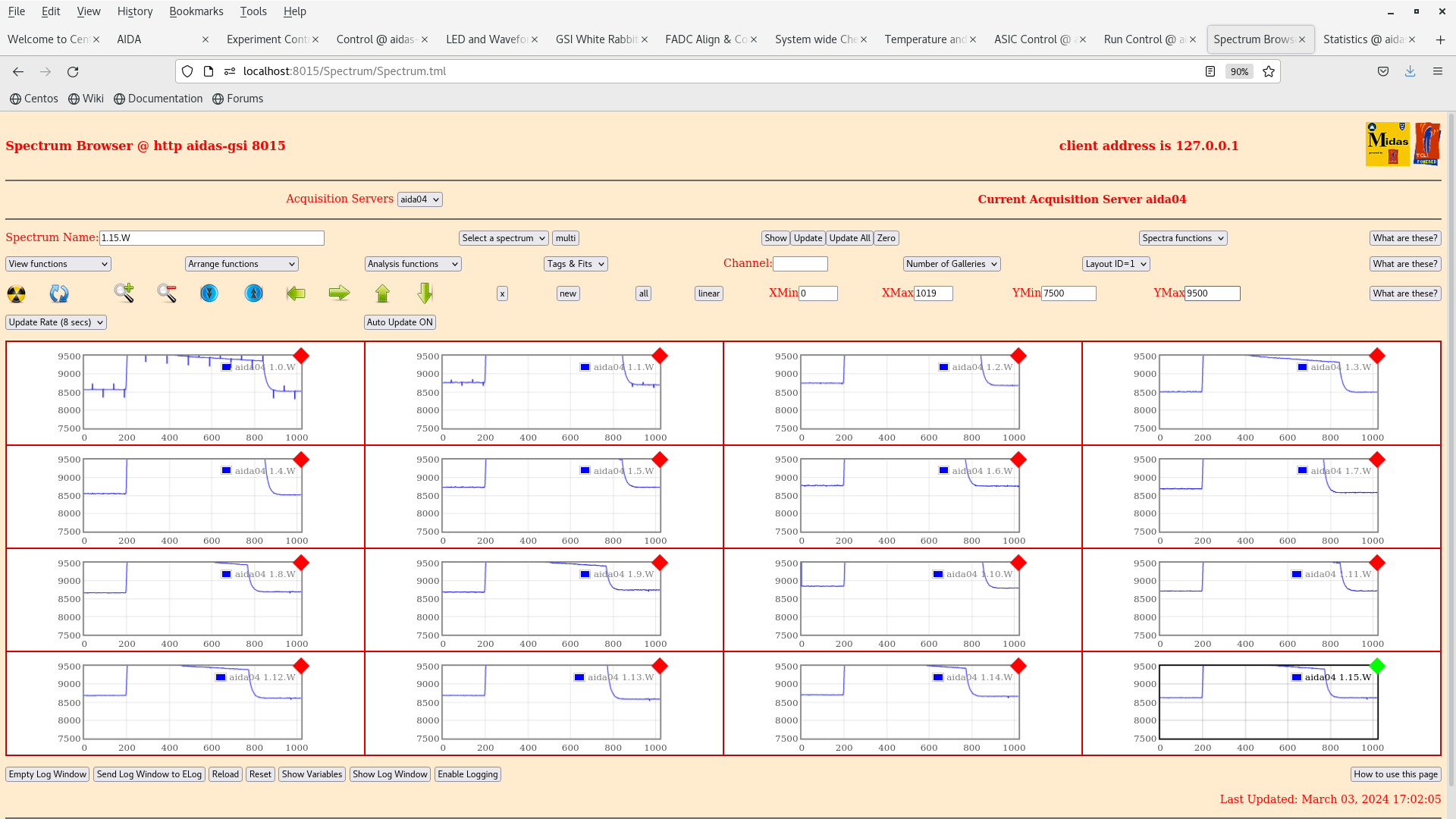

      aida04 1.8.W spectra - 20us FSR - attachment 10-11

      MIDAS configuration - attachment 12

      DHCP config - attachment 13



18.30 FEE64 41:f6:b7 ASIC #1 u/s
      Replaced ASIC mezzanine with new ASIC mezzanine
      Installed as aida02

      All system wide checks OK

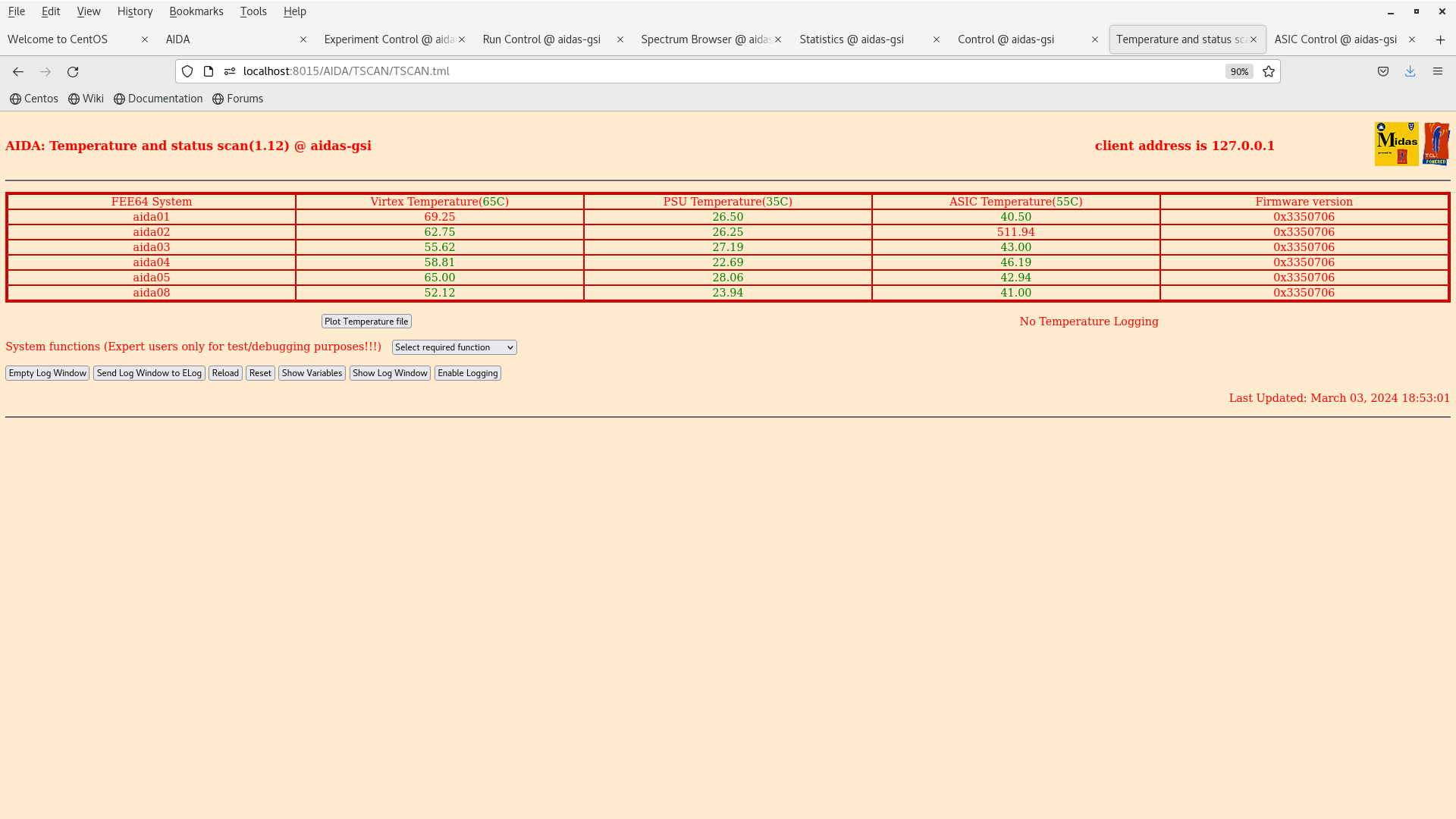

      FEE64 temps - attachment 14
       aida02 ASIC temperature c. 512 deg C !
       PSU/Virtex temps OK
       Mezzanine ambient to touch - assume faulty sensor/poor connection?

      aida02 ASIC settings - attachment 15

      WR timestamp OK - attachment 16

      ADC data item stats OK - attachment 4

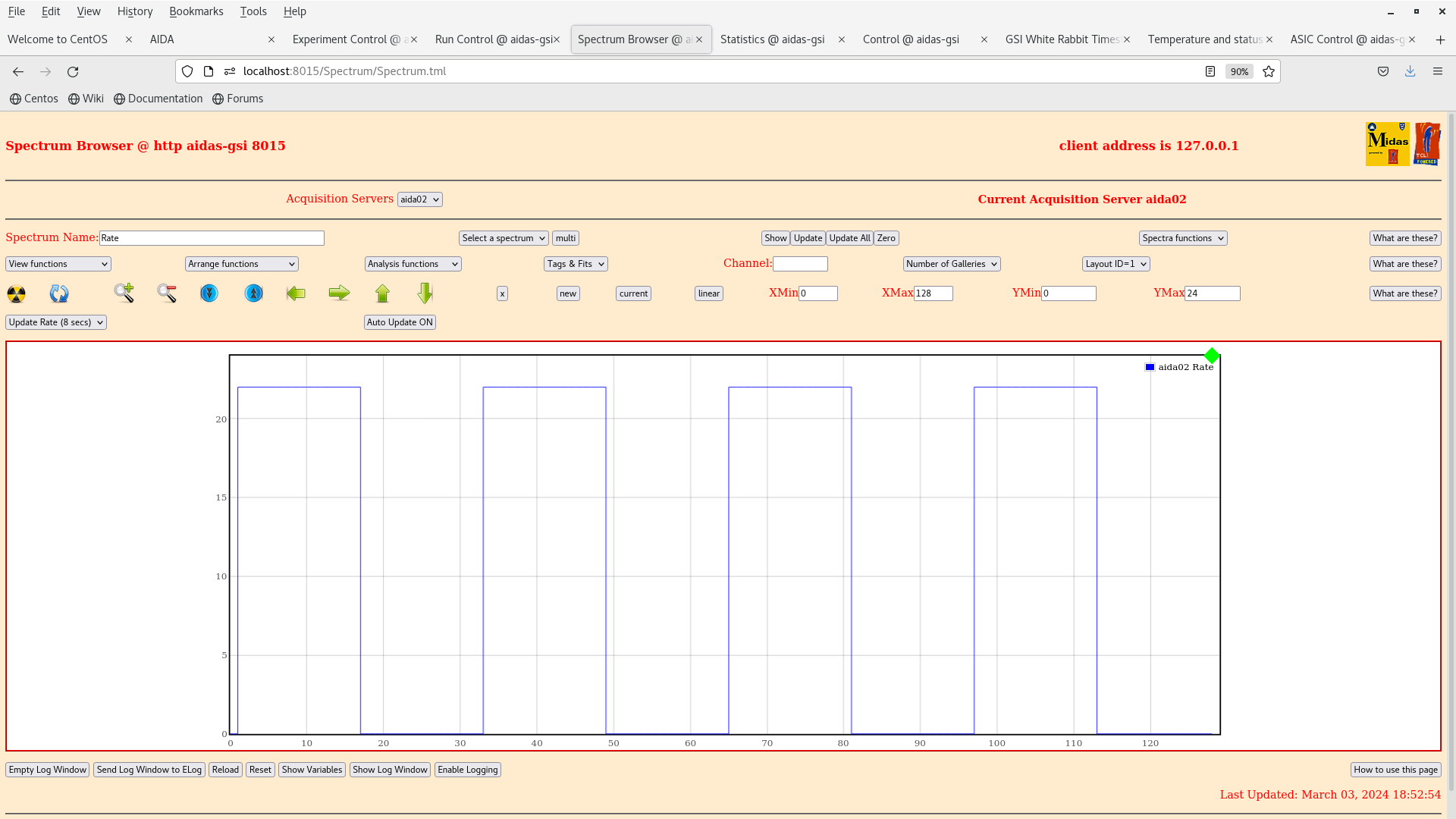

      aida04 Rate spectrum - attachment 18

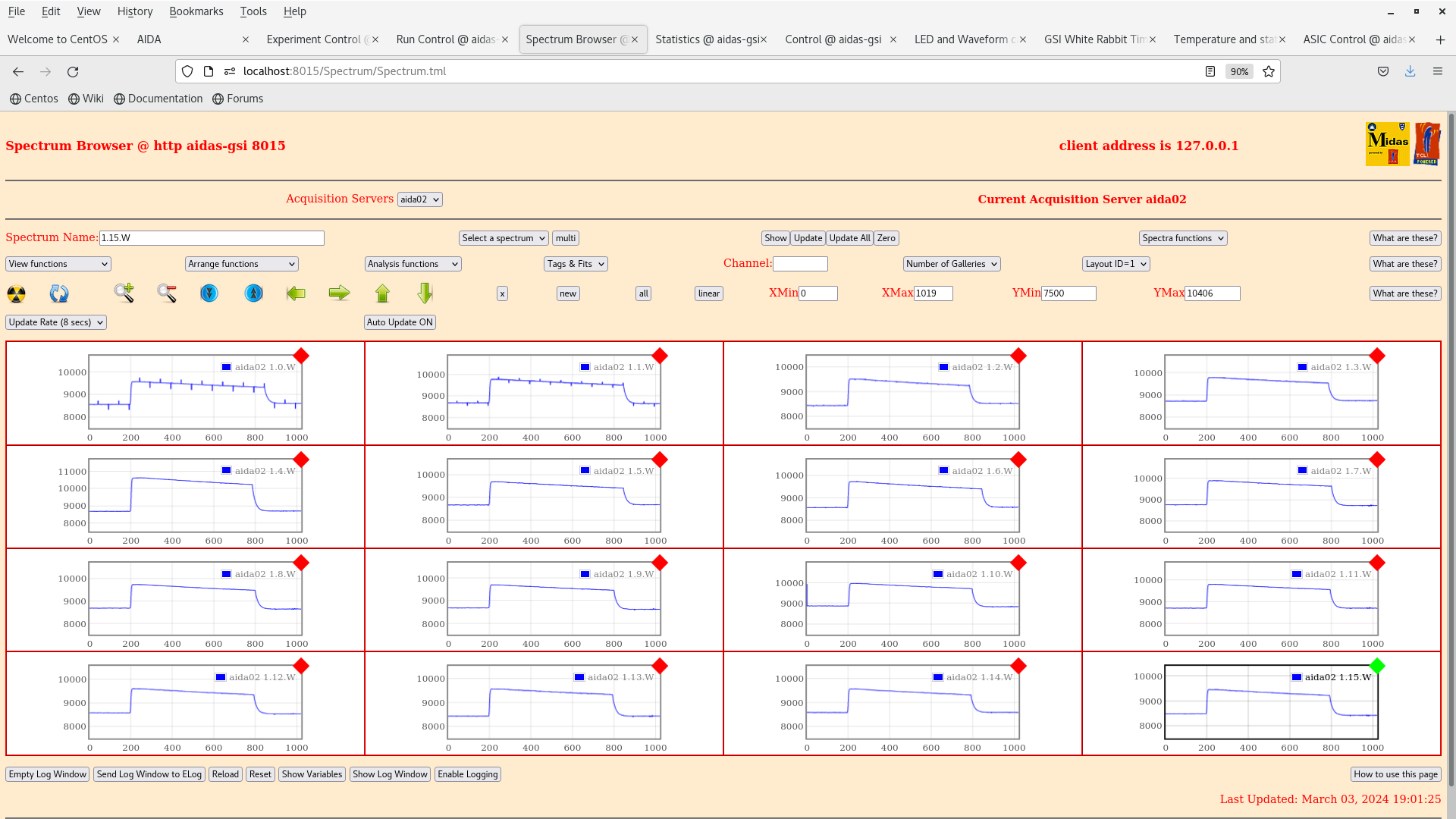

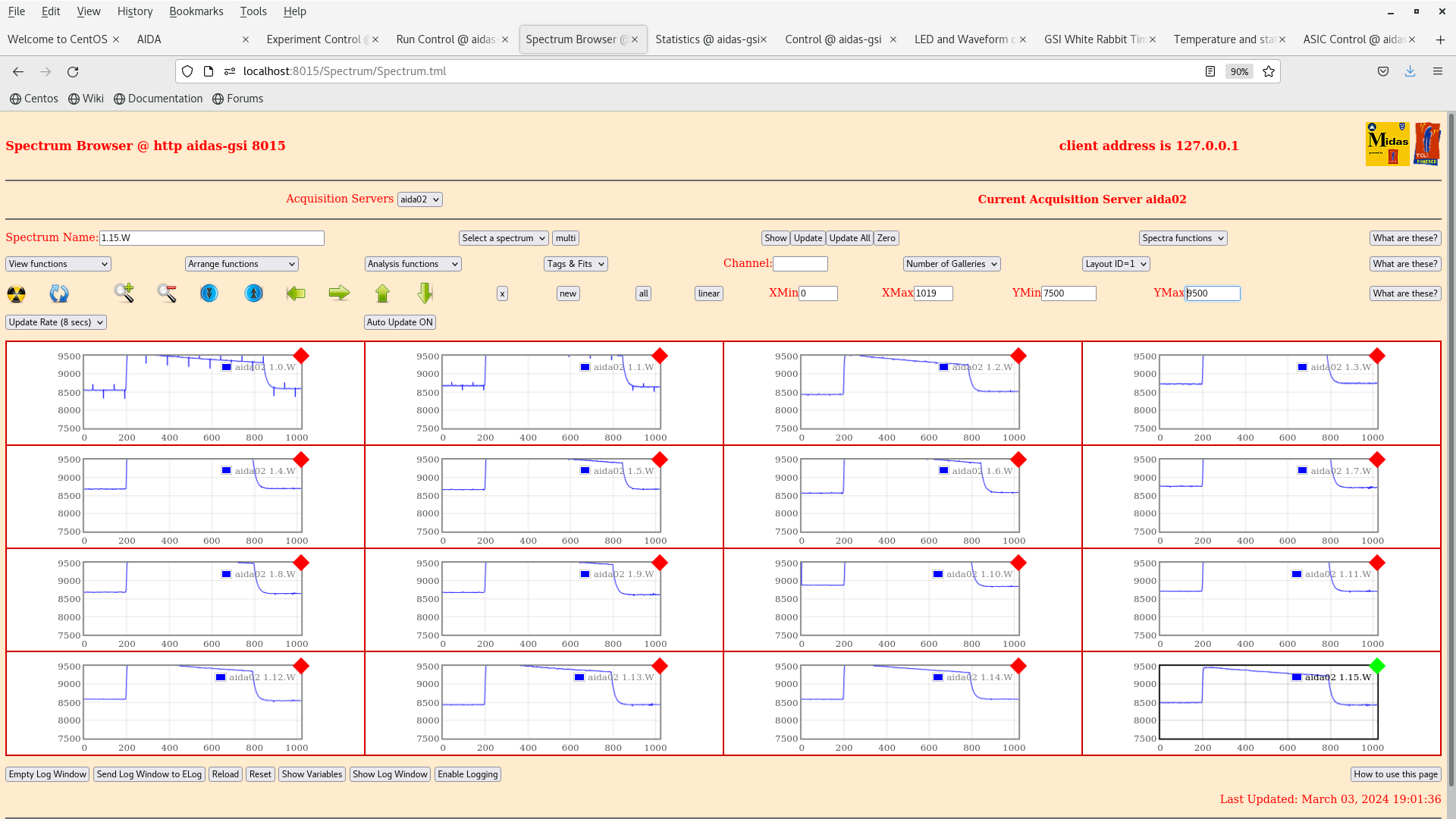

      aida02 1.8.W spectra - 20us FSR - attachment 19-20

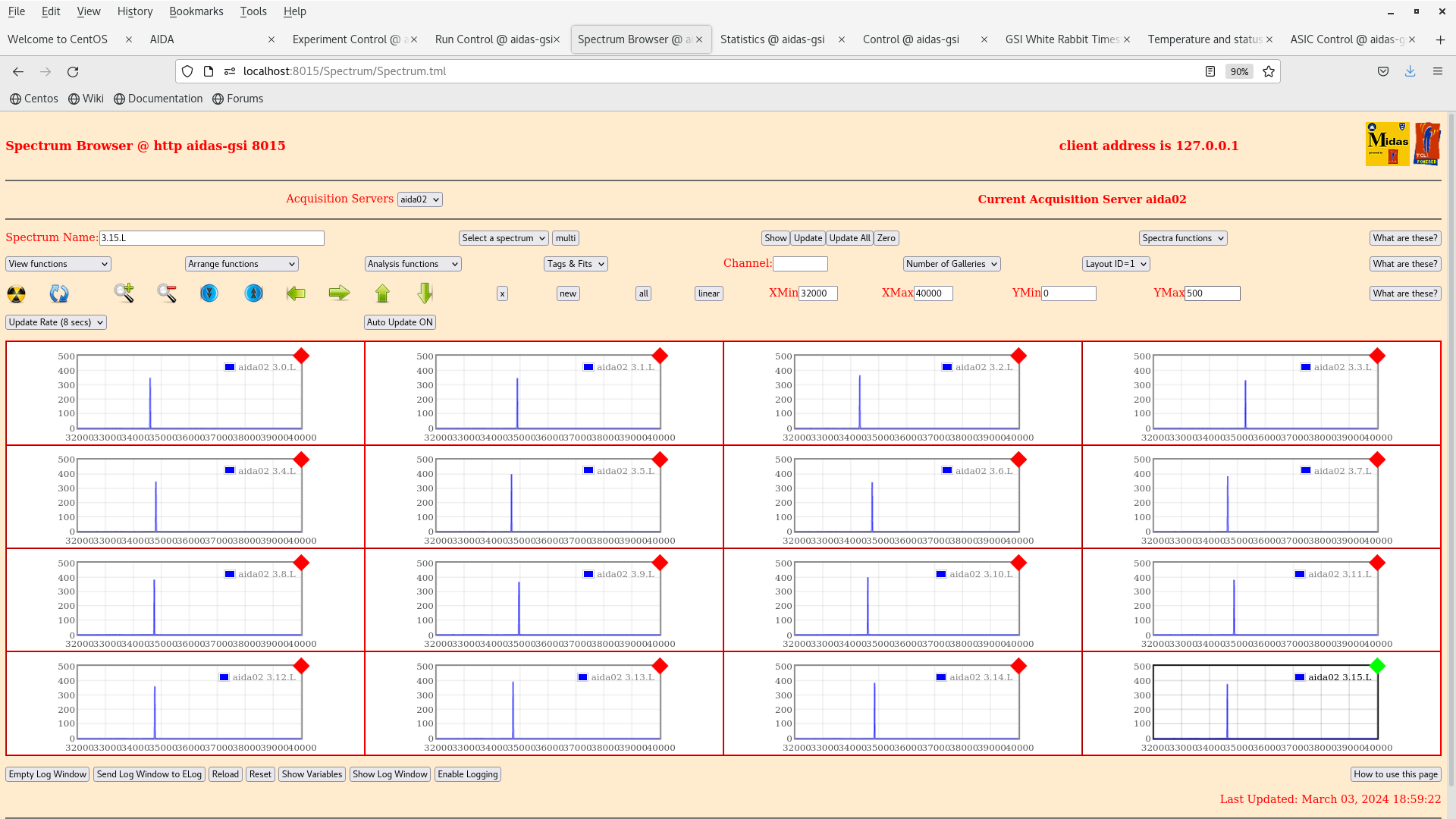

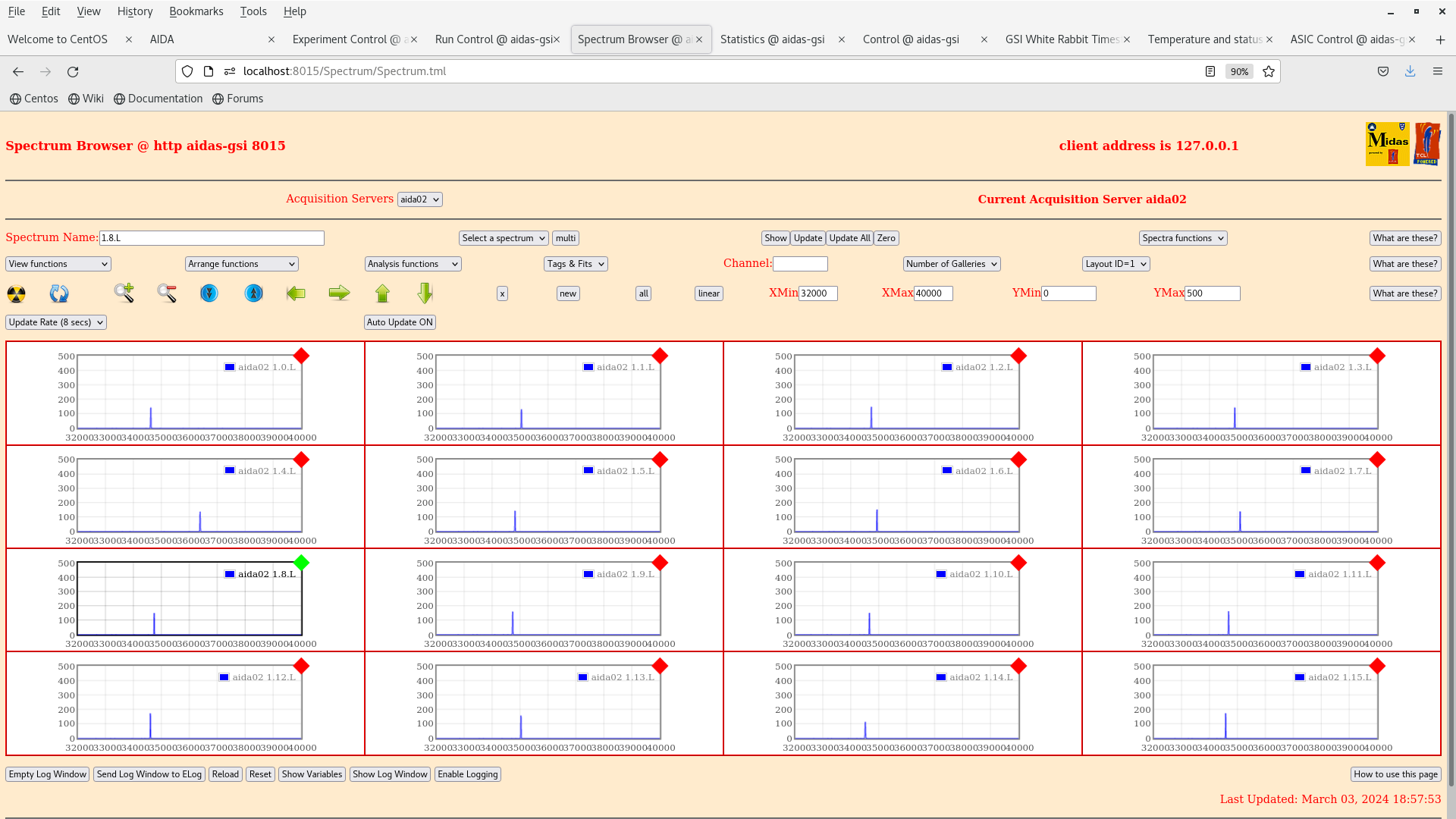

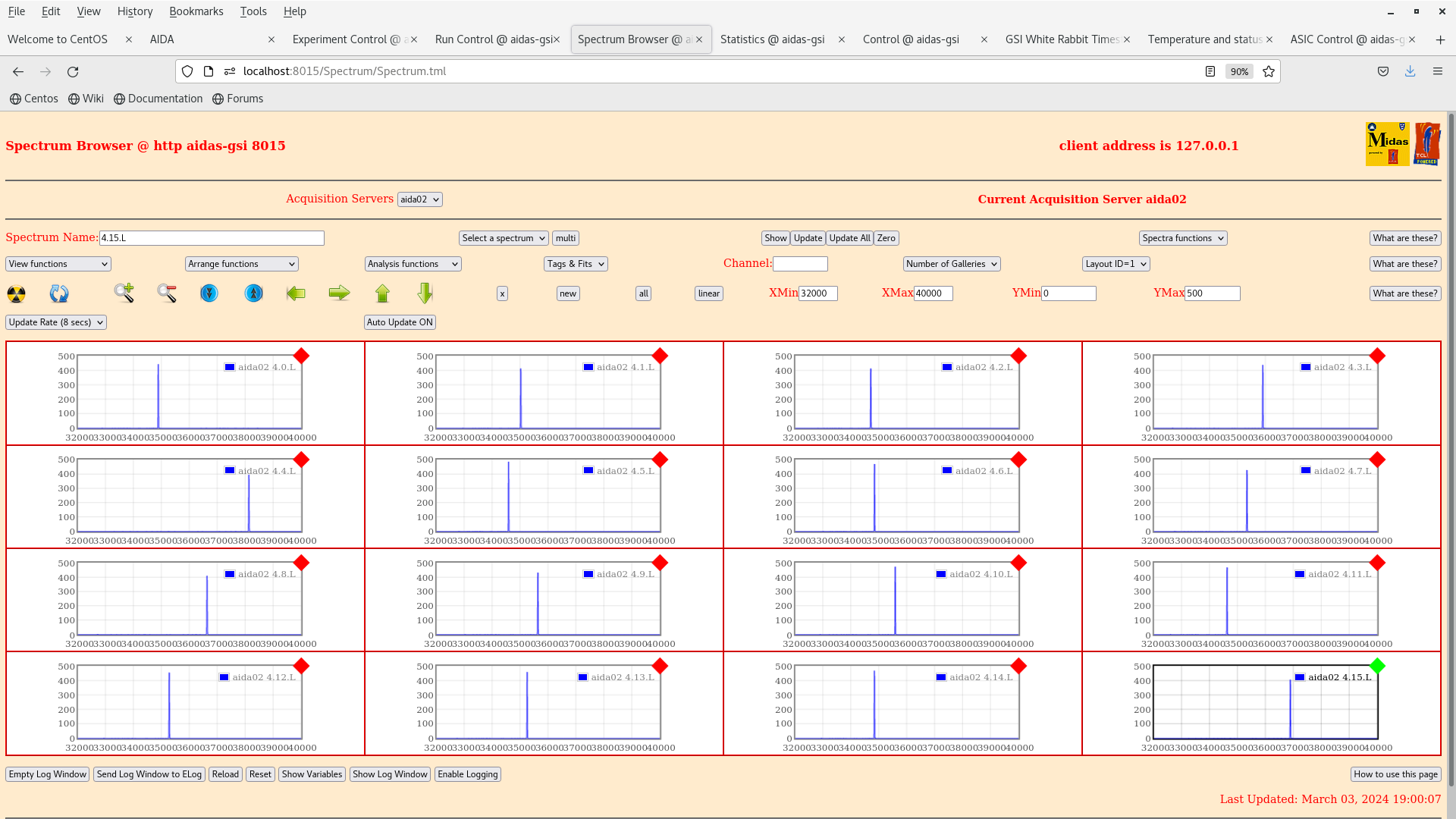

      aida02 *.*.L spectra - attachments 21-24
       1.8.L pulser peak width 16 ch FWHM


19.30 Power OFF





   Setting BGColor "BlanchedAlmond"
   Setting TextColor "red"

      Setting ProjectName  AIDA
      Setting ProjectImage AIDA.gif
      Setting ProjectURL   "http://npg.dl.ac.uk/NPG/Projects/Fair.html"


  Setting Option1Name STFC
  Setting Option1URL  "stfc.ac.uk"
  Setting Option1Image stfc.jpg


# global MessageLoggerServerHost
#  set  MessageLoggerServerHost nndhcp077.dl.ac.uk

#    package require  MessageLoggerClient

#  Setting Option3Name "Elog Server"
#  Setting Option3URL  "http://nndhcp077.dl.ac.uk:8080/DataAcq/"

#    Install required services

    if {![namespace exists ::AIDA]} {namespace eval ::AIDA {puts "created namespace ::AIDA"}}
#    set ::AIDA::TestMode 1

    global SpectrumServerHost
    set SpectrumServerHost aidas

   package require XAIDAAccessClient  ;# for Client end - ie AIDA server workstation  sets MIDAS_XAIDAAccessClient_Exists (SOAP)

   package require XAD9252AccessClient ;# for Client end - ie AIDA server workstation  sets MIDAS_XAD9252AccessClient_Exists (SOAP)

namespace eval DataAcquisition {
     variable PROJECT AIDA
     variable ACQSERVERS
     set ACQSERVERS [list aida01 aida03 aida04 aida05 aida08]
     variable ACQSERVER [first $ACQSERVERS]
     variable DataTransferStreams; set DataTransferStreams 2
#     set ::DataAcquisition::EnableMerger 1
#     set ::DataAcquisition::EnableTape 1
    variable RDOGo 0
}

namespace eval AIDA {
      variable ModuleMenu; set ModuleMenu $::DataAcquisition::ACQSERVERS
      variable TSMaster; set TSMaster aida01
      variable FEE64 [first $ModuleMenu]
      variable ConfigBase; set ConfigBase [file join $env(MIDASBASE) config TclHttpd]
}

    Setting DataBaseRoot "/MIDAS/DB"
    package require DataBaseAccessServer

    package require NetVarsServer 1.1
    package require SigTaskServer

#    package require MemSasServer

#    Install services for Run Control

namespace eval $::DataAcquisition::PROJECT {
    variable DBRootName [file join EXPERIMENTS AIDA]
    variable DBNodeBase 2012
}

  package require AIDARunControl
#  package require TapeServer
#  package require MergerControl
#  package require MERGERunControl


  Setting Option7Name "Project Home Page"
  Setting Option7URL  "http://npg.dl.ac.uk/NPG/Projects/Fair.html"

  Setting Option8Name "Server Software Home Page"
  Setting Option8URL  "http://npg.dl.ac.uk/MIDAS/download/WebServices.html"

#
# DHCP Server Configuration file.
#   see /usr/share/doc/dhcp*/dhcpd.conf.sample
#
# Date of last update  Jan 12 2015
#
authoritative;

ddns-update-style none; ddns-updates off;

# 2 days
#default-lease-time 172800;
# 4 days
default-lease-time 345600;
# 8 days
max-lease-time 691200;

option domain-search code 119 = string;

option domain-name "dl.ac.uk";
option domain-name-servers 193.62.115.16, 148.79.80.78;
option netbios-name-servers 148.79.160.89;
option netbios-node-type 8;
option nis-domain "nuclear.physics";
option nis-servers 193.62.115.77;


subnet 192.168.11.0 netmask 255.255.255.0 {
   option subnet-mask 255.255.255.0;
   option broadcast-address 192.168.11.255;
   pool {
 range 192.168.11.118 192.168.11.199;
   }
}

group {
   use-host-decl-names true;
   default-lease-time 3600;
   max-lease-time 14400;

   server-name "192.168.11.99";
   next-server 192.168.11.99;

   host nnrpi1 {
     hardware ethernet b8:27:eb:bb:46:7b;
     fixed-address 192.168.11.251;
   }

   host nnrpi2 {
     hardware ethernet b8:27:eb:40:53:e8;
     fixed-address 192.168.11.117;
   }

   host edinburgh {
      hardware ethernet 00:14:4f:9b:6e:7a;
      fixed-address 192.168.11.118;
   }

   host aida01 {
     hardware ethernet d8:80:39:41:ba:8a;
     fixed-address 192.168.11.1;
    option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida01";
   }

   host aida02 {
     hardware ethernet d8:80:39:41:ba:22;
     fixed-address 192.168.11.2;
    option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida02";
   }

   host aida03 {
     hardware ethernet d8:80:39:41:d8:21;
     fixed-address 192.168.11.3;
    option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida03";
   }

   host aida04 {
     hardware ethernet d8:80:39:41:a0:71;
     fixed-address 192.168.11.4;
    option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida04";
   }


   host aida05 {
     hardware ethernet d8:80:39:41:ee:10;
     fixed-address 192.168.11.5;
    option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida05";
   }

   host aida06 {
     hardware ethernet d8:80:39:41:cf:ac;
     fixed-address 192.168.11.6;
    option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida06";
   }

   host aida07 {
     hardware ethernet d8:80:39:41:f6:5a;
     fixed-address 192.168.11.7;
    option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida07";
   }

   host aida08 {
     hardware ethernet d8:80:39:41:ba:89;
     fixed-address 192.168.11.8;
    option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida08";
   }

   host aida09 {
     hardware ethernet d8:80:39:42:0d:15;
     fixed-address 192.168.11.9;
    option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida09";
   }

   #host aida06 {
   #  hardware ethernet d8:80:39:41:ee:72;
   #  fixed-address 192.168.11.6;
   # option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida06";
   #}

   #host aida07 {
   #  hardware ethernet d8:80:39:41:b4:0c;
   #  fixed-address 192.168.11.7;
   # option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida07";
   #}

   #host aida08 {
   #  hardware ethernet d8:80:39:41:ba:2b;
   #  fixed-address 192.168.11.8;
   # option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida08";
   #}

   #host aida13 {
   #  hardware ethernet d8:80:39:42:d:15;
   #  fixed-address 192.168.11.13;
   # option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida13";
   #}

#   host aida14 {
#     hardware ethernet d8:80:39:42:d:b;
#     fixed-address 192.168.11.14;
#    option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida14";
#   }

   #host aida05 {
   #  hardware ethernet d8:80:39:41:ee:10;
   #  fixed-address 192.168.11.5;
   # option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida05";
   #}

   #host aida14 {
   #  hardware ethernet d8:80:39:41:f6:ed;
   #  fixed-address 192.168.11.14;
   # option root-path "/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida14";
   #}
}


subnet 192.168.12.0 netmask 255.255.255.0 {
   option subnet-mask 255.255.255.0;
   option broadcast-address 192.168.12.255;
   pool {
 range 192.168.12.100 192.168.12.199;
   }
}

group {
   use-host-decl-names true;
   default-lease-time 3600;
   max-lease-time 14400;

   server-name "192.168.12.99";
   next-server 192.168.12.99;







}
