12.30 FEE64 41:d7:cd ASIC mezzanine u/s, no data, ASIC temperature c. 20 deg C ( ambient ) low
      Replaced ASIC mezzanine with new ASIC mezzanine
      Installed as aida08

      Water temperature & pressure as measured outside S4 area - OK

      Manually power FEE64s

      BNC PB-5 local control/ON
      Amplitude 1.0V
      Attenuation x10
      Polarity +
      tau_d 1ms
      Frequency 22Hz

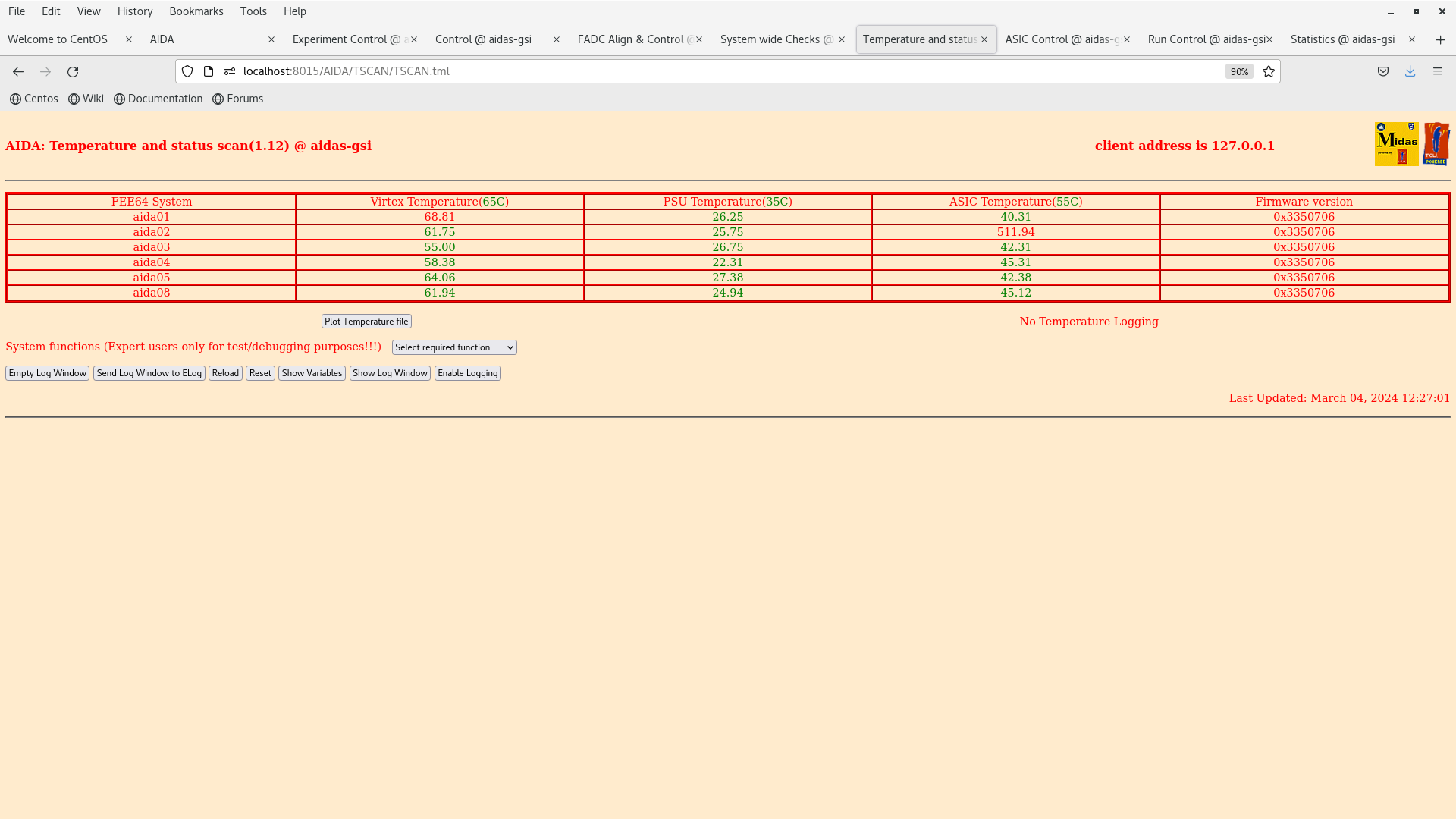

      FEE64 temps - attachment 1
       aida02 with new ASIC mezzanine continues to ramp to c. 512 deg C - initially reads 0, next refresh c. 70 and third refresh c. 512 deg C
       aida02 Virtex and PSU temps OK, aida02 cooling plate ambient to touch

       aida08 ASIC temp c. 45 deg C as expected, Virtex and PSU temps OK

      All system wide checks OK

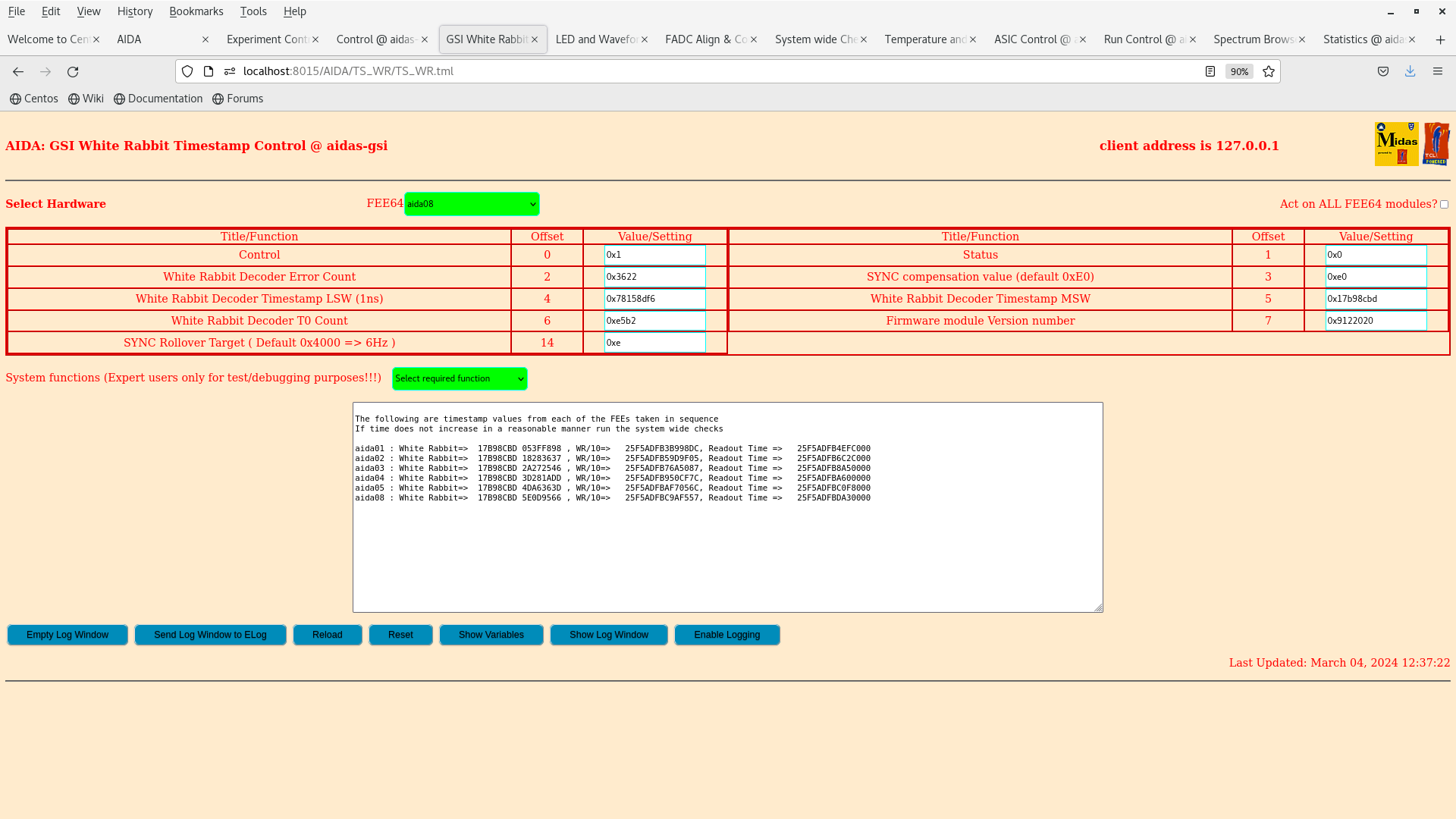

      WR timestamp OK - attachment 2

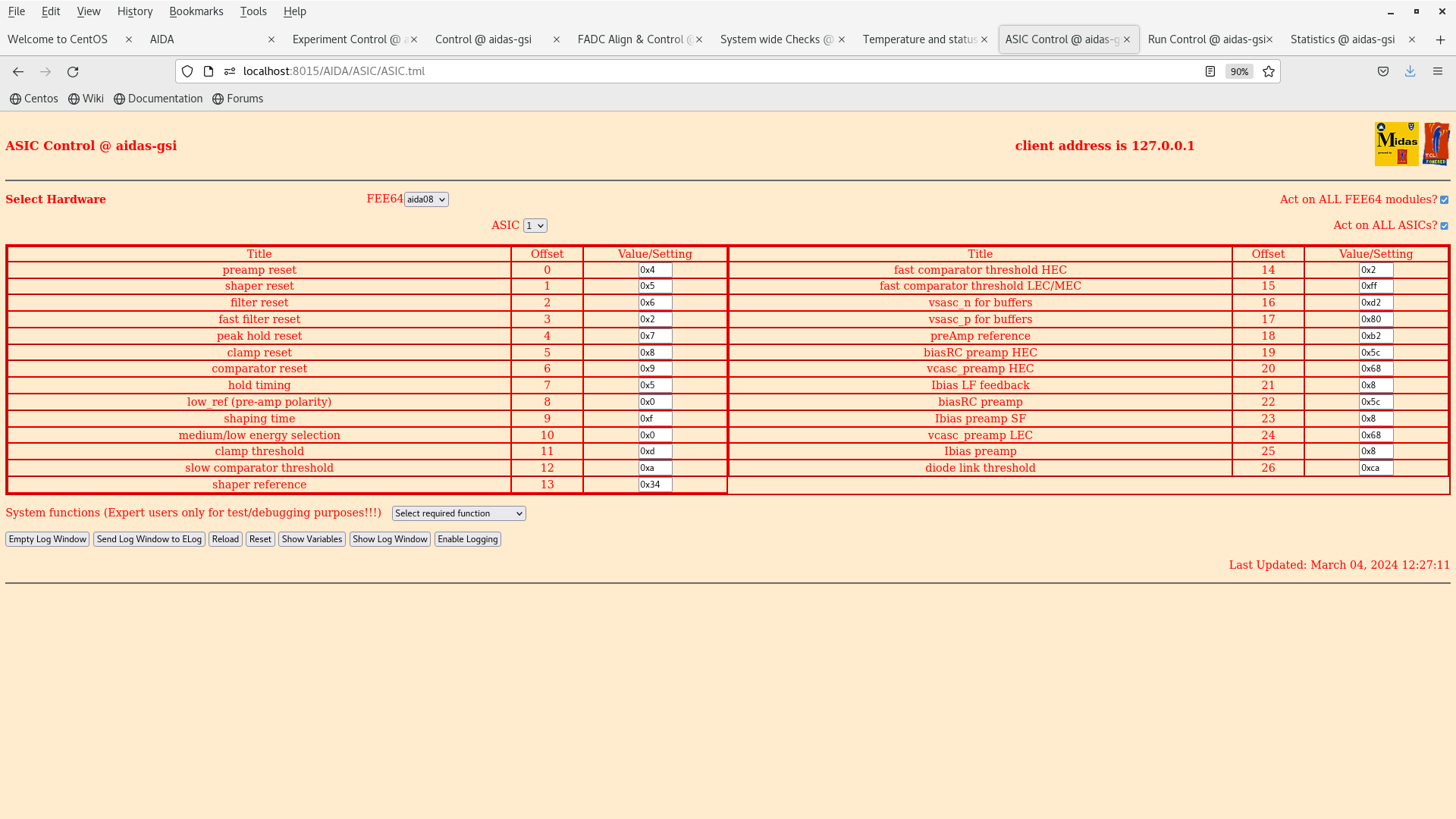

      aida04 ASIC settings - attachment 3

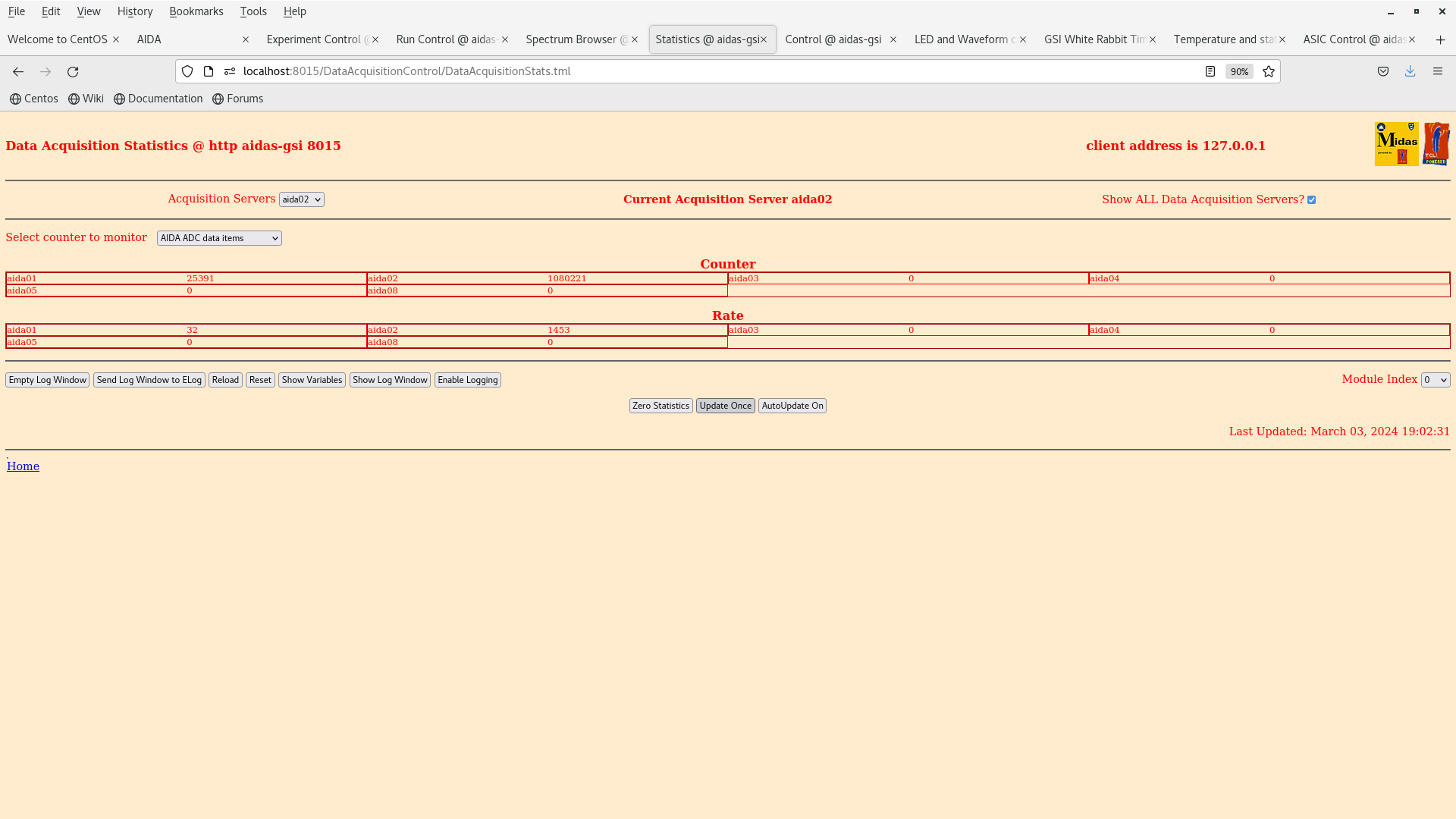

      ADC data item stats OK - attachment 4

      aida04 Rate spectrum - attachment 5

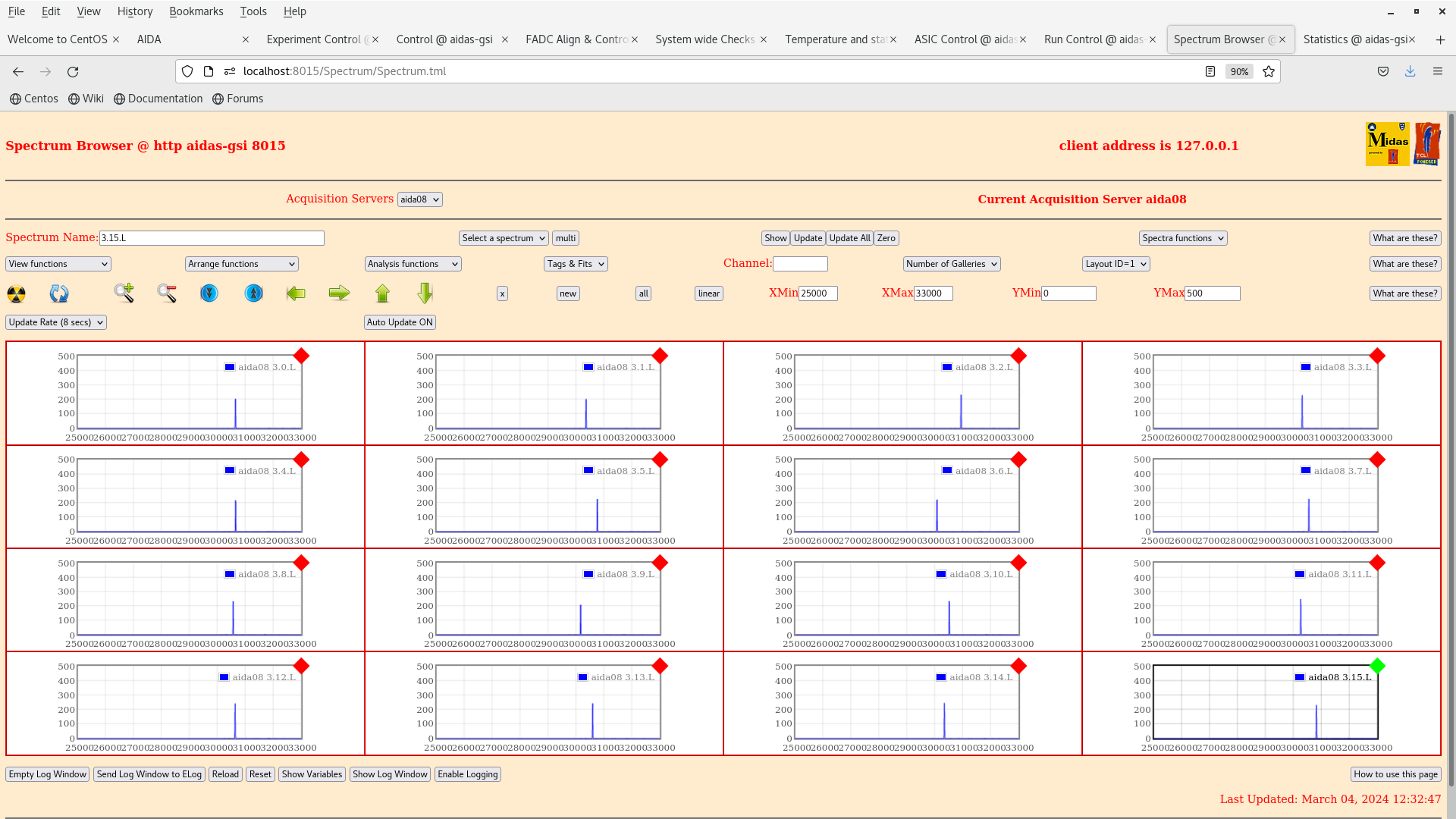

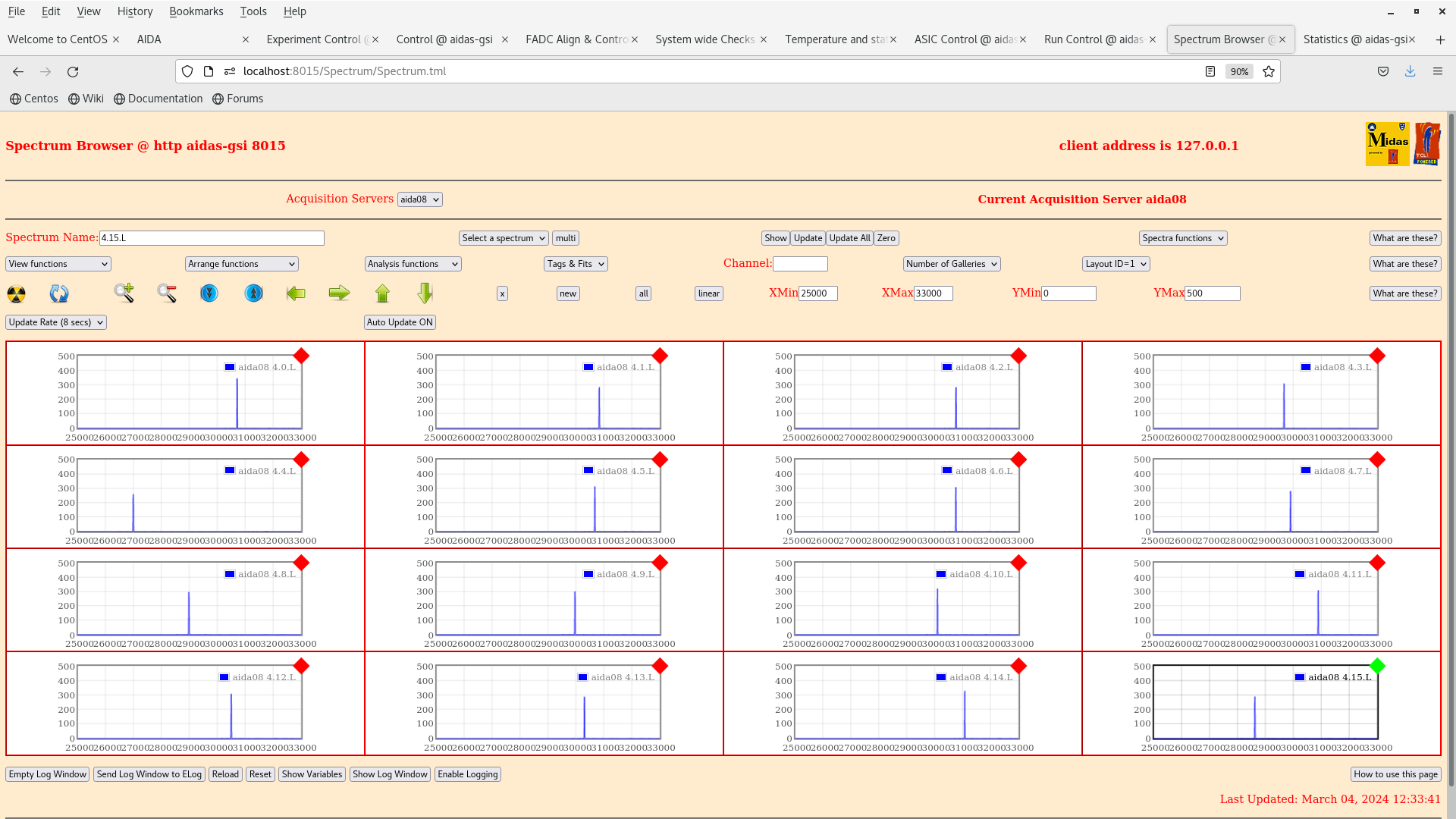

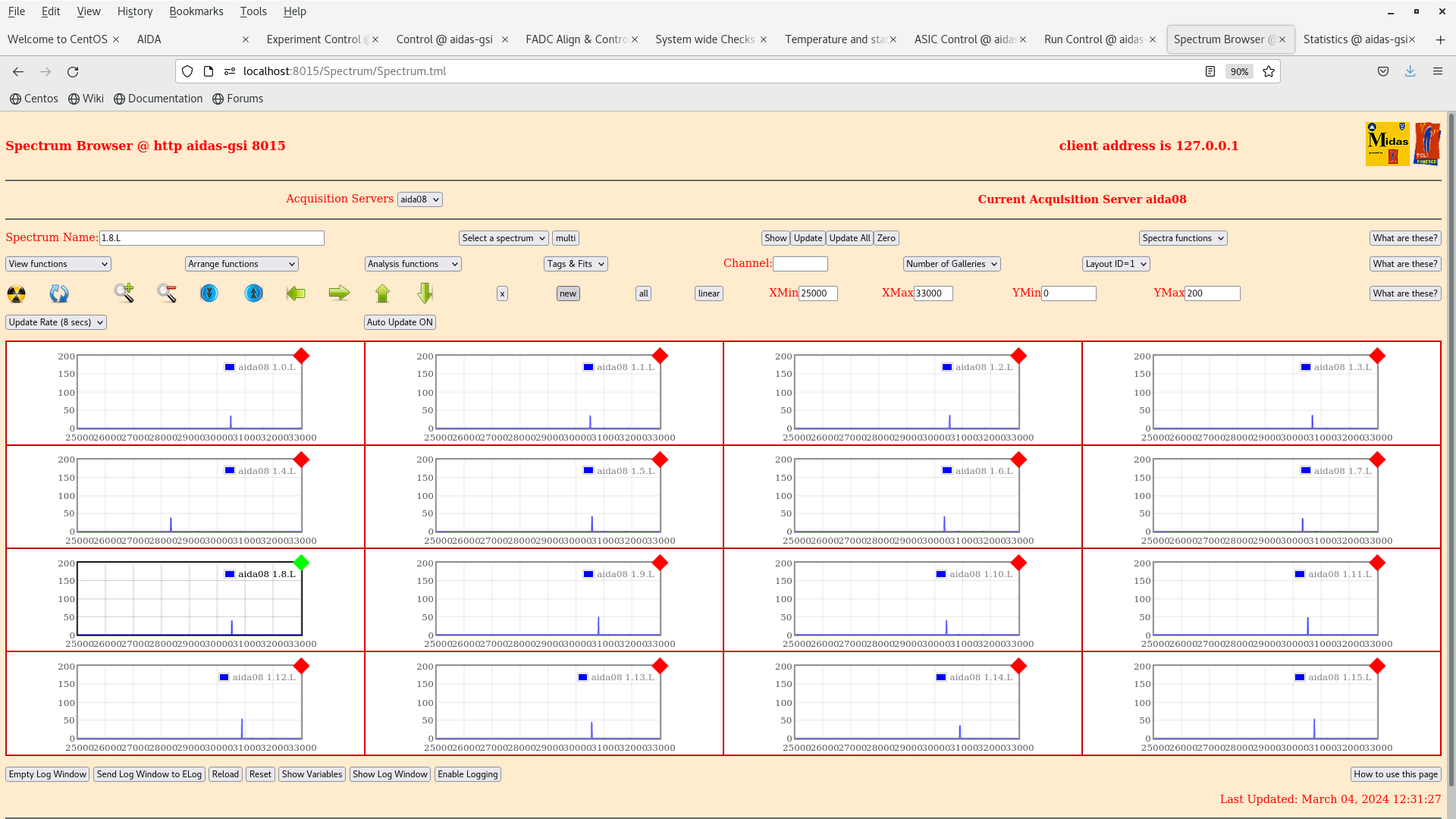

      aida04 *.*.L spectra - attachments 6-9
       1.8.L pulser peak width 13 ch FWHM

      aida04 1.8.W spectra - 20us FSR - attachment 10-11
