Message ID: 637     Entry time: Mon Jun 3 14:40:34 2024
Author: JB, NH
Subject: 03 June 2024

15:40 reseated FEE64s adaptors of aida01, aida09, aida13 & aida16.

TEMP OK. HV OK. System wide checks all passed excl. aida07 ADC calibration, see attached.

Histograms and rates look same as previous, reseating aida01 seems to have worked. aida16 still unhappy.

re-reseated aida16. 16:19 - appears to have fixed the problem in the channel.

Pulser test + connected.

bPlast ground removed from frame.

To-do:

- Need clarification about links connected on AIDA n+n FEE64 adaptor boards. Currently, the situation is given by the attachment 8 & 9.

- Fix BB7 grounding, continuity between snout and frame observed.

- Pulser walkthrough for n+n, can do p+n when convienient.





18.30 Noted FEE64 ADC stats now significantly higher ( attachments 9-10 ) cf. earlier this afternoon (attachments 1-2)

DSSSD bias OFF. FEE64 power OFF.

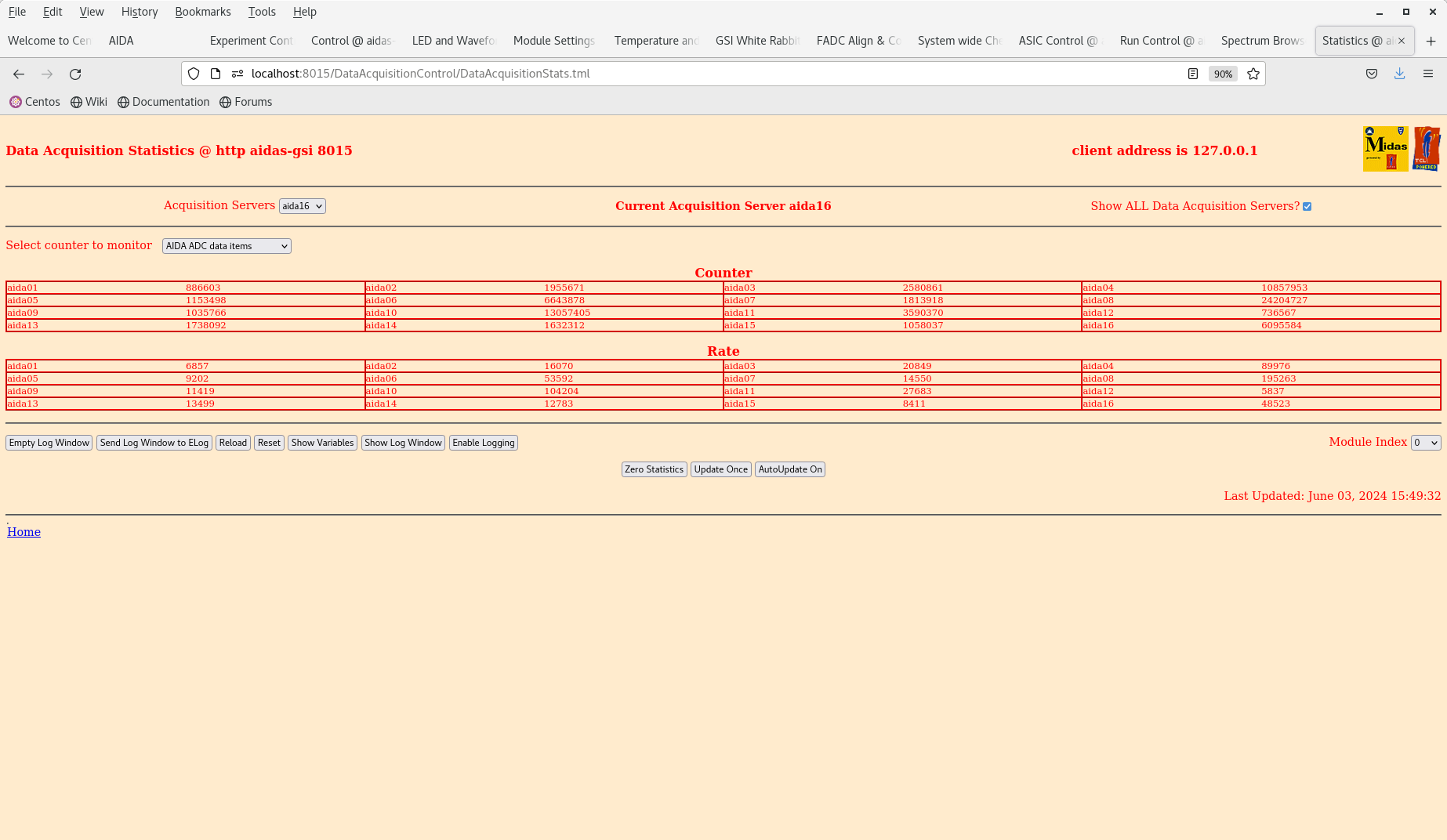

Attachment 1: Screenshot_from_2024-06-03_15-49-35.png  135 kB  Uploaded Mon Jun 3 15:55:19 2024  | Hide | Hide all

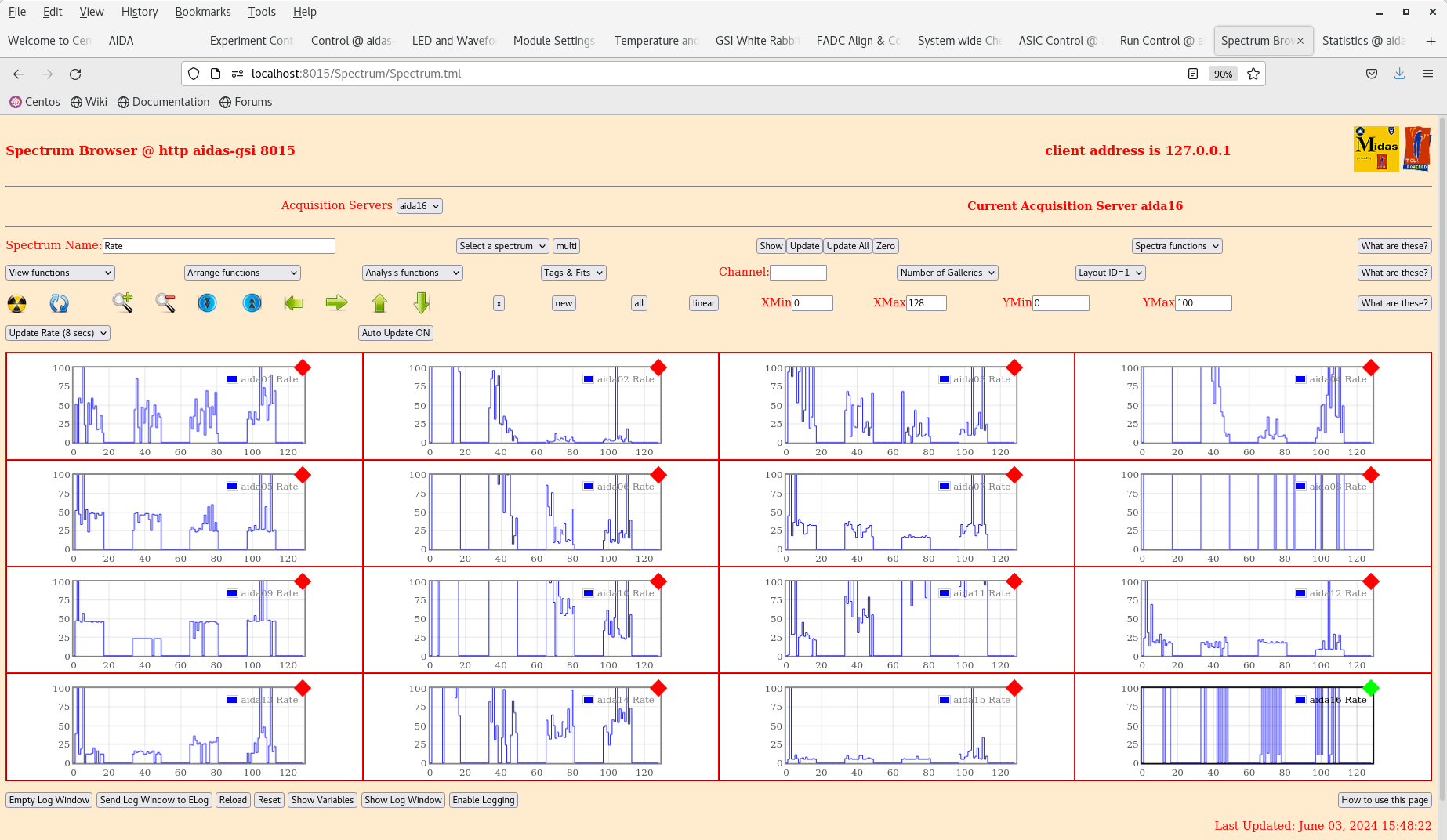

Attachment 2: Screenshot_from_2024-06-03_15-49-24.png  254 kB  Uploaded Mon Jun 3 15:55:26 2024  | Hide | Hide all
Attachment 3: Screenshot_from_2024-06-03_15-45-54.png  256 kB  Uploaded Mon Jun 3 15:55:35 2024  | Hide | Hide all

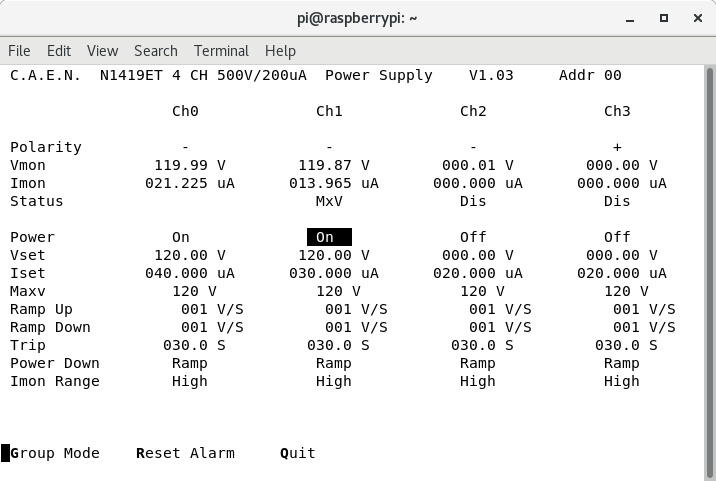

Attachment 4: Screenshot_from_2024-06-03_15-42-31.png  40 kB  Uploaded Mon Jun 3 15:55:44 2024  | Hide | Hide all

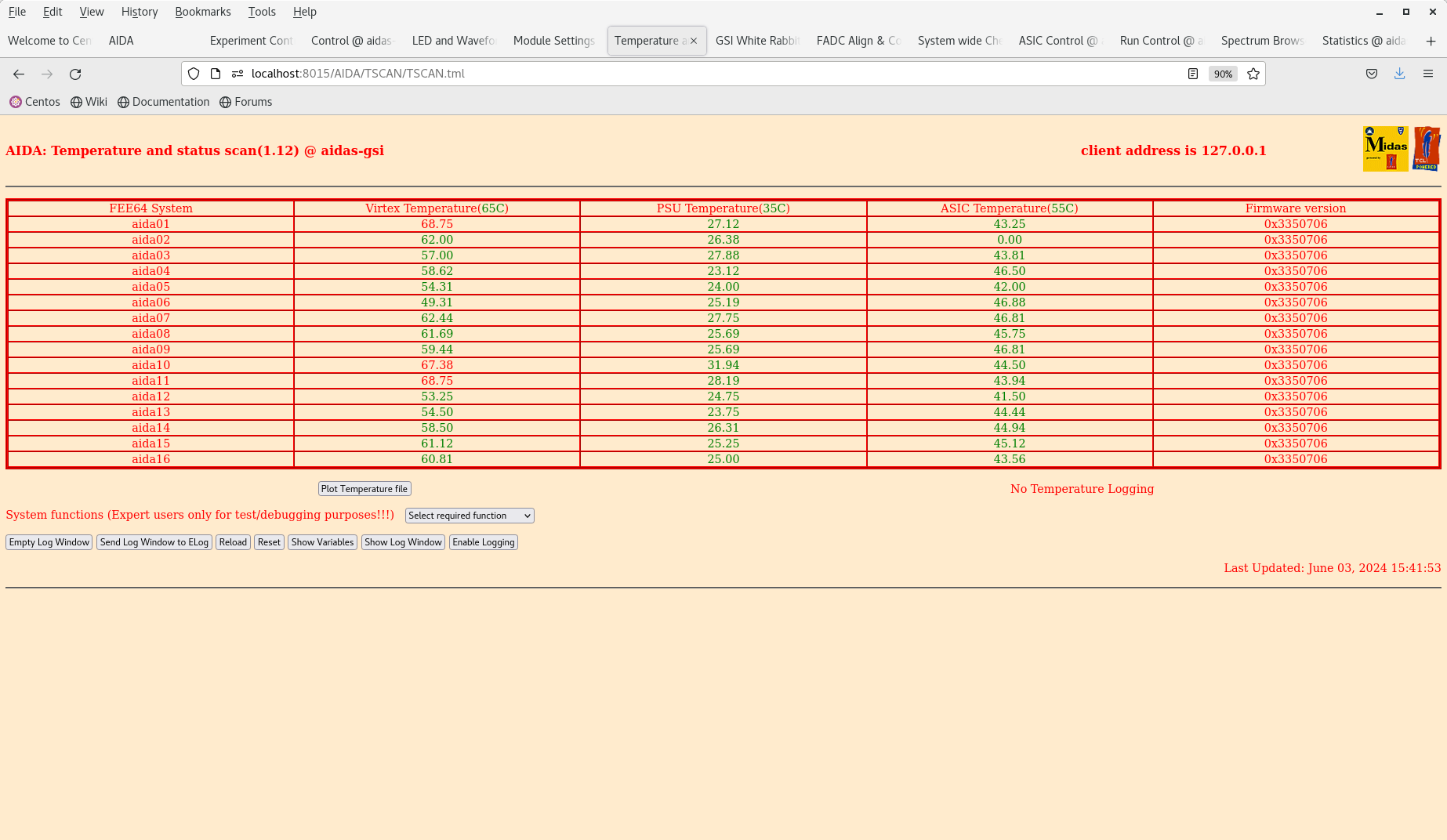

Attachment 5: Screenshot_from_2024-06-03_15-42-00.png  171 kB  Uploaded Mon Jun 3 15:55:52 2024  | Hide | Hide all

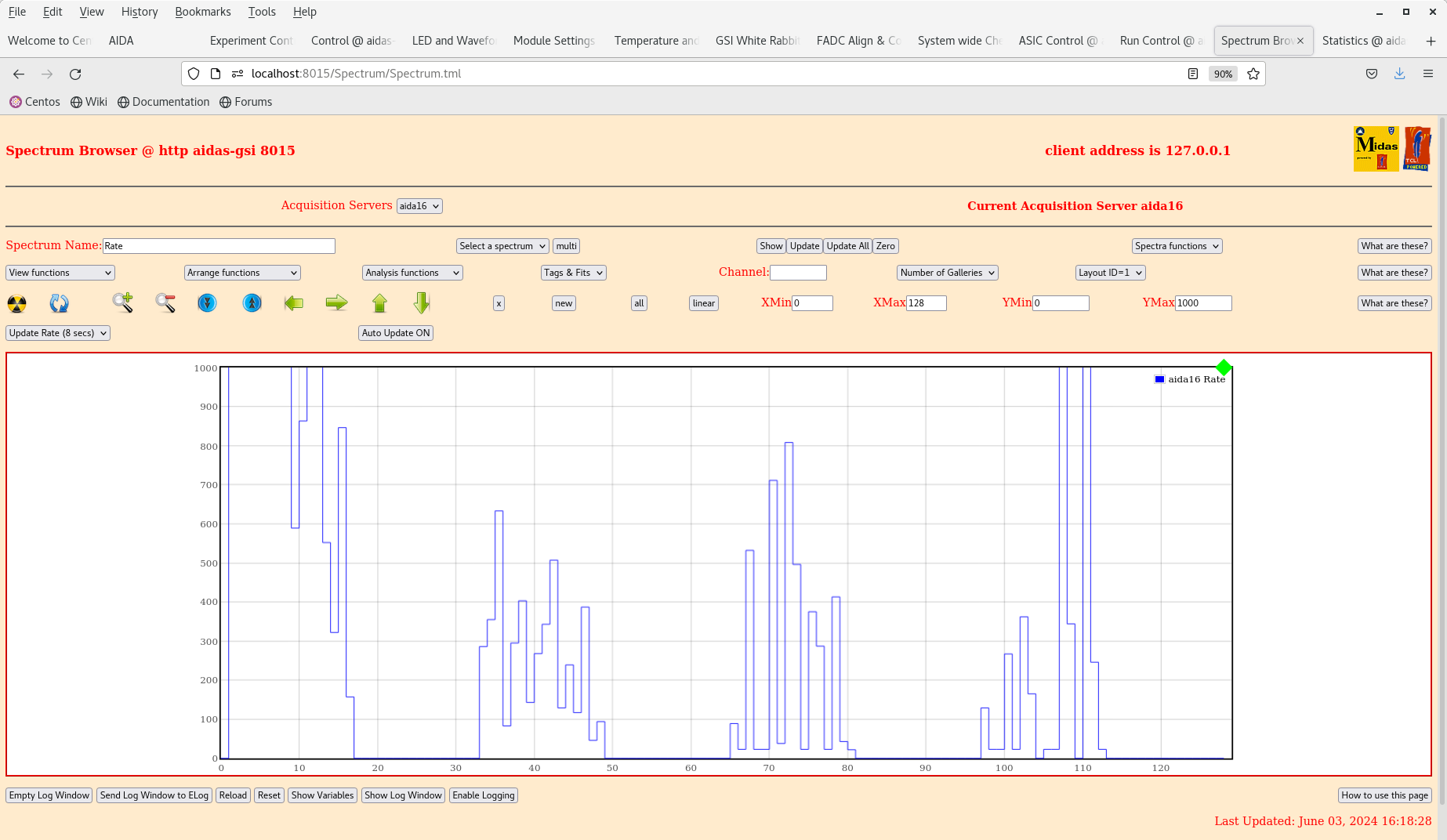

Attachment 6: Screenshot_from_2024-06-03_16-18-49.png  156 kB  Uploaded Mon Jun 3 16:19:12 2024  | Hide | Hide all

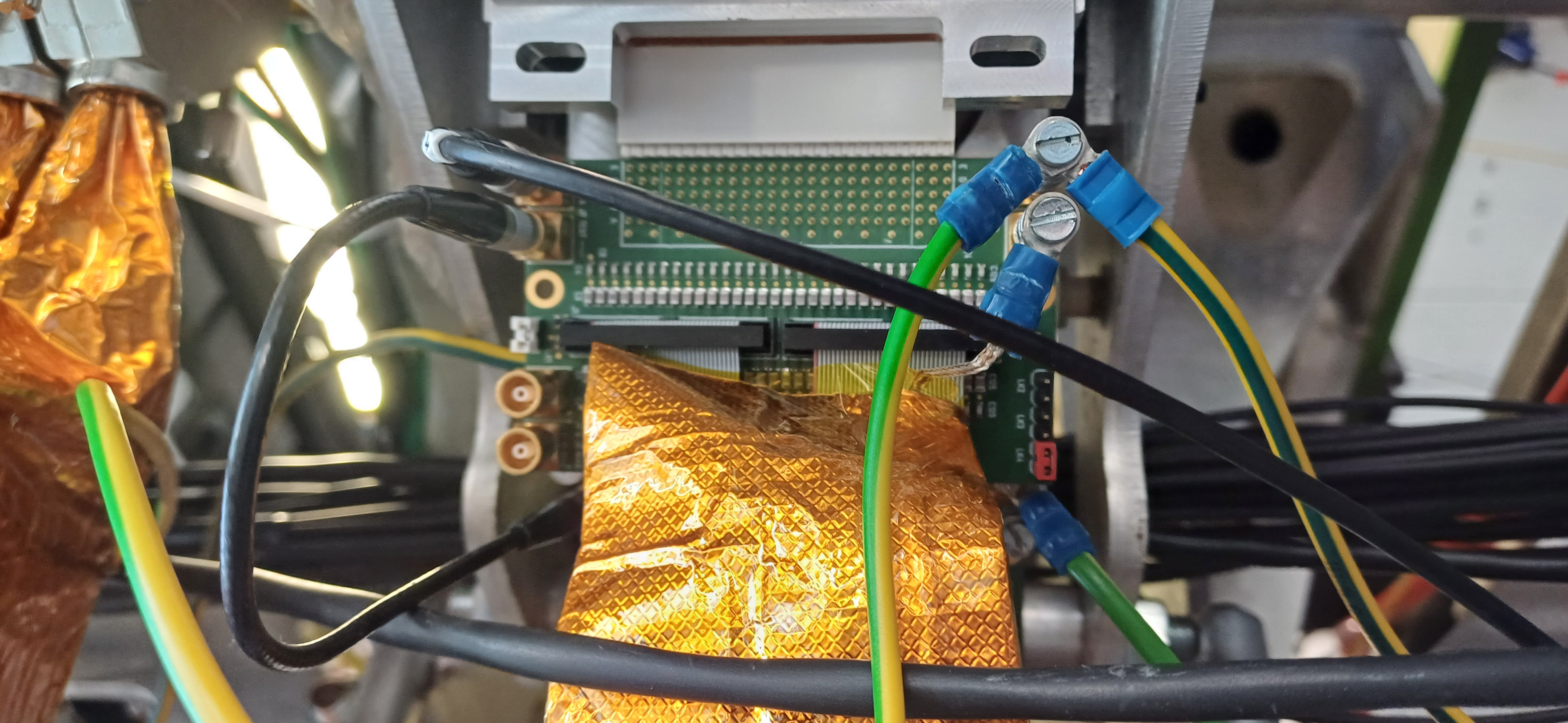

Attachment 7: 20240603_172243.jpg  1.808 MB  Uploaded Mon Jun 3 17:24:08 2024  | Hide | Hide all

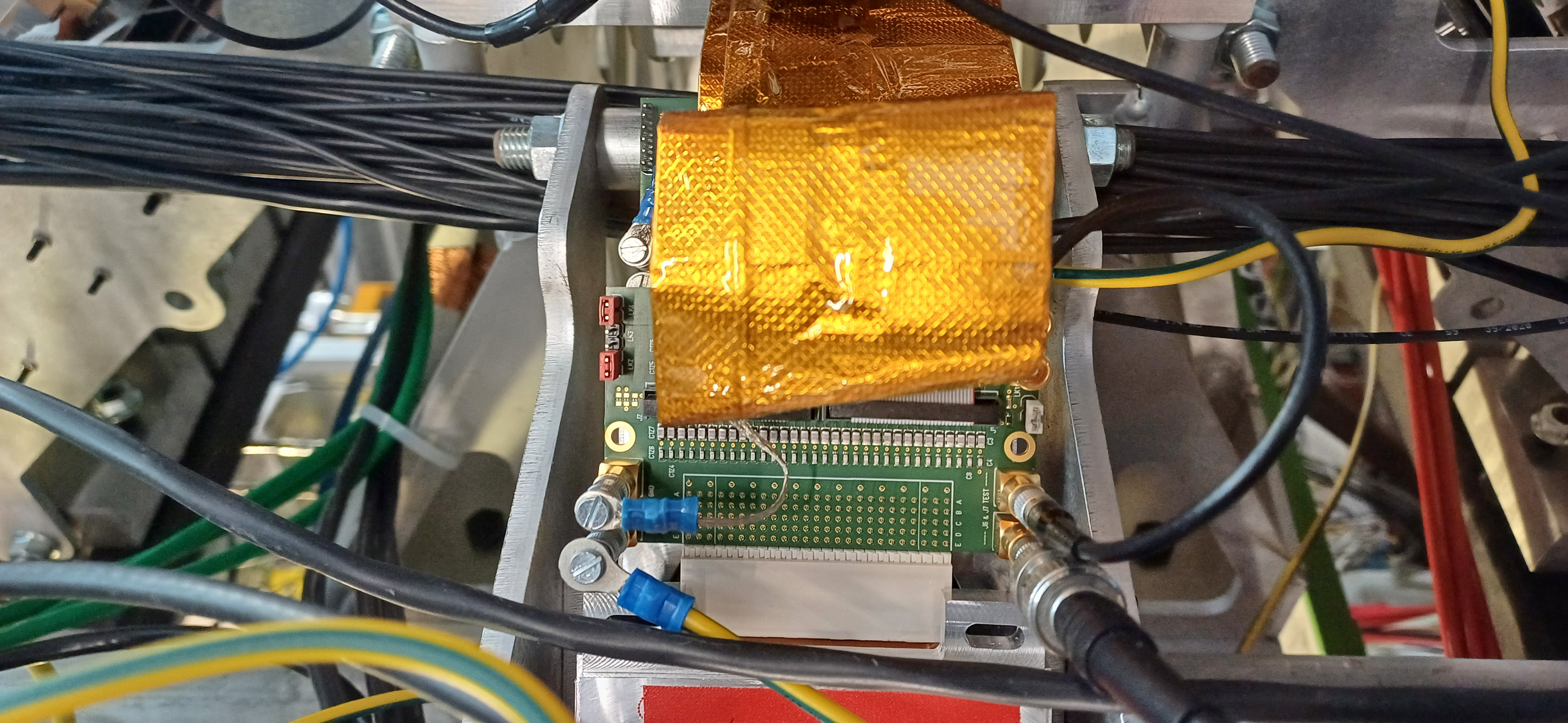

Attachment 8: 20240603_172233.jpg  1.999 MB  Uploaded Mon Jun 3 17:24:30 2024  | Hide | Hide all
Attachment 9: Screenshot_from_2024-06-03_18-34-14.png  136 kB  Uploaded Mon Jun 3 18:35:09 2024  | Hide | Hide all

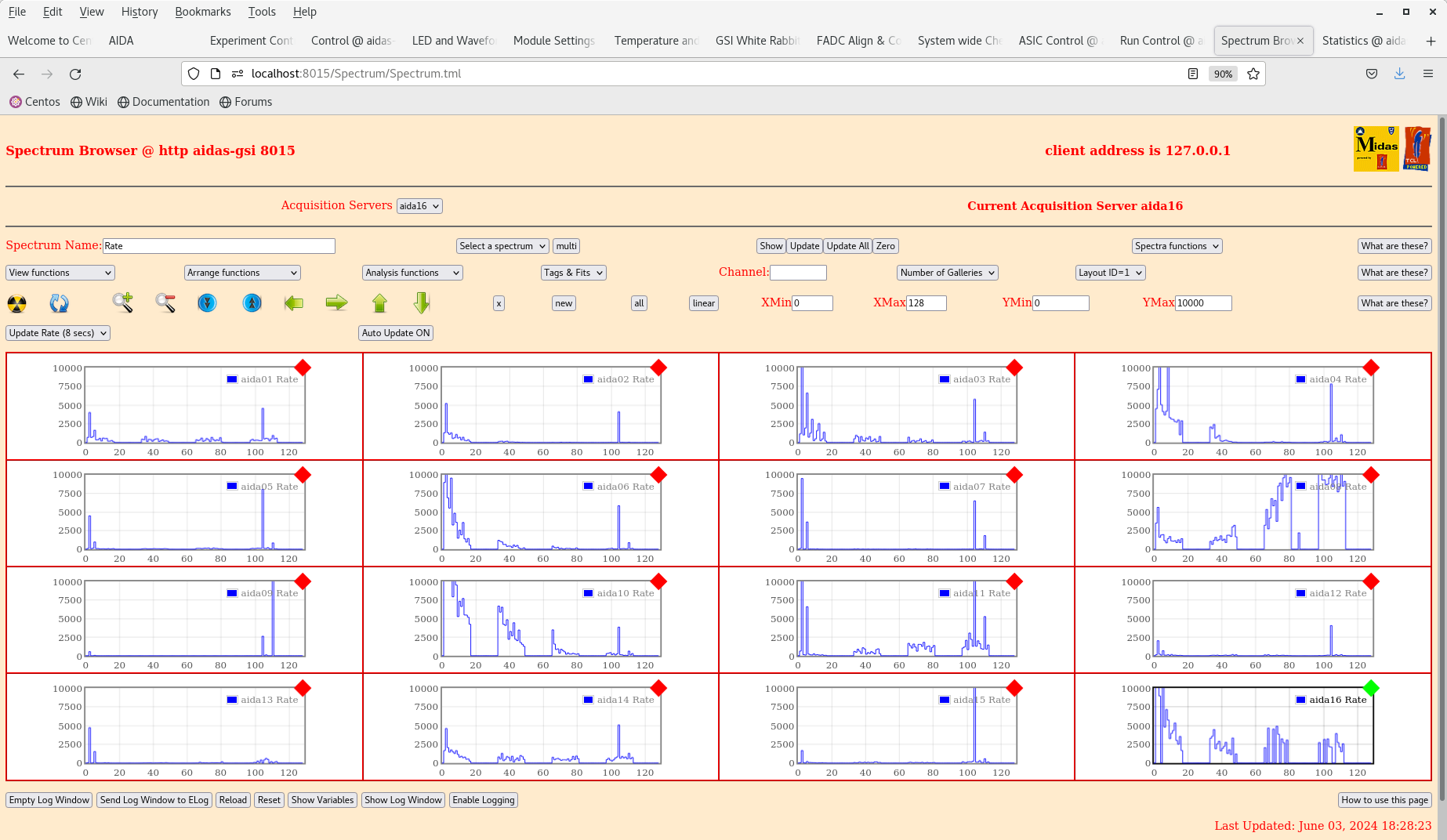

Attachment 10: Screenshot_from_2024-06-03_18-34-30.png  243 kB  Uploaded Mon Jun 3 18:35:21 2024  | Hide | Hide all
