Message ID: 487     Entry time: Tue Jun 21 10:19:05 2022
Author: OH ML
Subject: Tuesday 21st June 08:00-00:00
11:19 Stats ok 0xa on all FEE - attachment 1

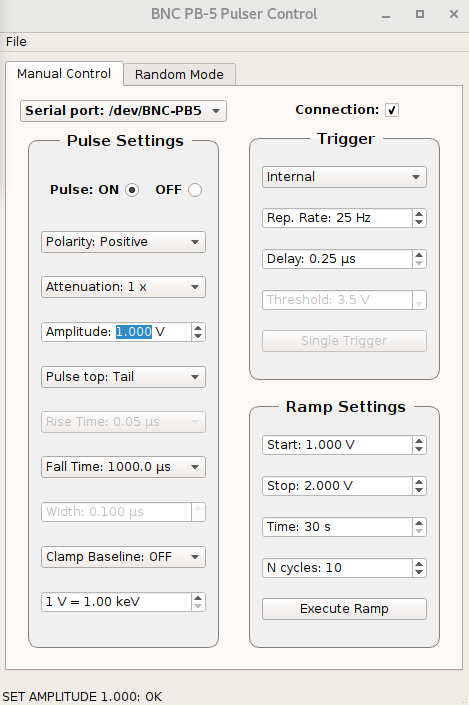

      Current pulser settings - attachment 2

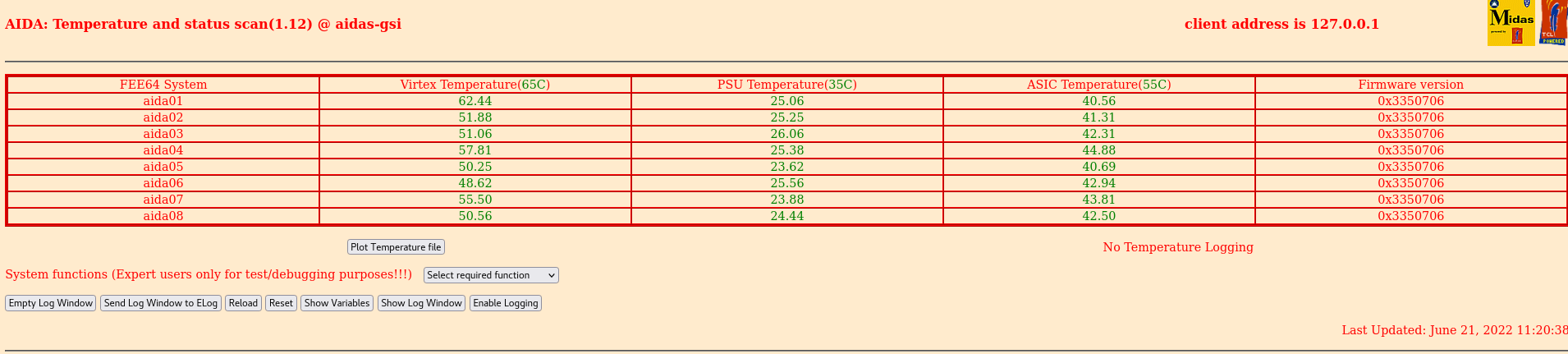

      FEE Temperatures ok - attachment 3
      Noticed both AIDA03 and AIDA07 had ASICs with missing channels. Did a check ASIC control on them to recover

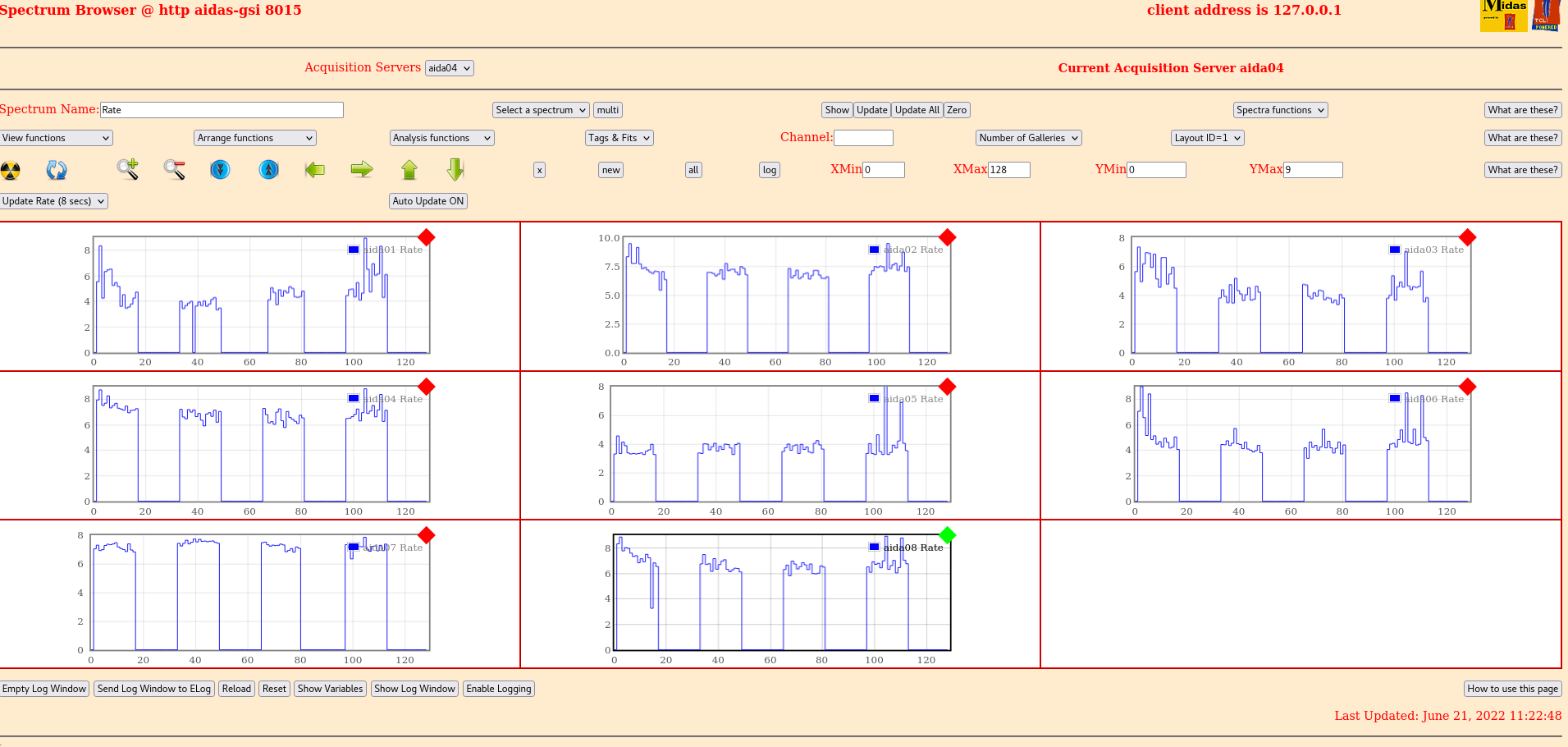

      Layout 1 after recovering channels - attachment 4
      New stats (Note increased rate on 3 and 7) attachment 5
      Bias and leakage currents ok - attachment 6

      S4 now in closed access. Trying to find out if the beam dump has been put in front of AIDA. Will make sure this is checked before beam to S4.

14:05 Have had it confirmed that the flange beam dump is in position in S4

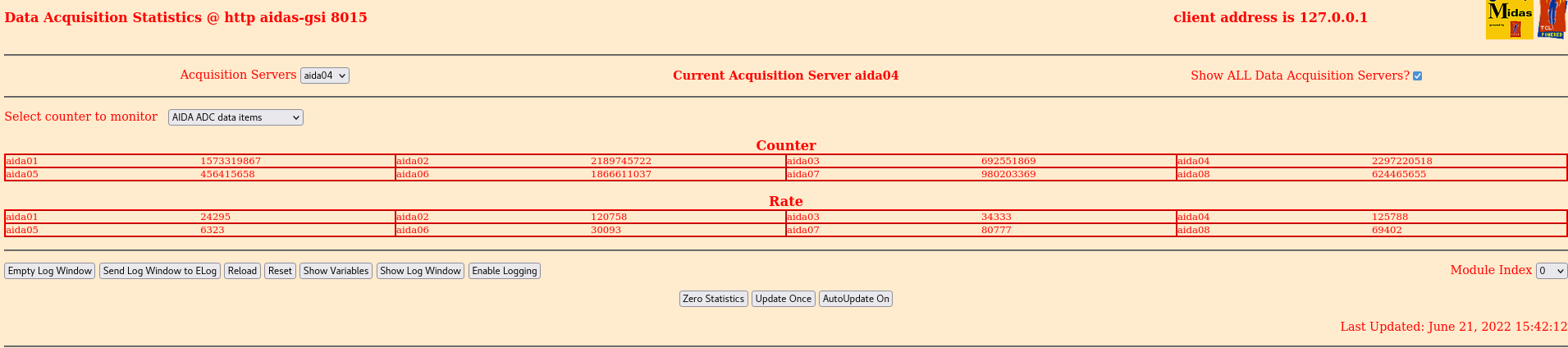

15:43 Stats ok -attachment 7
      Temp ok - attachment 8
      Bias and Leakage current ok - attachment 9


17:45 Currently the time machine trigger(for correlation) is connected to the DTAS or.
      As the beam is tuning they are triggering at 150k. This is 450k worth of scalers in AIDA
      During the experiment this will be changed to SC1 trigger to solve this.

19:49: Stats ok - attachment 10

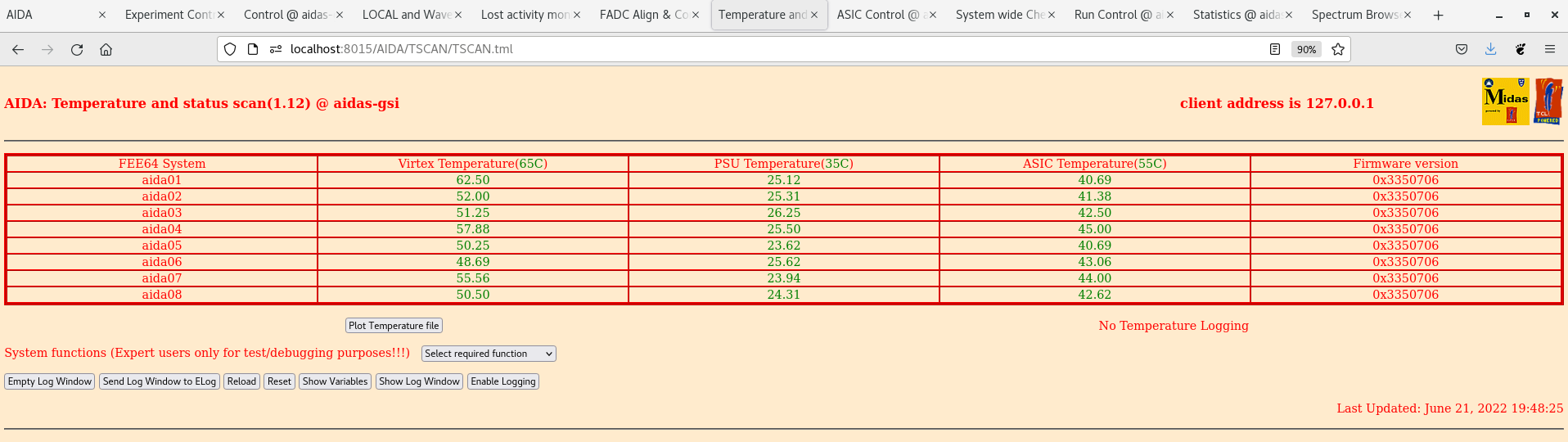

       temperatures ok - attachment 11

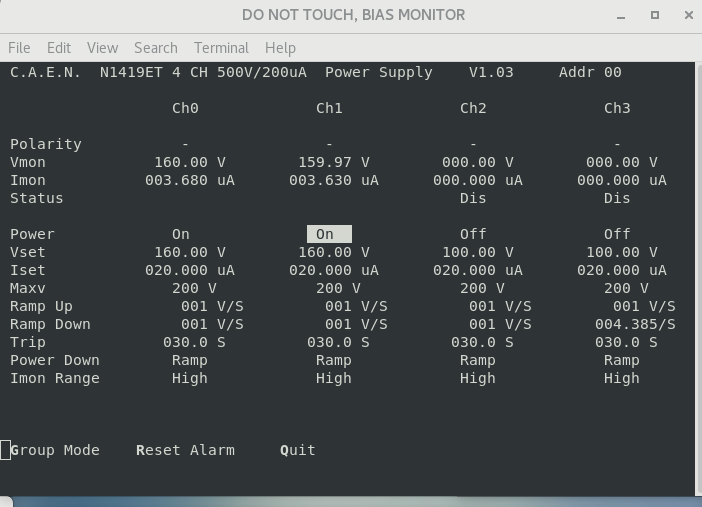

       Bias - Leakage current ok - attachment 12
Attachment 1: 220621_1119_Stats.png  67 kB  Uploaded Tue Jun 21 11:26:39 2022  | Hide | Hide all
Attachment 2: 220621_1120_Pulser.png  55 kB  Uploaded Tue Jun 21 11:26:39 2022  | Hide | Hide all
Attachment 3: 220621_1120_Temp.png  89 kB  Uploaded Tue Jun 21 11:26:39 2022  | Hide | Hide all
Attachment 4: 220621_1123_Layout1.png  156 kB  Uploaded Tue Jun 21 11:26:39 2022  | Hide | Hide all
Attachment 5: 220621_1123_Stats.png  69 kB  Uploaded Tue Jun 21 11:26:39 2022  | Hide | Hide all
Attachment 6: 220621_1123_Bias.png  35 kB  Uploaded Tue Jun 21 11:26:39 2022  | Hide | Hide all
Attachment 7: 220621_1542_Stats.png  67 kB  Uploaded Tue Jun 21 15:44:23 2022  | Hide | Hide all
Attachment 8: 220621_1542_Temp.png  90 kB  Uploaded Tue Jun 21 15:44:23 2022  | Hide | Hide all
Attachment 9: 220621_1543_Bias.png  36 kB  Uploaded Tue Jun 21 15:44:23 2022  | Hide | Hide all
Attachment 10: Stats-Screenshot_from_2022-06-21_19-50-19.png  103 kB  Uploaded Tue Jun 21 19:54:22 2022  | Hide | Hide all
Attachment 11: Temp-Screenshot_from_2022-06-21_19-48-56.png  120 kB  Uploaded Tue Jun 21 19:55:18 2022  | Hide | Hide all
Attachment 12: HV_LC-Screenshot_from_2022-06-21_19-47-49.png  48 kB  Uploaded Tue Jun 21 19:55:45 2022  | Hide | Hide all
