701
|
Tue Mar 11 11:53:18 2025 |
TD | Monday 10 March |
18.30 AIDA powered up for brief test
DSSSD bias & leakage current OK - attachment 1
FEE64 temperatures OK - attachment 2
ADC data item stats - attachment 3
ASIC settings at power up - slow comparator 0x64
per p+n FEE64 1.8.L spectra - attachment 4
pulser peak width aida9 55 ch FWHM (39keV FWHm), aida15 53 ch FWHM (37keV FWHM)
p+n FEE64 aida15 1.8.W spectra - 20us FSR - attachments 5-6
saved *.L, *.H, *.W spectra for aida15 - attachments 7-11
*.W spectra - 20us, 200us, 2ms & 20ms FSR
19.27 DAQ STOP
DSSSD bias OFF
FEE64 power OFF |
| Attachment 1: Screenshot_from_2025-03-10_18-41-32.png
|
|
| Attachment 2: Screenshot_from_2025-03-10_18-42-02.png
|
|
| Attachment 3: Screenshot_from_2025-03-10_18-42-33.png
|
|
| Attachment 4: Screenshot_from_2025-03-10_18-43-07.png
|
|
| Attachment 5: Screenshot_from_2025-03-10_18-48-03.png
|
|
| Attachment 6: Screenshot_from_2025-03-10_18-48-39.png
|
|
| Attachment 7: 2025Mar10-17.59.58.tar.gz
|
| Attachment 8: 2025Mar10-18.05.01.tar.gz
|
| Attachment 9: 2025Mar10-18.06.29.tar.gz
|
| Attachment 10: 2025Mar10-18.12.03.tar.gz
|
| Attachment 11: 2025Mar10-18.17.55.tar.gz
|
|
700
|
Sat Feb 22 12:35:38 2025 |
TD | Offline analysis data files R9_85-R9_199 (84Mo setting) |
Start 00:43 22.2.25 https://elog.gsi.de/despec/G-24-00302/57
AIDA data file R9_85
Converting hexadecimal timestamp to decimal: 1740181266259754800
Assuming that this timestamp is in nanoseconds (1 billionth of a second):
GMT: Friday, February 21, 2025 11:41:06.259 PM
Your time zone: Friday, February 21, 2025 11:41:06.259 PM GMT+00:00
End 12:56 22.2.25 https://elog.gsi.de/despec/G-24-00302/85 (start of next degrader setting)
AIDA data file R9_199
Converting hexadecimal timestamp to decimal: 1740224934731157800
Assuming that this timestamp is in nanoseconds (1 billionth of a second):
GMT: Saturday, February 22, 2025 11:48:54.731 AM
Your time zone: Saturday, February 22, 2025 11:48:54.731 AM GMT+00:00
Analysis data files FEB25/R9_85 and FEB25/R9_199
- no timewarps
- deadtime aida05 c. 37% and 39% due to high SC41 scaler input to MACB - issue subsequently fixed
- deadtime aida04 c. 4%, all other FEE64s <<1%
FEE64 configuration
FEE64 a b c
g h
d e f
a b c d e f g h
DSSSD#1 15 3 12 9 1 5 2 4
n+n Ohmic FEE64s 2, 4
Data analysis assumes
- all LEC ADC data channels with valid ADC offset included (507 of 512 channels)
LEC calibration ADC offset only
- no clustering
- no multiplex timestamp correction
- no p+n junction side - n+n Ohmic side correlation time gates
- FEE64 *not* DSSSD strip ordering
- hardware - slow comparator setting p+n junction FEE64s 100keV, n+n Ohmic FEE64s 150keV
- LEC energy difference +/- 168keV
- HEC energy difference +/- 1.68GeV
- valid LEC events
p+n junction side multiplicity = 1 and n+n Ohmic side multiplicity = 1
151keV < LEC energy < 1000keV
to select candidate beta events
standalone analysis of AIDA data, no downstream veto detector
- valid HEC events
p+n junction side multiplicity > 0 and n+n Ohmic side multiplicity > 0
(x,y) strips corresponding to maximum energy
p+n junction and n+n Ohmic side HEC
- HEC veto
not available - only 1x AIDA DSSSD installed
- per pixel implant-decay correlations
- end of event
difference in WR timestamp between successive ADC data items > 2500 and overall event length < 33us

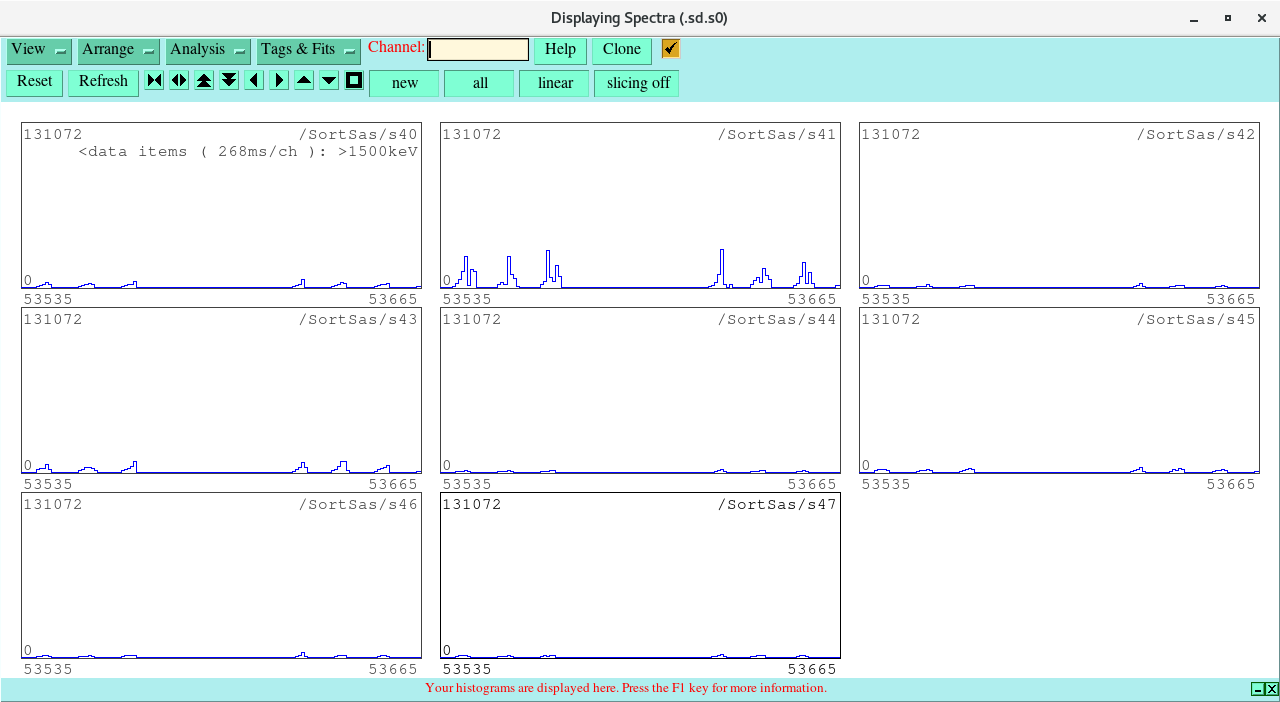

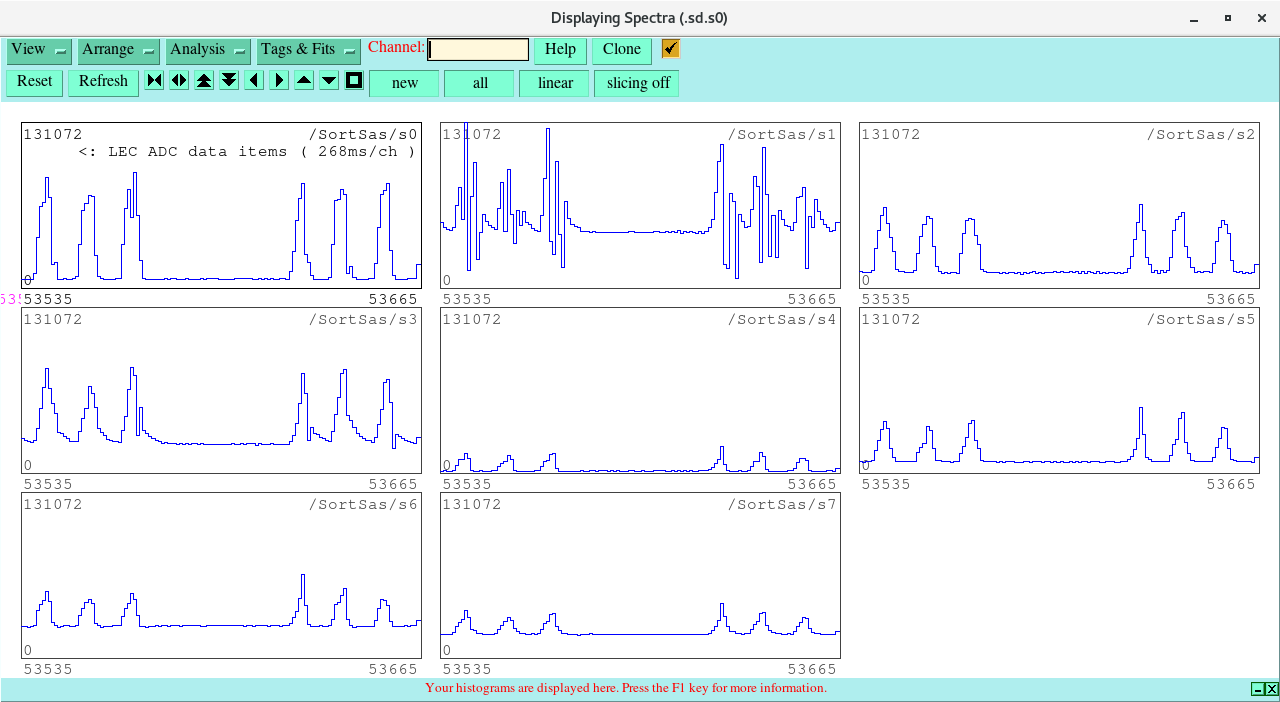

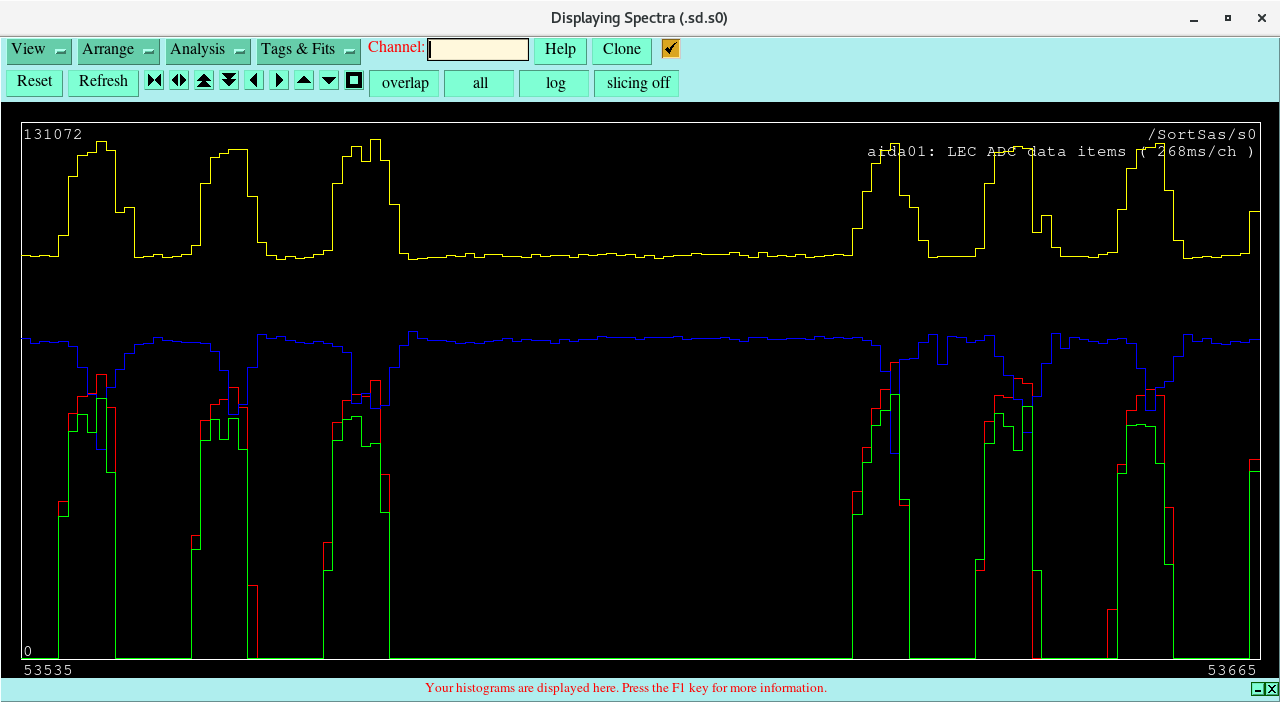

per FEE64 LEC ADC data items 268ms/channel - attachments 3-5
- all
- 150keV < energy < 1500keV
- energy > 1500keV
absence of high instantaneous rates on spill cf. S181, S100, S505 etc
spill structure visible for energies > 1500keV - probably to be expected as majority of such events should be light ions

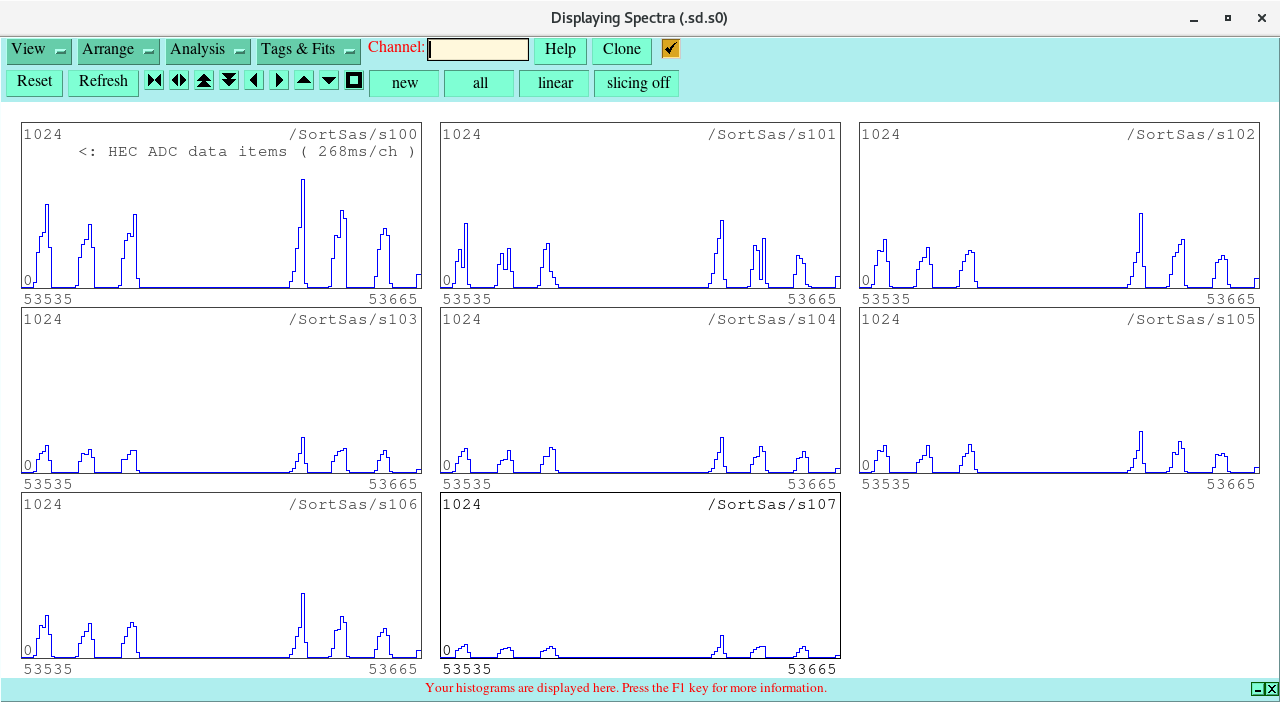

per FEE64 HEC ADC data items 268ms/channel - attachments 6-8
- all

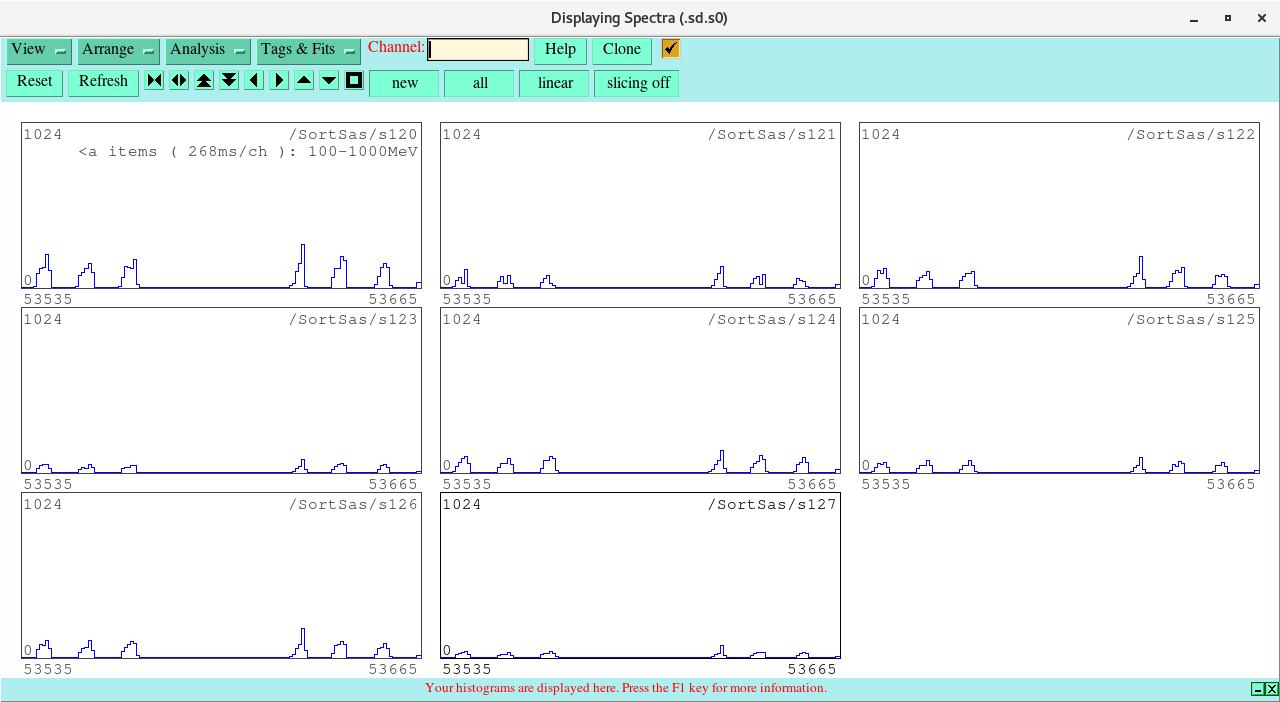

- 100MeV < energy < 1000MeV

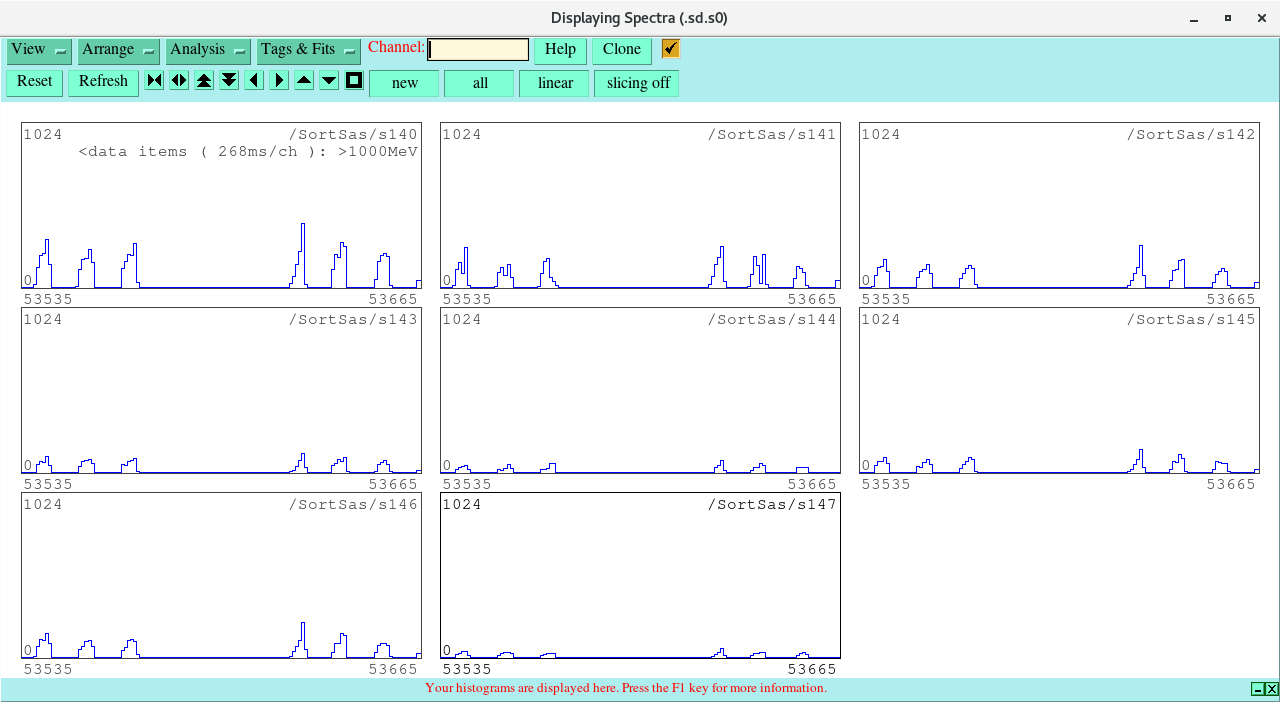

- energy > 1000MeV

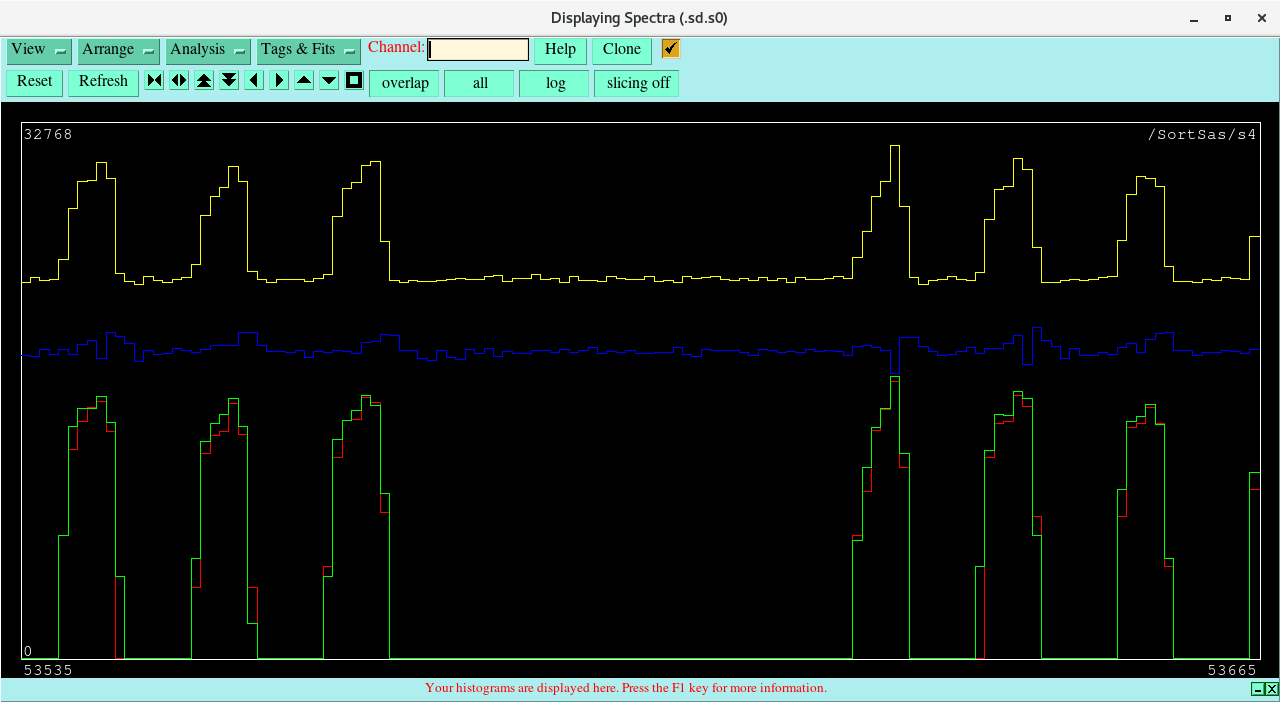

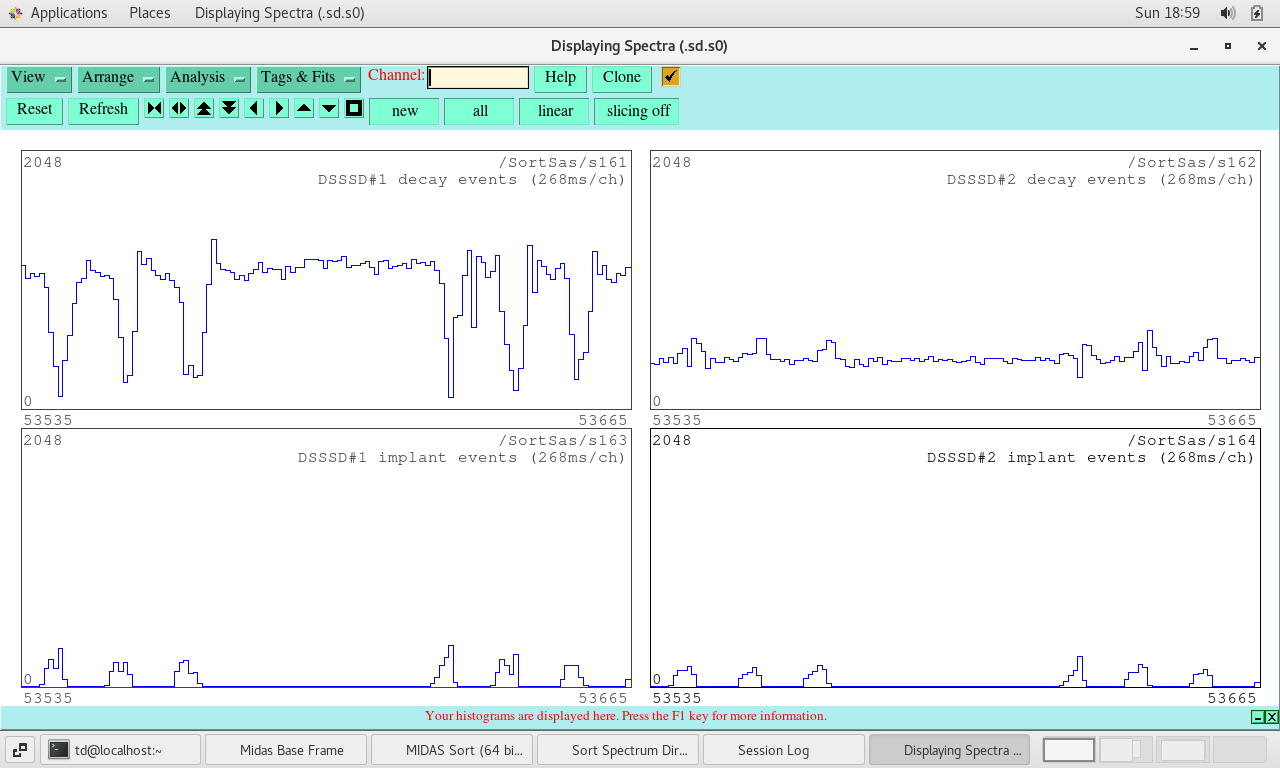

Implant & decay event rates 262us/channel - attachment 9

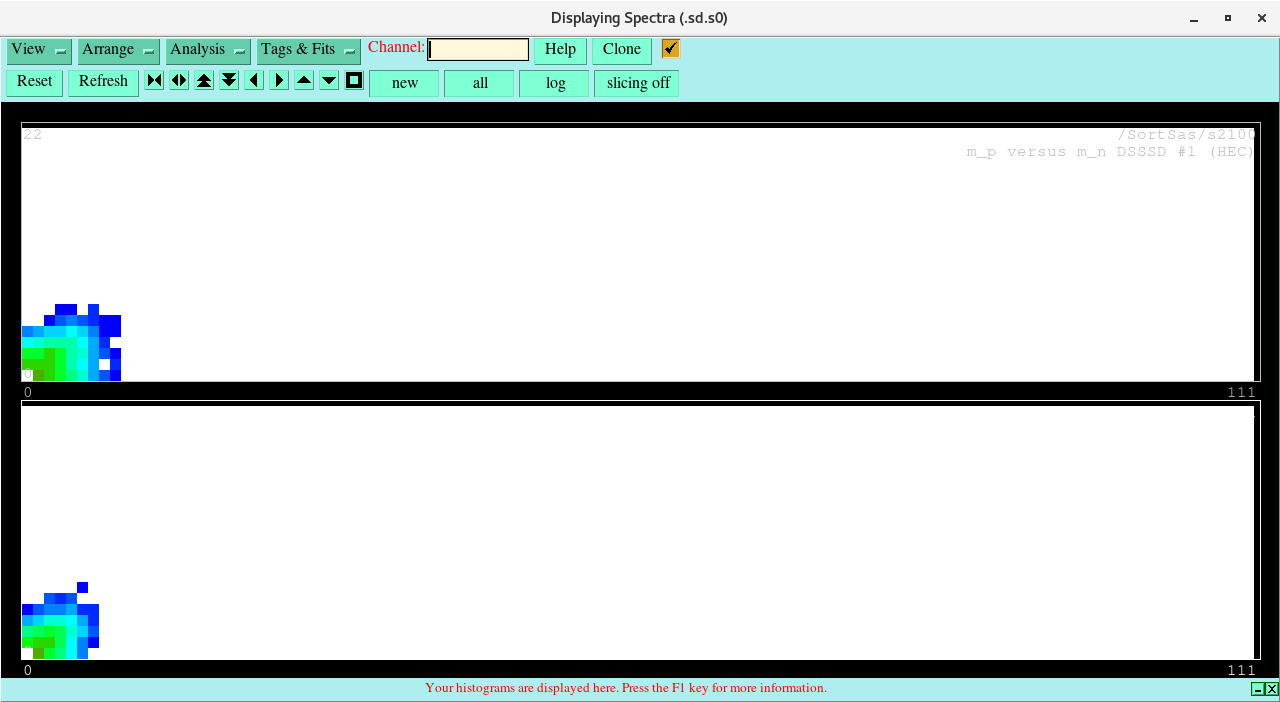

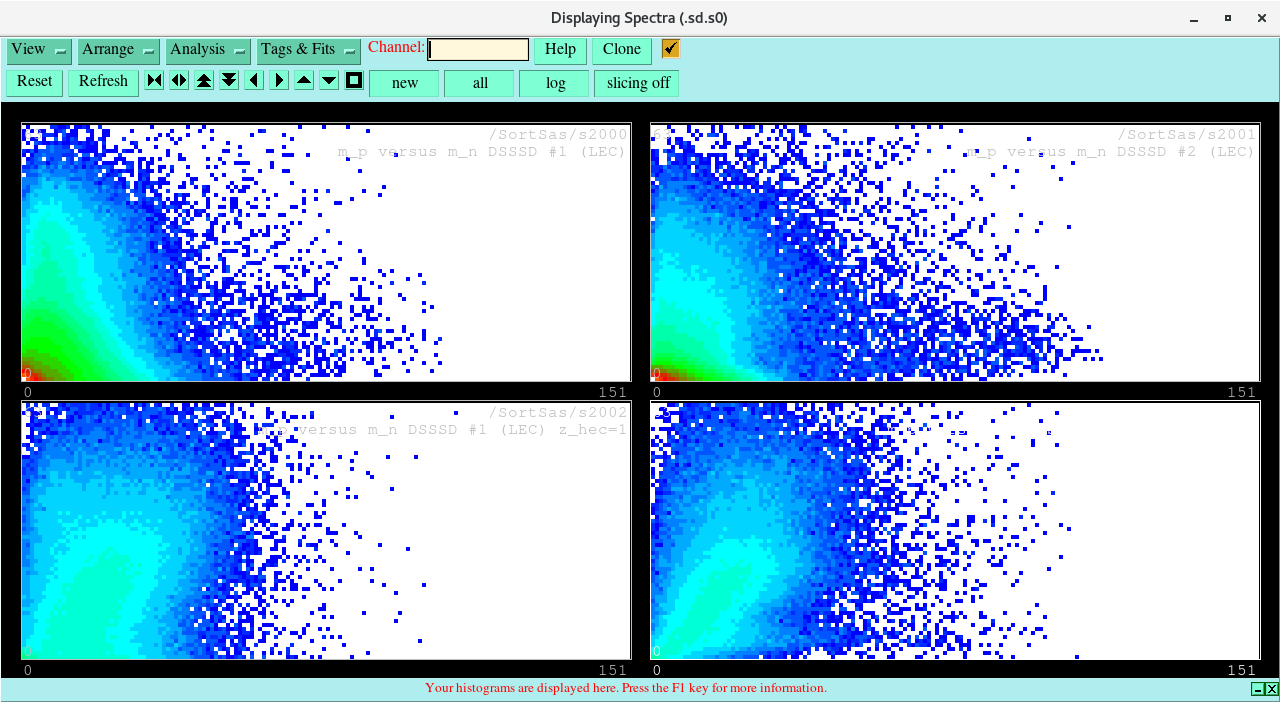

LEC m_p versus m_n - attachment 10

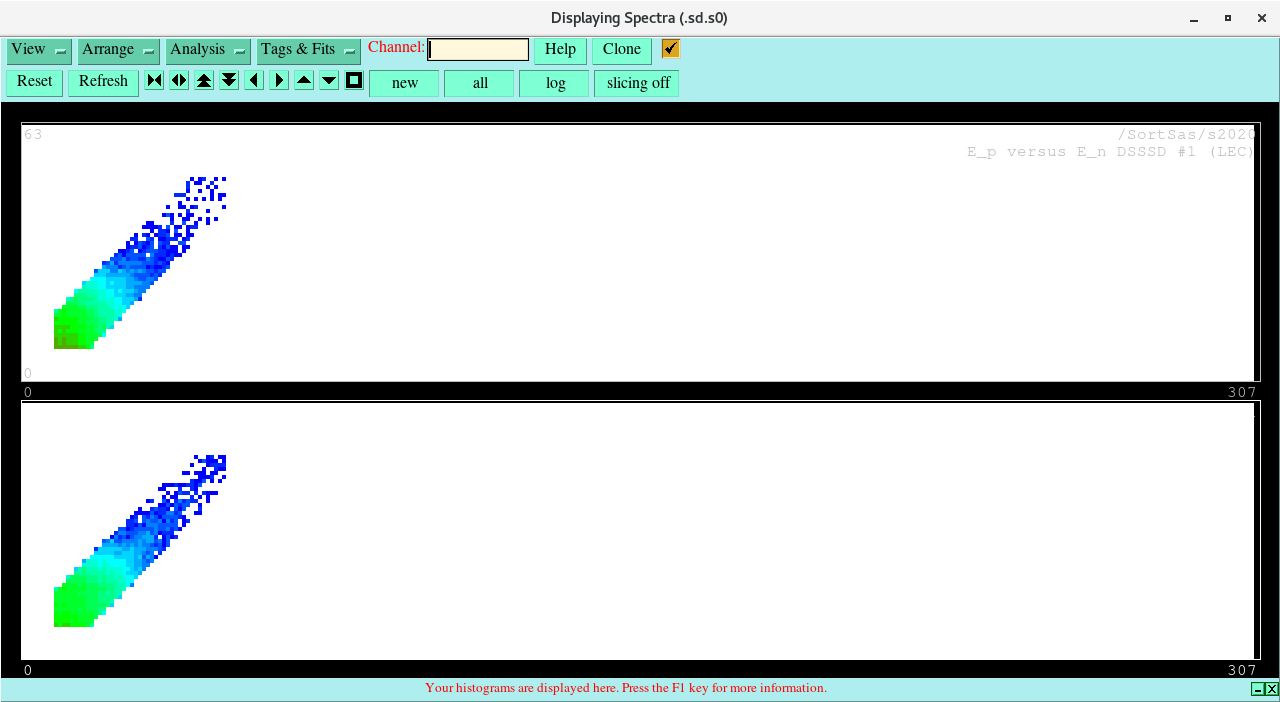

LEC e_p versus e_n - 20keV/channel - attachment 11

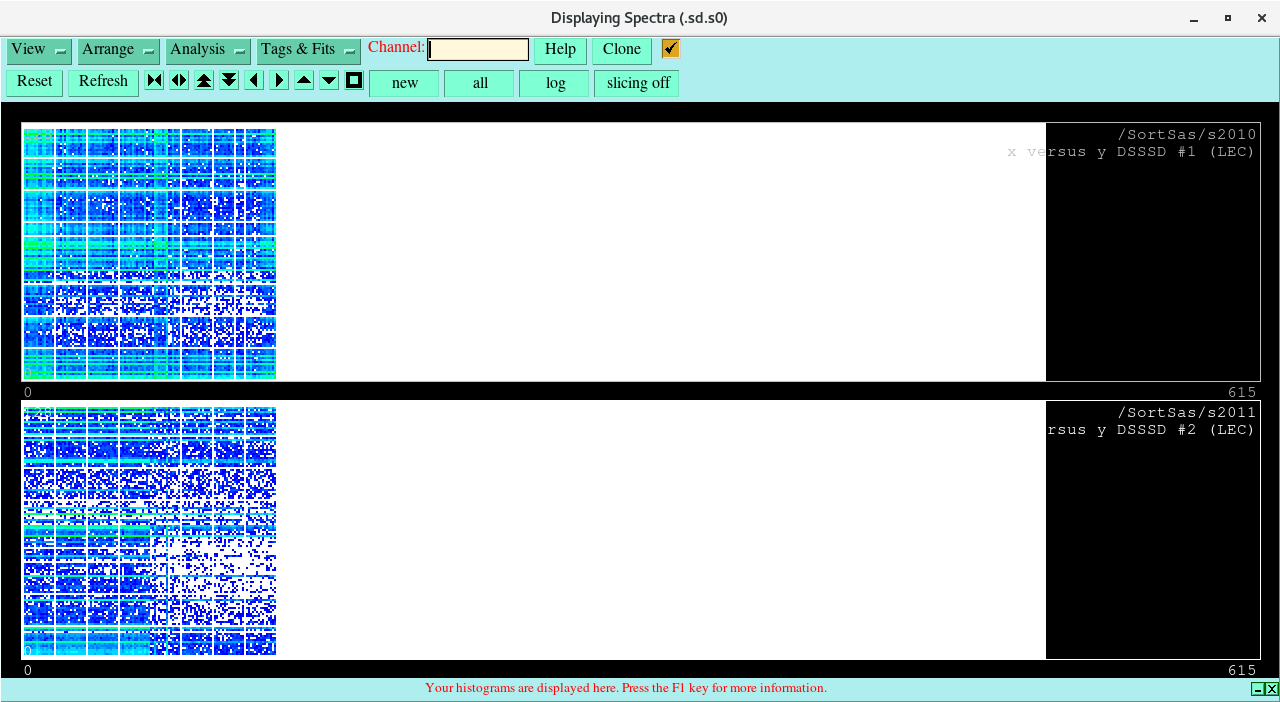

HEC x strip versus y strip - attachment 12
- HEC-LEC implant decay time difference <1s
- HEC-LEC implant decay time difference <100s
shows x-y window used to select 82Nb events
HEC m_p versus m_n - attachment 13

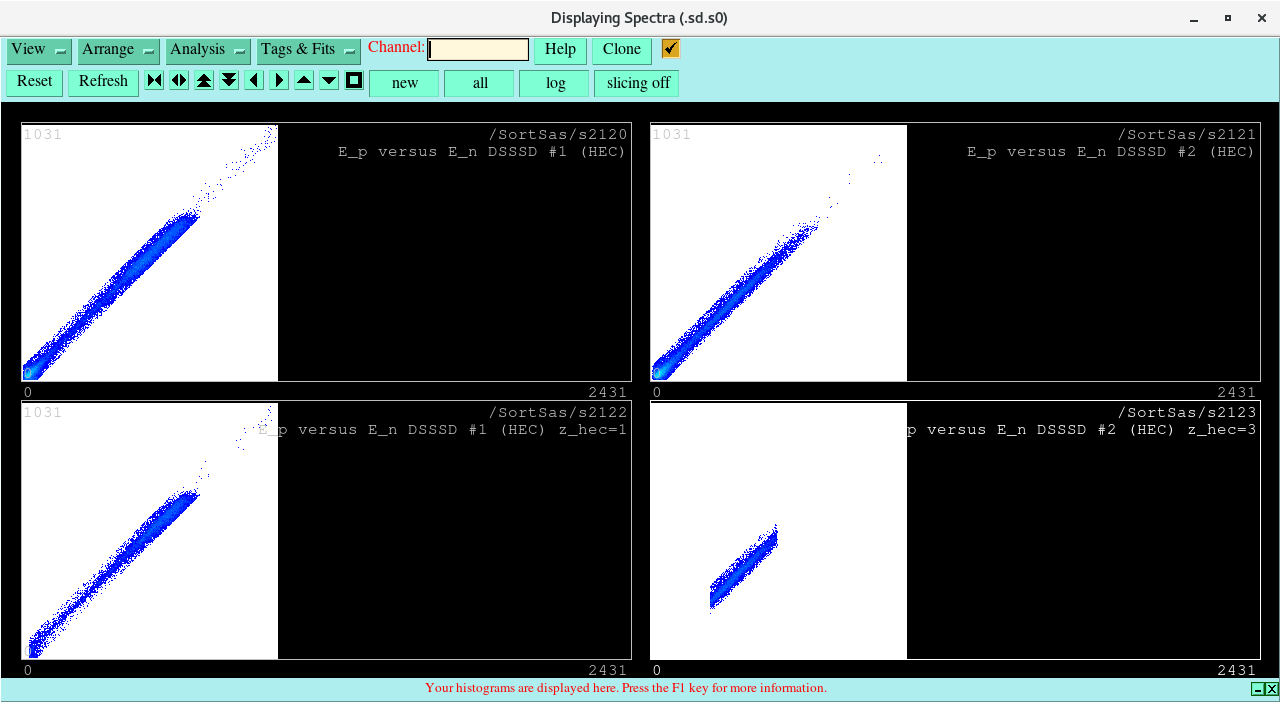

HEC e_p versus e_n - 20MeV/channel - attachment 14
HEC-LEC implant-decay time difference (4ms/channel) versus - attachment 15
- HEC energy
- LEC energy
- x & y strip
x strips 130 & 136 disabled

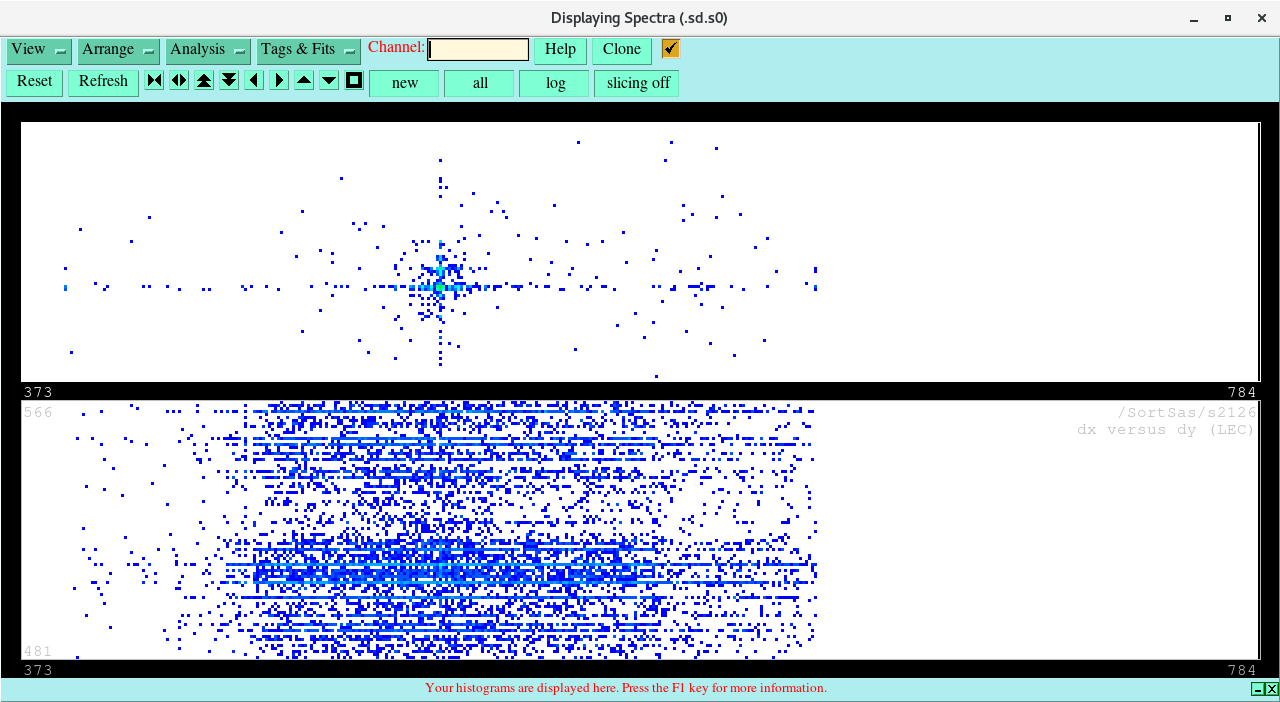

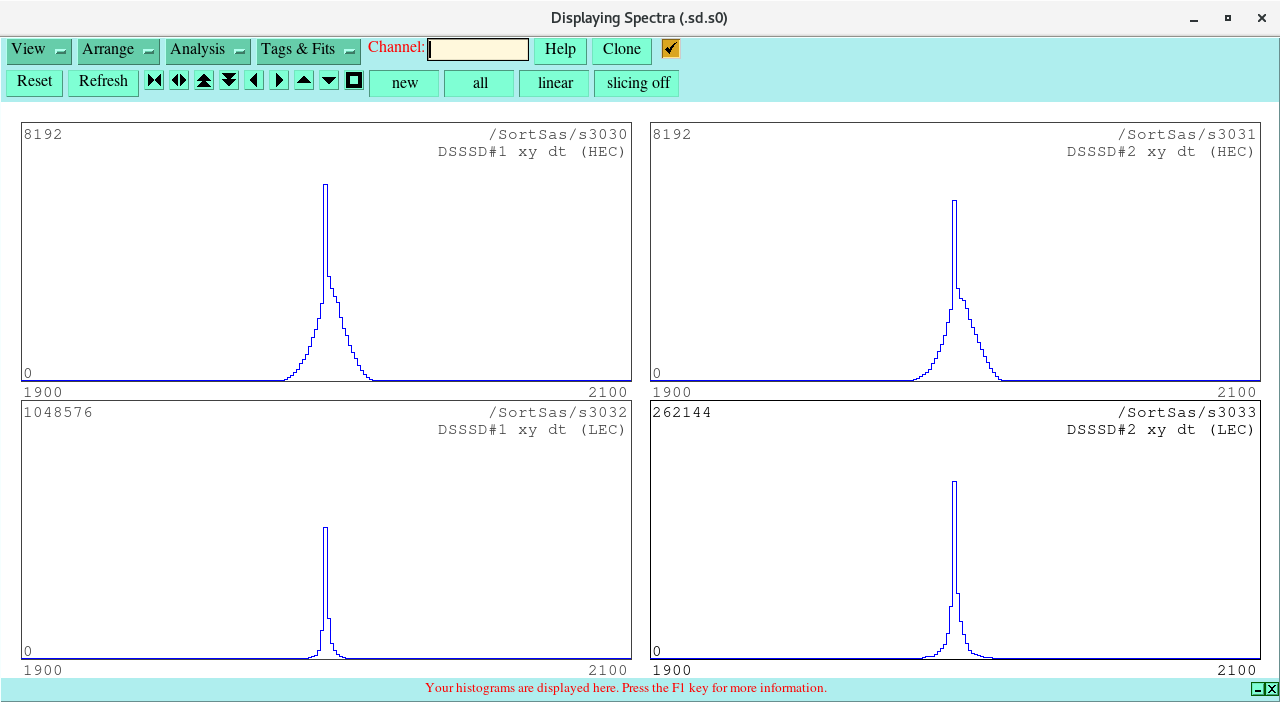

HEC & LEC p strip - n strip time difference (2us/channel, offset=2000 channels) - attachment 16
HEC E (20MeV/channel) versus implant-decay time difference (4.194ms/channel) - attachment 17
LEC E (20keV/channel) versus implant-decay time difference (4.194ms/channel) - attachment 18
LEC e_p - e_n (5.6keV/channel) versus implant-decay time difference (4.194ms/channel) - attachment 19
HEC x & y strip versus implant-decay time difference (4.194ms/channel) - attachment 20
HEC-LEC implant-decay time difference (8.389ms/channel) for candidate 82Nb events - attachment 21
- blue - forward
- cyan - backward
Note
- no FRS PID
- no HEC dE
- no HEC veto
- no HEC energy gates - assume all events within x-y window *stop* in AIDA DSSSD - 82Nb events known to overlap in x-y with (longer-lived, more numerous) 83Nb events
- no front-back time difference
- no clustering
- *all* LEC channels with valid ADC offsets (507 of 512) included *except* 2x strips 130 & 136
HEC-LEC implant-decay time difference (8.389ms/channel) for candidate 82Nb events - attachment 22
Weighted least squares fit channels 1-12 half life 55(9)ms cf. NNDC 50.0(3)ms. |
| Attachment 1: R9_85.txt
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 143503687 ( 365856.8 Hz)
Other data format: 118416315 ( 301897.6 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 2560 ( 6.5 Hz)
RESUME: 2560 ( 6.5 Hz)
SYNC100: 33461 ( 85.3 Hz)
WR48-63: 33461 ( 85.3 Hz)
FEE64 disc: 326756 ( 833.1 Hz)
MBS info: 118017517 ( 300880.9 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 29285 ( 74.7 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 392.240 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.069 0.000
2 0.000 0.000
3 17.209 0.000
4 146.817 0.000
5 0.000 0.000
6 0.000 0.000
7 0.000 0.000
8 0.000 0.000
9 0.009 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 7002448 45530 0 0 0 0 930 930 31901 11769 0 2888
1 22874309 77583 0 0 18 18 3036 3036 71475 0 0 7512
2 6498360 4555402 0 0 0 0 1475 1475 34629 4517823 0 3971
3 82625693 69682 0 0 1306 1306 10819 10819 45432 0 0 3669
4 4358474 109462549 0 0 1235 1235 14045 14045 2695 109429294 0 206
5 0 0 0 0 0 0 0 0 0 0 0 0
6 88 0 0 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0 0 0 0
8 2927664 19415 0 0 0 0 391 391 18633 0 0 4389
9 14346055 3938106 0 0 1 1 2392 2392 18452 3914868 0 1270
10 128 0 0 0 0 0 0 0 0 0 0 0
11 1956985 169485 0 0 0 0 257 257 25208 143763 0 3888
12 212 0 0 0 0 0 0 0 0 0 0 0
13 55 0 0 0 0 0 0 0 0 0 0 0
14 913148 78563 0 0 0 0 116 116 78331 0 0 1492
15 68 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 24.117s ( 1326.854 blocks/s, 82.928 Mb/s)
|
| Attachment 2: R9_199.txt
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 154723223 ( 435714.6 Hz)
Other data format: 107196777 ( 301875.8 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 2462 ( 6.9 Hz)
RESUME: 2462 ( 6.9 Hz)
SYNC100: 33323 ( 93.8 Hz)
WR48-63: 33323 ( 93.8 Hz)
FEE64 disc: 288355 ( 812.0 Hz)
MBS info: 106836852 ( 300862.3 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 32530 ( 91.6 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 355.102 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.008 0.000
1 0.147 0.000
2 0.000 0.000
3 21.597 0.000
4 136.749 0.000
5 0.000 0.000
6 0.000 0.000
7 0.000 0.000
8 0.000 0.000
9 0.006 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 9317141 49848 0 0 6 6 1239 1239 36708 10650 0 3256
1 27128444 89326 0 0 31 31 3596 3596 82072 0 0 8340
2 7611251 4365052 0 0 0 0 1569 1569 37972 4323942 0 4609
3 84626002 75259 0 0 1316 1316 10898 10898 50831 0 0 3978
4 4974948 98704420 0 0 1107 1107 12783 12783 2668 98673972 0 187
5 0 0 0 0 0 0 0 0 0 0 0 0
6 122 0 0 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0 0 0 0
8 3383262 22113 0 0 0 0 436 436 21241 0 0 4811
9 14397933 3689217 0 0 2 2 2371 2371 21039 3663432 0 1355
10 1 0 0 0 0 0 0 0 0 0 0 0
11 2194427 194484 0 0 0 0 298 298 29032 164856 0 4304
12 140 0 0 0 0 0 0 0 0 0 0 0
13 260 0 0 0 0 0 0 0 0 0 0 0
14 1088899 7058 0 0 0 0 133 133 6792 0 0 1690
15 393 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 26.438s ( 1210.402 blocks/s, 75.650 Mb/s)
|
| Attachment 3: Screenshot_from_2025-03-05_10-04-30.png
|
|
| Attachment 4: Screenshot_from_2025-03-05_10-04-55.png
|
|
| Attachment 5: Screenshot_from_2025-03-05_10-05-29.png
|
|
| Attachment 6: Screenshot_from_2025-03-05_10-07-35.png
|
|
| Attachment 7: Screenshot_from_2025-03-05_10-07-56.png
|
|
| Attachment 8: Screenshot_from_2025-03-05_10-08-29.png
|
|
| Attachment 9: Screenshot_from_2025-03-05_10-09-24.png
|
|
| Attachment 10: Screenshot_from_2025-03-05_10-10-29.png
|
|
| Attachment 11: Screenshot_from_2025-03-05_10-11-17.png
|
|
| Attachment 12: Screenshot_from_2025-03-05_10-12-05.png
|
|
| Attachment 13: Screenshot_from_2025-03-05_10-12-35.png
|
|
| Attachment 14: Screenshot_from_2025-03-05_10-13-38.png
|
|
| Attachment 15: Screenshot_from_2025-03-05_10-14-59.png
|
|
| Attachment 16: Screenshot_from_2025-03-05_10-15-51.png
|
|
| Attachment 17: Screenshot_from_2025-03-08_09-11-40.png
|
|
| Attachment 18: Screenshot_from_2025-03-08_09-11-58.png
|
|
| Attachment 19: Screenshot_from_2025-03-08_09-13-07.png
|
|
| Attachment 20: Screenshot_from_2025-03-08_14-01-50.png
|
|
| Attachment 21: Screenshot_from_2025-03-08_12-21-22.png
|
|
| Attachment 22: 82Nb.png
|
|
|
699
|
Thu Feb 20 17:06:42 2025 |
JB, CC, TD,MP | WR error for aida 13,14,15,16 |
WR timestamp errors resolved after reseating the HDMI cables to the MACB |
|
698
|
Wed Feb 12 10:46:01 2025 |
TD | Offline analysis data files S181 R4_351-396 |
Analysis data files R4_351-396
Data file R4_351 first WR ts 0x17D7B4C72B0BA9C8
Converting hexadecimal timestamp to decimal: 1718040550378809900
Assuming that this timestamp is in nanoseconds (1 billionth of a second):
GMT: Monday, June 10, 2024 5:29:10.378 PM
Your time zone: Monday, June 10, 2024 6:29:10.378 PM GMT+01:00 DST
Relative: 8 months ago
Data file R4_396 first WR ts 0x17D7BE86408888E8
Converting hexadecimal timestamp to decimal: 1718051266682718500
Assuming that this timestamp is in nanoseconds (1 billionth of a second):
GMT: Monday, June 10, 2024 8:27:46.682 PM
Your time zone: Monday, June 10, 2024 9:27:46.682 PM GMT+01:00 DST
Relative: 8 months ago
Attachments 1-2 - analysis data files R4_351 and R4_396
max. *time averaged* deadtime FEE64 #7 (aida08) 1.7% and 1.7% respectively
all other FEE64 deadtimes < 1%
FEE64 configuration
FEE64 a b c
g h
d e f
a b c d e f g h
DSSSD#1 15 3 12 9 1 5 2 4
DSSSD#2 11 7 16 10 14 13 6 8
n+n Ohmic FEE64s 2, 4, 6, 8
Data analysis assumes
- all LEC ADC data channels with valid ADC offset included (1012 of 1024 channels)
LEC calibration ADC offset only
- no clustering
- no multiplex timestamp correction
- no p+n junction side - n+n Ohmic side correlation time gates
- FEE64 *not* DSSSD strip ordering
- hardware - slow comparator setting p+n junction FEE64s 100keV, n+n Ohmic FEE64s 150keV
- LEC energy difference +/- 11200keV (wide open for first pass analysis)
- HEC energy difference +/- 1.68GeV
- valid LEC events
p+n junction side multiplicity = 1 and n+n Ohmic side multiplicity = 1
LEC energy > 151keV
to select candidate beta and alpha events - will include light ions
standalone analysis of AIDA data, no downstream veto detector
- valid HEC events
p+n junction side multiplicity > 0 and n+n Ohmic side multiplicity > 0
(x,y) strips corresponding to maximum energy
p+n junction and n+n Ohmic side HEC
- HEC veto
p+n junction side multiplicity > 0 or n+n Ohmic side multiplicity > 0
- per pixel implant-decay correlations
- end of event
difference in WR timestamp between successive ADC data items > 2500 and overall event length < 33us
Number of events observed
*** scaler # 1 count: 35941696 DSSSD#1 decay events LEC m_p = 1 and LEC m_n = 1, ADC data > 151.2keV *and* HEC m_p = HEC m_n = 0, ADC data > 151.2MeV
*** scaler # 2 count: 31960753 DSSSD#2 decay events LEC m_p = 1 and LEC m_n = 1, ADC data > 151.2keV *and* HEC m_p = HEC m_n = 0, ADC data > 151.2MeV
*** scaler # 3 count: 1499844 DSSSD#1 implant events HEC m_p > 0 and HEC m_n > 0, ADC data > 151.2MeV
*** scaler # 4 count: 1297356 DSSSD#2 implant events HEC m_p > 0 and HEC m_n > 0, ADC data > 151.2MeV
*** scaler # 5 count: 5446969 DSSSD#1 other events HEC m_p > 0 or HEC m_n > 0 *and* LEC m_p > 8 or LEC m_n > 8
*** scaler # 6 count: 75030747 DSSSD#2 other events HEC m_p > 0 or HEC m_n > 0 *and* LEC m_p > 8 or LEC m_n > 8
DSSSD#1 implant events
x=m_p=0 ?
y=m_n=0 ?
DSSSD#2 implant events
x=m_p=0 ?
y=m_n=0 ?
Attachments 3-6 - per FEE64 LEC data item rates 268ms/channel - common x and y scales
- no conditions
- 150keV < energy < 1500keV
- energy > 1500keV
Some deadtime observed on spill, none observed off spill. No significant variation in per FEE64 LEC data rates.
Attachments 7-8 - per FEE64 LEC hit patterns
- 150keV < energy < 1500keV
- energy > 1500keV
Aside from usual hot channels at cable/DSSSD boundaries good hit pattern observed. For > 1500keV events observe flat field in x-plane, focussed in y-plane.
Attachments 9-11 - per FEE64 HEC data item rates 268ms/channel - common x and y scales
- no conditions
- 100MeV < energy < 1000MeV
- energy > 1000MeV
Note hot HEC channel in aida08 - should be disabled.
Attachment 12 - per DSSSD decay and implant rates 262us/channel - common x and y scales
Attachment 13 - per DSSSD LEC m_p versus m_n
- no conditions
Attachment 14 - per DSSSD LEC p strip versus n strip
- no conditions
Attachments 15-16 - per DSSSD LEC E_p versus E_n - x and y-axes 20keV/channel
- LEC energy difference +/- 2000 channels (+/- 11200keV)
Attachments 17-18 - per DSSSD p strip versus n strip
- HEC-LEC time difference <1s
- HEC-LEC time difference <100s
Attachment 19 - per DSSSD HEC m_p versus m_n
Attachment 20 - per DSSSD HEC p strip versus n strip
- no conditions
- z_hec=1 => implant stops in DSSSD#1
- z_hec=3 => implant hits DSSSD#1 and DSSSD#2 but does not necessarily stop in DSSSD#2
Attachment 21 - per DSSSD HEC E_p versus E_n - x and y axes 20MeV/channel
Attachment 22 - DSSSD#1 HEC E_p versus DSSSD#2 HEC E_p - x and y axes 20MeV/channel
- few events stop in DSSSD#2
- most events lower Z and A - fission fragments?
Attachment 23 - per DSSSD per pixel HEC-LEC time difference 4.096us/channel
- events observed to <<100us
Attachment 24 - per DSSSD per pixel HEC-LEC time difference (1s/channel) versus LEC energy (20keV/channel)
- alpha events long lived
- some evidence of effect of on spill deadtime in implant-decay correlations (cf. S100 and S505)
Attachment 25 - per DSSSD implant and decay event p strip - n strip time difference (2us/channel)
- wider distribution for implant events as expected due to number of ASIC active channels in implant events
- most decay events +/-2us - lower ASIC occupancy for decay events so most events will be from same (or adjacent) clock cycle |
| Attachment 1: R4_396.txt
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 256709815 ( 1065042.5 Hz)
Other data format: 5210185 ( 21616.1 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 653 ( 2.7 Hz)
RESUME: 653 ( 2.7 Hz)
SYNC100: 32897 ( 136.5 Hz)
WR48-63: 32897 ( 136.5 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 5143085 ( 21337.7 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 639531 ( 2653.3 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 241.032 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.017 0.000
2 0.000 0.000
3 0.848 0.000
4 0.000 0.000
5 0.227 0.000
6 0.000 0.000
7 4.199 0.000
8 0.000 0.000
9 1.796 0.000
10 0.020 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.823 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 3315802 8090 0 0 0 0 430 430 0 7230 0 9958
1 8650533 2148 0 0 3 3 1071 1071 0 0 0 24316
2 7128165 1944546 0 0 0 0 1082 1082 0 1942382 0 12931
3 24378546 6508 0 0 152 152 3102 3102 0 0 0 19563
4 2929004 400994 0 0 0 0 424 424 0 400146 0 12707
5 19313956 4950 0 0 45 45 2430 2430 0 0 0 22052
6 5646509 333129 0 0 0 0 723 723 0 331683 0 12637
7 62853684 16350 0 0 195 195 7980 7980 0 0 0 436912
8 8105988 2098 0 0 0 0 1049 1049 0 0 0 14497
9 45373582 1939538 0 0 183 183 6118 6118 0 1926936 0 14193
10 14519870 3442 0 0 13 13 1708 1708 0 0 0 8558
11 2400015 535424 0 0 0 0 358 358 0 534708 0 14419
12 4828613 1128 0 0 0 0 564 564 0 0 0 8079
13 7222020 1834 0 0 0 0 917 917 0 0 0 12852
14 3474619 796 0 0 0 0 398 398 0 0 0 8899
15 36568909 9210 0 0 62 62 4543 4543 0 0 0 6958
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 26.098s ( 1226.164 blocks/s, 76.635 Mb/s)
|
| Attachment 2: R4_351.txt
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 256848692 ( 1048248.2 Hz)
Other data format: 5071308 ( 20697.0 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 624 ( 2.5 Hz)
RESUME: 624 ( 2.5 Hz)
SYNC100: 32913 ( 134.3 Hz)
WR48-63: 32913 ( 134.3 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 5004234 ( 20423.2 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 629529 ( 2569.2 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 245.027 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.032 0.000
2 0.000 0.000
3 0.744 0.000
4 0.000 0.000
5 0.181 0.000
6 0.000 0.000
7 4.062 0.000
8 0.000 0.000
9 1.739 0.000
10 0.001 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 1.087 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 3260523 8194 0 0 0 0 422 422 0 7350 0 9200
1 8620748 2224 0 0 6 6 1106 1106 0 0 0 21909
2 7063739 1926312 0 0 0 0 1116 1116 0 1924080 0 12003
3 24732934 6660 0 0 134 134 3196 3196 0 0 0 17638
4 2925688 370692 0 0 0 0 405 405 0 369882 0 11429
5 18974781 4842 0 0 34 34 2387 2387 0 0 0 20060
6 5599469 300187 0 0 0 0 782 782 0 298623 0 11800
7 63229156 16356 0 0 190 190 7988 7988 0 0 0 445010
8 7941245 2048 0 0 0 0 1024 1024 0 0 0 13314
9 45626532 1921841 0 0 173 173 5873 5873 0 1909749 0 13056
10 14656402 3672 0 0 3 3 1833 1833 0 0 0 7698
11 2320422 495242 0 0 0 0 346 346 0 494550 0 12993
12 4691764 1142 0 0 0 0 571 571 0 0 0 7316
13 6904909 1676 0 0 0 0 838 838 0 0 0 11812
14 3448942 796 0 0 0 0 398 398 0 0 0 7967
15 36851438 9424 0 0 84 84 4628 4628 0 0 0 6324
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 25.203s ( 1269.684 blocks/s, 79.355 Mb/s)
|
| Attachment 3: Screenshot_from_2025-02-12_08-46-38.png
|
|
| Attachment 4: Screenshot_from_2025-02-12_08-49-32.png
|
|
| Attachment 5: Screenshot_from_2025-02-12_08-50-20.png
|
|
| Attachment 6: Screenshot_from_2025-02-12_08-51-24.png
|
|
| Attachment 7: Screenshot_from_2025-02-12_08-52-57.png
|
|
| Attachment 8: Screenshot_from_2025-02-12_08-53-59.png
|
|
| Attachment 9: Screenshot_from_2025-02-12_08-55-27.png
|
|
| Attachment 10: Screenshot_from_2025-02-12_08-56-03.png
|
|
| Attachment 11: Screenshot_from_2025-02-12_08-56-46.png
|
|
| Attachment 12: Screenshot_from_2025-02-12_08-59-46.png
|
|
| Attachment 13: Screenshot_from_2025-02-12_09-01-08.png
|
|
| Attachment 14: Screenshot_from_2025-02-12_09-01-49.png
|
|
| Attachment 15: Screenshot_from_2025-02-12_09-02-30.png
|
|
| Attachment 16: Screenshot_from_2025-02-12_09-03-06.png
|
|
| Attachment 17: Screenshot_from_2025-02-12_09-04-27.png
|
|
| Attachment 18: Screenshot_from_2025-02-12_09-05-33.png
|
|
| Attachment 19: Screenshot_from_2025-02-12_09-06-04.png
|
|
| Attachment 20: Screenshot_from_2025-02-12_09-06-54.png
|
|
| Attachment 21: Screenshot_from_2025-02-12_09-07-25.png
|
|
| Attachment 22: Screenshot_from_2025-02-12_09-08-02.png
|
|
| Attachment 23: Screenshot_from_2025-02-12_09-08-47.png
|
|
| Attachment 24: Screenshot_from_2025-02-12_09-10-29.png
|
|
| Attachment 25: Screenshot_from_2025-02-12_09-12-14.png
|
|
|
697
|
Fri Jan 31 17:26:47 2025 |
CC, TD, MP | Friday 31 January contd. |
18.18 bPlas and BB7 installs complete
Restart AIDA DAQ, Merger, Tape Server and re-test
per p+n FEE64 1.8.L spectra - attachment 1
aida09 pulser peak width 69 ch FWHM = 42keV FWHM
per FEE64 Rate Spectra - attachment 2
BB18 p+n FEE64s very good/good, n+n FEE64s OK - could be improved
BB7 aida10 p+n asics good, n+n asics 1x good, 1x OK
per FEE64 1.8.W spectra - 20us FSR - attachments 3-5
ADC data item stats - attachment 6
aida01 aida03 30k, all other BB18 p+n FEE64s < 20k, n+n FEE64s 100/270k
BB7 aida10 19k
WR timestamps OK - attachment 7
Merger, TapeSever etc - attachments 8-9
disk directpry /TapeData/FEB25
working OK
DSSSD bias & leakage current OK - attachment 10
System wide checks OK - attachment 11-15
note global clock status 6 errors reported earlier today have now gone
FEE64 temperatures OK - attachment 16
18.38 Transition to safe state
DAQ STOP
disable data transfer 1
detector bias OFF
FEE64 power OFF
Can restart as follows
1) FEE64 power ON
2) DAQ RESET
3) DAQ SETUP
4) Enable histogramming
5) Enable waveforms
6) Detector bias ON
7) Restore ASIC settings
8) ASIC Control
9) FEE64 temperatures
10) System wide checks
sync ASIC clocks
11) FADC control - calibrate ADCS for *all* FEE64s
12) System wide checks contd.
13) DAQ GO
14) Check ADC data item stats
15) Check WR timestamps
If all OK can re-connect to Merger/TapeServer as follows
1) DAQ STOP
2) enable data transfer 1
3) DAQ GO
Can disconnect from Merger/TapeServer as follows
1) DAQ STOP
2) disable data transfer 1
|
| Attachment 1: Screenshot_from_2025-01-31_18-18-17.png
|
|
| Attachment 2: Screenshot_from_2025-01-31_18-19-19.png
|
|
| Attachment 3: Screenshot_from_2025-01-31_18-19-37.png
|
|
| Attachment 4: Screenshot_from_2025-01-31_18-20-04.png
|
|
| Attachment 5: Screenshot_from_2025-01-31_18-20-30.png
|
|
| Attachment 6: Screenshot_from_2025-01-31_18-20-42.png
|
|
| Attachment 7: Screenshot_from_2025-01-31_18-21-01.png
|
|
| Attachment 8: Screenshot_from_2025-01-31_18-25-58.png
|
|
| Attachment 9: Screenshot_from_2025-01-31_18-26-13.png
|
|
| Attachment 10: Screenshot_from_2025-01-31_18-29-38.png
|
|
| Attachment 11: Screenshot_from_2025-01-31_18-29-52.png
|
|
| Attachment 12: Screenshot_from_2025-01-31_18-29-58.png
|
|
| Attachment 13: Screenshot_from_2025-01-31_18-30-06.png
|
|
| Attachment 14: Screenshot_from_2025-01-31_18-30-12.png
|
|
| Attachment 15: Screenshot_from_2025-01-31_18-30-30.png
|
|
| Attachment 16: Screenshot_from_2025-01-31_18-30-48.png
|
|
|
696
|
Fri Jan 31 13:48:29 2025 |
JB | AIDA analysis from HI-DESPEC meeting 20.11.2024 |
AIDA analysis and presentation by J. Bormans for AIDA made in the HISPEC-DESPEC collaboration meeting.
https://docs.google.com/presentation/d/1hlZ30r294UqbVKGy3jg-wompFpc7TSfD/edit?usp=sharing&ouid=102131181856760114019&rtpof=true&sd=true |
|
695
|
Fri Jan 31 09:37:47 2025 |
CC, TD, MP | Friday 31 January |
Implantation stack mounted - BB18(DS)-1000 + bPlas + bPlas + 3x BB7(DS)-1000
N.B. aida02, aida09 & aida15 have grounded copper screen (3M 1245 - aluminimum braid to copper screen of ribbon cables) for Kapton PCBs connecting the Samtec ribbon cables to the BB18 DSSSD.
n+n FEE64s aida02, aida04, aida06 and aida08 LK1 fitted
p+n FEE64s aida03 and aida07 LK3 fitted
BB7 aida10 (asics #1-2 p+n, #3-4 n+n)
BB18 p+n FEE64s 9-15, 1-3, 5-12 - n+n FEE64s 2-4 (L-R looking downstream)
10.30 FEE64 power ON
DSSSD bias ON (BB18 only) - attachment 1
leakage current OK
ASIC settings 2024Dec13-17.02.45 restored
p+n FEE64 slow comparator 0xa, n+n FEE64 slow comparator 0xf
Attachments 2-7 WR timestamp aida05 & aida12, system wide check
aida12 & aida05 global clock status 6 - to be checked - OK for initial tests without merger
WR decoder status aida02
per FEE64 Rate spectra - attachment 8
aida10 high rate - BB7 not biased
rates OK for p+n FEE64s, rates high for n+n FEE64s - to be checked
BNC PB-5 pulser ON to p+n FEE64s - no obvious adaptor PCB misalignments
ADC data item stats - attachment 9
rates generally OK
aida10 high - BB7 not biased
aida02 & aida04 n+n FEE64s - rates high - to be checked when bPlas install complete
all p+n FEE64s connected to BB18 <10K except aida05 25k - very good!
BNC PB-5 settings - attachment 10
WR timestamps OK - attachment 11
FEE64 temperatures OK - attachment 12
12.15 bPlas driver PCB installed, bPlas cabling and grounds *not* connected yet
ADC data item stats - attachment 13
all rates higher cf. attachment 9
per FEE64 Rate spectra - attachment 14
per p+n FEE64 1.8.L spectra - attachment 15
aida09 pulser peak width 69 ch FWHM = 49keV FWHM
aida14 pulser peak width 50 ch FWHM = 35keV FWHM
per p+n FEE64 1.8.W spectra - 20us FSR - attachments 16-17
per n+n FEE64 1.8W spectra - 20us FSR - attachment 18
DSSSD bias & leakage current OK - attachment 19
ambient temperature +21.6 deg C, d.p. +0.4 deg C, RH 24.4%
FEE64 temperatures OK - attachment 20
DSSSD bias volatge & leakage current OK - attachment 21
CAEN N1419ET ch#0 BB18, ch#1 BB7
Install of bPlas drivers, cabling, grounds complete
ADC data item stats - attachment 22
per FEE64 Rate spectra - attachment 23
all BB18 p+n FEE64s *except* aida05 show very low rates of noise
per p+n FEE64 1.8.L spectra - attachment 24
aida09 pulser peak width 62 ch FWHM = 42keV FWHM
BB18 p+n FEE64s better electronic noise cf. p+n FEE64s not connected to a DSSSD
per FEE64 1.8.W spectra - 20us FSR - attachments 25-26 |
| Attachment 1: Screenshot_from_2025-01-31_10-39-16.png
|
|
| Attachment 2: Screenshot_from_2025-01-31_10-58-48.png
|
|
| Attachment 3: Screenshot_from_2025-01-31_10-58-59.png
|
|
| Attachment 4: Screenshot_from_2025-01-31_10-59-11.png
|
|
| Attachment 5: Screenshot_from_2025-01-31_10-59-11.png
|
|
| Attachment 6: Screenshot_from_2025-01-31_10-59-52.png
|
|
| Attachment 7: Screenshot_from_2025-01-31_11-00-02.png
|
|
| Attachment 8: Screenshot_from_2025-01-31_11-17-59.png
|
|
| Attachment 9: Screenshot_from_2025-01-31_11-18-43.png
|
|
| Attachment 10: Screenshot_from_2025-01-31_11-18-50.png
|
|
| Attachment 11: Screenshot_from_2025-01-31_11-21-05.png
|
|
| Attachment 12: Screenshot_from_2025-01-31_11-21-29.png
|
|
| Attachment 13: Screenshot_from_2025-01-31_12-21-09.png
|
|
| Attachment 14: Screenshot_from_2025-01-31_12-21-55.png
|
|
| Attachment 15: Screenshot_from_2025-01-31_12-26-26.png
|
|
| Attachment 16: Screenshot_from_2025-01-31_12-30-13.png
|
|
| Attachment 17: Screenshot_from_2025-01-31_12-30-34.png
|
|
| Attachment 18: Screenshot_from_2025-01-31_12-31-25.png
|
|
| Attachment 19: Screenshot_from_2025-01-31_12-41-33.png
|
|
| Attachment 20: Screenshot_from_2025-01-31_12-42-08.png
|
|
| Attachment 21: Screenshot_from_2025-01-31_15-59-26.png
|
|
| Attachment 22: Screenshot_from_2025-01-31_16-07-21.png
|
|
| Attachment 23: Screenshot_from_2025-01-31_16-07-31.png
|
|
| Attachment 24: Screenshot_from_2025-01-31_16-08-39.png
|
|
| Attachment 25: Screenshot_from_2025-01-31_16-10-48.png
|
|
| Attachment 26: Screenshot_from_2025-01-31_16-11-30.png
|
|
|
694
|
Wed Jan 15 11:58:08 2025 |
TD | Offline analysis data files S505 R3_9 - R3_128 (207Hg setting) |
Aanlysis data files R3_9 - R3_128 (207Hg setting)
Data file R3_9 first WR ts 0x16FB110A37376D88
GMT: Wednesday, June 22, 2022 10:13:43.562 PM
Your time zone: Wednesday, June 22, 2022 11:13:43.562 PM GMT+01:00 DST
Data file R3_69 first WR ts 0x16FB2286FAD71896
GMT: Thursday, June 23, 2022 3:34:11.118 AM
Your time zone: Thursday, June 23, 2022 4:34:11.118 AM GMT+01:00 DST
Data file R3_128 first WR ts 0x16FB35DF179BD866
GMT: Thursday, June 23, 2022 9:28:40.278 AM
Your time zone: Thursday, June 23, 2022 10:28:40.278 AM GMT+01:00 DST
Attachments 1-3 - analysis data files R3_9, R_69, and R3_128
max. *time averaged* deadtime FEE64 #1 (aida02) 15.7%, 8.6% and 15.6% respectively
all other FEE64 deadtimes < 2%
*** scaler( 1): 120442206 DSSSD#1 decay events LEC m_p = 1 and LEC m_n = 1, 151.2keV < ADC data < 1008keV *and* HEC m_p = HEC m_n = 0, ADC data > 151.2MeV
*** scaler( 2): 51126024 DSSSD#2 decay events LEC m_p = 1 and LEC m_n = 1, 151.2keV < ADC data < 1008keV *and* HEC m_p = HEC m_n = 0, ADC data > 151.2MeV
*** scaler( 3): 5630250 DSSSD#1 implant events HEC m_p > 0 and HEC m_n > 0, ADC data > 151.2MeV
*** scaler( 4): 4983984 DSSSD#2 implant events HEC m_p > 0 and HEC m_n > 0, ADC data > 151.2MeV
*** scaler( 5): 42439339 DSSSD#1 other events HEC m_p > 0 or HEC m_n > 0 *and* LEC m_p > 8 or LEC m_n > 8
*** scaler( 6): 22316289 DSSSD#2 other events HEC m_p > 0 or HEC m_n > 0 *and* LEC m_p > 8 or LEC m_n > 8
*** scaler( 7): 0
*** scaler( 8): 0
*** scaler( 9): 0
*** scaler(10): 2464294601 FEE64 #1 LEC data items
*** scaler(11): 7641292106
*** scaler(12): 3547670559
*** scaler(13): 6144404472
*** scaler(14): 637262222
*** scaler(15): 2302716728
*** scaler(16): 4511293677
*** scaler(17): 3857002960 FEE64 #8 LEC data items
*** scaler(18): 0
*** scaler(19): 0
*** scaler(20): 7697923 FEE64 #1 HEC data items
*** scaler(21): 7169894
*** scaler(22): 10028407
*** scaler(23): 3045622
*** scaler(24): 4246633
*** scaler(25): 5564911
*** scaler(26): 7196158
*** scaler(27): 1960591 FEE64 #8 HEC data items
*** scaler(28): 0
*** scaler(29): 0
*** scaler(30): 0
*** scaler(31): 0
*** scaler(32): 0
DSSSD#1 implant events
x=m_p=0 1334587
y=m_n=0 4860983
DSSSD#2 implant events
x=m_p=0 1159736
y=m_n=0 2757735
Attachment 4 - per DSSSD LEC E_p versus E_n - x and y-axes 20keV/channel
- LEC energy difference +/- 2000 channels (+/- 11200keV)
- Do not observe the off-axis energy correlations observed in the postrun background/calibration runs
- Do observe expected inter strip charge sharing and charge sharing at DSSSD active area boundary
All subsequent spectra LEC energy difference +/-20 channels (+/- 112keV)

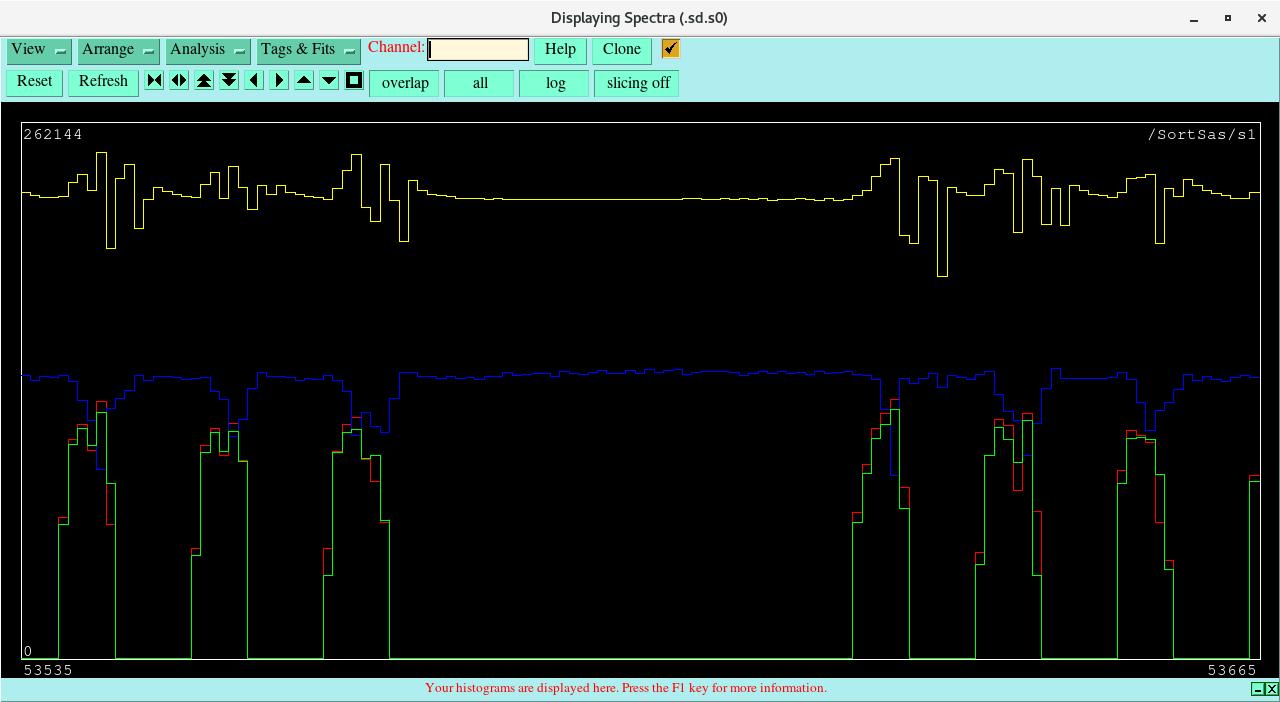

Attachments 5-7 - per FEE64 LEC data item rates (Hz) 268ms/channel - common x and y scales
- no conditions
- 150keV < energy < 1500keV
- energy > 1500keV
Note structure in > 1500keV data not restricted to on spill
Attachments 8-10 - per FEE64 HEC data item rates (Hz) 268ms/channel - common x and y scales
- no conditions
- 100MeV < energy < 1000MeV
- energy > 1000MeV
Attachment 11 per DSSSD decay and implant rates (Hz) 268ms/channel =- common x and y scales
- significant on spill deadtime for DSSSD#1
Attachment 12 - per DSSSD LEC m_p versus m_n
- no conditions
- z_hec=1 (DSSSD#1) and z_hec=3 (DSSSD#2)
Attachment 13 - per DSSSD LEC p strip versus n strip
Attachment 14 - per DSSSD LEC E_p versus E_n - x and y axes 20keV/channel
Attachment 15 - per DSSSD per pixel time difference between successive LEC events (4.096us/channel)
- minimum time difference c. 4us
Attachment 16 - per DSSSD HEC m_p versus m_n
- many more m=0 observed cf. RIKEN data e.g. https://elog.ph.ed.ac.uk/AIDA/583
- more low energy HEC events?
Attachment 17 - per DSSSD HEC p strip versus n strip
- no conditions
- z_hec=1 (DSSSD#1) and z_hec=3 (DSSSD#2)
- z_hec=1 => implant stops in DSSSD#1
- z_hec=3 => implant hits DSSSD#1 and DSSSD#2 but does not necessarily stop in DSSSD#2
Attachment 18 - per DSSSD HEC E_p versus E_n - x and y axes 20MeV/channel
Attachment 19 - DSSSD#1 HEC E_p versus DSSSD#2 E_p - x and y axes 20MeV/channel
Attachment 20 - DSSSD#1 LEC E_p versus DSSSD#2 E_p - x and y axes 20keV/channel
- y=0 12816818
- x=0 7374435
- x>0 and y>0 2295693
Attachment 21 - per DSSSD per pixel time difference between successive HEC events (4.096us/channel)
- minimum time difference c. 36us which make sense - c. readout time of ASIC with all 16 channels active
- origin of 9 channel period spectrum structure?
Attachments 22-23 - per DSSSD per pixel time difference between HEC and LEC events (4.096us/channel)
Attachments 24 - per DSSSD per pixel time difference between HEC and LEC events (1s/channel)
- for ions stopped in DSSSD#1 or DSSSD'2 - no PID selection
- minimum time difference c. 88us
- effect of high on spill deadtime apparent per S100 analysis
Attachment 25 - per DSSSD per pixel time difference between HEC and LEC events (1s/channel) versus
- HEC energy
- LEC energy
- p and n strip
Attachment 26 - per DSSSD implant and decay event p strip - n strip time difference (2us/channel)
- wider distribution for implant events expected due to number of ASIC active channels in implant events
- most decay events +/-2us - lower ASIC occupancy for decay events so most events will be from same (or adjacent) clock cycle
Attachment 27 - per DSSSD decay event p strip - n strip time difference (2us/channel) versus decay (E_p - E_n) (20keV channel) |
| Attachment 1: R3_9.txt
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 20656
ADC data format: 167972075 ( 847983.1 Hz)
Other data format: 1097285 ( 5539.5 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 794 ( 4.0 Hz)
RESUME: 793 ( 4.0 Hz)
SYNC100: 21394 ( 108.0 Hz)
WR48-63: 21394 ( 108.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 1052910 ( 5315.5 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 290405 ( 1466.1 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 198.084 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.300 0.000
1 31.132 0.000
2 0.869 0.000
3 3.536 0.000
4 0.001 0.000
5 0.108 0.000
6 0.157 0.000
7 0.073 0.000
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 13716339 17472 0 0 25 25 1820 1820 0 13782 0 46978
1 39159612 10957 0 0 457 456 5022 5022 0 0 0 45173
2 20693073 268290 0 0 53 53 2641 2641 0 262902 0 61677
3 33985341 266701 0 0 182 182 4320 4320 0 257697 0 18991
4 3620137 906 0 0 1 1 452 452 0 0 0 26130
5 12686167 3294 0 0 28 28 1619 1619 0 0 0 34215
6 22242523 257563 0 0 28 28 2791 2791 0 251925 0 44896
7 21868883 272102 0 0 20 20 2729 2729 0 266604 0 12345
8 0 0 0 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 15.047s ( 1372.777 blocks/s, 85.799 Mb/s)
|
| Attachment 2: R3_128.txt
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 260500382 ( 683029.0 Hz)
Other data format: 1419618 ( 3722.2 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 995 ( 2.6 Hz)
RESUME: 995 ( 2.6 Hz)
SYNC100: 33421 ( 87.6 Hz)
WR48-63: 33421 ( 87.6 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 1350786 ( 3541.7 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 304165 ( 797.5 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 381.390 s
FEE elapsed dead time(s) elapsed idle time(s)
0 7.726 0.000
1 32.620 0.000
2 0.268 0.000
3 2.352 0.000
4 0.000 0.000
5 0.018 0.000
6 0.191 0.000
7 0.007 0.000
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 27020397 33470 0 0 171 171 3538 3538 0 26052 0 72108
1 70509491 19838 0 0 649 649 9270 9270 0 0 0 43322
2 25595248 343140 0 0 48 48 3306 3306 0 336432 0 47964
3 43087191 344986 0 0 74 74 5493 5493 0 333852 0 26057
4 4643105 1204 0 0 0 0 602 602 0 0 0 28001
5 18101121 4580 0 0 9 9 2281 2281 0 0 0 30316
6 41488735 327203 0 0 39 39 5131 5131 0 316863 0 41967
7 30055094 345197 0 0 5 5 3800 3800 0 337587 0 14430
8 0 0 0 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 26.207s ( 1221.046 blocks/s, 76.315 Mb/s)
|
| Attachment 3: R3_69.txt
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 260136556 ( 817109.0 Hz)
Other data format: 1783444 ( 5601.9 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 1193 ( 3.7 Hz)
RESUME: 1193 ( 3.7 Hz)
SYNC100: 33186 ( 104.2 Hz)
WR48-63: 33186 ( 104.2 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 1714686 ( 5386.0 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 465695 ( 1462.8 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 318.362 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.277 0.000
1 49.537 0.000
2 0.739 0.000
3 6.304 0.000
4 0.000 0.000
5 0.184 0.000
6 0.280 0.000
7 0.034 0.000
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 21719834 27795 0 0 49 49 2783 2783 0 22131 0 76464
1 62193949 17584 0 0 707 707 8085 8085 0 0 0 68411
2 30630417 438786 0 0 77 77 3925 3925 0 430782 0 101110
3 52568475 429487 0 0 262 262 6724 6724 0 415515 0 29662
4 5873809 1474 0 0 0 0 737 737 0 0 0 42098
5 20399531 5188 0 0 27 27 2567 2567 0 0 0 56158
6 36994221 420854 0 0 55 55 4590 4590 0 411564 0 72312
7 29756320 442276 0 0 16 16 3775 3775 0 434694 0 19480
8 0 0 0 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 23.504s ( 1361.476 blocks/s, 85.092 Mb/s)
|
| Attachment 4: Screenshot_from_2025-01-14_16-54-08.png
|
|
| Attachment 5: Screenshot_from_2025-01-17_08-18-33.png
|
|
| Attachment 6: Screenshot_from_2025-01-17_08-19-43.png
|
|
| Attachment 7: Screenshot_from_2025-01-17_08-20-32.png
|
|
| Attachment 8: Screenshot_from_2025-01-17_08-21-17.png
|
|
| Attachment 9: Screenshot_from_2025-01-17_08-21-58.png
|
|
| Attachment 10: Screenshot_from_2025-01-17_08-22-35.png
|
|
| Attachment 11: Screenshot_from_2025-01-17_08-23-39.png
|
|
| Attachment 12: Screenshot_from_2025-01-17_08-24-53.png
|
|
| Attachment 13: Screenshot_from_2025-01-17_08-25-25.png
|
|
| Attachment 14: Screenshot_from_2025-01-17_08-25-57.png
|
|
| Attachment 15: Screenshot_from_2025-01-17_08-27-02.png
|
|
| Attachment 16: Screenshot_from_2025-01-17_08-27-34.png
|
|
| Attachment 17: Screenshot_from_2025-01-17_08-28-03.png
|
|
| Attachment 18: Screenshot_from_2025-01-17_08-28-48.png
|
|
| Attachment 19: Screenshot_from_2025-01-17_08-29-18.png
|
|
| Attachment 20: Screenshot_from_2025-01-17_08-29-49.png
|
|
| Attachment 21: Screenshot_from_2025-01-17_08-31-27.png
|
|
| Attachment 22: Screenshot_from_2025-01-17_08-31-57.png
|
|
| Attachment 23: Screenshot_from_2025-01-17_08-32-31.png
|
|
| Attachment 24: Screenshot_from_2025-01-17_08-33-29.png
|
|
| Attachment 25: Screenshot_from_2025-01-17_08-34-12.png
|
|
| Attachment 26: Screenshot_from_2025-01-17_08-35-12.png
|
|
| Attachment 27: Screenshot_from_2025-01-17_08-36-00.png
|
|
|
693
|
Mon Jan 13 17:38:18 2025 |
TD | Offline analysis of S505 data files |
First timestamp of R2_105 0x16FAEC5E54AABF6C
GMT: Wednesday, June 22, 2022 11:01:42.903 AM
Your time zone: Wednesday, June 22, 2022 12:01:42.903 PM GMT+01:00 DST
First timestamp of R3_150 0x16FB3CE72ED53CB6
GMT: Thursday, June 23, 2022 11:37:31.609 AM
Your time zone: Thursday, June 23, 2022 12:37:31.609 PM GMT+01:00 DST
First timestamp of R5_35 0x16FB89F33F9B44E2
GMT: Friday, June 24, 2022 11:09:25.825 AM
Your time zone: Friday, June 24, 2022 12:09:25.825 PM GMT+01:00 DST
First timestamp of R5_299 0x16FBD8CC5DCBE912
GMT: Saturday, June 25, 2022 11:14:20.247 AM
Your time zone: Saturday, June 25, 2022 12:14:20.247 PM GMT+01:00 DST
First timestamp of R5_546 0x16FC220EA8ADB132
GMT: Sunday, June 26, 2022 9:36:49.320 AM
Your time zone: Sunday, June 26, 2022 10:36:49.320 AM GMT+01:00 DST
Attachments 1-5 - analysis of data files R2_105, R3_150, R5_35, R5_299, and R5_536 (c. one data file per day of S505)
FEE64 #1 (aida02) *time averaged* deadtime c. 12-18%, deadtime of all other FEE64s much lower
Attachments 6-10 - per DSSSD LEC p+n junction versus n+n Ohmic energy - X & y-axes 20keV/channel
No evidence of off-axis energy correlation observed in the postrun background/calibration runs - see https://elog.ph.ed.ac.uk/DESPEC/670 |
| Attachment 1: R2_105.txt
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 260590543 ( 842959.4 Hz)
Other data format: 1329457 ( 4300.5 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 1451 ( 4.7 Hz)
RESUME: 1452 ( 4.7 Hz)
SYNC100: 33151 ( 107.2 Hz)
WR48-63: 33151 ( 107.2 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 1260252 ( 4076.7 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 505847 ( 1636.3 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 309.138 s
FEE elapsed dead time(s) elapsed idle time(s)
0 5.956 0.000
1 46.000 0.000
2 0.461 0.000
3 4.075 0.000
4 0.270 0.000
5 17.246 0.000
6 0.939 0.000
7 0.452 0.000
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 27494985 28858 0 0 175 175 3688 3688 0 21132 0 102223
1 58260423 16474 0 0 649 649 7588 7588 0 0 0 63621
2 22639873 322607 0 0 55 55 2892 2892 0 316713 0 62482
3 44542964 319461 0 0 153 154 5539 5539 0 308076 0 35450
4 10779382 2700 0 0 51 51 1299 1299 0 0 0 87763
5 28594260 7632 0 0 237 237 3579 3579 0 0 0 64742
6 38115917 307658 0 0 84 84 4822 4822 0 297846 0 61385
7 30162739 324067 0 0 47 47 3744 3744 0 316485 0 28181
8 0 0 0 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 25.383s ( 1260.696 blocks/s, 78.793 Mb/s)
|
| Attachment 2: R3_150.txt
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 260385271 ( 829605.5 Hz)
Other data format: 1534729 ( 4889.8 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 1425 ( 4.5 Hz)
RESUME: 1425 ( 4.5 Hz)
SYNC100: 33170 ( 105.7 Hz)
WR48-63: 33170 ( 105.7 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 1465539 ( 4669.3 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 455452 ( 1451.1 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 313.866 s
FEE elapsed dead time(s) elapsed idle time(s)
0 11.666 0.000
1 57.289 0.000
2 0.649 0.000
3 5.611 0.000
4 0.000 0.000
5 0.063 0.000
6 0.228 0.000
7 0.039 0.000
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 31441805 29767 0 0 272 272 4062 4062 0 21099 0 112151
1 66582904 18892 0 0 814 814 8632 8632 0 0 0 66555
2 29895404 376545 0 0 84 84 3879 3879 0 368619 0 73144
3 44568333 369126 0 0 168 168 5484 5484 0 357822 0 38819
4 5095090 1256 0 0 0 0 628 628 0 0 0 37415
5 19329369 4936 0 0 23 23 2445 2445 0 0 0 43894
6 36823085 356594 0 0 50 50 4631 4631 0 347232 0 63334
7 26649281 377613 0 0 14 14 3409 3409 0 370767 0 20140
8 0 0 0 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 23.836s ( 1342.511 blocks/s, 83.907 Mb/s)
|
| Attachment 3: R5_35.txt
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 260812842 ( 842072.4 Hz)
Other data format: 1107160 ( 3574.6 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 1210 ( 3.9 Hz)
RESUME: 1210 ( 3.9 Hz)
SYNC100: 33154 ( 107.0 Hz)
WR48-63: 33154 ( 107.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 1038432 ( 3352.7 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 329194 ( 1062.9 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 309.727 s
FEE elapsed dead time(s) elapsed idle time(s)
0 8.188 0.000
1 36.773 0.000
2 0.176 0.000
3 5.170 0.000
4 0.000 0.000
5 0.025 0.000
6 0.202 0.000
7 0.307 0.000
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 31379366 29596 0 0 190 190 4114 4114 0 20988 0 81881
1 59749297 16628 0 0 605 605 7709 7709 0 0 0 51815
2 19396332 265009 0 0 42 42 2411 2411 0 260103 0 52064
3 41019315 263381 0 0 149 149 5195 5195 0 252693 0 27341
4 4941643 1144 0 0 0 0 572 572 0 0 0 26539
5 17311877 4276 0 0 10 10 2128 2128 0 0 0 31104
6 41432200 255213 0 0 55 55 5294 5294 0 244515 0 44402
7 45582812 271913 0 0 159 159 5731 5731 0 260133 0 14048
8 0 0 0 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 25.660s ( 1247.070 blocks/s, 77.942 Mb/s)
|
| Attachment 4: R5_299.txt
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 260747119 ( 773887.2 Hz)
Other data format: 1172883 ( 3481.1 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 1133 ( 3.4 Hz)
RESUME: 1133 ( 3.4 Hz)
SYNC100: 33256 ( 98.7 Hz)
WR48-63: 33256 ( 98.7 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 1104105 ( 3276.9 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 362597 ( 1076.2 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 336.932 s
FEE elapsed dead time(s) elapsed idle time(s)
0 6.724 0.000
1 44.641 0.000
2 0.217 0.000
3 3.561 0.000
4 0.000 0.000
5 0.005 0.000
6 0.223 0.000
7 0.026 0.000
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 30674116 31250 0 0 181 181 3927 3927 0 23034 0 91358
1 66153113 18368 0 0 695 695 8489 8489 0 0 0 55771
2 19486494 277818 0 0 42 42 2475 2475 0 272784 0 57181
3 43424107 279556 0 0 135 135 5543 5543 0 268200 0 30417
4 4766466 1174 0 0 0 0 587 587 0 0 0 29048
5 17680210 4568 0 0 5 5 2279 2279 0 0 0 34196
6 42628036 277520 0 0 57 57 5446 5446 0 266514 0 49215
7 35934577 282629 0 0 18 18 4510 4510 0 273573 0 15411
8 0 0 0 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 25.258s ( 1266.935 blocks/s, 79.183 Mb/s)
|
| Attachment 5: R5_546.txt
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 260730517 ( 745151.9 Hz)
Other data format: 1189483 ( 3399.5 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 1144 ( 3.3 Hz)
RESUME: 1144 ( 3.3 Hz)
SYNC100: 33304 ( 95.2 Hz)
WR48-63: 33304 ( 95.2 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 1120587 ( 3202.6 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 363968 ( 1040.2 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 349.902 s
FEE elapsed dead time(s) elapsed idle time(s)
0 6.803 0.000
1 41.799 0.000
2 0.301 0.000
3 3.174 0.000
4 0.000 0.000
5 0.022 0.000
6 0.164 0.000
7 0.019 0.000
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 29065664 31620 0 0 182 182 3682 3682 0 23892 0 90087
1 70265931 19858 0 0 719 719 9210 9210 0 0 0 57153
2 19423777 282104 0 0 54 54 2512 2512 0 276972 0 57467
3 44758741 285792 0 0 125 125 5782 5782 0 273978 0 30202
4 4551567 1158 0 0 0 0 579 579 0 0 0 29037
5 17745398 4496 0 0 12 12 2236 2236 0 0 0 34556
6 43164773 278410 0 0 42 42 5399 5399 0 267528 0 49766
7 31754666 286045 0 0 10 10 3904 3904 0 278217 0 15700
8 0 0 0 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 24.879s ( 1286.230 blocks/s, 80.389 Mb/s)
|
| Attachment 6: R2_105.png
|
|
| Attachment 7: R3_150.png
|
|
| Attachment 8: R5_35.png
|
|
| Attachment 9: R5_299.png
|
|
| Attachment 10: R5_536.png
|
|
|
692
|
Mon Jan 13 11:32:30 2025 |
TD | Offline analysis S505 data file R3_150 |
Offline analysis of S505 data files R3_150
first WR ts
First timestamp of R3_150 0x16FB3CE72ED53CB6
Epoch converter says ...
GMT: Thursday, June 23, 2022 11:37:31.609 AM
Your time zone: Thursday, June 23, 2022 12:37:31.609 PM GMT+01:00 DST
last WR ts
First timestamp of R3_151 0x16FB3D3042B9E8E6
Epoch converter says ...
GMT: Thursday, June 23, 2022 11:42:45.475 AM
Your time zone: Thursday, June 23, 2022 12:42:45.475 PM GMT+01:00 DST
Analysis of data file R3_150 - attachment 1
max time averaged deadtime FEE64 #1 (aida02) 18.3%
FEE64 configuration
FEE64 a
b d
c
a b c d
DSSSD#1 3 4 1 2
DSSSD#2 7 8 5 6
n+n Ohmic FEE64s 2, 4, 6, 8
Data analysis assumes
- all LEC ADC data channels with valid ADC offset included (474 of 512 channels)
LEC calibration ADC offset only
- no clustering
- no multiplex timestamp correction
- no p+n junction side - n+n Ohmic side correlation time gates
- FEE64 *not* DSSSD strip ordering
- hardware - slow comparator setting p+n junction FEE64s 100keV, n+n Ohmic FEE64s 100keV
- LEC energy difference +/-168keV
- HEC energy difference +/- 1.68GeV
- valid LEC events
DSSSD #1
p+n junction side multiplicity = 1 and n+n Ohmic side multiplicity = 1
DSSSD #2
p+n junction side multiplicity = 1 and n+n Ohmic side multiplicity = 1
151keV < LEC energy < 1008keV
to select candidate beta events and veto higher energy events e.g. light ions
standalone analysis of AIDA data, no downstream veto detector
- valid HEC events
p+n junction side multiplicity > 0 and n+n Ohmic side multiplicity > 0
(x,y) strips corresponding to maximum energy
p+n junction and n+n Ohmic side HEC
- HEC veto
p+n junction side multiplicity > 0 or n+n Ohmic side multiplicity > 0
- per pixel implant-decay correlations
- end of event
difference in WR timestamp between successive ADC data items > 2500 *or* difference in first and last WR timestamp of event < 33us
Attachment 2 per FEE64 LEC data rate (Hz) 268ms/channel
Attachment 3 per FEE64 LEC data rate (Hz) 268ms/channel: 150keV < energy < 1500keV
Attachment 22 per FEE64 LEC data rate (Hz) 268ms/channel: energy > 1500keV
- observe high instantaneous rate on spill
- rate dominated by low energy (<1500keV) events
- rate of higher energy events dominated by on spill events i.e. light ions as expected
- significant deadtime on spill for n+n Omic FEE64 aida02, low deadtime off spill
- deadtime low/zero for all other FEE64s on/off spill
Attachment 4 per FEE64 HEC data rate (Hz) 268ms/channel
Attachment 5 per FEE64 HEC data rate (Hz) 268ms/channel: 100MeV < energy < 1000MeV
Attachment 6 per FEE64 HEC data rate (Hz) 268ms/channel: energy > 1000MeV
- all HEC events on spill as expected
- significant deadtime on spill for n+n Ohmic FEE64 aida02, low deadtime off spill
- deadtime low/zero for all other FEE64s on/off spill
Attachment 7 per DSSSD decay and implant rate (Hz) 268ms/channel
Attachment 8 log scale
yellow - FEE64 aida01 LEC data rate (Hz) 268ms/channel
red - FEE64 aida01 HEC data rate (Hz) 268ms/channel
blue - DSSSD #1 decay rate (Hz) 268ms/channel
green - DSSSD #1 implant rate (Hz) 268ms/channel
Attachment 9 log scale
yellow - FEE64 aida02 LEC data rate (Hz) 268ms/channel
red - FEE64 aida02 HEC data rate (Hz) 268ms/channel
blue - DSSSD #1 decay rate (Hz) 268ms/channel
green - DSSSD #1 implant rate (Hz) 268ms/channel
Attachment 10 log scale
yellow - FEE64 aida05 LEC data rate (Hz) 268ms/channel
red - FEE64 aida05 HEC data rate (Hz) 268ms/channel
blue - DSSSD #2 decay rate (Hz) 268ms/channel
green - DSSSD #2 implant rate (Hz) 268ms/channel
Attachment 11 per DSSSD LEC m_p versus m_n
Attachment 12 per DSSSD LEC x versus y
Attachment 13 per DSSSD LEC p+n junction versus n+n Ohmic energy - x-axis & y-axis 20keV/channel
Attachment 14 per DSSSD HEC m_p versus m_n
Attachment 15 per DSSSD HEC x versus y
Attachment 16 per DSSSD HEC p+n junction versus n+n Ohmic energy - x-axis & y-axis 20MeV/channel

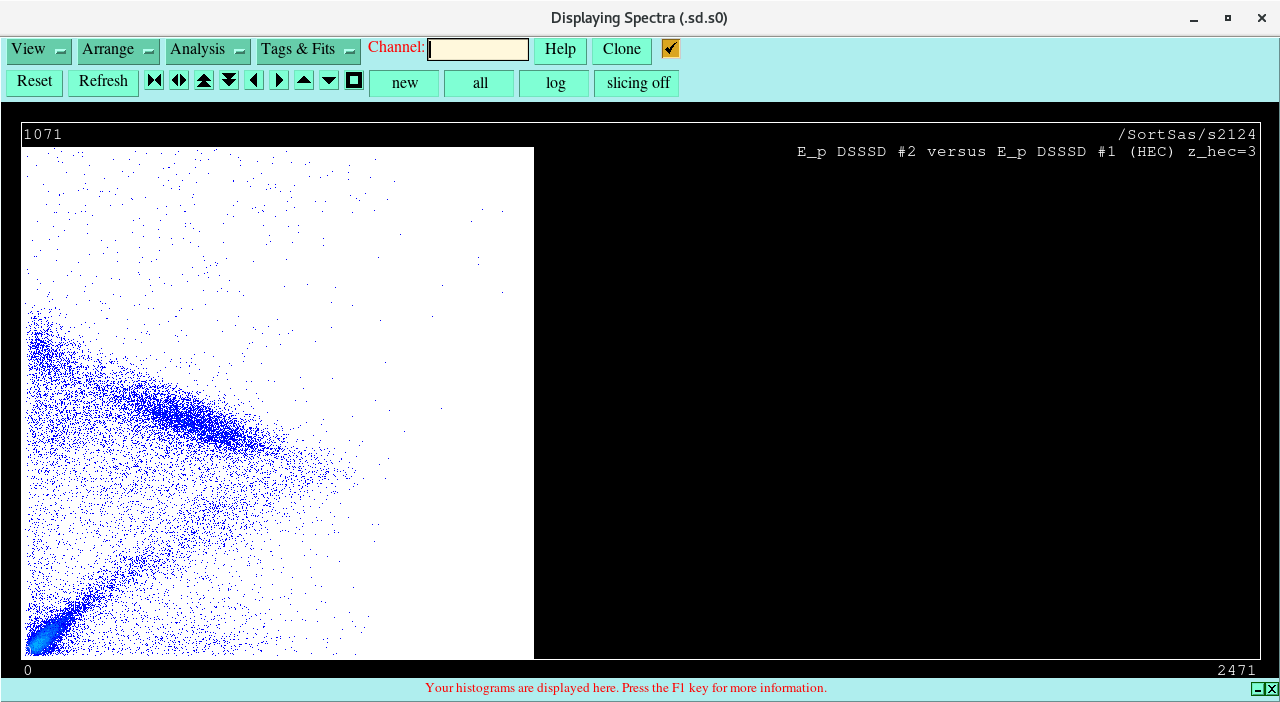

Attachment 17 HEC DSSSD#2 p+n junction versus DSSSD#1 p+n junction energy - x-axis & y-axis 20MeV/channel
to identify which ions stop in DSSSD#2 (z_loc=2)
Attachment 18 decay & implant dx versus dy

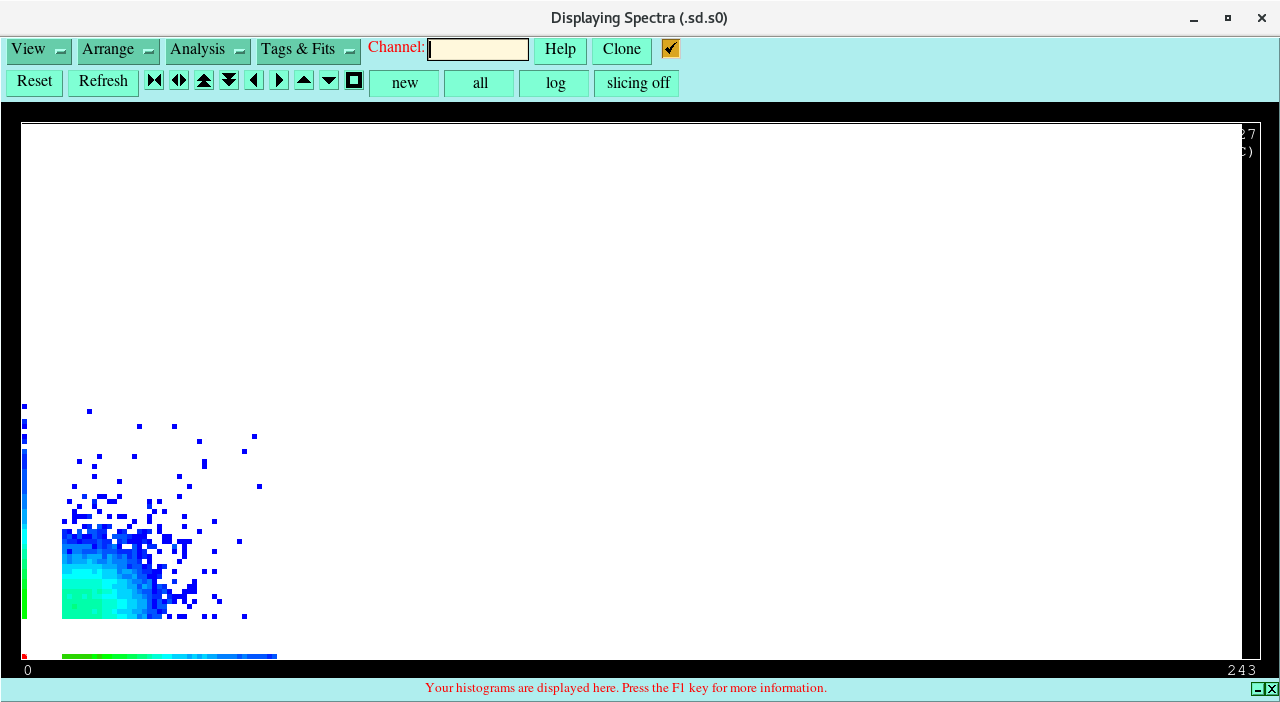

Attachment 19 LEC DSSSD#2 p+n junction versus DSSSD#1 p+n junction energy - x-axis & y-axis 20keV/channel
Attachment 20 per DSSSD decay & implant dt (2us/channel)

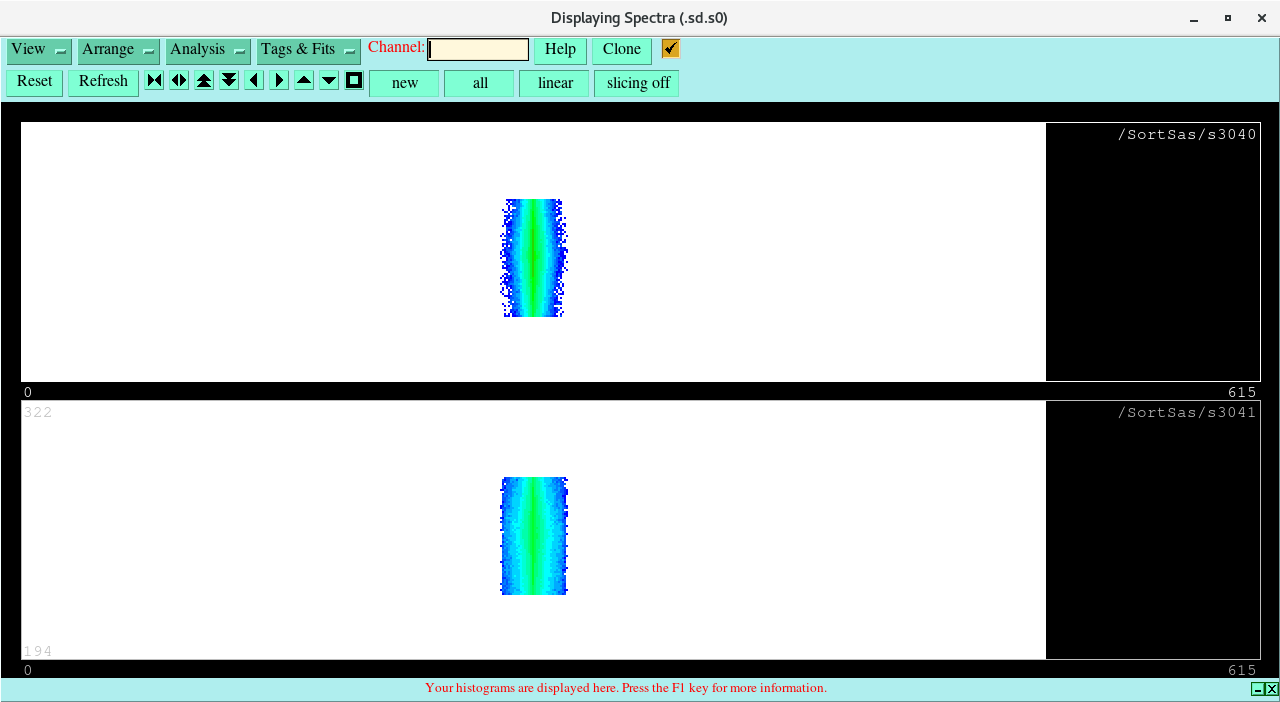

Attachment 21 per DSSSD decay dt (2us/channel) versus p+n junctionj - n+n Ohmic energy difference (20keV/channel)
Summary
- high instantaneous data rates on spill
- significant deadtime FEE64 #2 on spill
magnitude, structure, position of DSSSD#1 decay rate variations differs from FEE64 #2 deadtime - events merging?
- all other FEE64s OK on/off spill |
| Attachment 1: R3_150.txt
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 260385271 ( 829605.5 Hz)
Other data format: 1534729 ( 4889.8 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 1425 ( 4.5 Hz)
RESUME: 1425 ( 4.5 Hz)
SYNC100: 33170 ( 105.7 Hz)
WR48-63: 33170 ( 105.7 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 1465539 ( 4669.3 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 455452 ( 1451.1 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 313.866 s
FEE elapsed dead time(s) elapsed idle time(s)
0 11.666 0.000
1 57.289 0.000
2 0.649 0.000
3 5.611 0.000
4 0.000 0.000
5 0.063 0.000
6 0.228 0.000
7 0.039 0.000
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 31441805 29767 0 0 272 272 4062 4062 0 21099 0 112151
1 66582904 18892 0 0 814 814 8632 8632 0 0 0 66555
2 29895404 376545 0 0 84 84 3879 3879 0 368619 0 73144
3 44568333 369126 0 0 168 168 5484 5484 0 357822 0 38819
4 5095090 1256 0 0 0 0 628 628 0 0 0 37415
5 19329369 4936 0 0 23 23 2445 2445 0 0 0 43894
6 36823085 356594 0 0 50 50 4631 4631 0 347232 0 63334
7 26649281 377613 0 0 14 14 3409 3409 0 370767 0 20140
8 0 0 0 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 23.836s ( 1342.511 blocks/s, 83.907 Mb/s)
|
| Attachment 2: Screenshot_from_2025-01-12_18-48-06.png
|
|
| Attachment 3: Screenshot_from_2025-01-12_18-49-40.png
|
|
| Attachment 4: Screenshot_from_2025-01-12_18-54-53.png
|
|
| Attachment 5: Screenshot_from_2025-01-12_18-55-44.png
|
|
| Attachment 6: Screenshot_from_2025-01-12_18-56-44.png
|
|
| Attachment 7: Screenshot_from_2025-01-12_18-59-33.png
|
|
| Attachment 8: Screenshot_from_2025-01-12_19-03-44.png
|
|
| Attachment 9: Screenshot_from_2025-01-12_21-25-46.png
|
|
| Attachment 10: Screenshot_from_2025-01-12_19-08-07.png
|
|
| Attachment 11: Screenshot_from_2025-01-12_19-10-12.png
|
|
| Attachment 12: Screenshot_from_2025-01-12_19-10-51.png
|
|
| Attachment 13: Screenshot_from_2025-01-12_19-11-32.png
|
|
| Attachment 14: Screenshot_from_2025-01-12_19-12-14.png
|
|
| Attachment 15: Screenshot_from_2025-01-12_19-12-54.png
|
|
| Attachment 16: Screenshot_from_2025-01-12_19-13-22.png
|
|
| Attachment 17: Screenshot_from_2025-01-12_19-14-02.png
|
|
| Attachment 18: Screenshot_from_2025-01-12_19-14-59.png
|
|
| Attachment 19: Screenshot_from_2025-01-12_19-15-37.png
|
|
| Attachment 20: Screenshot_from_2025-01-12_19-45-39.png
|
|
| Attachment 21: Screenshot_from_2025-01-12_19-46-34.png
|
|
| Attachment 22: Screenshot_from_2025-01-13_20-04-56.png
|
|
|
691
|
Sat Jan 11 14:14:21 2025 |
TD | aida06 crashed and rebooted 10.1.25 |
aida06 crashed and rebooted sometime ( 14:48 - 23:25 ) yesterday. System console log appended.
10:01:25/14:58:29|get_WAVEBlk (A) which = 1 ---- status = 0088, State machines = 0908
10:01:25/14:58:29|------------[ cut here ]------------
10:01:25/23:25:49|kernel BUG at mm/slab.c:2974!
10:01:25/23:25:49|Oops: Exception in kernel mode, sig: 5 [#1]
10:01:25/23:25:50|PREEMPT Xilinx Virtex440
10:01:25/23:25:50|Modules linked in: aidamem xdriver xh_spidev_register
10:01:25/23:25:50|NIP: c009211c LR: c00920b0 CTR: 00000006
10:01:25/23:25:50|REGS: c632dc60 TRAP: 0700 Not tainted (2.6.31)
10:01:25/23:25:50|MSR: 00021000 <ME,CE> CR: 22022048 XER: 00000000
10:01:25/23:25:50|TASK = c62064c0[375] 'AidaExecV10' THREAD: c632c000
10:01:25/23:25:50|GPR00: 00000001 c632dd10 c62064c0 c680daf0 c694003c 0000000b c6940020 0000000a
10:01:25/23:25:50|GPR08: 0000001b c680dae0 00000d80 c680dae0 22008022 10054d4c c03a0000 00000020
10:01:25/23:25:50|GPR16: c0390000 c03a069c c03a0000 c038c384 c038cc18 00000020 00000000 00200200
10:01:25/23:25:50|GPR24: 00100100 c632c000 00000000 c680dae8 c680dae0 c680ae00 00000005 c680e400
10:01:25/23:25:50|NIP [c009211c] cache_alloc_refill+0x130/0x608
10:01:25/23:25:50|LR [c00920b0] cache_alloc_refill+0xc4/0x608
10:01:25/23:25:50|Call Trace:
10:01:25/23:25:50|[c632dd10] [c00920b0] cache_alloc_refill+0xc4/0x608 (unreliable)
10:01:25/23:25:50|[c632dd70] [c00927d8] kmem_cache_alloc+0xc4/0xcc
10:01:25/23:25:50|[c632dd90] [c0042420] __sigqueue_alloc+0x50/0xb8
10:01:25/23:25:50|[c632ddb0] [c0042938] __send_signal+0x78/0x260
10:01:25/23:25:50|[c632dde0] [c0042f78] group_send_sig_info+0x70/0x9c
10:01:25/23:25:51|[c632de10] [c00438a8] kill_pid_info+0x48/0x8c
10:01:25/23:25:51|[c632de30] [c0038e8c] it_real_fn+0x1c/0x30
10:01:25/23:25:51|[c632de40] [c0050c40] hrtimer_run_queues+0x184/0x240
10:01:25/23:25:51|[c632dea0] [c0040ba8] run_local_timers+0x10/0x2c
10:01:25/23:25:51|[c632deb0] [c0040bf4] update_process_times+0x30/0x70
10:01:25/23:25:51|[c632ded0] [c005a000] tick_periodic+0x34/0xe8
10:01:25/23:25:51|[c632dee0] [c005a0d4] tick_handle_periodic+0x20/0x120
10:01:25/23:25:51|[c632df20] [c000af70] timer_interrupt+0xa4/0x10c
10:01:25/23:25:51|[c632df40] [c000e9c4] ret_from_except+0x0/0x18
10:01:25/23:25:51|Instruction dump:
10:01:25/23:25:51|2f1e0000 409900f4 387c0010 3b7c0008 80dc0000 7f9c3000 419e014c 81060010
10:01:25/23:25:51|801d001c 7c004010 38000000 7c000114 <0f000000> 81260010 801d001c 7f804840
10:01:25/23:25:51|Kernel panic - not syncing: Fatal exception in interrupt
10:01:25/23:25:51|Call Trace:
10:01:25/23:25:51|[c632dab0] [c0005de8] show_stack+0x44/0x16c (unreliable)
10:01:25/23:25:51|[c632daf0] [c00345bc] panic+0x94/0x168
10:01:25/23:25:51|[c632db40] [c000bd44] die+0x178/0x18c
10:01:25/23:25:51|[c632db60] [c000c000] _exception+0x164/0x1b4
10:01:25/23:25:51|[c632dc50] [c000e978] ret_from_except_full+0x0/0x4c
10:01:25/23:25:51|[c632dd10] [c00920b0] cache_alloc_refill+0xc4/0x608
10:01:25/23:25:52|[c632dd70] [c00927d8] kmem_cache_alloc+0xc4/0xcc
10:01:25/23:25:52|[c632dd90] [c0042420] __sigqueue_alloc+0x50/0xb8
10:01:25/23:25:52|[c632ddb0] [c0042938] __send_signal+0x78/0x260
10:01:25/23:25:52|[c632dde0] [c0042f78] group_send_sig_info+0x70/0x9c
10:01:25/23:25:52|[c632de10] [c00438a8] kill_pid_info+0x48/0x8c
10:01:25/23:25:52|[c632de30] [c0038e8c] it_real_fn+0x1c/0x30
10:01:25/23:25:52|[c632de40] [c0050c40] hrtimer_run_queues+0x184/0x240
10:01:25/23:25:52|[c632dea0] [c0040ba8] run_local_timers+0x10/0x2c
10:01:25/23:25:52|[c632deb0] [c0040bf4] update_process_times+0x30/0x70
10:01:25/23:25:52|[c632ded0] [c005a000] tick_periodic+0x34/0xe8
10:01:25/23:25:52|[c632dee0] [c005a0d4] tick_handle_periodic+0x20/0x120
10:01:25/23:25:52|[c632df20] [c000af70] timer_interrupt+0xa4/0x10c
10:01:25/23:25:52|[c632df40] [c000e9c4] ret_from_except+0x0/0x18
10:01:25/23:25:52|Rebooting in 180 seconds..
ISOL Version 1.00 Date 9th January 2017
Flash base address=FC000000
Set Flash to ASync Mode
XST_SUCCESS:28:52|
Finished copying zImage to RAM
10:01:25/23:28:53|
Found 0 errors checking kernel image
10:01:25/23:28:54|VHDL version number 0X03350706
Based on AIDA Bootloader version number 1.2.0 -- 16th August 2012
Starting LMK 3200 setup
10:01:25/23:28:54|
Setting LMK03200 to standard clock settings -- External Clock 23Nov15
.... SPI Base Address=0x81400000
clk_control_reg=0x4
10:01:25/23:28:54|Next step is SPIconfig
Control 32(0x81400000)=0x180
SlaveSel(0x81400000)=0x3
Ctrl(0x81400000)=0xE6
Ctrl(0x81400000)=0x86
10:01:25/23:28:54|SPIconfig done now to set up the LMK3200 registers
10:01:25/23:28:54|LMK #0 : regInit[0]=0x80000000
10:01:25/23:28:54|LMK #0 : regInit[1]=0x10070600
10:01:25/23:28:54|LMK #0 : regInit[2]=0x60601
10:01:25/23:28:54|LMK #0 : regInit[3]=0x60602
10:01:25/23:28:55|LMK #0 : regInit[4]=0x60603
10:01:25/23:28:55|LMK #0 : regInit[5]=0x70624
10:01:25/23:28:55|LMK #0 : regInit[6]=0x70605
10:01:25/23:28:55|LMK #0 : regInit[7]=0x70606
10:01:25/23:28:55|LMK #0 : regInit[8]=0x70627
10:01:25/23:28:55|LMK #0 : regInit[9]=0x10000908
10:01:25/23:28:55|LMK #0 : regInit[10]=0xA0022A09
10:01:25/23:28:55|LMK #0 : regInit[11]=0x82800B
10:01:25/23:28:55|LMK #0 : regInit[12]=0x28C800D
10:01:25/23:28:55|LMK #0 : regInit[13]=0x830020E
10:01:25/23:28:55|LMK #0 : regInit[14]=0xC800180F
Calibrate completed at 942 counts
Setting Clock Control =0x0000000B, to set GOE and sync bit
Ctrl @ SPIstop (0x81400000)=0x186
Timeout waiting for Lock detect Stage 2 (Zero Delay), PWR_DWN=0x00000004
10:01:25/23:28:55|
Finished Clock setup LMK03200
completed LMK 3200 setup
Loaded all four ASICs with default settings
Setting the ADCs into calibration mode
10:01:25/23:28:55|
Control 32(0x81400400)=0x180
SlaveSel(0x81400400)=0xFF
Ctrl(0x81400400)=0xE6
Ctrl(0x81400400)=0x86
Init : Config of AD9252 SPI ok
10:01:25/23:28:55|
Ctrl @ SPIstop (0x81400400)=0x186ADCs initialised
Cal DCMs not locked
ADC calibrate failed
Jumping to kernel simpleboot...
10:01:25/23:28:56|
zImage starting: loaded at 0x00a00000 (sp: 0x00bc4eb0)
Allocating 0x3b78cc bytes for kernel ...
gunzipping (0x00000000 <- 0x00a0f000:0x00bc380e)...done 0x39604c bytes
10:01:25/23:28:59|
Linux/PowerPC load: console=ttyS0 root=/dev/nfs ip=on rw mem=112M
Finalizing device tree... flat tree at 0xbd1300
Probing IIC bus for MAC... MAC address = 0xd8 0x80 0x39 0x41 0xee 0x71
10:01:25/23:29:05|Using Xilinx Virtex440 machine description
10:01:25/23:29:06|Linux version 2.6.31 (nf@nnlxb.dl.ac.uk) (gcc version 4.2.2) #34 PREEMPT Tue Nov 15 15:57:04 GMT 2011
10:01:25/23:29:06|Zone PFN ranges:
10:01:25/23:29:06| DMA 0x00000000 -> 0x00007000
10:01:25/23:29:06| Normal 0x00007000 -> 0x00007000
10:01:25/23:29:06|Movable zone start PFN for each node
10:01:25/23:29:06|early_node_map[1] active PFN ranges
10:01:25/23:29:06| 0: 0x00000000 -> 0x00007000
10:01:25/23:29:06|MMU: Allocated 1088 bytes of context maps for 255 contexts
10:01:25/23:29:06|Built 1 zonelists in Zone order, mobility grouping on. Total pages: 28448
10:01:25/23:29:06|Kernel command line: console=ttyS0 root=/dev/nfs ip=on rw mem=112M
10:01:25/23:29:06|PID hash table entries: 512 (order: 9, 2048 bytes)
10:01:25/23:29:07|Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
10:01:25/23:29:07|Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
10:01:25/23:29:07|Memory: 109680k/114688k available (3500k kernel code, 4852k reserved, 144k data, 130k bss, 168k init)
10:01:25/23:29:07|Kernel virtual memory layout:
10:01:25/23:29:07| * 0xffffe000..0xfffff000 : fixmap
10:01:25/23:29:07| * 0xfde00000..0xfe000000 : consistent mem
10:01:25/23:29:07| * 0xfde00000..0xfde00000 : early ioremap
10:01:25/23:29:07| * 0xd1000000..0xfde00000 : vmalloc & ioremap
10:01:25/23:29:07|NR_IRQS:512
10:01:25/23:29:07|clocksource: timebase mult[a00000] shift[22] registered
10:01:25/23:29:07|Console: colour dummy device 80x25
10:01:25/23:29:07|Mount-cache hash table entries: 512
10:01:25/23:29:07|NET: Registered protocol family 16
10:01:25/23:29:07|PCI: Probing PCI hardware
10:01:25/23:29:07|bio: create slab <bio-0> at 0
10:01:25/23:29:07|NET: Registered protocol family 2
10:01:25/23:29:07|IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
10:01:25/23:29:07|TCP established hash table entries: 4096 (order: 3, 32768 bytes)
10:01:25/23:29:07|TCP bind hash table entries: 4096 (order: 2, 16384 bytes)
10:01:25/23:29:07|TCP: Hash tables configured (established 4096 bind 4096)
10:01:25/23:29:08|TCP reno registered
10:01:25/23:29:08|NET: Registered protocol family 1
10:01:25/23:29:08|ROMFS MTD (C) 2007 Red Hat, Inc.
10:01:25/23:29:08|msgmni has been set to 214
10:01:25/23:29:08|io scheduler noop registered
10:01:25/23:29:08|io scheduler anticipatory registered
10:01:25/23:29:08|io scheduler deadline registered
10:01:25/23:29:08|io scheduler cfq registered (default)
10:01:25/23:29:08|Serial: 8250/16550 driver, 4 ports, IRQ sharing disabled
10:01:25/23:29:08|83e00000.serial: ttyS0 at MMIO 0x83e01003 (irq = 16) is a 16550
10:01:25/23:29:08|console [ttyS0] enabled
10:01:25/23:29:08|brd: module loaded
10:01:25/23:29:08|loop: module loaded
10:01:25/23:29:08|Device Tree Probing 'ethernet'
10:01:25/23:29:08|xilinx_lltemac 81c00000.ethernet: MAC address is now d8:80:39:41:ee:71
10:01:25/23:29:08|xilinx_lltemac 81c00000.ethernet: XLlTemac: using DMA mode.
10:01:25/23:29:08|XLlTemac: DCR address: 0x80
10:01:25/23:29:08|XLlTemac: buffer descriptor size: 32768 (0x8000)
10:01:25/23:29:08|XLlTemac: Allocating DMA descriptors with kmalloc
10:01:25/23:29:08|XLlTemac: (buffer_descriptor_init) phy: 0x6938000, virt: 0xc6938000, size: 0x8000
10:01:25/23:29:08|XTemac: PHY detected at address 7.
10:01:25/23:29:08|xilinx_lltemac 81c00000.ethernet: eth0: Xilinx TEMAC at 0x81C00000 mapped to 0xD1024000, irq=17
10:01:25/23:29:09|fc000000.flash: Found 1 x16 devices at 0x0 in 16-bit bank
10:01:25/23:29:09| Intel/Sharp Extended Query Table at 0x010A
10:01:25/23:29:09| Intel/Sharp Extended Query Table at 0x010A
10:01:25/23:29:09| Intel/Sharp Extended Query Table at 0x010A
10:01:25/23:29:09| Intel/Sharp Extended Query Table at 0x010A
10:01:25/23:29:09| Intel/Sharp Extended Query Table at 0x010A
10:01:25/23:29:09| Intel/Sharp Extended Query Table at 0x010A
10:01:25/23:29:09|Using buffer write method
10:01:25/23:29:09|cfi_cmdset_0001: Erase suspend on write enabled
10:01:25/23:29:09|cmdlinepart partition parsing not available
10:01:25/23:29:09|RedBoot partition parsing not available
10:01:25/23:29:09|Creating 5 MTD partitions on "fc000000.flash":
10:01:25/23:29:09|0x000000000000-0x000000500000 : "golden_firmware"
10:01:25/23:29:09|0x000000500000-0x000000800000 : "golden_kernel"
10:01:25/23:29:09|0x000000800000-0x000000d00000 : "user_firmware"
10:01:25/23:29:09|0x000000d00000-0x000000fe0000 : "user_kernel"
10:01:25/23:29:09|0x000000fe0000-0x000001000000 : "env_variables"
10:01:25/23:29:09|xilinx-xps-spi 81400400.hd-xps-spi: at 0x81400400 mapped to 0xD1028400, irq=20
10:01:25/23:29:10|SPI: XIlinx spi: bus number now 32766
10:01:25/23:29:10|xilinx-xps-spi 81400000.xps-spi: at 0x81400000 mapped to 0xD102C000, irq=21
10:01:25/23:29:10|SPI: XIlinx spi: bus number now 32765
10:01:25/23:29:10|mice: PS/2 mouse device common for all mice
10:01:25/23:29:10|Device Tree Probing 'i2c'
10:01:25/23:29:10| #0 at 0x81600000 mapped to 0xD1030000, irq=22
10:01:25/23:29:10|at24 0-0050: 1024 byte 24c08 EEPROM (writable)
10:01:25/23:29:10|TCP cubic registered
10:01:25/23:29:10|NET: Registered protocol family 17
10:01:25/23:29:10|RPC: Registered udp transport module.
10:01:25/23:29:10|RPC: Registered tcp transport module.
10:01:25/23:29:10|eth0: XLlTemac: Options: 0x3fa
10:01:25/23:29:11|eth0: XLlTemac: allocating interrupt 19 for dma mode tx.
10:01:25/23:29:11|eth0: XLlTemac: allocating interrupt 18 for dma mode rx.
10:01:25/23:29:11|eth0: XLlTemac: speed set to 1000Mb/s
10:01:25/23:29:13|eth0: XLlTemac: Send Threshold = 24, Receive Threshold = 4
10:01:25/23:29:13|eth0: XLlTemac: Send Wait bound = 254, Receive Wait bound = 254
10:01:25/23:29:13|Sending DHCP requests ., OK
10:01:25/23:29:14|IP-Config: Got DHCP answer from 192.168.11.99, my address is 192.168.11.6
10:01:25/23:29:14|IP-Config: Complete:
10:01:25/23:29:14| device=eth0, addr=192.168.11.6, mask=255.255.255.0, gw=255.255.255.255,
10:01:25/23:29:14| host=aida06, domain=dl.ac.uk, nis-domain=nuclear.physics,
10:01:25/23:29:14| bootserver=192.168.11.99, rootserver=192.168.11.99, rootpath=/home/Embedded/XilinxLinux/ppc_4xx/rfs/aida06
10:01:25/23:29:14|Looking up port of RPC 100003/2 on 192.168.11.99
10:01:25/23:29:14|Looking up port of RPC 100005/1 on 192.168.11.99
10:01:25/23:29:14|VFS: Mounted root (nfs filesystem) on device 0:12.
10:01:25/23:29:14|Freeing unused kernel memory: 168k init
INIT: version 2.86 booting
10:01:25/23:29:15|Starting sysinit...
10:01:25/23:29:15| Welcome to DENX & STFC Daresbury Embedded Linux Environment
10:01:25/23:29:16| Press 'I' to enter interactive startup.
10:01:25/23:29:16|Setting clock (utc): Fri Jan 10 22:29:16 GMT 2025 [ OK ]
10:01:25/23:29:16|Building the cache [ OK ]
10:01:25/23:29:16|Setting hostname aida06: [ OK ]
10:01:25/23:29:18|Mounting local filesystems: [ OK ]
10:01:25/23:29:19|Enabling /etc/fstab swaps: [ OK ]
10:01:25/23:29:21|Finishing sysinit...
INIT: Entering runlevel: 3
10:01:25/23:29:24|Entering non-interactive startup
10:01:25/23:29:24|FATAL: Module ipv6 not found.
10:01:25/23:29:26|Bringing up loopback interface: [ OK ]
10:01:25/23:29:29|FATAL: Module ipv6 not found.
10:01:25/23:29:29|Starting system logger: [ OK ]
10:01:25/23:29:30|Starting kernel logger: [ OK ]
10:01:25/23:29:30|Starting rpcbind: [ OK ]
10:01:25/23:29:32|Mounting NFS filesystems: [ OK ]
10:01:25/23:29:32|Mounting other filesystems: [ OK ]
10:01:25/23:29:33|Starting xinetd: [ OK ]
10:01:25/23:29:33|Starting midas: Starting MIDAS Data Acquisition for aida06
10:01:25/23:29:34|xaida: device parameters: base=0x81000000 size=0x200000
10:01:25/23:29:39|Trying to free nonexistent resource <0000000081000000-00000000811fffff>
10:01:25/23:29:40|xaida: mem region start 0x81000000 for 0x200000 mapped at 0xd2100000
10:01:25/23:29:40|xaida: driver assigned major number 254
10:01:25/23:29:40|Trying to free nonexistent resource <0000000007000000-0000000007ffffff>
10:01:25/23:29:45|AIDAMEM: aidamem: mem region start 0x7000000 for 0x1000000 mapped at 0xd2380000
10:01:25/23:29:45|AIDAMEM: aidamem: driver assigned major number 253
10:01:25/23:29:45|System identified is CPU ppc; Platform is unix; OS is Linux and Version is 2.6.31
10:01:25/23:29:52|Environment selected is CPU ppc; Platform unix; OS Linux and Operating System linux-ppc_4xx
10:01:25/23:29:52|MIDASBASE = /MIDAS and MIDAS_LIBRARY = /MIDAS/TclHttpd/linux-ppc_4xx
10:01:25/23:29:52|PATH = /MIDAS/bin_linux-ppc_4xx:/MIDAS/TclHttpd/linux-ppc_4xx:/MIDAS/linux-ppc_4xx/bin:/MIDAS/linux-ppc_4xx/bin:/sbin:/usr/sbin:/bin:/usr/bin
10:01:25/23:29:52|Computer Name = aida06; Temp Directory = /tmp/tcl361
10:01:25/23:29:57|
10:01:25/23:30:02|AIDA Data Acquisition Program Release 10.0.Jul 6 2022_15:10:57 starting
10:01:25/23:30:02|
10:01:25/23:30:02|Built without pthreads
10:01:25/23:30:02|
10:01:25/23:30:02|Creating NetVars
10:01:25/23:30:02|Output buffer length = 65504; format option = 4; transfer option = 3
10:01:25/23:30:02|EB transfer option = 3
10:01:25/23:30:02|NetVars created anxaida: open:
10:01:25/23:30:02|d initialised
10:01:25/23:30:02|SAIDAMEM: aidamem_open:
10:01:25/23:30:02|tatistics thread starting
10:01:25/23:30:02|Data Acquisition task has PID 375
10:01:25/23:30:02|Statistics thread created
10:01:25/23:30:02|Stat/Rate creation thread starting
10:01:25/23:30:02|Stat/Rate creation thread created
10:01:25/23:30:02|Hit/Rate creation thread starting
10:01:25/23:30:02|Hit/Rate creation thread created
10:01:25/23:30:02|AIDA Heartbeat thread starting
10:01:25/23:30:02|Heartbeat thread created
10:01:25/23:30:02|Installing signal handlers
10:01:25/23:30:02|Done
10:01:25/23:30:02|ModuleNum = 0
10:01:25/23:30:02|Aida Initialise complete. AidaExecV10.0: Build Jul 6 2022_15:10:57. HDL version : 03350706
10:01:25/23:30:02|package limit is not available: can't find package limit
10:01:25/23:30:02|Running with default file descriptor limit
10:01:25/23:30:02|Spectra table initialised
10:01:25/23:30:02|AIDA Data Acquisition now all ready to start
10:01:25/23:30:02|SIGBUS, SIGSEGV and SIGPIPE traps setup
10:01:25/23:30:02|package setuid is not available: can't find package setuid
10:01:25/23:30:04|Running as user 0 group 0
10:01:25/23:30:04|[ OK ]
10:01:25/23:30:12|
10:01:25/23:30:13|DENX ELDK version 4.2 build 2008-04-01
10:01:25/23:30:13|Linux 2.6.31 on a ppc
10:01:25/23:30:13|
10:01:25/23:30:13|aida06 login: /debug user "debug" password "ztl9xf9b3o0l"
10:01:25/23:30:18|httpd started on port 8015
10:01:25/23:30:18|
10:01:25/23:30:18|Cannot use /MIDAS/config/TclHttpd/aida06@8015/startup.tcl
10:01:25/23:30:18|Custom startup from /MIDAS/config/TclHttpd/aida06/startup.tcl
10:01:25/23:30:18|XAIDA Access package 1.0
10:01:25/23:30:20|/XAIDAAccessServer
10:01:25/23:30:21|XAD9252 Access package 1.0
10:01:25/23:30:21|/XAD9252AccessServer
10:01:25/23:30:21|/DataBaseAccessServer
10:01:25/23:30:21|/NetVarService
10:01:25/23:30:21|/SigTaskService
10:01:25/23:30:21|Loaded MemSasAccess
10:01:25/23:30:21|/SpectrumService
10:01:25/23:30:21|loading tcl/AIDARunControl.tcl for namespace ::
10:01:25/23:30:21|/DataAcquisitionControlServer
10:01:25/23:30:21|DefineMessage unknown
10:01:25/23:30:21|Run Control Server Implementation for AIDA
10:01:25/23:30:21|RunControlServer loaded
10:01:25/23:30:21|loading Html/RunControl/implementation.tcl
10:01:25/23:30:22|/MIDAS/TclHttpd/Html/RunControl/common.tcl returned z=1 and couldn't read file "/MIDAS/TclHttpd/Html/RunControl/common.tcl": no such file or directory
10:01:25/23:30:22|ReadRegister failed: Name=NetVar.EXEC.ID; Code= 0x10004; Info= Register name does not exist
10:01:25/23:30:22|Created UI registers
10:01:25/23:30:23|RunControl loaded
10:01:25/23:30:23|loading Html/AIDA/RunControl/implementation.tcl for namespace ::
10:01:25/23:30:23|mkdir returned 1
10:01:25/23:30:23|filepath = /MIDAS/FEE_ASIC
10:01:25/23:30:23|filename = /MIDAS/FEE_ASIC/aida06/ASICs.txt
10:01:25/23:30:23|AIDA RunControl loaded
10:01:25/23:30:24|Completed custom startup from /MIDAS/TclHttpd/Html/AIDA/RunControl/stats.defn.tcl
10:01:25/23:30:24|xaida: open:
11:01:25/14:36:47|do_GetState returned z=0 and 8
11:01:25/14:59:08|do_GetState returned z=0 and 8
11:01:25/14:59:20|do_GetState returned z=0 and 8
11:01:25/14:59:32|do_GetState returned z=0 and 8
11:01:25/14:59:44|do_GetState returned z=0 and 8
11:01:25/14:59:56|do_GetState returned z=0 and 8
11:01:25/15:00:08|do_GetState returned z=0 and 8
11:01:25/15:00:20|do_GetState returned z=0 and 8
11:01:25/15:00:33|do_GetState returned z=0 and 8
11:01:25/15:00:45|do_GetState returned z=0 and 8
11:01:25/15:00:57|do_GetState returned z=0 and 8
11:01:25/15:01:09|do_GetState returned z=0 and 8
11:01:25/15:01:21|do_GetState returned z=0 and 8
11:01:25/15:01:33|do_GetState returned z=0 and 8
11:01:25/15:01:45|do_GetState returned z=0 and 8
11:01:25/15:01:58|do_GetState returned z=0 and 8
11:01:25/15:02:10|do_GetState returned z=0 and 8
11:01:25/15:02:22|do_GetState returned z=0 and 8
11:01:25/15:02:34|do_GetState returned z=0 and 8
11:01:25/15:02:46|do_GetState returned z=0 and 8
11:01:25/15:02:59|do_GetState returned z=0 and 8
11:01:25/15:03:11|do_GetState returned z=0 and 8
11:01:25/15:03:23|do_GetState returned z=0 and 8
11:01:25/15:03:35|do_GetState returned z=0 and 8
11:01:25/15:03:47|do_GetState returned z=0 and 8
11:01:25/15:03:59|do_GetState returned z=0 and 8
11:01:25/15:04:11|do_GetState returned z=0 and 8
11:01:25/15:04:24|do_GetState returned z=0 and 8
11:01:25/15:04:36|do_GetState returned z=0 and 8
11:01:25/15:04:48|do_GetState returned z=0 and 8
11:01:25/15:05:00|do_GetState returned z=0 and 8
11:01:25/15:05:12|do_GetState returned z=0 and 8
11:01:25/15:05:24|do_GetState returned z=0 and 8
11:01:25/15:05:36|do_GetState returned z=0 and 8
11:01:25/15:05:49|do_GetState returned z=0 and 8
11:01:25/15:06:01|do_GetState returned z=0 and 8
11:01:25/15:06:13|do_GetState returned z=0 and 8
11:01:25/15:06:25|do_GetState returned z=0 and 8
11:01:25/15:06:37|do_GetState returned z=0 and 8
11:01:25/15:06:50|do_GetState returned z=0 and 8
11:01:25/15:07:02|do_GetState returned z=0 and 8
11:01:25/15:07:14|do_GetState returned z=0 and 8
11:01:25/15:07:26|do_GetState returned z=0 and 8
11:01:25/15:07:38|do_GetState returned z=0 and 8
11:01:25/15:07:51|do_GetState returned z=0 and 8
11:01:25/15:08:03|do_GetState returned z=0 and 8
11:01:25/15:08:15|do_GetState returned z=0 and 8
11:01:25/15:08:27|do_GetState returned z=0 and 8
11:01:25/15:08:40|do_GetState returned z=0 and 8
11:01:25/15:08:52|do_GetState returned z=0 and 8
11:01:25/15:09:04|do_GetState returned z=0 and 8
11:01:25/15:09:17|do_GetState returned z=0 and 8
11:01:25/15:09:29|do_GetState returned z=0 and 8
11:01:25/15:09:41|do_GetState returned z=0 and 8
11:01:25/15:09:53|do_GetState returned z=0 and 8
11:01:25/15:10:06|do_GetState returned z=0 and 8
11:01:25/15:10:18|do_GetState returned z=0 and 8
11:01:25/15:10:30|do_GetState returned z=0 and 8
11:01:25/15:10:43|do_GetState returned z=0 and 8
11:01:25/15:10:55|do_GetState returned z=0 and 8 |
|
690
|
Sat Jan 11 14:05:03 2025 |
TD | Saturday 11 January 2024 |
14.37 Detector bias & leakage current OK - attachment 1
FEE64 temperatures OK - attachment 2
WR timestamps - attachment 3
aida06 out of sync
global clock status - attachment 4
aida06 fails
ADC calibration - attachment 5
all fail - probably due to ASIC synchronise *after* ADC calibration
WR decoder & FPGA TS status - attachments 6-7
aida06 status 0xd
DAQ run control - attachment 8
aida06 undefined => aida06 has rebooted
Merger & Tape Server - attachments 9-10
merger, tape server and data transfer have stopped
See https://elog.ph.ed.ac.uk/DESPEC/691
aidao06 system console - aida06 rebooted sometime yesterday
*** Recovery
For FEE64 aida06 *only*
DAQ reset
DAQ setup
For all FEE64s
DAQ stop
Restart merger, merger setup, merger go
Following two merger restart cycles all FEE64s stopped OK
Recovery complete
All system wide checks OK
Disable data transfer, DAQ go
per FEE64 rate spectra = attachment 11
aida04 high rates
per FEE64 1.8.W spectra - 20us FSR - attachments 12-13
DAQ stop, enable data transfer, DAQ go
Merger and server consoles - attachment 14
merger and tape server (no storage mode) running OK but no data transfer to MBS server
WR timestamps OK - attachment 15
ADC and DISC data item stats - attachment 16-17
aida04 & aida16 high rates - all others appear to be OK
ASIC check load for all aida16 ASICs changes rate from c. 420k to 0
ASIC check load for all aida04 ASICs changes rate from c. 200k to c. 120k
18.00 No data transfer to MBS - nothing useful being donme at the moment - will place system in safe state
DAQ stop
Detector bias OFF
FEE64 power OFF |
| Attachment 1: Screenshot_from_2025-01-11_14-37-29.png
|
|
| Attachment 2: Screenshot_from_2025-01-11_14-55-21.png
|
|
| Attachment 3: Screenshot_from_2025-01-11_14-56-44.png
|
|
| Attachment 4: Screenshot_from_2025-01-11_14-57-14.png
|
|
| Attachment 5: Screenshot_from_2025-01-11_14-57-37.png
|
|
| Attachment 6: Screenshot_from_2025-01-11_14-58-05.png
|
|
| Attachment 7: Screenshot_from_2025-01-11_14-58-25.png
|
|
| Attachment 8: Screenshot_from_2025-01-11_14-59-24.png
|
|
| Attachment 9: Screenshot_from_2025-01-11_15-00-00.png
|
|
| Attachment 10: Screenshot_from_2025-01-11_15-00-31.png
|
|
| Attachment 11: Screenshot_from_2025-01-11_15-29-32.png
|
|
| Attachment 12: Screenshot_from_2025-01-11_15-30-35.png
|
|
| Attachment 13: Screenshot_from_2025-01-11_15-31-29.png
|
|
| Attachment 14: Screenshot_from_2025-01-11_15-35-14.png
|
|
| Attachment 15: Screenshot_from_2025-01-11_15-38-24.png
|
|
| Attachment 16: Screenshot_from_2025-01-11_15-27-28.png
|
|
| Attachment 17: Screenshot_from_2025-01-11_15-26-39.png
|
|
|
689
|
Fri Jan 10 10:03:43 2025 |
TD | LEC fast comparator threshold too low |
> > >
> > > LEC fast comparator has been set to 0x2 (200keV) which is *very* low and means the fast comparator will be triggering on noise.
> > >
> > > The *minimum* LEC fast comparator setting should be in the range 0x5 - 0xa (500-1000keV).
> > >
> > > I have set the TapeServer to 'no storage' mode to avoid filling the aida-gsi disk with rubbish.
> >
> > Thanks. From the DESPEC elog.gsi.de/despec/Implantation+Stack/18
> >
> > "We have made a trigger from the BGO logic and OR64 of the fast discriminator from AIDA. This was sent as a trigger to the bPlast Exploder.
> >
> > This did not work as the FEE64s of AIDA are running into high dead-time and a result are dropping data. This is a problem for the ucesb unpacker as it will quite working if one of the subsystem stops sending
data. (@Nic is this correct?)
> >
> > This is indeed what I see as whenever we try to run FAIRROOT the tree builder exits immediately."
>
> We have increased the all thresholds excluding aida10 to 0xff. To not trigger on the other FEEs, however better, the DAQ still occasionally runs into dead time and as such fails with making trees.
>
> We have thus elected to turn off AIDA and move out the platform. The conclusion is that we are not able to do this fast timing test with a 200 keV threshold.
Per our discussions in December 2024 this is exactly what would be expected. |
|
688
|
Thu Jan 9 17:56:14 2025 |
TD | LEC fast comparator threshold too low |
> >
> > LEC fast comparator has been set to 0x2 (200keV) which is *very* low and means the fast comparator will be triggering on noise.
> >
> > The *minimum* LEC fast comparator setting should be in the range 0x5 - 0xa (500-1000keV).
> >
> > I have set the TapeServer to 'no storage' mode to avoid filling the aida-gsi disk with rubbish.
>
> Thanks. From the DESPEC elog.gsi.de/despec/Implantation+Stack/18
>
> "We have made a trigger from the BGO logic and OR64 of the fast discriminator from AIDA. This was sent as a trigger to the bPlast Exploder.
>
> This did not work as the FEE64s of AIDA are running into high dead-time and a result are dropping data. This is a problem for the ucesb unpacker as it will quite working if one of the subsystem stops sending data. (@Nic is this correct?)
>
> This is indeed what I see as whenever we try to run FAIRROOT the tree builder exits immediately."
We have increased the all thresholds excluding aida10 to 0xff. To not trigger on the other FEEs, however better, the DAQ still occasionally runs into dead time and as such fails with making trees.
We have thus elected to turn off AIDA and move out the platform. The conclusion is that we are not able to do this fast timing test with a 200 keV threshold. |
|
687
|
Thu Jan 9 17:36:50 2025 |
TD | LEC fast comparator threshold too low |
>
> LEC fast comparator has been set to 0x2 (200keV) which is *very* low and means the fast comparator will be triggering on noise.
>
> The *minimum* LEC fast comparator setting should be in the range 0x5 - 0xa (500-1000keV).
>
> I have set the TapeServer to 'no storage' mode to avoid filling the aida-gsi disk with rubbish.
Thanks. From the DESPEC elog.gsi.de/despec/Implantation+Stack/18
"We have made a trigger from the BGO logic and OR64 of the fast discriminator from AIDA. This was sent as a trigger to the bPlast Exploder.
This did not work as the FEE64s of AIDA are running into high dead-time and a result are dropping data. This is a problem for the ucesb unpacker as it will quite working if one of the subsystem stops sending data. (@Nic is this correct?)
This is indeed what I see as whenever we try to run FAIRROOT the tree builder exits immediately." |
|
686
|
Thu Jan 9 16:25:51 2025 |
TD | LEC fast comparator threshold too low |
LEC fast comparator has been set to 0x2 (200keV) which is *very* low and means the fast comparator will be triggering on noise.
The *minimum* LEC fast comparator setting should be in the range 0x5 - 0xa (500-1000keV).
I have set the TapeServer to 'no storage' mode to avoid filling the aida-gsi disk with rubbish. |
| Attachment 1: Screenshot_from_2025-01-09_17-28-45.png
|
|
|
685
|
Thu Jan 9 15:43:17 2025 |
JB, CC, MP | Timing test platform moved in |
16:30 We moved the platform in. The system was still biased and the DAQ was still running.
The system seems to be okay, temperatures OK. Bias voltage OK 685/1 and 685/2. Two FEEs - aida07 and aida12 are receiving a lot of trigger data items from the fast discriminator. This is already a bit worrying. 685/3 |
| Attachment 1: Screenshot_from_2025-01-09_16-41-48.png
|
|
| Attachment 2: Screenshot_from_2025-01-09_16-42-06.png
|
|
| Attachment 3: Screenshot_from_2025-01-09_16-42-46.png
|
|
|
684
|
Thu Jan 9 12:46:43 2025 |
JB, MP, CC | AIDA timing test |
| Quote: |
|
| Quote: |
|
https://elog.gsi.de/despec/Implantation+Stack/9?suppress=1 - Day 1 ELOG
Day2:
10:14 we set up the detector with the pulser in BB7 and started biasing the detector and setting up the DAQ. Water flow and temperature check, OK. 677/1 677/2 677/3
FEE temps OK. Screenshots included for LOCAL controls for aida07, Discriminator for aida07, ASIC control for aida01 ASIC # 1,2,3,4 and the pulser setting - 1 V @ 10 Hz rep. 677/4 677/5 677/6 677/7 677/8 677/9
ASIC thresholds for the fast comparator LEC/MEC set to 0x20 for all the ASICs in aida10 - connected to BB7. Act on all ASICs did not work with this so each threshold was set to 0x20 on each ASIC by hand.
The pulser is now connected to BB7 test + and via a T-connector to the scope, triggering on the pulser signal. We saw now signals --> lower the threshold of the fast comparator to 1 MeV - 0x64 on all ASICs in aida10. 677/10
No signal was observed, threshold was then set to 0x190 (400 keV) 677/11
13:00 We resumed after lunch. It seems that our thresholds were way too high for starters each channel was actually 100 keV in HEX. We then set the thresholds in aida10 to 0x32, 0x20, 0x20, 0x11 for ASIC 1,2,3,4, respectively. This was to achieve a 10 Hz hit rate in all of the channels! This was done successfully see 677/12 for the hit rate spectrum and also 677/13-16 for the thresholds.
|
The pulser was set to 0.5 V to test if we can still see the time spectrum between AIDA and bPlast with reduced thresholds -- mimicking a beta event.
These thresholds were changes from 0x32, 0x20, 0x20, 0x11 for ASIC 1,2,3,4 ---> 0x10, 0x10, 0x0d, 0x10.
This was set to have the HitRate in aida10 to be just above the noise.
|
Initial results: copy from DESPEC elog.
We have managed to obtain the time difference between the bPlast White rabbit and the AIDA Fast time. We had to gate out the zero fast-time events and then also condition that we only take the data from aida10. We see this in 684/1. Then if we look at the time difference between the fast time and the bPlast WRT we see a sharp peak at zero, this makes sense as the AIDA fast time discriminator is being triggered by a pulser which is then being used as a trigger for bPlasts DAQ so these events should be virtually arriving without delay. The delay we do see is infact around 750 ns.
The data collected overnight was also analysed as shown in 684/3 this is the data accumulated with the 22Na source close to the snout and a global threshold in the fast discriminator of 0x0f. The centre peak was roughly fitted with a gaussian:
NO. NAME VALUE ERROR SIZE DERIVATIVE
1 Constant 1.21277e+03 2.74526e+01 5.66915e-01 -5.61074e-07
2 Mean -1.78513e+02 8.50699e+00 1.62947e-01 1.58554e-06
3 Sigma 3.48571e+02 4.03993e+00 6.26343e-05 -1.86863e-03 |
| Attachment 1: AIDAfasttime_bPlastWRdt_AIDA10.png
|
|
| Attachment 2: AIDACalAdcFasttime.png
|
|
| Attachment 3: AIDAfasttime_bPlastWRdt_AIDA10_nopulser.png
|
|
| Attachment 4: Centrepeak_gauss_fit.png
|
|
|
683
|
Wed Jan 8 16:47:05 2025 |
JB, MP, CC | AIDA timing test |
| Quote: |
|
https://elog.gsi.de/despec/Implantation+Stack/9?suppress=1 - Day 1 ELOG
Day2:
10:14 we set up the detector with the pulser in BB7 and started biasing the detector and setting up the DAQ. Water flow and temperature check, OK. 677/1 677/2 677/3
FEE temps OK. Screenshots included for LOCAL controls for aida07, Discriminator for aida07, ASIC control for aida01 ASIC # 1,2,3,4 and the pulser setting - 1 V @ 10 Hz rep. 677/4 677/5 677/6 677/7 677/8 677/9
ASIC thresholds for the fast comparator LEC/MEC set to 0x20 for all the ASICs in aida10 - connected to BB7. Act on all ASICs did not work with this so each threshold was set to 0x20 on each ASIC by hand.
The pulser is now connected to BB7 test + and via a T-connector to the scope, triggering on the pulser signal. We saw now signals --> lower the threshold of the fast comparator to 1 MeV - 0x64 on all ASICs in aida10. 677/10
No signal was observed, threshold was then set to 0x190 (400 keV) 677/11
13:00 We resumed after lunch. It seems that our thresholds were way too high for starters each channel was actually 100 keV in HEX. We then set the thresholds in aida10 to 0x32, 0x20, 0x20, 0x11 for ASIC 1,2,3,4, respectively. This was to achieve a 10 Hz hit rate in all of the channels! This was done successfully see 677/12 for the hit rate spectrum and also 677/13-16 for the thresholds.
|
The pulser was set to 0.5 V to test if we can still see the time spectrum between AIDA and bPlast with reduced thresholds -- mimicking a beta event.
These thresholds were changes from 0x32, 0x20, 0x20, 0x11 for ASIC 1,2,3,4 ---> 0x10, 0x10, 0x0d, 0x10.
This was set to have the HitRate in aida10 to be just above the noise. |
| Attachment 1: Screenshot_from_2025-01-08_17-51-51.png
|
|
|
682
|
Wed Jan 8 10:46:50 2025 |
TD | Report - aida06 -boot fail due to network issue |
8:01:25/11:42:48|0x000000d00000-0x000000fe0000 : "user_kernel"
08:01:25/11:42:48|0x000000fe0000-0x000001000000 : "env_variables"
08:01:25/11:42:48|xilinx-xps-spi 81400400.hd-xps-spi: at 0x81400400 mapped to 0xD1028400, irq=20
08:01:25/11:42:48|SPI: XIlinx spi: bus number now 32766
08:01:25/11:42:48|xilinx-xps-spi 81400000.xps-spi: at 0x81400000 mapped to 0xD102C000, irq=21
08:01:25/11:42:48|SPI: XIlinx spi: bus number now 32765
08:01:25/11:42:48|mice: PS/2 mouse device common for all mice
08:01:25/11:42:48|Device Tree Probing 'i2c'
08:01:25/11:42:48| #0 at 0x81600000 mapped to 0xD1030000, irq=22
08:01:25/11:42:48|at24 0-0050: 1024 byte 24c08 EEPROM (writable)
08:01:25/11:42:48|TCP cubic registered
08:01:25/11:42:48|NET: Registered protocol family 17
08:01:25/11:42:48|RPC: Registered udp transport module.
08:01:25/11:42:49|RPC: Registered tcp transport module.
08:01:25/11:42:49|eth0: XLlTemac: Options: 0x3fa
08:01:25/11:42:49|eth0: XLlTemac: allocating interrupt 19 for dma mode tx.
08:01:25/11:42:49|eth0: XLlTemac: allocating interrupt 18 for dma mode rx.
08:01:25/11:42:49|eth0: XLlTemac: speed set to 1000Mb/s
08:01:25/11:42:51|eth0: XLlTemac: Send Threshold = 24, Receive Threshold = 4
08:01:25/11:42:51|eth0: XLlTemac: Send Wait bound = 254, Receive Wait bound = 254
08:01:25/11:42:51|Sending DHCP requests .
08:01:25/11:42:53|eth0: XLlTemac: PHY Link carrier lost.
08:01:25/11:42:53|..... timed out!
08:01:25/11:44:15|IP-Config: Reopening network devices...
08:01:25/11:44:15|eth0: XLlTemac: Options: 0x3fa
08:01:25/11:44:16|eth0: XLlTemac: allocating interrupt 19 for dma mode tx.
08:01:25/11:44:16|eth0: XLlTemac: allocating interrupt 18 for dma mode rx.
08:01:25/11:44:16|eth0: XLlTemac: speed set to 1000Mb/s
08:01:25/11:44:18|eth0: XLlTemac: Send Threshold = 24, Receive Threshold = 4
08:01:25/11:44:18|eth0: XLlTemac: Send Wait bound = 254, Receive Wait bound = 254
08:01:25/11:44:18|Sending DHCP requests ...... timed out!
08:01:25/11:45:35|IP-Config: Auto-configuration of network failed.
08:01:25/11:45:35|Root-NFS: No NFS server available, giving up.
08:01:25/11:45:35|VFS: Unable to mount root fs via NFS, trying floppy.
08:01:25/11:45:35|VFS: Cannot open root device "nfs" or unknown-block(2,0)
08:01:25/11:45:35|Please append a correct "root=" boot option; here are the available partitions:
08:01:25/11:45:35|Kernel panic - not syncing: VFS: Unable to mount root fs on unknown-block(2,0)
08:01:25/11:45:35|Call Trace:
08:01:25/11:45:35|[c6827ed0] [c0005de8] show_stack+0x44/0x16c (unreliable)
08:01:25/11:45:35|[c6827f10] [c00345bc] panic+0x94/0x168
08:01:25/11:45:35|[c6827f60] [c0341d34] mount_block_root+0x12c/0x244
08:01:25/11:45:36|[c6827fb0] [c03420d8] prepare_namespace+0x17c/0x208
08:01:25/11:45:36|[c6827fd0] [c0341220] kernel_init+0x104/0x130
08:01:25/11:45:36|[c6827ff0] [c000e140] kernel_thread+0x4c/0x68
08:01:25/11:45:36|Rebooting in 180 seconds.. |
