708
|
Sat May 31 10:46:42 2025 |
TD | Run 38 - remote monitoring |
11.40 DAQ continues
File G22-205/R38
ASIC settings
slow comparator 0x32 all FEE64s

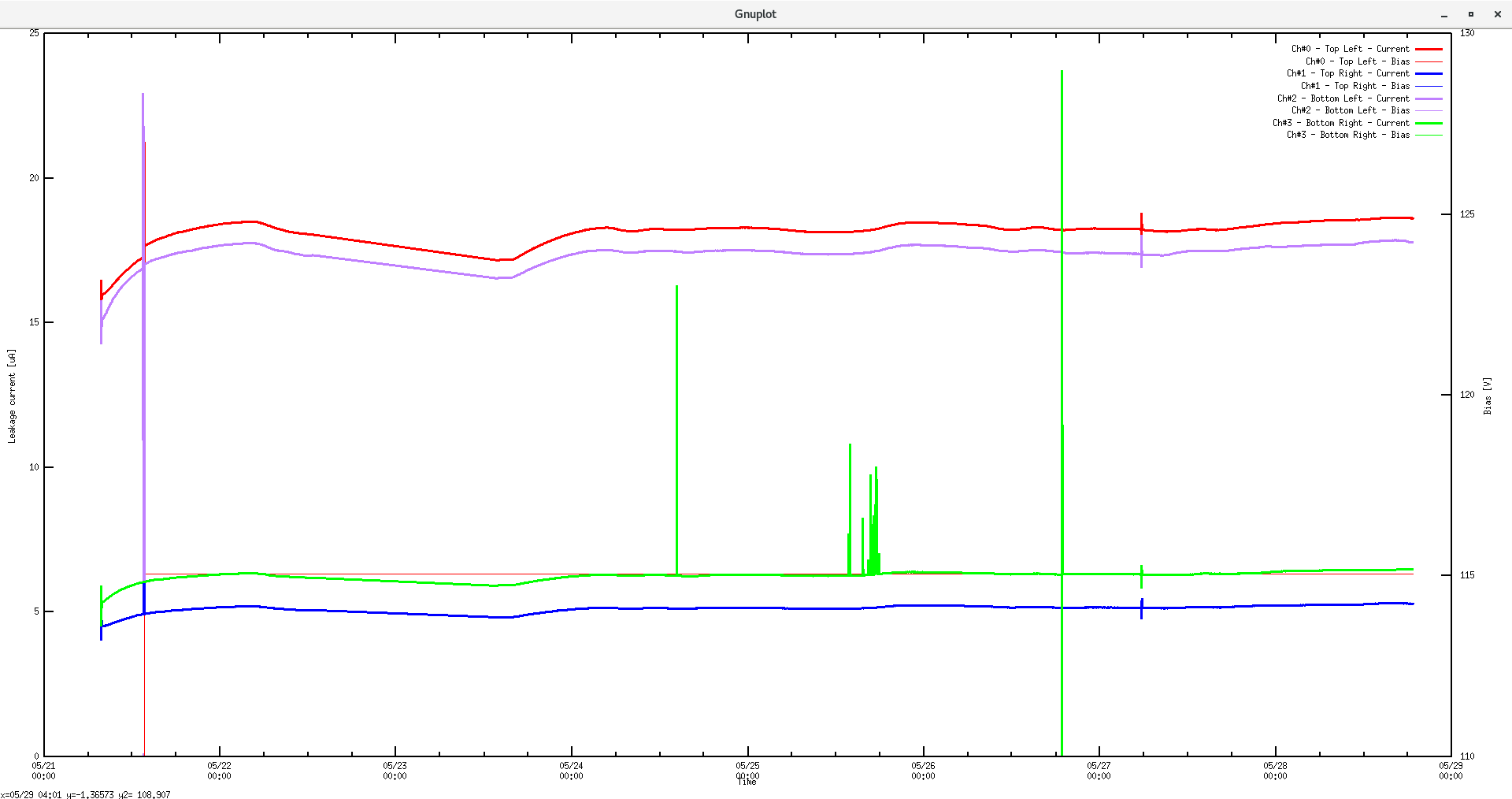

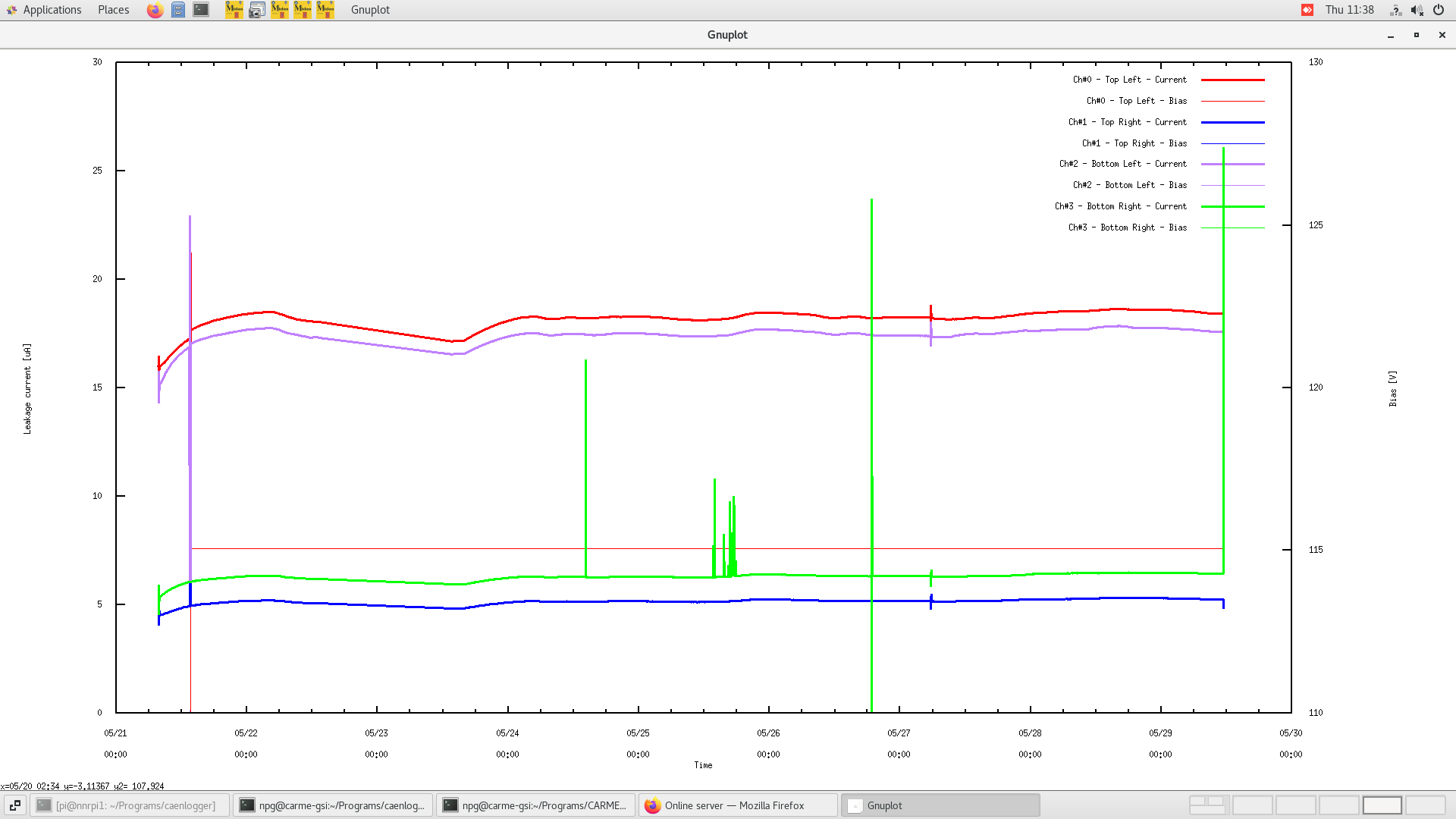

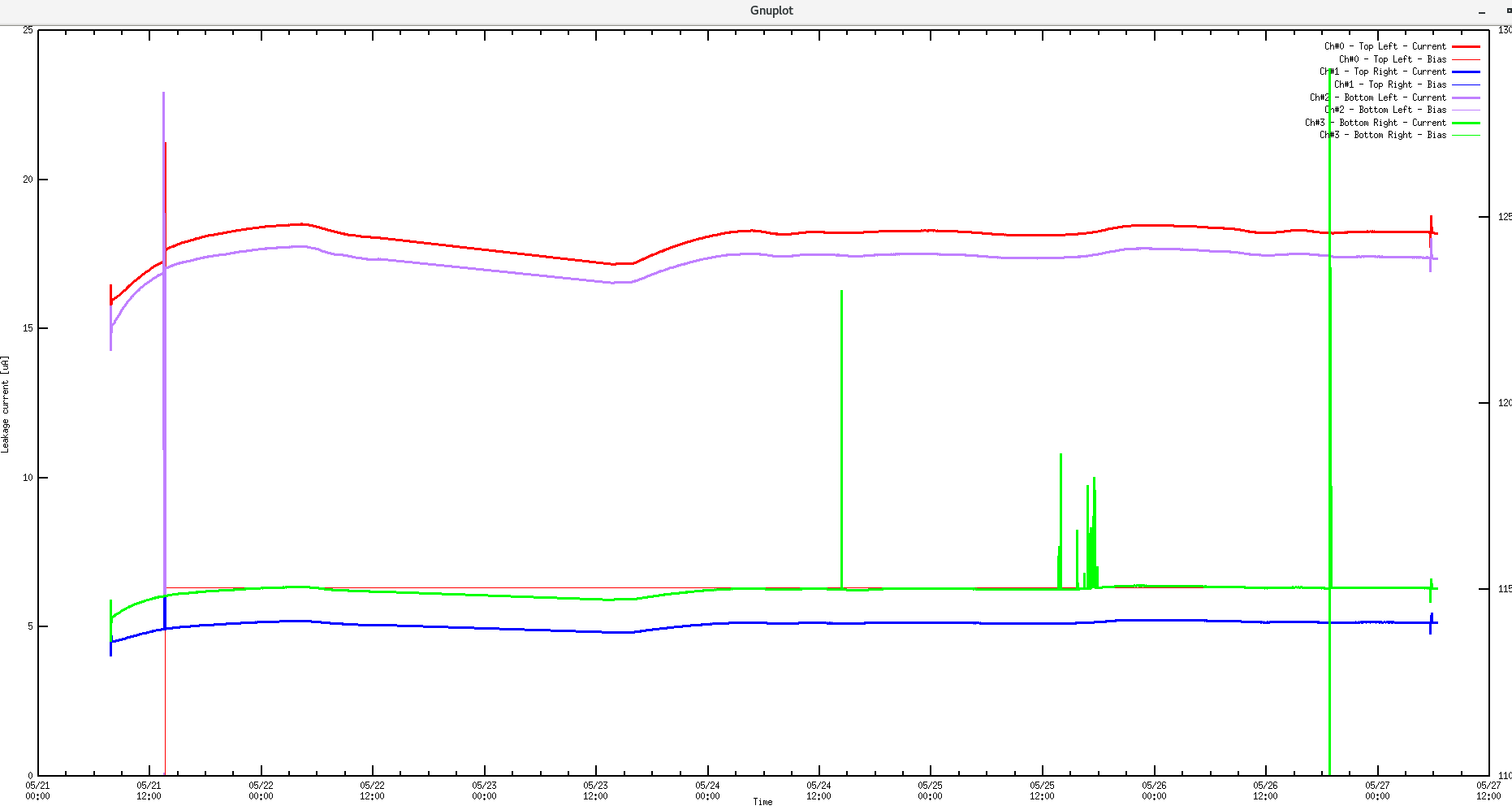

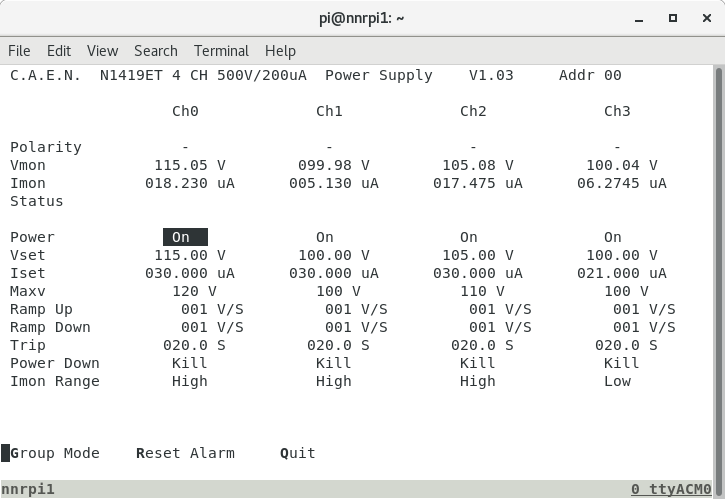

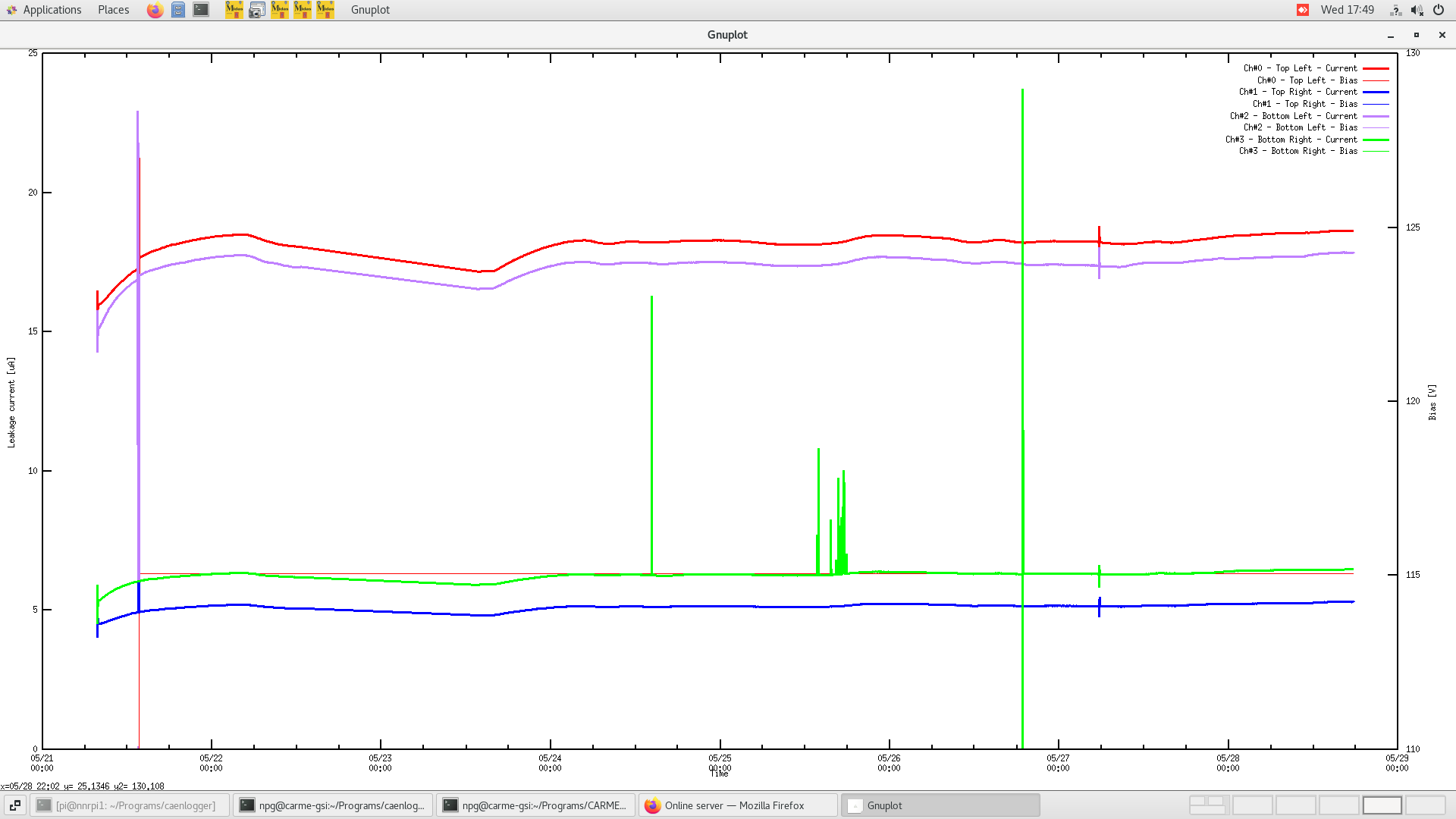

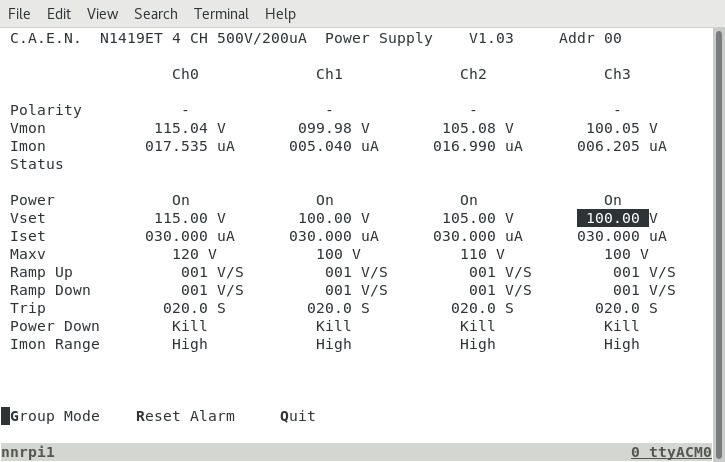

DSSSD bias & leakage current OK - attachments 1-2

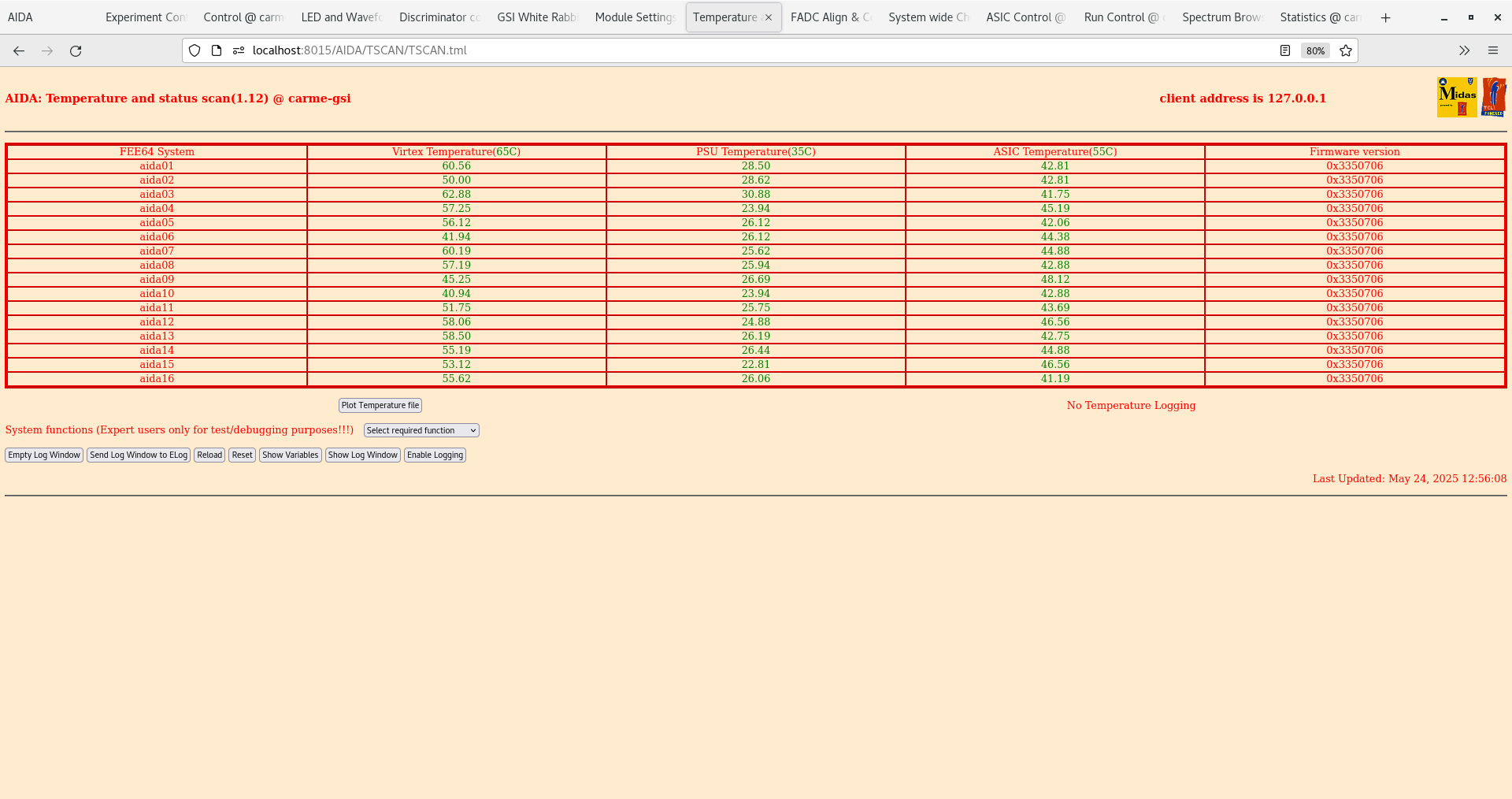

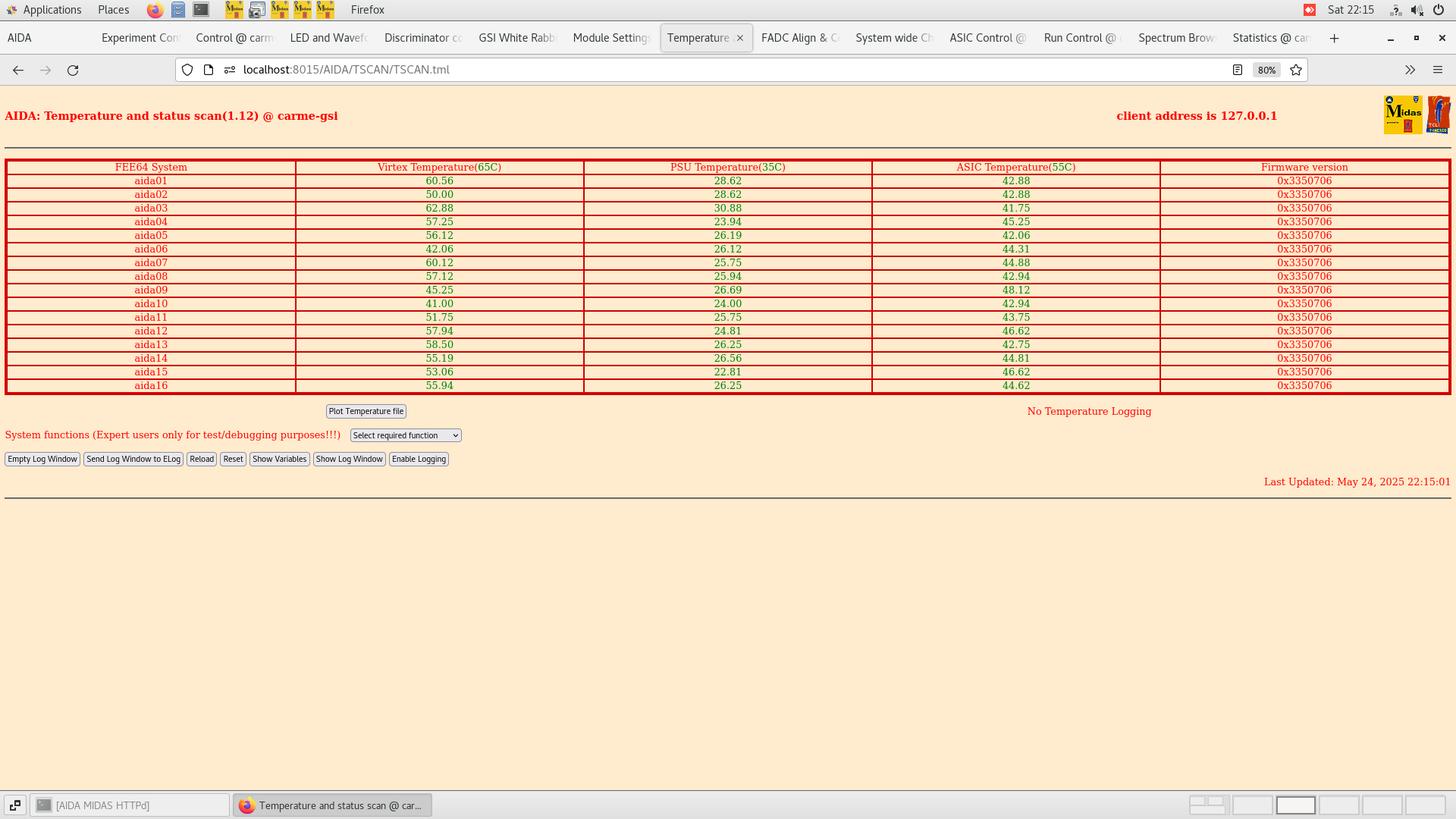

FEE64 temps OK - attachment 3

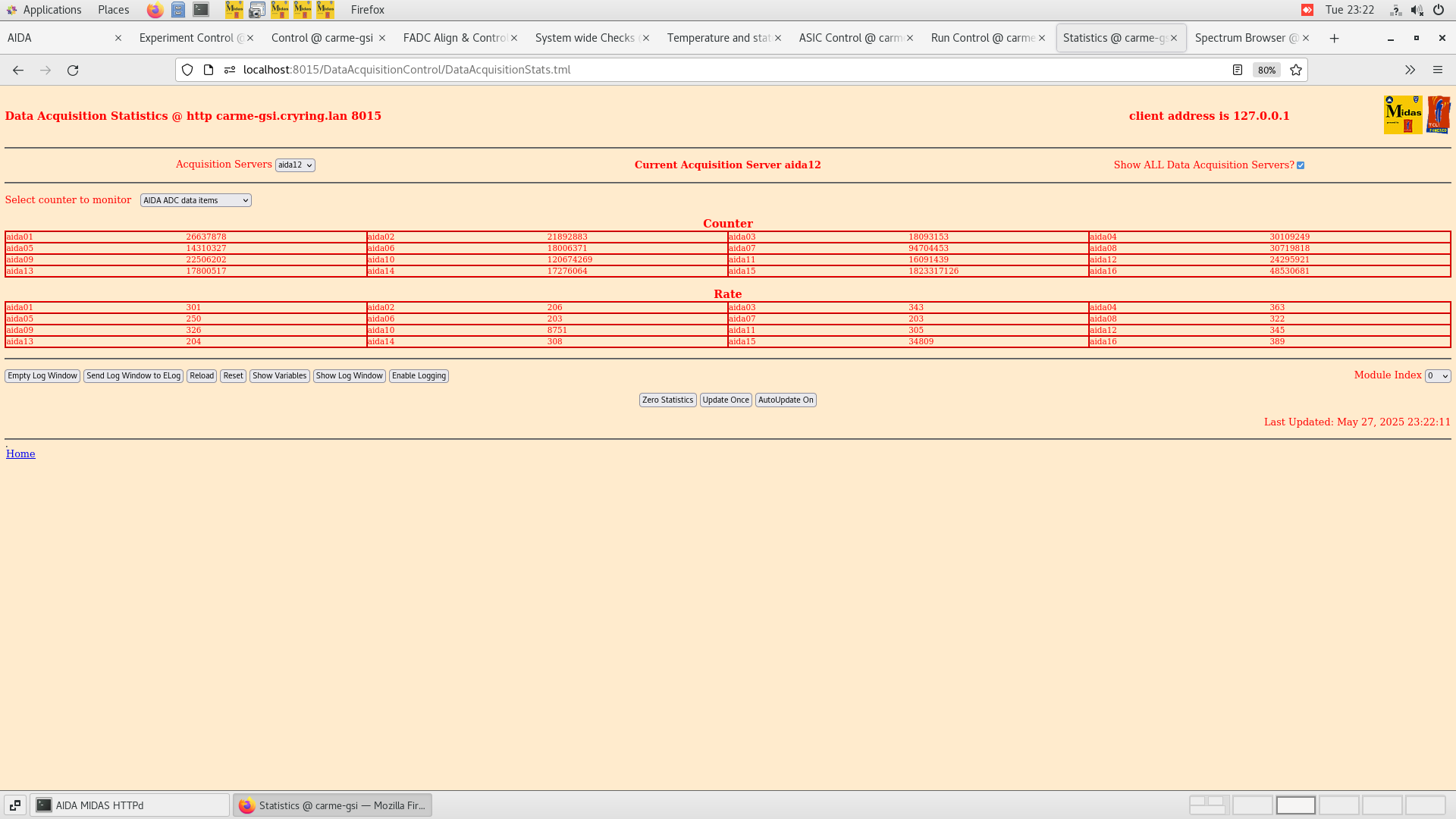

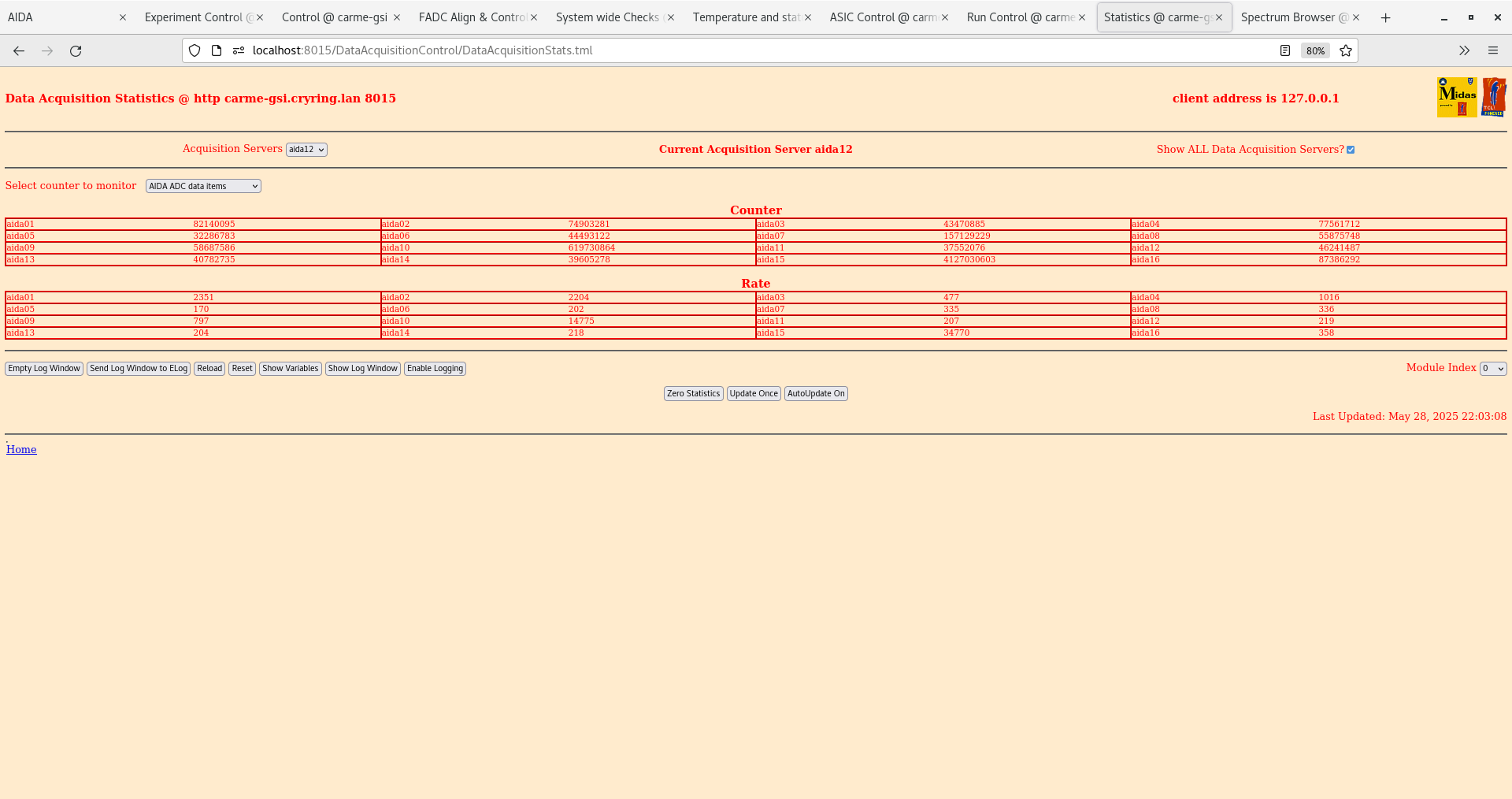

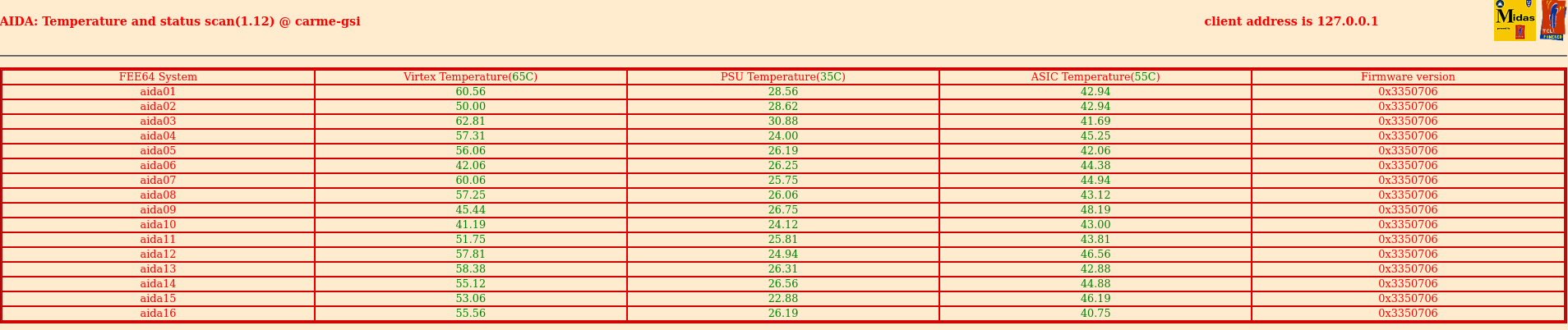

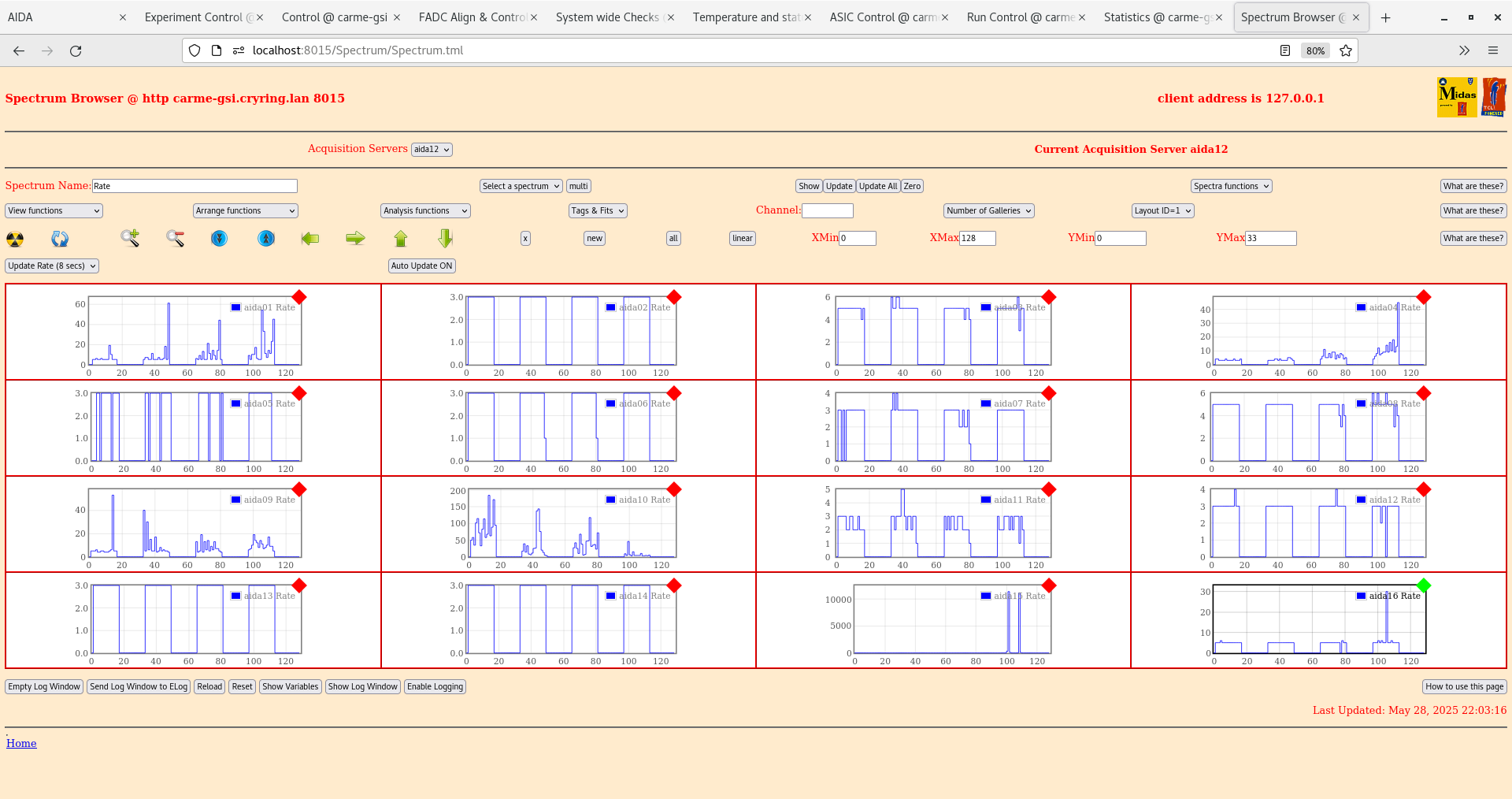

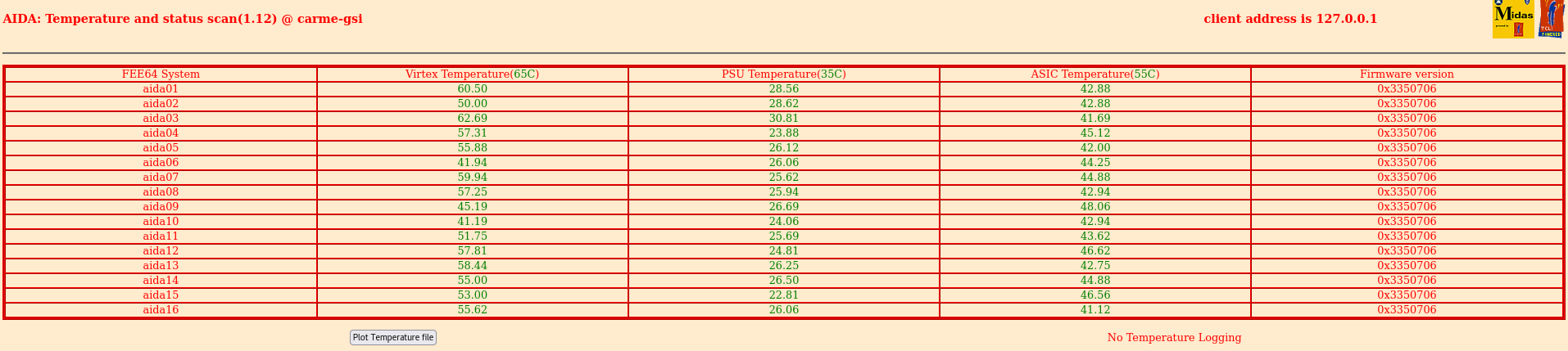

ADC data item stats OK - attachment 4

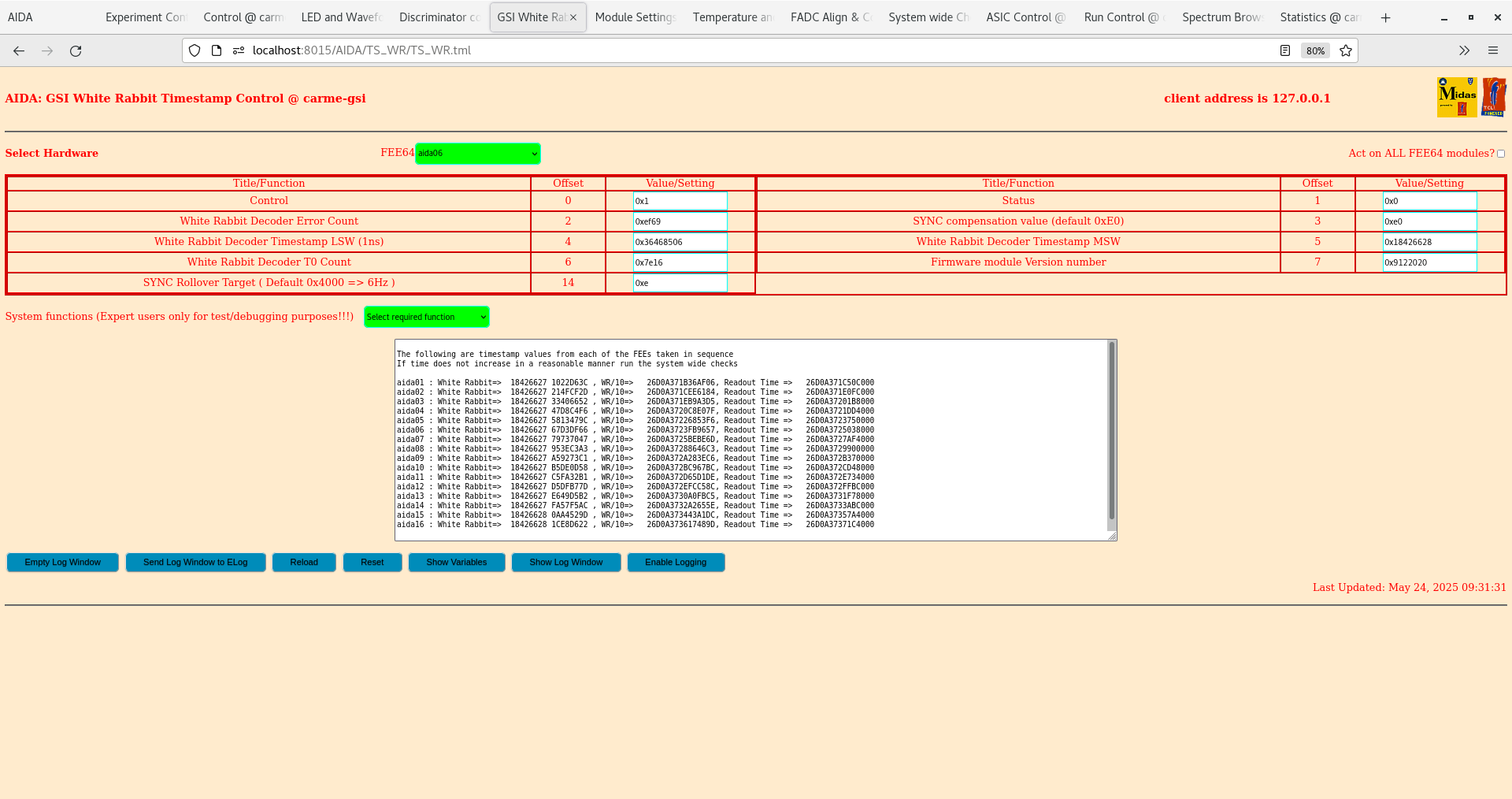

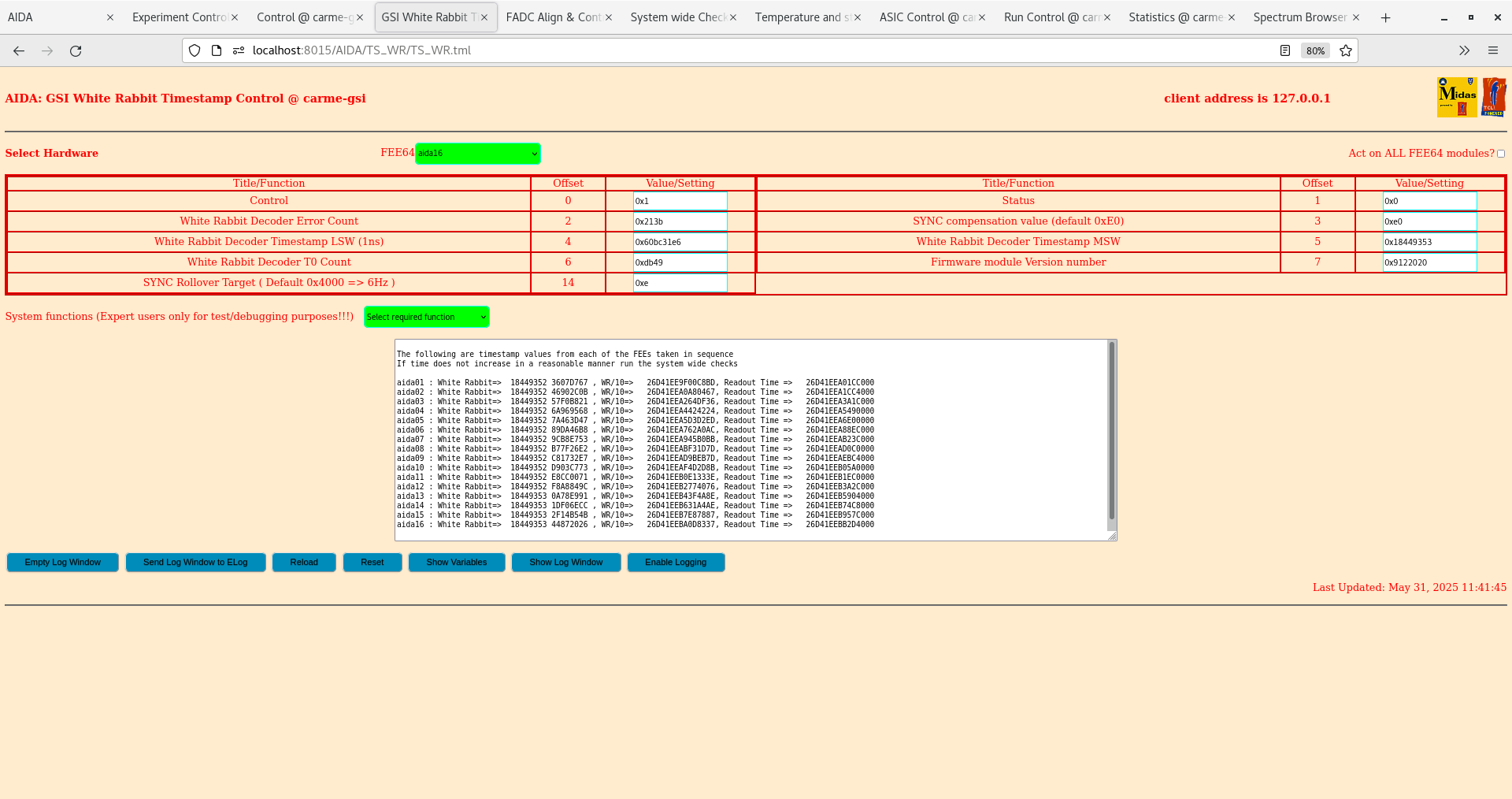

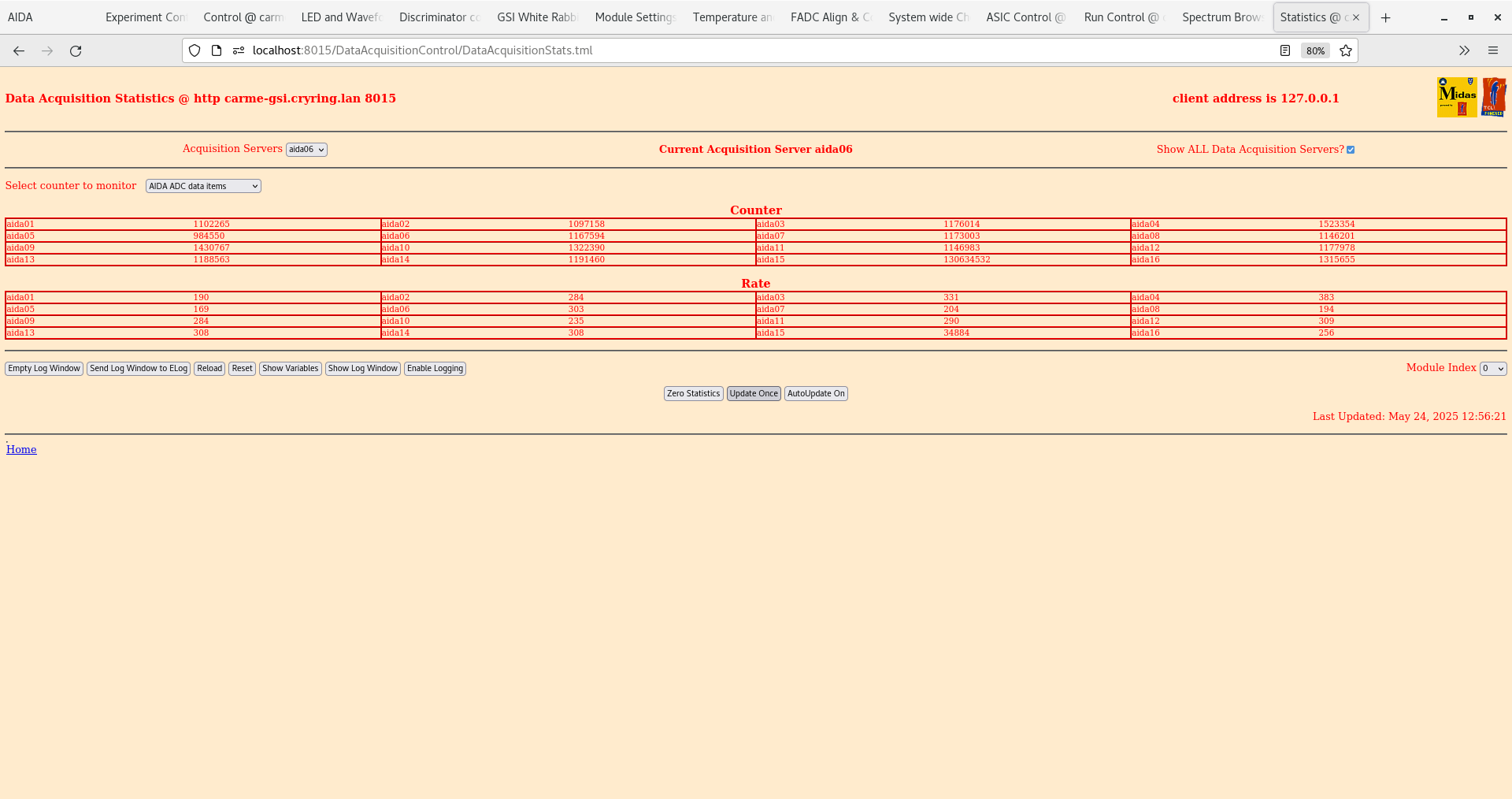

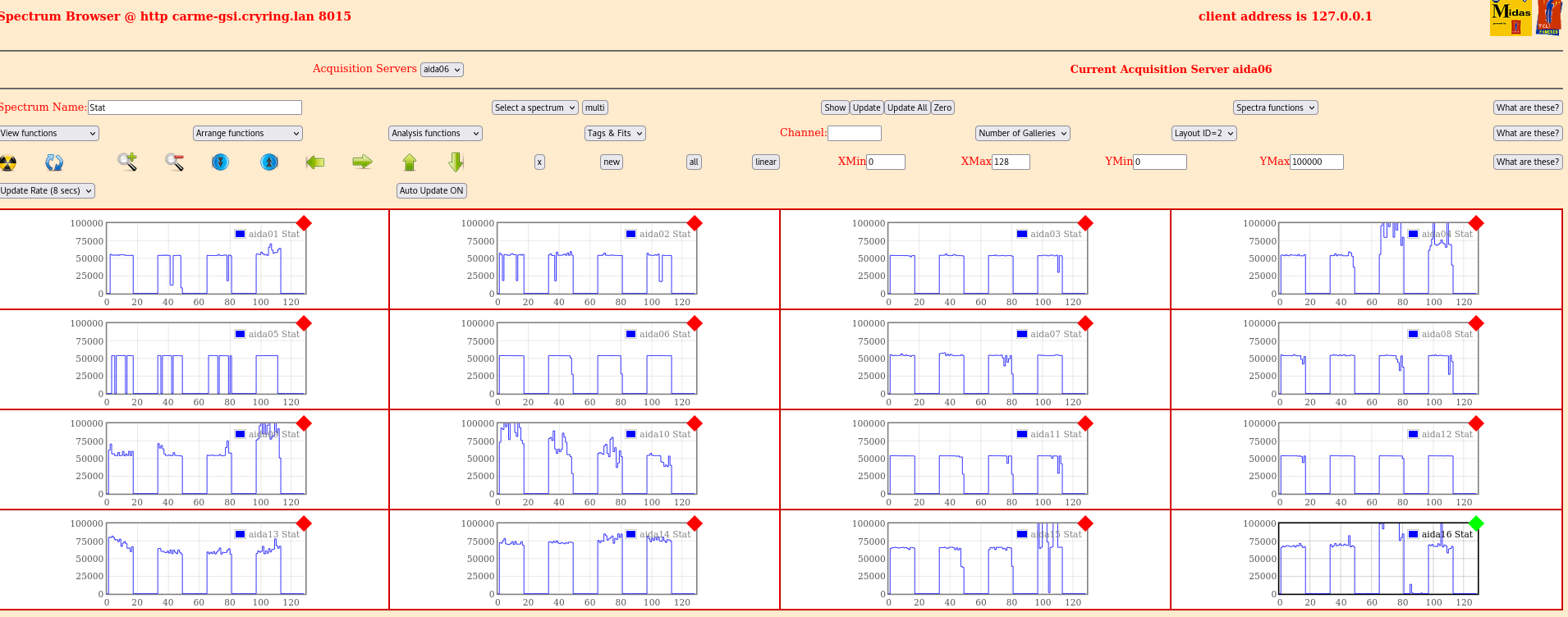

WR timestamps OK - attachment 5

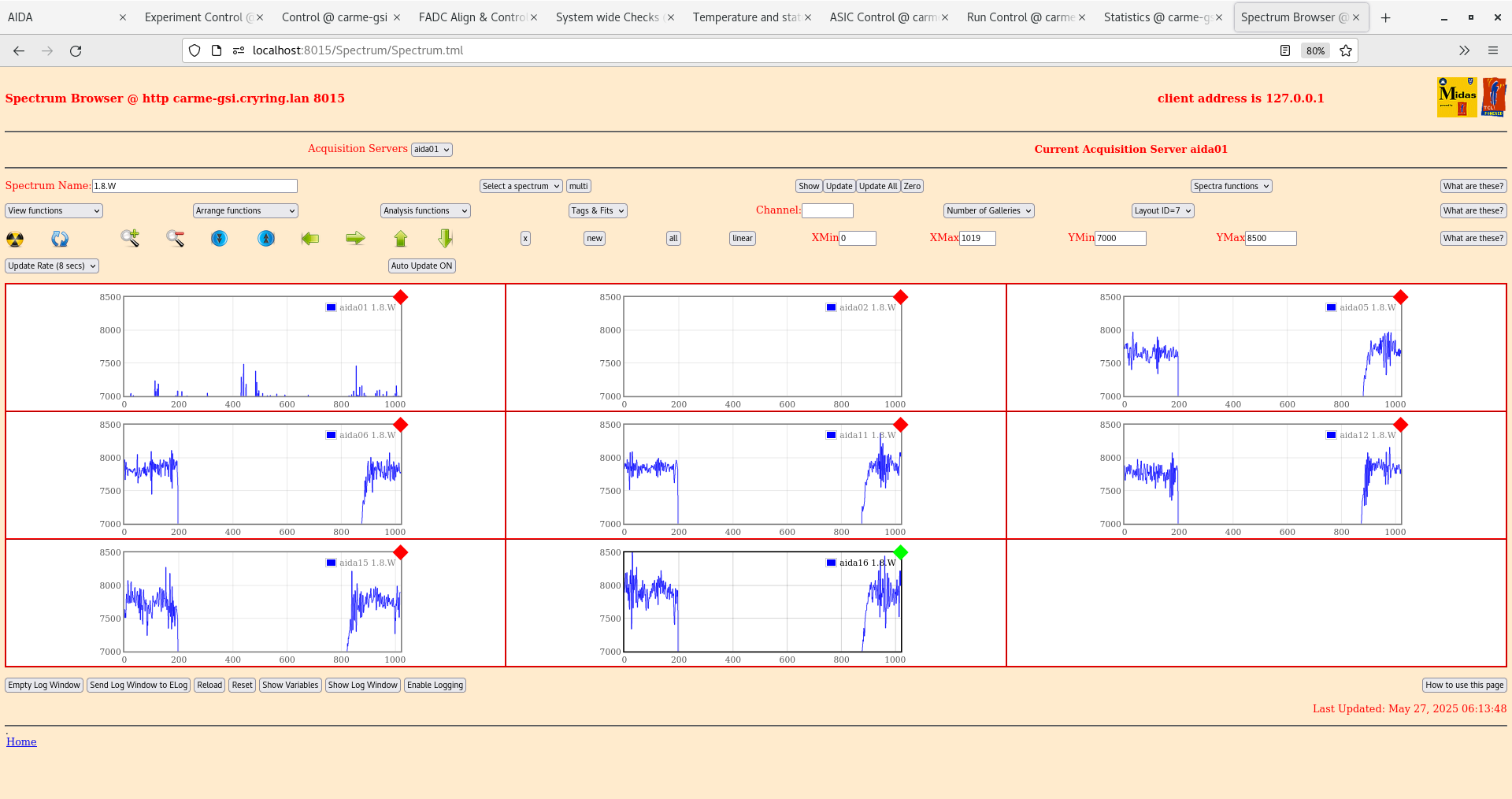

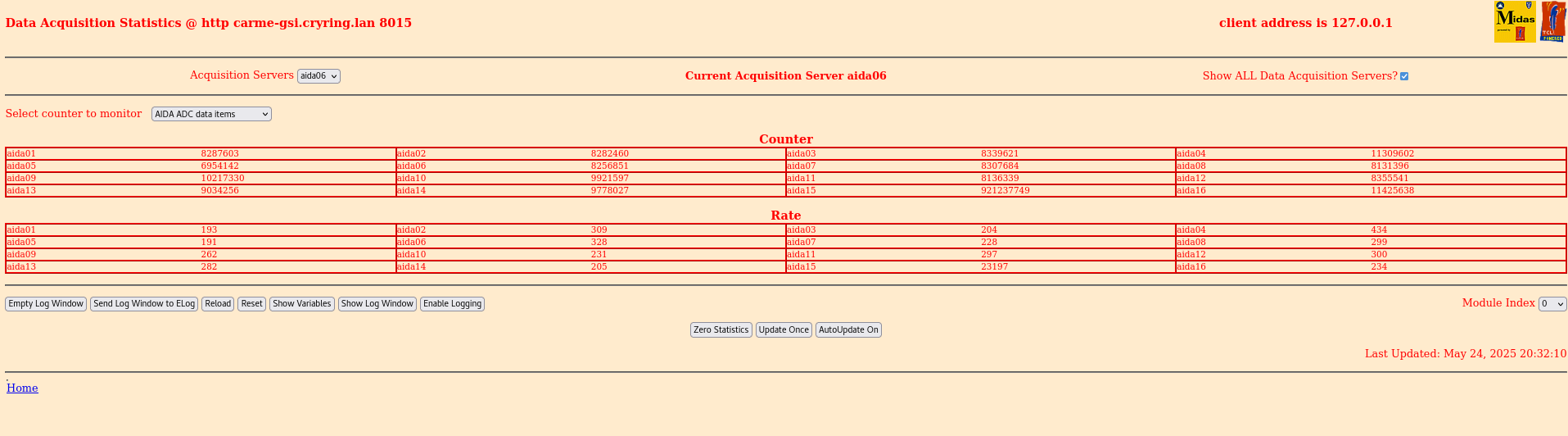

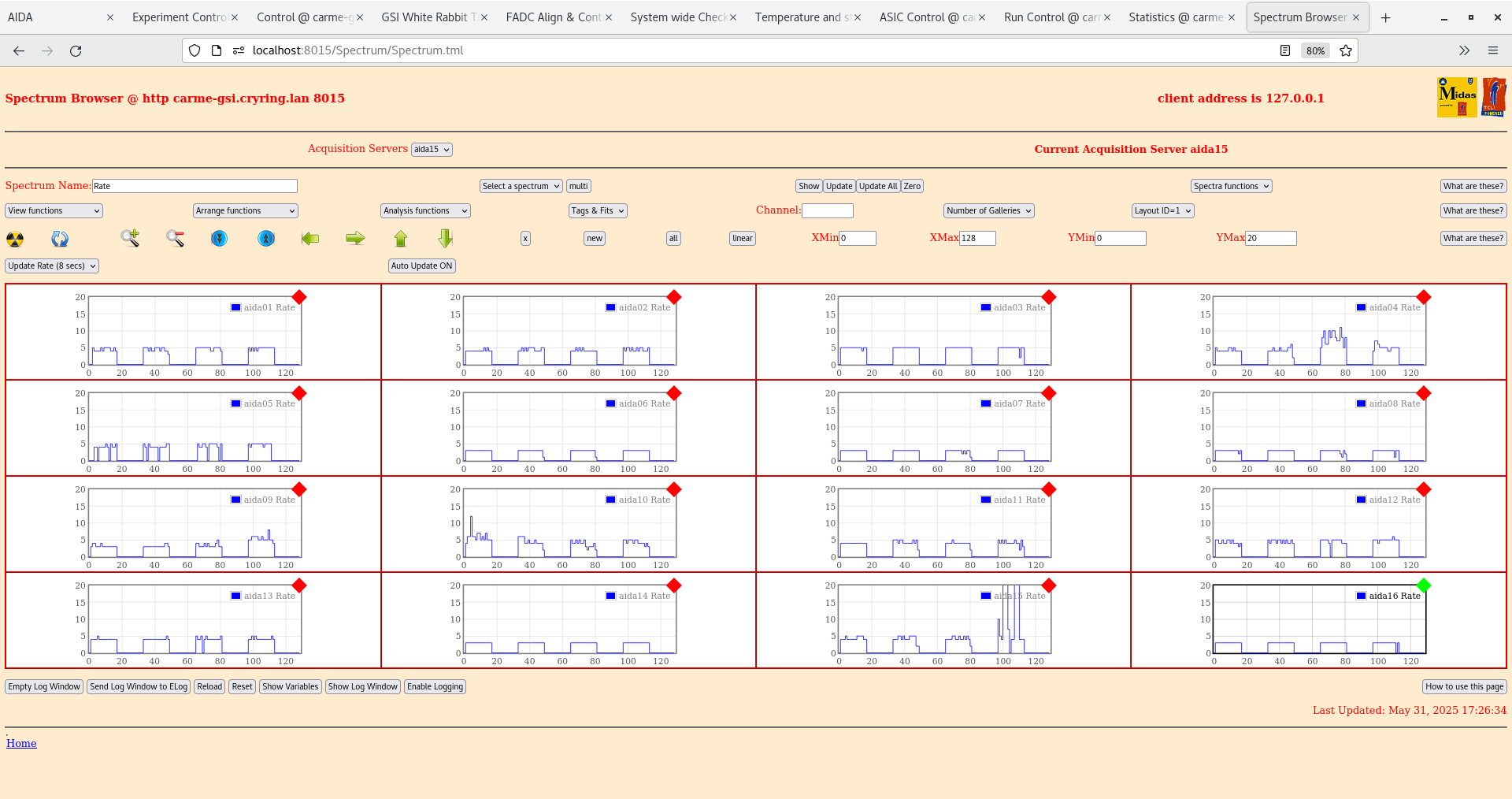

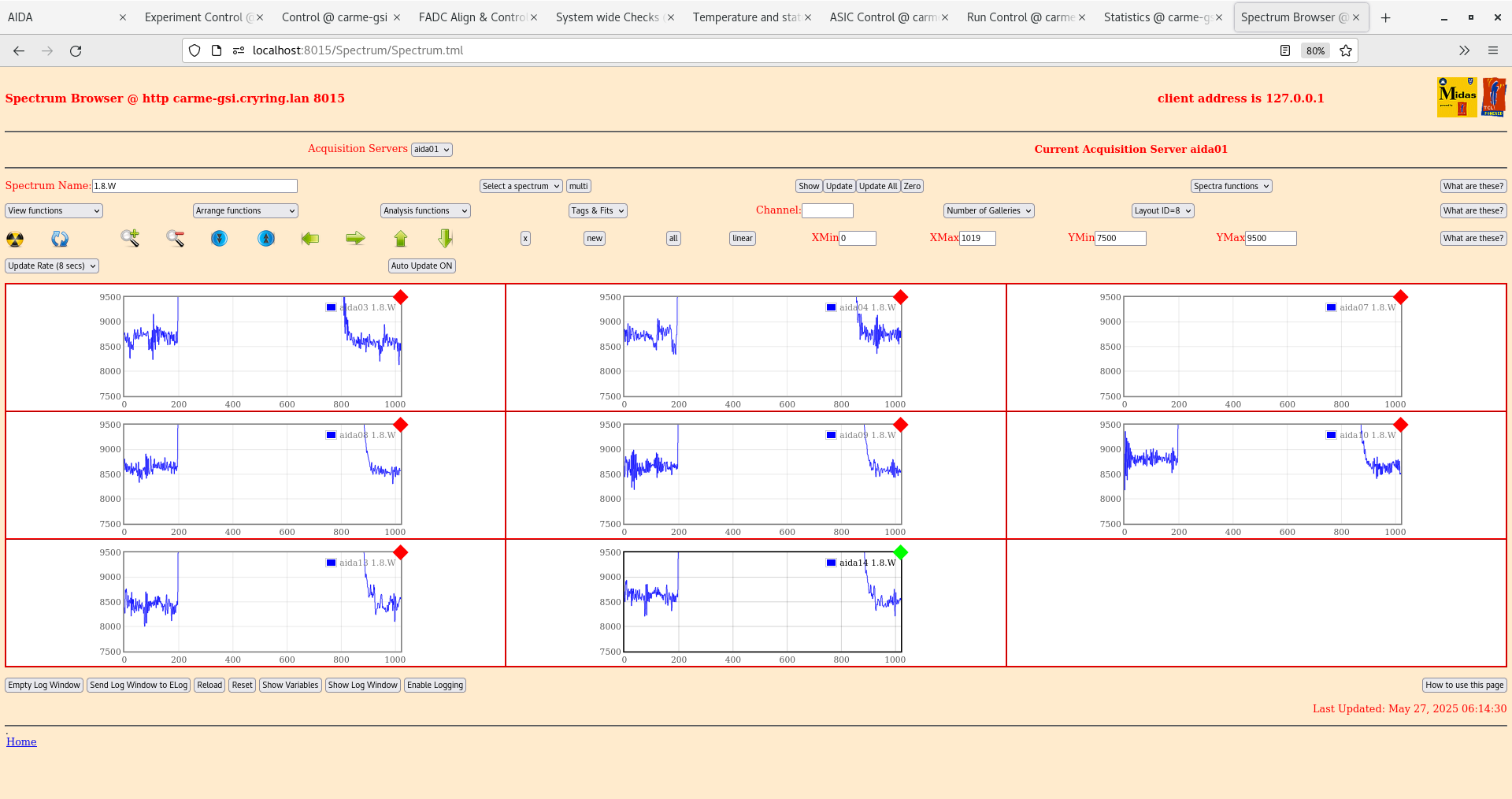

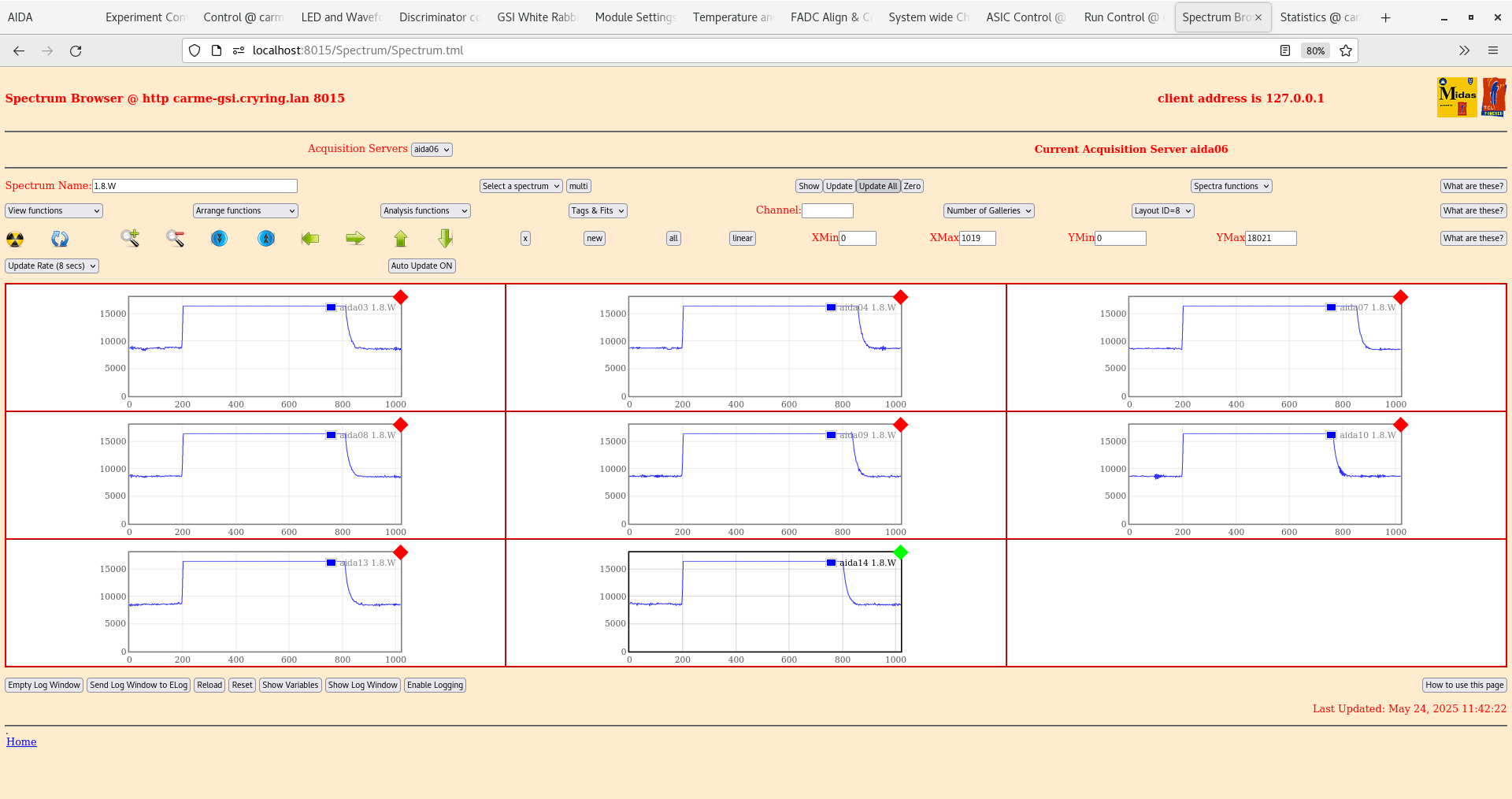

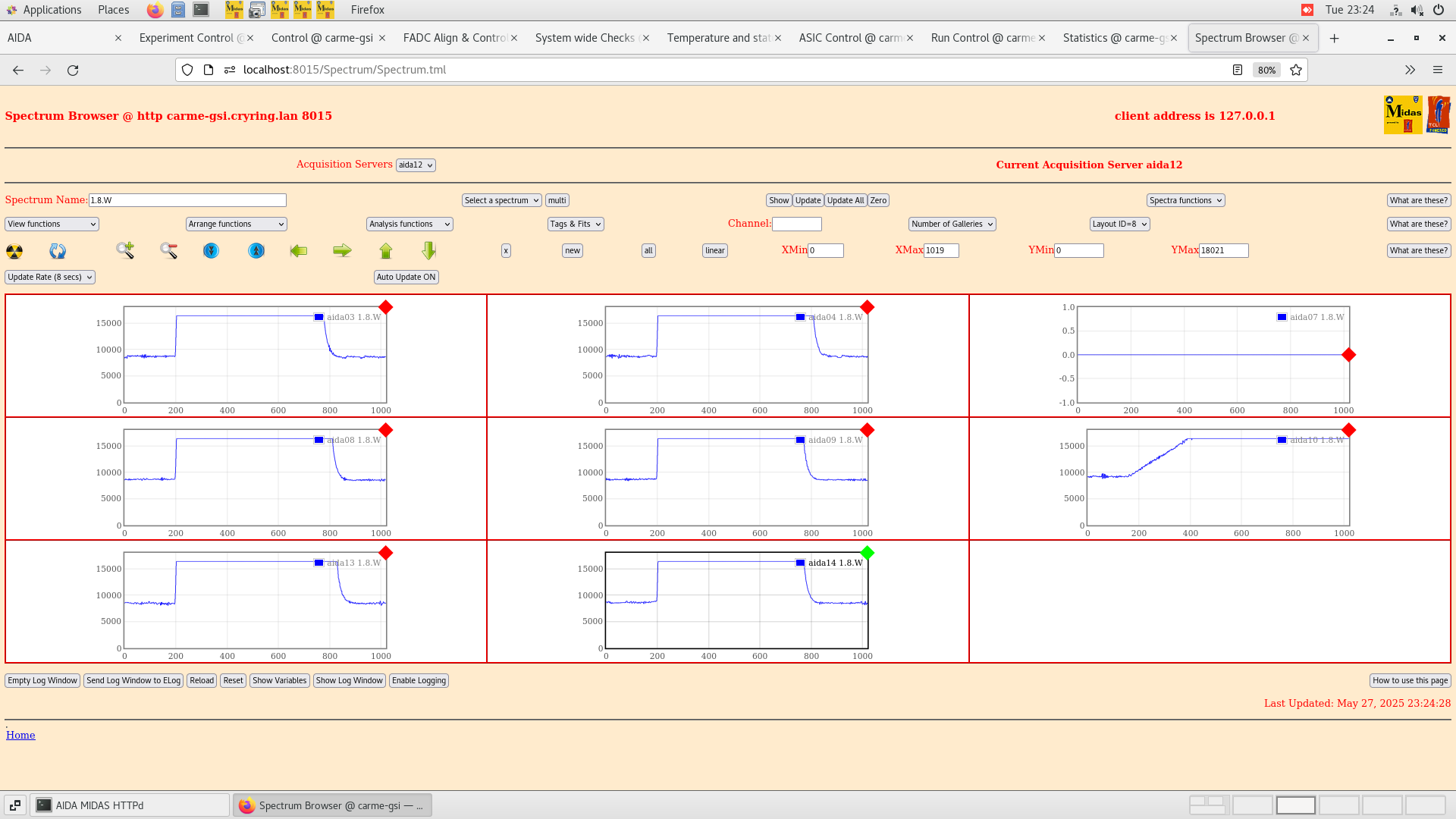

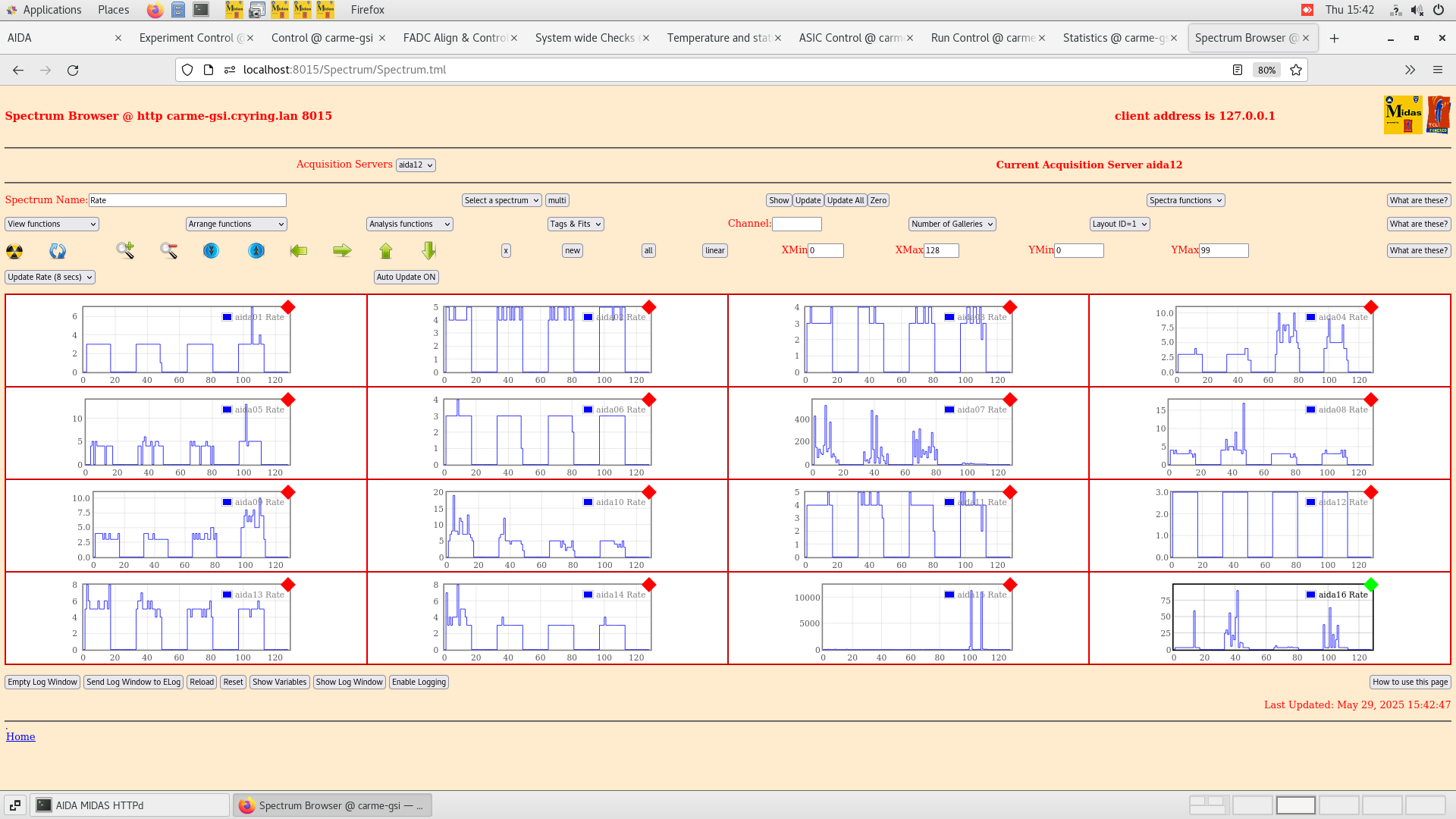

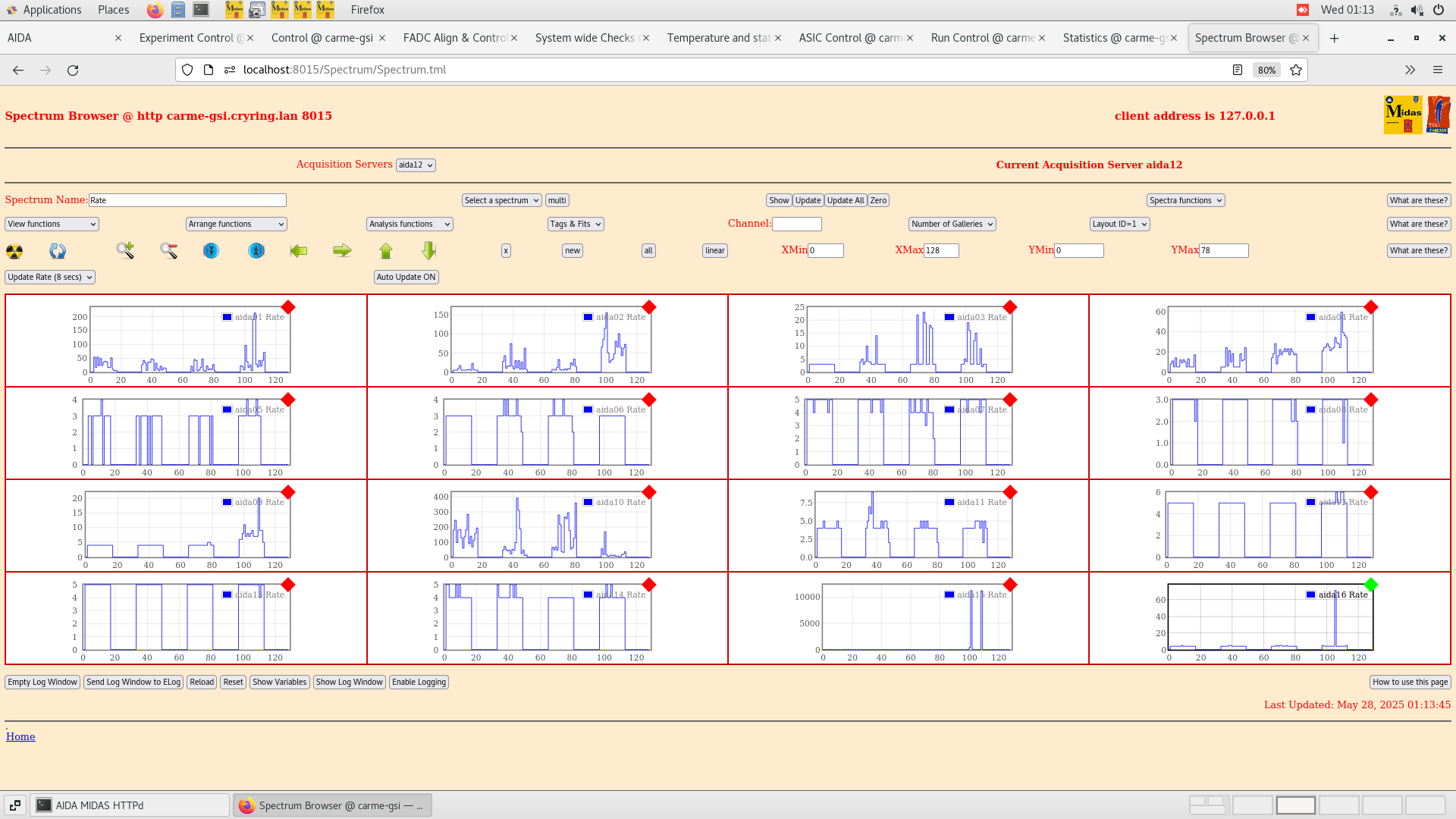

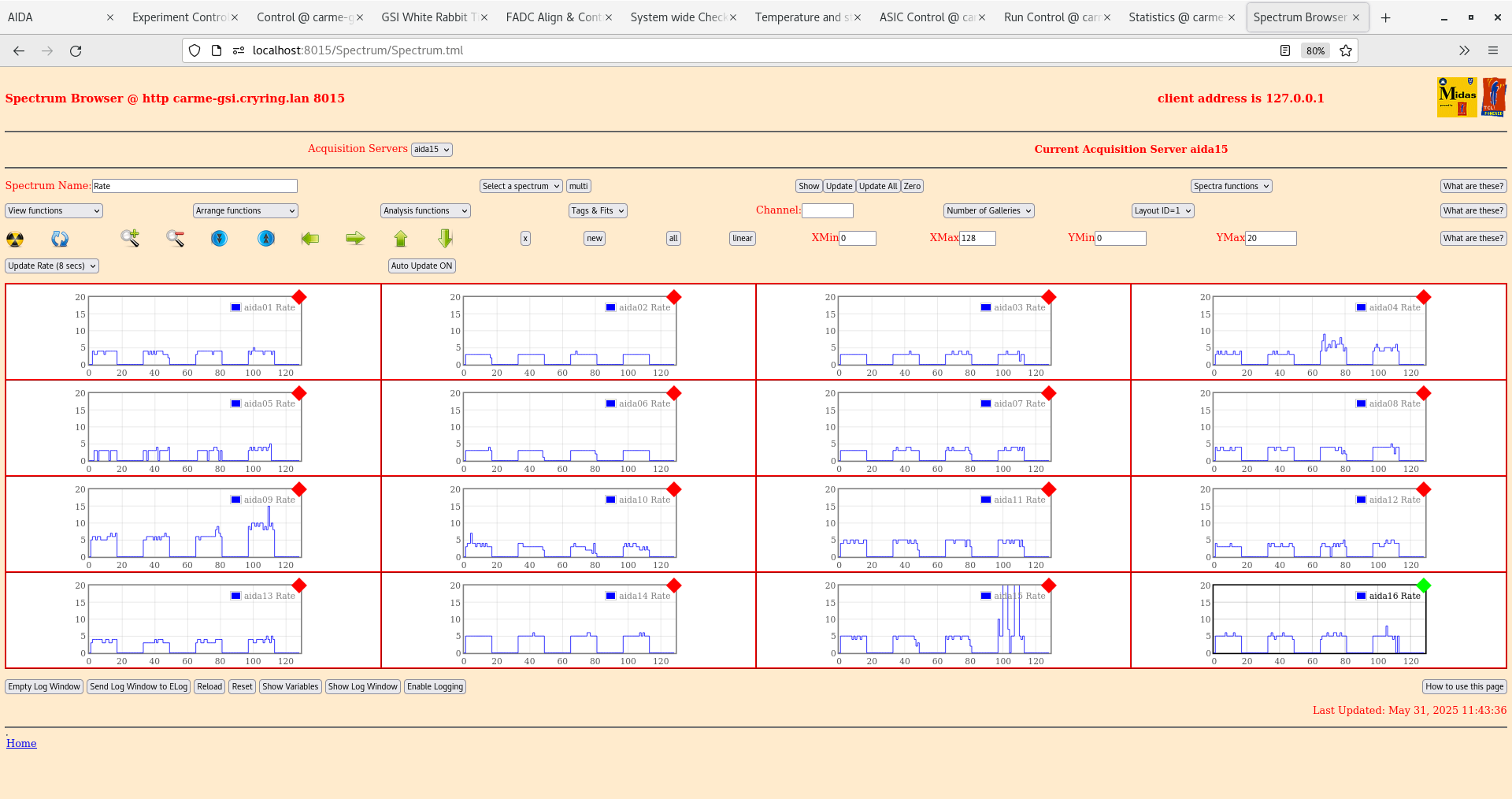

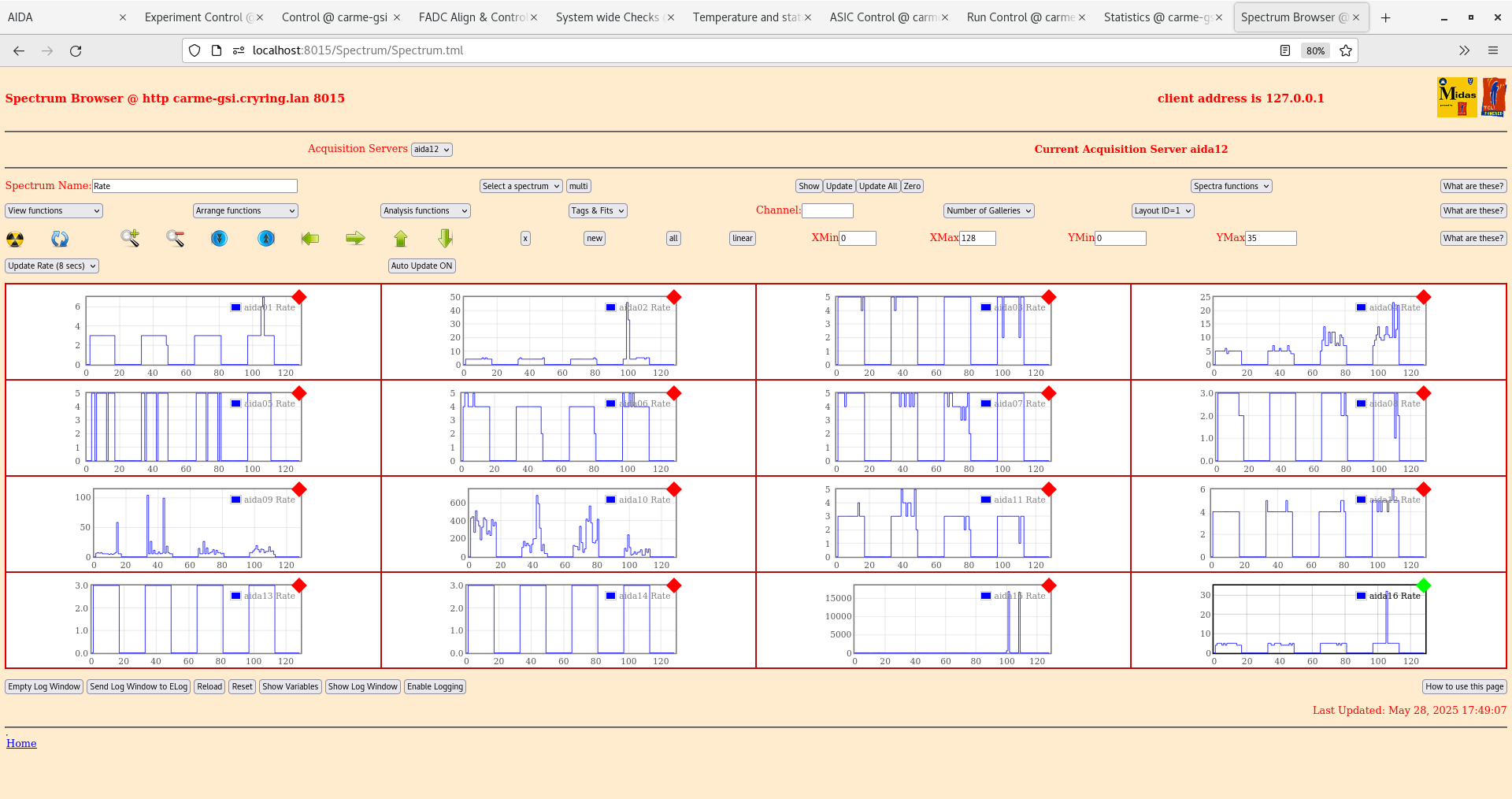

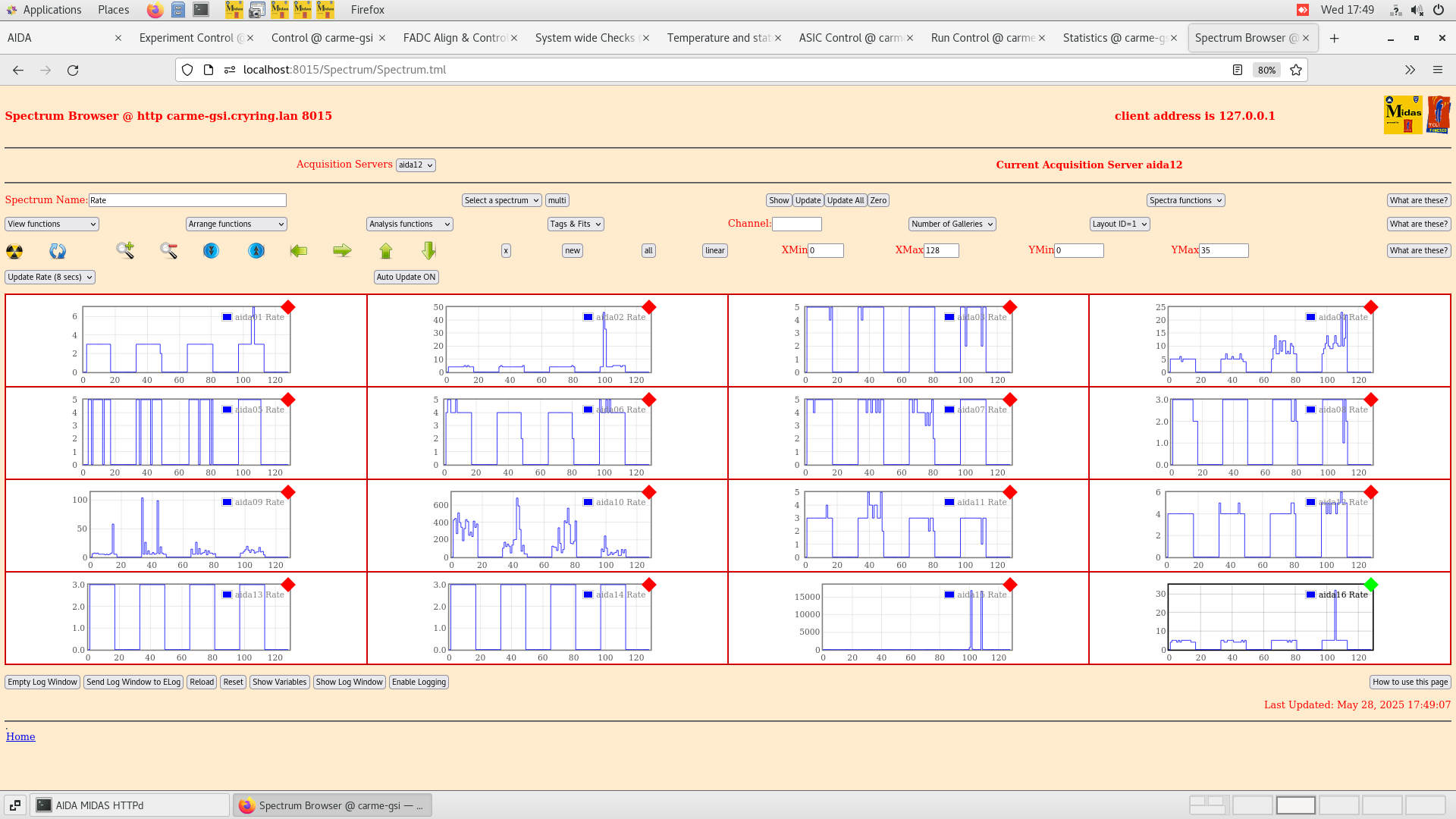

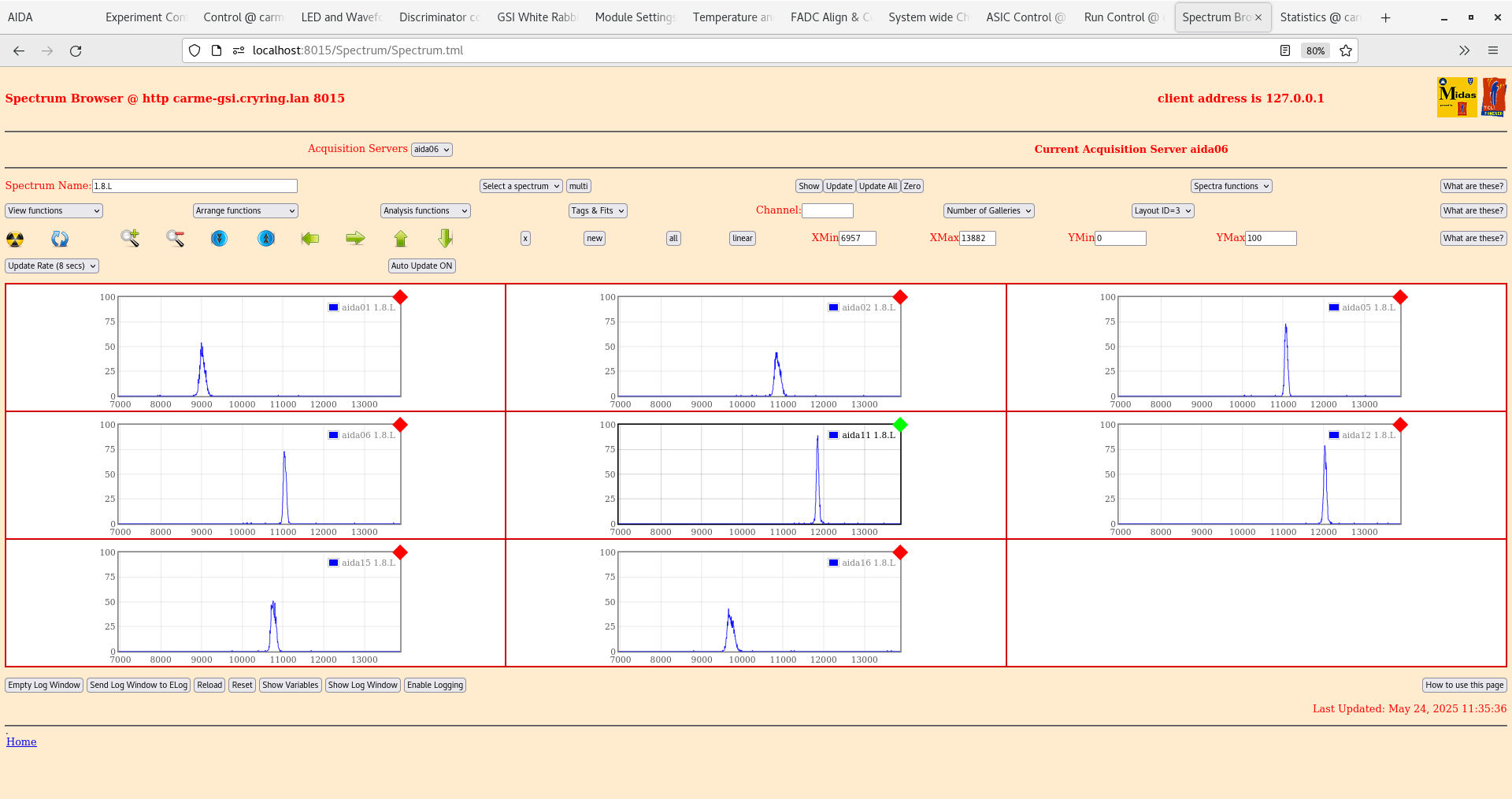

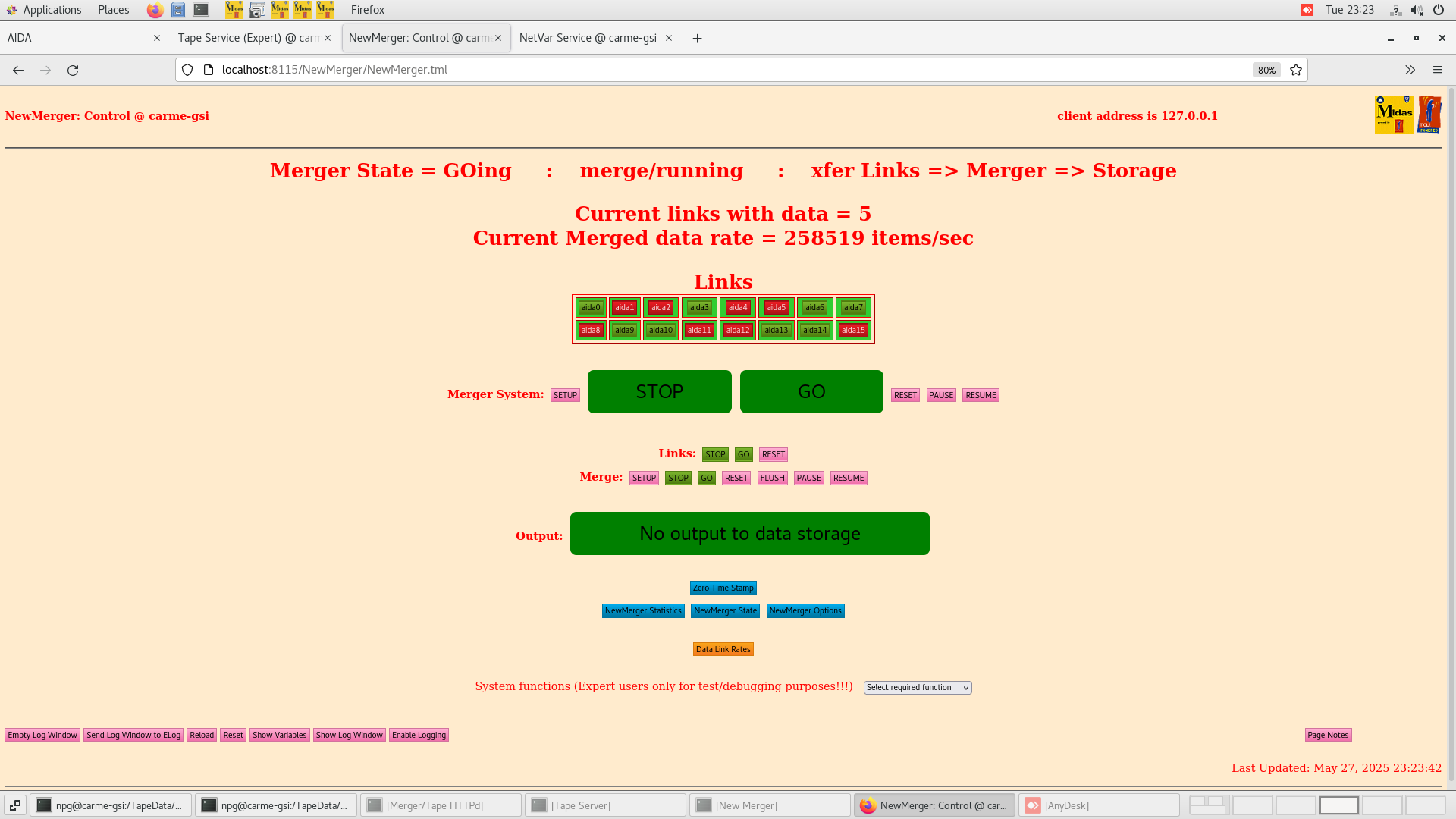

per FEE64 Rate spectra - attachment 6

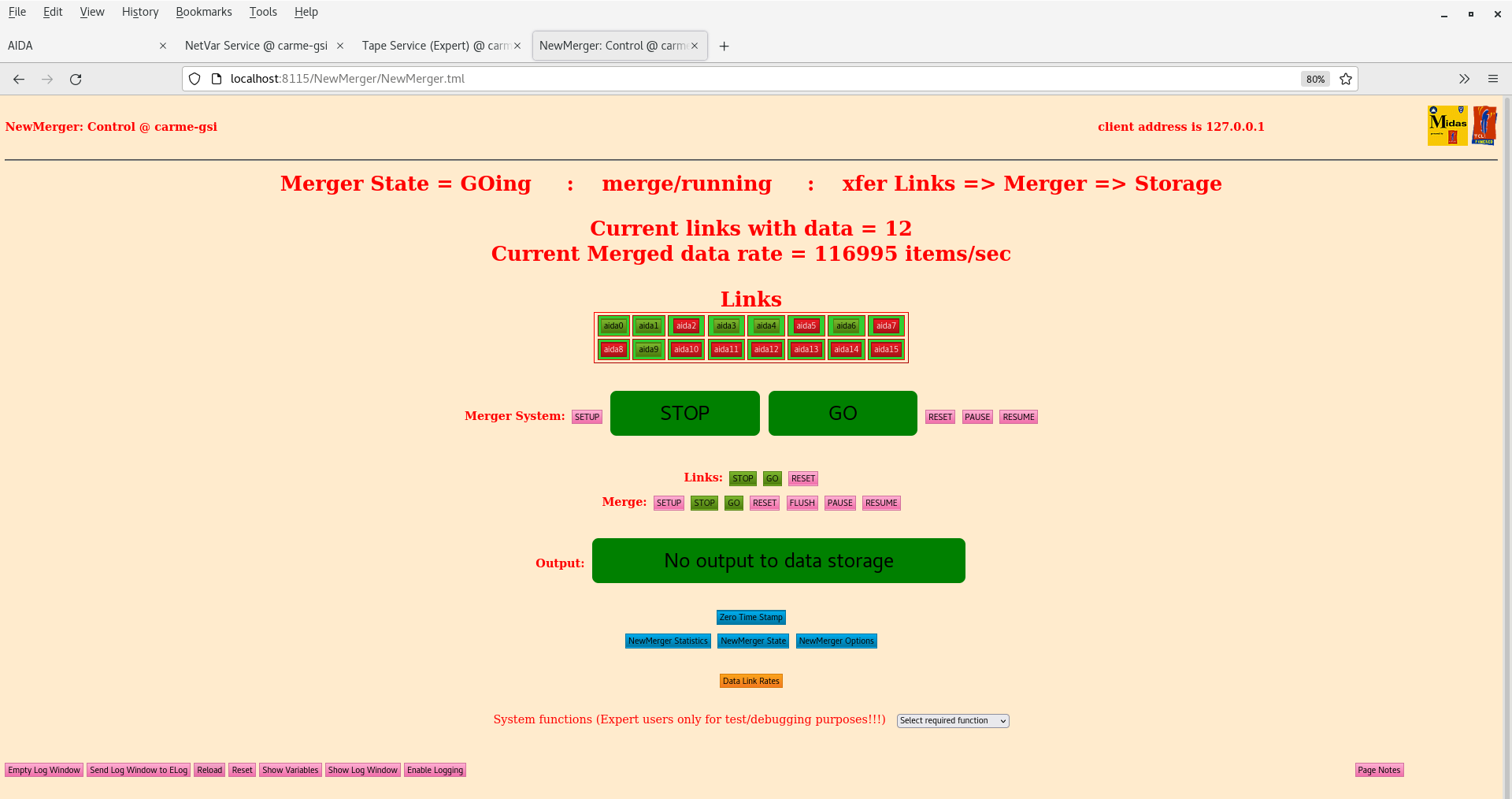

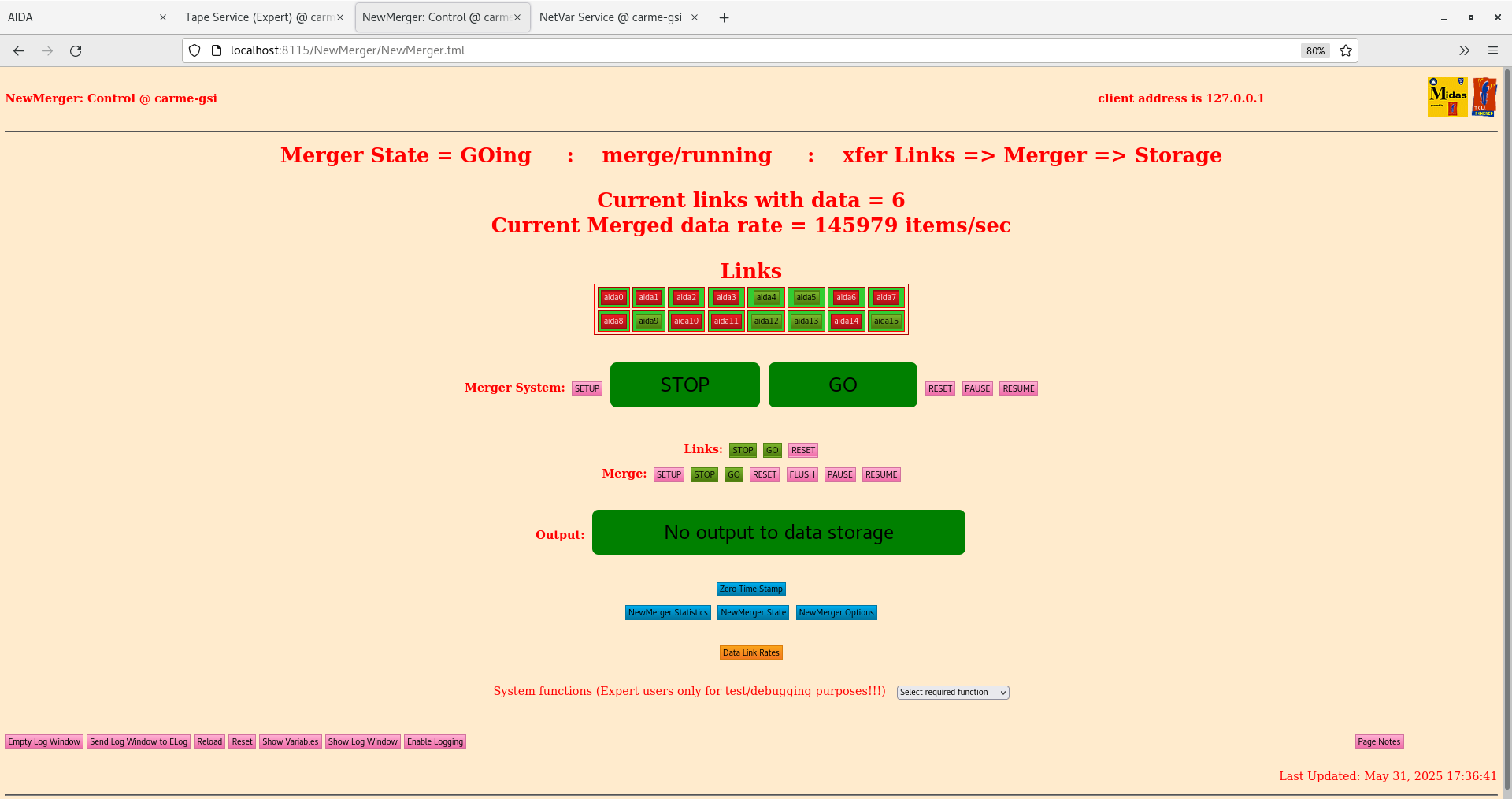

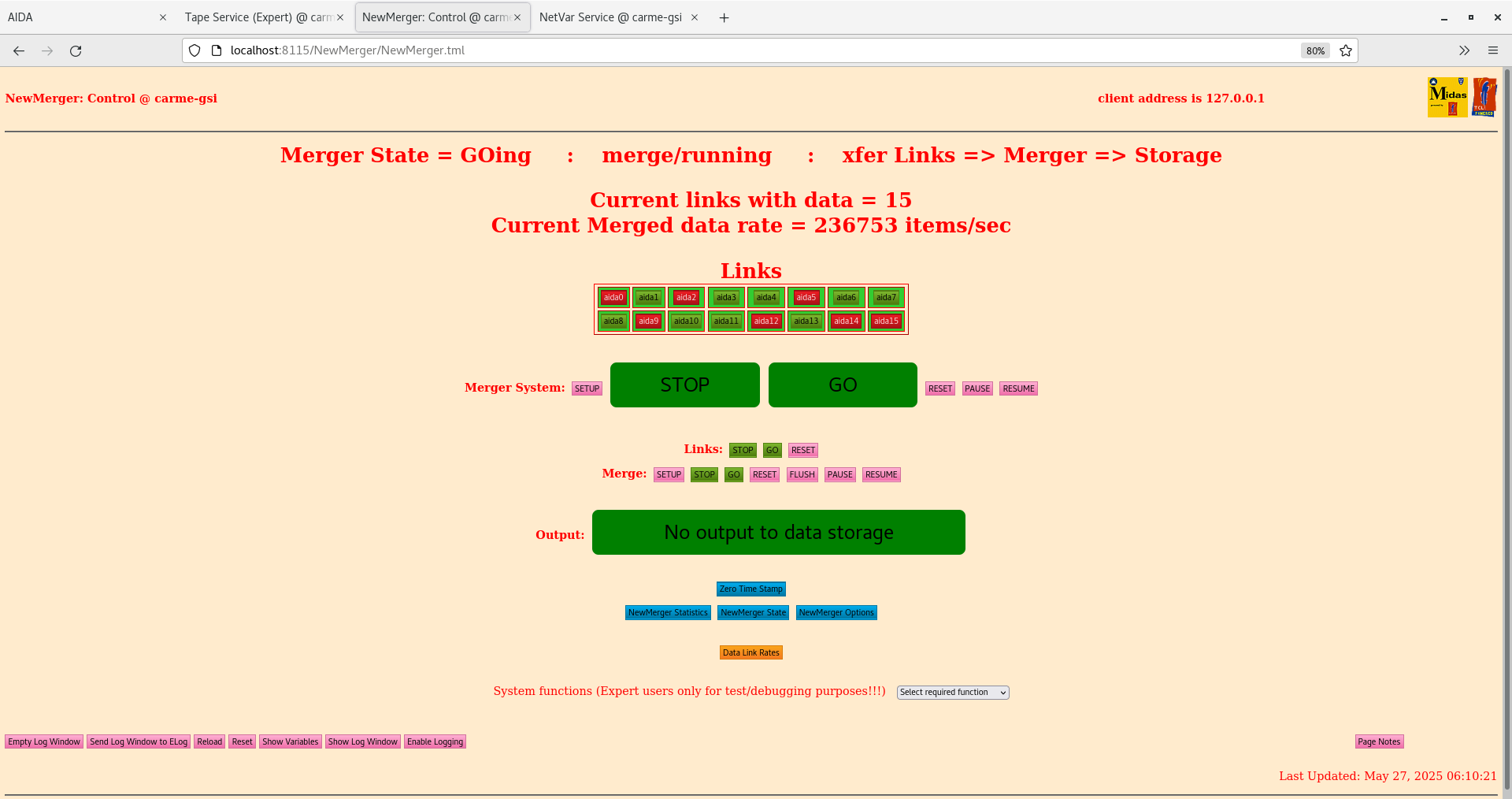

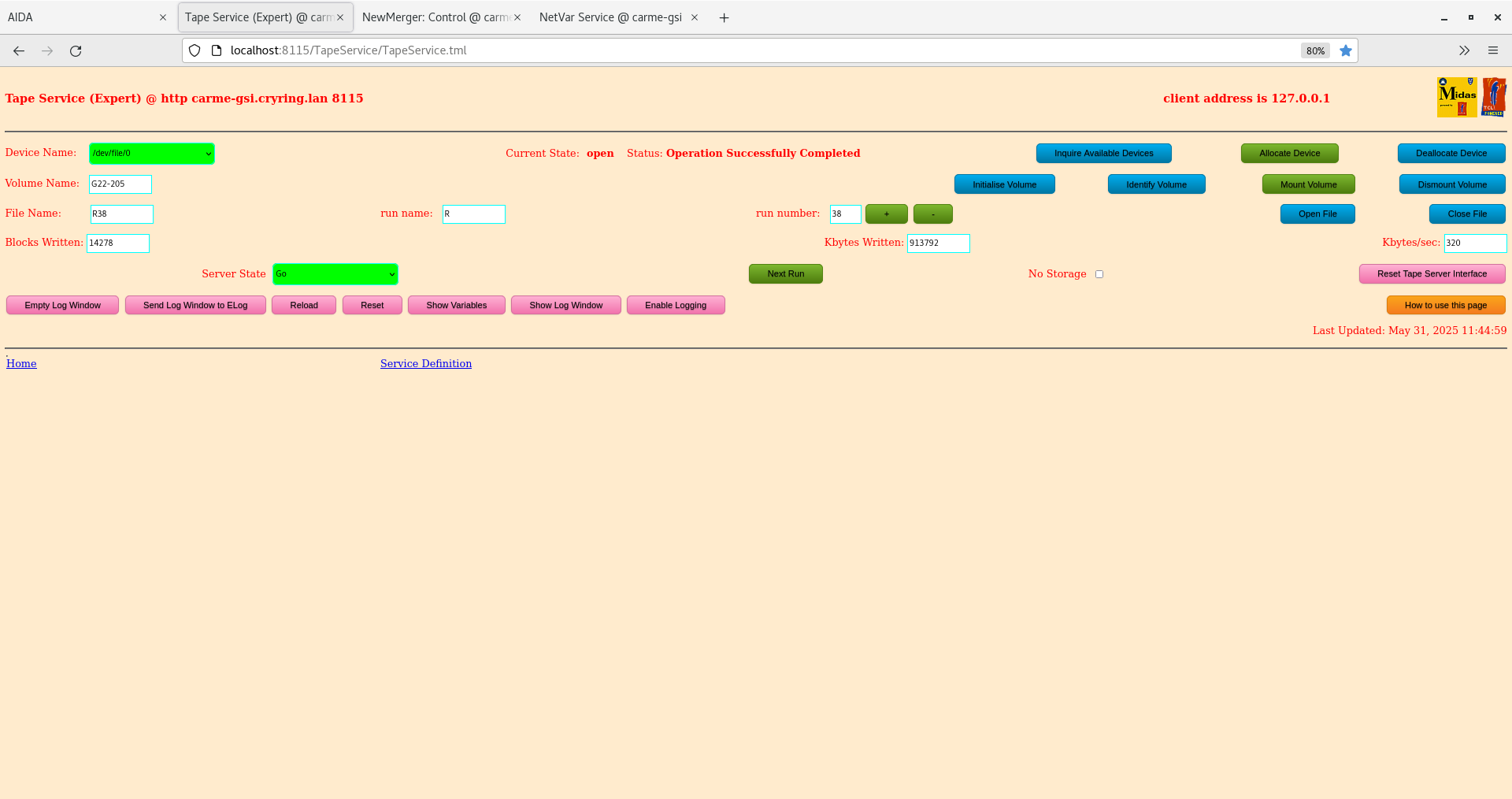

Merger & Tape Server - attachments 7-8
filesystem /mnt/data1 4.7Tb remaining

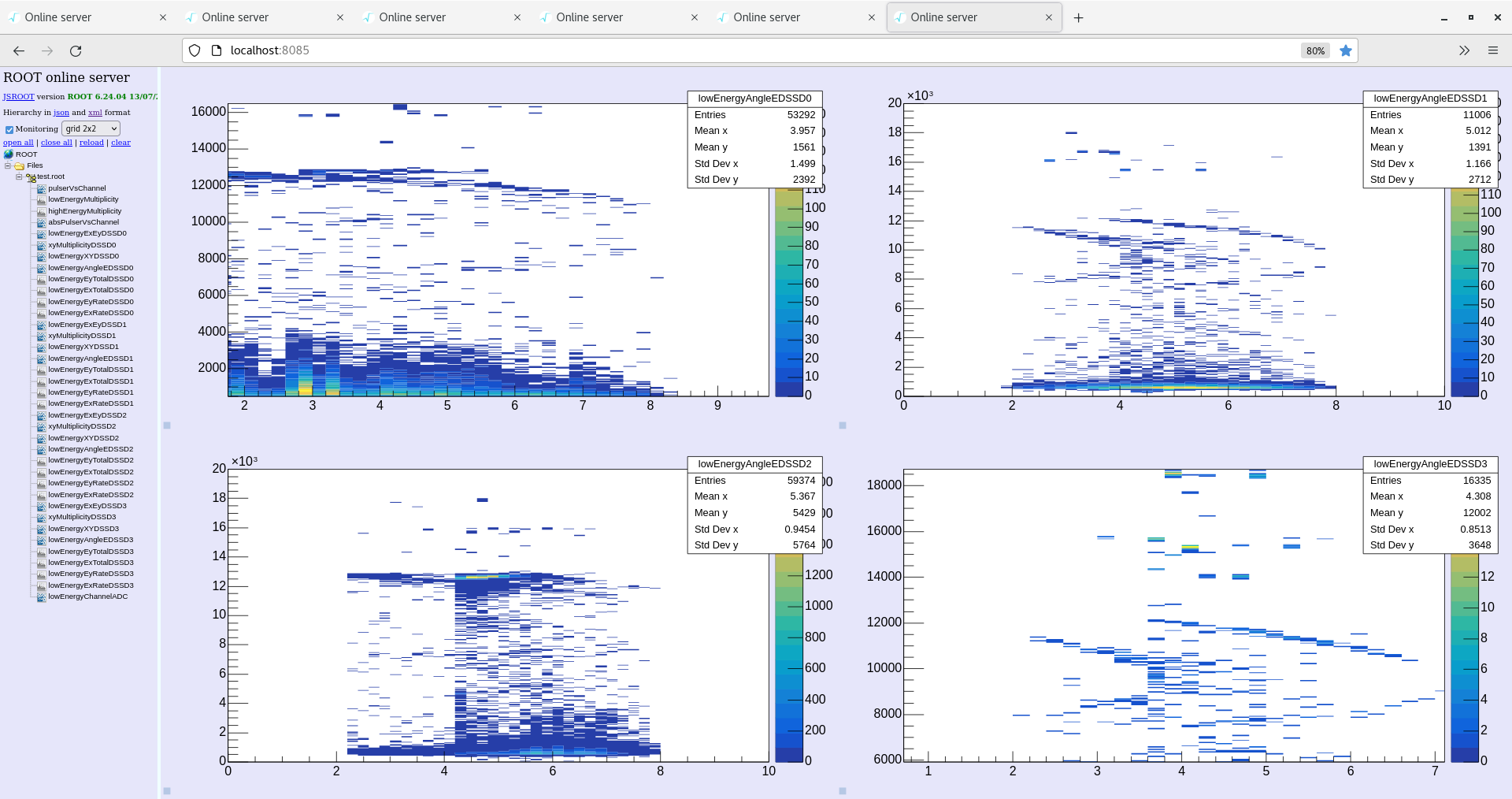

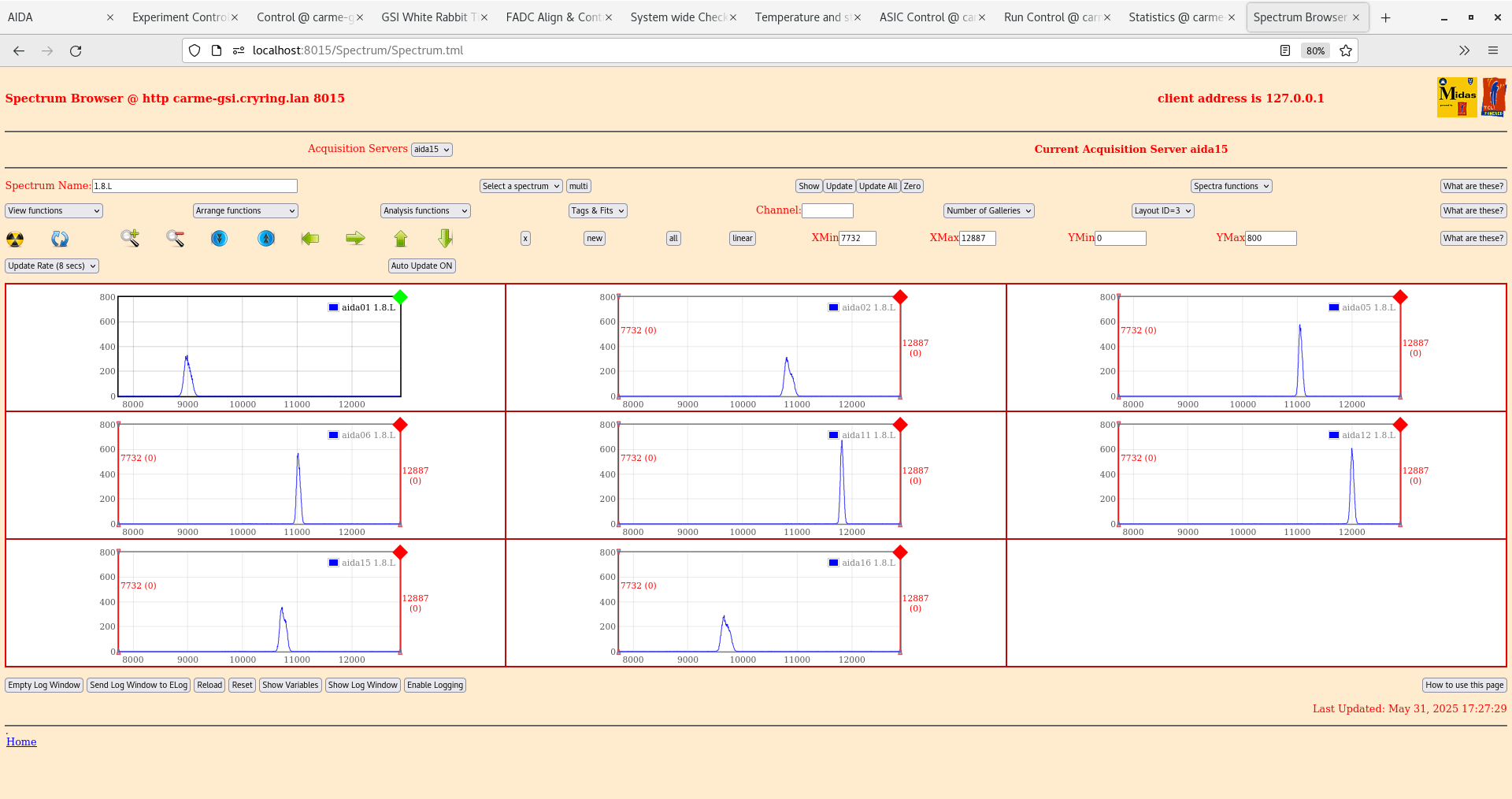

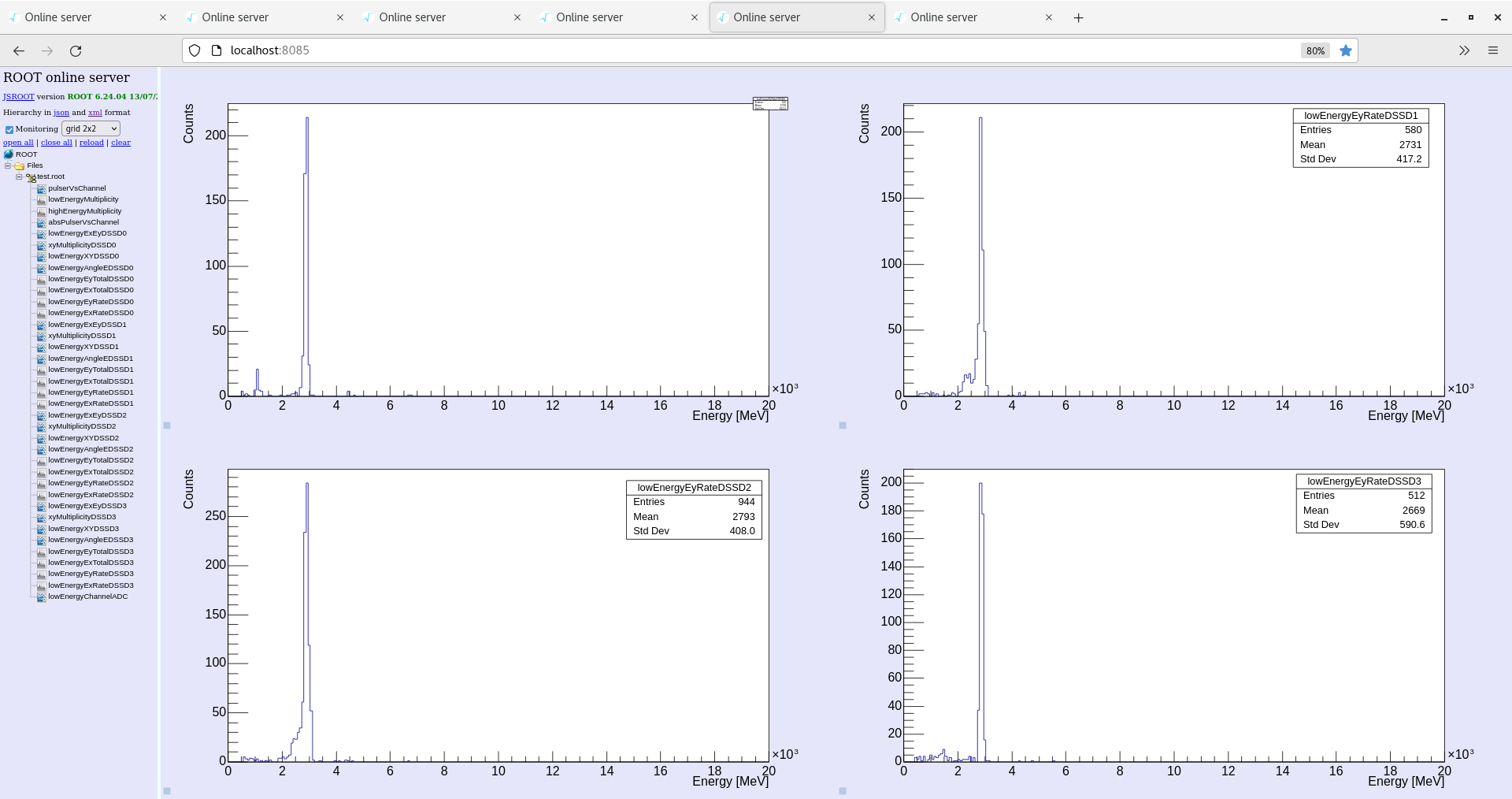

Online analysis - per DSSSD energy spectra - elastic peak max count / channel c. 250-300Hz - attachment 9

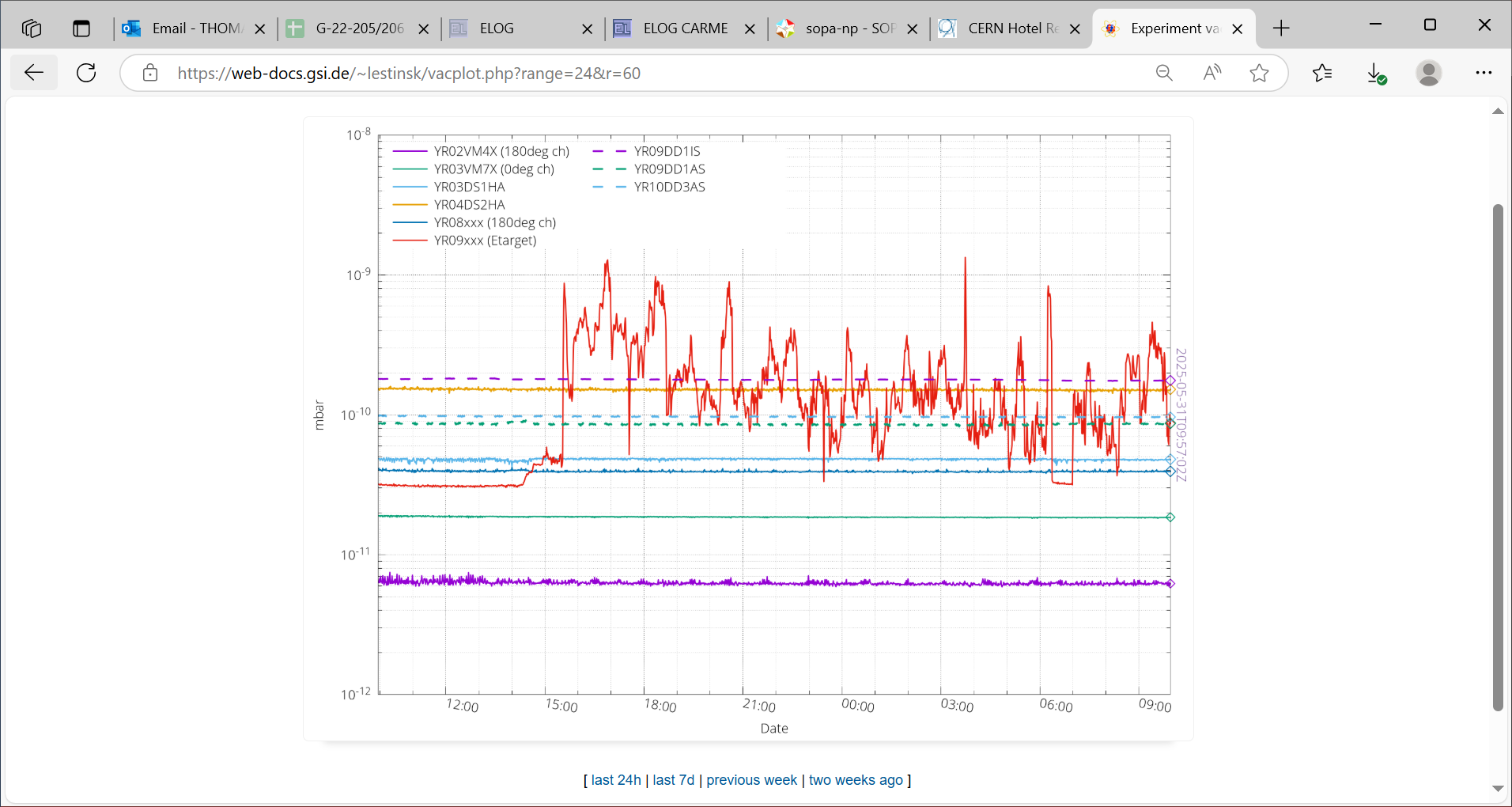

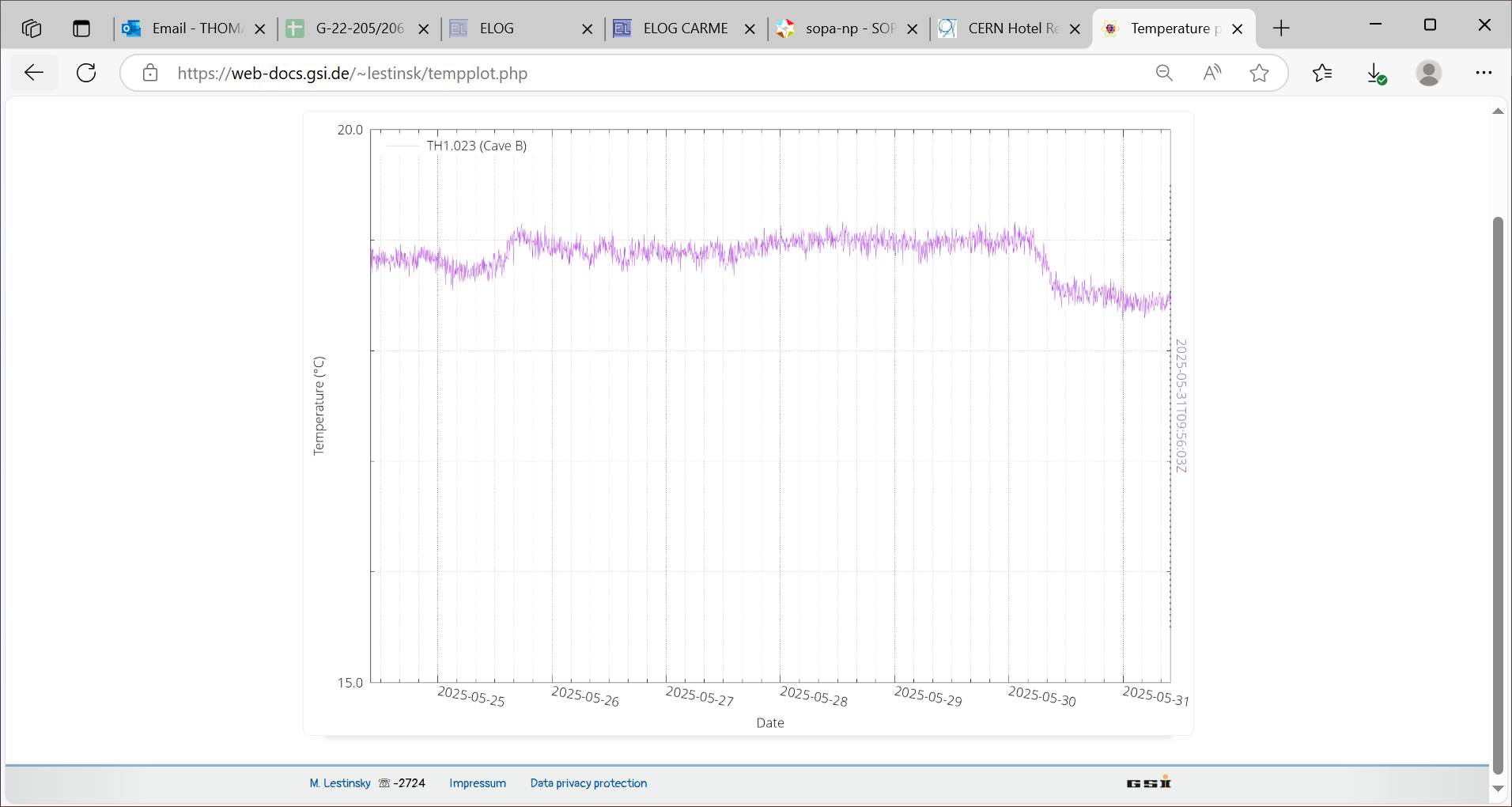

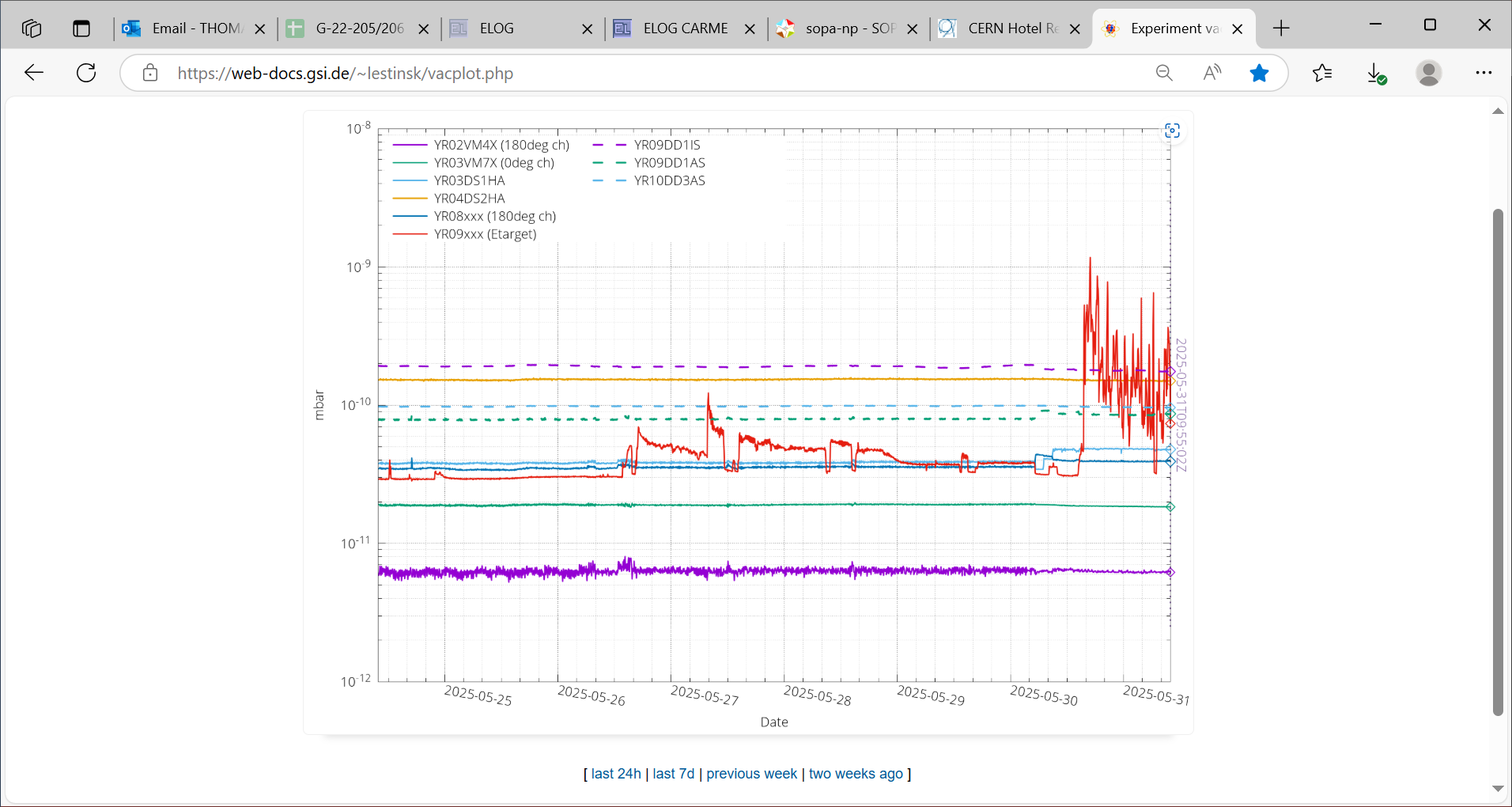

CRYRING vacuum & temperature - attachments 10-12
YR09 e-target gauge indicates vacuum transients from high e-11 to low e-9mbar presumably due to high density D2 target
11.42 All histograms & stats zero'd
17.34 aida11 pulser peak width 63 ch FWHM
aida03 ulser peak width 85 ch FWHM |
| Attachment 1: Screenshot_from_2025-05-31_11-40-15.png
|
|
| Attachment 2: Screenshot_from_2025-05-31_11-40-34.png
|
|
| Attachment 3: Screenshot_from_2025-05-31_11-41-01.png
|
|
| Attachment 4: Screenshot_from_2025-05-31_11-41-18.png
|
|
| Attachment 5: Screenshot_from_2025-05-31_11-42-27.png
|
|
| Attachment 6: Screenshot_from_2025-05-31_11-43-50.png
|
|
| Attachment 7: Screenshot_from_2025-05-31_11-44-54.png
|
|
| Attachment 8: Screenshot_from_2025-05-31_11-45-10.png
|
|
| Attachment 9: Screenshot_from_2025-05-31_11-46-08.png
|
|
| Attachment 10: Capture.PNG
|
|
| Attachment 11: Capture_2.PNG
|
|
| Attachment 12: Capture_3.PNG
|
|
| Attachment 13: Screenshot_from_2025-05-31_17-26-17.png
|
|
| Attachment 14: Screenshot_from_2025-05-31_17-03-49.png
|
|
| Attachment 15: Screenshot_from_2025-05-31_17-03-18.png
|
|
| Attachment 16: Screenshot_from_2025-05-31_17-03-38.png
|
|
| Attachment 17: Screenshot_from_2025-05-31_17-26-42.png
|
|
| Attachment 18: Screenshot_from_2025-05-31_17-27-39.png
|
|
| Attachment 19: Screenshot_from_2025-05-31_17-27-39.png
|
|
| Attachment 20: Screenshot_from_2025-05-31_17-36-49.png
|
|

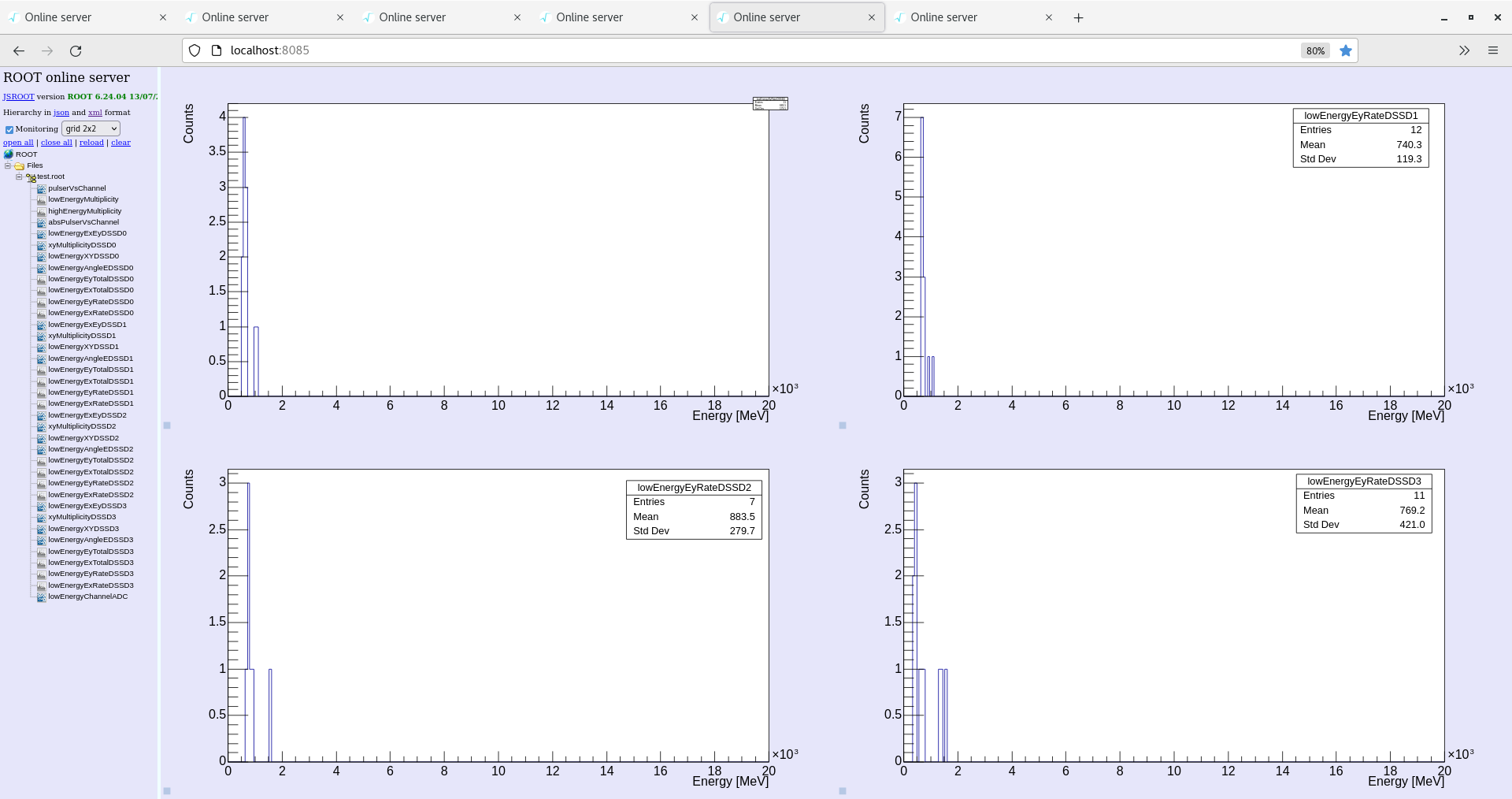

| Attachment 21: Screenshot_from_2025-05-31_17-37-07.png
|
|
|
707
|
Sat May 31 09:58:21 2025 |
JM | Run 38 | 10:56
Run 38 started.
D+ beam deuterium target. D+ beam energy is 1.5 MeV/u. (beam calc calculation is 1.5160 MeV/u)

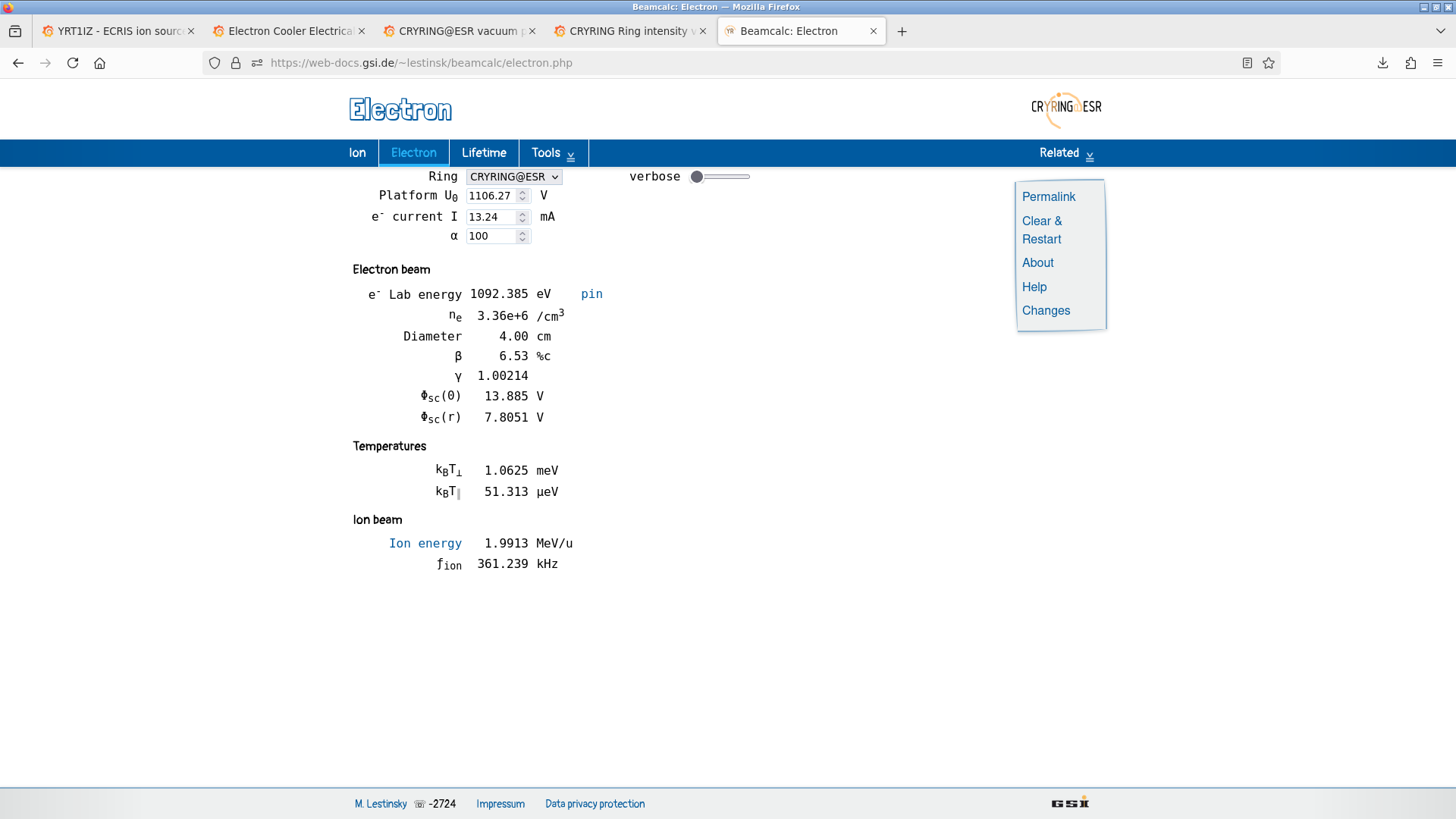

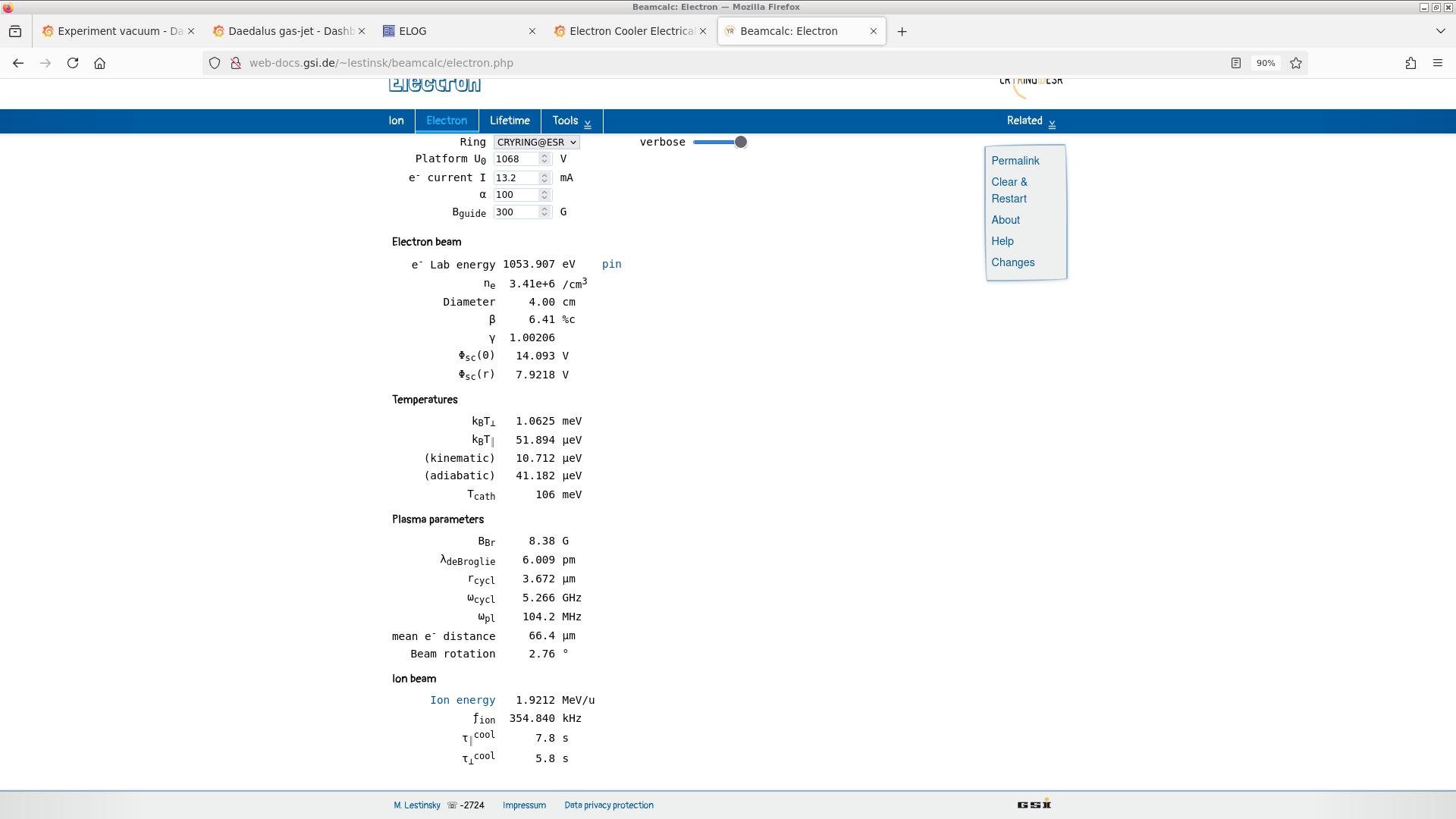

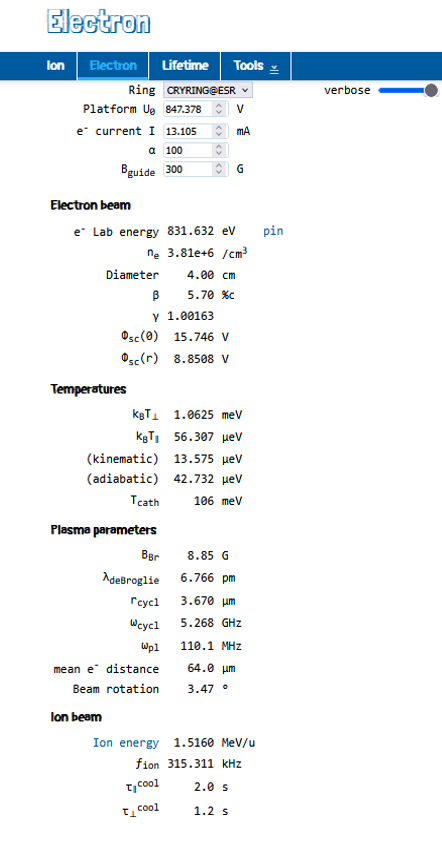

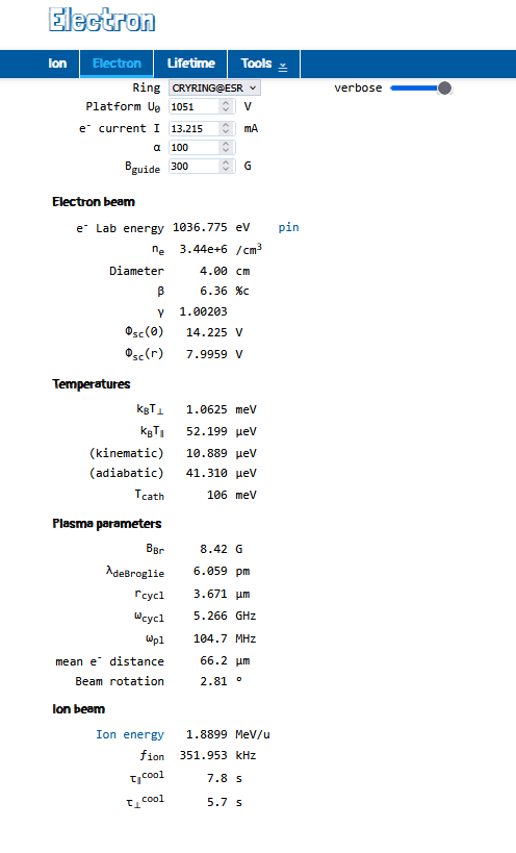

Beam calc - Attachment 1
Target density is about 8.5e12 at/cm2 after moving nozzle this morning.
All four detectors positioned fully out and stationary.
Left potentiometer = 18.86 mm
Right potentiometer = 19.8 mm
Ring cycle time is 1 minute. Note we see some hydrogen in in the spectrum, this disapears after a few seconds.
Target T1=30K, T2=31.9K.
Nozzle position x=-2.89, z=1.72 mm
YR09-Etarget pressure = 2.37e-10 mbar.
Cooler set value = 846V, 15 mA. Read value = 847.378V, 13.105mA
Detector 4 looks OK at the moment.
Beam position. Vertical =0.0mm , Horizontal=2.5mm
11:05
All checks OK
Data rate is ~300 kB/sec.

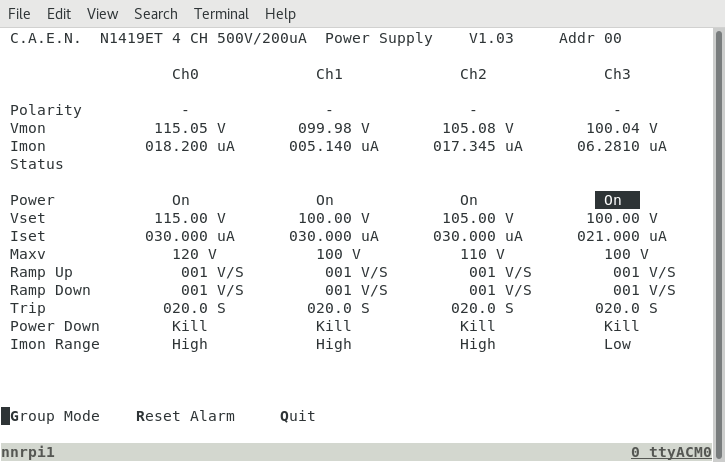

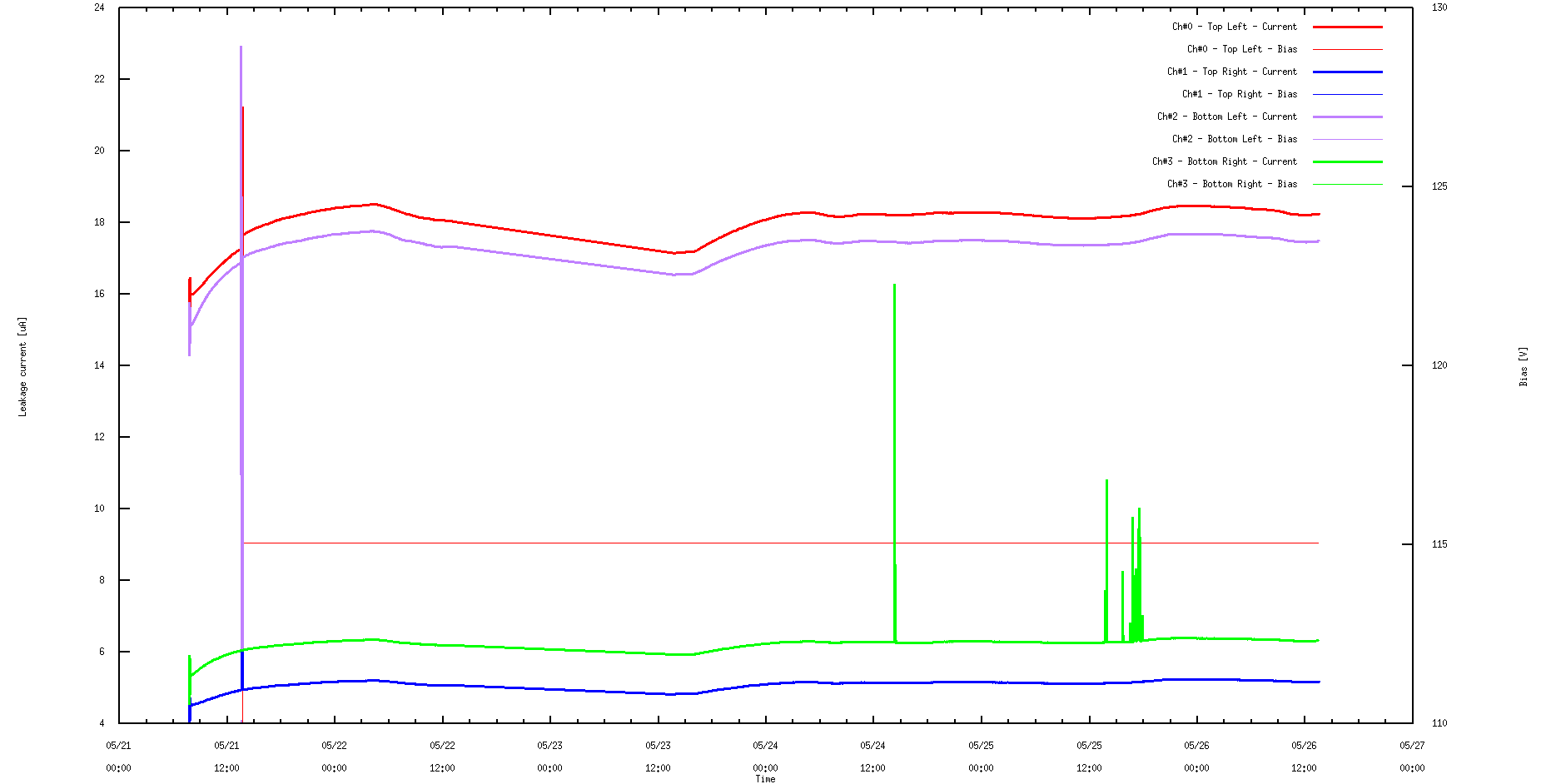

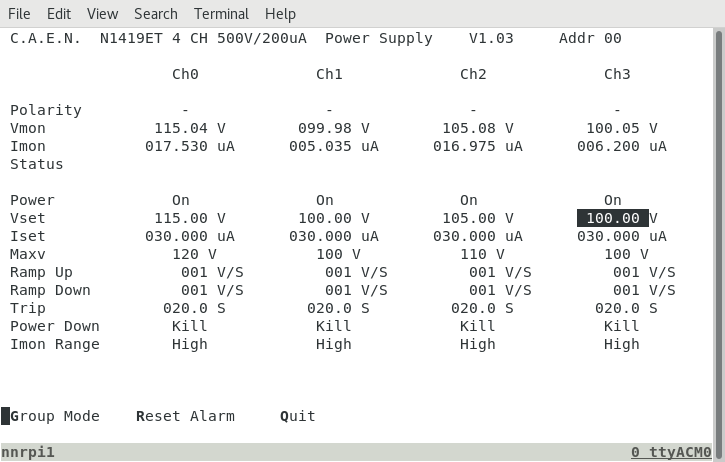

Leakage currents - attachments 2,3
17:56
Rates have dropped significantly. Do not see elastics peak. No beam?
18:23
Check in with HKR. The thunder and lightning storm appears to have knocked out the beam from 17:30 until 18:10.
Beam is now back with an intensity of 2e8 pps.
I have also adjusted the nozzle of the gas target slightly and recovered target pressure of 1e13 from 3e11 at/cm2. This has been stable for the last 15 minutes. I think during shifts we will require some nozzle modifications. It is not vital at higher energies but for energies during the week, we will need.
We again see the very nice elastic scattering pattern on our detector. I am concerned we may be some shadowing on our detector giving rise to the observed circle? Attachment 5
20:30
Checks all OK
Target density in last 30 mins ~1e13 at/cm2
DSSD4 still looking good and stable
23:00
All checks OK.
Detectors all stable
Target density still in 1e13 range.
We have accumulated lots of stats! This run should provide an excellent run for energy calibration using elastics and reaction peaks.
We run overnight and change energy in the morning
01:00
All checks OK
Detectors stable
Target density stable 1e13.
05:00
All good still
07:05
Run stopped to change energy. Gas target off.

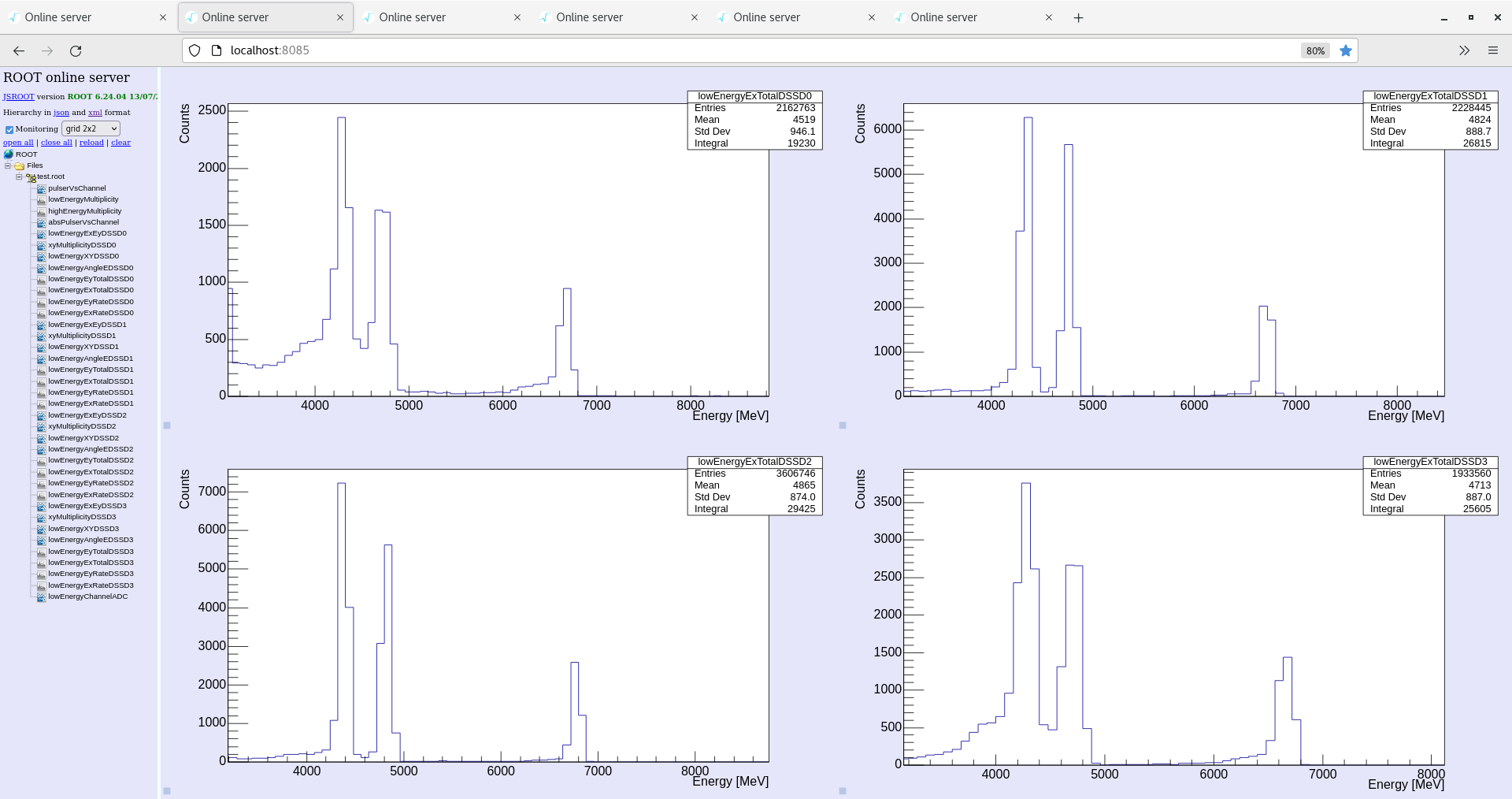

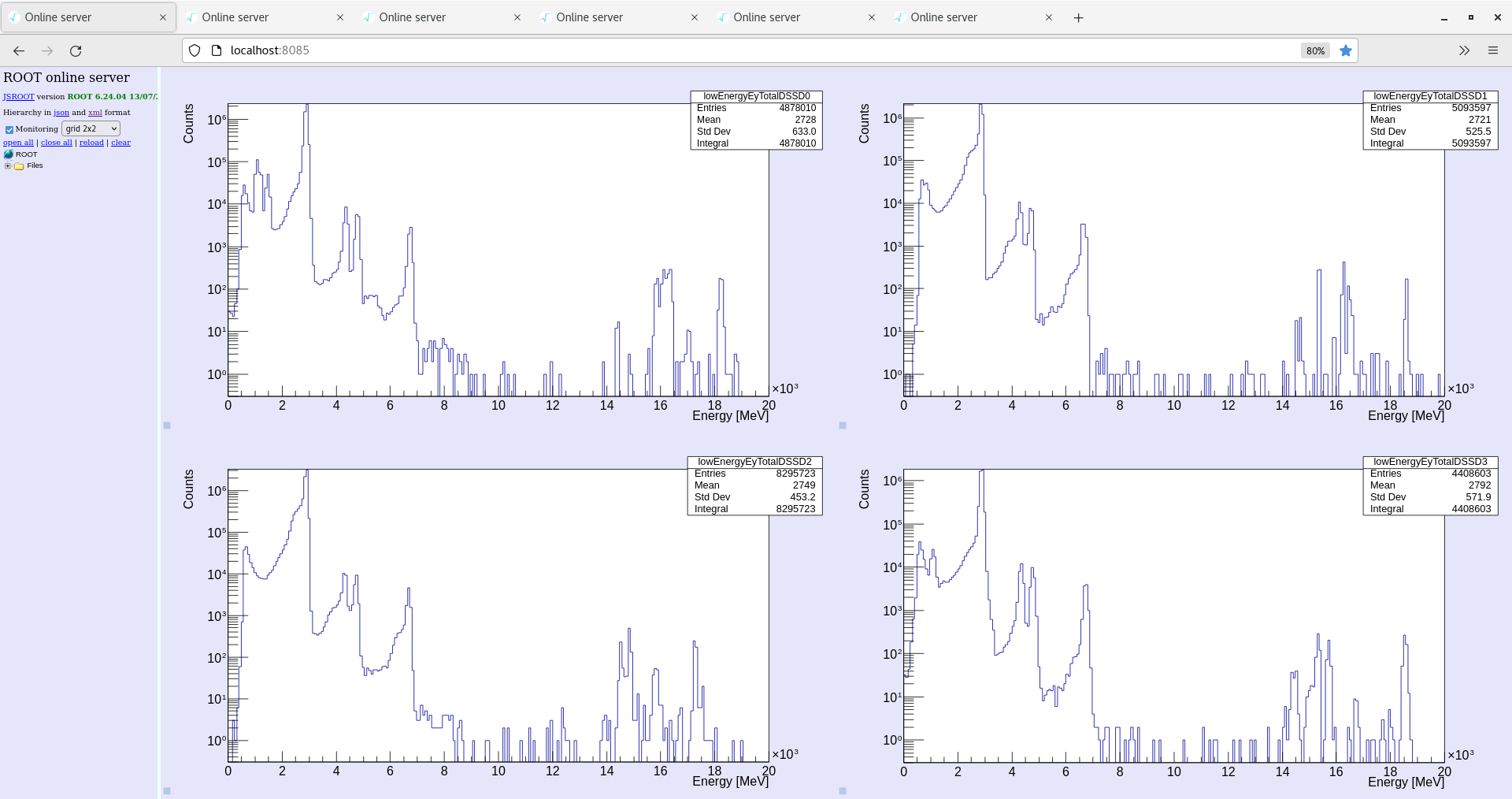

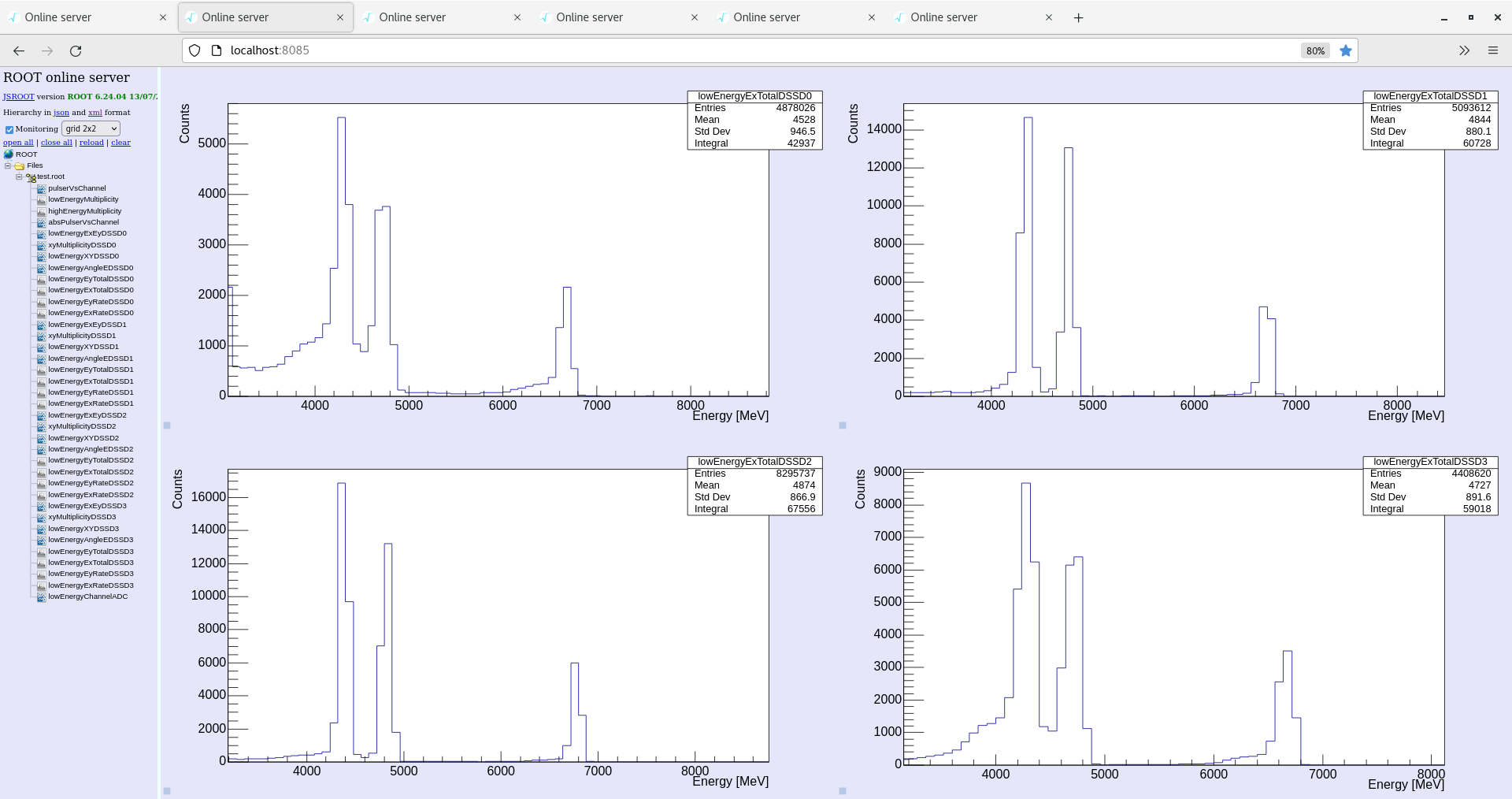

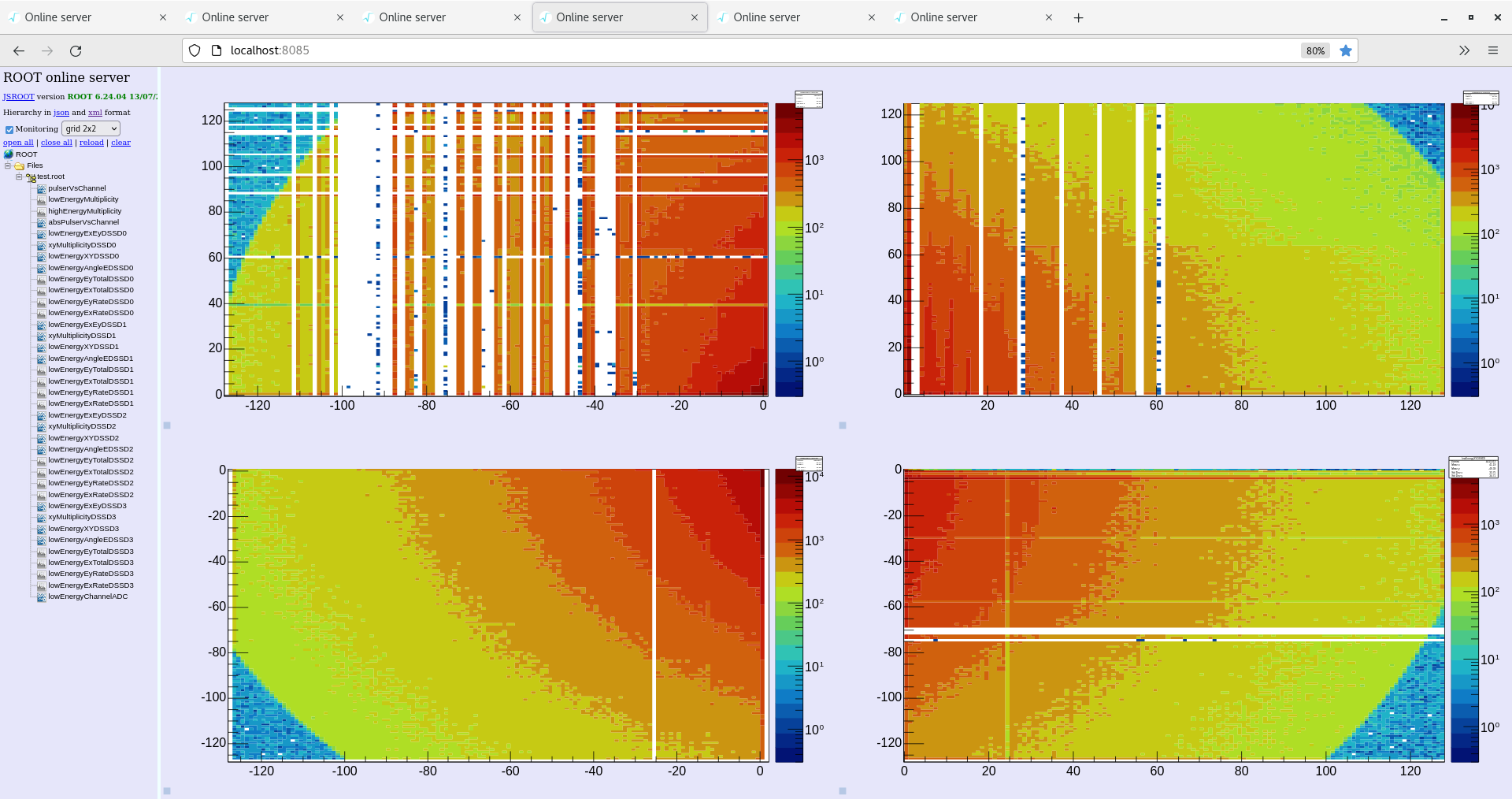

final statistics plot attached.

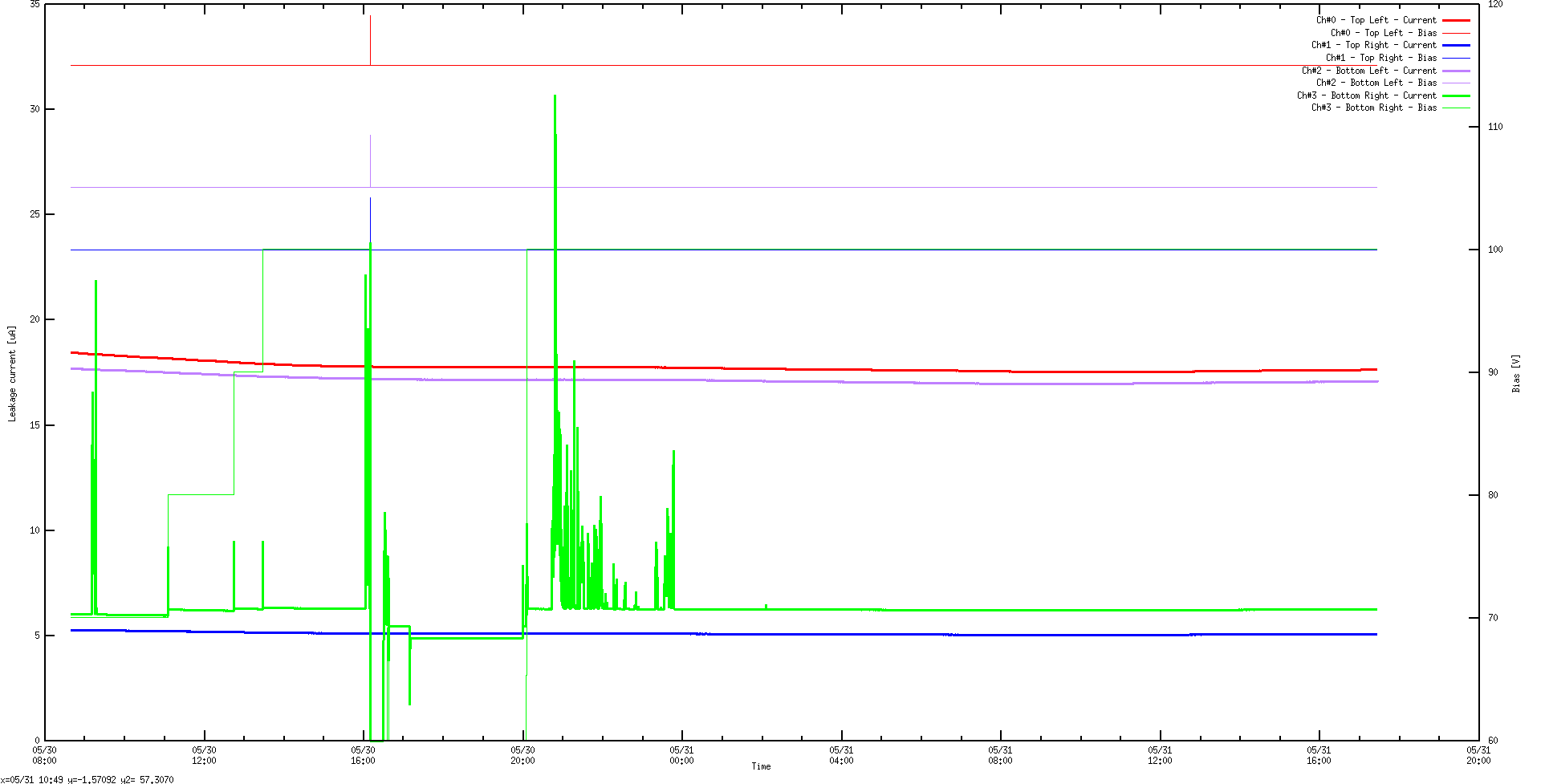

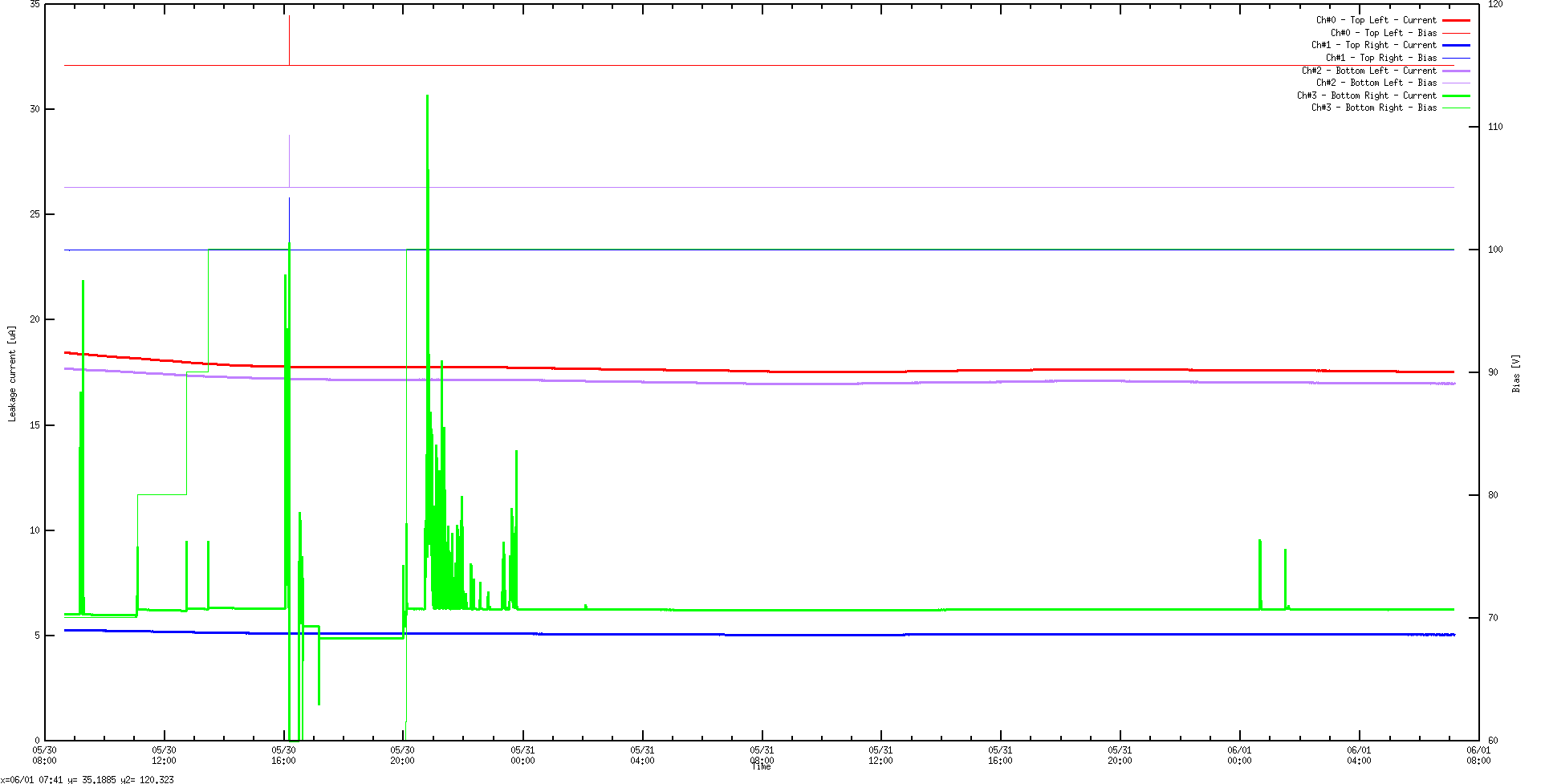

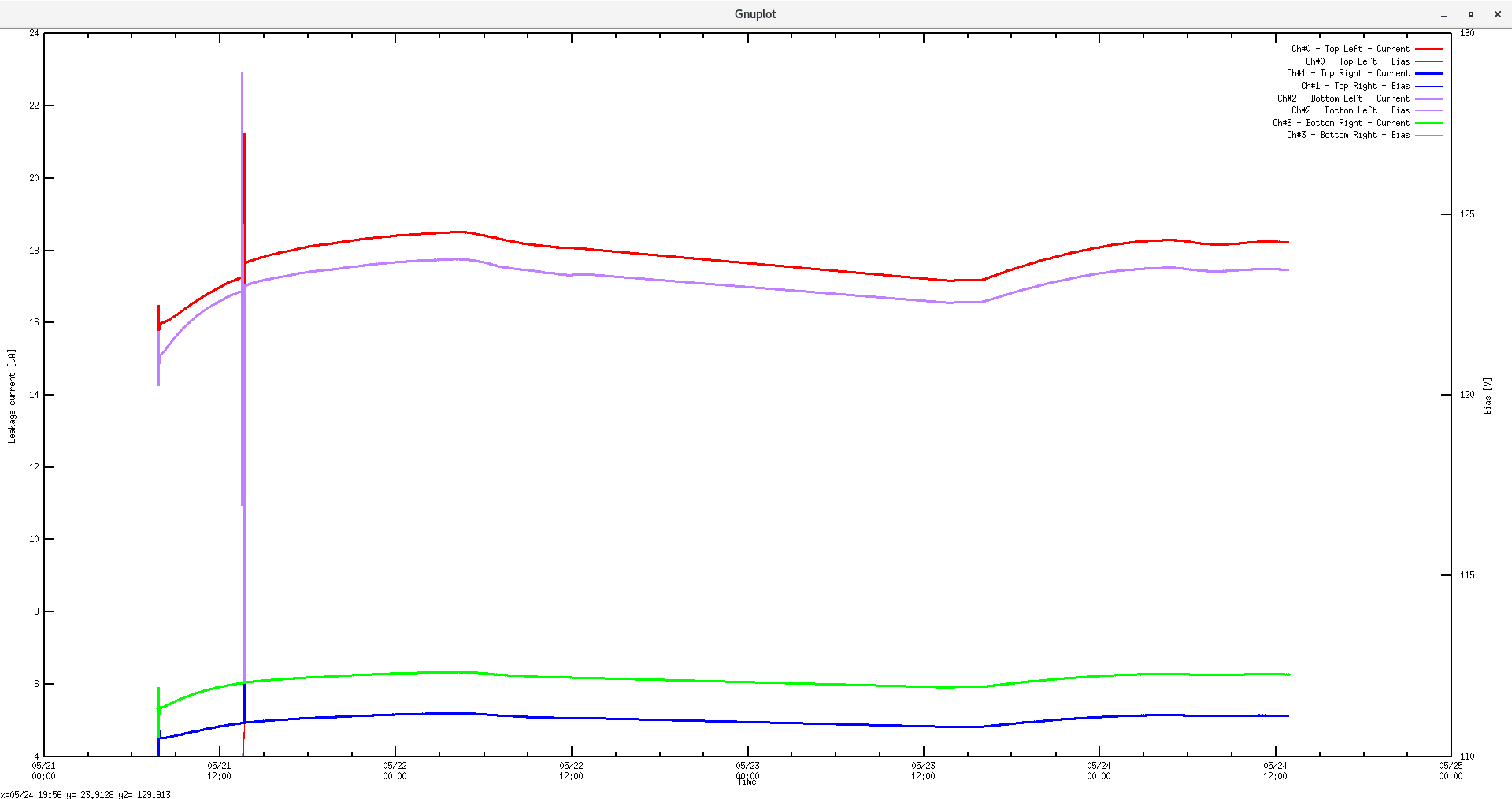

Leakage currents overnight also. DSSD4 had two transients during the night but recovered. |
| Attachment 1: beamCalc-D2.png
|
|
| Attachment 2: Screenshot_from_2025-05-31_11-07-00.png
|
|
| Attachment 3: Screenshot_from_2025-05-31_11-06-50.png
|
|
| Attachment 4: Screenshot_from_2025-05-31_17-55-33_1.png
|
|

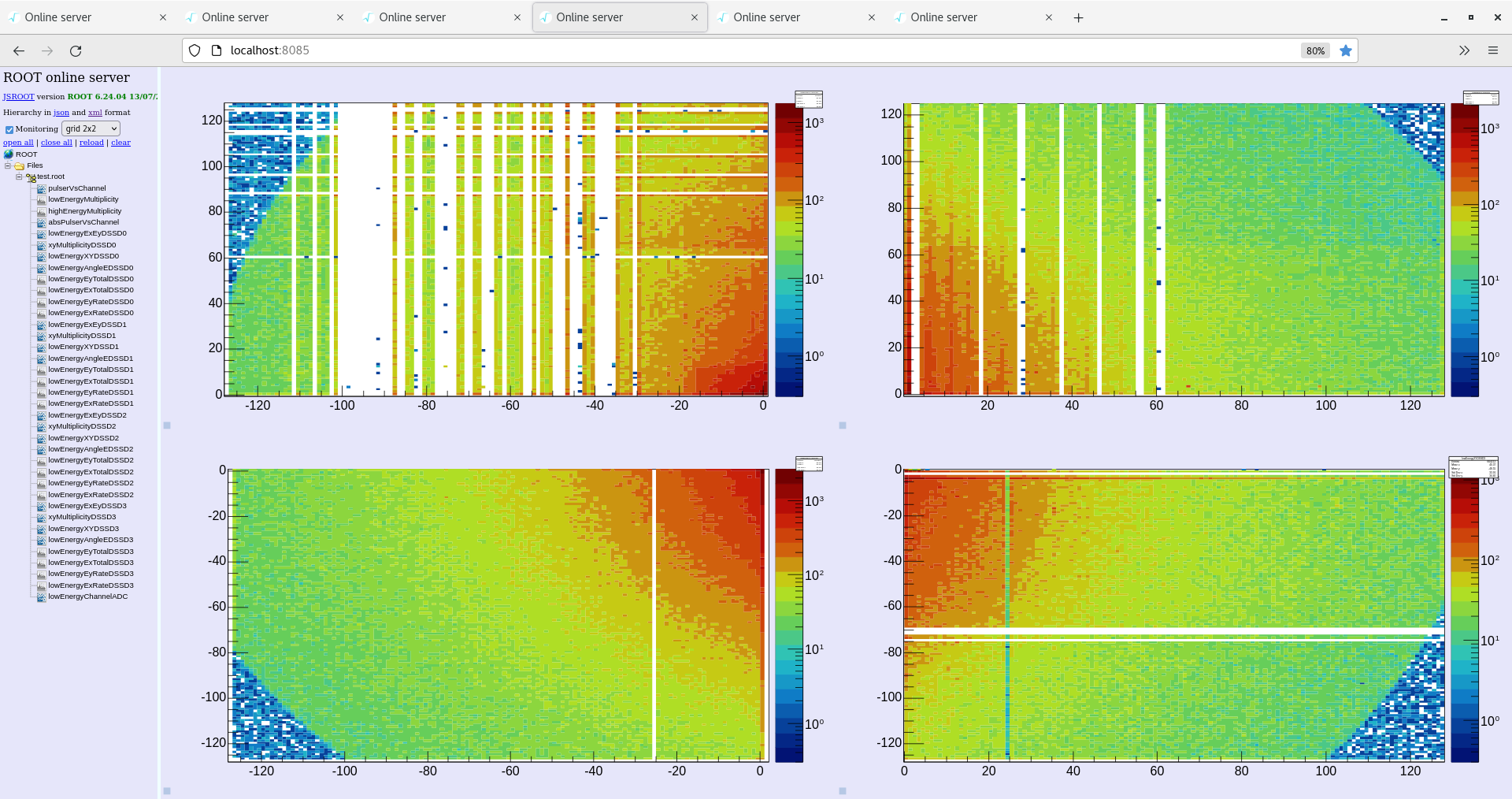

| Attachment 5: Screenshot_from_2025-05-31_18-26-29.png
|
|
| Attachment 6: Screenshot_from_2025-05-31_23-04-18.png
|
|
| Attachment 7: Screenshot_from_2025-06-01_07-10-13.png
|
|
| Attachment 8: Screenshot_from_2025-06-01_07-10-21.png
|
|
| Attachment 9: Screenshot_from_2025-06-01_07-10-30.png
|
|
| Attachment 10: Screenshot_from_2025-06-01_07-30-28.png
|
|
|
706
|
Fri May 30 21:49:08 2025 |
JM, NP, CB | Run 37 | 22:49
Run 37 started.
D+ beam deuterium target. D+ beam energy is 2 MeV/u. (beam calc calculation is 1.9211 MeV/u)
Target density is about 1.3e12 at/cm2. FLuctuations between 1e12 and 1e13 at/cm2.
All four detectors positioned fully out and stationary.
Left potentiometer = 18.86 mm
Right potentiometer = 19.8 mm
Ring cycle time is 1 minute. Note we see some hydrogen in in the spectrum, this disapears after a few seconds.
Target T1=30K, T2=31.9K.
Nozzle position x=-3.11, z=1.77 mm
YR09-Etarget pressure = 1.04e-10 mbar.
Cooler set value = 1126V, 15 mA. Read value = 1068V, 13.22 mA
Detector 4 is still a bit unstable in its leakage current but the data coming through looks good. Some crap is periodically written to disk when leakage current spikes. Attachment 1,2 for leakage currents.
23:30
Checks OK - high but managable rates from DSSD4
01:00

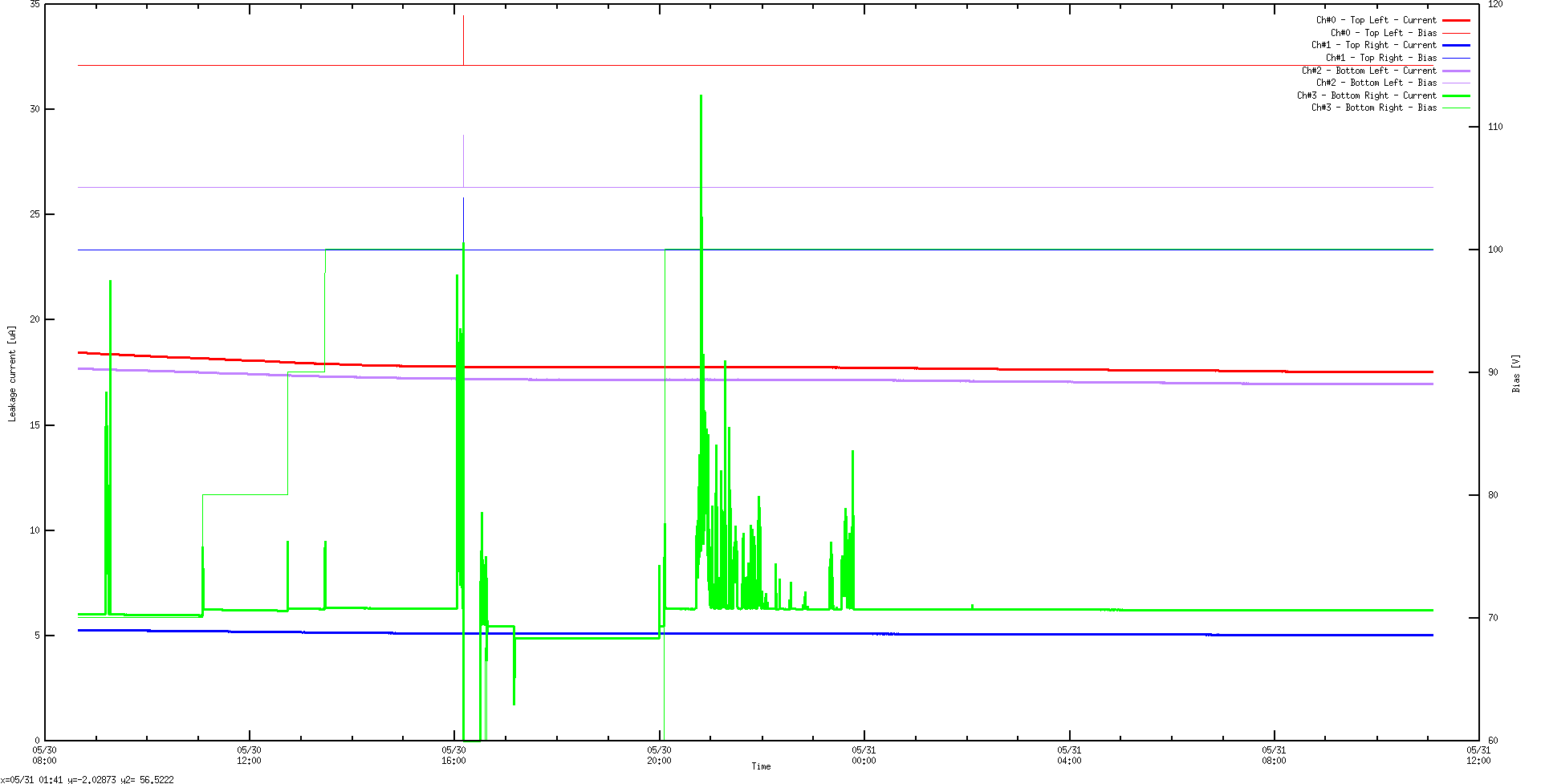

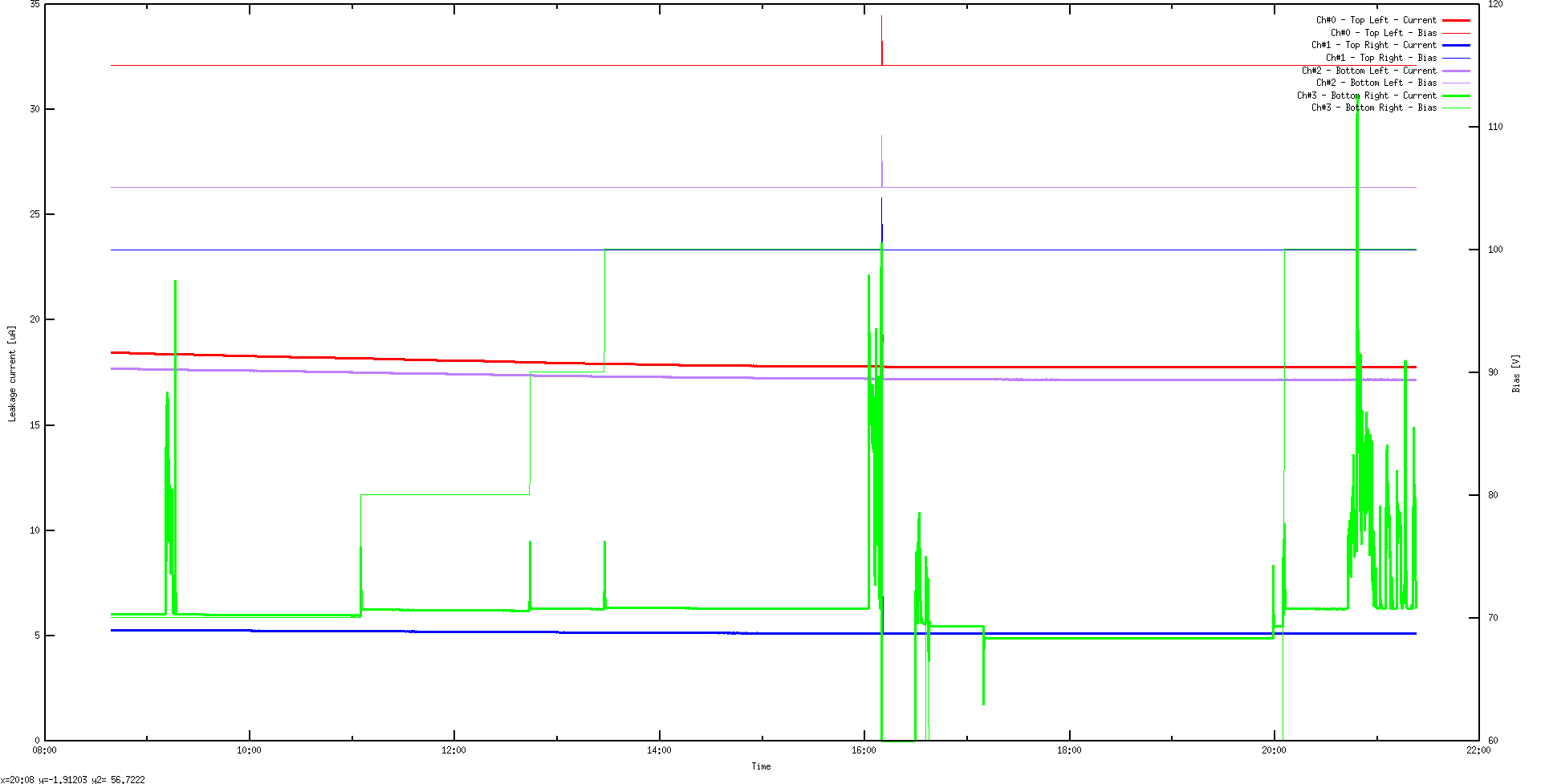

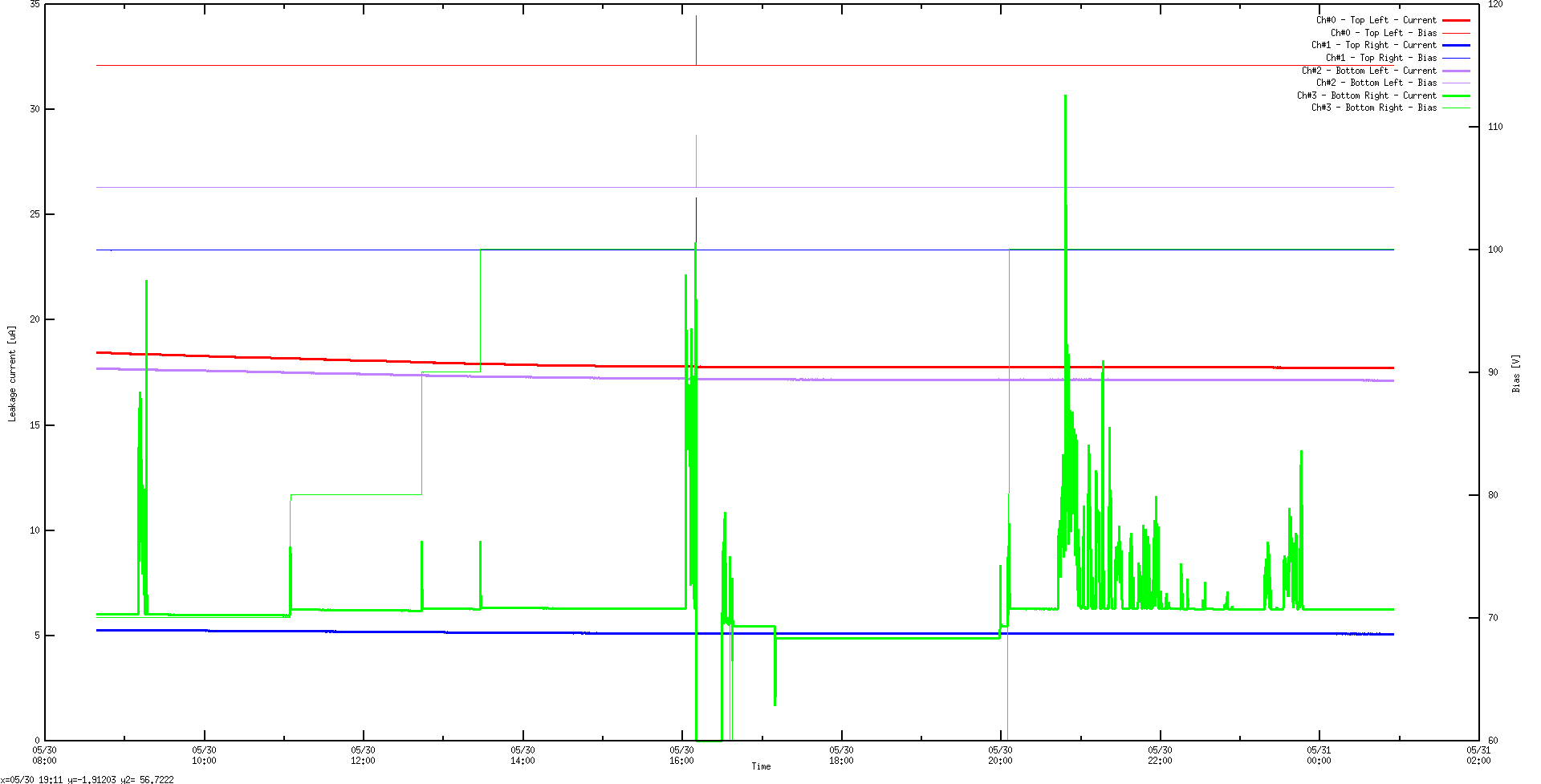

Checks OK - DSSD4 has settled down. Leakage current attachment 1

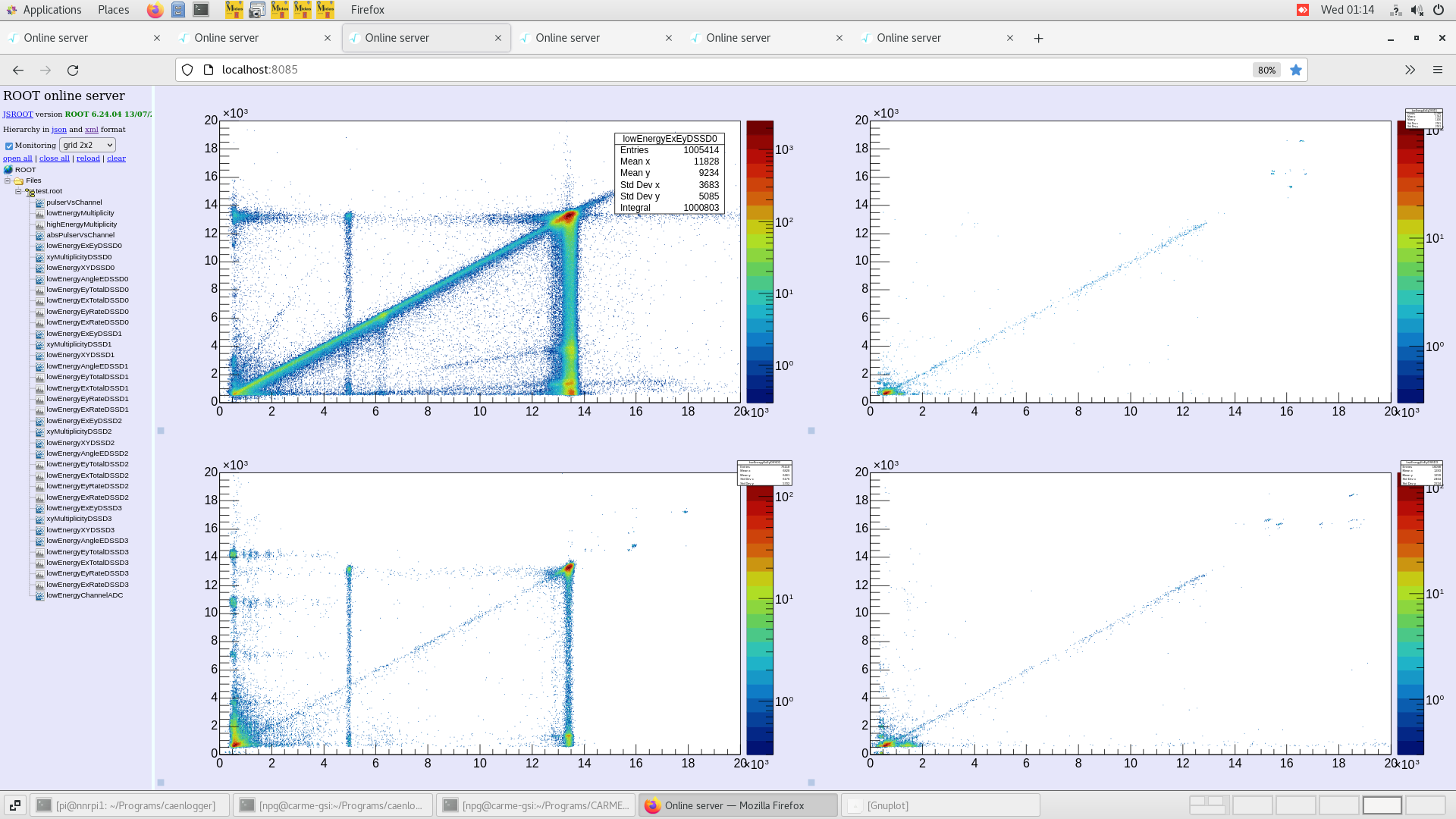

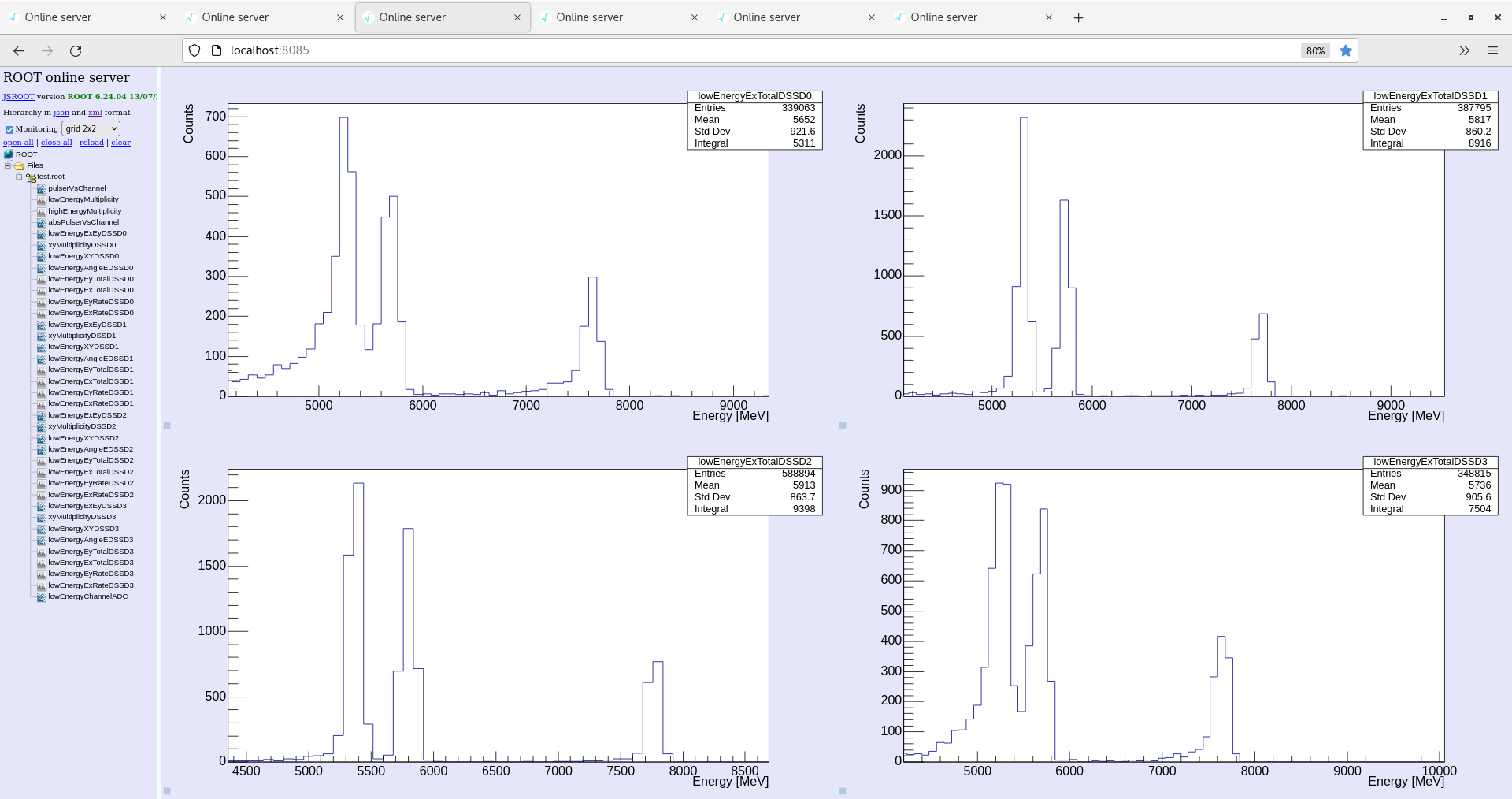

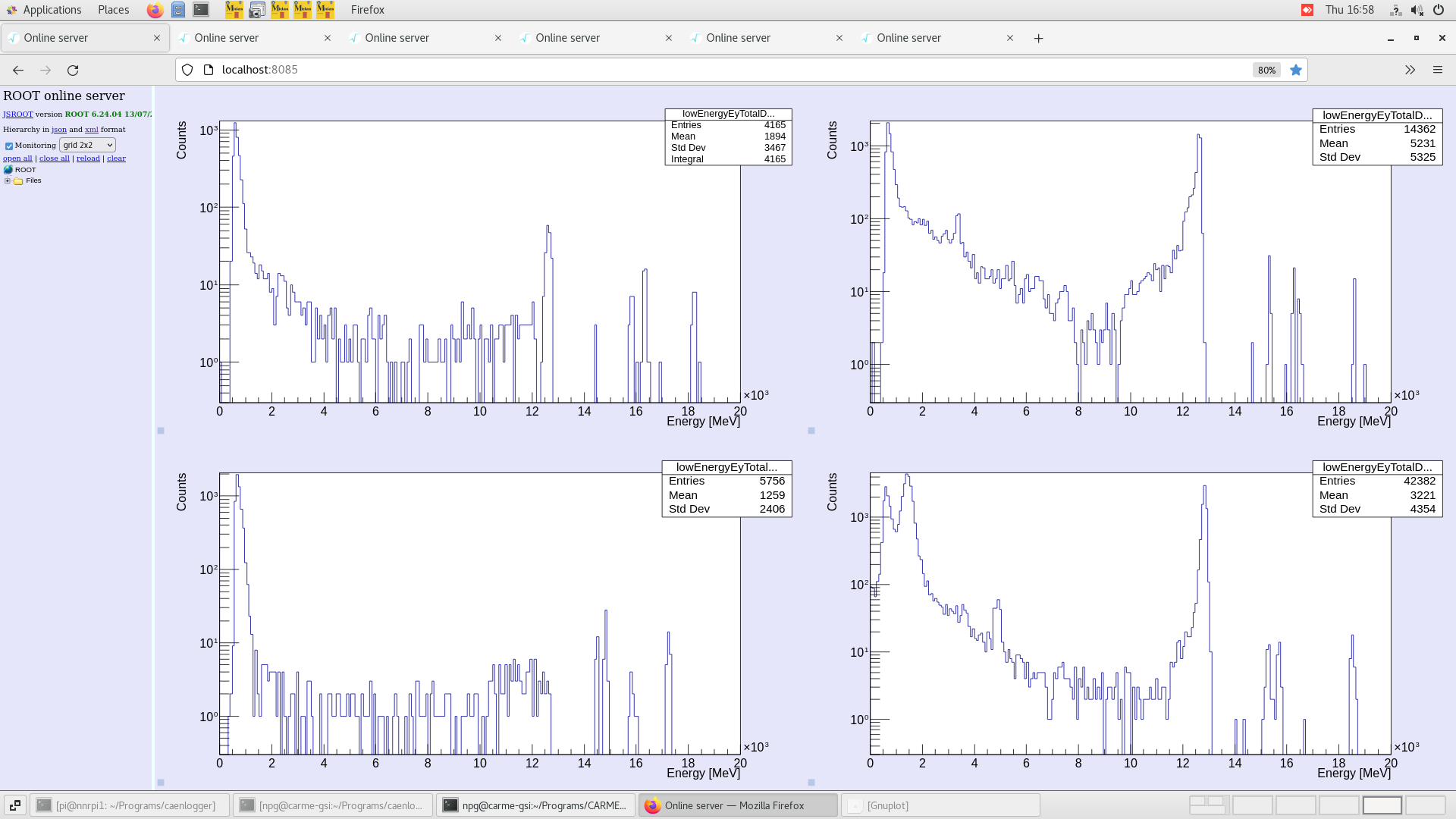

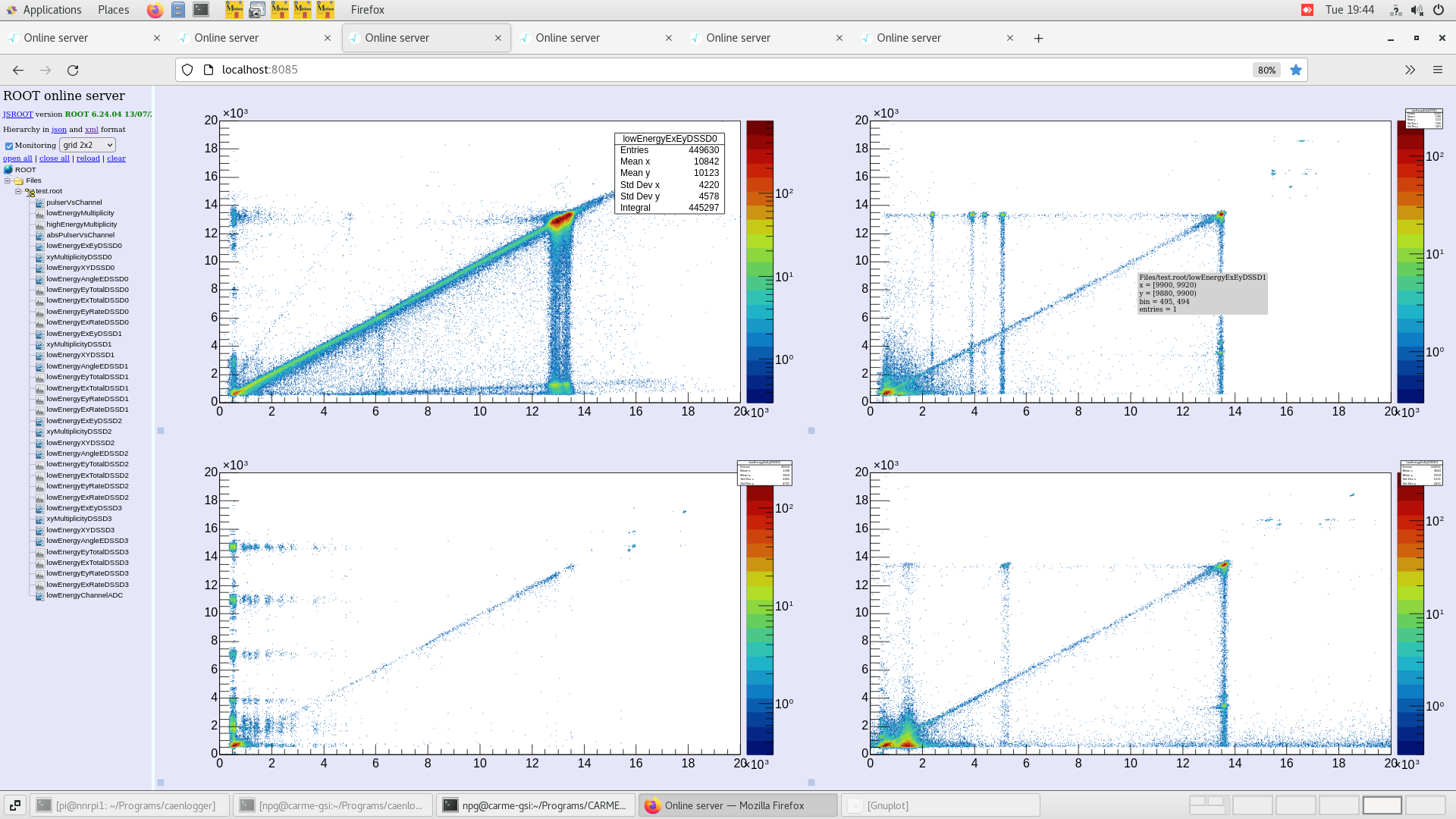

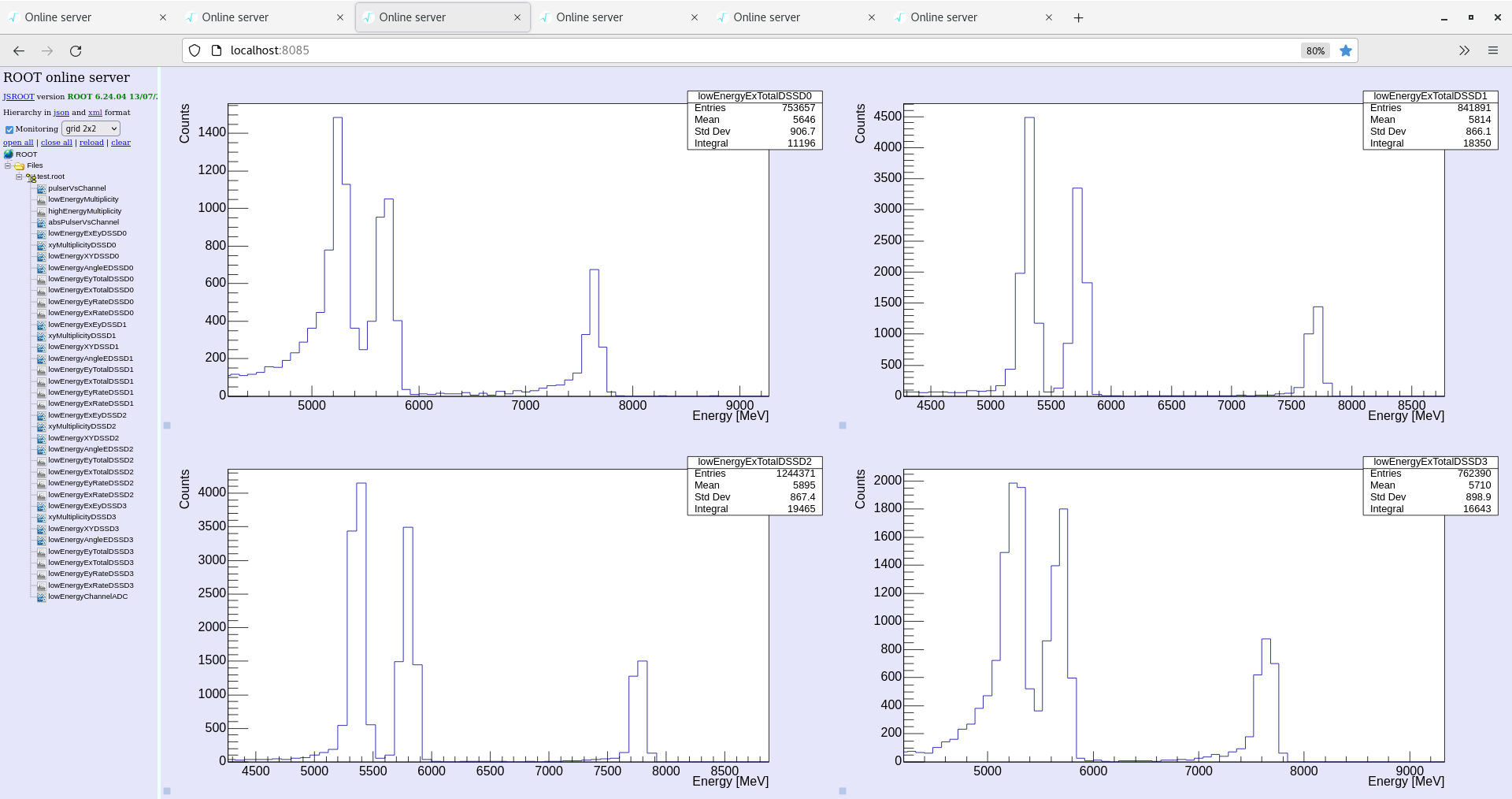

Ex energy histograms - attachment 2
X2go check on gas target shows density has dropped to 5e11 at/cm2 in last half an hour.
03:56
Checks OK
DSSD had more issues but once more settled
Temps OK
Rates OK
DAQ continuing
06:00
Checks OK
08:00
We can now change to 1.5 MeV/u no storage mode enabled. |
| Attachment 1: Screenshot_from_2025-05-31_00-56-32.png
|
|
| Attachment 2: Screenshot_from_2025-05-31_00-58-40.png
|
|
| Attachment 3: Screenshot_from_2025-05-31_06-16-50.png
|
|
|
705
|
Fri May 30 20:47:47 2025 |
JM, CB, NP | Run 36 | 21:47
Run 36 started.
D+ beam deuterium target. D+ beam energy is 2 MeV/u.
Target density is about 1.6e12 at/cm2. FLuctuations between 1e12 and 1e13 at/cm2.
Detectors are now IN with the servo motors only. Detectors are stationary.
Left potentiometer = 36.54 mm
Right potentiometer = 37.96 mm
Ring cycle time is 1 minute. Note we see some hydrogen in in the spectrum, this disapears after a few seconds.
Target T1=30K, T2=31.9K.
Nozzle position x=-3.12, z=1.72 mm
YR09-Etarget pressure = 2.29e-10 mbar.
Cooler set value = 1126V, 15 mA. Read value = 1068V, 13.22 mA
Detector 4 is still a bit unstable in its leakage current but the data coming through looks good. Some crap is periodically written to disk when leakage current spikes.
We will run like this for an hour then move detectors back out for overnight run.
after 1 hour of beamtime we stop.
Attachment 1 - xy plot

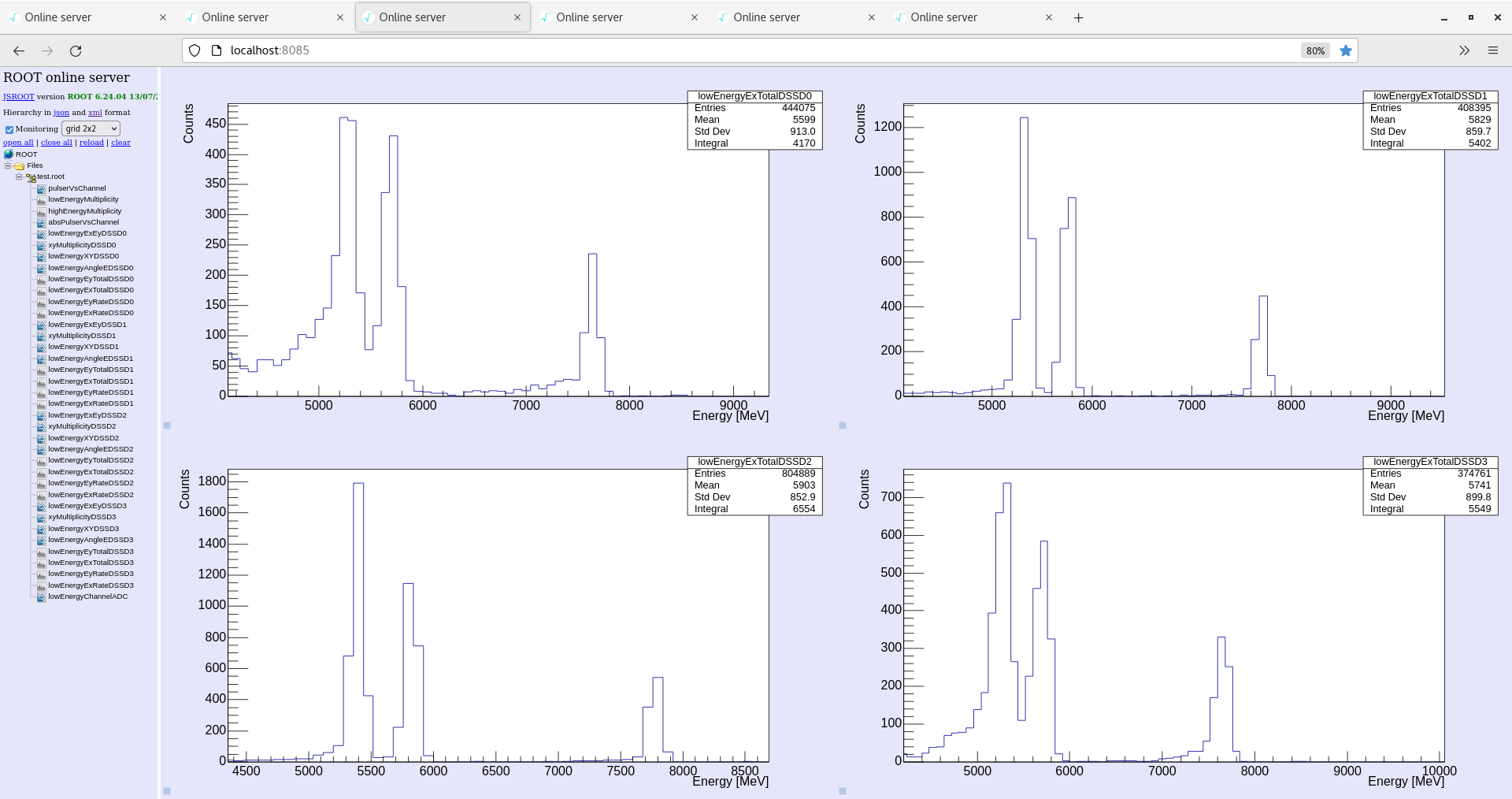

Attachment 2 - energy histogram NUCLEAR |
| Attachment 1: Screenshot_from_2025-05-30_22-45-48.png
|
|
| Attachment 2: Screenshot_from_2025-05-30_22-46-48.png
|
|
|
704
|
Fri May 30 20:06:48 2025 |
JM, CB, NP | Run35 | 21:00
Run 35 started.
D+ beam deuterium target. D+ beam energy is 2 MeV/u. (beam calc calculation is 1.9211 MeV/u)
Target density is about 4e12 at/cm2. FLuctuations between 1e12 and 1e13 at/cm2.
All four detectors positioned fully out and stationary.
Left potentiometer = 18.86 mm
Right potentiometer = 19.8 mm
Ring cycle time is 1 minute. Note we see some hydrogen in in the spectrum, this disapears after a few seconds.
Target T1=30K, T2=31.9K.
Nozzle position x=-3.06, z=1.72 mm
YR09-Etarget pressure = 2.29e-10 mbar.
Cooler set value = 1126V, 15 mA. Read value = 1068V, 13.22 mA
Detector 4 is still a bit unstable in its leakage current but the data coming through looks good. Some crap is periodically written to disk when leakage current spikes. Attachment 1,2 for leakage currents.

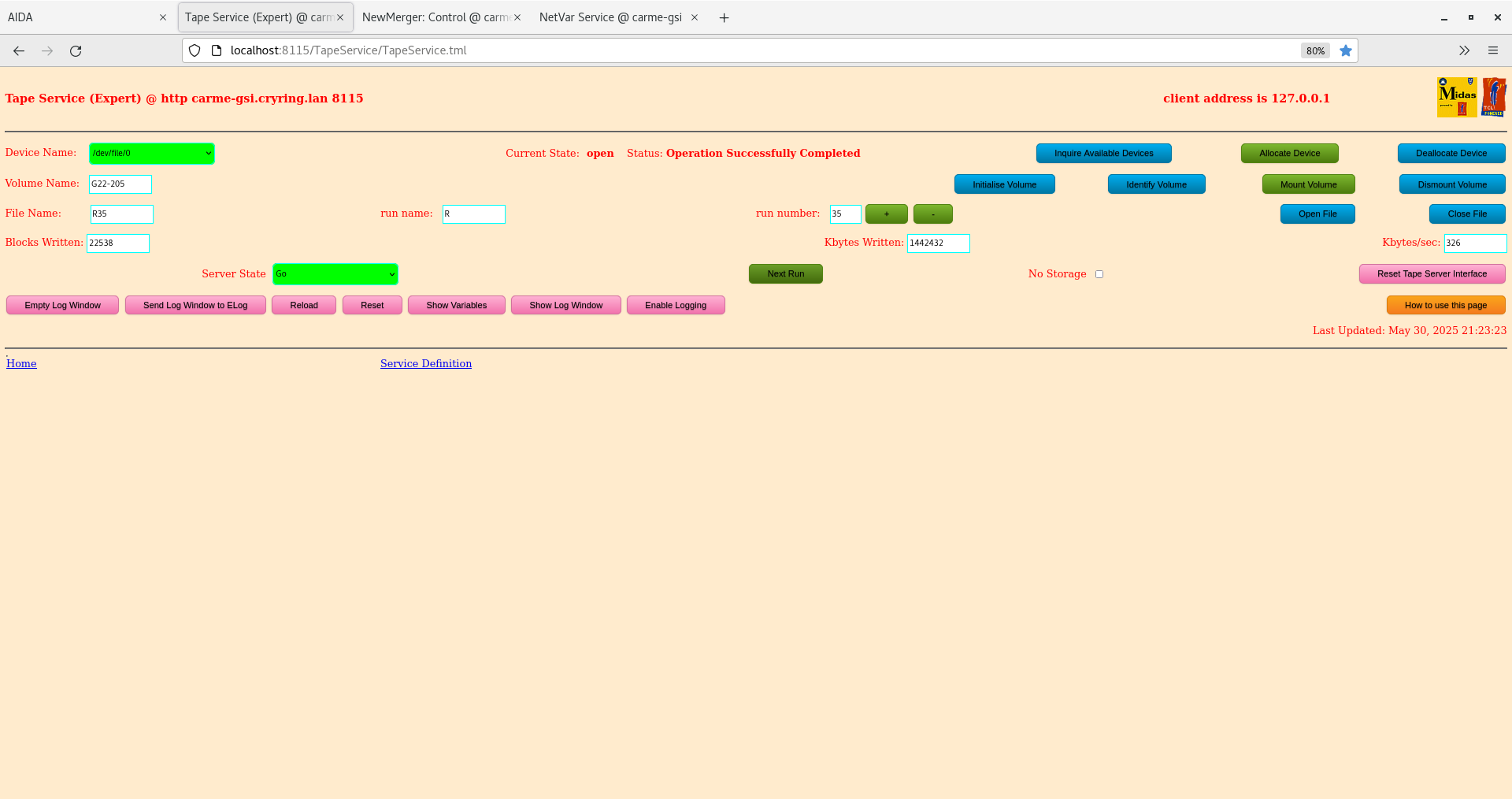

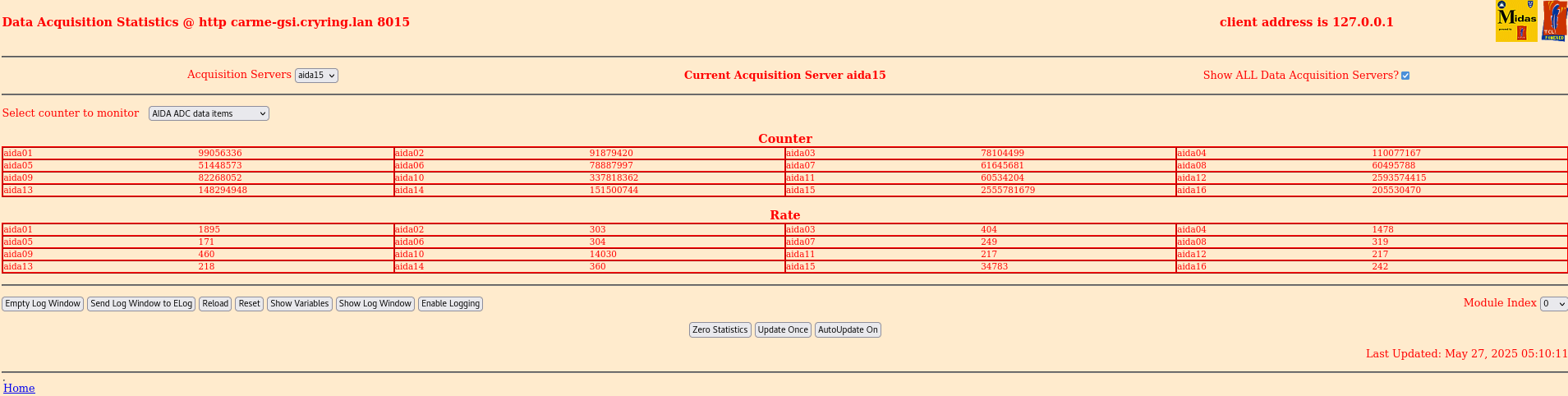

Attachment 3,4 data rate to disk and statistics tab for when detector 4 is behaving. When not data rate can spike to 4000 kb/sec. Looks OK at the moment.

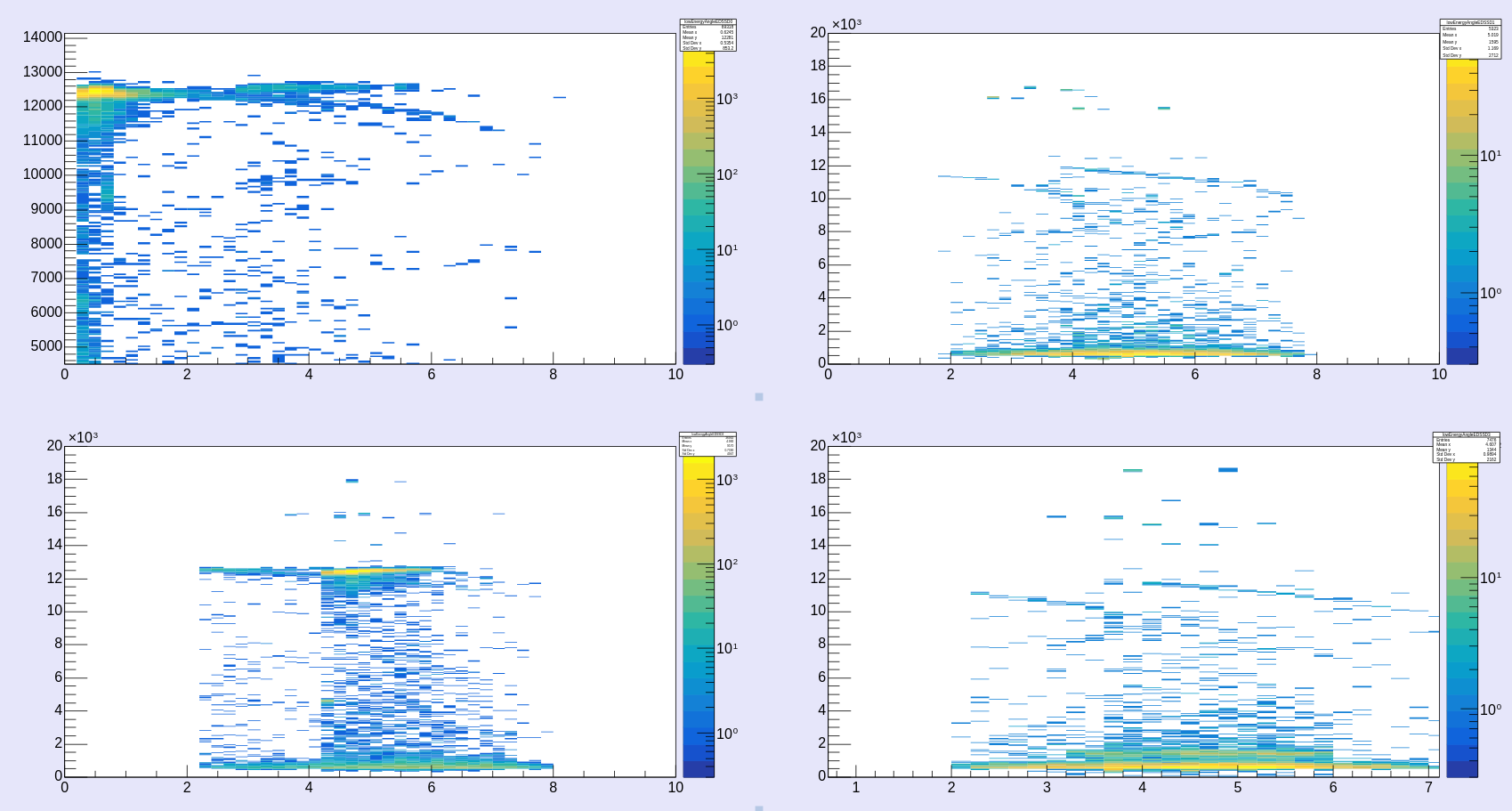

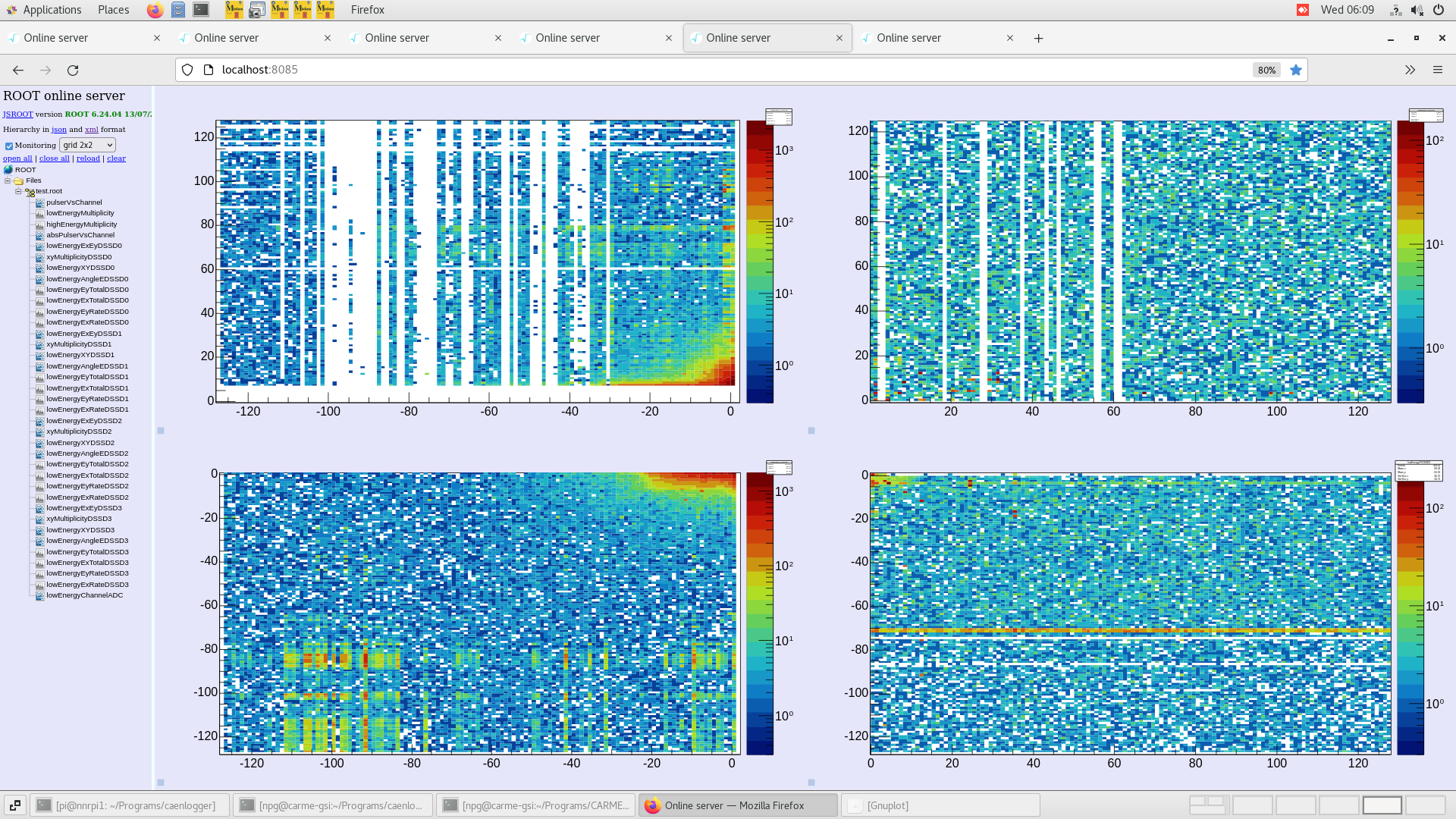

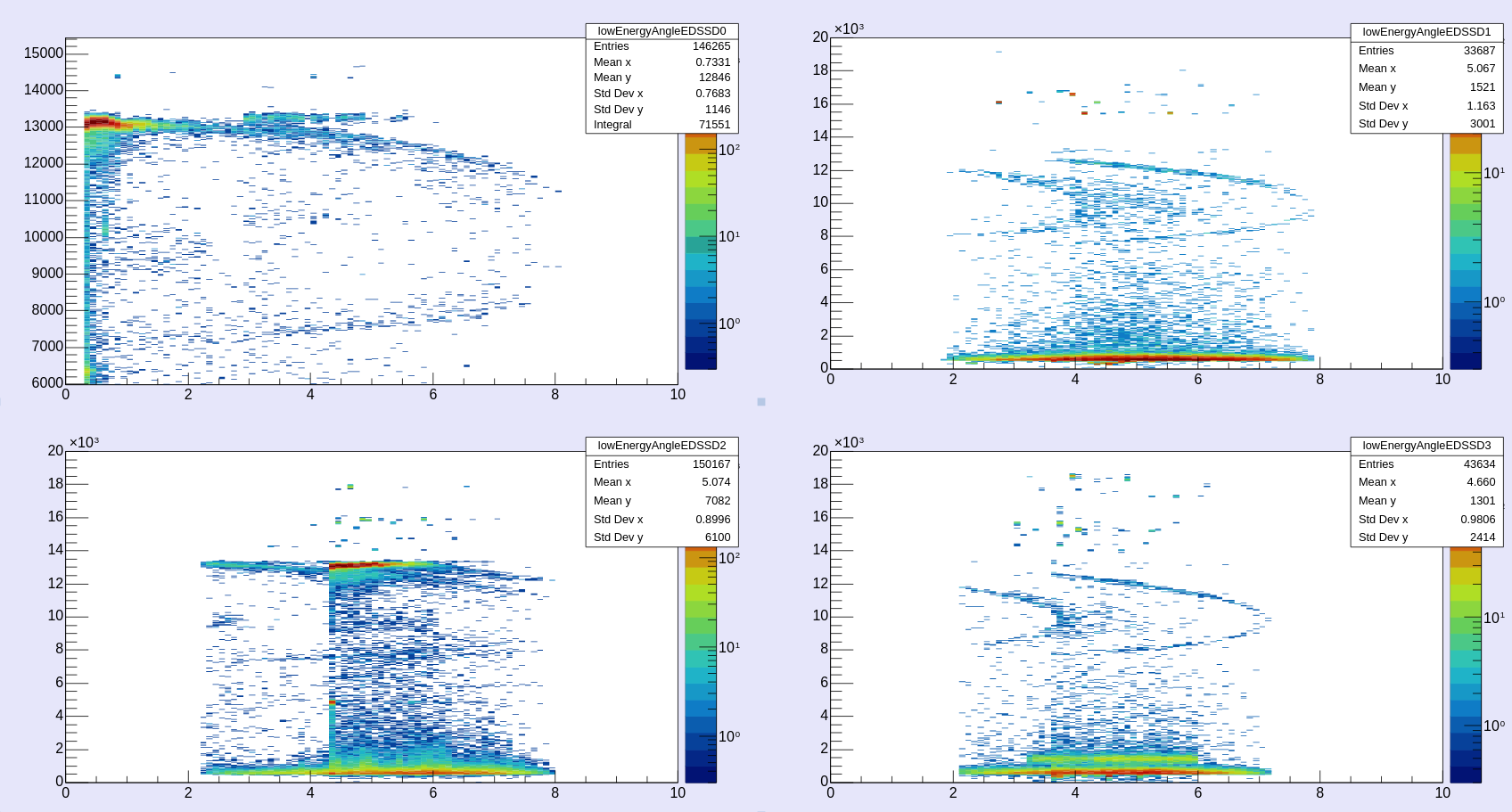

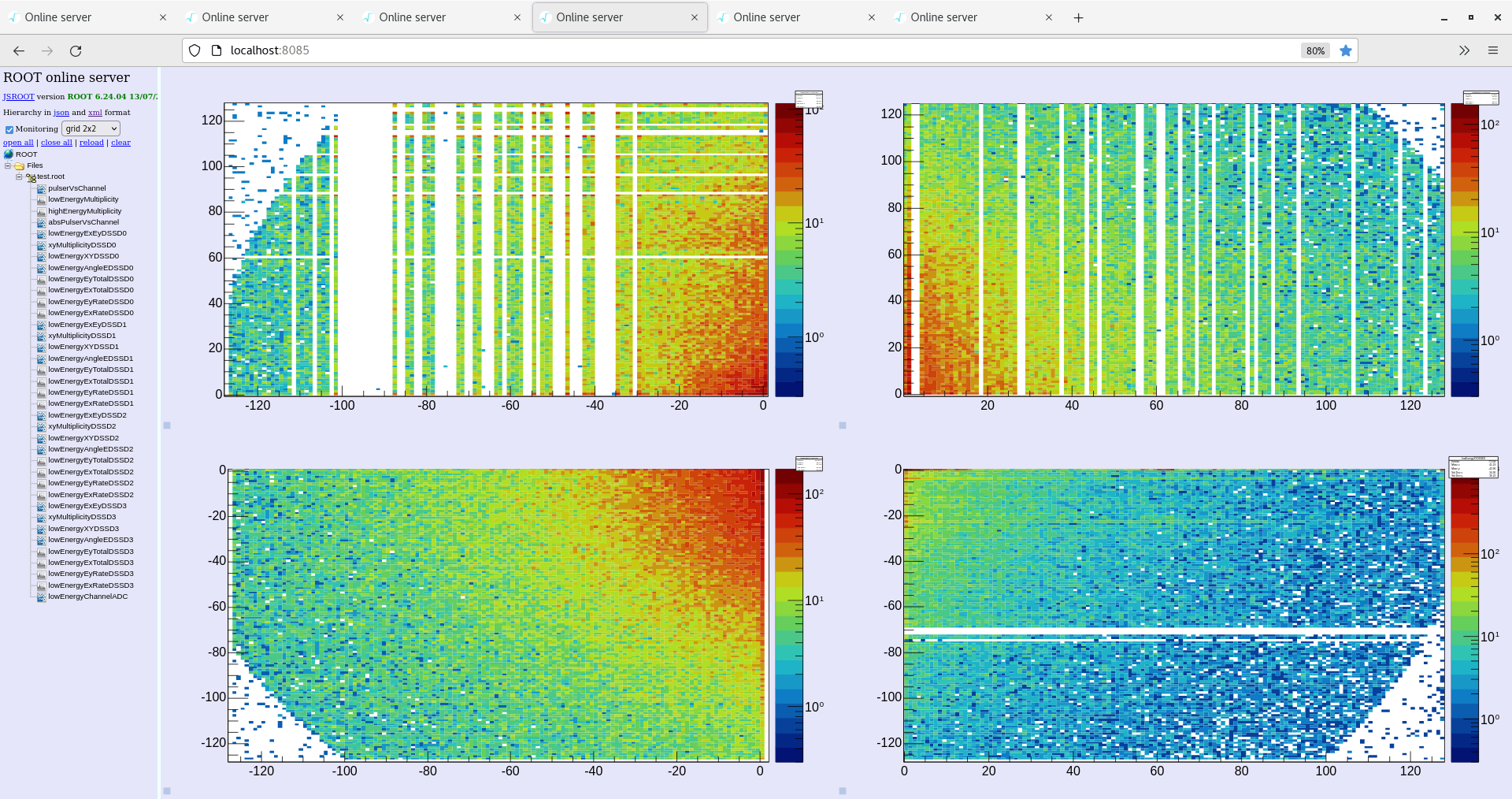

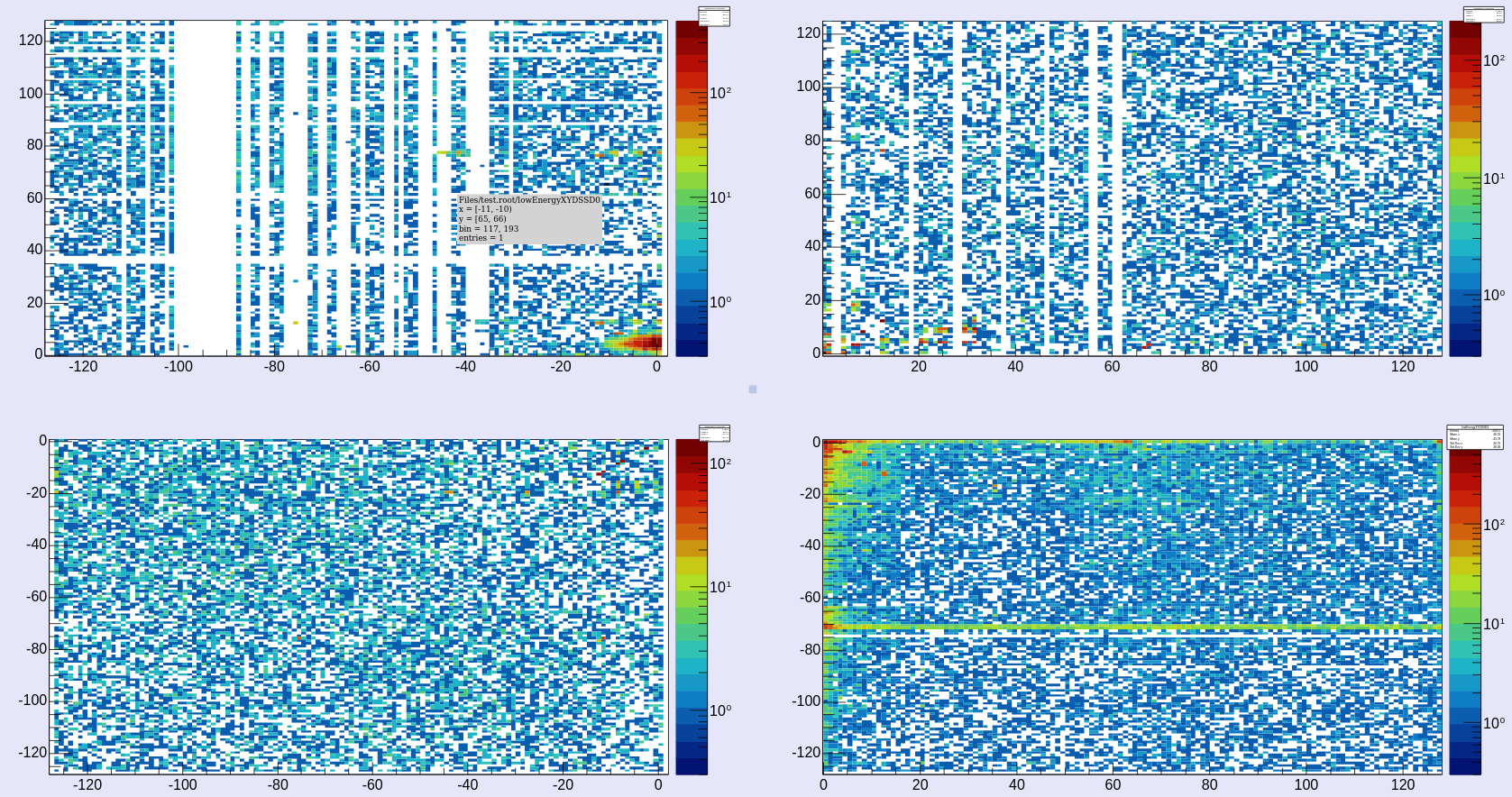

Attachment 5 - xy plot. We observe a circular shape on the detector. We are unsure of what this is at the moment. Offline analysis required.

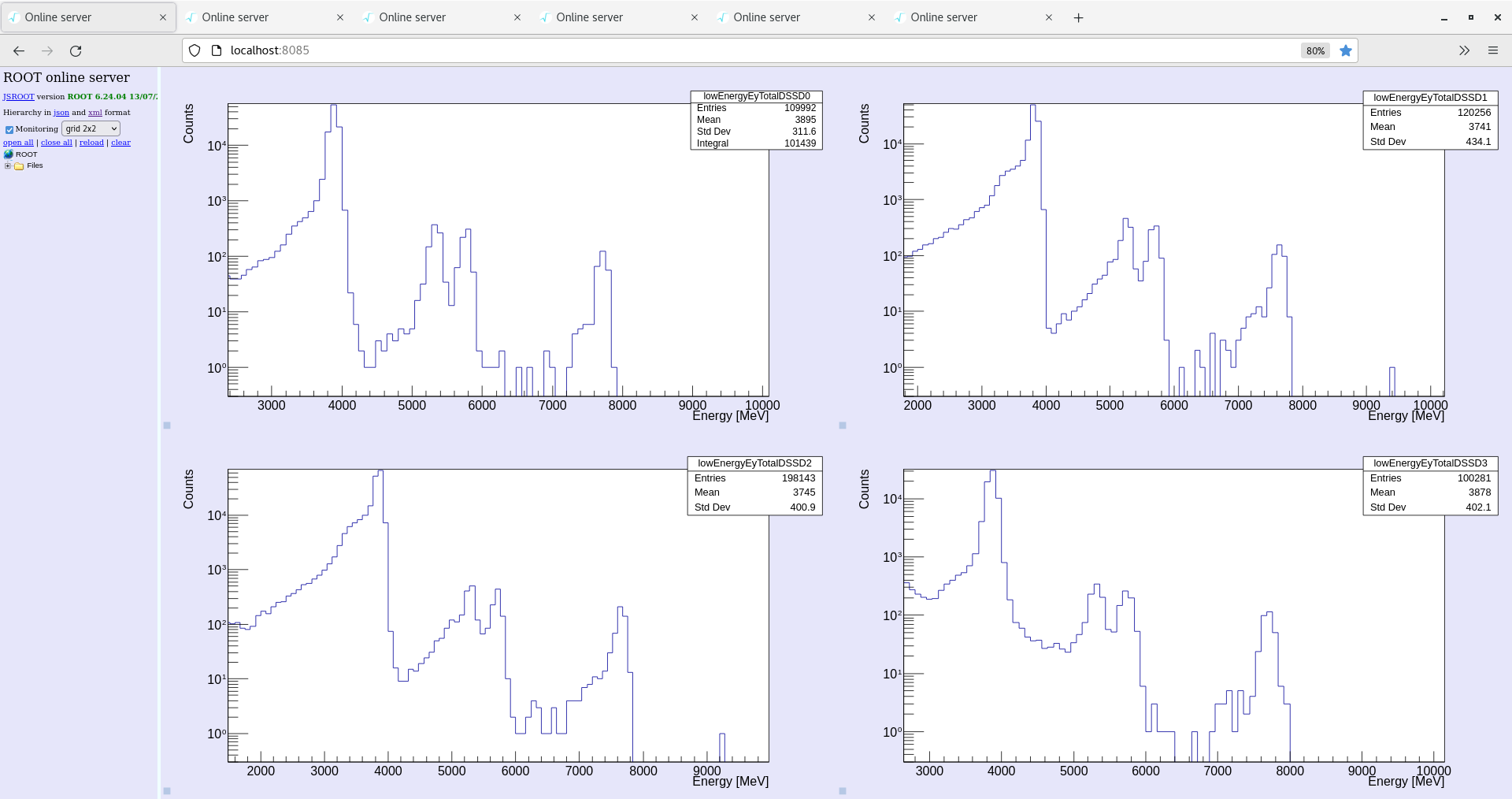

Attachment 6 - energy histogram including Rutherford.

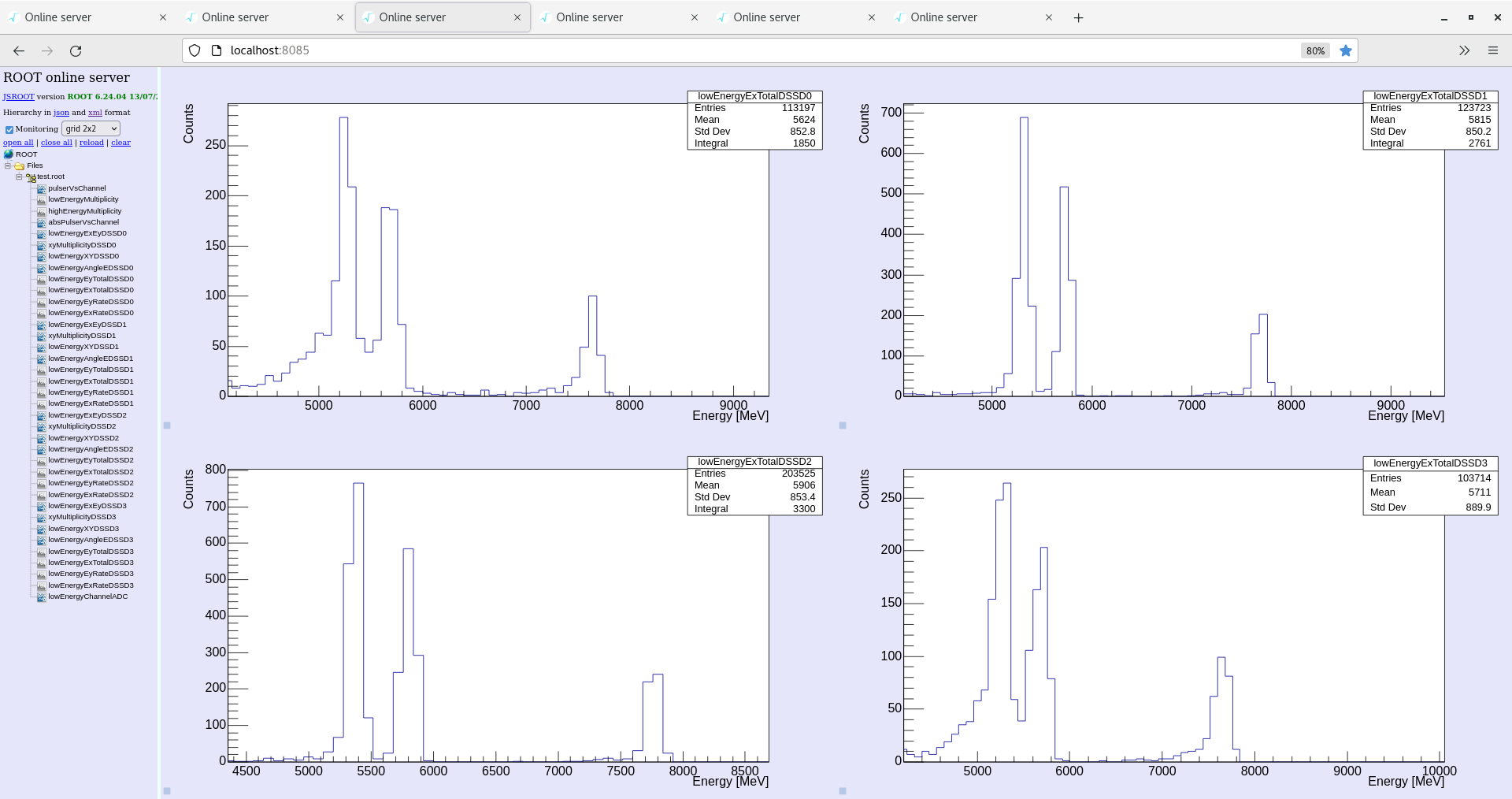

Attachment 7 - energy histogram just nuclear peaks.
Attachment 8 - beam calc with read values. |
| Attachment 1: Screenshot_from_2025-05-30_21-22-53.png
|
|
| Attachment 2: Screenshot_from_2025-05-30_21-23-16.png
|
|
| Attachment 3: Screenshot_from_2025-05-30_21-23-30.png
|
|
| Attachment 4: Screenshot_from_2025-05-30_21-23-56.png
|
|
| Attachment 5: Screenshot_from_2025-05-30_21-26-17.png
|
|
| Attachment 6: Screenshot_from_2025-05-30_21-35-00.png
|
|
| Attachment 7: Screenshot_from_2025-05-30_21-36-58.png
|
|

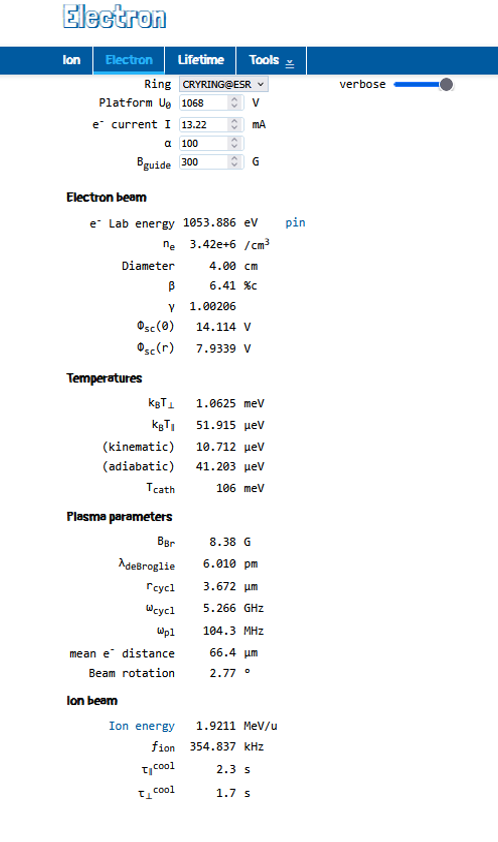

| Attachment 8: beamCalc-D1.png
|
|
|
703
|
Fri May 30 07:27:41 2025 |
CB LB JM NP EM | Waiting for deuterium | 08:27
No run going.

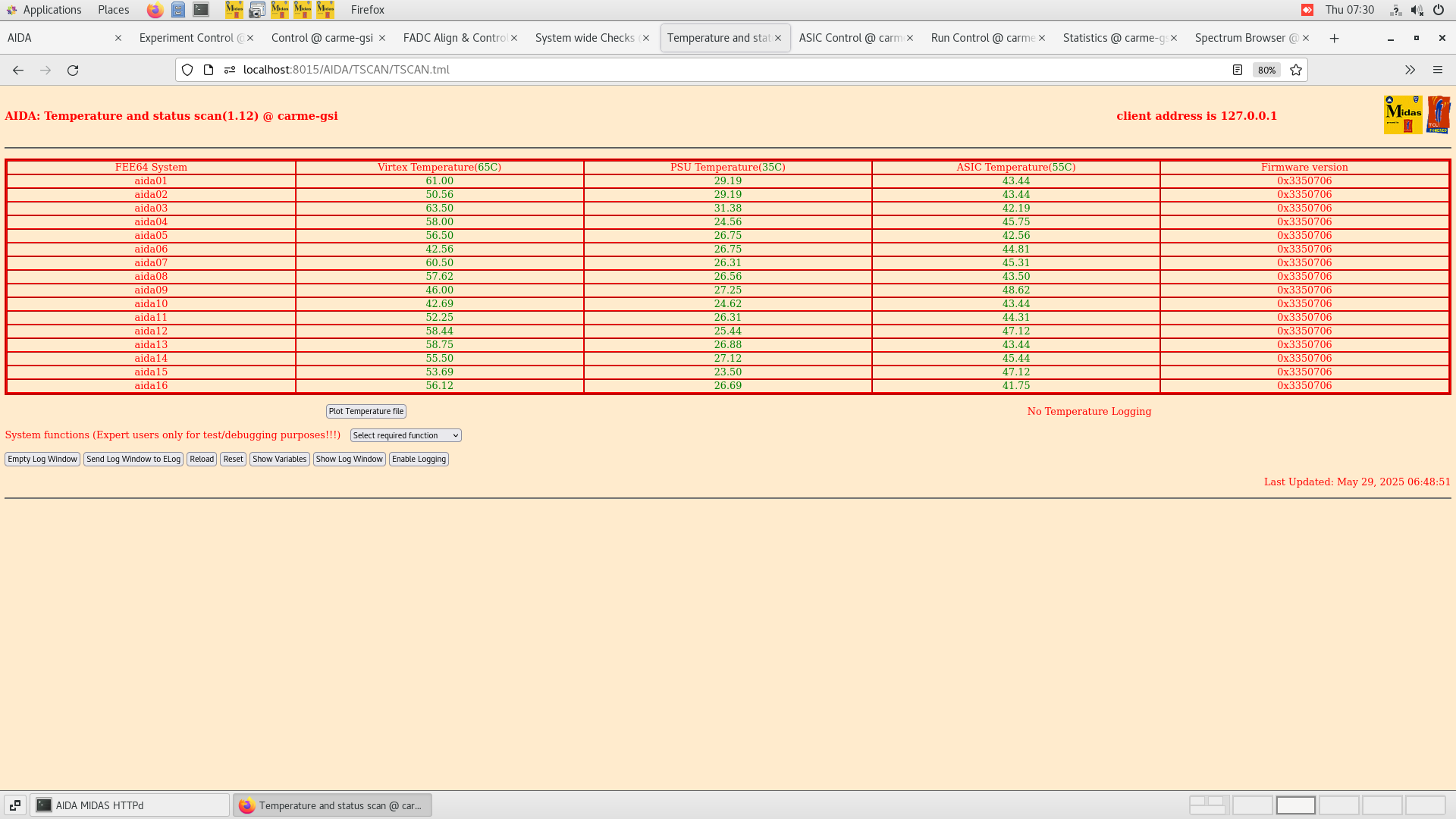

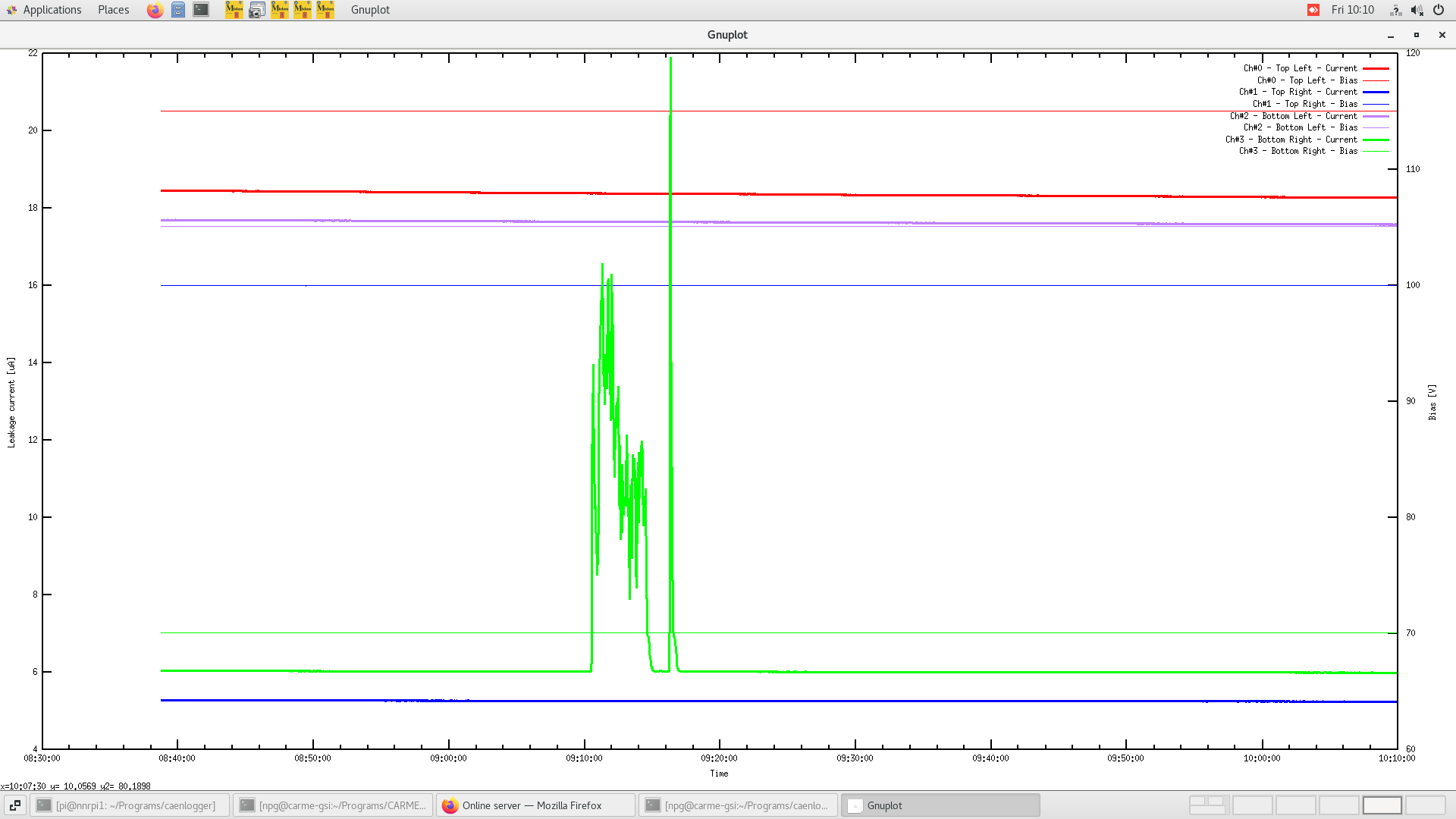

Temperatures OK - attach

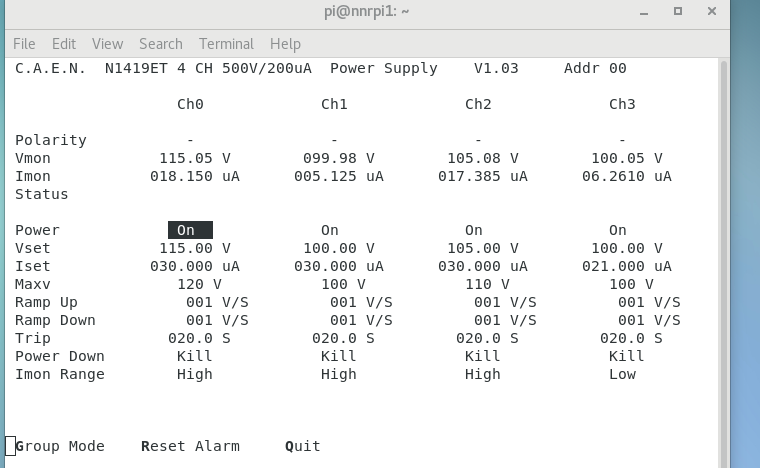

Attempting to bias channel 3 again. Slowly ramping up.
V = 60, I = 5.3
V = 70, I = 6.1
V = 80, I = 9.0 --> 6.2 (unstable). Decreasing bias.
V = 70, I = 6.0 (stable again)
Leaving at 70 V for a while to condition (?)
Resetting the gnuplot graph. Old caen_current.dat moved to G22-205-caen_current.dat and copied in /TapeServer/G22-205
10:10
Temperatures OK

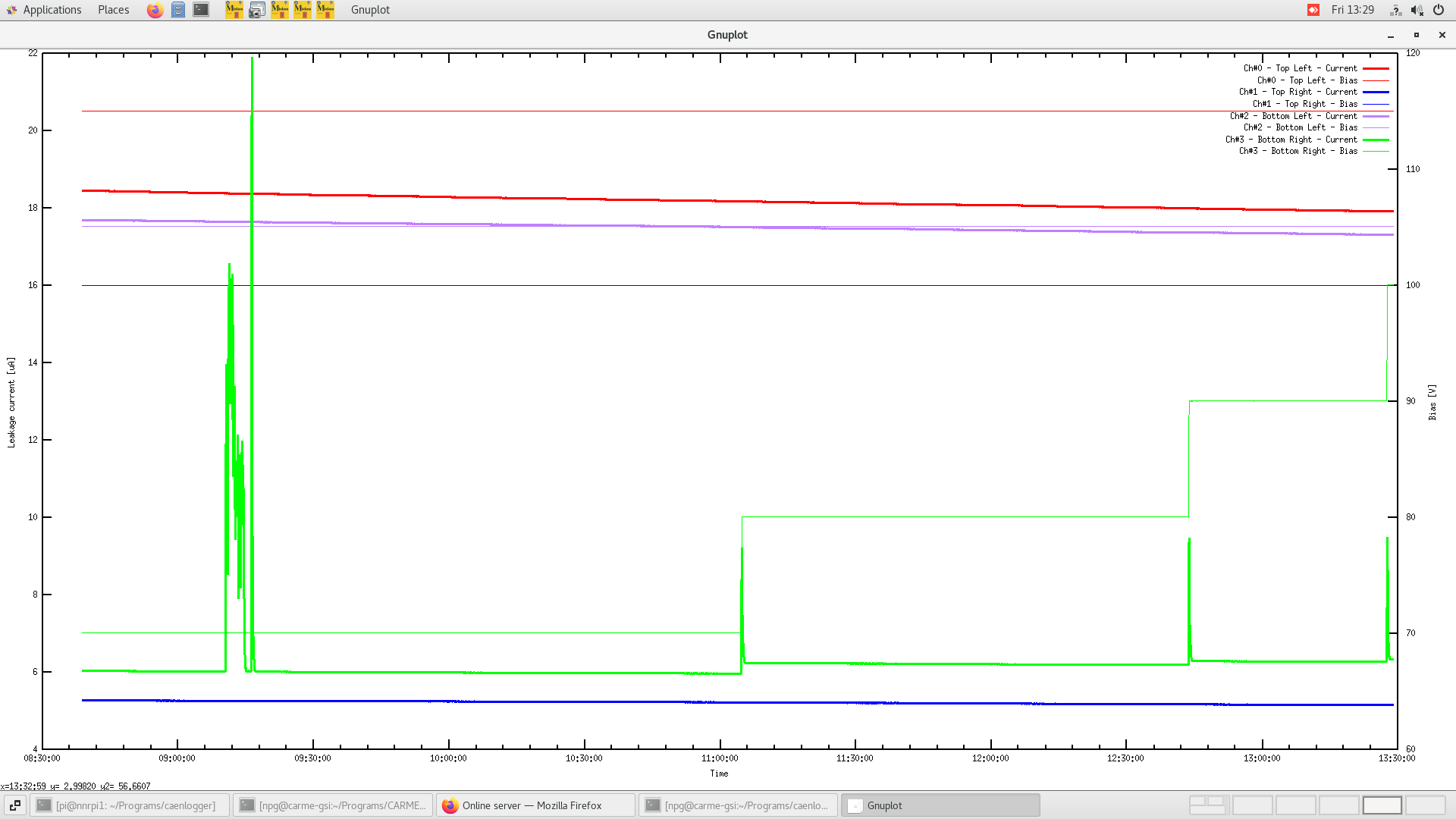

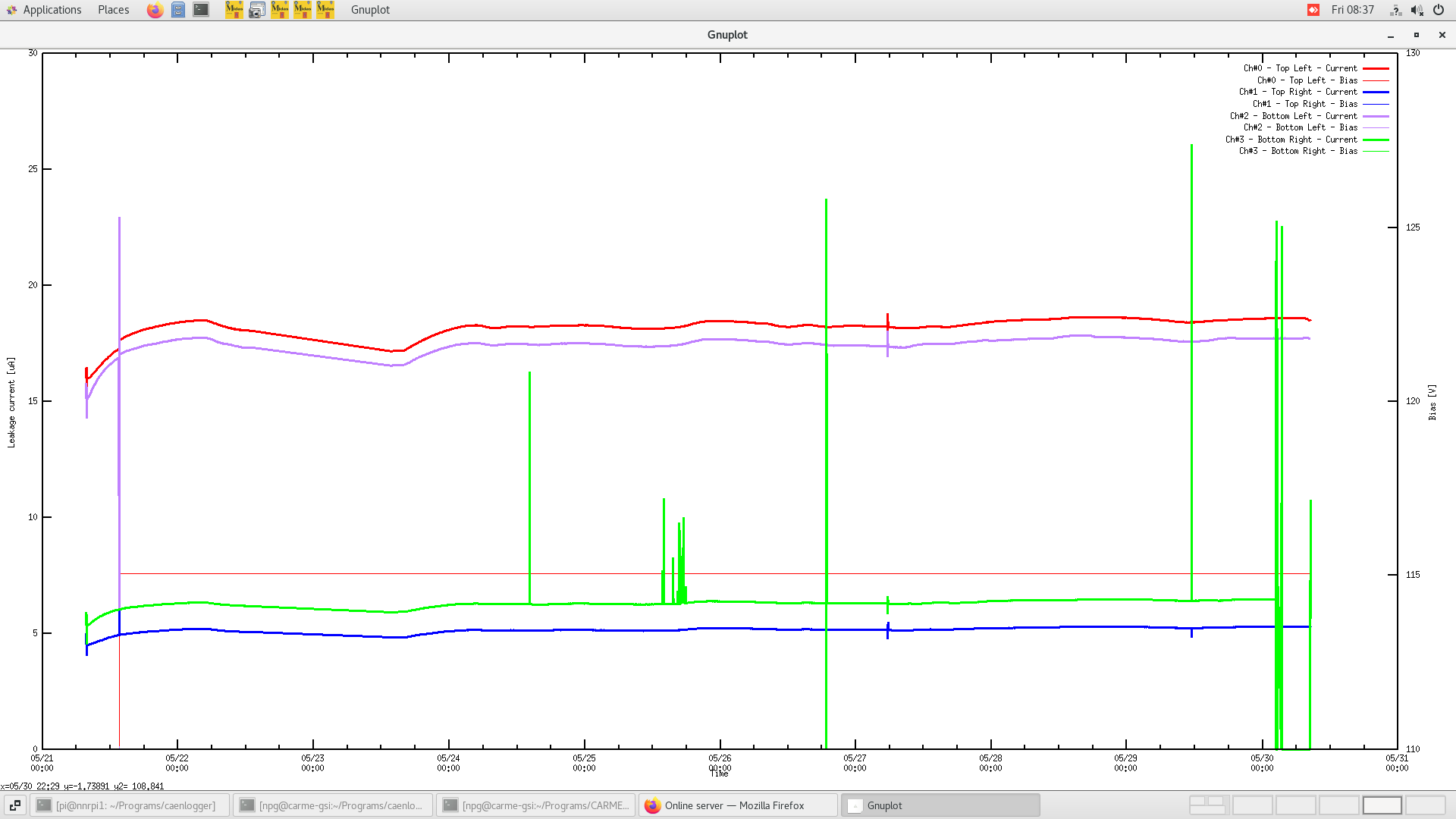

Leakage current on channel 3 showed some issues, back to stable. See attached.
11:00
Temps OK
Leakage current stable.
Increased bias on channel 3 to 80 V. I = 6.2 uA stable. Leaving for a while.
12:45
Temps OK
Leakage current stable
Increased bias on channel 3 to 90 V. I = 6.3 stable. Leaving for a while.
13:30
Temps OK
Leakage current stable.
Increased bias on channel 3 to 100V. I = 6.3 stable. Hopefully it holds until the end of the beam time.
20:00

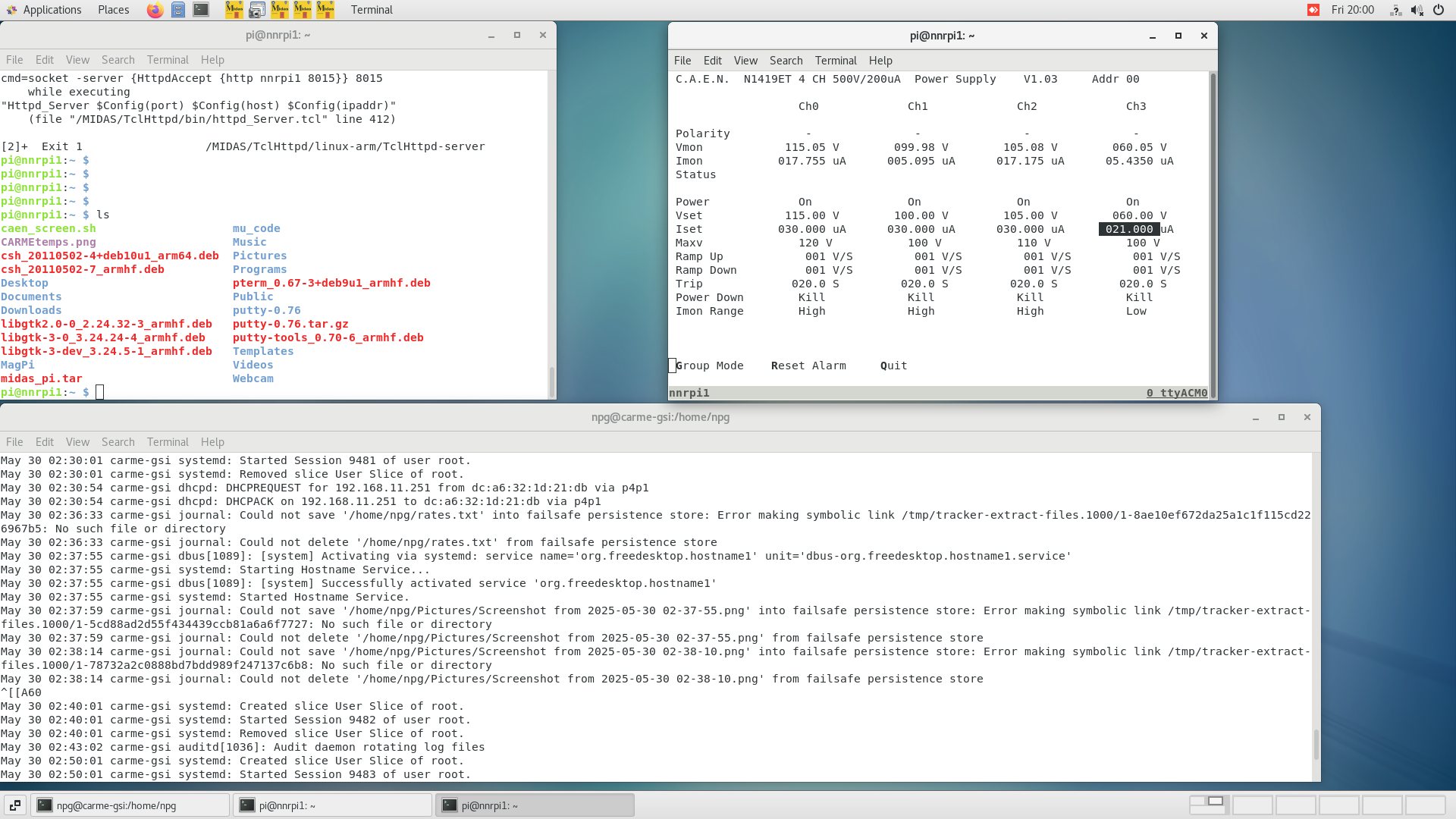

Leakage current on channel 3 had issues again and bias was reduced to 50 V. Remained stable. Turned to 60 V now. Still stable. See attachement.
FEEs on detector for -> MEC
Temps OK - attach
Checks as before - attach

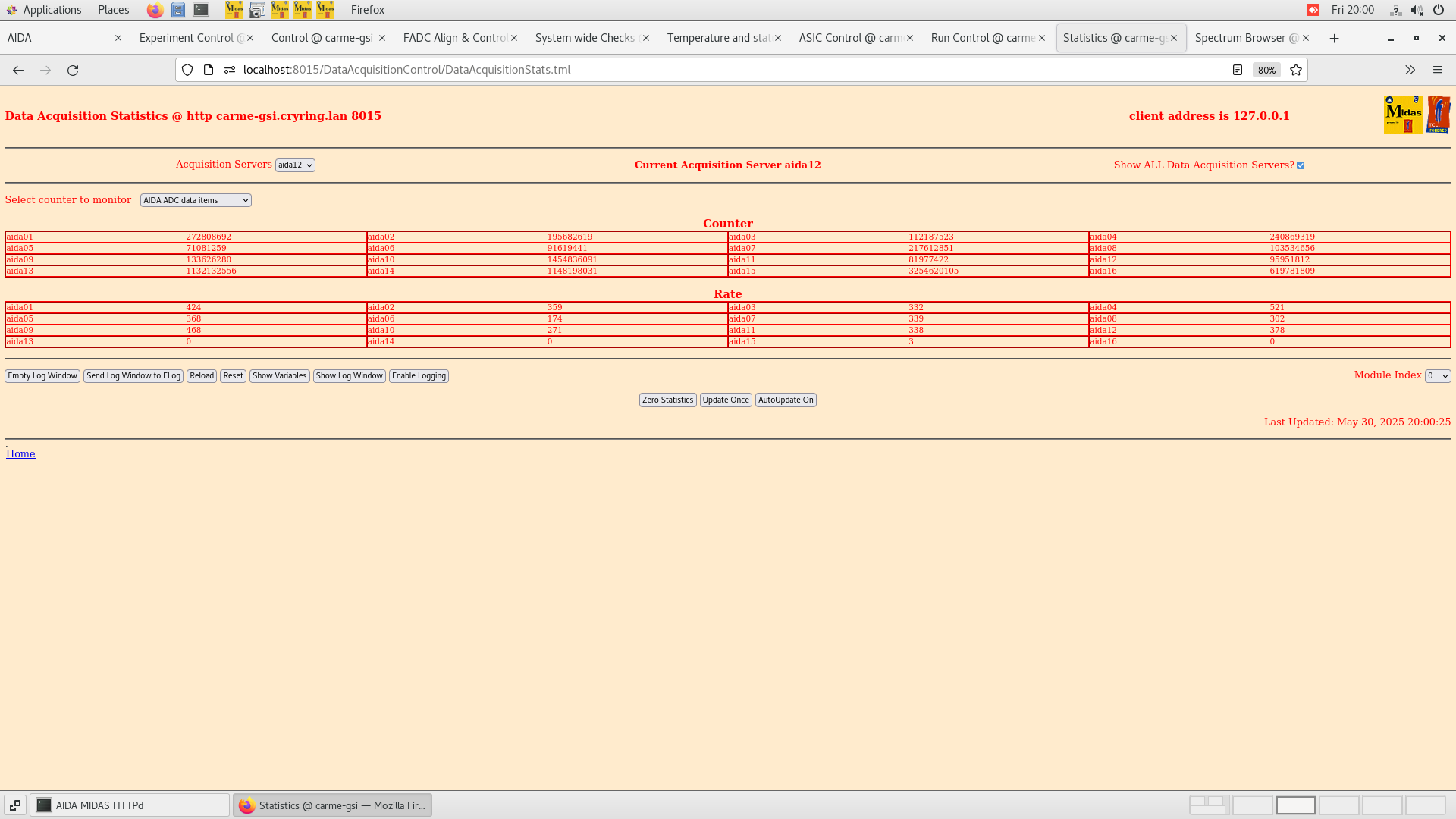

Rates OK (four fees not counting as expected) - attach
Deuterium beam in the ring at 2 MeV/A approx 2E8 pps, significant H2+ contamination.
Deuterium target working, fluctuating around 5E12-1E13 atoms/cm2
Vacuum in YR09 - 3E-10 mbar
Beginning beam-target overlap measurements soon. |
| Attachment 1: Screenshot_from_2025-05-30_08-28-08.png
|
|
| Attachment 2: Screenshot_from_2025-05-30_08-37-17.png
|
|
| Attachment 3: Screenshot_from_2025-05-30_10-10-12.png
|
|
| Attachment 4: Screenshot_from_2025-05-30_13-29-57.png
|
|
| Attachment 5: Screenshot_from_2025-05-30_20-00-13.png
|
|
| Attachment 6: Screenshot_from_2025-05-30_20-00-17.png
|
|
| Attachment 7: Screenshot_from_2025-05-30_20-00-27.png
|
|
| Attachment 8: Screenshot_from_2025-05-30_20-00-37.png
|
|
|
702
|
Thu May 29 18:04:47 2025 |
LB, CB, PMH, JM | Run 32,33,34 | Oven temperature increased, current up to 3.5E7 pps.
Found beam-target overlap setting horizontal bump in RO9 to -2.5mm.
Target T1 30.5K, density increasing to 2.6E11 at/cm2.
19:08 Run 32 start
Moving left detectors (79.69->34.66mm).
Beam energy 1.85 MeV/u nominal
Electron cooler actual values: voltage 1.051 kV, current 0.013215 uA, [voltage divider G35 1.0504 kV]
Stopped run, beam was still in bunch mode.
19:15 Run 33 start
All checks Ok.
Target at 3E11 at/cm2
Attachment 1-2 with rates and temperatures
20:20
Target density 3.4E11 at/cm2. Beam around 2.2-3.6E7 pps.
Checks ok! Spectra attached in att.3.
21:25
all good. Target density 4E11 at/cm^2
22:24
All checks are OK
Noted some variability in the injection intensity. For 15 minutes about half of shots were below 1e7. Perhaps some variability due to end of lithium in oven or increased temperture.

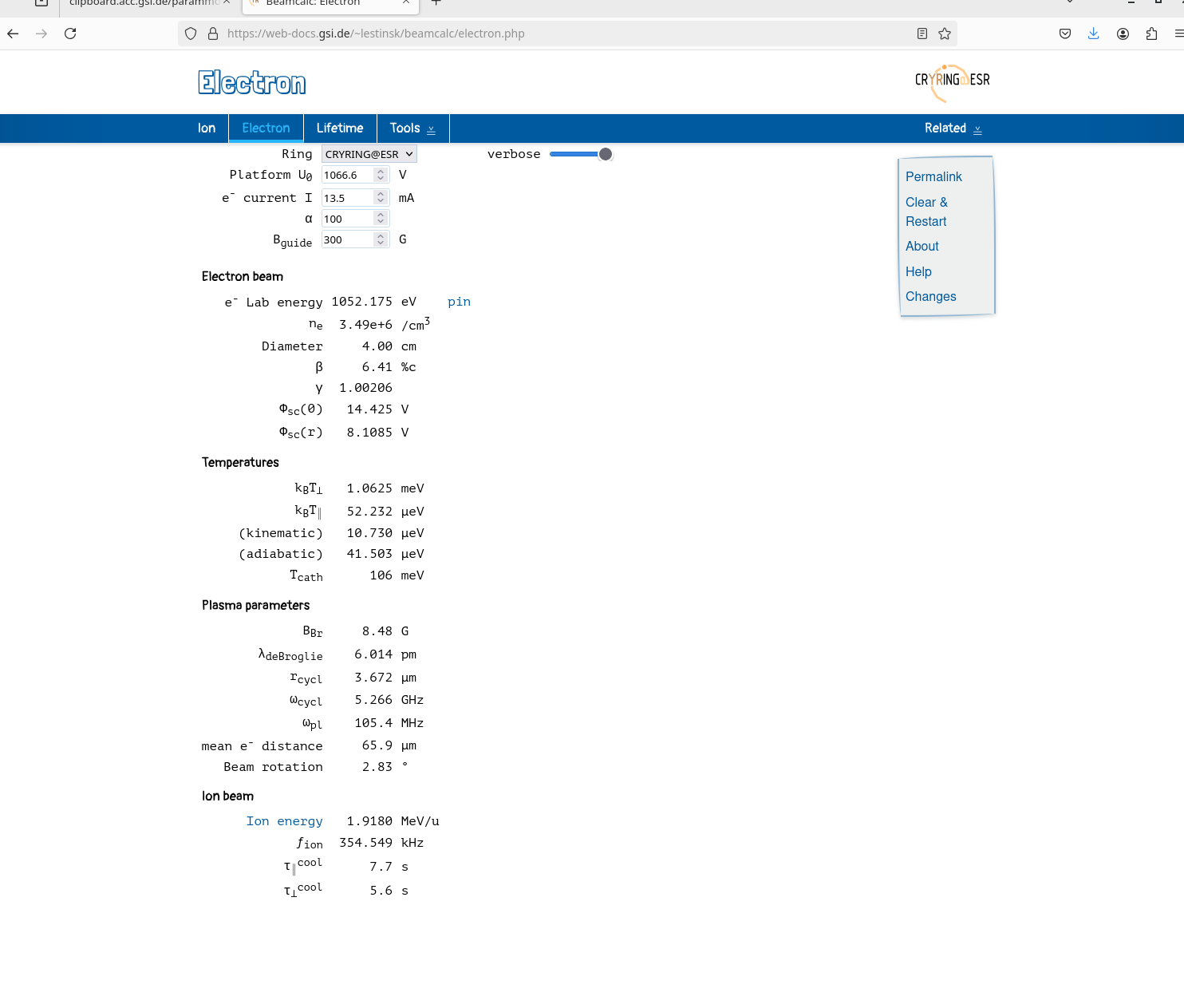

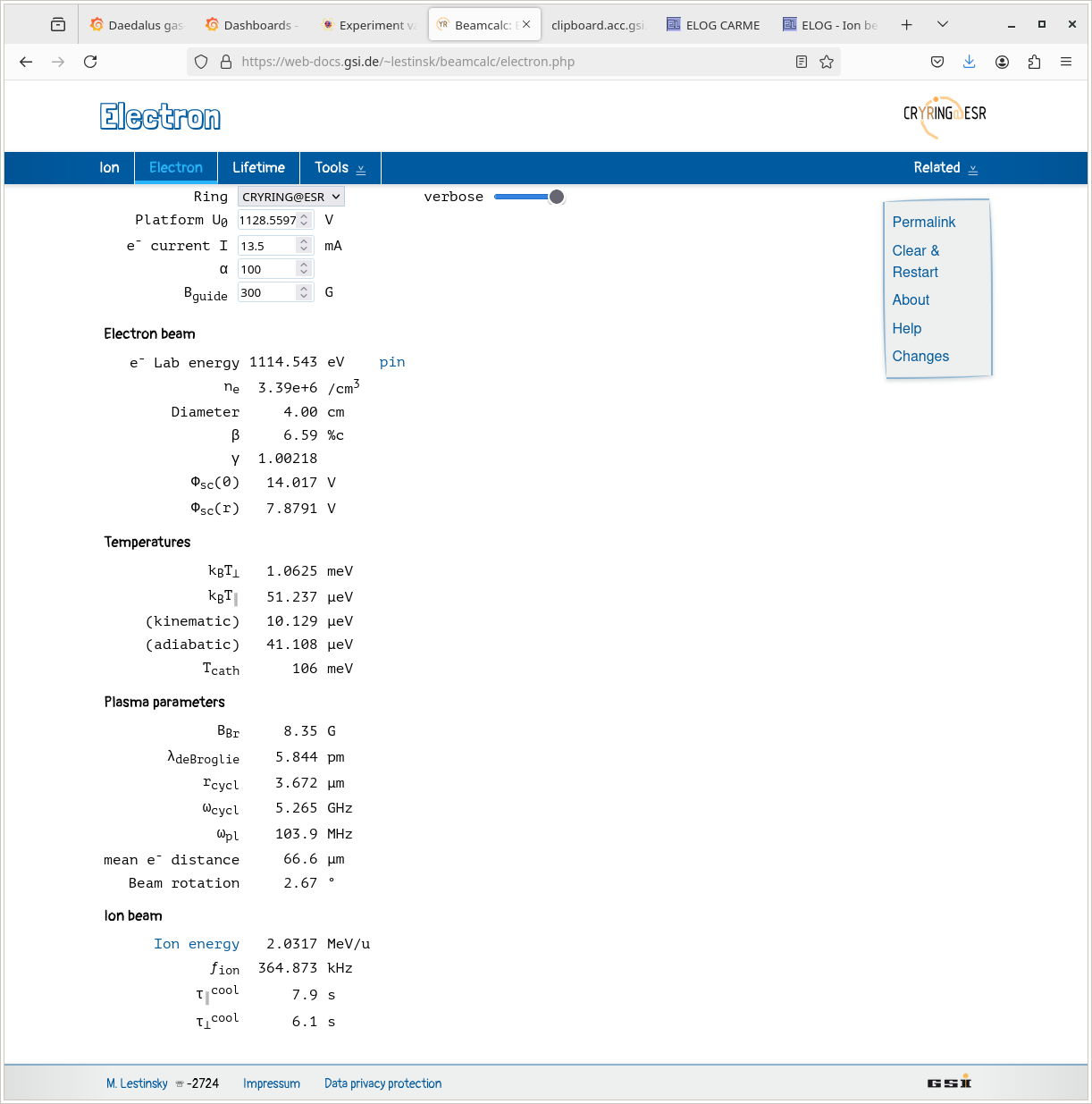

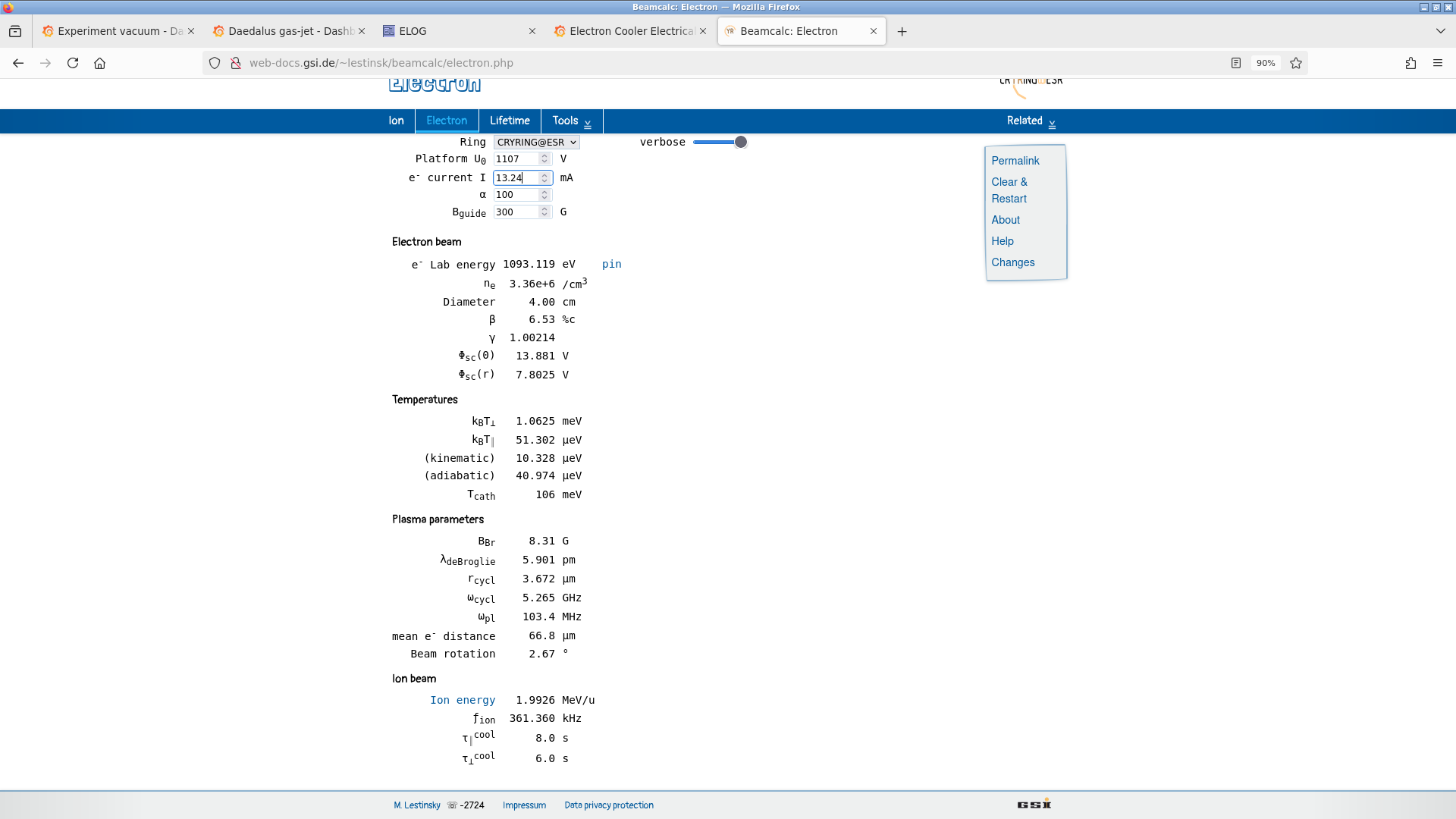

Beam calc with read values - Attachment 4
01:30
All checks OK. Injection intensity has stabilised ~2E7
Target density is stable ~4e11 at/cm2
02:44
Suddenly see very high rates in DSSD4. Detector had tripped. Tried to re-bias but kept tripping.
Set to 70V, leakage current is about 17uA but fluctuates quite wildly. Set to 50V and leakage current is about 6uA but again has wild fluctuations. Not sure of the cause, this detector is not moving and is far from the beam.
Decided to turn detector off to try and protect it. We can re-bias and monitor in the day tomorrow when we do not have beam on target.
This detector has tripped previously but was able to be re-biased at the time. See attachments 5 and 6 for the detector leakage currents.
New Run started R34.
Same conditions as before. DSSD4 turned off. To stop crap writing to disk I have set the corresponding FEEs to the MEC.
In principle we do not need this detector now as it is not moving to see the reaction.
Note I also observed in the system messages we semi regularly get a DHCP request from aida11. It seems to be functioning fine as I see the pulser signal in the spectrum browser. May be worth following up on at a later date. See attachment 7
All other checks OK
Data rate is now ~140 kB/sec
03:15
Tried to bias DSSD4 again. Leakage currents appear fine again.
Left for 5 minutes to gauge stability -> seems fine.
03:22
Have returned aida13, 14, 15, 16 back to LEC. Maintaing the same run (34)
Scratch that. 03:27 detector tripped again. Will just leave it off tonight. Turned those FEEs back to MEC.
06:00
I have quickly looked at Run 33. We clearly see the 7Be again in both detectors. Locus on detector much smaller than at higher energies.
All checks OK
07:07
Run stopped, switching to deuterium.
Detectors moved out
Shutter for gas target off.
Moved to next run -> no storage mode. |

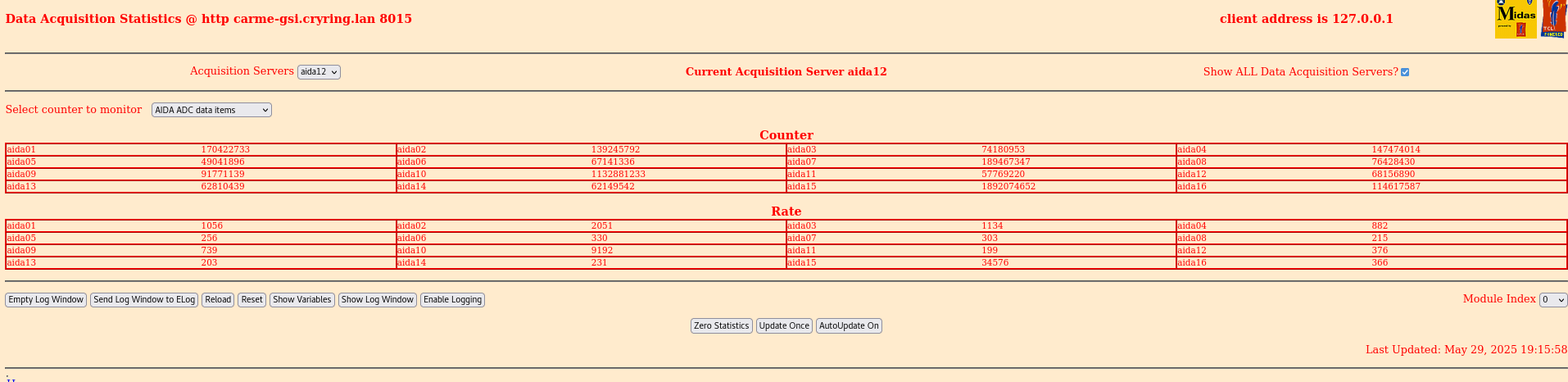

| Attachment 1: Screenshot_from_2025-05-29_19-16-09.png
|
|
| Attachment 2: Screenshot_from_2025-05-29_19-12-46.png
|
|
| Attachment 3: Screenshot_from_2025-05-29_20-23-50.png
|
|
| Attachment 4: beamCalc.png
|
|
| Attachment 5: Screenshot_from_2025-05-30_02-37-55.png
|
|
| Attachment 6: Screenshot_from_2025-05-30_02-51-21.png
|
|
| Attachment 7: Screenshot_from_2025-05-30_02-38-10.png
|
|
|
701
|
Thu May 29 14:39:52 2025 |
CB LB PMH | Run 31 | 15:40
Waiting for Serge to come in to change beam energy.
Remaining at the same beam energy and settings as before, except RIGHT arm now moving.
Run 31
37.96 -> 83.69 mm
16:53
Serge arrived. Run ended. Motors out. No storage.
Temps OK
Rates OK
|

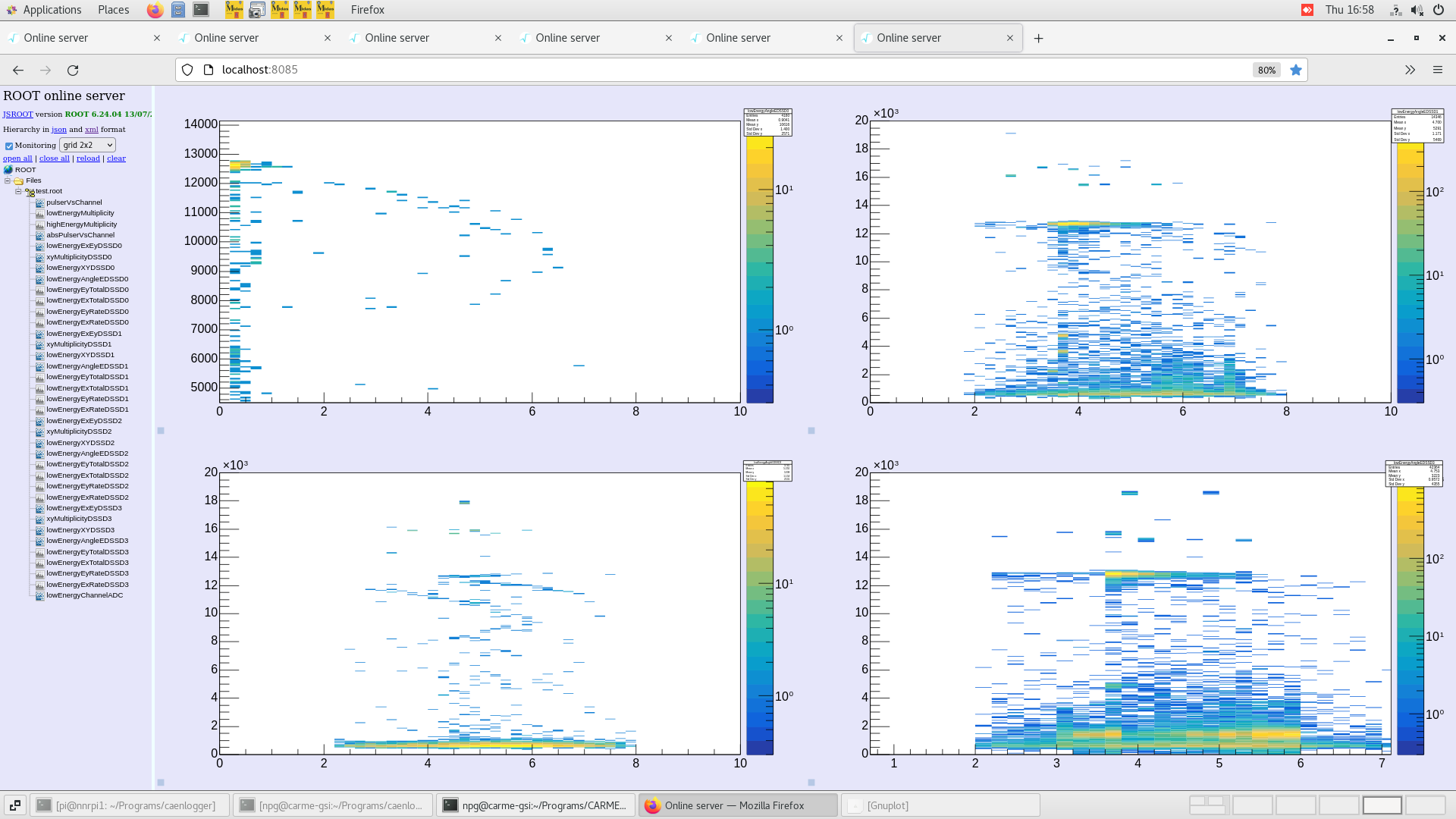

| Attachment 1: Screenshot_from_2025-05-29_15-41-46.png
|
|
| Attachment 2: Screenshot_from_2025-05-29_15-42-11.png
|
|
| Attachment 3: Screenshot_from_2025-05-29_15-42-49.png
|
|
| Attachment 4: Screenshot_from_2025-05-29_16-58-12.png
|
|
| Attachment 5: Screenshot_from_2025-05-29_16-58-16.png
|
|
| Attachment 6: Screenshot_from_2025-05-29_16-58-18.png
|
|
| Attachment 7: Screenshot_from_2025-05-29_16-58-21.png
|
|
| Attachment 8: Screenshot_from_2025-05-29_16-58-23.png
|
|
| Attachment 9: Screenshot_from_2025-05-29_16-58-26.png
|
|
|
700
|
Wed May 28 16:40:48 2025 |
EH, SN, LB, OF, EBM, CB | Run 28/29/30 - 1.88 MeV/A | We start a new run with real data taking condititon: beam is ok, target density is 1e12 cm-2, detectors are moving in-out periodically.
Cooler voltage setpoint 1066.6 V. Read value 1068 V.
Current read = 0.01325 uA
Beam energy = 1.88 MeV/u (from HKR)
Attachment 1 - beamcalc with nominal values
Attachment 32 - beamcalc with actual values
Right arm at 19.80 mm
Left arm IN at 77.56 mm (OUT 32.77 mm)
vertical beam position 0.0 mm
horizontal beam position -3.0mm
Beam intensity ~1.8e+7 particles.
Target density ~1e12 at/cm2
Target temperatures: T1=31.4 K T2=35.1 K
17:48

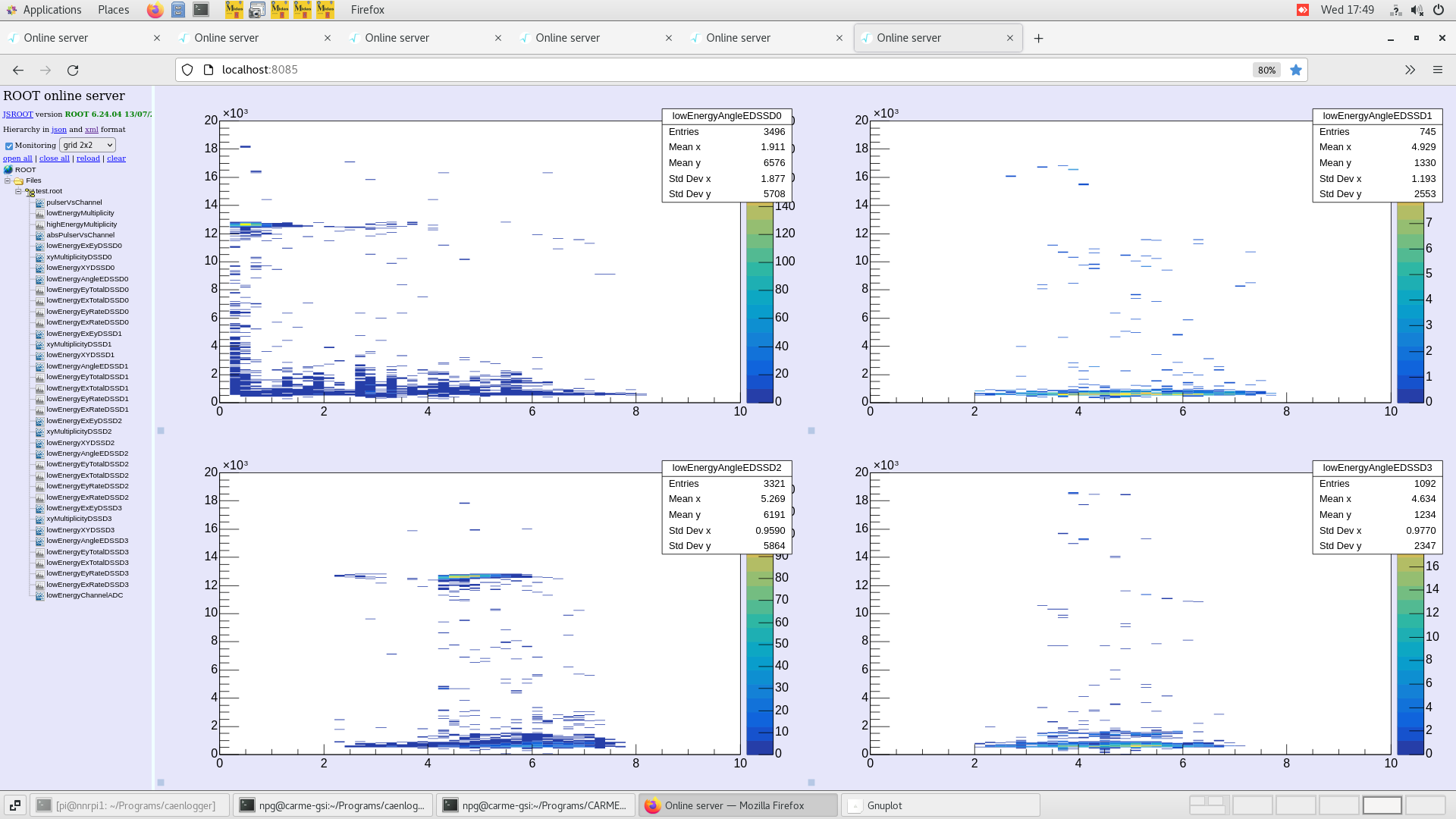

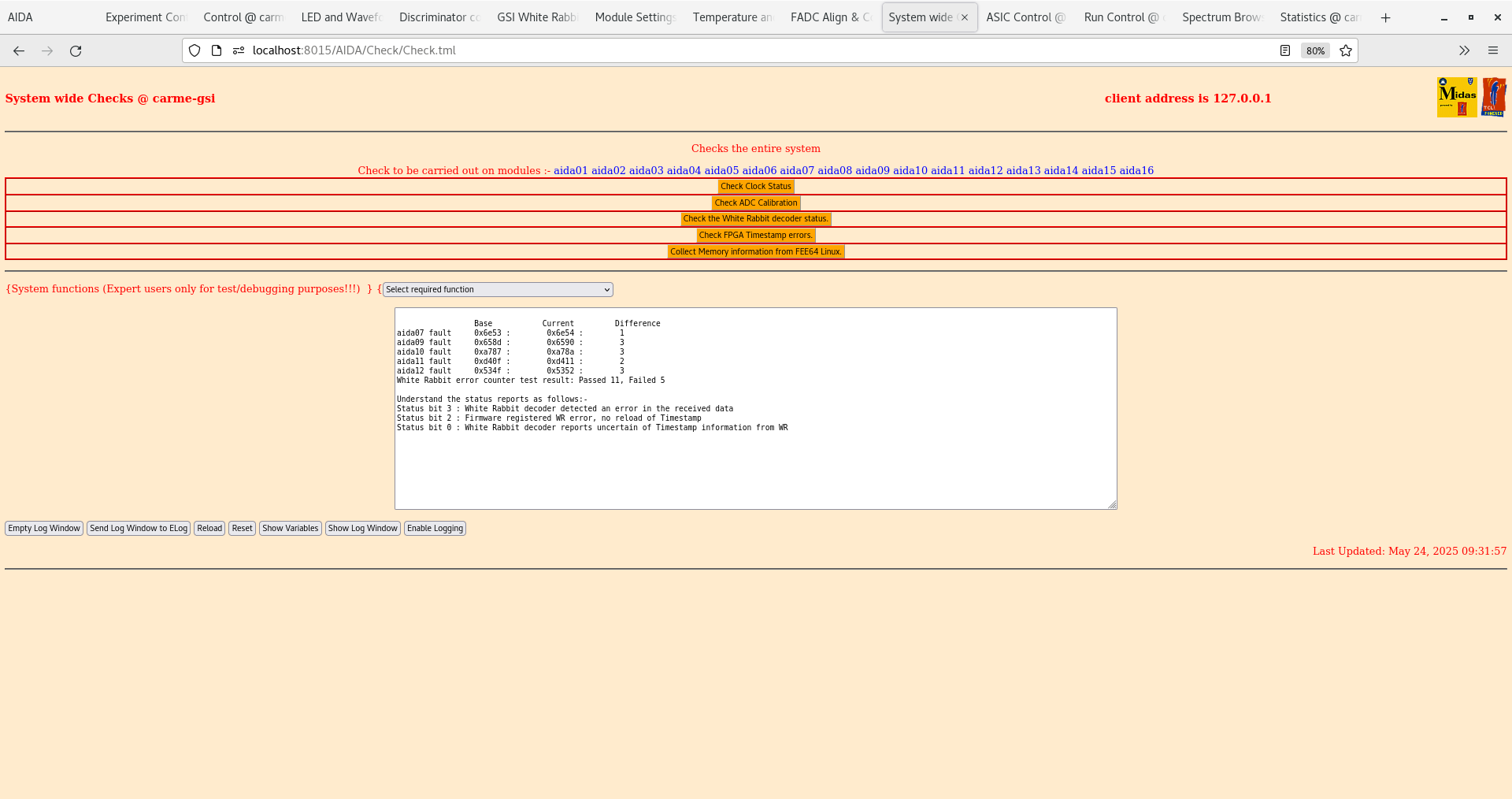

aida01 fault 0x0 : 0x1 : 1
FPGA Timestamp error counter test result: Passed 15, Failed 1
All checks OK.
The electron current from beamcalc is the setvalue.
18:51
aida01 fault 0x0 : 0x1 : 1
FPGA Timestamp error counter test result: Passed 15, Failed 1
All checks OK.
20:20
aida01 fault 0x0 : 0x1 : 1
FPGA Timestamp error counter test result: Passed 15, Failed 1
All checks OK.
22:02
Base Current Difference
aida01 fault 0x0 : 0x1 : 1
FPGA Timestamp error counter test result: Passed 15, Failed 1
All checks OK.
23:13
All checks OK. Target stabilized at ~6.7E11 at/cm^2
00:23
All checks good.
01:01
We are observing what seems to be a steady decrease of the target density, currently at around 5e11 at/cm2, whihc also seems to be following a decrease in the temperature T2.
1;40
All checks good. Spectra attached in att. 18. Target density still decreasing (3.7E11 at/vcm2)2
2:54

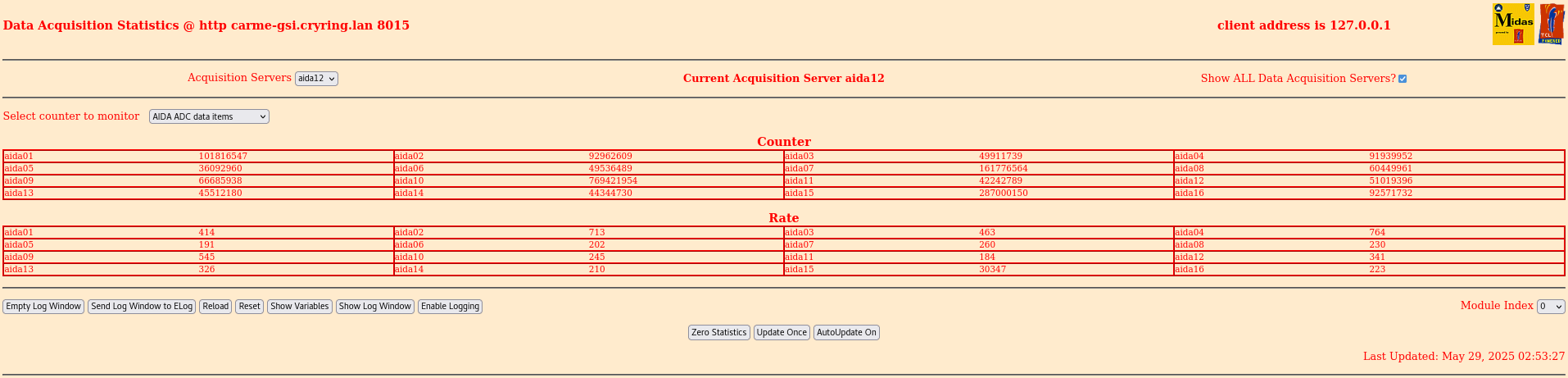

All checks ok. Attached rates and spectra in att. 19-20. target density decreased as continued, now around 2.5E11 at/cm^2.
We tried to move a bit around the nozzle/target, no effect.
Gone back to original value of x=1000, y=-4200.
Moreover, the screen with the program to move the detector seems to be bugged (gray background, a double window): however, the potentiometer value is chnaging and I see the usual effect of detector moving on the statistics, so i think it is fine
3:38
Checks Ok. Target 2.5E11 at/cm2
4:05
The bug disappeared
4:56
Target density is now 1.9E11 at/cm2. It is very low with respect to before, but our reasoning is that nothing can be done about it at night anyway (apart from moving the nozzle, which we tried without effect). O. pointed out that the beam lifetime is still such that the beam is gone before the next injection.
Checks ok. Attachments 21-22 spectra and xy plot. Some structure in top left?
06:00
All check ok. Target density 1.8E11 at/cm2
6:49
all goo, target 1.7E11 at/cm2
07:30
All checks ok, except timestamp (15 passed, 1 failed, see screenshot)
8:30
Tried moving the nozzle. Minor improvement in target density only. x=-1000 y=-4200
Stopped writing to disk while moving nozzle and stopped the motors. Restarted everything and moved to run 29 - no differences vs. 28.
09:11
Temps OK.
Nautilus does not respond to user commands. Attempint to make it work again without rebooting.
10:05
Stopped to reconsider which arm we are moving. Started to move arms around. Decided to stick with left arm.
Started run 30. Same as 28 and 29.
10:30
Temps OK - attach
Rates OK - attach
Stats OK (taken with arm in) - attach
Current histogram attached
11:40

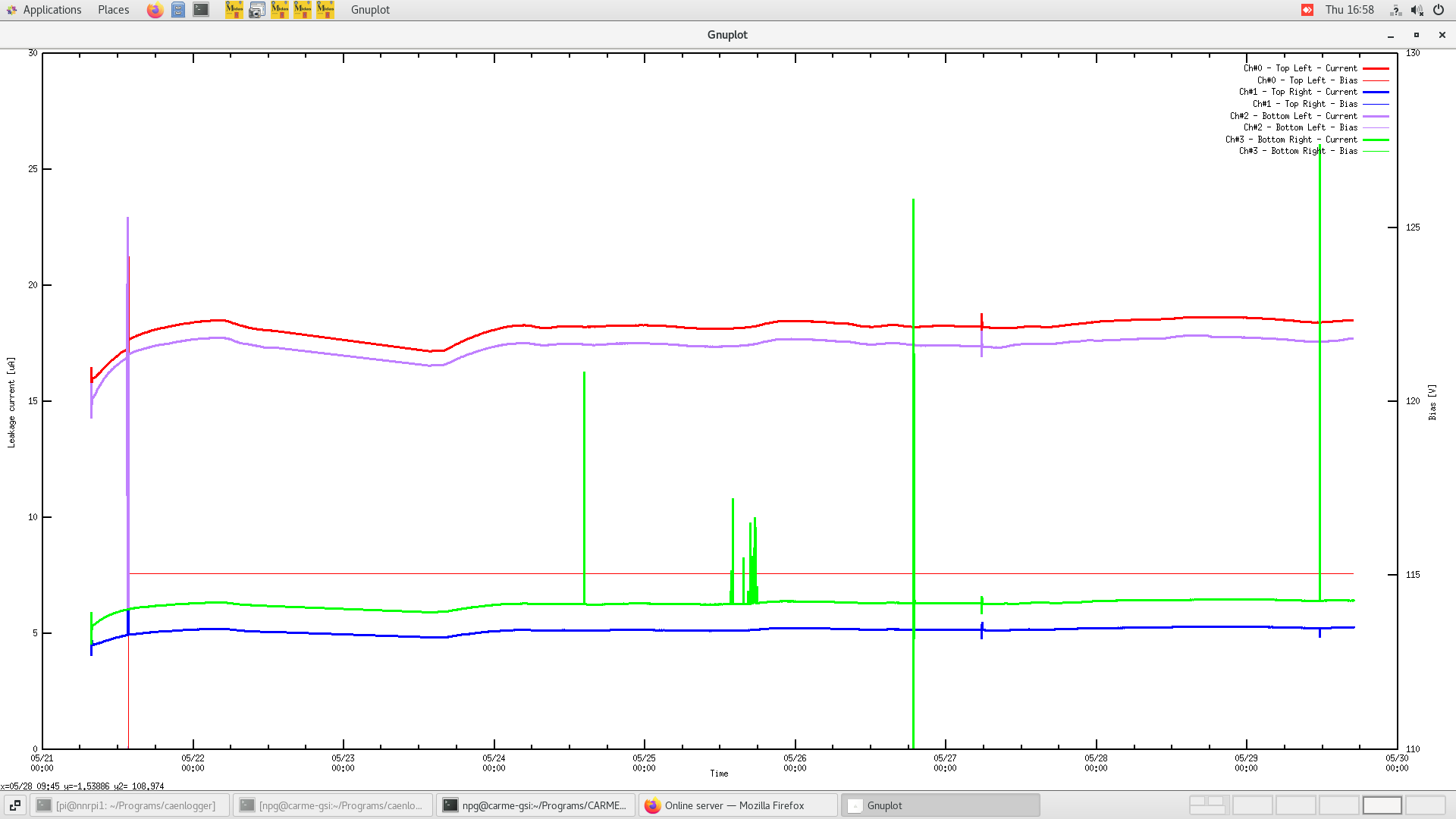

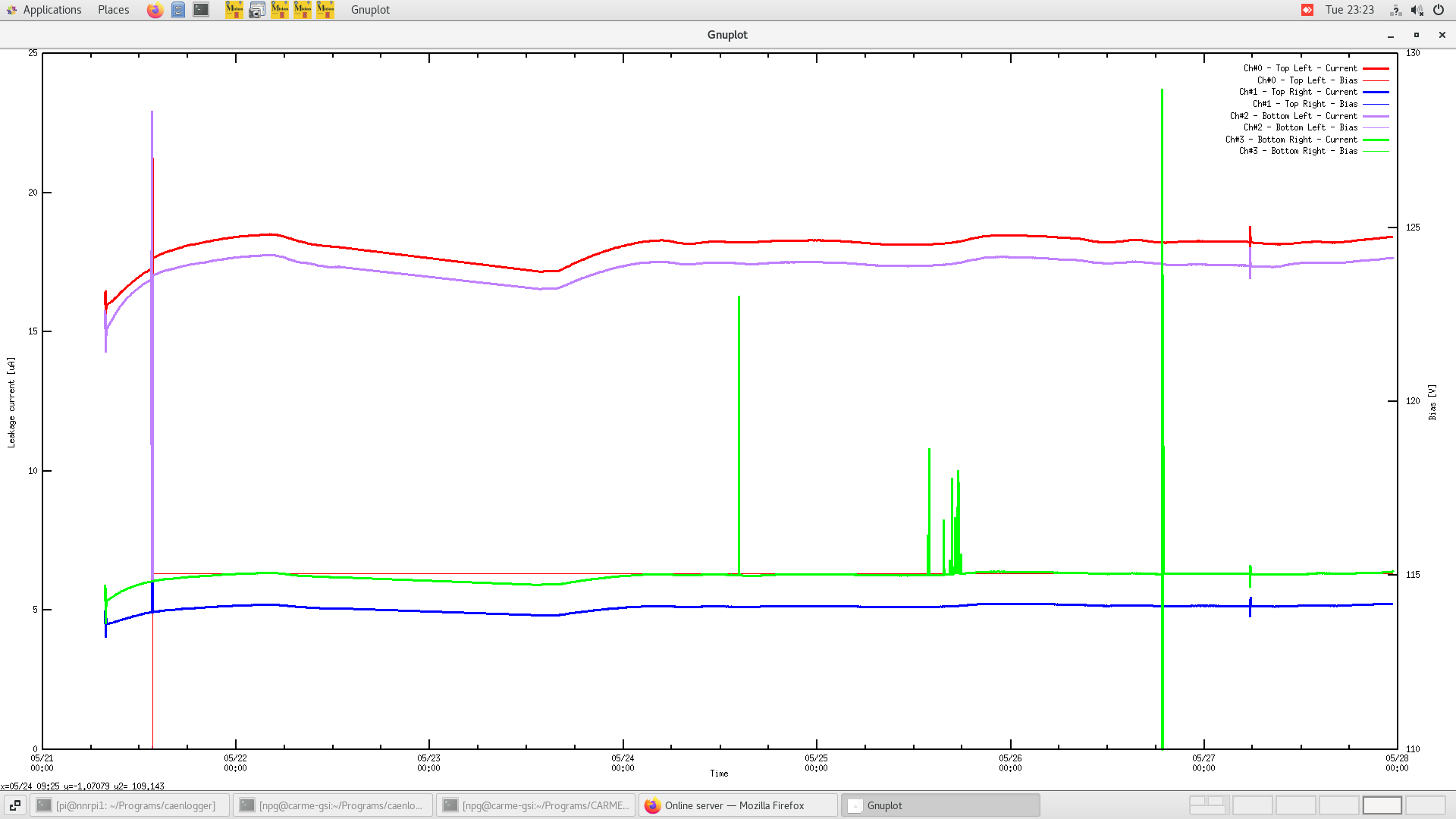

Something happened to leakage currents. We see an increase in the top-right detector (which recovered) and a decrease in the bottom-right. Neither is moving.
No changes to left arm detectors, which are moving.
Temperature in the cave stable. No effects on the DAQ.
Temps OK
Rates in aida06 at 10k. Fast discriminator at 100k. Checkloaded. OK. Other rates fine.
Will keep monitoring.
11:50
aida06 fast discriminator over 100k. Checkloaded x2. OK now. Other rates fine.
No changes to leakage current.
13:20
Temps OK
Rates OK (aida 06 is no longer counting fast)
Leakage current stable
14:20
Run continues OK
Temps OK
Stats OK
|
| Attachment 1: Screenshot_2025-05-28_17-51-17.png
|
|
| Attachment 2: Screenshot_from_2025-05-28_17-47-21.png
|
|
| Attachment 3: Screenshot_from_2025-05-28_17-49-00.png
|
|
| Attachment 4: Screenshot_from_2025-05-28_17-49-11.png
|
|
| Attachment 5: Screenshot_from_2025-05-28_17-49-30.png
|
|
| Attachment 6: Screenshot_from_2025-05-28_17-49-41.png
|
|
| Attachment 7: Screenshot_from_2025-05-28_18-52-35.png
|
|
| Attachment 8: Screenshot_from_2025-05-28_18-52-46.png
|
|
| Attachment 9: Screenshot_from_2025-05-28_18-52-56.png
|
|
| Attachment 10: Screenshot_from_2025-05-28_18-53-04.png
|
|

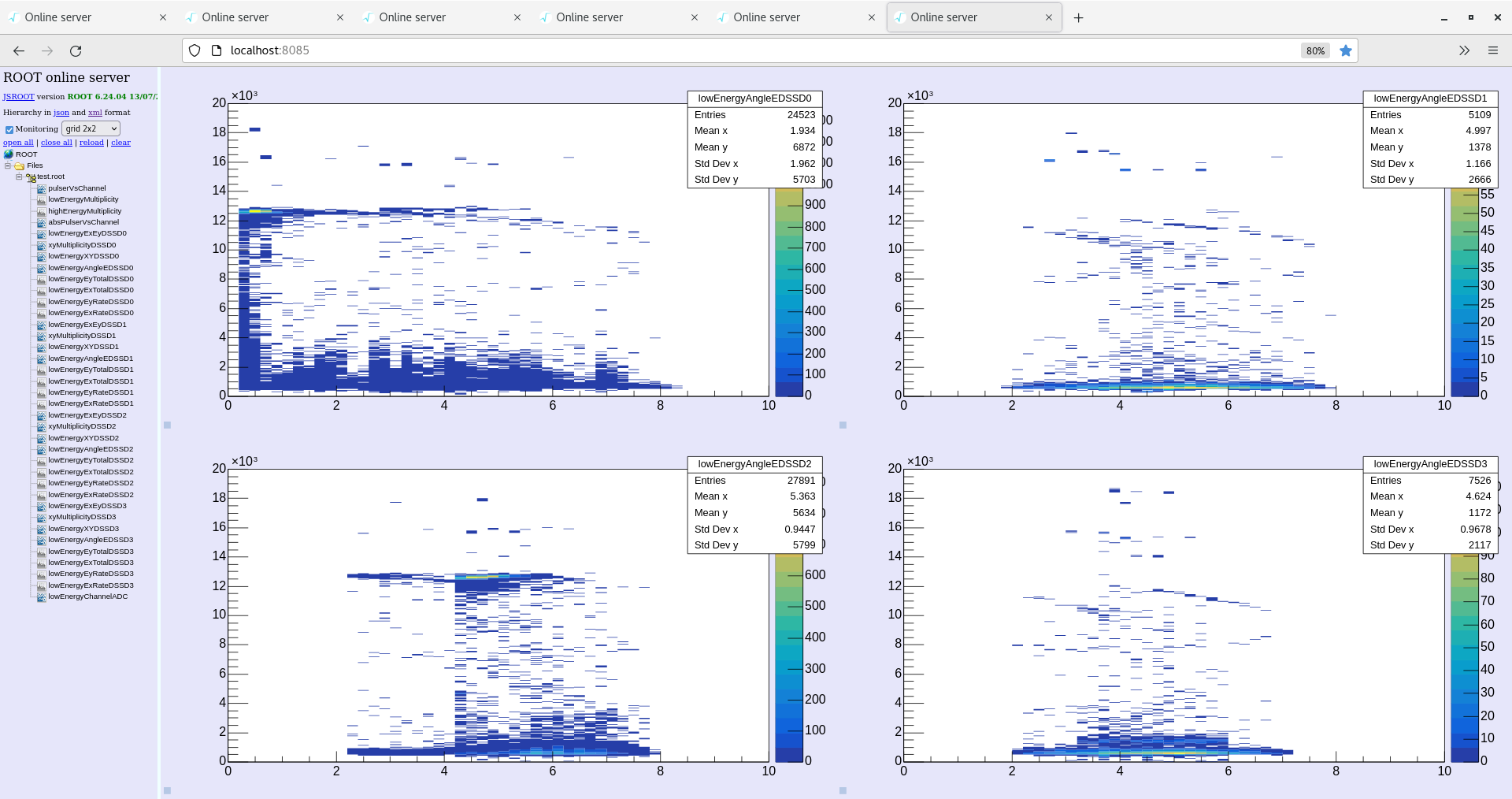

| Attachment 11: Screenshot_from_2025-05-28_18-53-34.png
|
|
| Attachment 12: Screenshot_from_2025-05-28_20-21-22.png
|
|
| Attachment 13: Screenshot_from_2025-05-28_22-04-57.png
|
|
| Attachment 14: Screenshot_from_2025-05-28_22-04-40.png
|
|
| Attachment 15: Screenshot_from_2025-05-28_22-04-26.png
|
|
| Attachment 16: Screenshot_from_2025-05-28_22-04-36.png
|
|
| Attachment 17: Screenshot_from_2025-05-28_22-04-52.png
|
|
| Attachment 18: Screenshot_from_2025-05-29_01-43-22.png
|
|

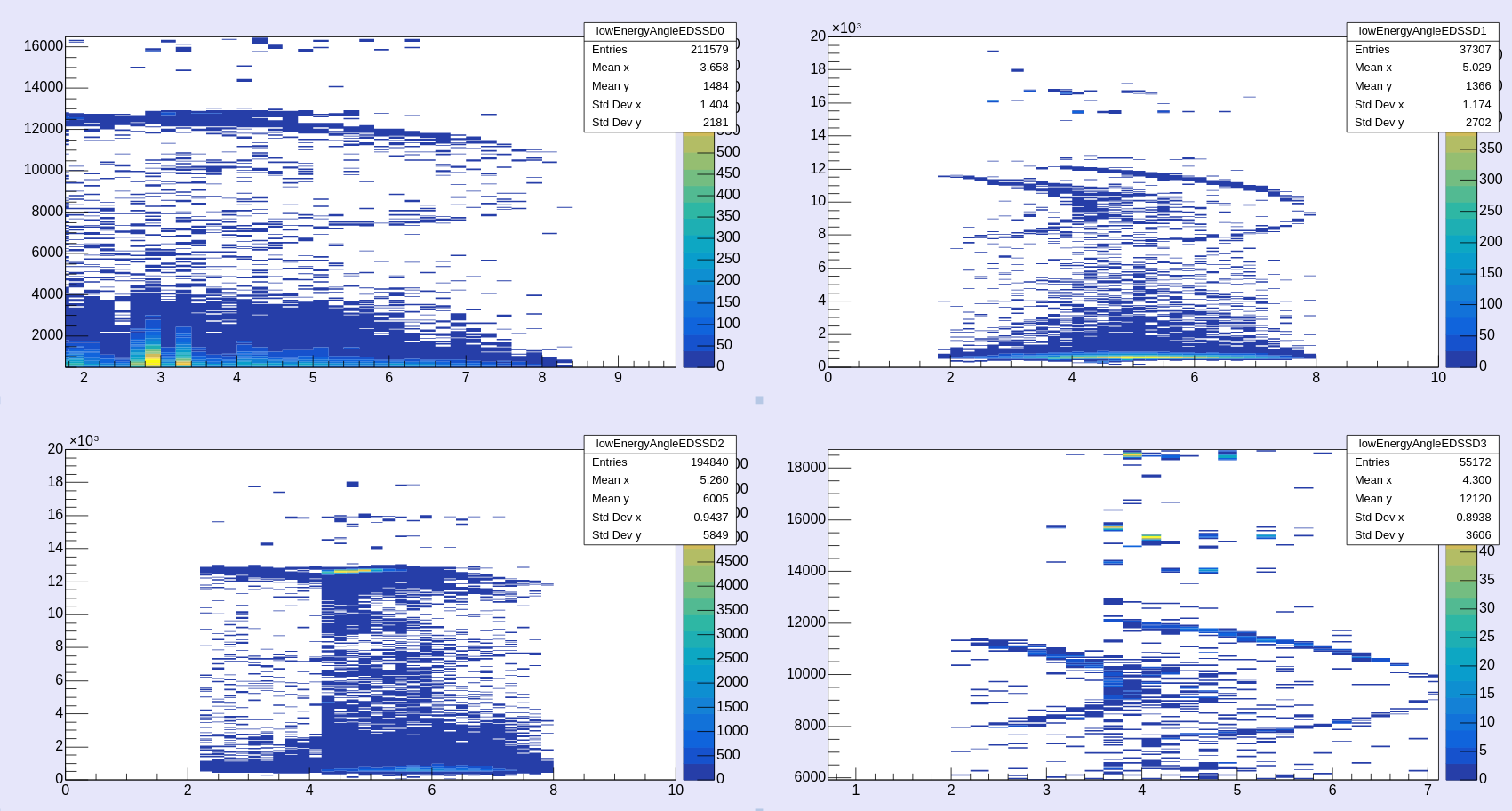

| Attachment 19: Screenshot_from_2025-05-29_02-53-41.png
|
|
| Attachment 20: Screenshot_from_2025-05-29_02-54-03.png
|
|

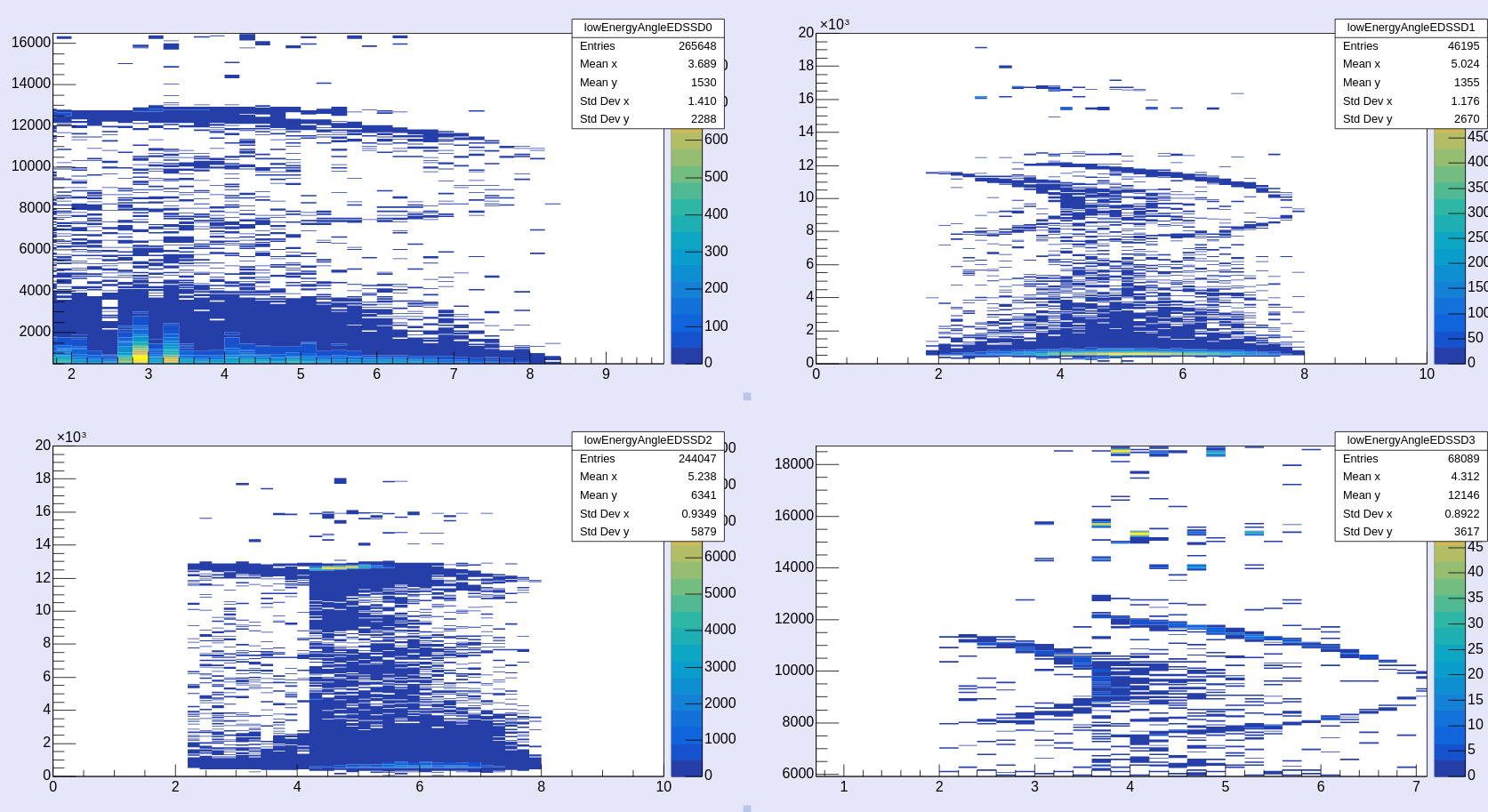

| Attachment 21: Screenshot_from_2025-05-29_05-00-39.png
|
|
| Attachment 22: Screenshot_from_2025-05-29_05-00-13.png
|
|
| Attachment 23: Screenshot_from_2025-05-29_07-31-25.png
|
|
| Attachment 24: Screenshot_from_2025-05-29_07-30-25.png
|
|
| Attachment 25: Screenshot_from_2025-05-29_07-30-10.png
|
|

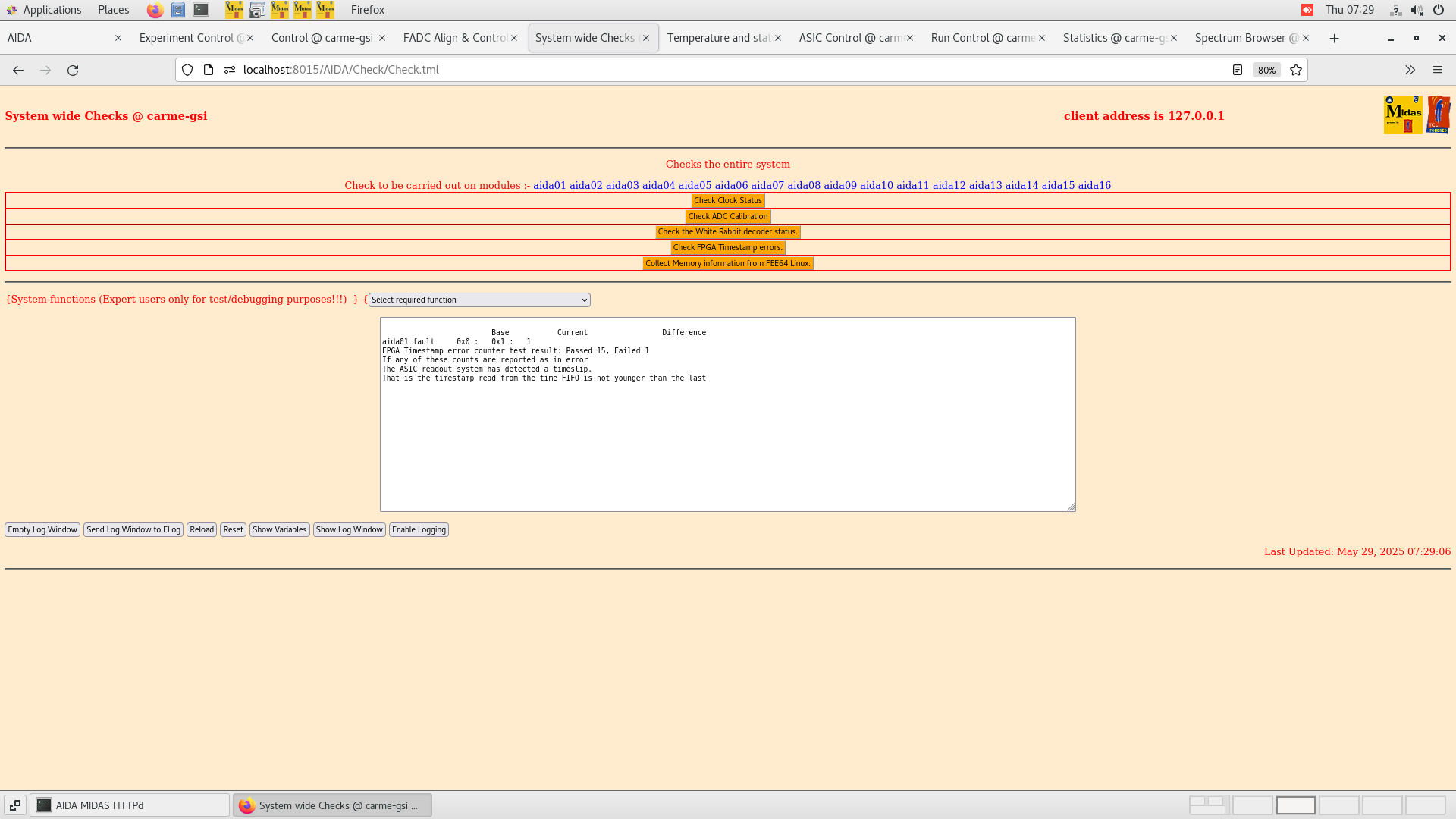

| Attachment 26: Screenshot_from_2025-05-29_07-29-42.png
|
|

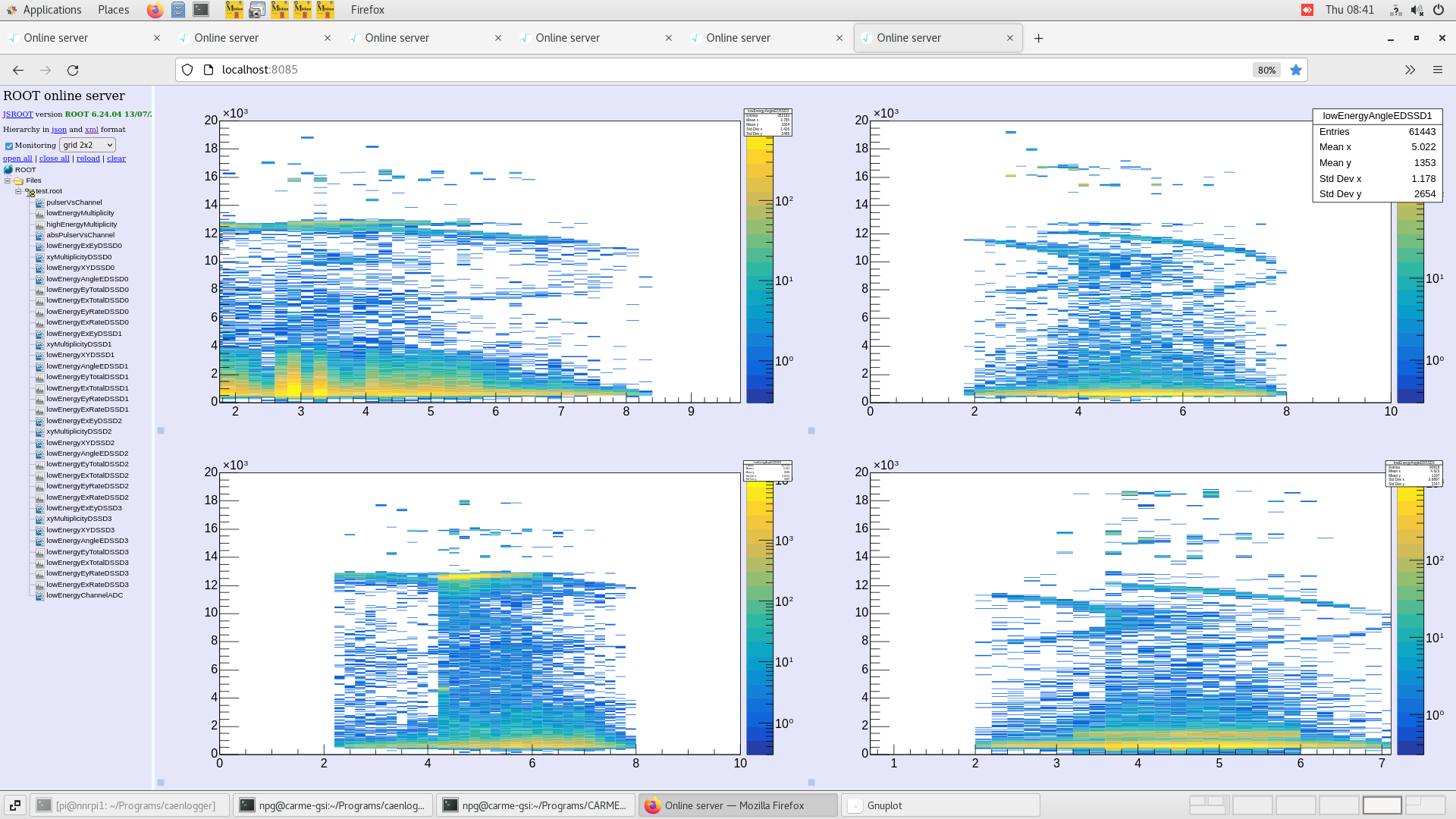

| Attachment 27: Screenshot_from_2025-05-29_08-41-51.png
|
|
| Attachment 28: Screenshot_from_2025-05-29_10-30-00.png
|
|
| Attachment 29: Screenshot_from_2025-05-29_10-30-03.png
|
|
| Attachment 30: Screenshot_from_2025-05-29_10-30-16.png
|
|

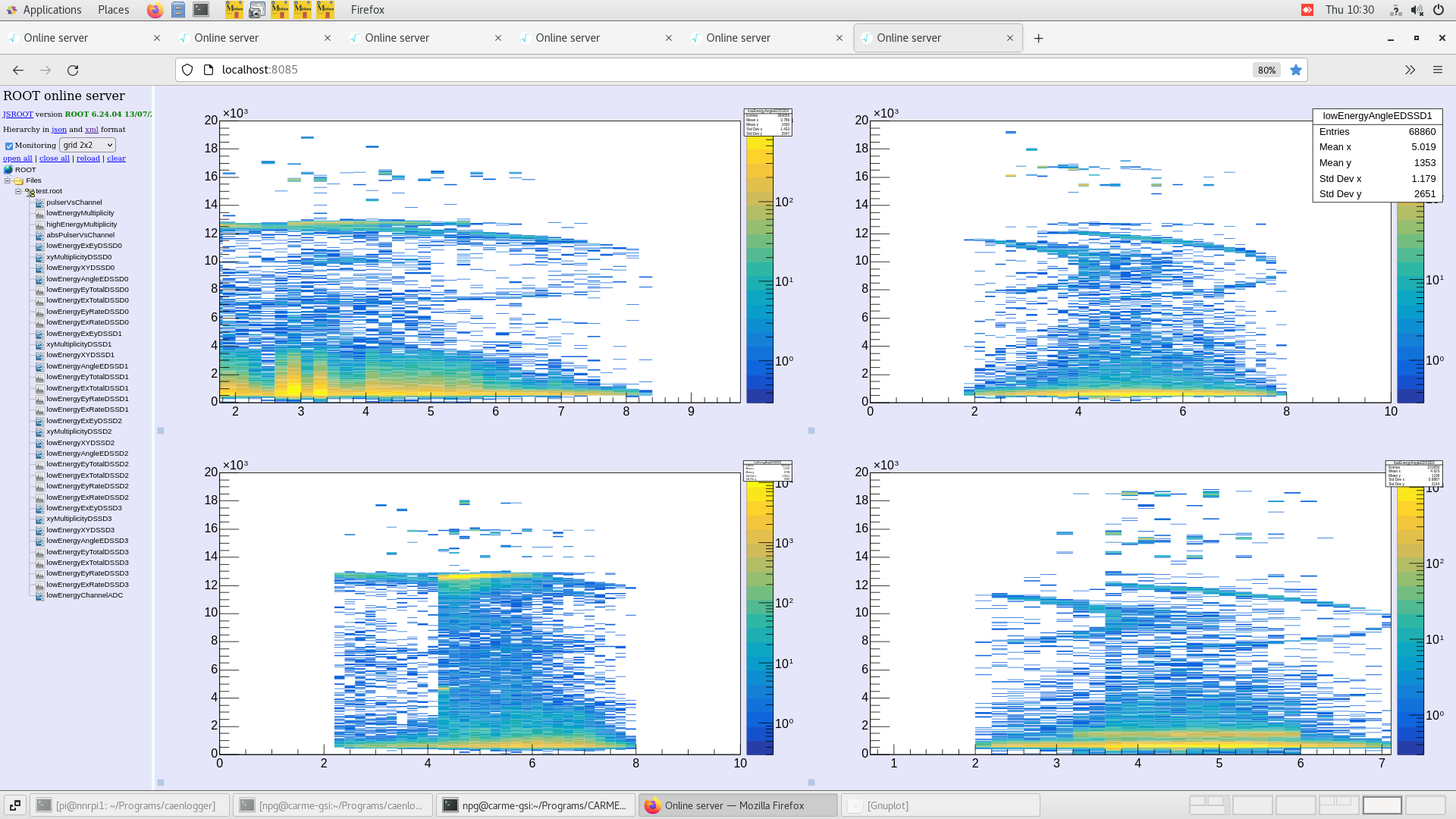

| Attachment 31: Screenshot_from_2025-05-29_10-30-19.png
|
|
| Attachment 32: screenshot-2025-05-29_11-13-385986126969656182153.png
|
|
| Attachment 33: Screenshot_from_2025-05-29_11-38-07.png
|
|

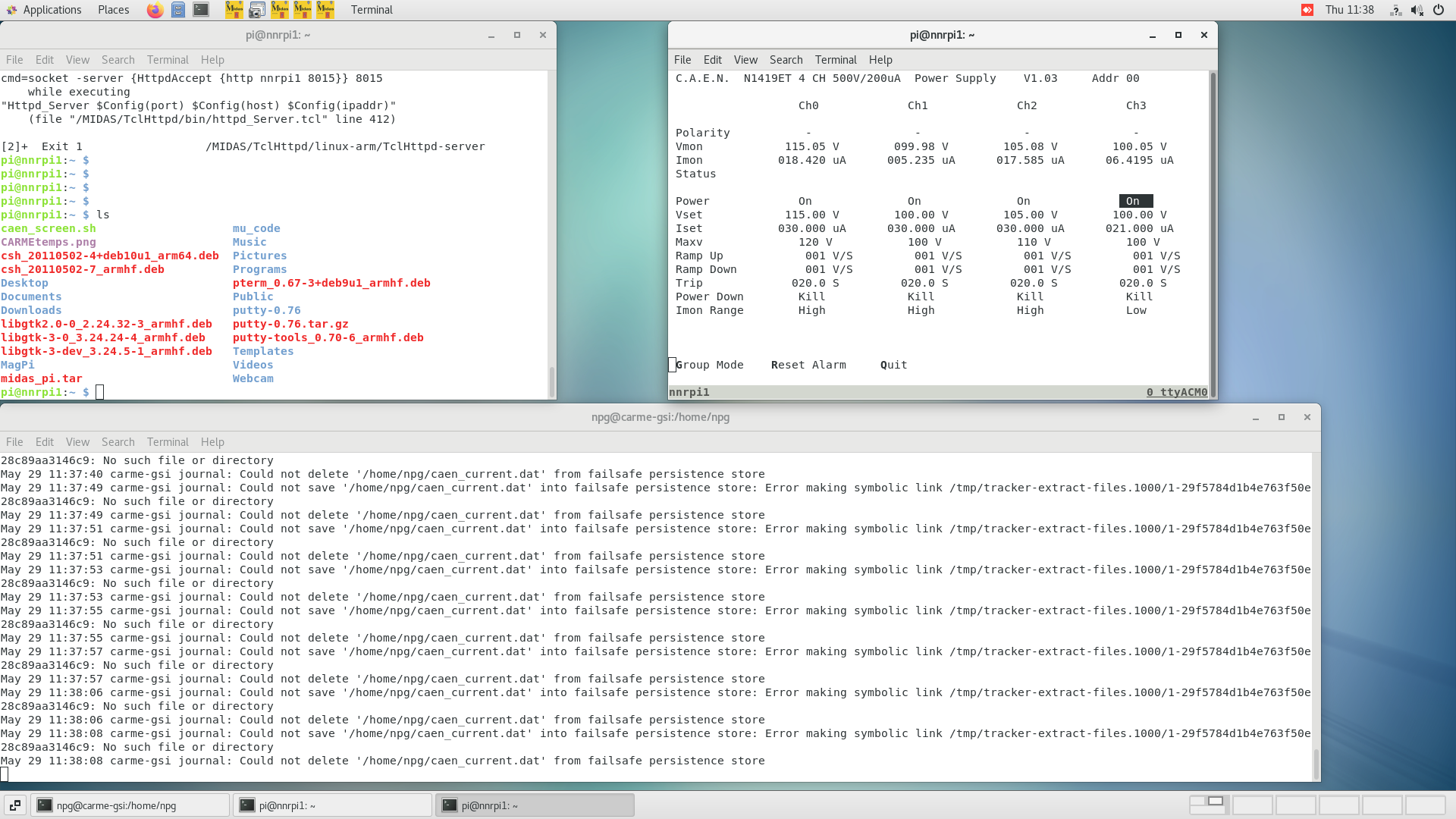

| Attachment 34: Screenshot_from_2025-05-29_11-38-10.png
|
|
| Attachment 35: Screenshot_from_2025-05-29_11-44-55.png
|
|
| Attachment 36: Screenshot_from_2025-05-29_11-44-55.png
|
|

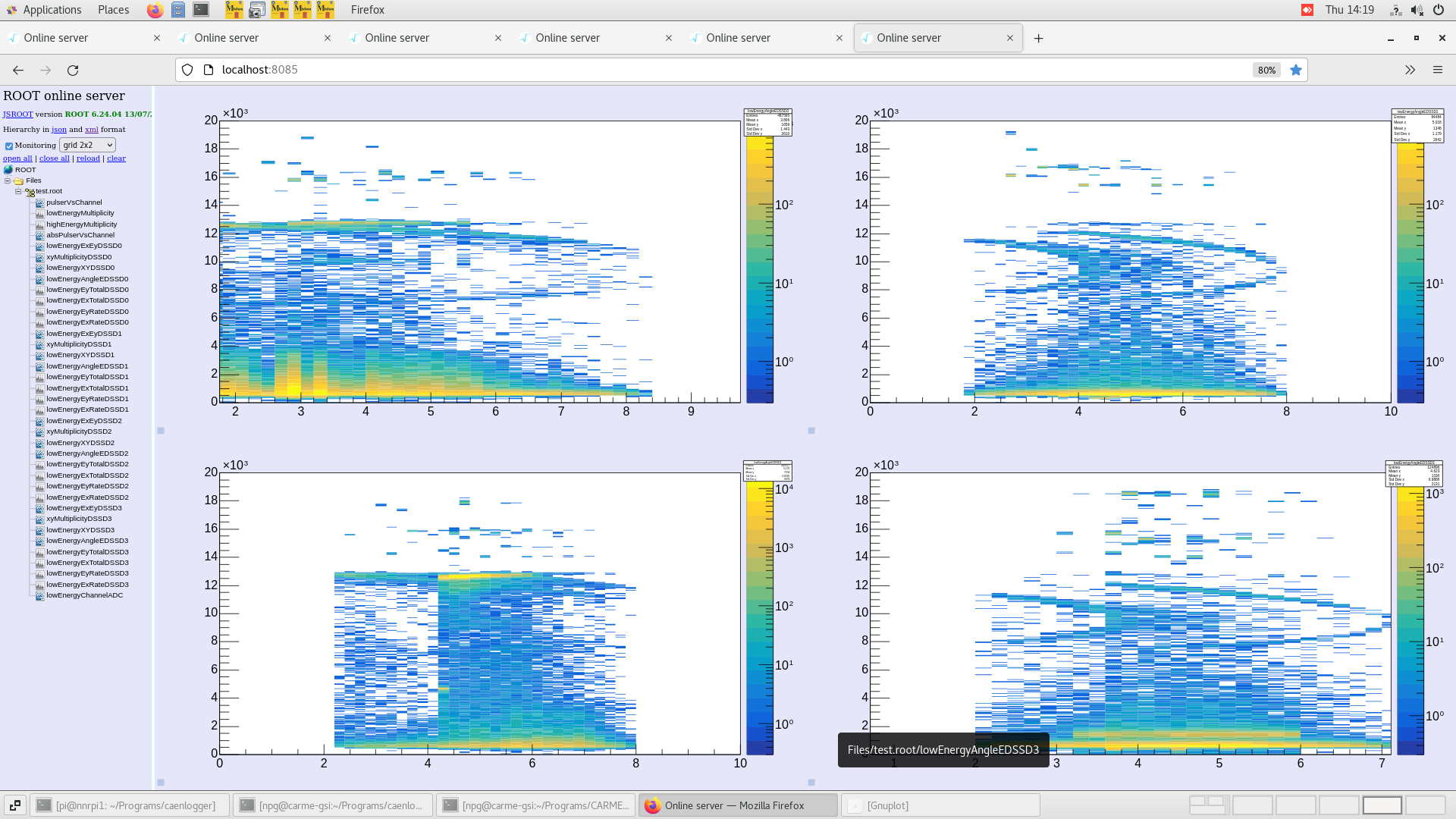

| Attachment 37: Screenshot_from_2025-05-29_14-19-52.png
|
|
|
699
|
Wed May 28 10:54:14 2025 |
LB | Run 27 | Run 27 running
28/05/2025
(ignore 26 - in-between run)
We start a new run with real data taking condititon: beam is ok, target density is 9.6e11 cm-2, detectors are moving in-out periodically.
Cooler voltage setpoint 1128 V.
Beam energy = 1.99 MeV/u (from HKR) (same as run 25)
Left arm at 18.86 mm
Right arm IN at 83.69 mm (OUT 37.96 mm)
vertical beam position 0.0 mm
horizontal beam position -3.5mm
Beam intensity ~1e+7 particles.
Target density ~9.6e11 at/cm2
Target temperatures: T1=31.5 K T2=35.2 K
Beam cycle set to 10 seconds.
11;57
All checks OK.
Aida10's rates seems low now, but aida07 is instead jumping between 200 and 4000 following beam.
15:45
Root histograms refreshed.
Temps OK - attach
Stats OK - attach
All checks OK
Leakage OK - attach
Base Current Difference
aida01 fault 0x0 : 0x1 : 1
FPGA Timestamp error counter test result: Passed 15, Failed 1
If any of these counts are reported as in error

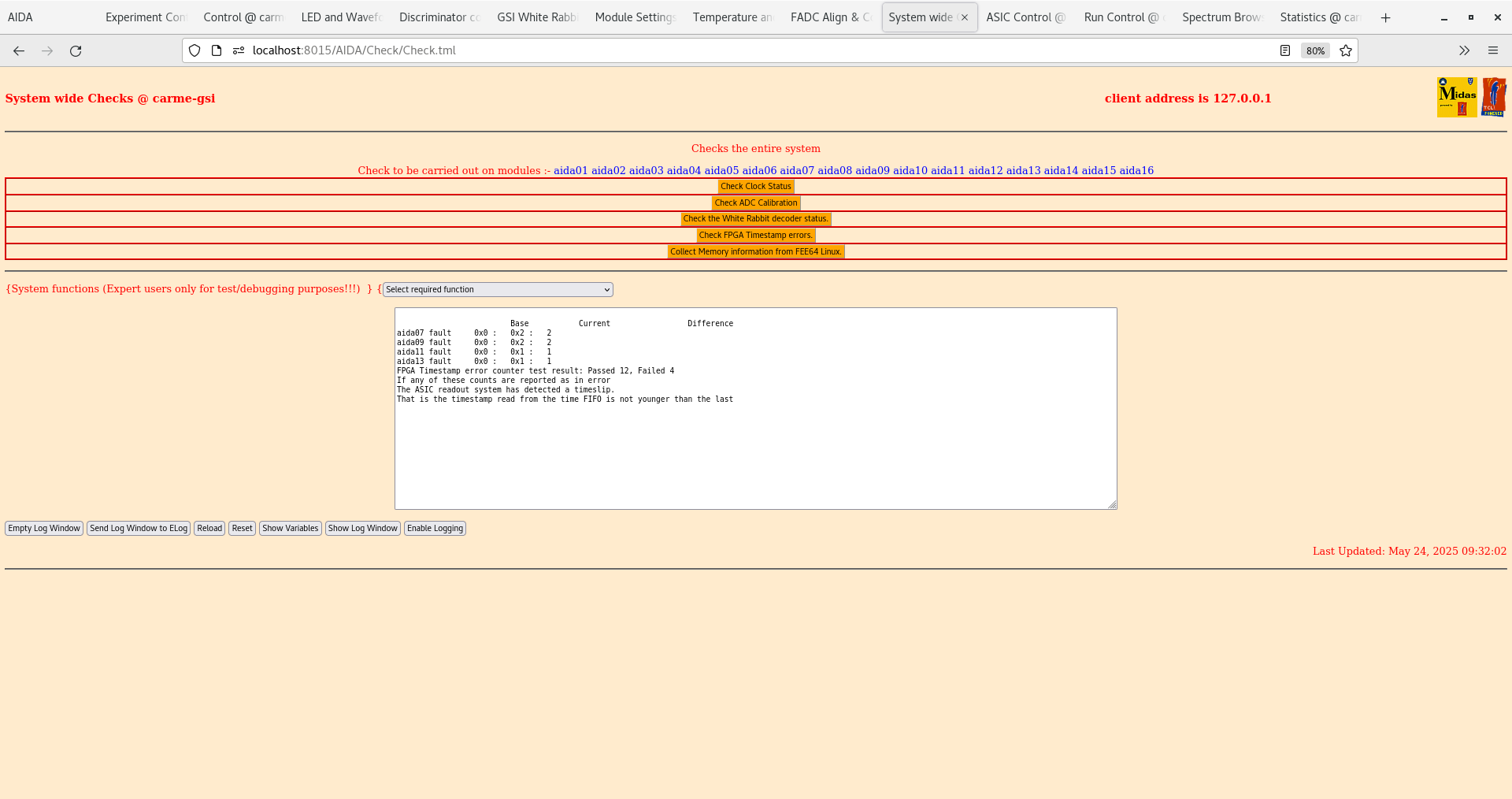

The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last
|

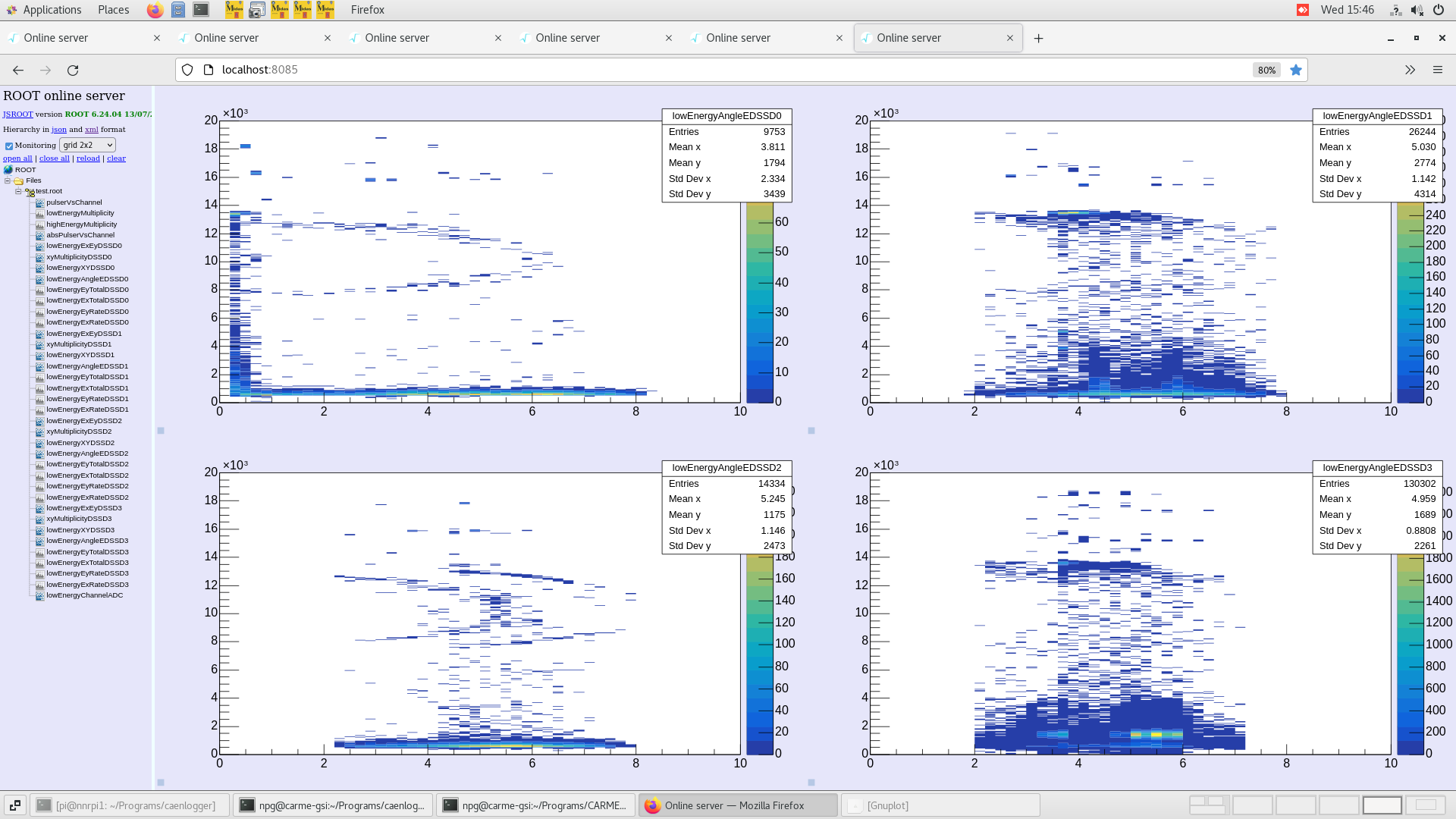

| Attachment 1: Screenshot_from_2025-05-28_15-45-13.png
|
|
| Attachment 2: Screenshot_from_2025-05-28_15-46-07.png
|
|
| Attachment 3: Screenshot_from_2025-05-28_15-48-27.png
|
|
| Attachment 4: Screenshot_from_2025-05-28_15-48-38.png
|
|
| Attachment 5: Screenshot_from_2025-05-28_15-49-09.png
|
|
|
698
|
Tue May 27 22:20:11 2025 |
CB, LB,PW | Run 25 - 1.99/2.02 MeV/A | 23:20
JM thinks we cannot see 7Be locus on run 24. Possibly the right arm cannot get close enough.
Stopped moving right arm
Started moving left arm as previously: 32.52 mm -> 77.56 mm
Checked with bunched beam: not clipping. Possibly we could go further in - to be decided.
Started run 25
Target - 1.1E12 atoms/cm2
Beam - 1.2E7 pps
Root histograms refreshed.
Temps OK - attach
Stats OK - attach
All checks OK
Leakage OK - attach

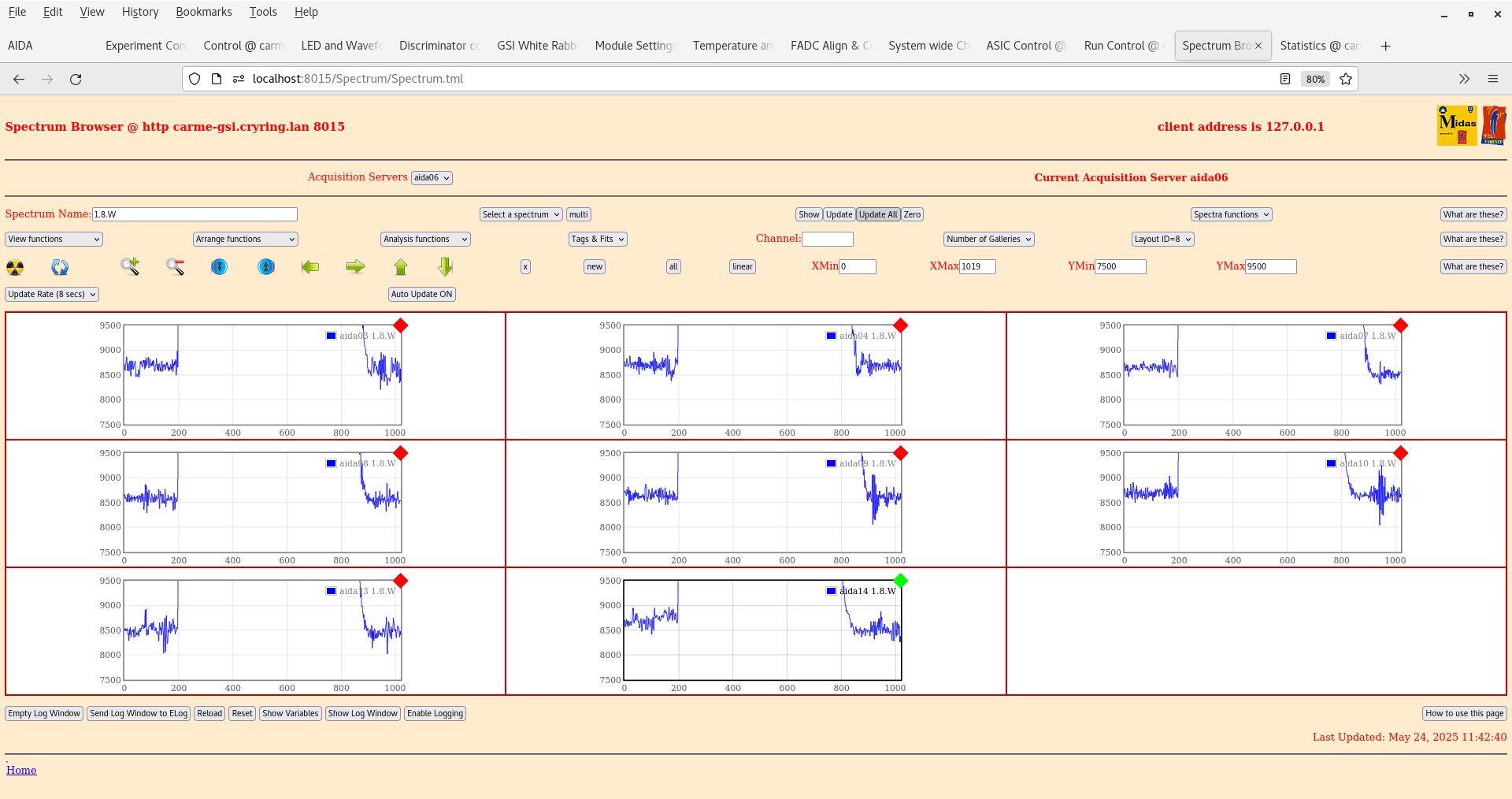

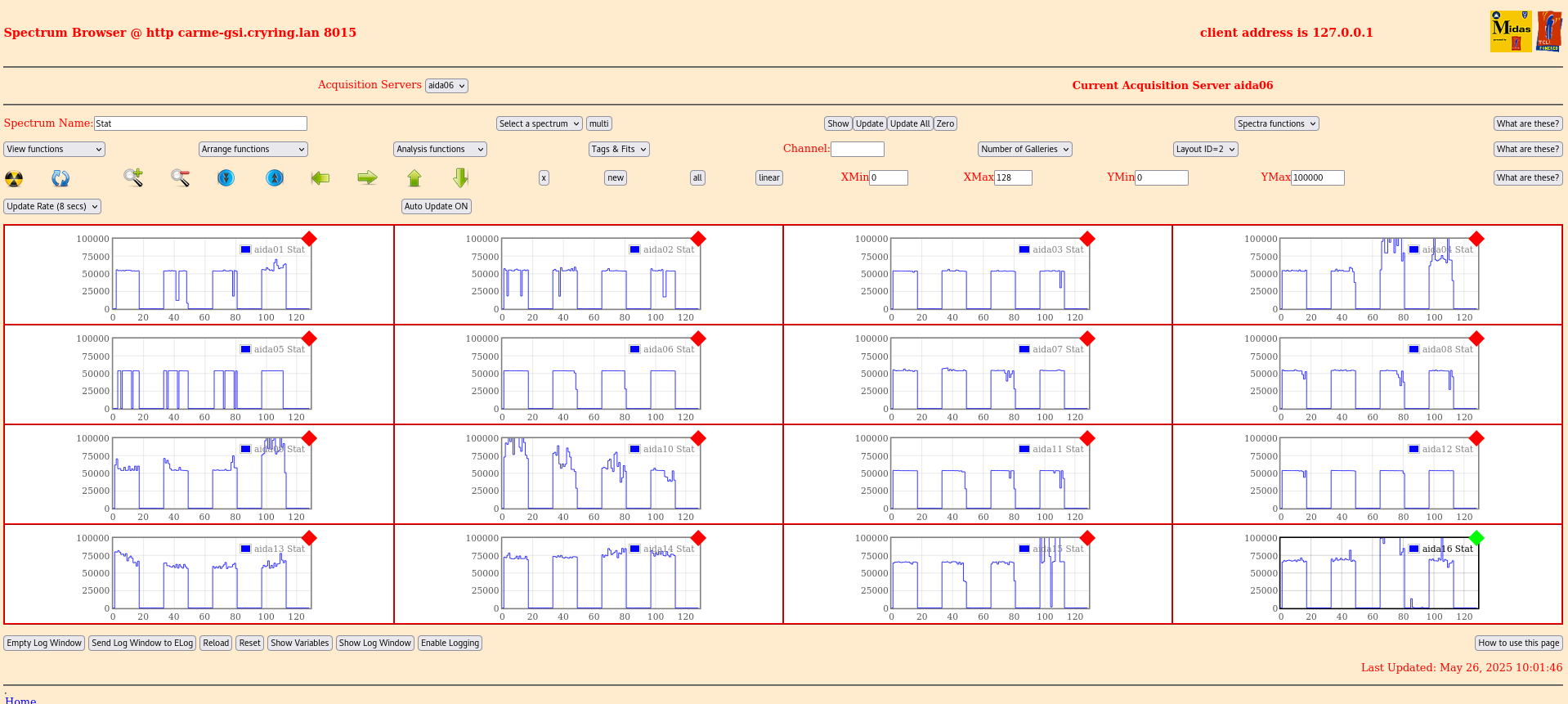

Spectrum browser 1, 7, 8 attached
00:00
Run continues OK
Temps OK, Stats OK, Merger OK
01:15
Run continues OK
Temps OK - attached
Stats OK - attached
Merger OK

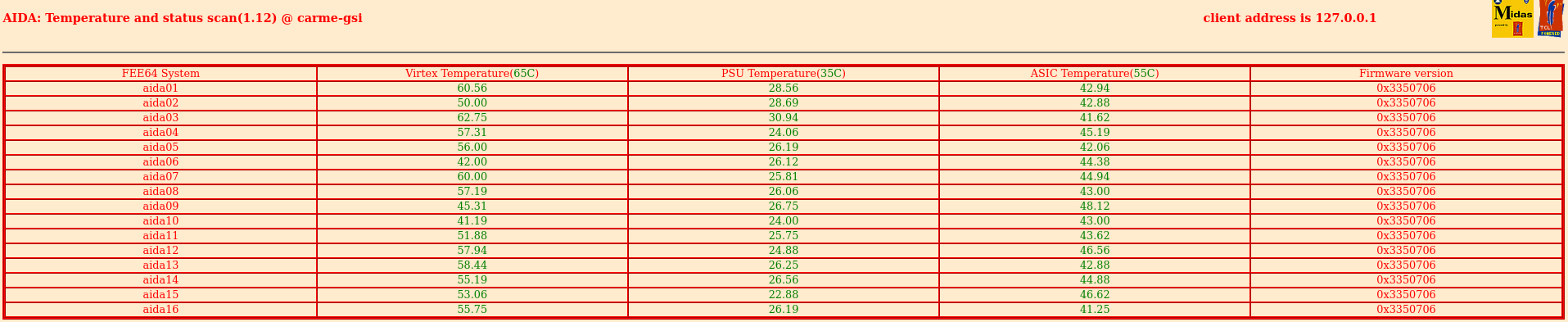

Rates OK - attached
Also attached current histograms
03:10
Motors now moving 32.77 -> 77.56 mm. Unclear why, should not affect results.
Target 1.1E12 atoms/cm2
Current 1.4E7 pps
Temps OK - attached
Rates OK - attached
All checks OK
Merger OK
03:37

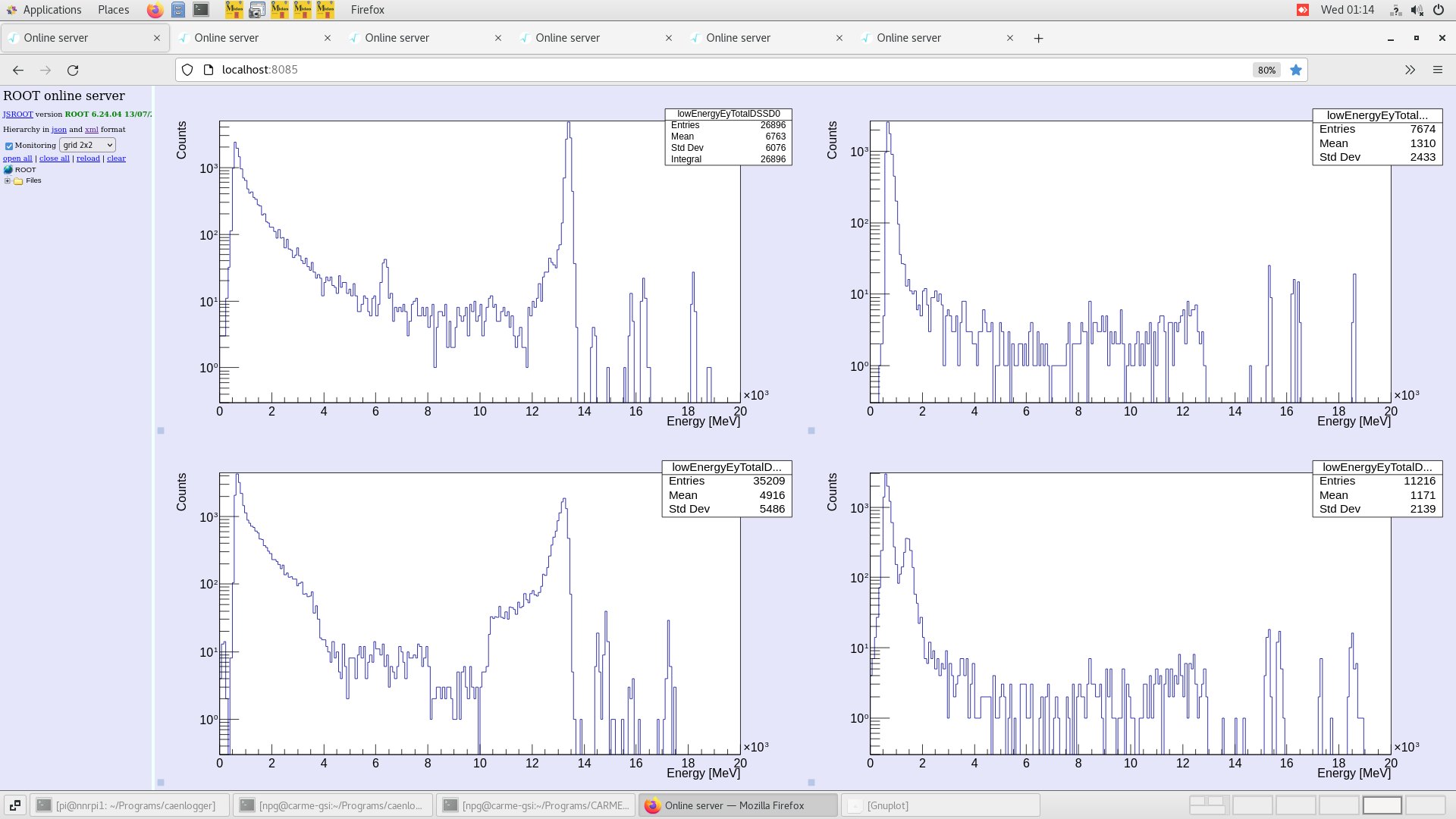

7Be locus appears to be clearly visible. Attach 18
04:32
Temps OK
Rates OK
Merger OK
05:30
Temps OK
Rates - aida10 showes intermittently high rates around 10k. See attached. Seems to be linked to beam, already observed last night.
06:10
Temps OK
Rates OK - aida10 still counting 10k with beam, 300 without
Merger OK
Histograms attached
7:23- LB,PW
All checks OK, general behaviour consistent with previous observations. Beam current ~ 1E7 pps
8:40
All good, attachment 27 is the spectra. Beam current 1.3E7 pps.
9;50
All good, target very stable at 1E12 at/cm^2. Noticed also Aida01 and aida02 show same behaviour as aida10, but the maximum rate is between 1000-2000 (instead of the 10000-20000 of aida10)
Run 25 stopped 10:45, Run 26 started -> laser spectroscopy laser test |

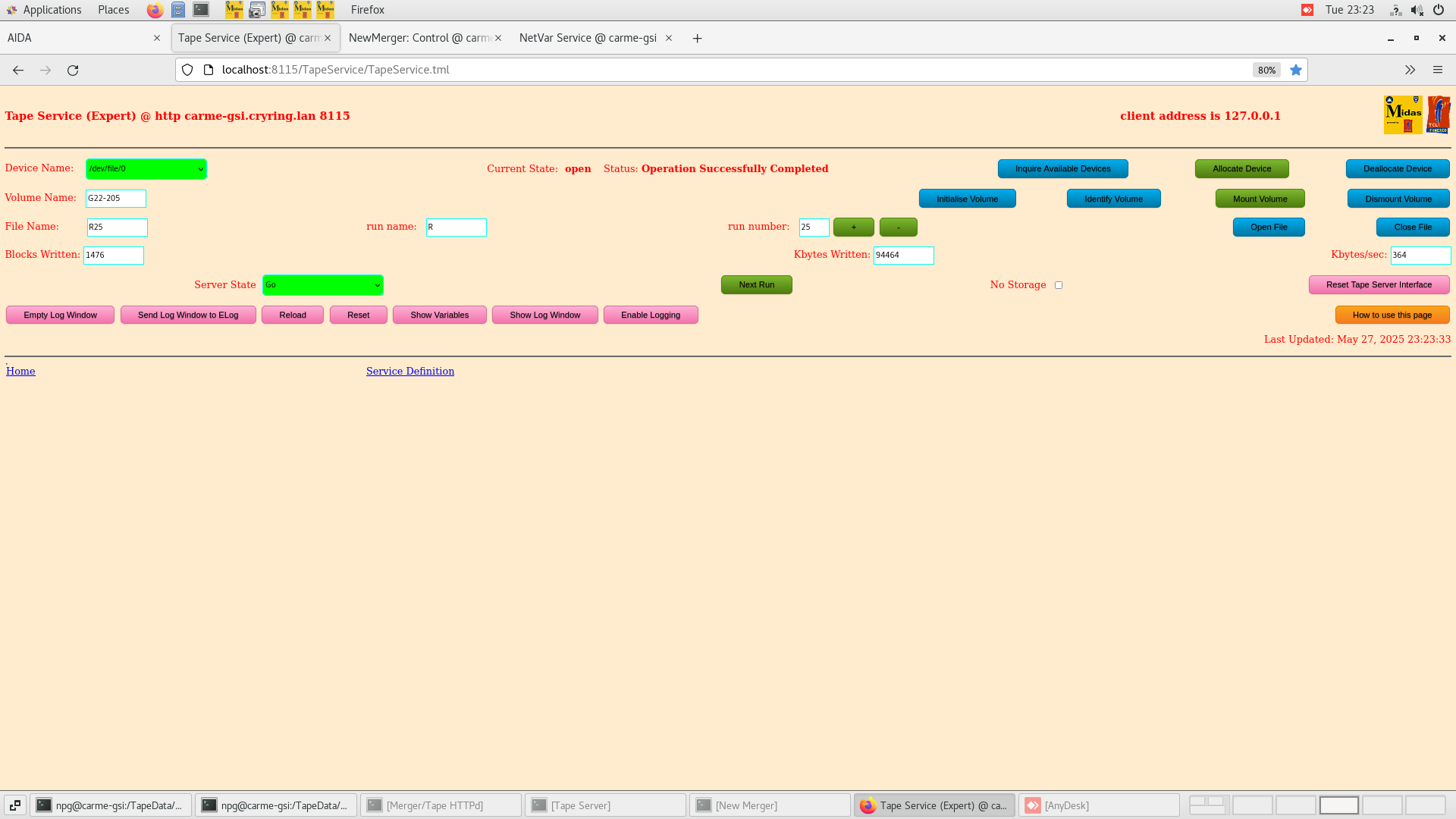

| Attachment 1: Screenshot_from_2025-05-27_23-21-58.png
|
|
| Attachment 2: Screenshot_from_2025-05-27_23-22-16.png
|
|
| Attachment 3: Screenshot_from_2025-05-27_23-23-12.png
|
|
| Attachment 4: Screenshot_from_2025-05-27_23-23-35.png
|
|
| Attachment 5: Screenshot_from_2025-05-27_23-23-44.png
|
|

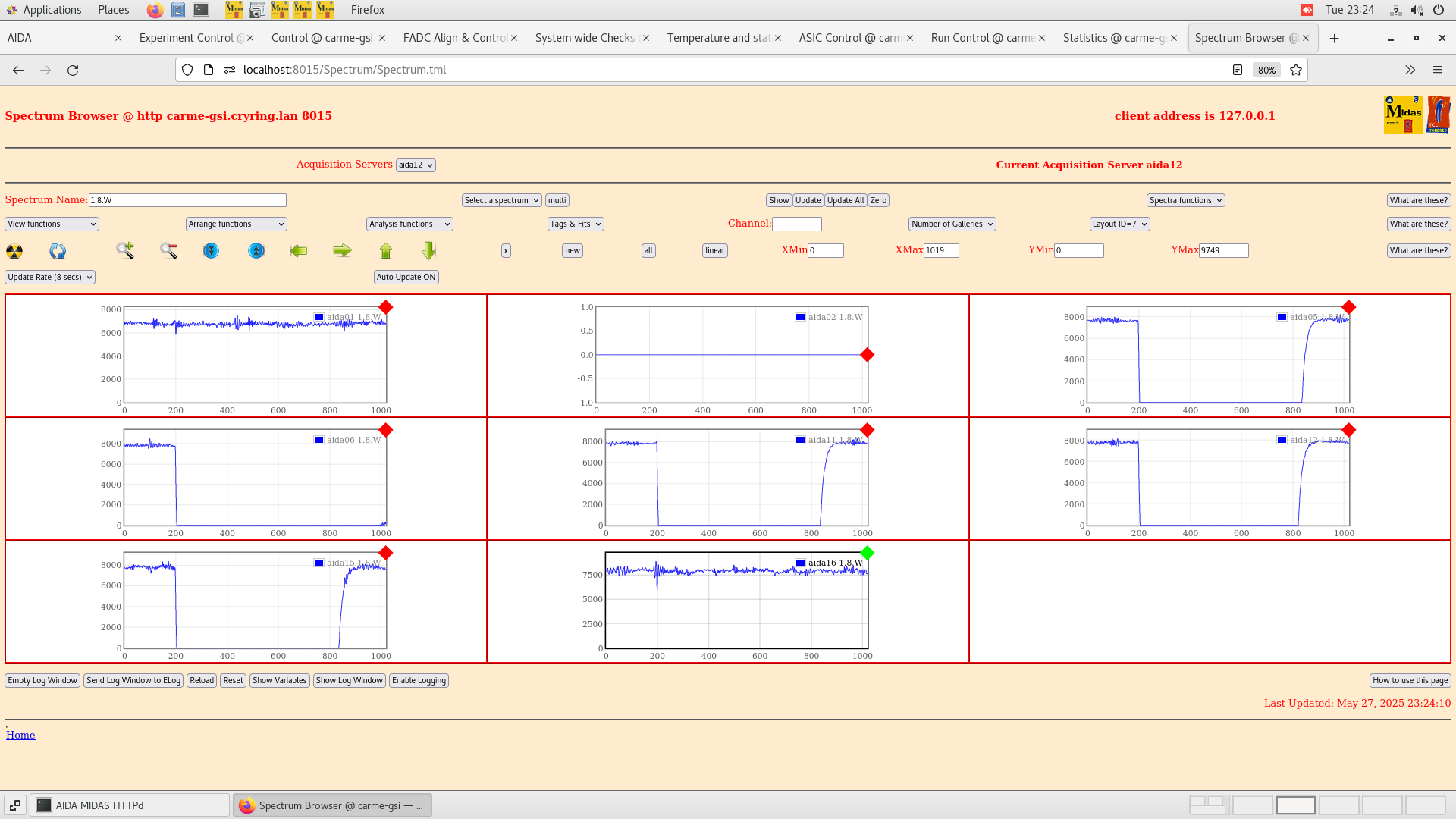

| Attachment 6: Screenshot_from_2025-05-27_23-24-18.png
|
|
| Attachment 7: Screenshot_from_2025-05-27_23-24-32.png
|
|
| Attachment 8: Screenshot_from_2025-05-27_23-24-58.png
|
|
| Attachment 9: Screenshot_from_2025-05-28_01-13-04.png
|
|
| Attachment 10: Screenshot_from_2025-05-28_01-13-16.png
|
|
| Attachment 11: Screenshot_from_2025-05-28_01-13-49.png
|
|
| Attachment 12: Screenshot_from_2025-05-28_01-14-01.png
|
|
| Attachment 13: Screenshot_from_2025-05-28_01-14-09.png
|
|

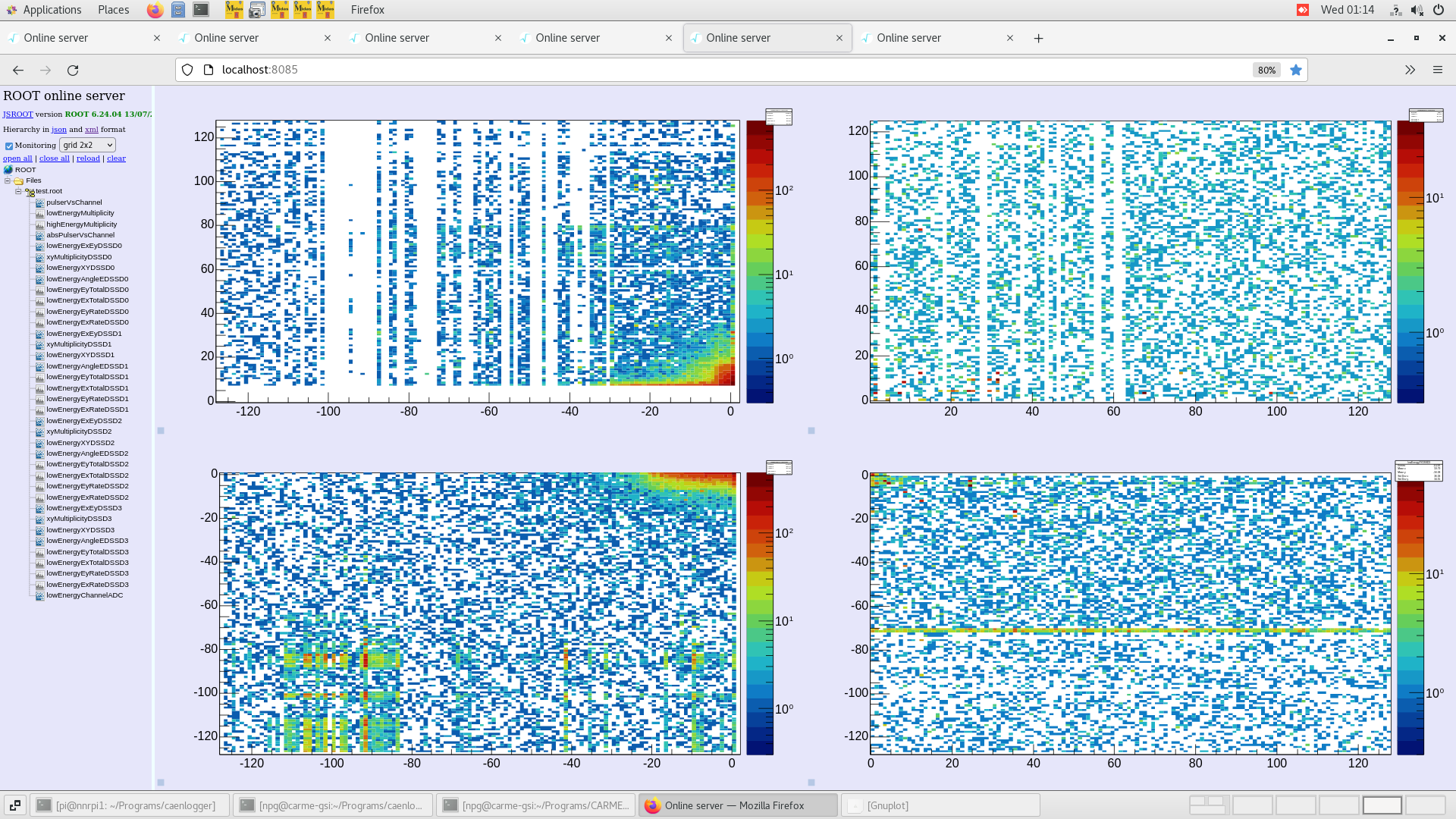

| Attachment 14: Screenshot_from_2025-05-28_01-14-14.png
|
|
| Attachment 15: Screenshot_from_2025-05-28_01-14-20.png
|
|
| Attachment 16: Screenshot_from_2025-05-28_03-09-54.png
|
|
| Attachment 17: Screenshot_from_2025-05-28_03-10-12.png
|
|
| Attachment 18: Screenshot_from_2025-05-28_03-47-08.png
|
|

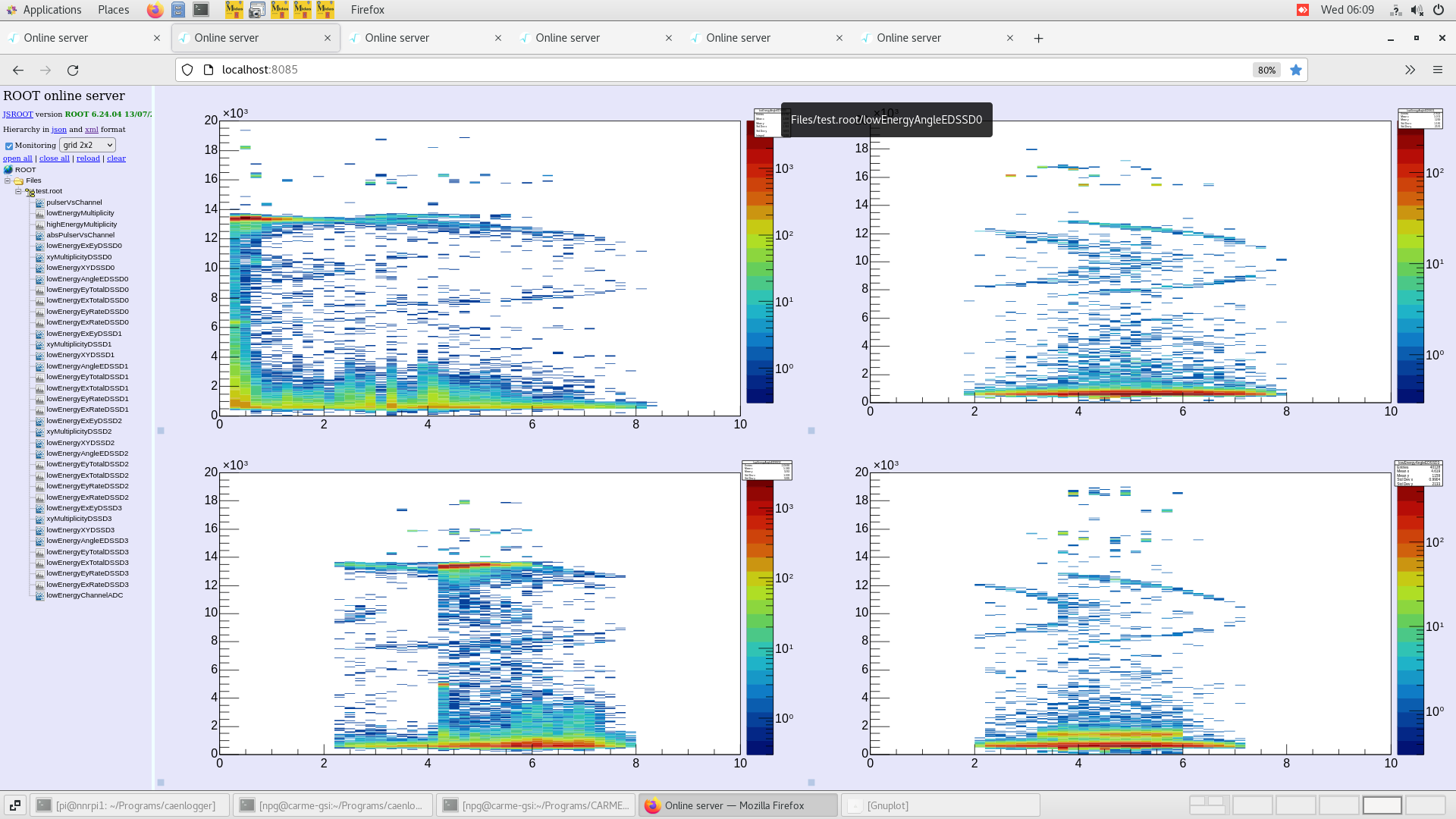

| Attachment 19: Screenshot_from_2025-05-28_05-30-00.png
|
|
| Attachment 20: Screenshot_from_2025-05-28_05-30-11.png
|
|
| Attachment 21: Screenshot_from_2025-05-28_05-30-20.png
|
|
| Attachment 22: Screenshot_from_2025-05-28_06-09-33.png
|
|
| Attachment 23: Screenshot_from_2025-05-28_06-09-40.png
|
|
| Attachment 24: Screenshot_from_2025-05-28_06-09-43.png
|
|

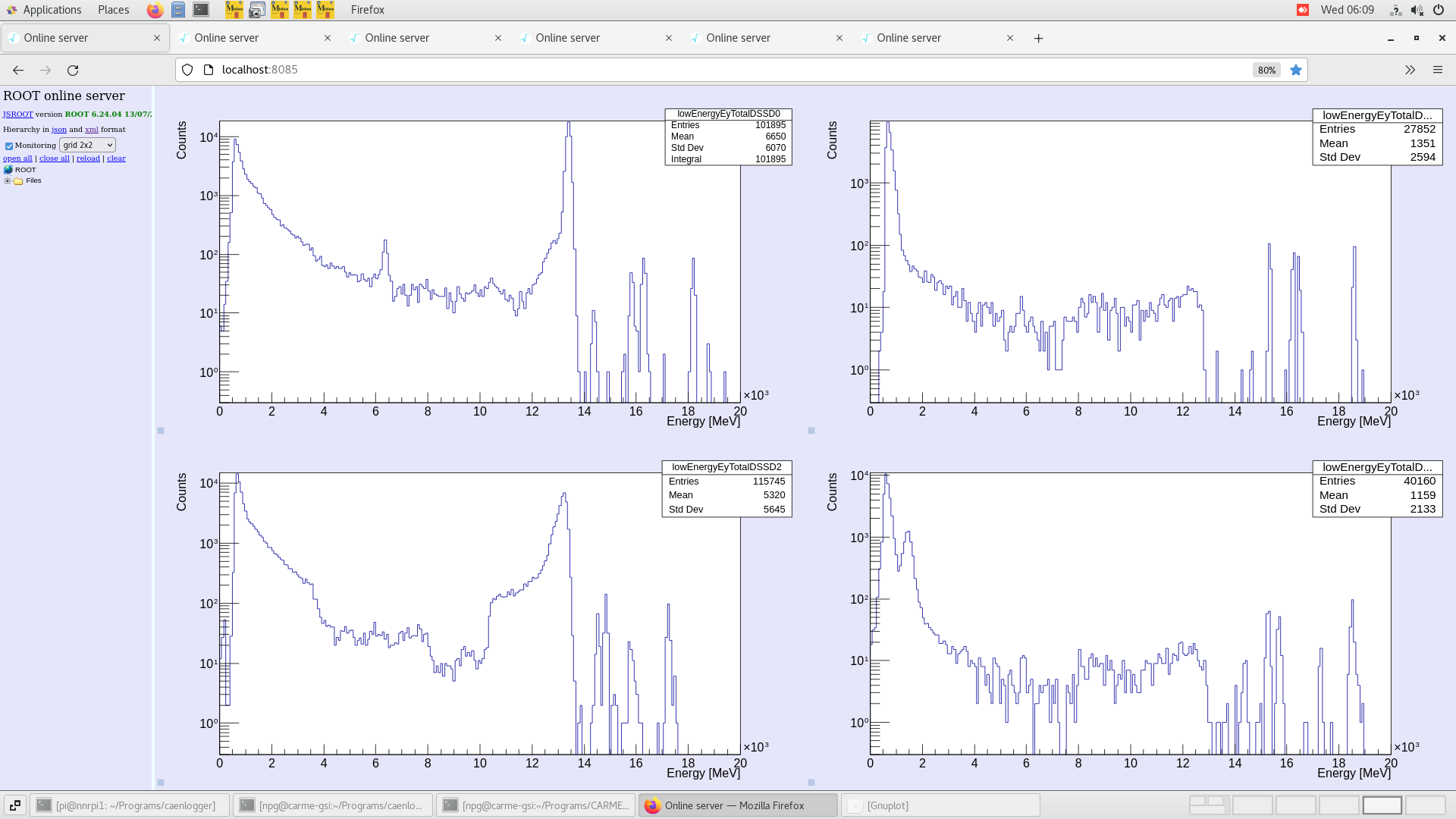

| Attachment 25: Screenshot_from_2025-05-28_06-09-46.png
|
|
| Attachment 26: Screenshot_from_2025-05-28_06-09-53.png
|
|

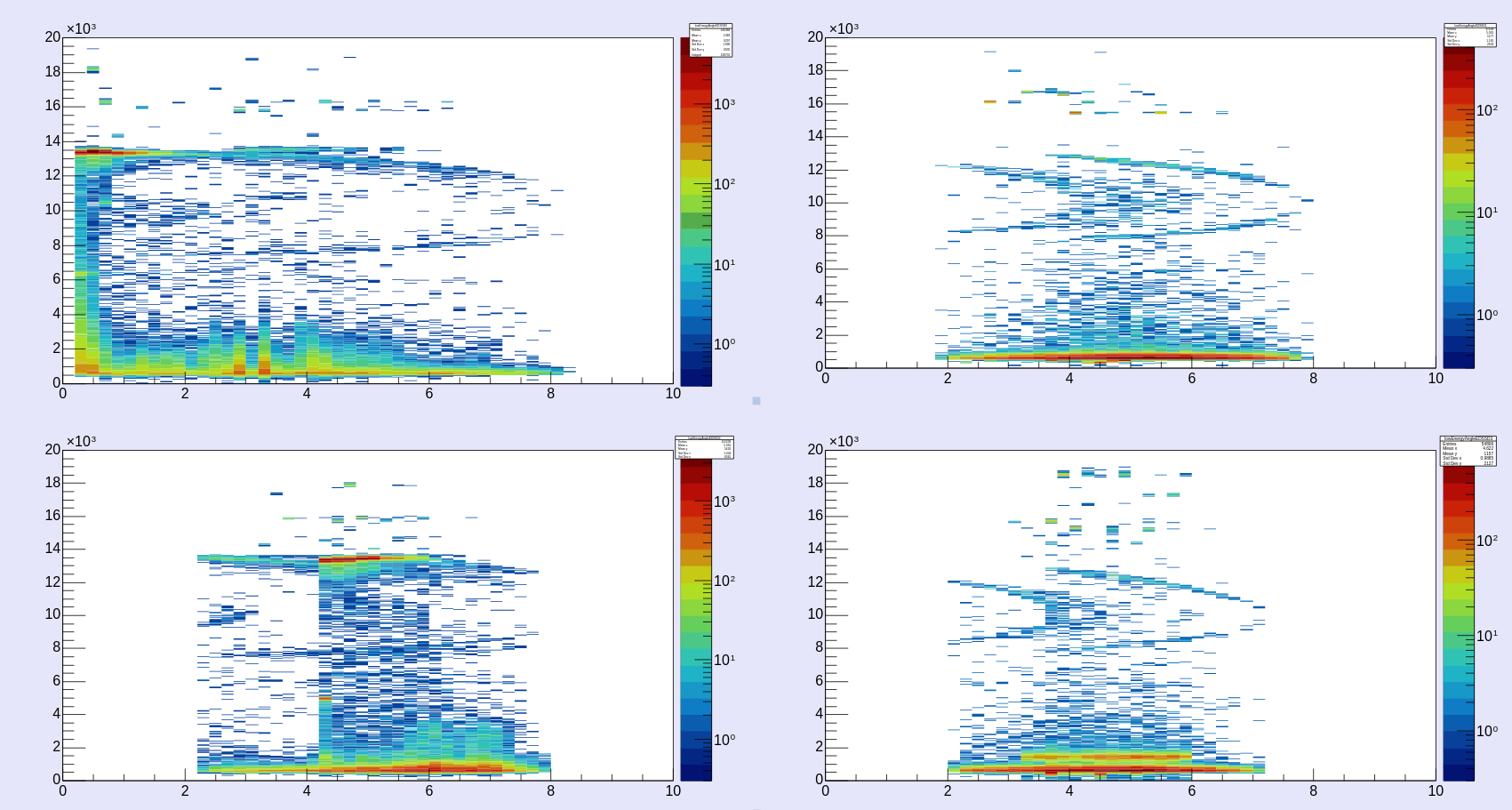

| Attachment 27: Screenshot_from_2025-05-28_08-38-27.png
|
|
|
697
|
Tue May 27 15:18:46 2025 |
JG, CN, JM | run 24 | Run 24 running
27/05/2025
We start a new run with real data taking condititon: beam is ok, target density is 5e11 cm-2, detectors are moving in-out periodically.
Cooler voltage setpoint 1128.55 V.
Beam energy = 1.99 MeV/u (from HKR)
Attachment 1 - beamcalc with set values
Attachment 7 - beamcalc with actual values
Left arm at 18.86 mm
Right arm IN at 83.69 mm (OUT 37.56 mm)
vertical beam position 0.0 mm
horizontal beam position -3.5mm
Beam intensity ~2e+7 particles.
Target density ~5e11 at/cm2
Target temperatures: T1=31.5 K T2=35.1 K
Beam cycle set to 10 seconds.
17:32 all checks OK
17:35 target density jumped to at 9e11

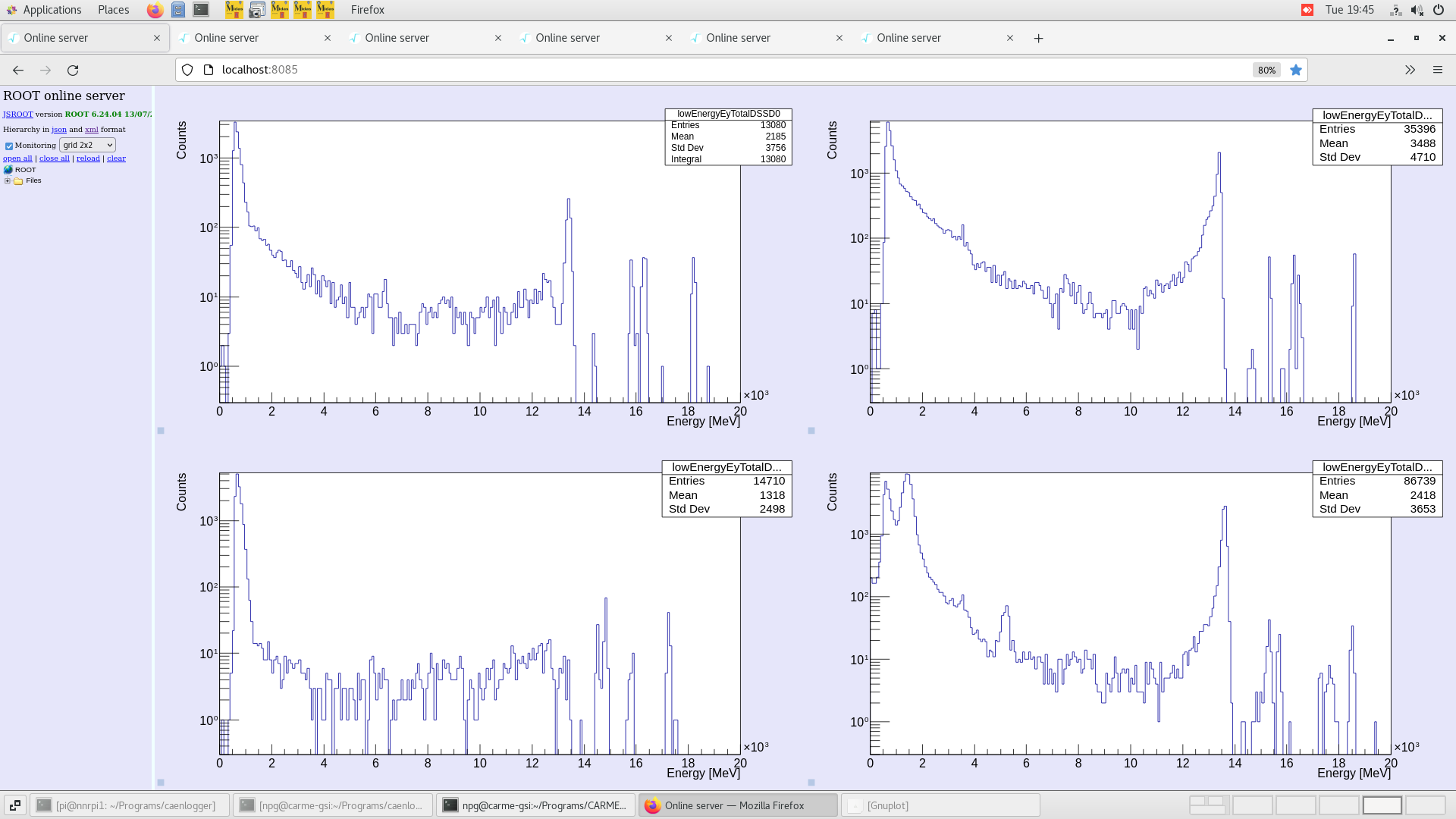

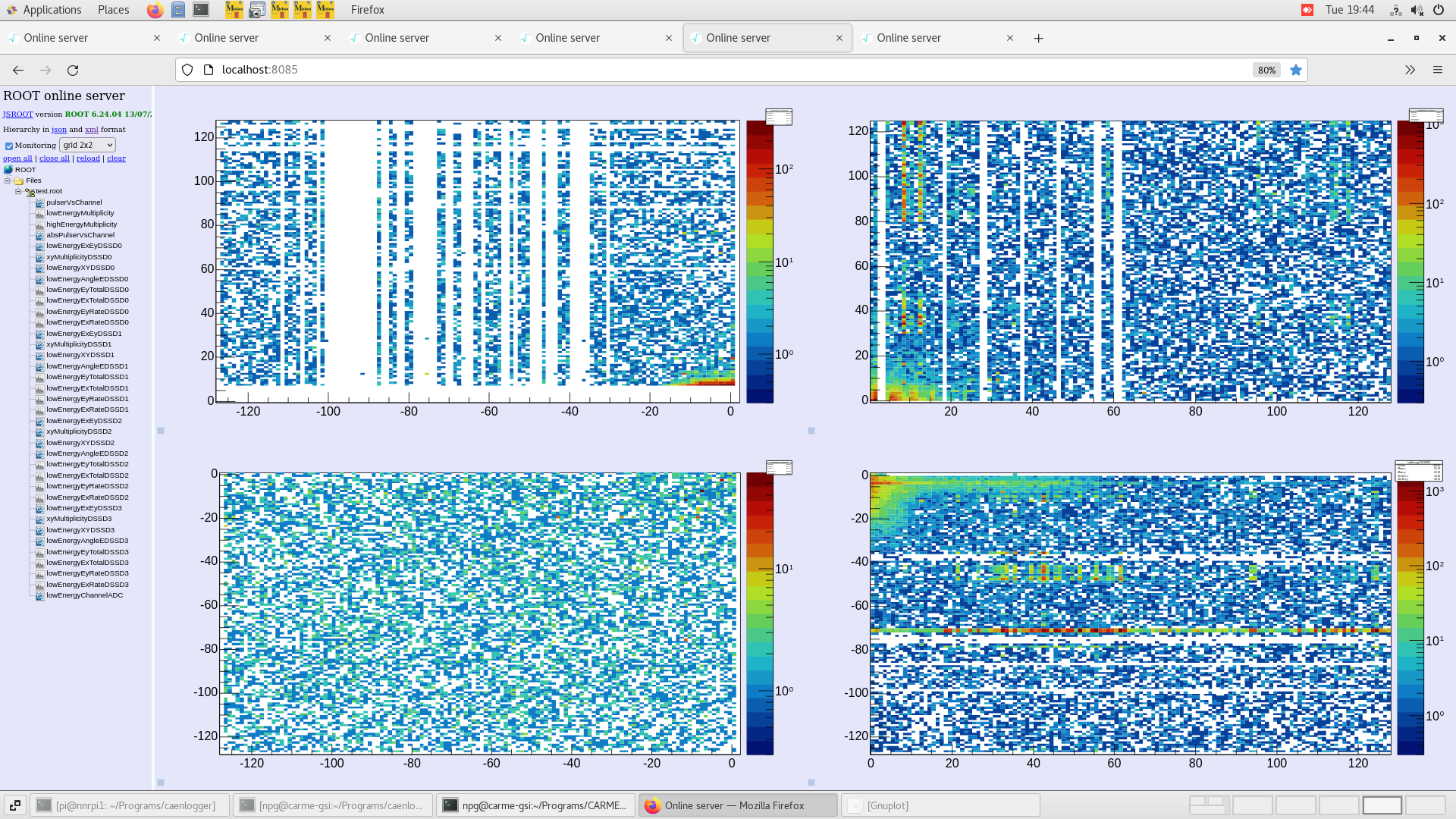

19:30 all checks OK (spectra attached)
19:45 target density drops to 3.5E11
20:20 target density jumps to 7e11
21:30 all checks OK
22:50 all checks OK
|

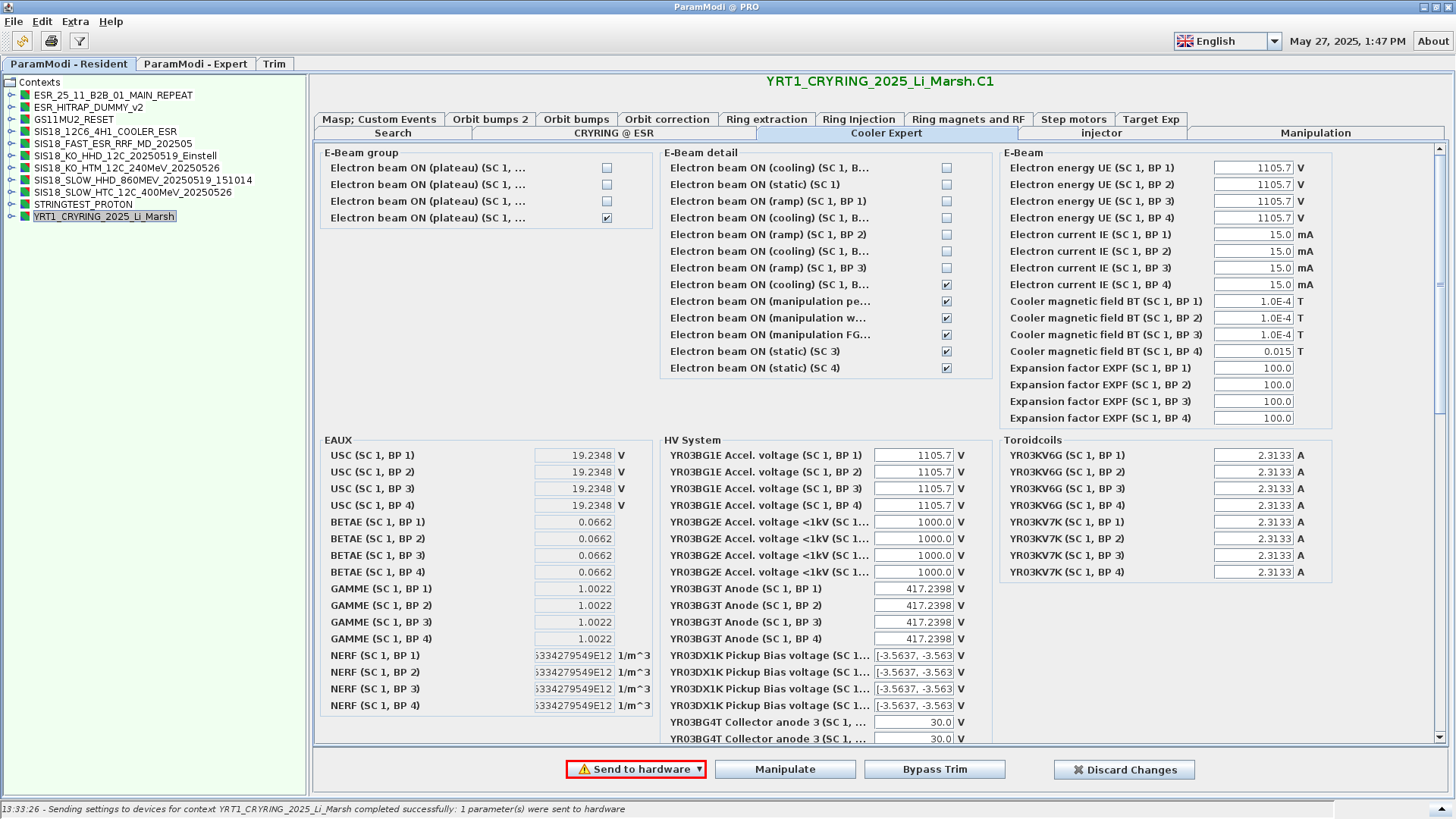

| Attachment 1: Screenshot_2025-05-27_16-17-15.png
|
|
| Attachment 2: 2025-05-27_16-08-58_YRT1_CRYRING_2025_Li_Marsh.C1.txt
|
# Version: 1.3
# Comment: ParamModi Export at 2025-05-27T16:09:10.333896316+02:00[Europe/Berlin]
# Context: YRT1_CRYRING_2025_Li_Marsh.C1
# Columns: PARAMETERNAME,VALUE,UNIT,BEAMPROCESSPURPOSE
LOGICAL.SOURCE_HV/U,35000.0,V,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_BEAM/BEAM_MODE_S,NO_BEAM,,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_BEAM/PARTICLE_SYMBOL_S,7Li,,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_BEAM/Q_S,1,,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_BI_DELAY_S,2.0E-4,s,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_BI_WINDOW_S,0.002,s,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_INIT
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_RESET
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_SOURCE_PULSE_LENGTH_S,0.0024,s,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,0.12,s,BEAMOUT_INIT
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,0.11,s,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,0.0,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,0.0,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,0.0,s,STORAGE_MANIP_PERFORM
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STORAGE_MANIP_WAIT
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STORAGE_MANIP_RESTART_FGS
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,0.12,s,BEAMOUT_RESET
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_INIT
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,TRANSFER_INJECTION
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_RESET
LOGICAL.YRT1KH1/HKICK,-0.018,rad,TRANSFER_INJECTION
LOGICAL.YRT1KV1/VKICK,0.004,rad,TRANSFER_INJECTION
LOGICAL.YRT1LC1_V/ACTIVE_S,true,,TRANSFER_INJECTION
LOGICAL.YRT1LC1_V/THIGH_S,6.0E-4,s,TRANSFER_INJECTION
LOGICAL.YRT1LC1_V/TOFFSET_S,5.0E-4,s,TRANSFER_INJECTION
LOGICAL.YRT1LC1_V/U,2000.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LD21/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LD21/HOR_STEER_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LD21/U_QUAD,-640.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LD21/VER_STEER_KNOB_S,-0.03,,TRANSFER_INJECTION
LOGICAL.YRT1LD22/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LD22/U_QUAD,650.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LT31/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LT31/U_QUAD,515.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LT32/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LT32/U_QUAD,-945.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LT33/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LT33/U_QUAD,1210.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LT41/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LT41/U_QUAD,-2100.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LT42/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LT42/U_QUAD,2020.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LT43/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LT43/U_QUAD,-2100.0,V,TRANSFER_INJECTION
LOGICAL.YRT1MH1/HKICK,0.022,rad,TRANSFER_INJECTION
LOGICAL.YRT1MH1/K0L_THEO,-1.57079,rad,TRANSFER_INJECTION
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_BI_DELAY_S,1.0E-6,s,TRANSFER_INJECTION
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_BI_WINDOW_S,1.0E-6,s,TRANSFER_INJECTION
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_INIT
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,TRANSFER_INJECTION
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_RESET
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_RF_LEAD_S,4.0E-4,s,TRANSFER_INJECTION
LOGICAL.YRT1BR1/ACT_ON_BEAM_S,true,,TRANSFER_INJECTION
LOGICAL.YRT1BR1/THIGH_S,0.0025,s,TRANSFER_INJECTION
LOGICAL.YRT1BR1/URF0_S,0.1,V,TRANSFER_INJECTION
LOGICAL.YRT1BR1/U_PAUSE_PULSE_AMPL_S,4.76,V,TRANSFER_INJECTION
LOGICAL.YRT1KH2/HKICK,3.0E-4,rad,TRANSFER_INJECTION
LOGICAL.YRT1KV2/VKICK,-2.0E-4,rad,TRANSFER_INJECTION
LOGICAL.YRT1LD51/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LD51/U_QUAD,510.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LD52/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LD52/U_QUAD,-420.0,V,TRANSFER_INJECTION
LOGICAL.YRT1QD61/K1L,2.05,1/m,TRANSFER_INJECTION
LOGICAL.YRT1QD62/K1L,-1.68,1/m,TRANSFER_INJECTION
LOGICAL.YRT1QD71/K1L,1.85,1/m,TRANSFER_INJECTION
LOGICAL.YRT1QD72/K1L,-2.1,1/m,TRANSFER_INJECTION
YRT1BR1_TO_YRT1MH2_BEAM/E_S,5000.0,eV/u,TRANSFER_INJECTION
YRT1BR1_TO_YRT1MH2_RF/PHASE_OFFSET_S,0.0,deg,TRANSFER_INJECTION
LOGICAL.GHTYKH4/HKICK,-2.0E-4,rad,TRANSFER_INJECTION
LOGICAL.GHTYKV3/VKICK,-0.002,rad,TRANSFER_INJECTION
LOGICAL.GHTYKV4/VKICK,0.0012,rad,TRANSFER_INJECTION
LOGICAL.GHTYQD41/K1L,1.4,1/m,TRANSFER_INJECTION
LOGICAL.GHTYQD42/K1L,-1.25,1/m,TRANSFER_INJECTION
LOGICAL.YR01LP1I/ESEP_HKICK_S,0.017,rad,TRANSFER_INJECTION
LOGICAL.YR01LP1I/ESEP_K0L_THEO_S,-0.05,rad,TRANSFER_INJECTION
LOGICAL.YR01LP2I/ESEP_HKICK_S,-0.035,rad,TRANSFER_INJECTION
LOGICAL.YR01LP2I/ESEP_K0L_THEO_S,0.055,rad,TRANSFER_INJECTION
LOGICAL.YR01MP1I/HKICK,0.0035,rad,TRANSFER_INJECTION
LOGICAL.YR01MP1I/K0L_THEO,0.29322,rad,TRANSFER_INJECTION
LOGICAL.YRT1MH2/HKICK_ESR_S,-0.61087,rad,TRANSFER_INJECTION
LOGICAL.YRT1MH2/HKICK_LOCAL_S,-0.021,rad,TRANSFER_INJECTION
LOGICAL.YRT1MH2/K0L_THEO,-0.61087,rad,TRANSFER_INJECTION
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_BI_DELAY_S,1.0E-6,s,TRANSFER_INJECTION
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_BI_WINDOW_S,1.0E-6,s,TRANSFER_INJECTION
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_INIT
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,TRANSFER_INJECTION
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_RESET
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_SEPTUM_TRIGGER_OFFSET_S,0.0,s,TRANSFER_INJECTION
CRYRINGB2B/B2B_SID_EXT_S,---,,RING_INJECTION
CRYRINGB2B/B2B_SOURCE_KICKER_DELAY_S,---,s,RING_INJECTION
CRYRINGB2B/B2B_SOURCE_TRIGGER_OFFSET_S,---,deg,RING_INJECTION
CRYRINGB2B/B2B_TRIGGER_OFFSET_S,0.0,deg,RING_INJECTION
CRYRINGB2B/B2B_TRIGGER_OFFSET_TIME_S,0.0,,RING_INJECTION
CRYRINGBEAM/BEAM_MODE_S,NO_BEAM,,RING_INJECTION
CRYRINGBEAM/BRHO_CHIMNEY_S,---,Tm,BEAMOUT_INIT
CRYRINGBEAM/BRHO_CHIMNEY_S,---,Tm,BEAMOUT_RESET
CRYRINGBEAM/BRHO_DISPLAY_S,0.0713,Tm,RING_INJECTION
CRYRINGBEAM/BRHO_DISPLAY_S,1.0103,Tm,RING_RF_MANIPULATION
CRYRINGBEAM/BRHO_DISPLAY_S,1.4256,Tm,RING_TARGET
CRYRINGBEAM/BRHO_START_END_S,[0.07134952, 0.07134952],Tm,RING_INJECTION
CRYRINGBEAM/BUCKETFILL_RAW_S,[[0.0, 0.0]],,RING_INJECTION
CRYRINGBEAM/BUCKETFILL_RAW_S,[[0.0, 1.4]],,RING_BUNCHING
CRYRINGBEAM/BUCKETFILL_RAW_S,[[1.4, 1.4]],,RING_RAMP
CRYRINGBEAM/BUCKETFILL_RAW_S,[[1.4, 1.4]],,RING_RF_MANIPULATION
CRYRINGBEAM/BUCKETFILL_RAW_S,[[1.4, 1.4]],,RING_RAMP
CRYRINGBEAM/BUCKETFILL_RAW_S,[[1.4, 1.4]],,RING_REBUNCHING
CRYRINGBEAM/BUCKETFILL_RAW_S,[[1.4, 1.4]],,RING_TARGET
CRYRINGBEAM/BUCKETFILL_RAW_S,[[1.4, 1.4]],,RING_INTERMEDIATE
CRYRINGBEAM/BUCKETFILL_SIMPLE_S,1.4,,RING_INJECTION
CRYRINGBEAM/CHIMNEY_B,---,,BEAMOUT_INIT
CRYRINGBEAM/CHIMNEY_B,---,,BEAMOUT_RESET
CRYRINGBEAM/CH_END_S,5.0655,,RING_INJECTION
CRYRINGBEAM/CH_END_S,5.0655,,RING_RAMP
CRYRINGBEAM/CH_END_S,5.0655,,RING_RAMP
CRYRINGBEAM/CH_END_S,---,,STORAGE_MANIP_WAIT
CRYRINGBEAM/COASTING_BEAM_B,false,,RING_REBUNCHING
CRYRINGBEAM/CV_END_S,-5.3921,,RING_INJECTION
CRYRINGBEAM/CV_END_S,-5.3921,,RING_RAMP
CRYRINGBEAM/CV_END_S,-5.3921,,RING_RAMP
CRYRINGBEAM/CV_END_S,---,,STORAGE_MANIP_WAIT
CRYRINGBEAM/DELTAR,5.0E-4,m,RING_INJECTION
CRYRINGBEAM/DELTAR,3.0E-4,m,RING_RF_MANIPULATION
CRYRINGBEAM/DELTAR,0.0,m,STORAGE_MANIP_WAIT
CRYRINGBEAM/DELTAR,0.0,m,RING_TARGET
CRYRINGBEAM/DELTAR,0.0,m,RING_INTERMEDIATE
CRYRINGBEAM/DPBL,0.0,,RING_INJECTION
CRYRINGBEAM/DPBL,0.0,,STORAGE_MANIP_WAIT
CRYRINGBEAM/DPFREV,0.0015,,RING_INJECTION
CRYRINGBEAM/DPFREV,0.002,,RING_RF_MANIPULATION
CRYRINGBEAM/DPFREV,0.013,,STORAGE_MANIP_WAIT
CRYRINGBEAM/DPFREV,0.013,,RING_TARGET
CRYRINGBEAM/DPFREV,0.013,,RING_INTERMEDIATE
CRYRINGBEAM/DP_OVER_P_S,0.004,,RING_INJECTION
CRYRINGBEAM/E_S,4990.0,eV/u,RING_INJECTION
CRYRINGBEAM/E_S,1000000.0,eV/u,RING_RAMP
CRYRINGBEAM/E_S,1990000.0,eV/u,RING_RAMP
CRYRINGBEAM/FINAL_HARMONIC_S,6,,RING_RF_MANIPULATION
CRYRINGBEAM/FREV,18132.5287,Hz,RING_INJECTION
CRYRINGBEAM/FREV,256592.872,Hz,RING_RF_MANIPULATION
CRYRINGBEAM/FREV,364898.6686,Hz,RING_TARGET
CRYRINGBEAM/H_INPUT_S,8,,RING_INJECTION
CRYRINGBEAM/INJ_EMIH_S,1.0E-5,m*rad,RING_INJECTION
CRYRINGBEAM/INJ_EMIL_S,6.160687750547807E-4,eVs/u,RING_INJECTION
CRYRINGBEAM/INJ_EMIV_S,1.0E-5,m*rad,RING_INJECTION
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_INJECTION
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_BUNCHING
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_POST_INJECTION
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_MANI_PRE_RAMP
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_RAMP
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_RF_MANIPULATION
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_RAMP
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_REBUNCHING
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_TARGET
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_INTERMEDIATE
CRYRINGBEAM/KL_HARM_S,1,,RING_INJECTION
CRYRINGBEAM/KL_HARM_S,1,,RING_BUNCHING
CRYRINGBEAM/KL_HARM_S,1,,RING_POST_INJECTION
CRYRINGBEAM/KL_HARM_S,1,,RING_MANI_PRE_RAMP
CRYRINGBEAM/KL_HARM_S,1,,RING_RAMP
CRYRINGBEAM/KL_HARM_S,1,,RING_RF_MANIPULATION
CRYRINGBEAM/KL_HARM_S,1,,RING_RAMP
CRYRINGBEAM/KL_HARM_S,1,,RING_REBUNCHING
CRYRINGBEAM/KL_HARM_S,1,,RING_TARGET
CRYRINGBEAM/KL_HARM_S,1,,RING_INTERMEDIATE
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_INJECTION
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_BUNCHING
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_POST_INJECTION
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_MANI_PRE_RAMP
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_RAMP
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_RF_MANIPULATION
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_RAMP
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_REBUNCHING
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_TARGET
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_INTERMEDIATE
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_INJECTION
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_BUNCHING
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_POST_INJECTION
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_MANI_PRE_RAMP
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_RAMP
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_RF_MANIPULATION
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_RAMP
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_REBUNCHING
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_TARGET
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_INTERMEDIATE
CRYRINGBEAM/NPARTICLES_S,1000.0,,RING_INJECTION
CRYRINGBEAM/PARTICLE_SYMBOL_INPUT_S,7Li,,RING_INJECTION
CRYRINGBEAM/QH_END_S,2.31,,RING_INJECTION
CRYRINGBEAM/QH_END_S,---,,RING_POST_INJECTION
CRYRINGBEAM/QH_END_S,2.29,,RING_RAMP
CRYRINGBEAM/QH_END_S,2.29,,RING_RAMP
CRYRINGBEAM/QH_END_S,---,,STORAGE_MANIP_WAIT
CRYRINGBEAM/QV_END_S,2.55,,RING_INJECTION
CRYRINGBEAM/QV_END_S,---,,RING_POST_INJECTION
CRYRINGBEAM/QV_END_S,2.55,,RING_RAMP
CRYRINGBEAM/QV_END_S,2.55,,RING_RAMP
CRYRINGBEAM/QV_END_S,---,,STORAGE_MANIP_WAIT
CRYRINGBEAM/Q_INPUT_S,1,,RING_INJECTION
CRYRINGBEAM/TREV,5.514951E-5,s,RING_INJECTION
CRYRINGBEAM/USE_SIMPLE_BF_B,true,,RING_INJECTION
CRYRINGBUMPER/TFALL_S,5.0E-4,s,RING_INJECTION
CRYRINGIKICKER/KICKER_TOFFSET1_S,0.0,s,RING_INJECTION
CRYRINGOPTICS/OPTIC_NAME_RING_S,CRYRING_STANDARD_OPTICS_TABLE,,RING_INJECTION
CRYRINGOPTICS/TAU_END_S,0.0,,RING_INJECTION
CRYRINGOPTICS/TAU_END_S,---,,RING_POST_INJECTION
CRYRINGOPTICS/TAU_END_S,0.0,,RING_RAMP
CRYRINGOPTICS/TAU_END_S,0.0,,RING_RAMP
CRYRINGORBIT/COH02,0.0,m,RING_INJECTION
CRYRINGORBIT/COH02,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH02,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH02,0.0,m,RING_TARGET
CRYRINGORBIT/COH03,0.0,m,RING_INJECTION
CRYRINGORBIT/COH03,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH03,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH03,0.0,m,RING_TARGET
CRYRINGORBIT/COH04,0.0,m,RING_INJECTION
CRYRINGORBIT/COH04,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH04,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH04,0.0,m,RING_TARGET
CRYRINGORBIT/COH06,0.0,m,RING_INJECTION
CRYRINGORBIT/COH06,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH06,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH06,0.0,m,RING_TARGET
CRYRINGORBIT/COH07,0.0,m,RING_INJECTION
CRYRINGORBIT/COH07,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH07,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH07,0.0,m,RING_TARGET
CRYRINGORBIT/COH08,0.0,m,RING_INJECTION
CRYRINGORBIT/COH08,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH08,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH08,0.0,m,RING_TARGET
CRYRINGORBIT/COH10,0.0,m,RING_INJECTION
CRYRINGORBIT/COH10,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH10,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH10,0.0,m,RING_TARGET
CRYRINGORBIT/COH11,0.0,m,RING_INJECTION
CRYRINGORBIT/COH11,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH11,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH11,0.0,m,RING_TARGET
CRYRINGORBIT/COH12,0.0,m,RING_INJECTION
CRYRINGORBIT/COH12,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH12,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH12,0.0,m,RING_TARGET
CRYRINGORBIT/COV02,0.0,m,RING_INJECTION
CRYRINGORBIT/COV02,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COV02,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COV02,0.0,m,RING_TARGET
CRYRINGORBIT/COV03,0.0,m,RING_INJECTION
CRYRINGORBIT/COV03,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COV03,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COV03,0.0,m,RING_TARGET
CRYRINGORBIT/COV04,0.0,m,RING_INJECTION
CRYRINGORBIT/COV04,0.0,m,RING_RF_MANIPULATION
... 679 more lines ...
|

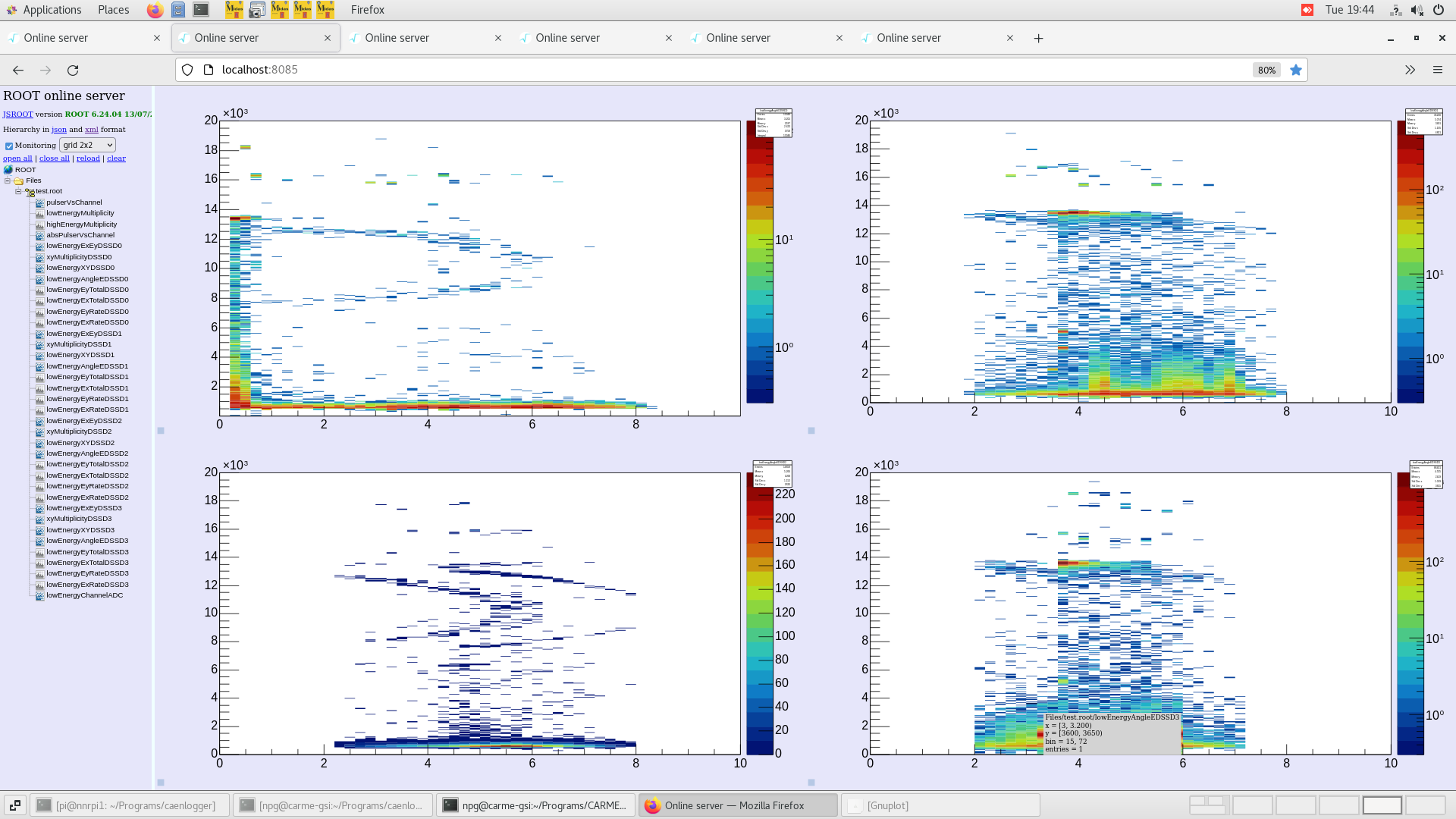

| Attachment 3: Screenshot_from_2025-05-27_19-44-25.png
|
|
| Attachment 4: Screenshot_from_2025-05-27_19-44-42.png
|
|
| Attachment 5: Screenshot_from_2025-05-27_19-44-55.png
|
|
| Attachment 6: Screenshot_from_2025-05-27_19-45-06.png
|
|
| Attachment 7: screenshot-2025-05-29_11-13-385986126969656182153.png
|
|
|
696
|
Tue May 27 12:49:48 2025 |
ML | Ion beam / electron beam settings so far. | Screenshots and ParamModi settings export attached. |
| Attachment 1: 2025-05-27_13-46-30-866.png
|
|

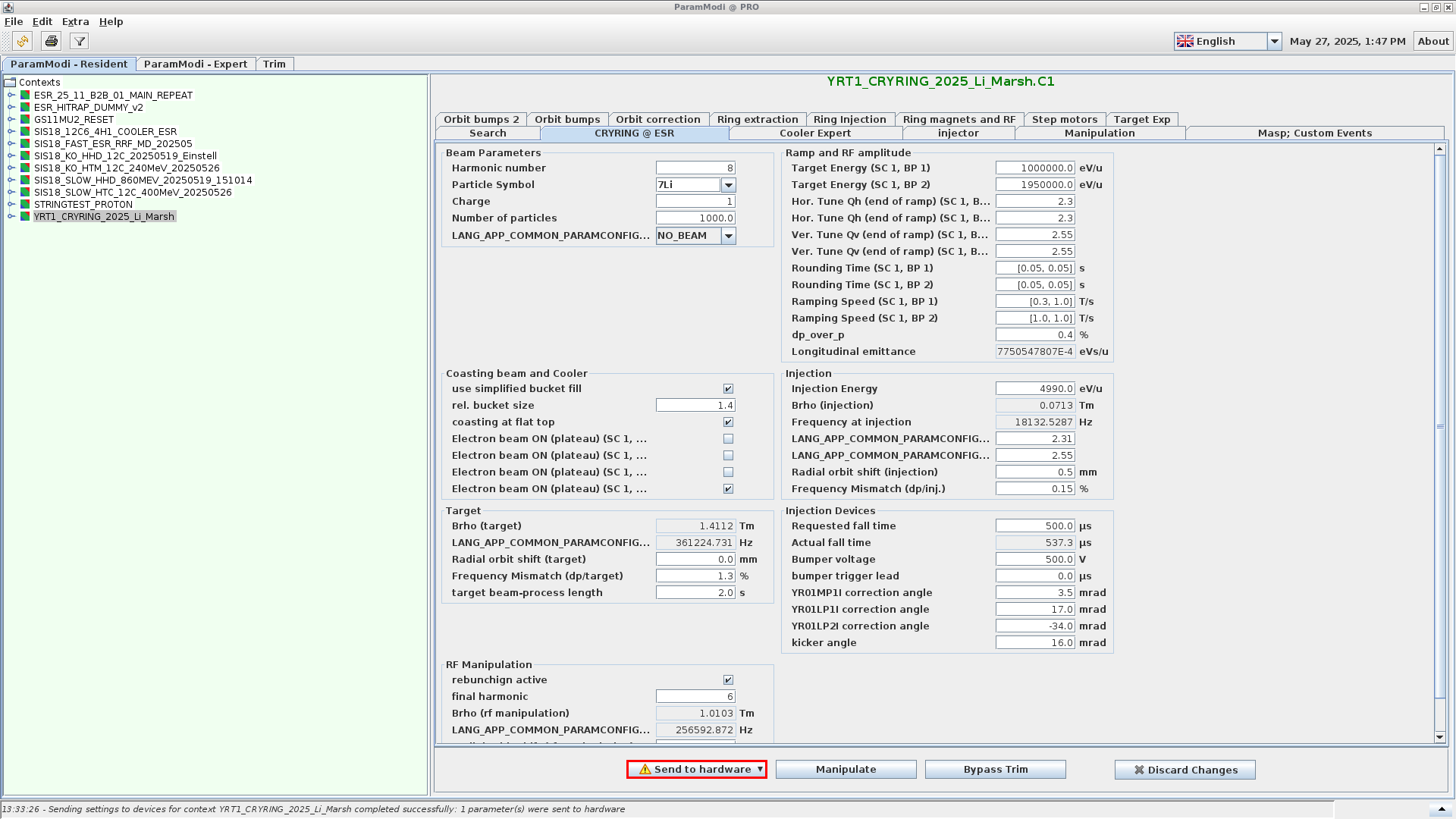

| Attachment 2: 2025-05-27_13-47-04-130.png
|
|

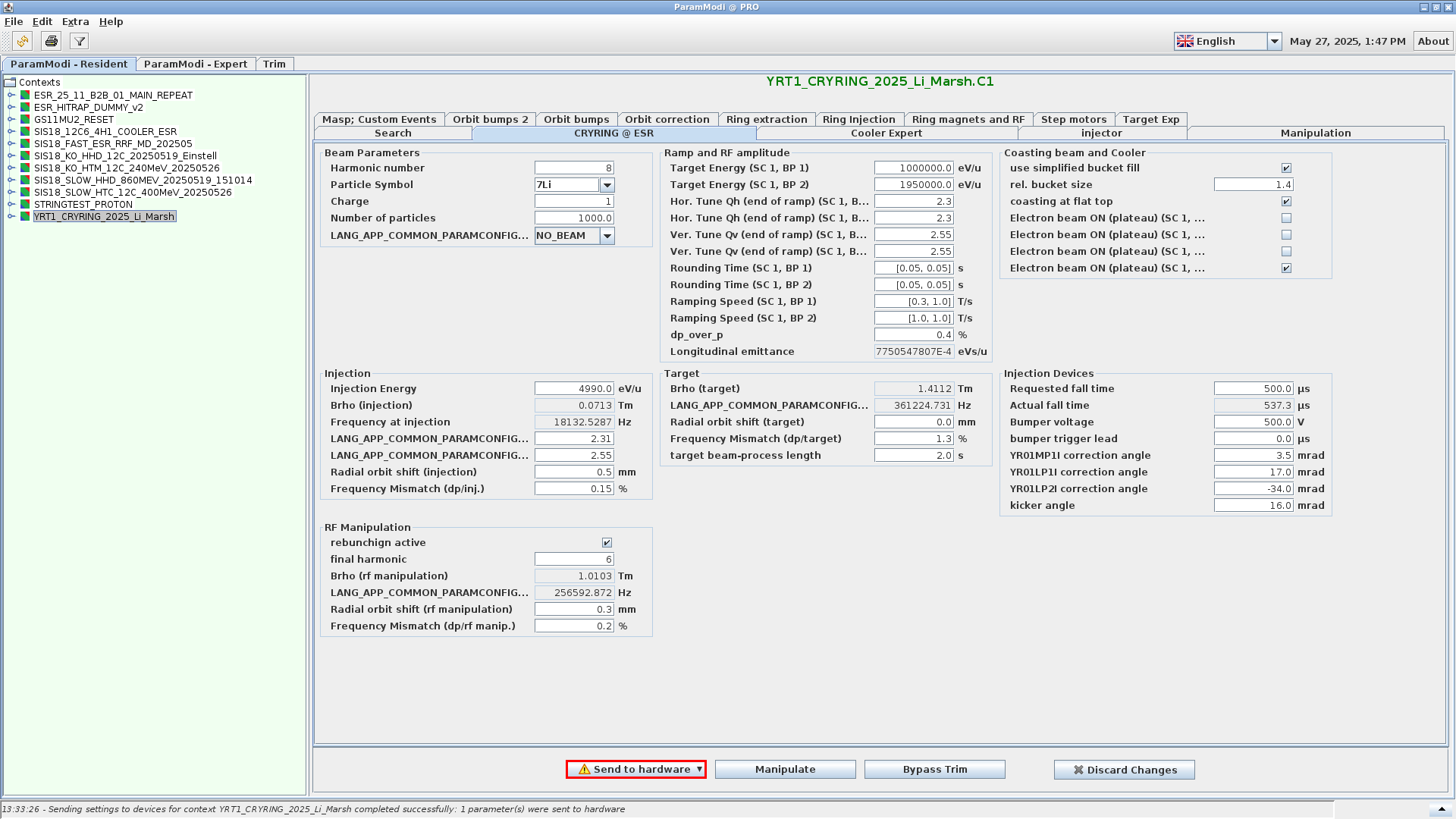

| Attachment 3: 2025-05-27_13-47-23-173.png
|
|
| Attachment 4: 2025-05-27_13-47-52-384.png
|
|
| Attachment 5: 2025-05-27_13-50-26_YRT1_CRYRING_2025_Li_Marsh.C1.txt
|
# Version: 1.3
# Comment: ParamModi Export at 2025-05-27T13:50:34.912176166+02:00[Europe/Berlin]
# Context: YRT1_CRYRING_2025_Li_Marsh.C1
# Columns: PARAMETERNAME,VALUE,UNIT,BEAMPROCESSPURPOSE
LOGICAL.SOURCE_HV/U,35000.0,V,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_BEAM/BEAM_MODE_S,NO_BEAM,,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_BEAM/PARTICLE_SYMBOL_S,7Li,,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_BEAM/Q_S,1,,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_BI_DELAY_S,2.0E-4,s,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_BI_WINDOW_S,0.002,s,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_INIT
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_RESET
YRT1_TO_YRT1LQ1_TIMEPARAM/TIMING_SOURCE_PULSE_LENGTH_S,0.0024,s,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,0.12,s,BEAMOUT_INIT
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,0.11,s,TRANSFER_INJECTION
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,0.0,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,0.0,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,0.0,s,STORAGE_MANIP_PERFORM
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STORAGE_MANIP_WAIT
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STORAGE_MANIP_RESTART_FGS
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,---,s,STATIC
YRT1_TO_YRT1LQ1_TIMEPARAM/T_BP_LENGTH_S,0.12,s,BEAMOUT_RESET
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_INIT
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,TRANSFER_INJECTION
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LQ1_TO_YRT1LC1_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_RESET
LOGICAL.YRT1KH1/HKICK,-0.018,rad,TRANSFER_INJECTION
LOGICAL.YRT1KV1/VKICK,0.004,rad,TRANSFER_INJECTION
LOGICAL.YRT1LC1_V/ACTIVE_S,true,,TRANSFER_INJECTION
LOGICAL.YRT1LC1_V/THIGH_S,6.0E-4,s,TRANSFER_INJECTION
LOGICAL.YRT1LC1_V/TOFFSET_S,5.0E-4,s,TRANSFER_INJECTION
LOGICAL.YRT1LC1_V/U,2000.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LD21/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LD21/HOR_STEER_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LD21/U_QUAD,-640.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LD21/VER_STEER_KNOB_S,-0.03,,TRANSFER_INJECTION
LOGICAL.YRT1LD22/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LD22/U_QUAD,650.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LT31/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LT31/U_QUAD,515.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LT32/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LT32/U_QUAD,-945.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LT33/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LT33/U_QUAD,1210.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LT41/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LT41/U_QUAD,-2100.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LT42/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LT42/U_QUAD,2020.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LT43/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LT43/U_QUAD,-2100.0,V,TRANSFER_INJECTION
LOGICAL.YRT1MH1/HKICK,0.022,rad,TRANSFER_INJECTION
LOGICAL.YRT1MH1/K0L_THEO,-1.57079,rad,TRANSFER_INJECTION
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_BI_DELAY_S,1.0E-6,s,TRANSFER_INJECTION
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_BI_WINDOW_S,1.0E-6,s,TRANSFER_INJECTION
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_INIT
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,TRANSFER_INJECTION
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_RESET
YRT1LC1_TO_YRT1MH2_TIMEPARAM/TIMING_RF_LEAD_S,4.0E-4,s,TRANSFER_INJECTION
LOGICAL.YRT1BR1/ACT_ON_BEAM_S,true,,TRANSFER_INJECTION
LOGICAL.YRT1BR1/THIGH_S,0.0025,s,TRANSFER_INJECTION
LOGICAL.YRT1BR1/URF0_S,0.1,V,TRANSFER_INJECTION
LOGICAL.YRT1BR1/U_PAUSE_PULSE_AMPL_S,4.76,V,TRANSFER_INJECTION
LOGICAL.YRT1KH2/HKICK,3.0E-4,rad,TRANSFER_INJECTION
LOGICAL.YRT1KV2/VKICK,-2.0E-4,rad,TRANSFER_INJECTION
LOGICAL.YRT1LD51/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LD51/U_QUAD,510.0,V,TRANSFER_INJECTION
LOGICAL.YRT1LD52/ASYMMETRY_KNOB_S,0.0,,TRANSFER_INJECTION
LOGICAL.YRT1LD52/U_QUAD,-420.0,V,TRANSFER_INJECTION
LOGICAL.YRT1QD61/K1L,2.05,1/m,TRANSFER_INJECTION
LOGICAL.YRT1QD62/K1L,-1.68,1/m,TRANSFER_INJECTION
LOGICAL.YRT1QD71/K1L,1.85,1/m,TRANSFER_INJECTION
LOGICAL.YRT1QD72/K1L,-2.1,1/m,TRANSFER_INJECTION
YRT1BR1_TO_YRT1MH2_BEAM/E_S,5000.0,eV/u,TRANSFER_INJECTION
YRT1BR1_TO_YRT1MH2_RF/PHASE_OFFSET_S,0.0,deg,TRANSFER_INJECTION
LOGICAL.GHTYKH4/HKICK,-5.0E-4,rad,TRANSFER_INJECTION
LOGICAL.GHTYKV3/VKICK,-0.002,rad,TRANSFER_INJECTION
LOGICAL.GHTYKV4/VKICK,0.0015,rad,TRANSFER_INJECTION
LOGICAL.GHTYQD41/K1L,1.4,1/m,TRANSFER_INJECTION
LOGICAL.GHTYQD42/K1L,-1.25,1/m,TRANSFER_INJECTION
LOGICAL.YR01LP1I/ESEP_HKICK_S,0.017,rad,TRANSFER_INJECTION
LOGICAL.YR01LP1I/ESEP_K0L_THEO_S,-0.05,rad,TRANSFER_INJECTION
LOGICAL.YR01LP2I/ESEP_HKICK_S,-0.034,rad,TRANSFER_INJECTION
LOGICAL.YR01LP2I/ESEP_K0L_THEO_S,0.055,rad,TRANSFER_INJECTION
LOGICAL.YR01MP1I/HKICK,0.0035,rad,TRANSFER_INJECTION
LOGICAL.YR01MP1I/K0L_THEO,0.29322,rad,TRANSFER_INJECTION
LOGICAL.YRT1MH2/HKICK_ESR_S,-0.61087,rad,TRANSFER_INJECTION
LOGICAL.YRT1MH2/HKICK_LOCAL_S,-0.021,rad,TRANSFER_INJECTION
LOGICAL.YRT1MH2/K0L_THEO,-0.61087,rad,TRANSFER_INJECTION
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_BI_DELAY_S,1.0E-6,s,TRANSFER_INJECTION
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_BI_WINDOW_S,1.0E-6,s,TRANSFER_INJECTION
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_INIT
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,TRANSFER_INJECTION
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,STATIC
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_IS_LENGTH_CHANGED_S,true,,BEAMOUT_RESET
YRT1MH2_TO_CRYRING_TIMEPARAM/TIMING_SEPTUM_TRIGGER_OFFSET_S,0.0,s,TRANSFER_INJECTION
CRYRINGB2B/B2B_SID_EXT_S,---,,RING_INJECTION
CRYRINGB2B/B2B_SOURCE_KICKER_DELAY_S,---,s,RING_INJECTION
CRYRINGB2B/B2B_SOURCE_TRIGGER_OFFSET_S,---,deg,RING_INJECTION
CRYRINGB2B/B2B_TRIGGER_OFFSET_S,0.0,deg,RING_INJECTION
CRYRINGB2B/B2B_TRIGGER_OFFSET_TIME_S,0.0,,RING_INJECTION
CRYRINGBEAM/BEAM_MODE_S,NO_BEAM,,RING_INJECTION
CRYRINGBEAM/BRHO_CHIMNEY_S,---,Tm,BEAMOUT_INIT
CRYRINGBEAM/BRHO_CHIMNEY_S,---,Tm,BEAMOUT_RESET
CRYRINGBEAM/BRHO_DISPLAY_S,0.0713,Tm,RING_INJECTION
CRYRINGBEAM/BRHO_DISPLAY_S,1.0103,Tm,RING_RF_MANIPULATION
CRYRINGBEAM/BRHO_DISPLAY_S,1.4112,Tm,RING_TARGET
CRYRINGBEAM/BRHO_START_END_S,[0.07134952, 0.07134952],Tm,RING_INJECTION
CRYRINGBEAM/BUCKETFILL_RAW_S,[[0.0, 0.0]],,RING_INJECTION
CRYRINGBEAM/BUCKETFILL_RAW_S,[[0.0, 1.4]],,RING_BUNCHING
CRYRINGBEAM/BUCKETFILL_RAW_S,[[1.4, 1.4]],,RING_RAMP
CRYRINGBEAM/BUCKETFILL_RAW_S,[[1.4, 1.4]],,RING_RF_MANIPULATION
CRYRINGBEAM/BUCKETFILL_RAW_S,[[1.4, 1.4]],,RING_RAMP
CRYRINGBEAM/BUCKETFILL_RAW_S,[[1.4, 0.0]],,RING_REBUNCHING
CRYRINGBEAM/BUCKETFILL_RAW_S,[[0.0, 0.0]],,RING_TARGET
CRYRINGBEAM/BUCKETFILL_RAW_S,[[0.0, 0.0]],,RING_INTERMEDIATE
CRYRINGBEAM/BUCKETFILL_SIMPLE_S,1.4,,RING_INJECTION
CRYRINGBEAM/CHIMNEY_B,---,,BEAMOUT_INIT
CRYRINGBEAM/CHIMNEY_B,---,,BEAMOUT_RESET
CRYRINGBEAM/CH_END_S,5.0655,,RING_INJECTION
CRYRINGBEAM/CH_END_S,5.0655,,RING_RAMP
CRYRINGBEAM/CH_END_S,5.0655,,RING_RAMP
CRYRINGBEAM/CH_END_S,---,,STORAGE_MANIP_WAIT
CRYRINGBEAM/COASTING_BEAM_B,true,,RING_REBUNCHING
CRYRINGBEAM/CV_END_S,-5.3921,,RING_INJECTION
CRYRINGBEAM/CV_END_S,-5.3921,,RING_RAMP
CRYRINGBEAM/CV_END_S,-5.3921,,RING_RAMP
CRYRINGBEAM/CV_END_S,---,,STORAGE_MANIP_WAIT
CRYRINGBEAM/DELTAR,5.0E-4,m,RING_INJECTION
CRYRINGBEAM/DELTAR,3.0E-4,m,RING_RF_MANIPULATION
CRYRINGBEAM/DELTAR,0.0,m,STORAGE_MANIP_WAIT
CRYRINGBEAM/DELTAR,0.0,m,RING_TARGET
CRYRINGBEAM/DELTAR,0.0,m,RING_INTERMEDIATE
CRYRINGBEAM/DPBL,0.0,,RING_INJECTION
CRYRINGBEAM/DPBL,0.0,,STORAGE_MANIP_WAIT
CRYRINGBEAM/DPFREV,0.0015,,RING_INJECTION
CRYRINGBEAM/DPFREV,0.002,,RING_RF_MANIPULATION
CRYRINGBEAM/DPFREV,0.013,,STORAGE_MANIP_WAIT
CRYRINGBEAM/DPFREV,0.013,,RING_TARGET
CRYRINGBEAM/DPFREV,0.013,,RING_INTERMEDIATE
CRYRINGBEAM/DP_OVER_P_S,0.004,,RING_INJECTION
CRYRINGBEAM/E_S,4990.0,eV/u,RING_INJECTION
CRYRINGBEAM/E_S,1000000.0,eV/u,RING_RAMP
CRYRINGBEAM/E_S,1950000.0,eV/u,RING_RAMP
CRYRINGBEAM/FINAL_HARMONIC_S,6,,RING_RF_MANIPULATION
CRYRINGBEAM/FREV,18132.5287,Hz,RING_INJECTION
CRYRINGBEAM/FREV,256592.872,Hz,RING_RF_MANIPULATION
CRYRINGBEAM/FREV,361224.731,Hz,RING_TARGET
CRYRINGBEAM/H_INPUT_S,8,,RING_INJECTION
CRYRINGBEAM/INJ_EMIH_S,1.0E-5,m*rad,RING_INJECTION
CRYRINGBEAM/INJ_EMIL_S,6.160687750547807E-4,eVs/u,RING_INJECTION
CRYRINGBEAM/INJ_EMIV_S,1.0E-5,m*rad,RING_INJECTION
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_INJECTION
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_BUNCHING
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_POST_INJECTION
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_MANI_PRE_RAMP
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_RAMP
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_RF_MANIPULATION
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_RAMP
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_REBUNCHING
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_TARGET
CRYRINGBEAM/KL_AMPL_S,0.0,,RING_INTERMEDIATE
CRYRINGBEAM/KL_HARM_S,1,,RING_INJECTION
CRYRINGBEAM/KL_HARM_S,1,,RING_BUNCHING
CRYRINGBEAM/KL_HARM_S,1,,RING_POST_INJECTION
CRYRINGBEAM/KL_HARM_S,1,,RING_MANI_PRE_RAMP
CRYRINGBEAM/KL_HARM_S,1,,RING_RAMP
CRYRINGBEAM/KL_HARM_S,1,,RING_RF_MANIPULATION
CRYRINGBEAM/KL_HARM_S,1,,RING_RAMP
CRYRINGBEAM/KL_HARM_S,1,,RING_REBUNCHING
CRYRINGBEAM/KL_HARM_S,1,,RING_TARGET
CRYRINGBEAM/KL_HARM_S,1,,RING_INTERMEDIATE
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_INJECTION
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_BUNCHING
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_POST_INJECTION
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_MANI_PRE_RAMP
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_RAMP
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_RF_MANIPULATION
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_RAMP
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_REBUNCHING
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_TARGET
CRYRINGBEAM/KL_OFFSET_S,0.0,,RING_INTERMEDIATE
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_INJECTION
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_BUNCHING
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_POST_INJECTION
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_MANI_PRE_RAMP
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_RAMP
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_RF_MANIPULATION
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_RAMP
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_REBUNCHING
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_TARGET
CRYRINGBEAM/KL_PHASE_S,0.0,deg,RING_INTERMEDIATE
CRYRINGBEAM/NPARTICLES_S,1000.0,,RING_INJECTION
CRYRINGBEAM/PARTICLE_SYMBOL_INPUT_S,7Li,,RING_INJECTION
CRYRINGBEAM/QH_END_S,2.31,,RING_INJECTION
CRYRINGBEAM/QH_END_S,---,,RING_POST_INJECTION
CRYRINGBEAM/QH_END_S,2.3,,RING_RAMP
CRYRINGBEAM/QH_END_S,2.3,,RING_RAMP
CRYRINGBEAM/QH_END_S,---,,STORAGE_MANIP_WAIT
CRYRINGBEAM/QV_END_S,2.55,,RING_INJECTION
CRYRINGBEAM/QV_END_S,---,,RING_POST_INJECTION
CRYRINGBEAM/QV_END_S,2.55,,RING_RAMP
CRYRINGBEAM/QV_END_S,2.55,,RING_RAMP
CRYRINGBEAM/QV_END_S,---,,STORAGE_MANIP_WAIT
CRYRINGBEAM/Q_INPUT_S,1,,RING_INJECTION
CRYRINGBEAM/TREV,5.514951E-5,s,RING_INJECTION
CRYRINGBEAM/USE_SIMPLE_BF_B,true,,RING_INJECTION
CRYRINGBUMPER/TFALL_S,5.0E-4,s,RING_INJECTION
CRYRINGIKICKER/KICKER_TOFFSET1_S,0.0,s,RING_INJECTION
CRYRINGOPTICS/OPTIC_NAME_RING_S,CRYRING_STANDARD_OPTICS_TABLE,,RING_INJECTION
CRYRINGOPTICS/TAU_END_S,0.0,,RING_INJECTION
CRYRINGOPTICS/TAU_END_S,---,,RING_POST_INJECTION
CRYRINGOPTICS/TAU_END_S,0.0,,RING_RAMP
CRYRINGOPTICS/TAU_END_S,0.0,,RING_RAMP
CRYRINGORBIT/COH02,0.0,m,RING_INJECTION
CRYRINGORBIT/COH02,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH02,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH02,0.0,m,RING_TARGET
CRYRINGORBIT/COH03,0.0,m,RING_INJECTION
CRYRINGORBIT/COH03,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH03,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH03,0.0,m,RING_TARGET
CRYRINGORBIT/COH04,0.0,m,RING_INJECTION
CRYRINGORBIT/COH04,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH04,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH04,0.0,m,RING_TARGET
CRYRINGORBIT/COH06,0.0,m,RING_INJECTION
CRYRINGORBIT/COH06,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH06,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH06,0.0,m,RING_TARGET
CRYRINGORBIT/COH07,0.0,m,RING_INJECTION
CRYRINGORBIT/COH07,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH07,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH07,0.0,m,RING_TARGET
CRYRINGORBIT/COH08,0.0,m,RING_INJECTION
CRYRINGORBIT/COH08,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH08,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH08,0.0,m,RING_TARGET
CRYRINGORBIT/COH10,0.0,m,RING_INJECTION
CRYRINGORBIT/COH10,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH10,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH10,0.0,m,RING_TARGET
CRYRINGORBIT/COH11,0.0,m,RING_INJECTION
CRYRINGORBIT/COH11,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH11,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH11,0.0,m,RING_TARGET
CRYRINGORBIT/COH12,0.0,m,RING_INJECTION
CRYRINGORBIT/COH12,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COH12,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COH12,0.0,m,RING_TARGET
CRYRINGORBIT/COV02,0.0,m,RING_INJECTION
CRYRINGORBIT/COV02,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COV02,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COV02,0.0,m,RING_TARGET
CRYRINGORBIT/COV03,0.0,m,RING_INJECTION
CRYRINGORBIT/COV03,0.0,m,RING_RF_MANIPULATION
CRYRINGORBIT/COV03,0.0,m,STORAGE_MANIP_WAIT
CRYRINGORBIT/COV03,0.0,m,RING_TARGET
CRYRINGORBIT/COV04,0.0,m,RING_INJECTION
CRYRINGORBIT/COV04,0.0,m,RING_RF_MANIPULATION
... 679 more lines ...
|
|
695
|
Tue May 27 08:38:29 2025 |
TD | [How To] Recover DAQ when one FEE64 stops sending data - short(er) version | 1) Select 'No Storage' [workspace 4, display 1, browser tab 'TapeServer']
If already in 'No Storage' mode please ignore this step
2) STOP DAQ [workspace 3, display 1, browser tab 'Run Control']
all FEE64s should change status from 'going' to 'stopped' *except* whichever FEE64(s) have a problem - typically their status is 'going' or 'error'
3) Restart Merger by selecting the Merger icon [workspace 4, display 2]
terminal window showing the startup will popup
4) Setup Merger by selecting 'SETUP' [workspace 4, display 1, browser tab 'NewMerger Control']
5) Start Merger by selecting 'GO' [workspace 4, display 1, browser tab 'NewMerger Control']
all data links will be inactive (red)
6) Start DAQ by selecting 'GO' [workspace 3, display 1, browser tab 'Run Control']
check that DAQ is *actually* going - if not repeat 'GO'
7) Check data is being transferred to Merger and TapeServer
Select 'Reload' [workspace 4, display 1, browser tab 'NewMerger Control']
you should see a non-zero 'current merged data rate' and all links should show as green at least some of the time (requires observation over several reloads)
Select 'Reload' [workspace 4, display 1, browser tab 'TapeServer']
you should see 'Blocks written' and 'kb written' counters increase
8) Unselect 'No Storage' [workspace 3, display 1, browser tab 'TapeServer']
If already in 'No Storage' mode at the start of this procedure please ignore this step
If you continue to have problems, please request expert assistance. |
|
694
|
Tue May 27 05:24:05 2025 |
LB,SN, L. Cs. P. J. W. | Run 22, 23 - 1.95 MeV/A | 27/05/2025 ca. 6:00
We start a new run: beam is ok, target density ok, detectors are moving in-out periodically.
Cooler voltage setpoint 1105.7 V
Attachment 8 - beamcalc with actual values
Next entry - beamcalc with set values
Right arm at 19.80 mm
Left arm IN at 77.56 mm (OUT 32.53 mm)
vertical beam position 0.0 mm
horizontal beam position -3.5mm
Beam intensity 1.7e+7 particles.
Target density ~6e11 at/cm2
Target temperatures: T1=31.5 K T2=35.2 K
Beam cycle set to 10 seconds.
All check are Ok!
6:30
Noticed a small spike in all leakage currents, see attachment 1
6:50
all checks ok!
07:40
All checks are Ok!
Aida 10 shows sometimes higher statistics.
09:02
All checks are Ok!
Aida 10 shows sometimes higher statistics.
10:00
Checks OK.
Compression works OK.
Moved to run 23. Now moving RIGHT hand side detectors instead of LEFT hand side.
Motion 37.96 mm -> 83.69 mm
Left arm stationary at 18.86 mm
Planning to change energy around lunch.
11:35
Parameters are OK! Tragte density dropped down a bit: ~6e11 at/cm2
12:35
Parameters are OK! Tragte density dropped down a bit: ~1e12 at/cm2
13:10
Starting beam energy change. Detectors OUT. |
| Attachment 1: Screenshot_from_2025-05-27_06-31-48.png
|
|

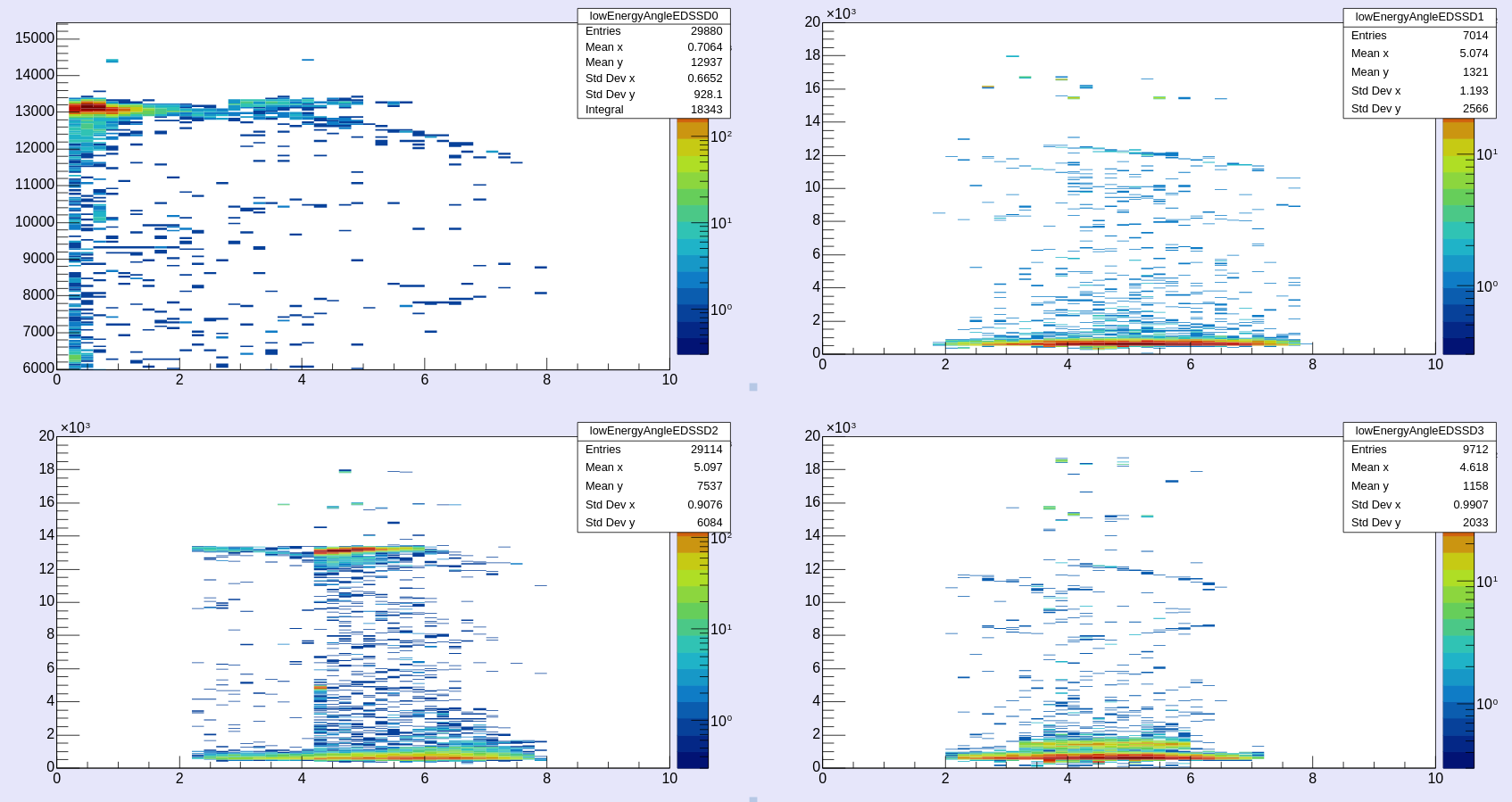

| Attachment 2: Screenshot_from_2025-05-27_07-40-10.png
|
|
| Attachment 3: Screenshot_from_2025-05-27_07-40-21.png
|
|

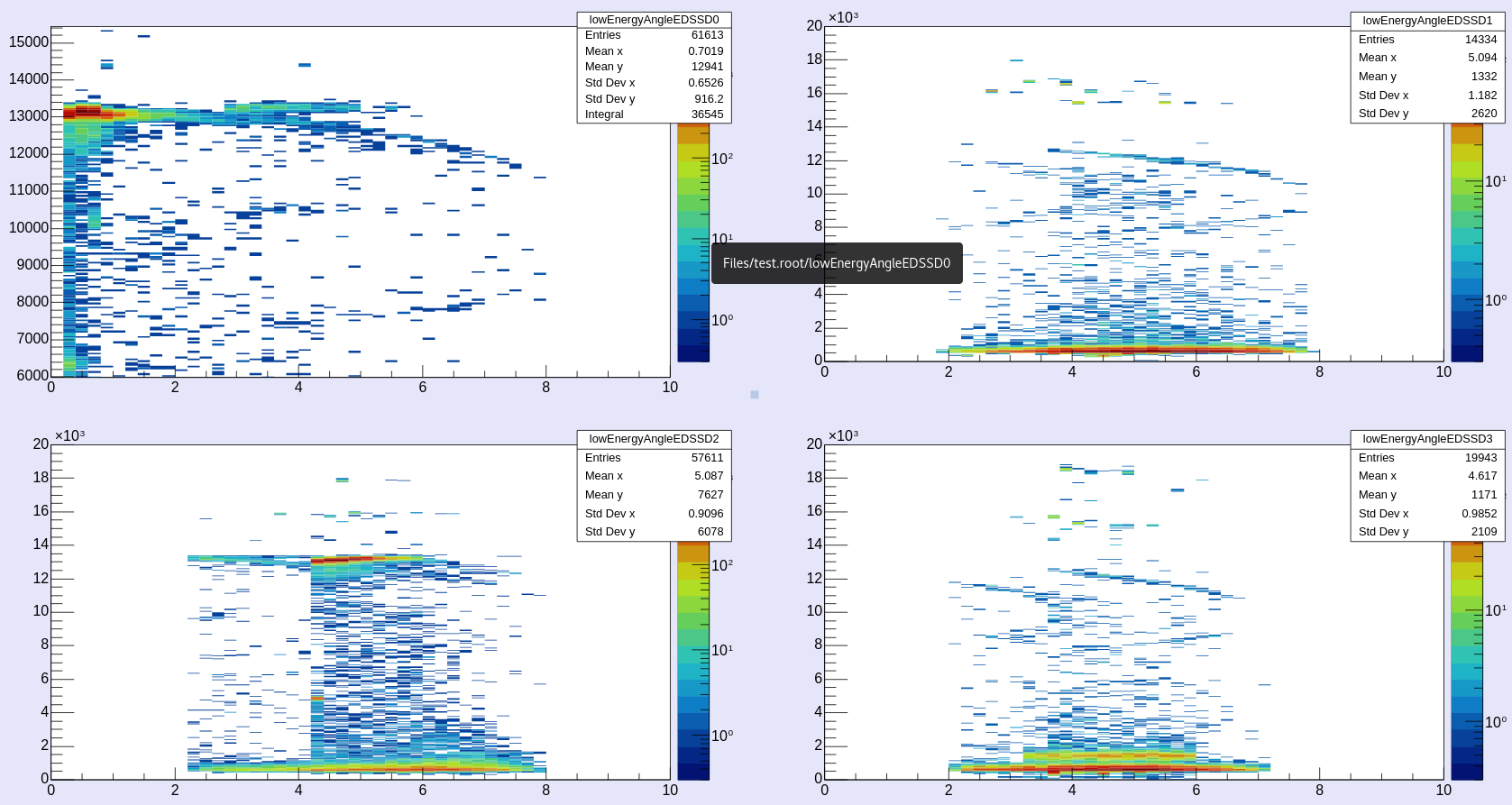

| Attachment 4: Screenshot_from_2025-05-27_09-22-51.png
|
|

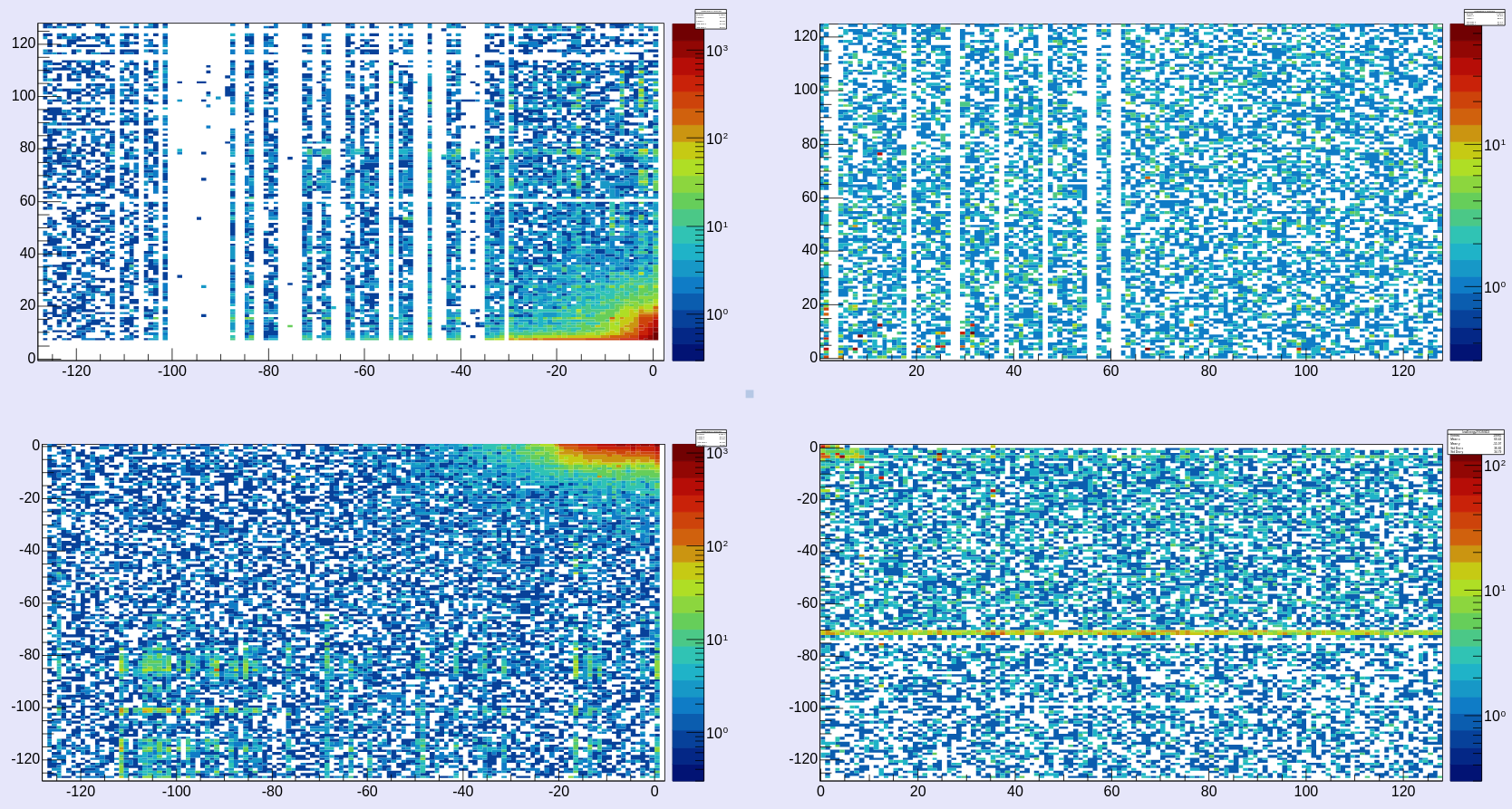

| Attachment 5: Screenshot_from_2025-05-27_09-23-06.png
|
|
| Attachment 6: Screenshot_from_2025-05-27_11-34-21.png
|
|
| Attachment 7: Screenshot_from_2025-05-27_11-34-36.png
|
|
| Attachment 8: screenshot-2025-05-29_11-30-30730985236495866200.png
|
|
|
693
|
Tue May 27 05:03:41 2025 |
JM | DAQ restart | 06:00
FEE modules power cycled.
No issues on power cycle restart.
All system check OK - clock status, ADC calibration etc.
ASIC settings loaded are the same as previous startup. Slow comparator thresholds 0x32 (500 keV) and all FEEs set to LEC.
Statistics (ADC data) - attachment 1. Note aida10 fluctuations between 10,000 and 300 which appears to be a physics effect (beam on target)
Spectrum browser - layout 1 - attachment 2
Merger - attachment 3
Tape server - attachment 4 Data rate is about 300 kB/sec.
FEE temperatures OK
Waveforms - attachments 4,5
All Lekagae currents appear normal
Online monitoring scropt started. Beam on target. Run 22 started. See nect elog for details. |
| Attachment 1: Screenshot_from_2025-05-27_06-09-45.png
|
|
| Attachment 2: Screenshot_from_2025-05-27_06-10-13.png
|
|
| Attachment 3: Screenshot_from_2025-05-27_06-10-29.png
|
|
| Attachment 4: Screenshot_from_2025-05-27_06-11-22.png
|
|
| Attachment 5: Screenshot_from_2025-05-27_06-13-59.png
|
|
| Attachment 6: Screenshot_from_2025-05-27_06-14-43.png
|
|
| Attachment 7: Screenshot_from_2025-05-27_06-16-04.png
|
|
|
692
|
Mon May 26 18:37:17 2025 |
LC, AG, LB, SN | Run 21 | Run 21 running
26/05/2025 19:42 p.m.
We start a new run with real data taking condititon: beam is ok, target density is 1.1e12 cm-2, detectors are moving in-out periodically.
Cooler voltage setpoint 1105.7 V.
Beam energy = 1.95 MeV/u
Right arm at 19.80 mm
Left arm IN at 77.56 mm (OUT 32.53 mm)
vertical beam position 0.0 mm
horizontal beam position -3.5mm
Beam intensity 2.2e+7 particles.
Target density ~1.1e12 at/cm2
Target temperatures: T1=31.5 K T2=35.2 K
Beam cycle set to 10 seconds.
All check are Ok!
21:44
All check are Ok!
23:10
Data rate to disk ~300 kB/sec
All checks OK
ADC disk Items #6 and ADC data items screenshots - attachments 5 and 6
Target density has dropped slightly to 7e11 at/cm2. This is fine with lithium due to beam lifetime constraints.
00:43
All checks OK
01:52
All checks are OK,
Attached spectra (attachment 7 and 8).
target pressure seems to be back at ca. 1E12 at/cm2
3:27
All checks good.
target pressure went down to 5E11 at/cm2 for a while, then back up to ca. 9E11 at/cm2.
4:49
All checks good
Rates higher on aida10 and aida4 (see attachment 9), monitoring. It is not consistently high but for example aida10 goes 222->20000->300->11000. It seems to follow the detector movement (higher rates when detector are IN)
Data rate to disk ~370kB/s.
Spectra attached in 10-11.
5:11
Still flickering. Attachment 12 with rates.
Data rate to disk around ~400 kB/s
05:30
DAQ has crashed. All statistics on aida read zero. No data through the merger or tape server.
Stopped tape server and then Run control STOP. Most FEEs did not respond to the command and continued to read going and some undefined. Reset aida servers and reloaded webpages. Same status. Have to power cycle. |
| Attachment 1: Screenshot_from_2025-05-26_19-41-13.png
|
|

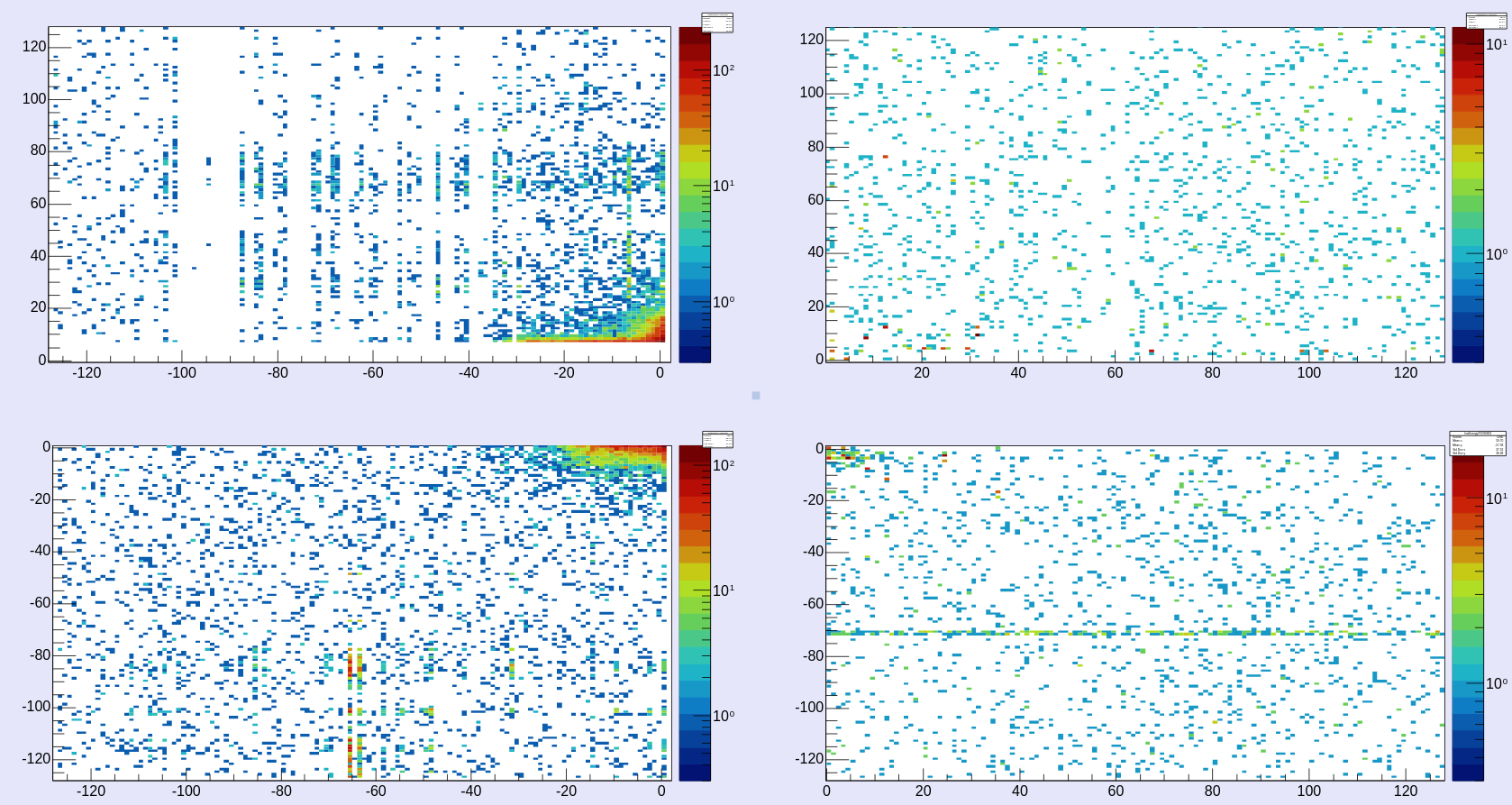

| Attachment 2: Screenshot_from_2025-05-26_19-41-25.png
|
|
| Attachment 3: Screenshot_from_2025-05-26_21-43-59.png
|
|

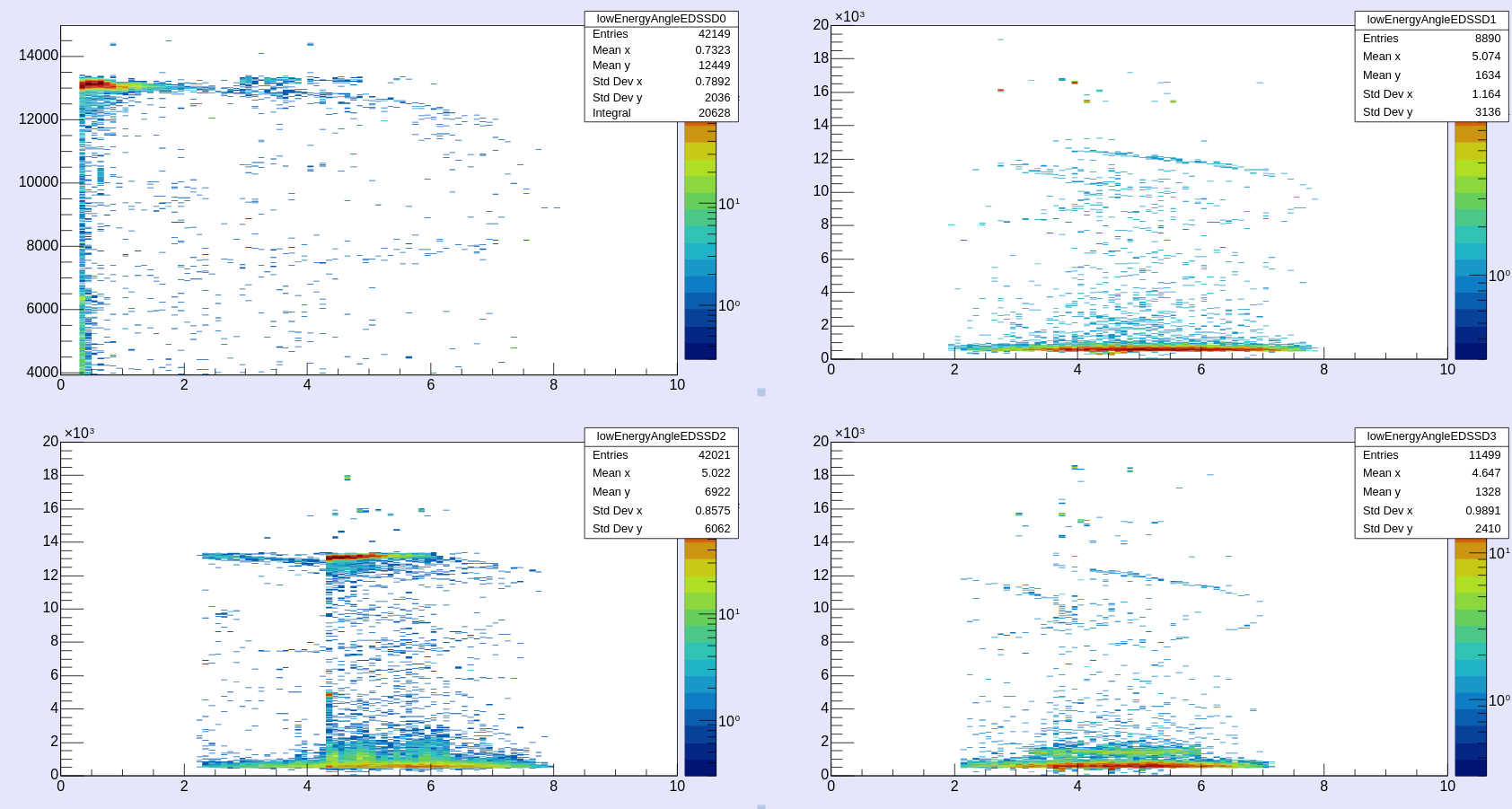

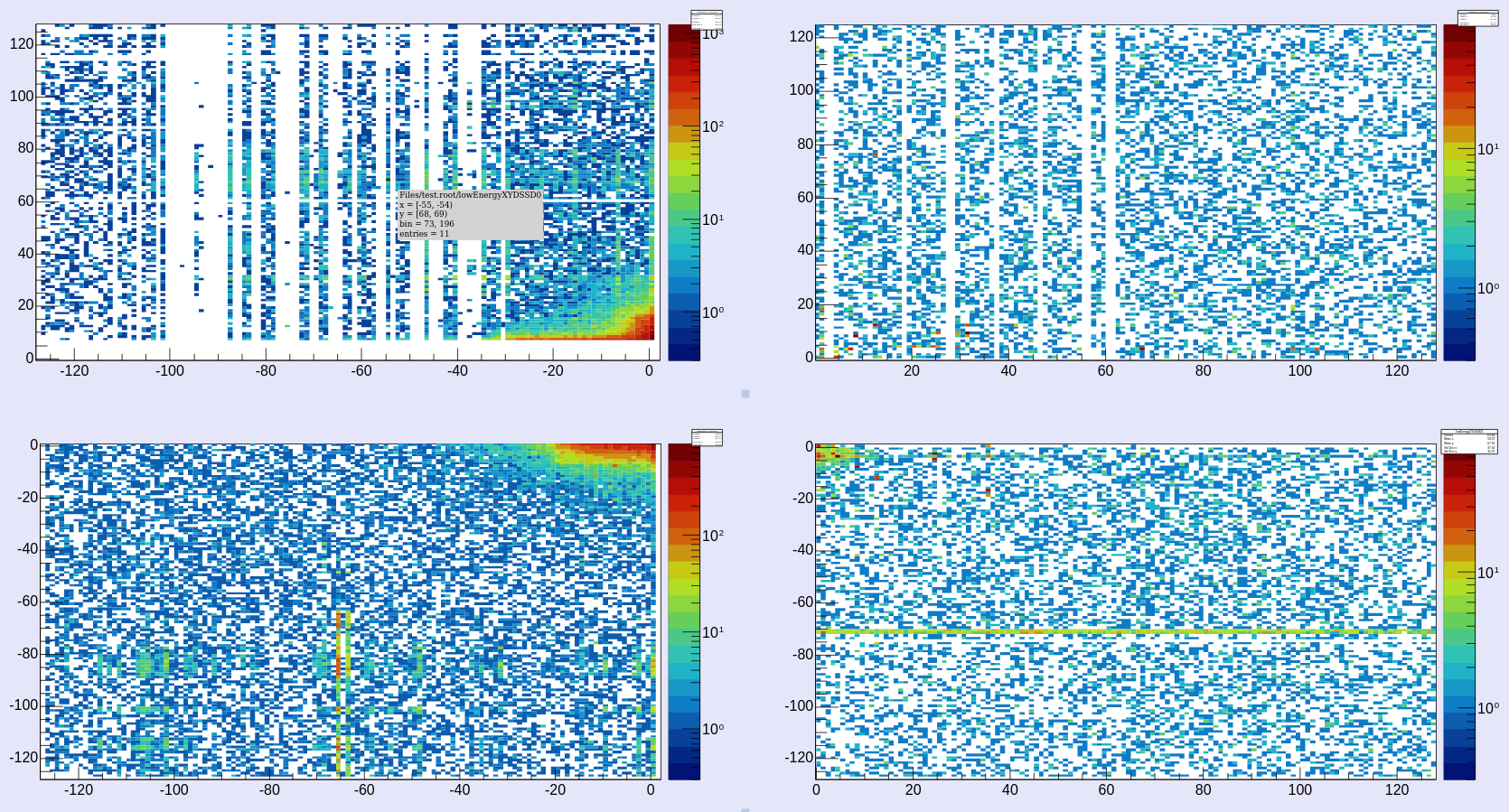

| Attachment 4: Screenshot_from_2025-05-26_21-44-11.png
|
|

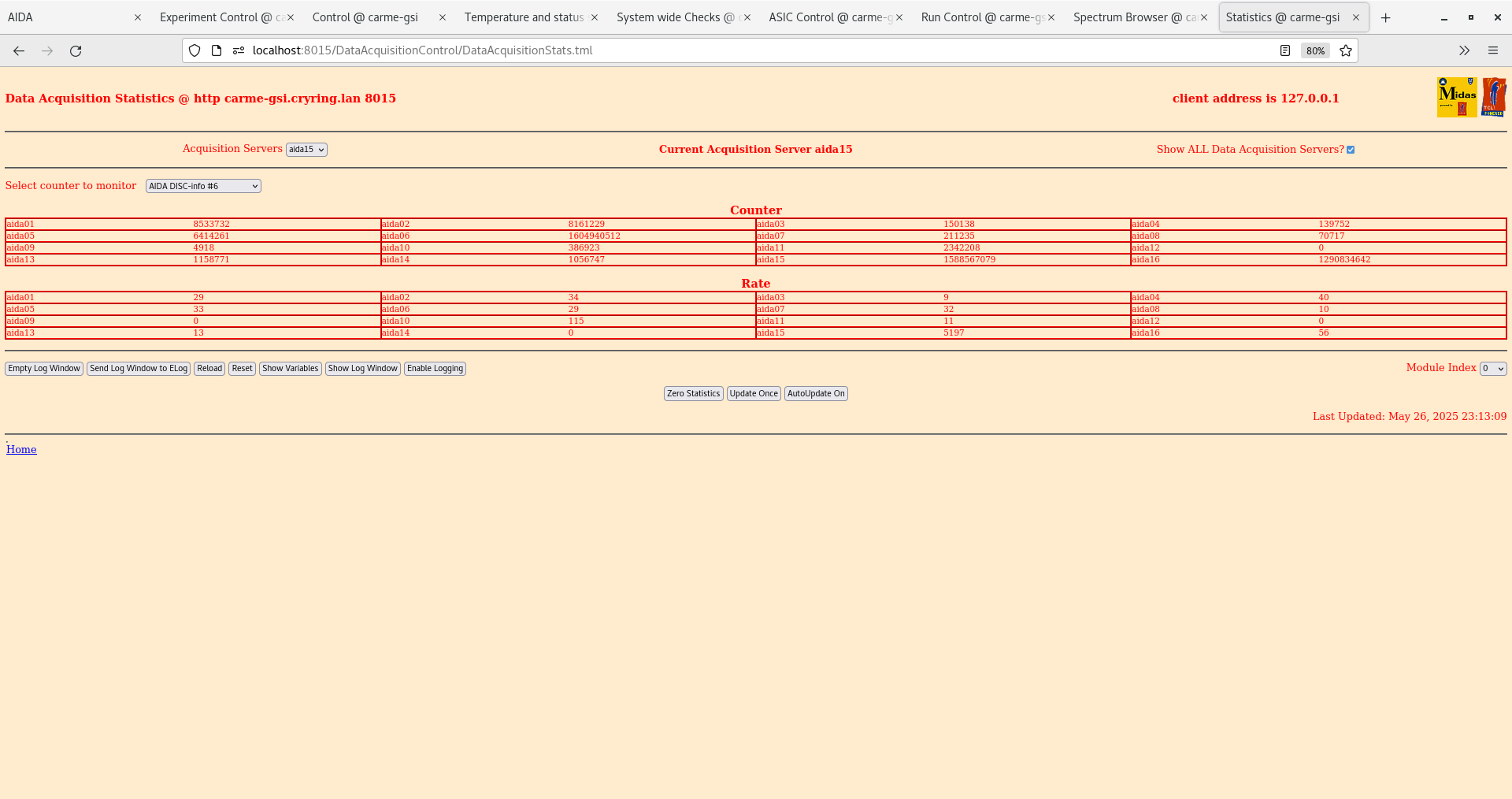

| Attachment 5: Screenshot_from_2025-05-26_23-13-16.png
|
|
| Attachment 6: Screenshot_from_2025-05-26_23-13-33.png
|
|

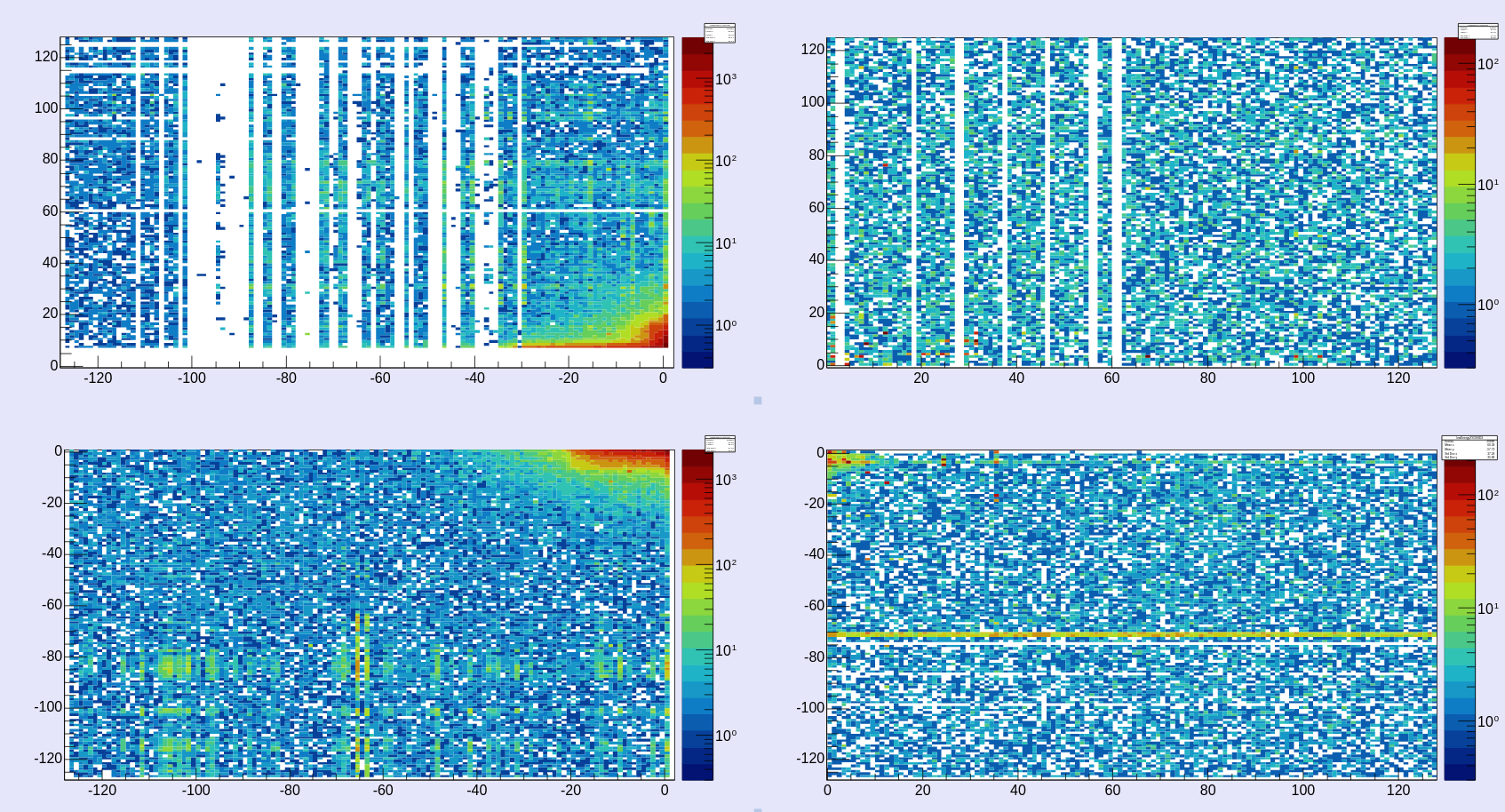

| Attachment 7: Screenshot_from_2025-05-27_01-50-56.png
|
|

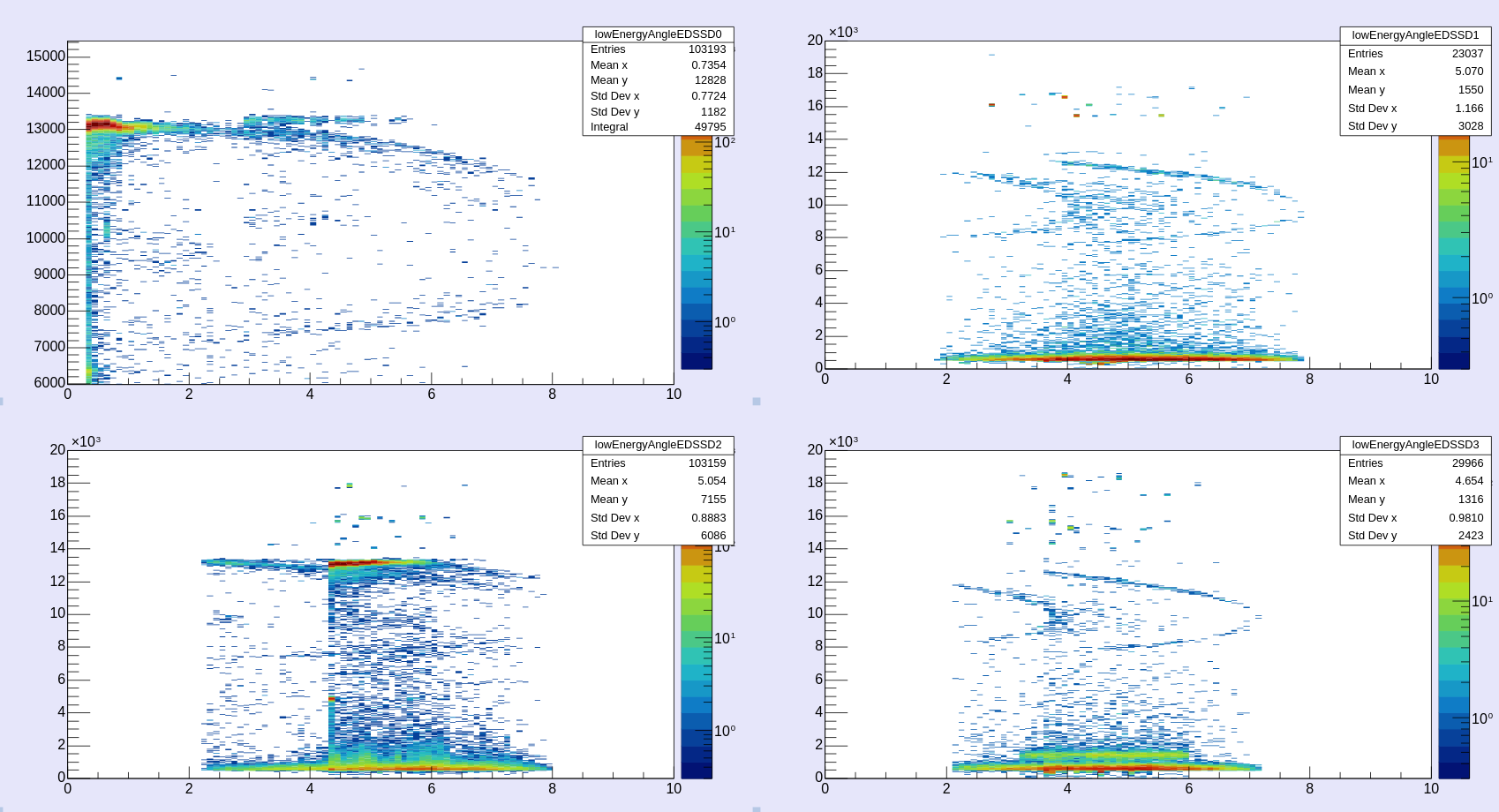

| Attachment 8: Screenshot_from_2025-05-27_01-50-39.png
|
|

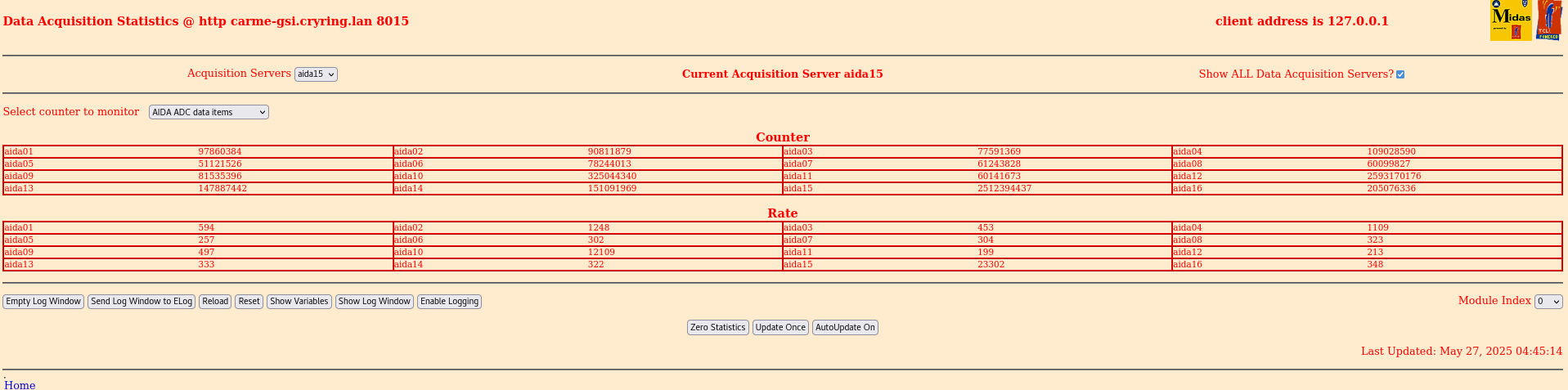

| Attachment 9: Screenshot_from_2025-05-27_04-45-35.png
|
|

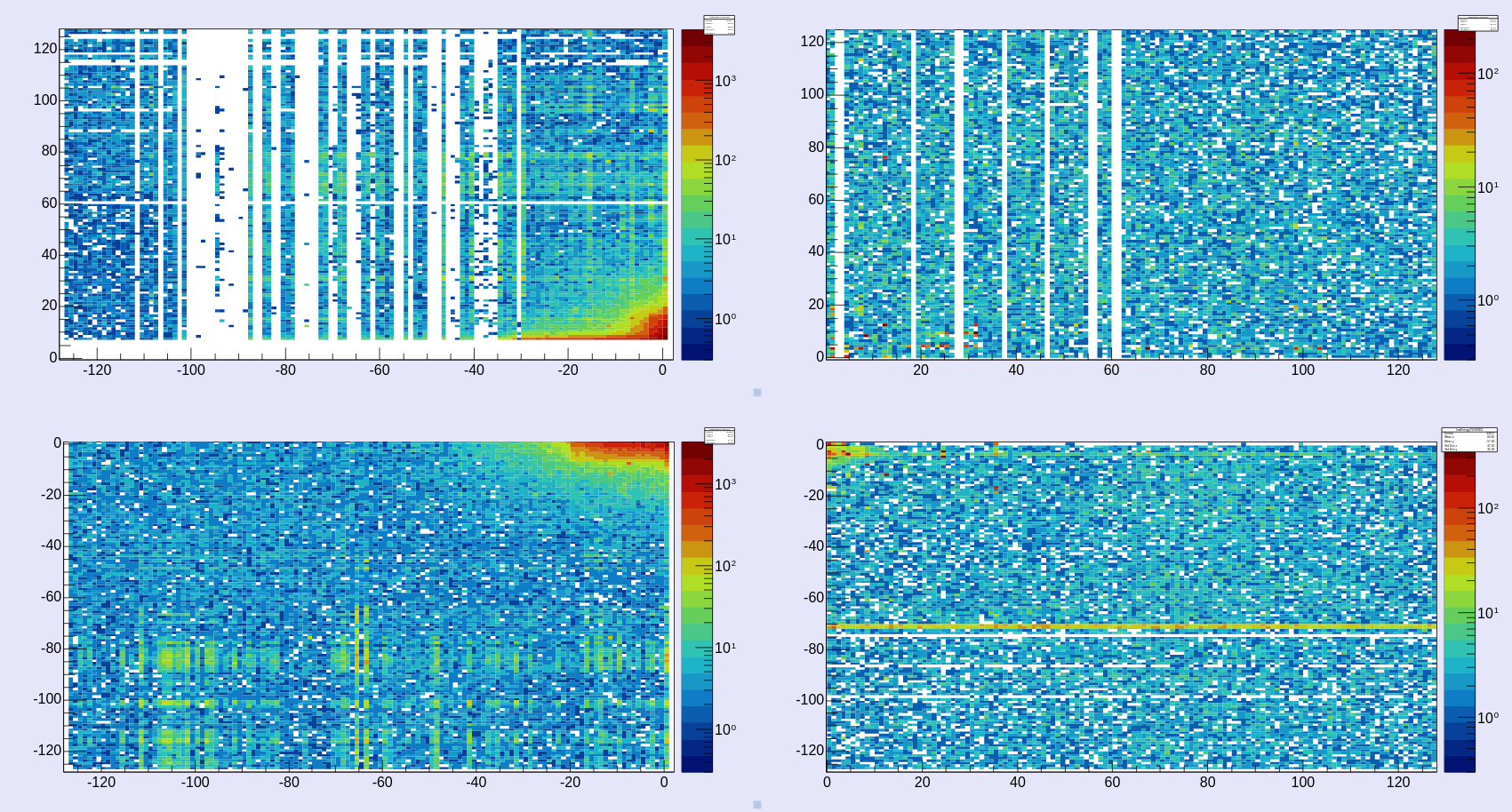

| Attachment 10: Screenshot_from_2025-05-27_04-57-15.png
|
|
| Attachment 11: Screenshot_from_2025-05-27_04-57-00.png
|
|
| Attachment 12: Screenshot_from_2025-05-27_05-10-36.png
|
|
|
691
|
Mon May 26 08:56:56 2025 |
EM,LB | Run20 | Run 20 running
We start a new run since the laser guys will do some measurements.
Zoran will increase the beam intensity
Detectors are out position
All checks are OK!
13:30
All checks are ok! |
| Attachment 1: Screenshot_from_2025-05-26_10-01-01.png
|
|

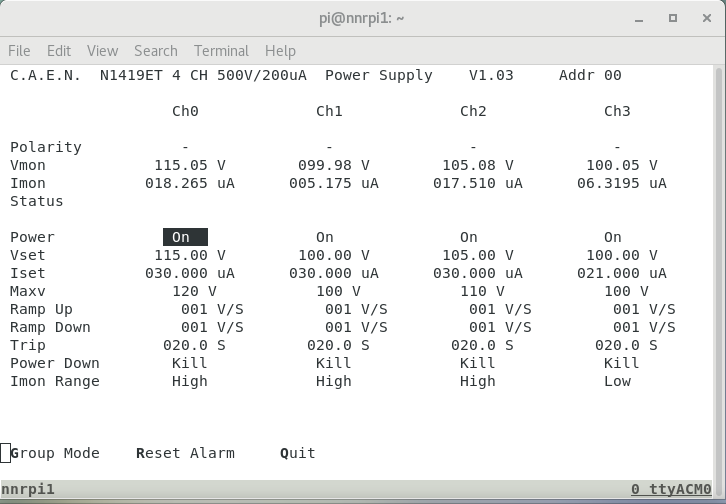

| Attachment 2: Screenshot_from_2025-05-26_10-01-19.png
|
|
| Attachment 3: Screenshot_from_2025-05-26_10-07-05.png
|
|
| Attachment 4: Screenshot_from_2025-05-26_13-32-57.png
|
|

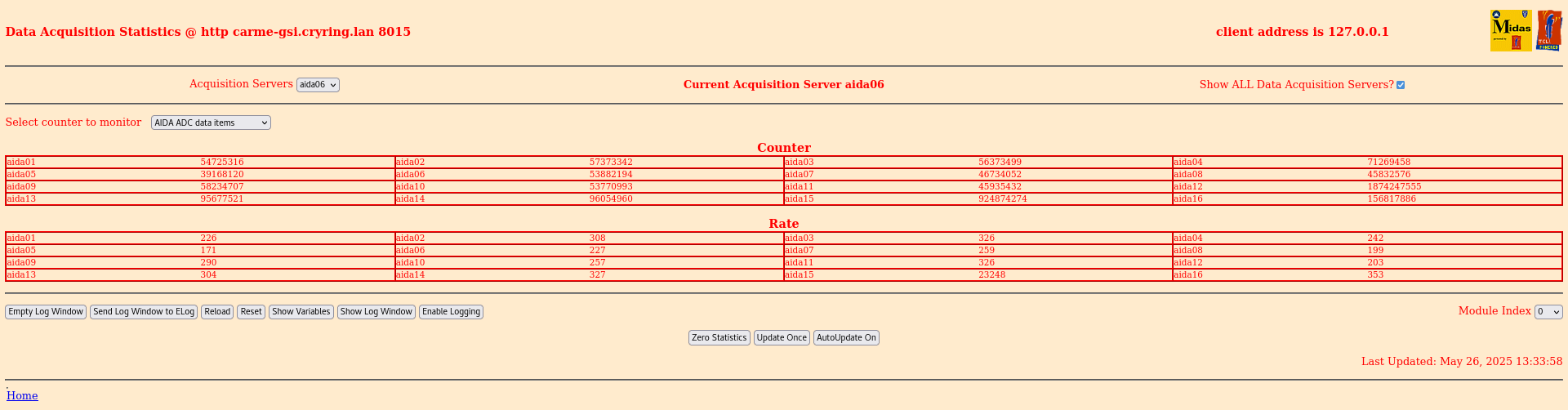

| Attachment 5: Screenshot_from_2025-05-26_13-33-49.png
|
|
| Attachment 6: Screenshot_from_2025-05-26_13-34-12.png
|
|

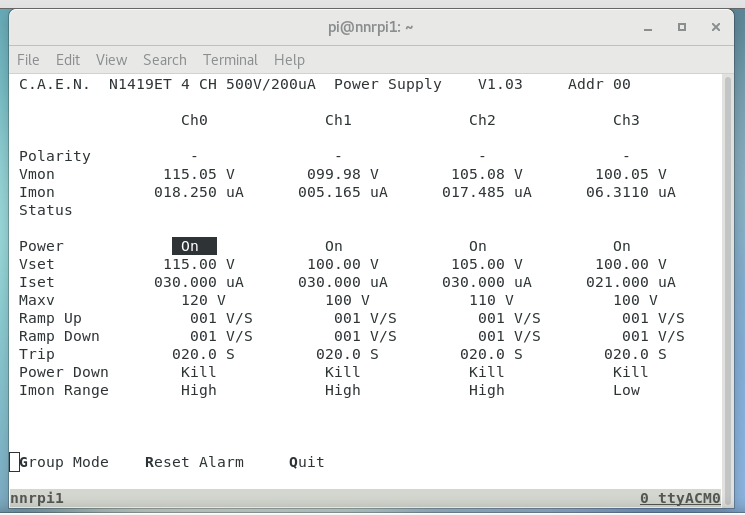

| Attachment 7: Screenshot_from_2025-05-26_13-34-50.png
|
|
| Attachment 8: Screenshot_from_2025-05-26_13-35-19.png
|
|
|
690
|
Sat May 24 18:27:55 2025 |
EM, LC | Background runs continued R17-R19 | Summary: Target not running. Background runs written to disk, some with beam some without.
19:27 Data file R17 running
DSSSD positions out. Nikos will work on the target.
Started a new run just after changing the DSSSD position
No storage enabled
All the checks are ok!
At 20:30 after 2h there was possible to open the cave again and Nikos started to cool down the target. However, is not clear if they can close the ring again...
22:12 The beam is back again. Cave closed and we are cooling downg the target!
Data file R18 started now.
DSSSD positions out.
No storage disabled.
All checks ok. See attached files Work on the target.
Sunday 25 May 2025
09:45 Data file R18 running
DSSSD positions out.
All checks ok!
12:05 Data file R18 running
DSSSD positions out.
All checks ok!
13:55 Data file R18 running
DSSSD positions out.
All checks ok!
15:50 Data file R19 running
DSSSD positions out.
Beam is off.
All checks ok!
21:50
All checks OK.
Monday 26.05.25 09:15
All checks OK. |

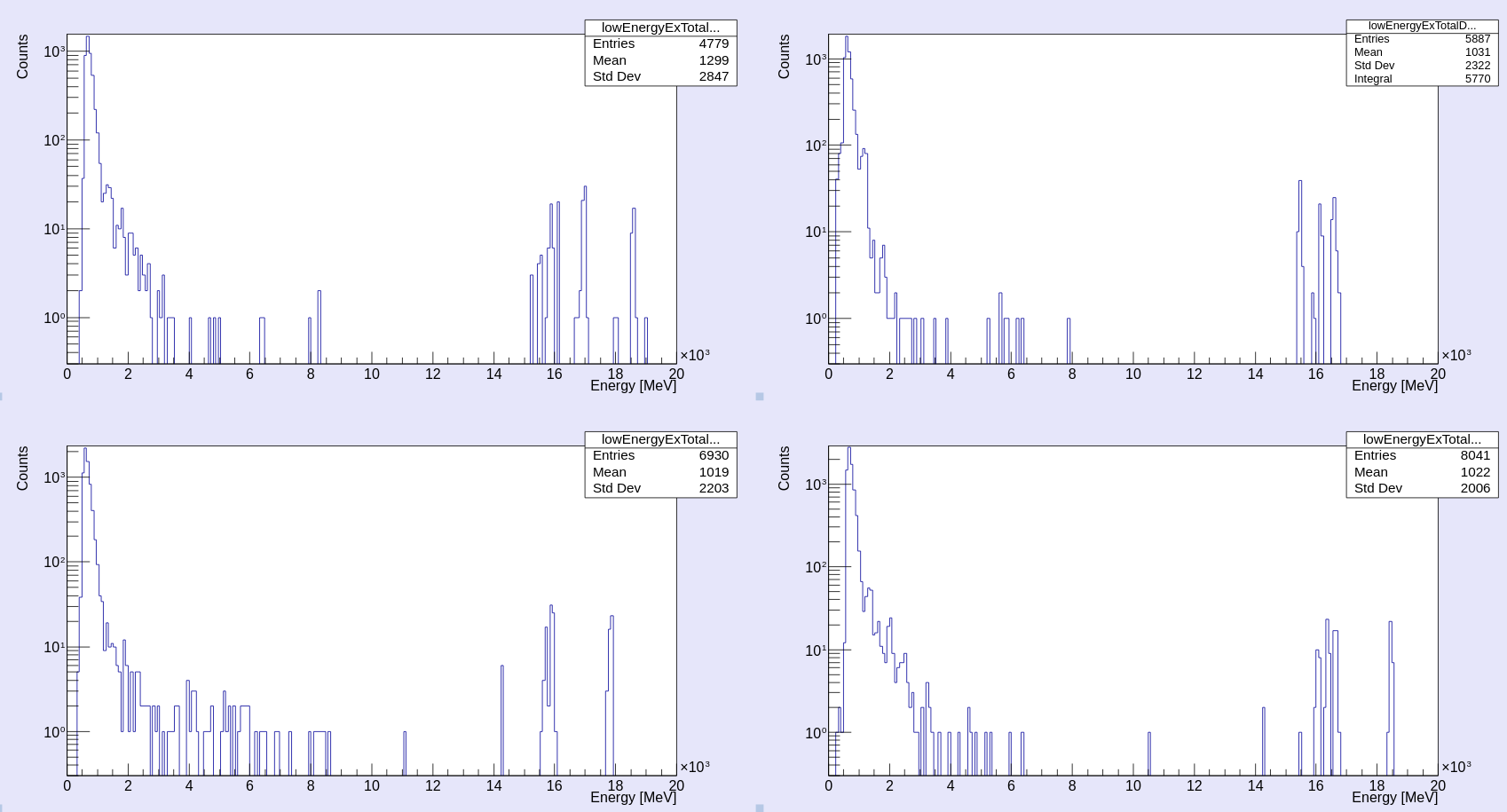

| Attachment 1: Screenshot_from_2025-05-24_20-32-56.png
|
|

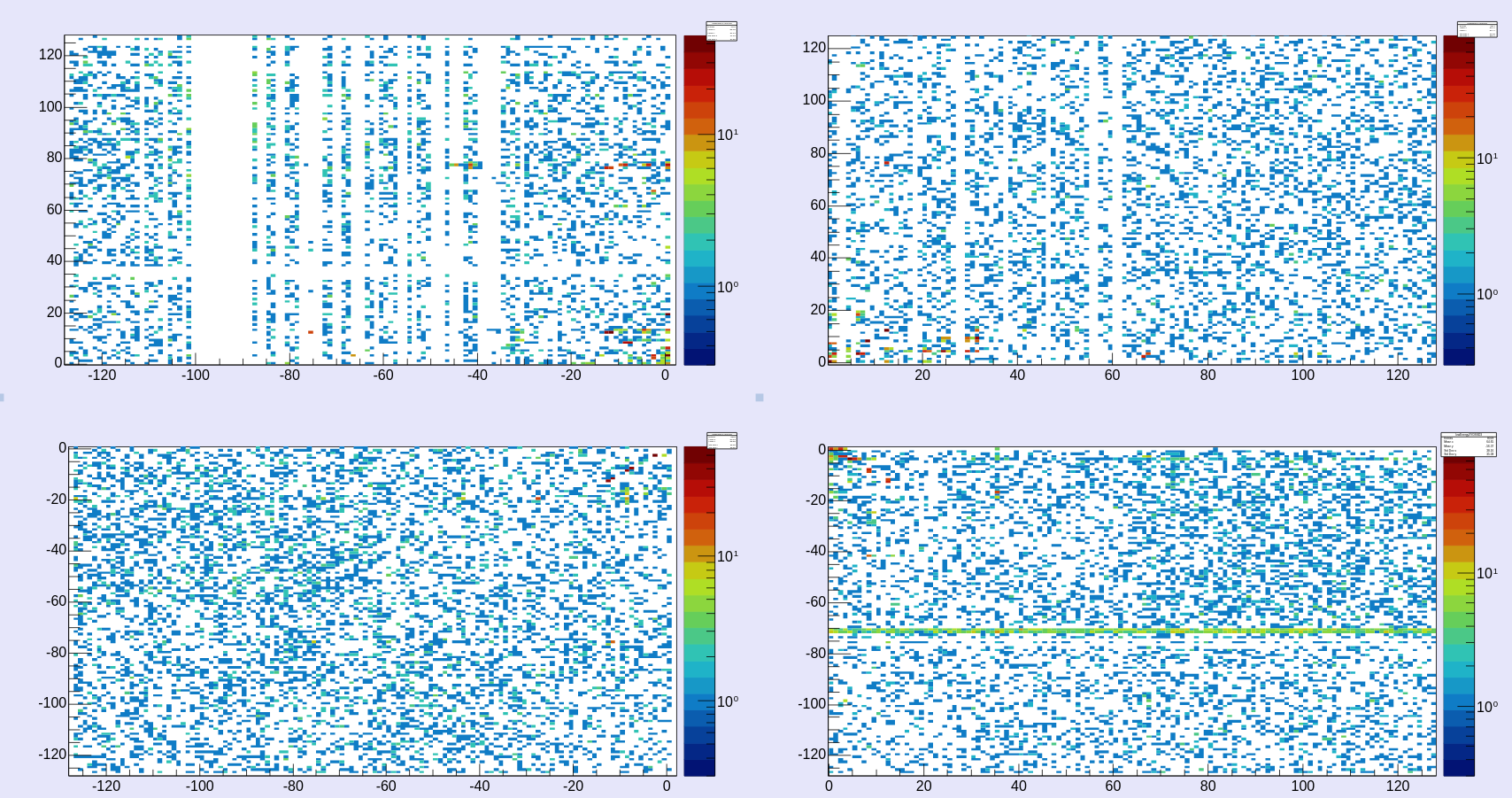

| Attachment 2: Screenshot_from_2025-05-24_20-32-43.png
|
|
| Attachment 3: Screenshot_from_2025-05-24_20-32-23.png
|
|
| Attachment 4: Screenshot_from_2025-05-24_20-32-02.png
|
|

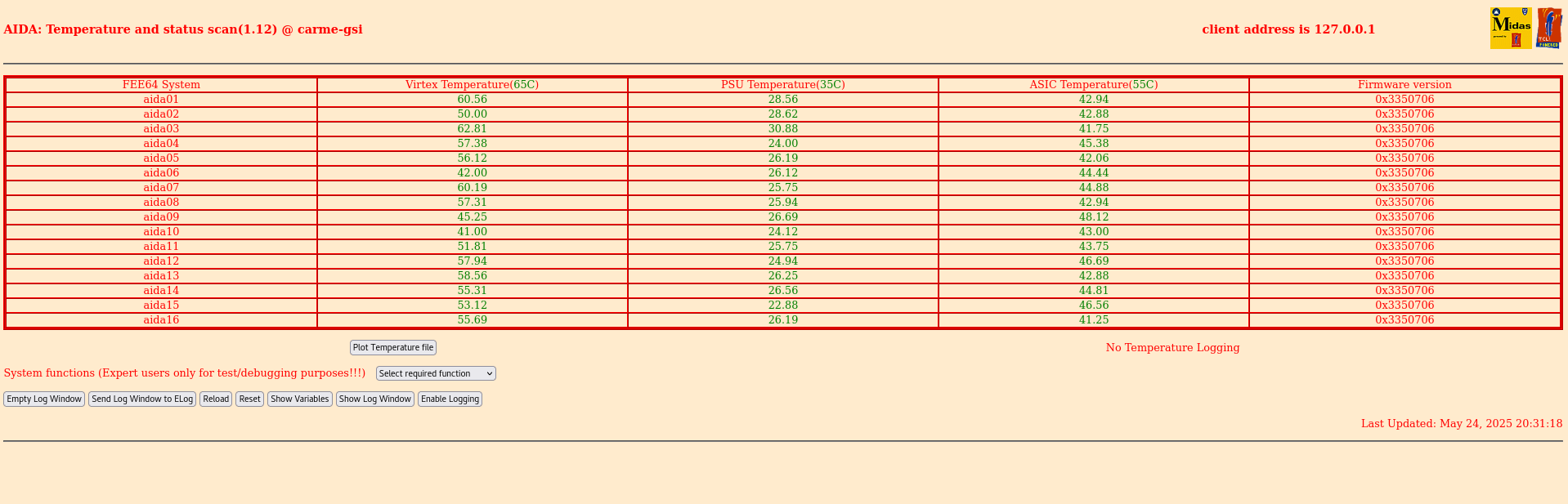

| Attachment 5: Screenshot_from_2025-05-24_20-31-28.png
|
|
| Attachment 6: Screenshot_from_2025-05-24_22-19-46.png
|
|

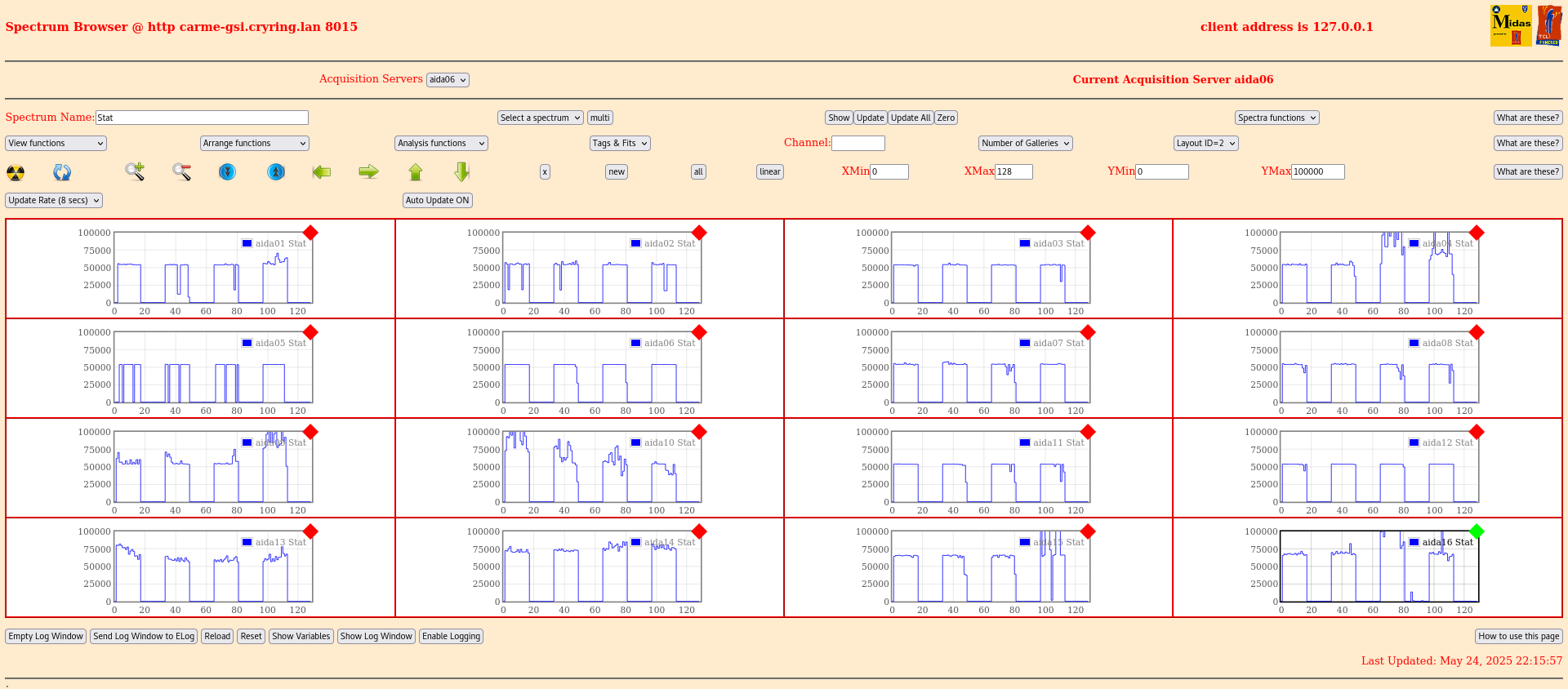

| Attachment 7: Screenshot_from_2025-05-24_22-16-14.png
|
|
| Attachment 8: Screenshot_from_2025-05-24_22-15-07.png
|
|

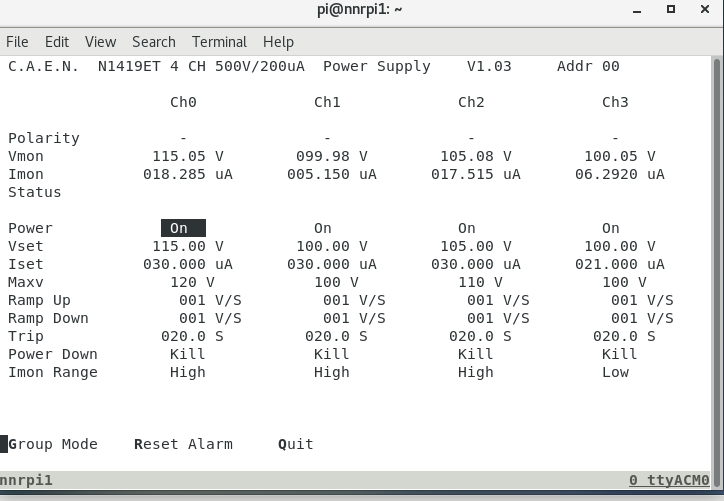

| Attachment 9: Screenshot_from_2025-05-24_22-14-00.png
|
|

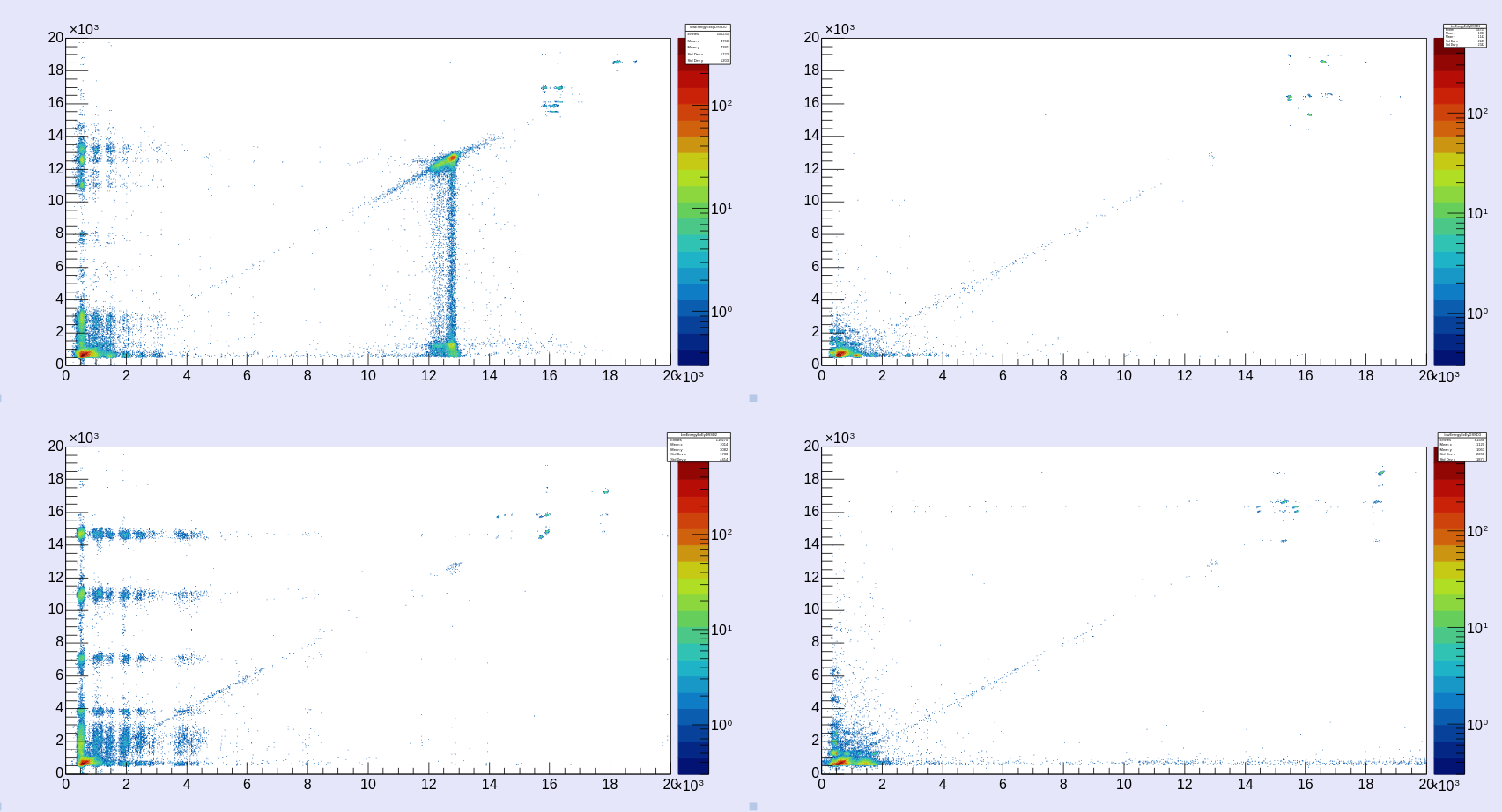

| Attachment 10: Screenshot_from_2025-05-25_09-48-48.png
|
|

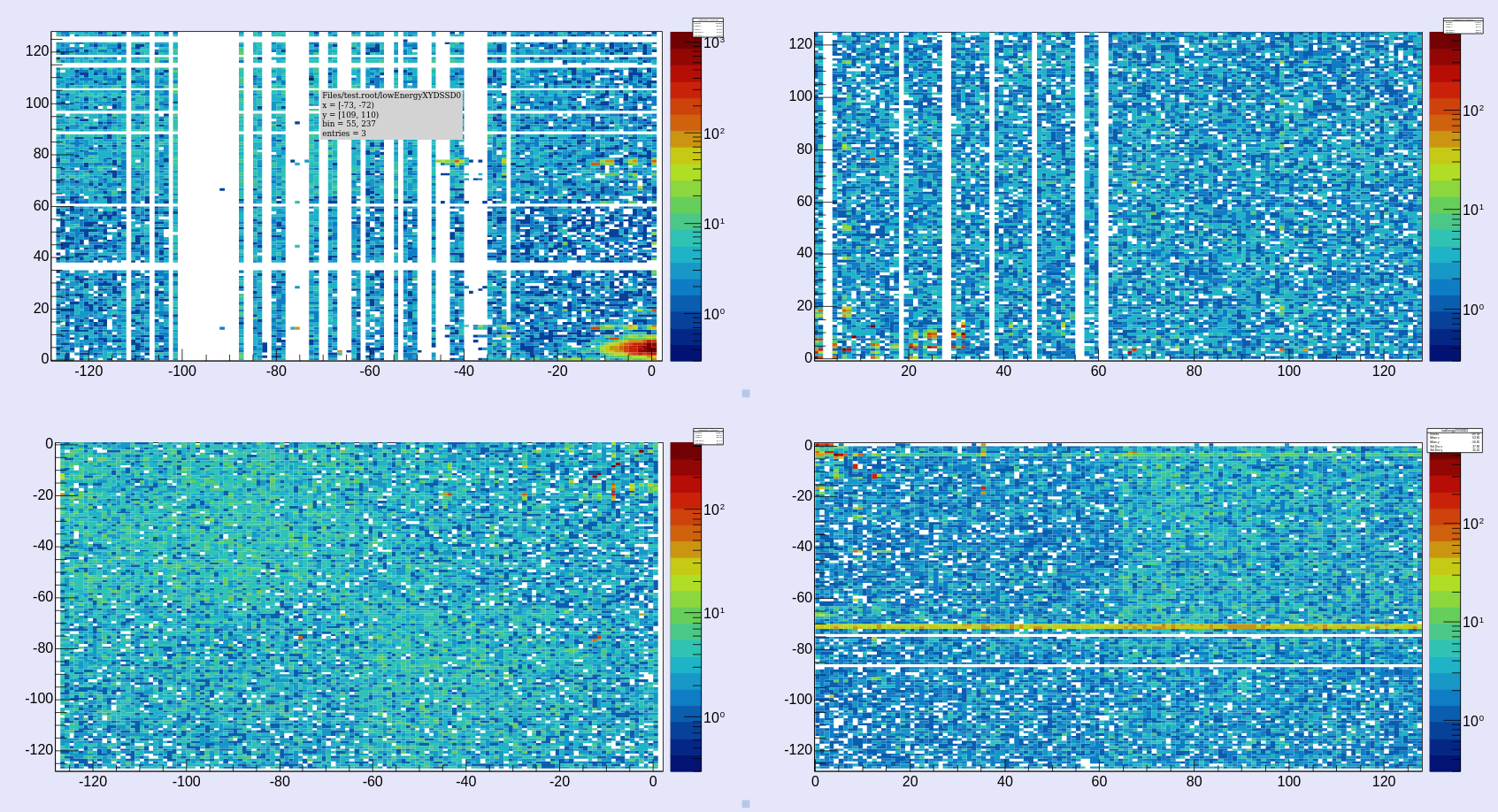

| Attachment 11: Screenshot_from_2025-05-25_09-48-28.png
|
|
| Attachment 12: Screenshot_from_2025-05-25_09-47-42.png
|
|

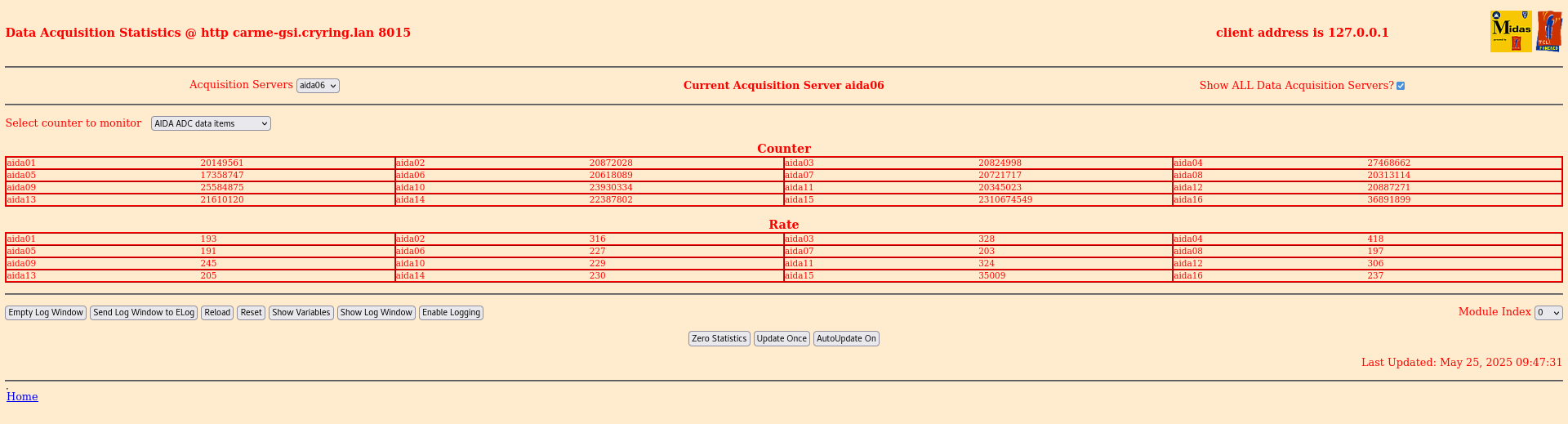

| Attachment 13: Screenshot_from_2025-05-25_09-47-22.png
|
|

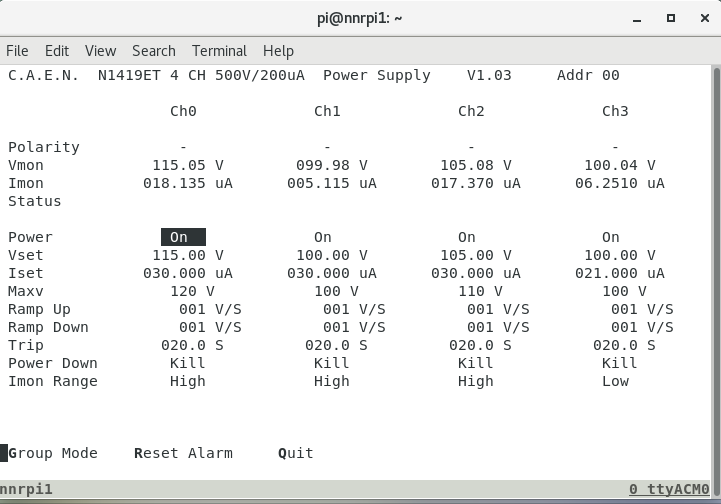

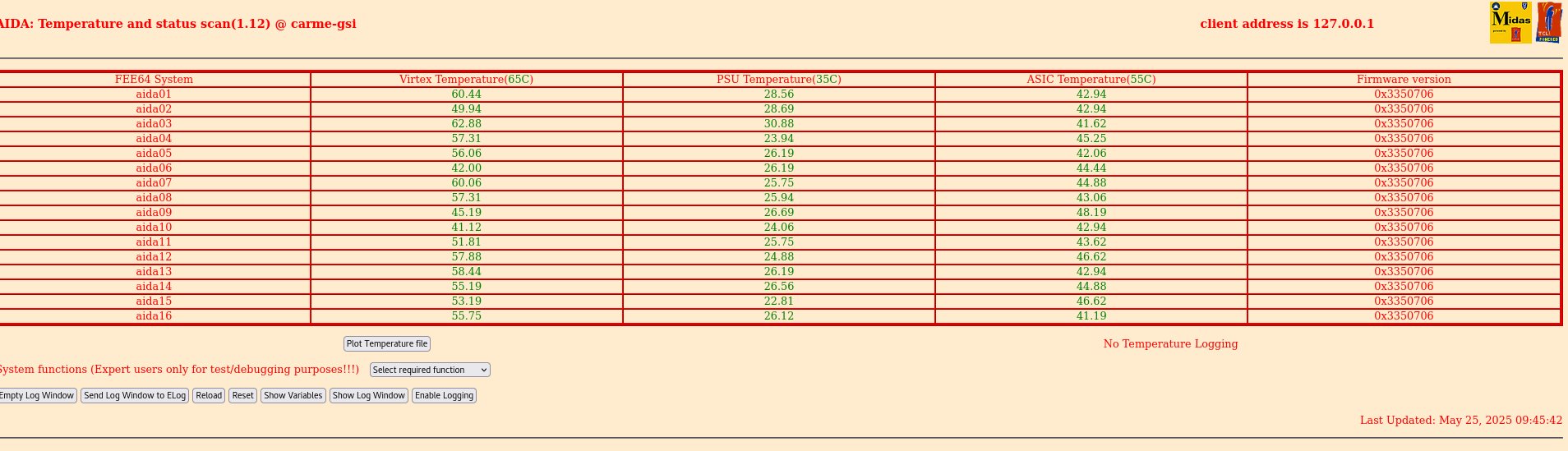

| Attachment 14: Screenshot_from_2025-05-25_09-45-08.png
|
|
| Attachment 15: Screenshot_from_2025-05-25_09-45-56.png
|
|
| Attachment 16: Screenshot_from_2025-05-25_12-07-27.png
|
|

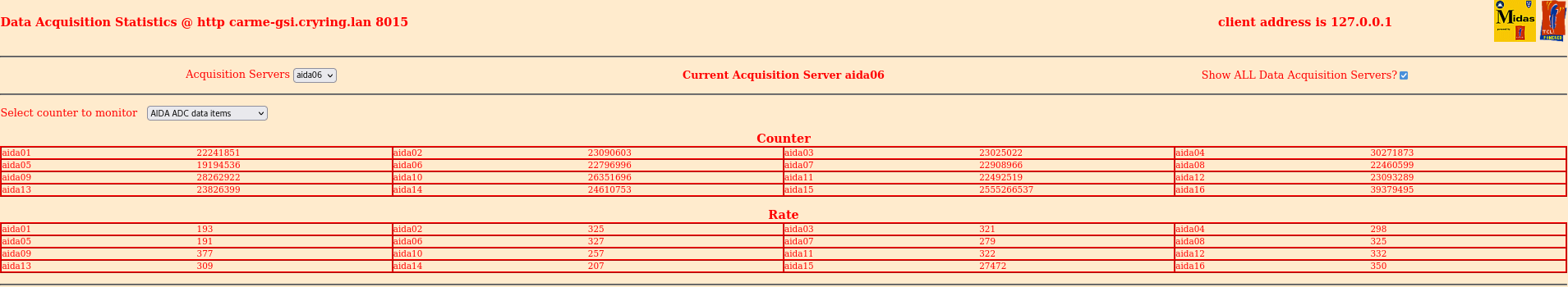

| Attachment 17: Screenshot_from_2025-05-25_12-07-53.png
|
|
| Attachment 18: Screenshot_from_2025-05-25_12-08-21.png
|
|
| Attachment 19: Screenshot_from_2025-05-25_12-08-49.png
|
|

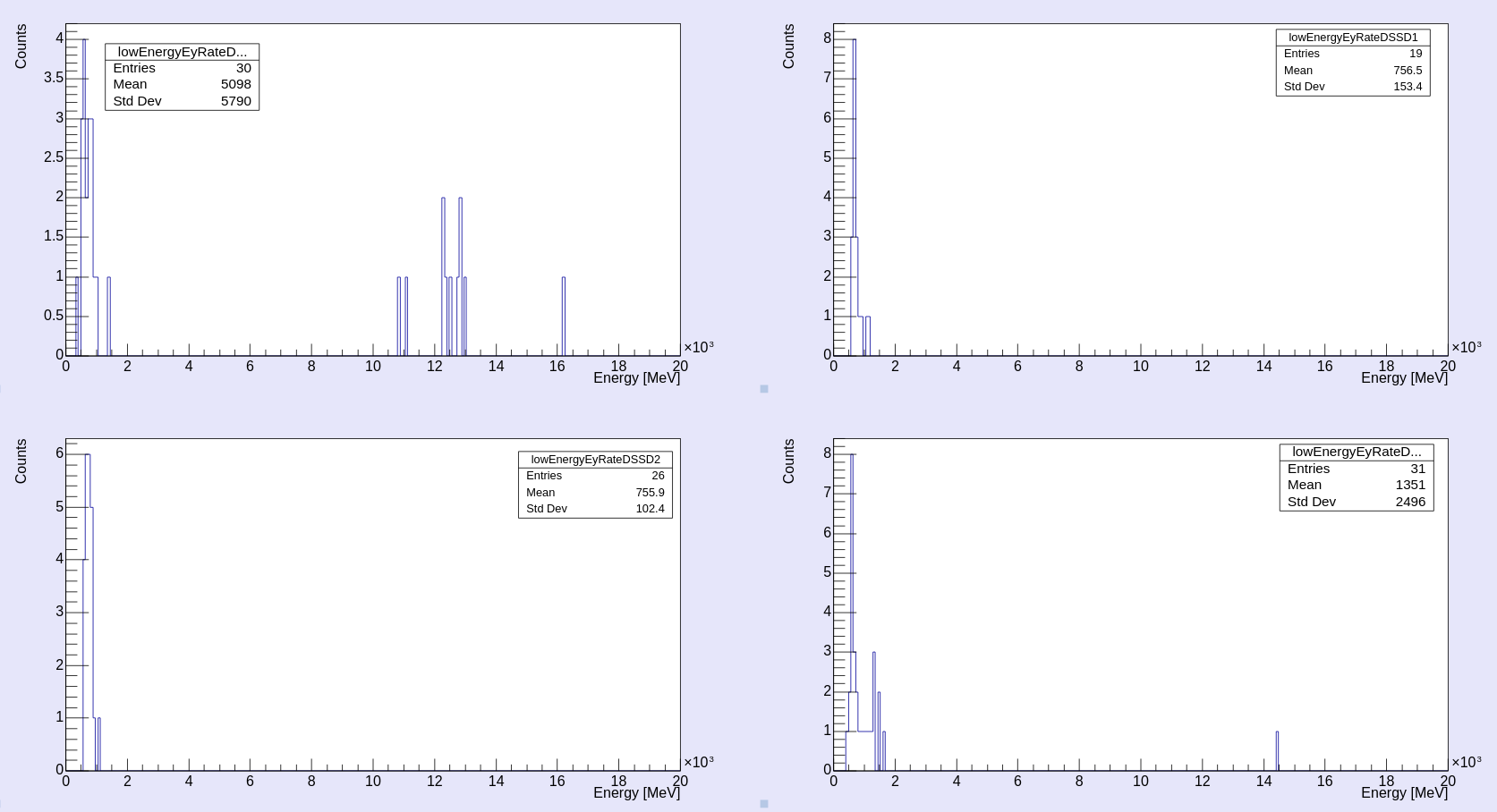

| Attachment 20: Screenshot_from_2025-05-25_12-09-06.png
|
|
| Attachment 21: Screenshot_from_2025-05-25_13-55-56.png
|
|

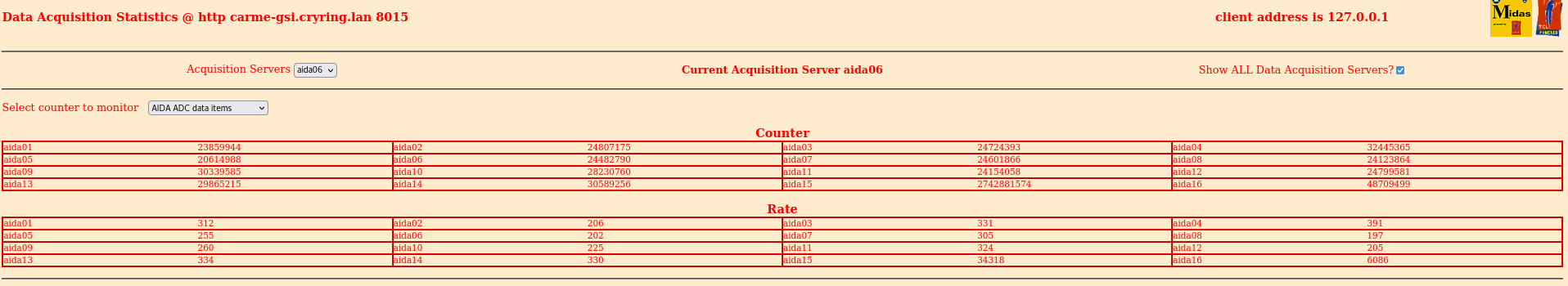

| Attachment 22: Screenshot_from_2025-05-25_13-56-18.png
|
|
| Attachment 23: Screenshot_from_2025-05-25_13-57-12.png
|
|
| Attachment 24: Screenshot_from_2025-05-25_13-57-33.png
|
|
| Attachment 25: Screenshot_from_2025-05-25_13-57-48.png
|
|
| Attachment 26: Screenshot_from_2025-05-25_15-47-50.png
|
|
| Attachment 27: Screenshot_from_2025-05-25_15-48-51.png
|
|
| Attachment 28: Screenshot_from_2025-05-25_15-49-14.png
|
|
| Attachment 29: Screenshot_from_2025-05-25_15-50-03.png
|
|

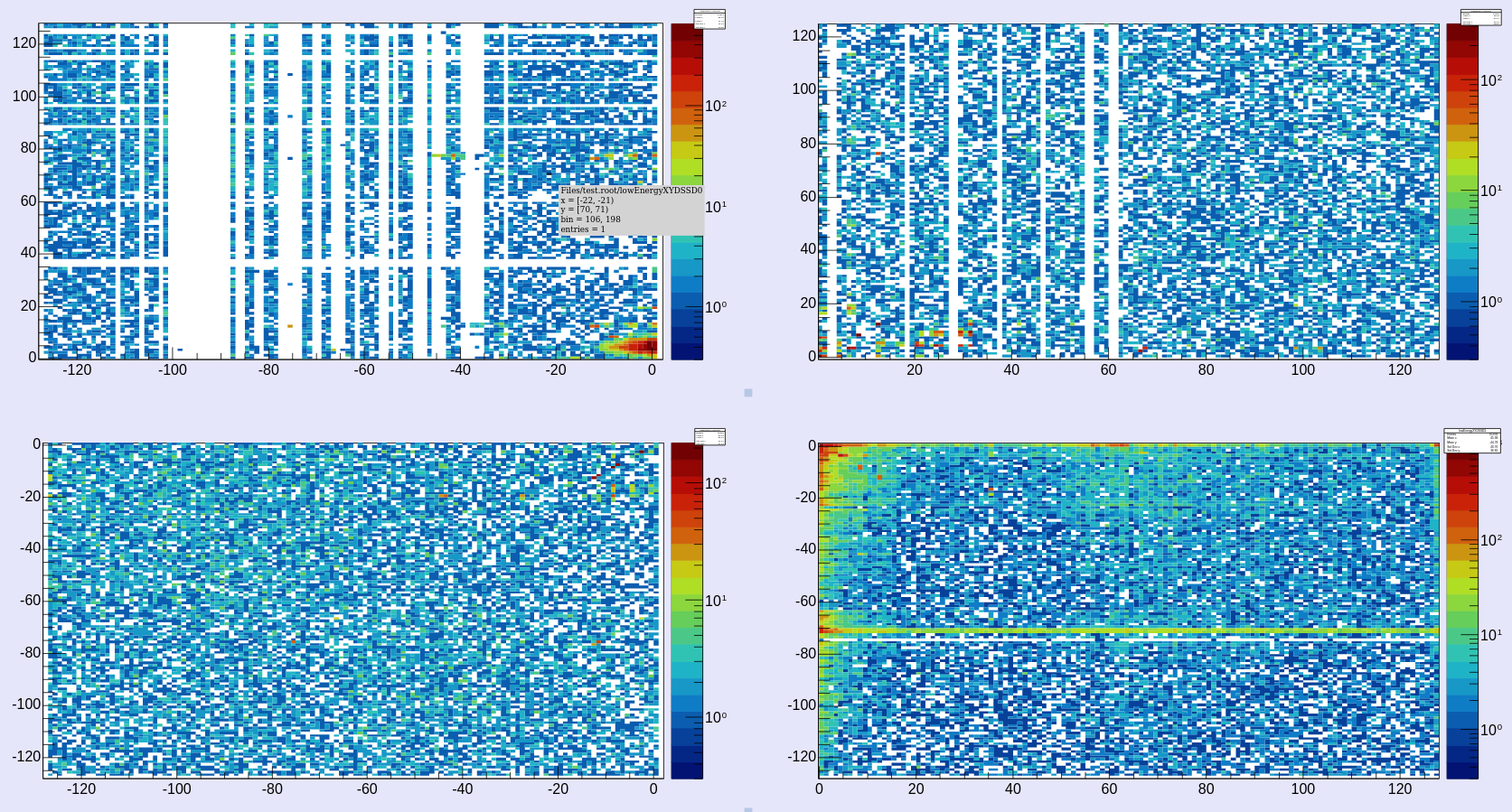

| Attachment 30: Screenshot_from_2025-05-25_15-50-35.png
|
|
| Attachment 31: Screenshot_from_2025-05-26_09-13-13.png
|
|
| Attachment 32: Screenshot_from_2025-05-26_09-13-47.png
|
|

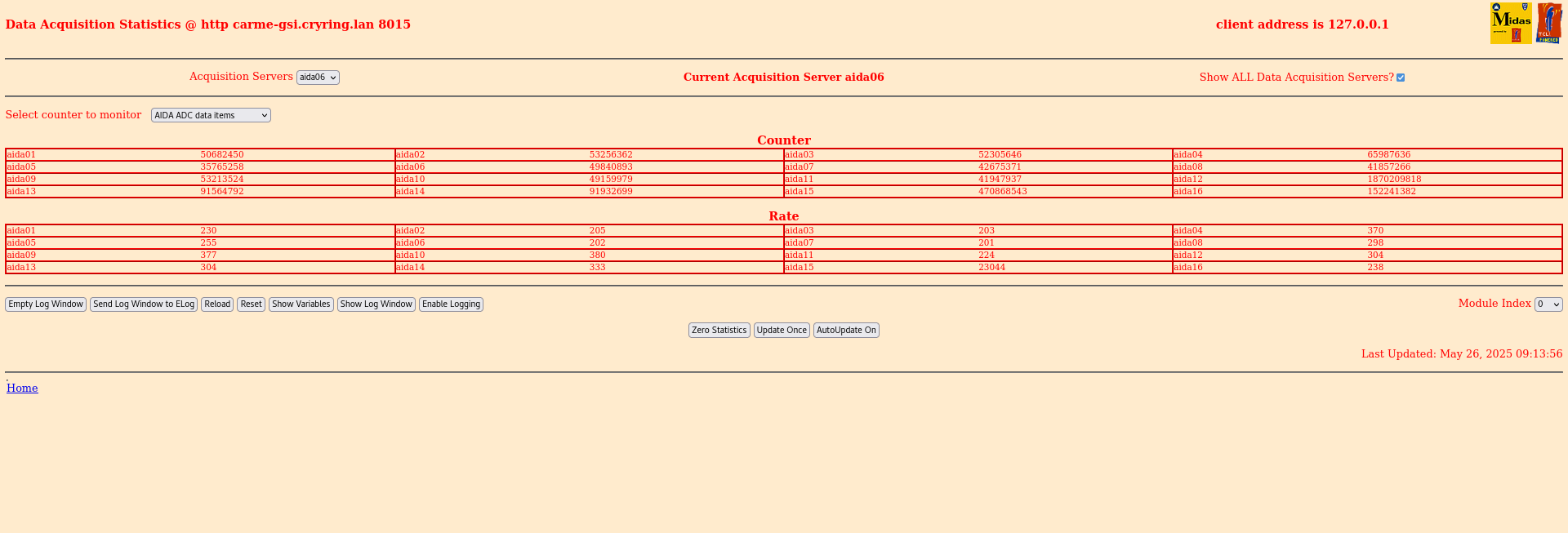

| Attachment 33: Screenshot_from_2025-05-26_09-14-04.png
|
|

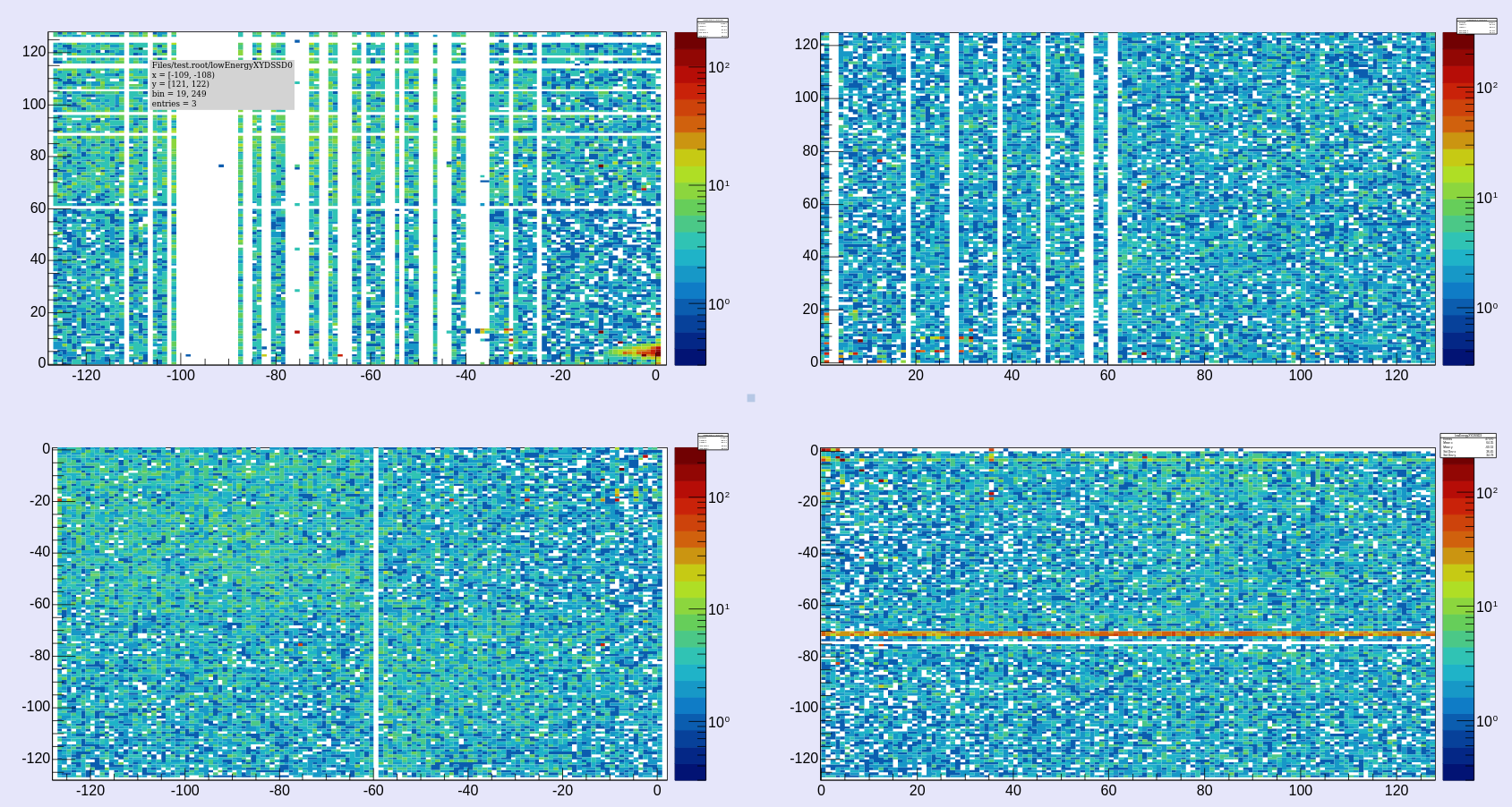

| Attachment 34: Screenshot_from_2025-05-26_09-14-18.png
|
|
| Attachment 35: Screenshot_from_2025-05-26_09-15-52.png
|
|

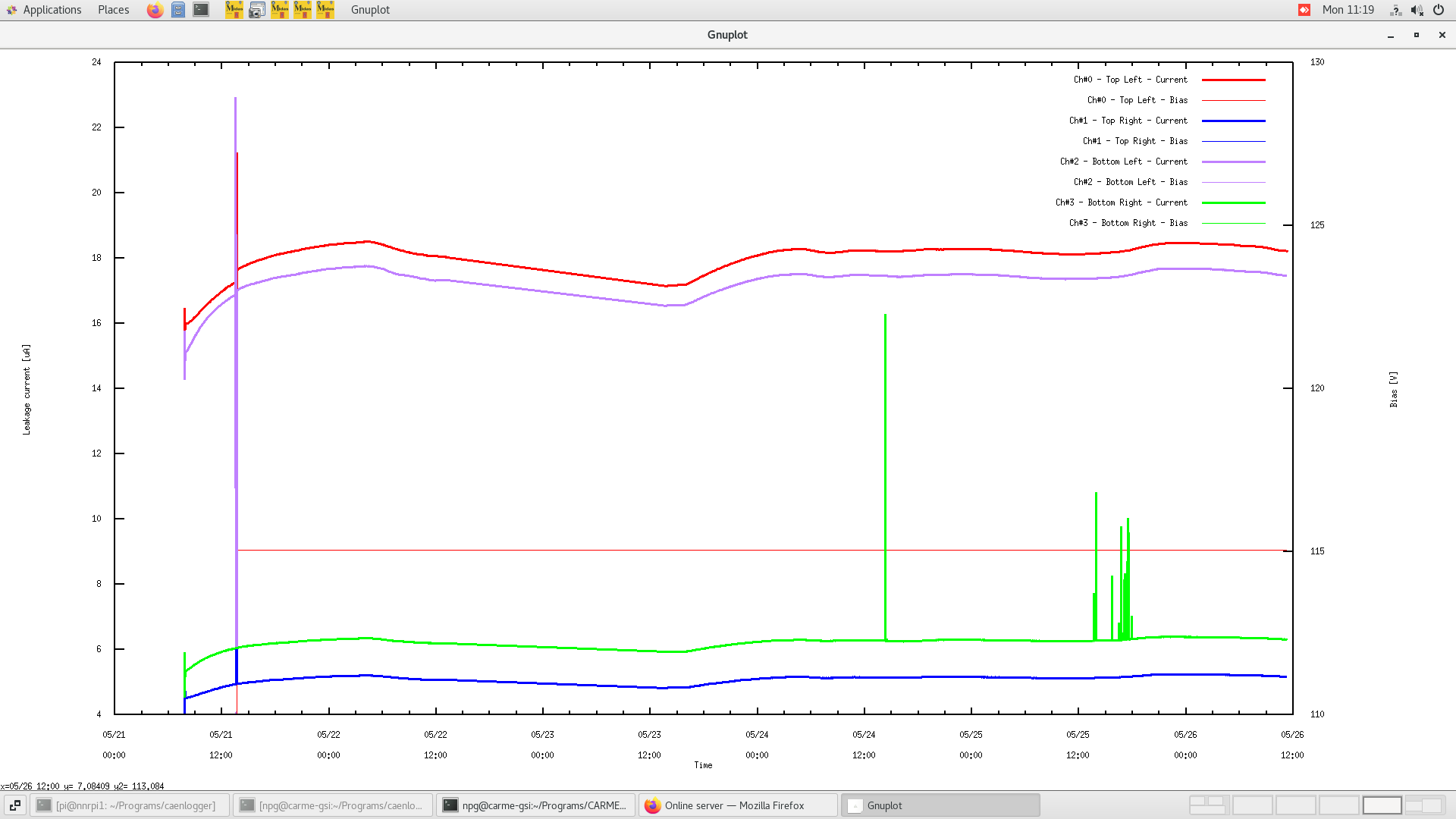

| Attachment 36: Screenshot_from_2025-05-26_11-19-49.png
|
|
|
689
|
Sat May 24 08:28:14 2025 |
TD, EM | Background runs R13-R16 | Summary: Target not running. Some background files written to disk, some with beam some without.
09.27 DAQ going
Switch from 'no storage' mode - alpha background
Data file R13
All histograms & stats zero'd
ASIC settings 2025Apr08-13.45.30
slow comparator 0x32
Pulser ON

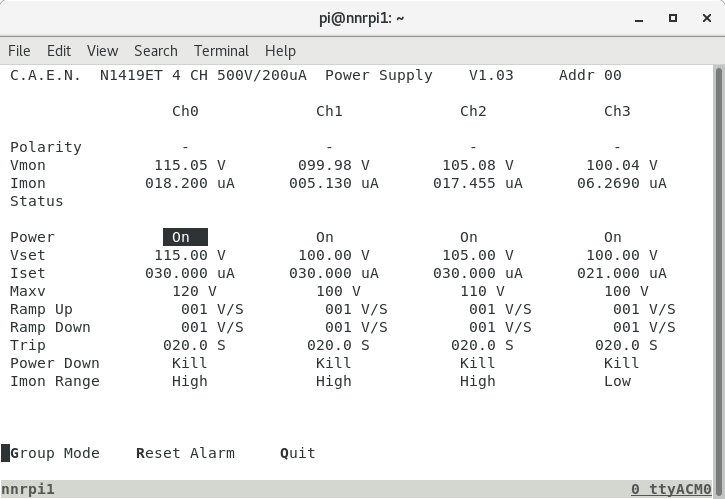

DSSSD bias & leakage currents OK - attachment 1-2
FEE64 temps OK - attachment 3
ADC data item stats - attachment 4
per FEE64 Rate spectra - attachment 5
WR timestamp OK - attachment 6
System wide checks OK *except* WR decoder/FPGA error - attachments 7-8
Merger & TapeServer - attachment 9-10
CRYRING vacuum & temperature - attachment 11-12
10.07 Laser group have completed their work in the CRYRING area - will now request 7Li beam
Tape Server to 'no storage' mode
10.45 Beam 7Li1+ c. 1e6
Switch from 'no storage' mode - alpha background
Data file R14
All histograms & stats zero'd; online analysis restarted
11.35 per FEE64 1.8.L spectra - attachments 13-14
pulser peak width aida03 78 ch FWHM, aida11 63 ch FWHM
per FEE64 1.8.W spectra - 20us FSR - attachments 15-18
12.55 DSSSD bias & leakage currents OK - attachment 19-20
FEE64 temps OK - attachment 21
ADC data item stats - attachment 22
14.33 Switch Tape Server from 'no storage' mode
Data file R15
DSSSD positions Left 36.54mm, Right 64.60mm
16:22 Data file R15 still running
DSSSD positions unchanged (Left 36.54mm, Right 64.60mm)
All the checks are ok!
18:30 Data file R16 running
DSSSD positions out. Nikos will work on the target.
Started a new run just after changing the DSSSD position
All the checks are ok! |
| Attachment 1: Screenshot_from_2025-05-24_09-30-00.png
|
|

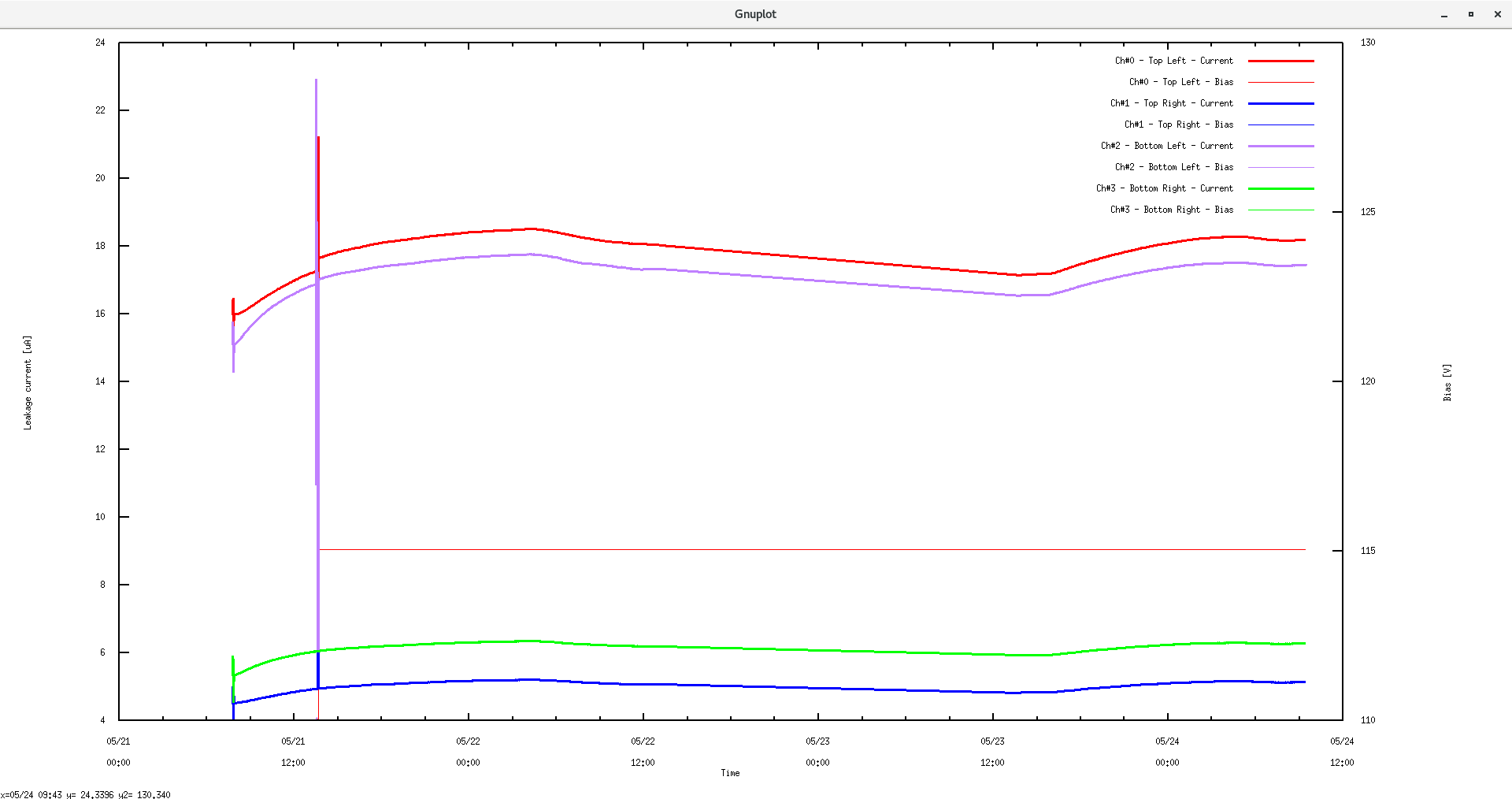

| Attachment 2: Screenshot_from_2025-05-24_09-30-11.png
|
|
| Attachment 3: Screenshot_from_2025-05-24_09-30-29.png
|
|
| Attachment 4: Screenshot_from_2025-05-24_09-30-39.png
|
|
| Attachment 5: Screenshot_from_2025-05-24_09-31-20.png
|
|
| Attachment 6: Screenshot_from_2025-05-24_09-31-44.png
|
|
| Attachment 7: Screenshot_from_2025-05-24_09-31-59.png
|
|
| Attachment 8: Screenshot_from_2025-05-24_09-32-04.png
|
|
| Attachment 9: Screenshot_from_2025-05-24_09-33-42.png
|
|
| Attachment 10: Screenshot_from_2025-05-24_09-33-47.png
|
|
| Attachment 11: 3.png
|
|

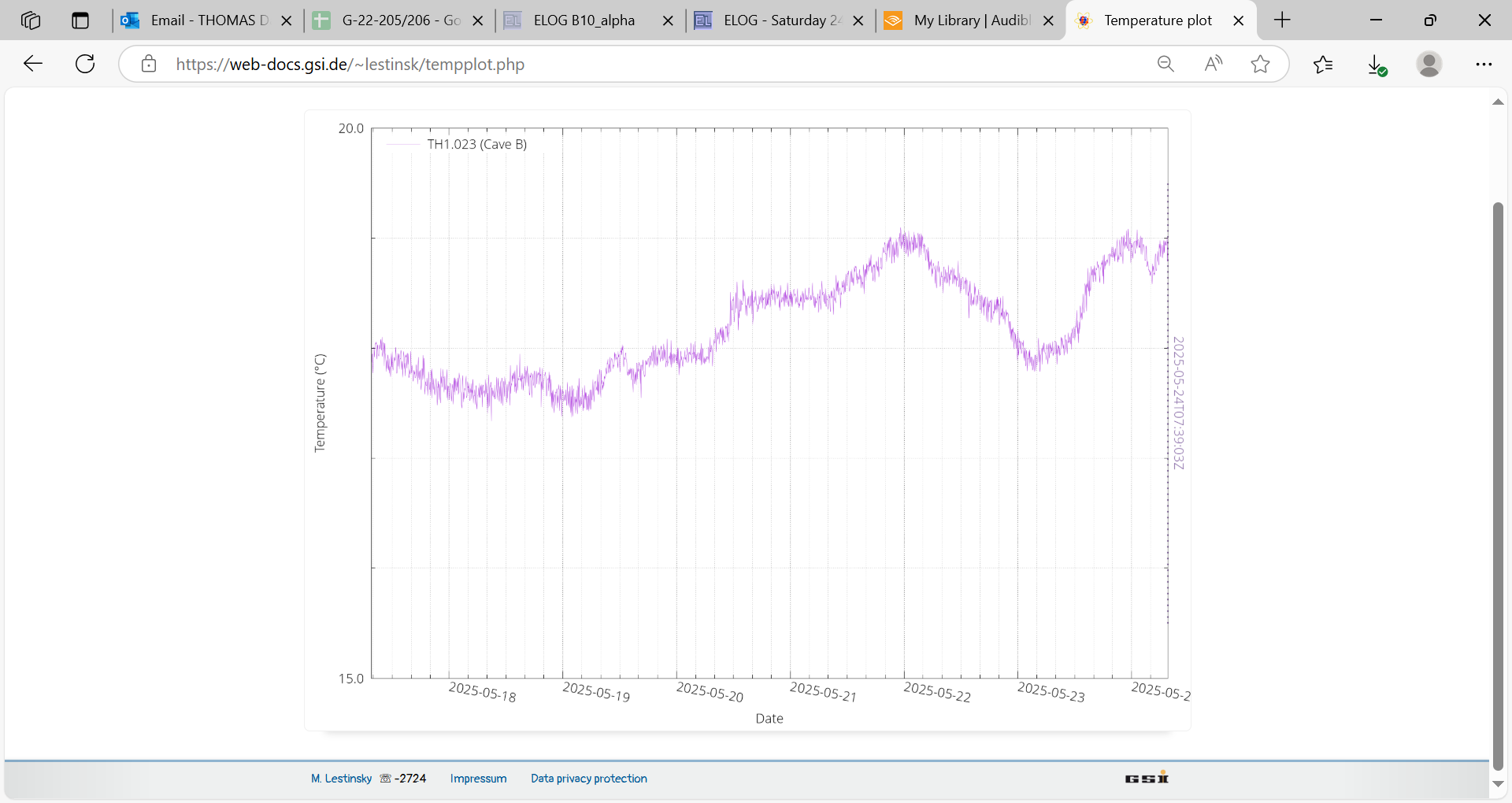

| Attachment 12: 4.png
|
|
| Attachment 13: Screenshot_from_2025-05-24_11-35-42.png
|
|

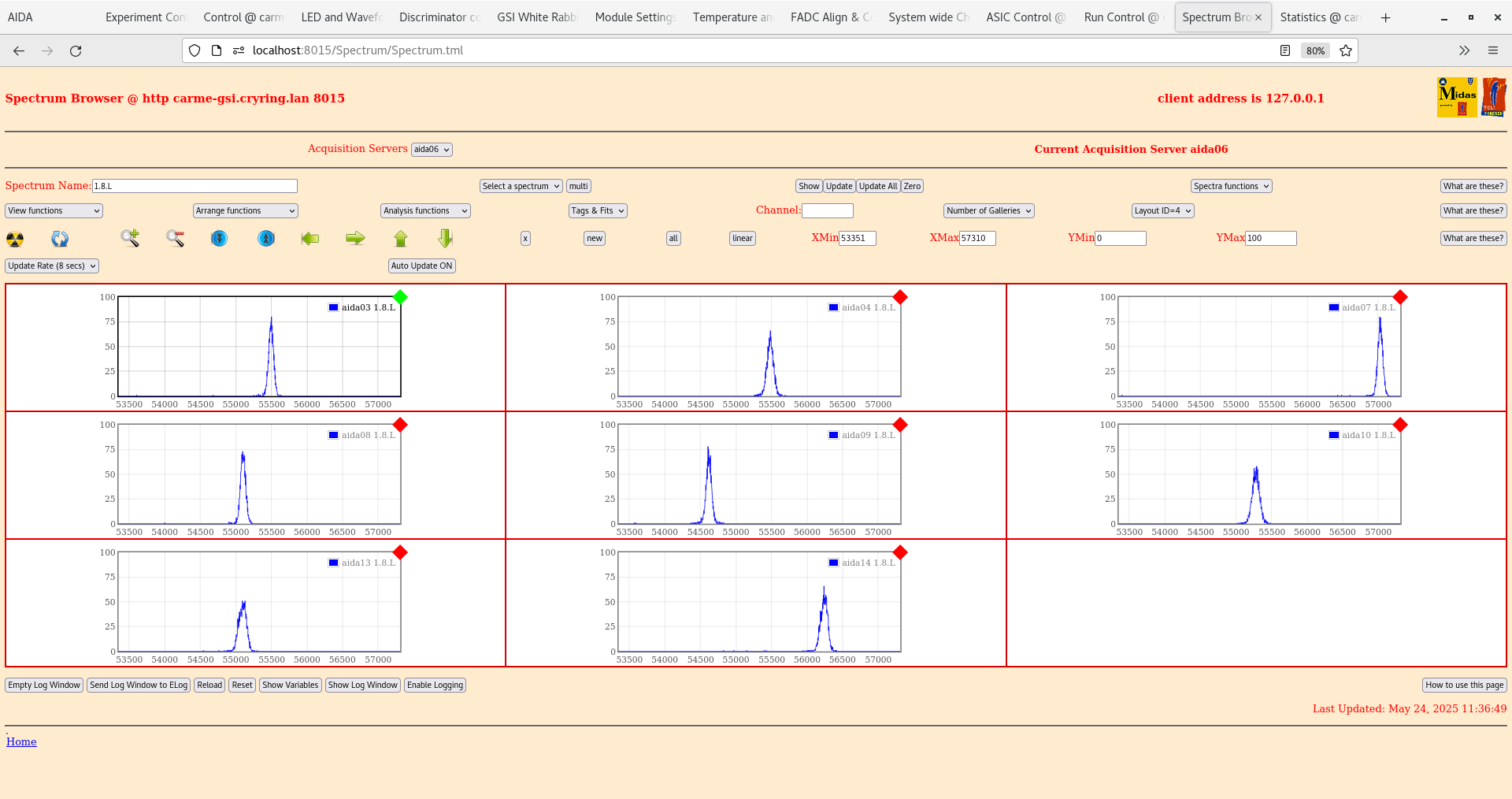

| Attachment 14: Screenshot_from_2025-05-24_11-36-51.png
|
|

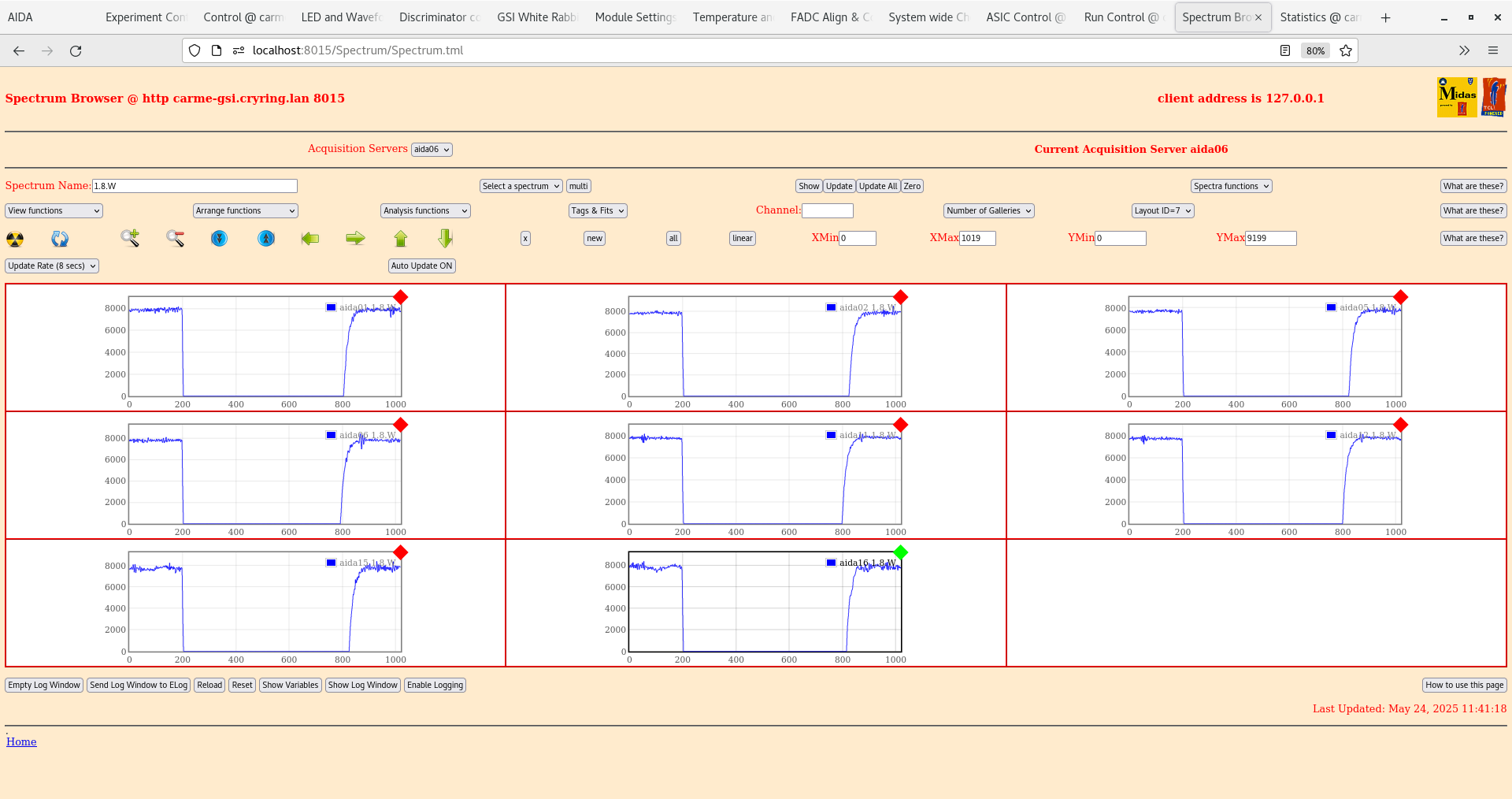

| Attachment 15: Screenshot_from_2025-05-24_11-41-27.png
|
|
| Attachment 16: Screenshot_from_2025-05-24_11-42-07.png
|
|
| Attachment 17: Screenshot_from_2025-05-24_11-42-24.png
|
|
| Attachment 18: Screenshot_from_2025-05-24_11-42-43.png
|
|
| Attachment 19: Screenshot_from_2025-05-24_12-55-39.png
|
|
| Attachment 20: Screenshot_from_2025-05-24_12-55-48.png
|
|
| Attachment 21: Screenshot_from_2025-05-24_12-56-11.png
|
|
| Attachment 22: Screenshot_from_2025-05-24_12-56-24.png
|
|
| Attachment 23: Screenshot_from_2025-05-24_16-24-01.png
|
|
| Attachment 24: Screenshot_from_2025-05-24_16-25-03.png
|
|

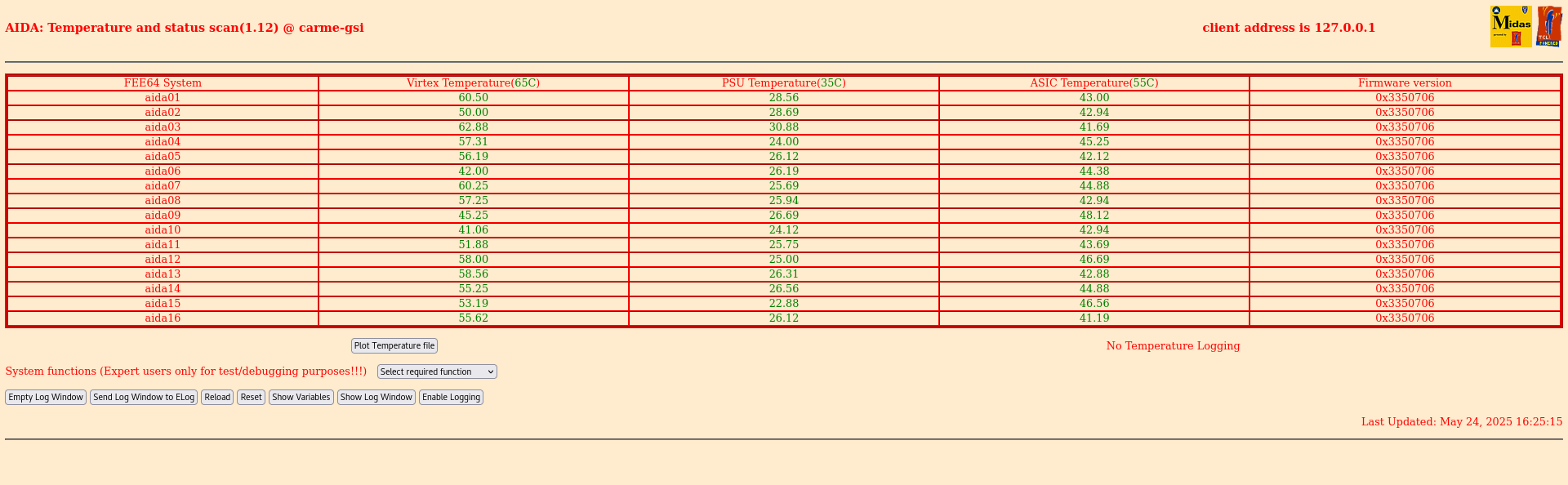

| Attachment 25: Screenshot_from_2025-05-24_16-25-27.png
|
|

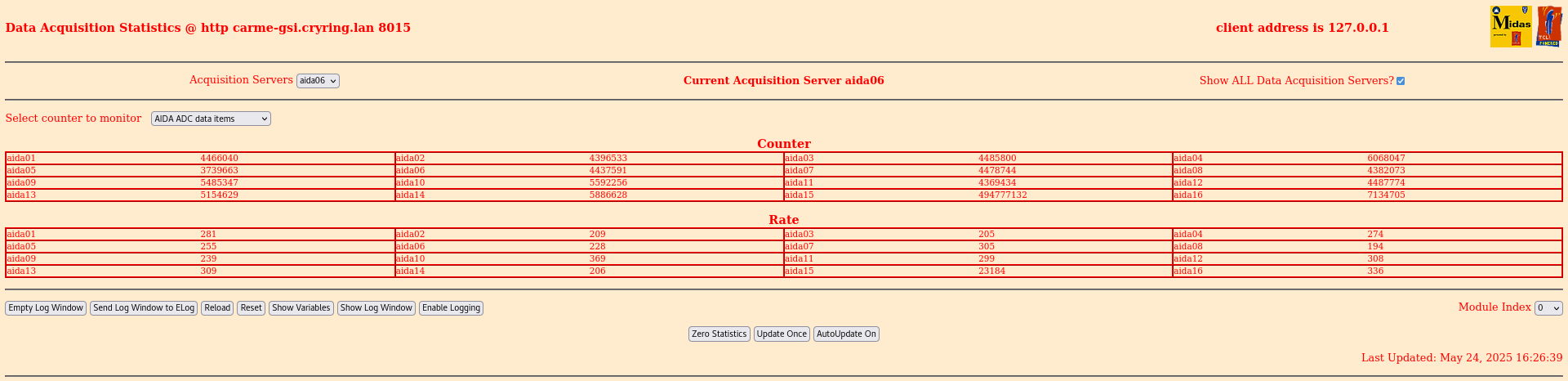

| Attachment 26: Screenshot_from_2025-05-24_16-26-50.png
|
|

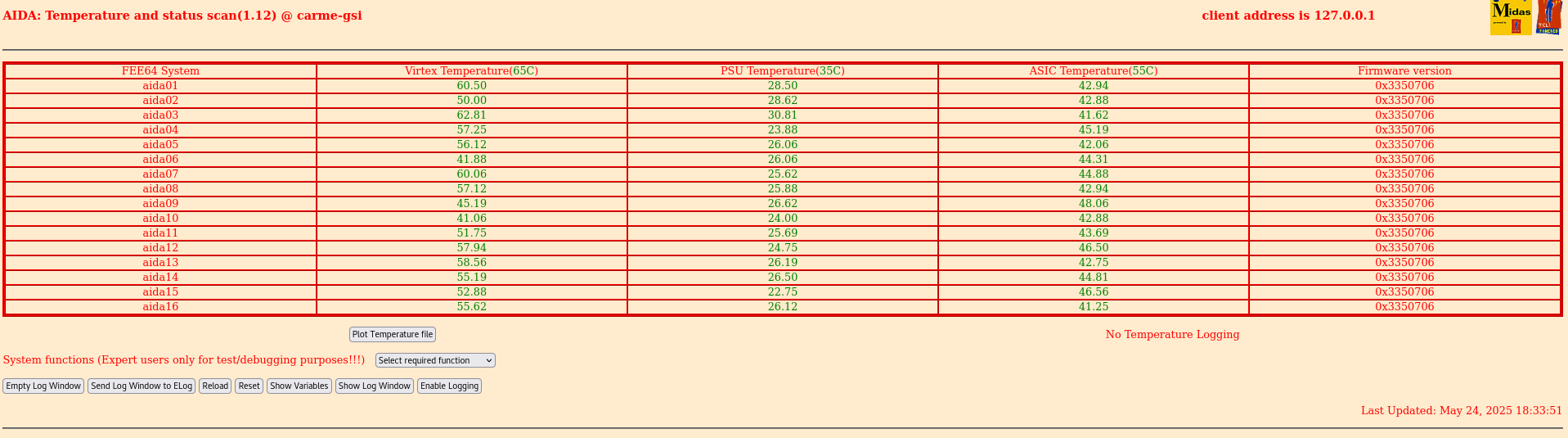

| Attachment 27: Screenshot_from_2025-05-24_18-33-59.png
|
|
| Attachment 28: Screenshot_from_2025-05-24_18-34-56.png
|
|

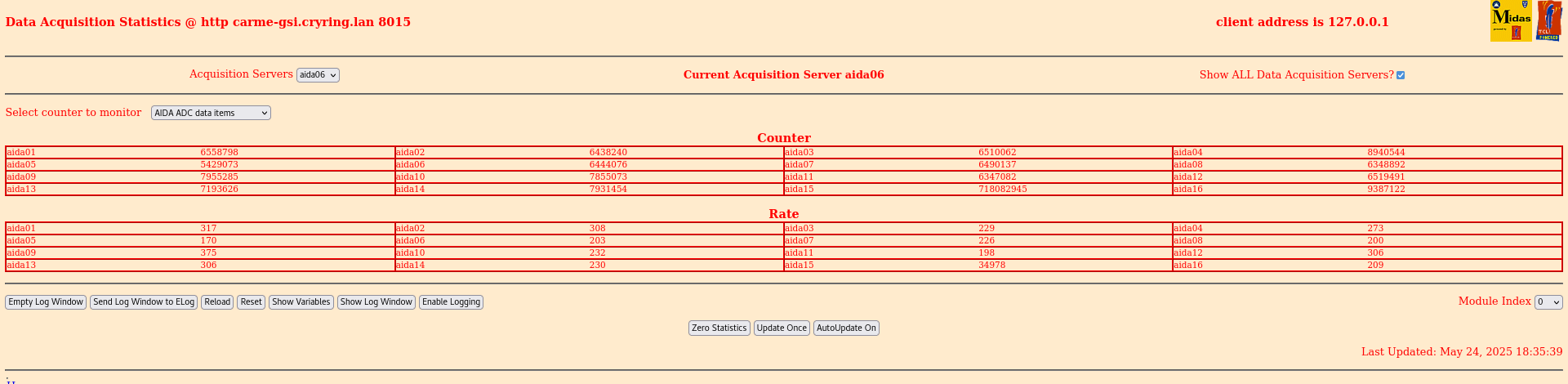

| Attachment 29: Screenshot_from_2025-05-24_18-35-51.png
|
|
|
